2014 PEUGEOT 5008 Owners Manual

6
Fittings127

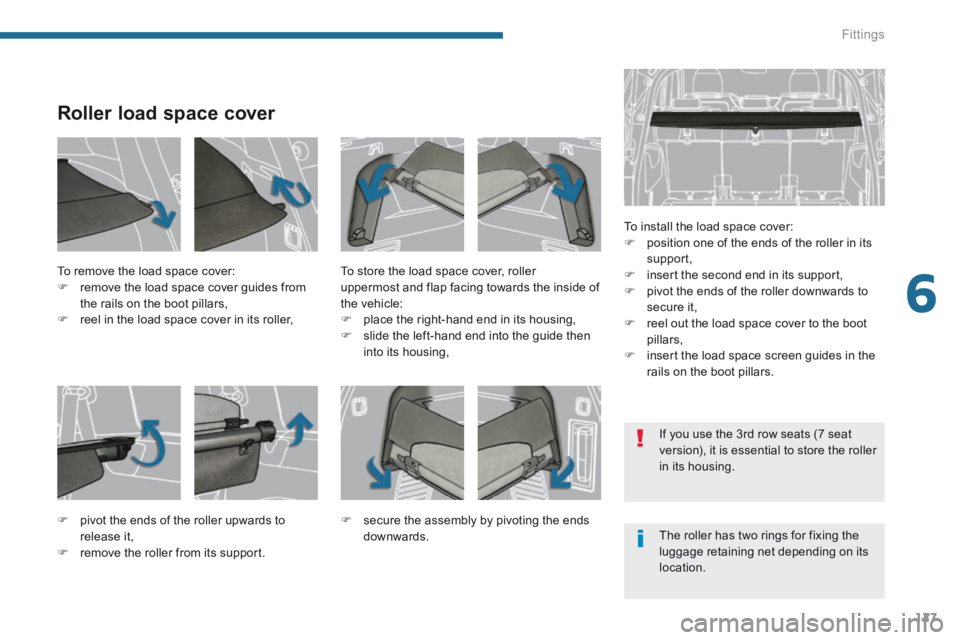

Roller load space cover
To install the load space cover:  position one of the ends of the roller in its support,  insert the second end in its support,  pivot the ends of the roller downwards to secure it,  reel out the load space cover to the boot pillars,  insert the load space screen guides in the rails on the boot pillars.
To remove the load space cover:  remove the load space cover guides from the rails on the boot pillars,  reel in the load space cover in its roller,
To store the load space cover, roller uppermost and flap facing towards the inside of the vehicle:  place the right-hand end in its housing, slide the left-hand end into the guide then into its housing,
 pivot the ends of the roller upwards to release it,  remove the roller from its support.
 secure the assembly by pivoting the ends downwards. The roller has two rings for fixing the luggage retaining net depending on its location.
If you use the 3 rd row seats (7 seat version), it is essential to store the roller in its housing.

Fittings
128

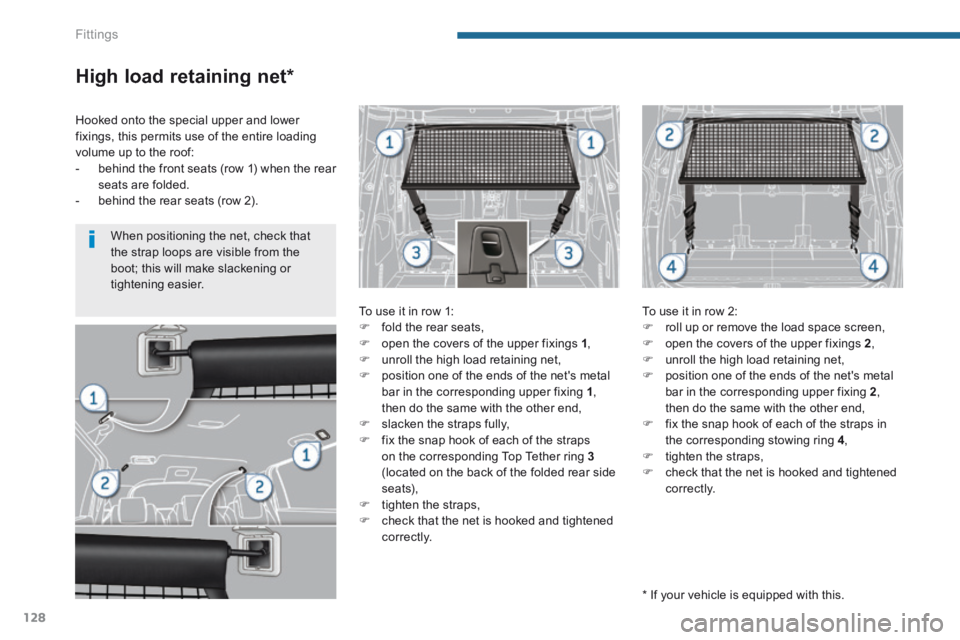

High load retaining net *
To use it in row 1:  fold the rear seats,  open the covers of the upper fixings 1 ,  unroll the high load retaining net,  position one of the ends of the net's metal bar in the corresponding upper fixing 1 , then do the same with the other end,  slacken the straps fully,  fix the snap hook of each of the straps on the corresponding Top Tether ring 3(located on the back of the folded rear side seats),  tighten the straps,  check that the net is hooked and tightened
c o r r e c t l y.
To use it in row 2:  roll up or remove the load space screen,  open the covers of the upper fixings 2 ,  unroll the high load retaining net,  position one of the ends of the net's metal bar in the corresponding upper fixing 2 , then do the same with the other end,  fix the snap hook of each of the straps in the corresponding stowing ring 4 ,  tighten the straps,  check that the net is hooked and tightened c o r r e c t l y.
Hooked onto the special upper and lower fixings, this permits use of the entire loading volume up to the roof: - behind the front seats (row 1) when the rear seats are folded. - behind the rear seats (row 2).
* If your vehicle is equipped with this.
When positioning the net, check that the strap loops are visible from the boot; this will make slackening or tightening easier.

6
Fittings129

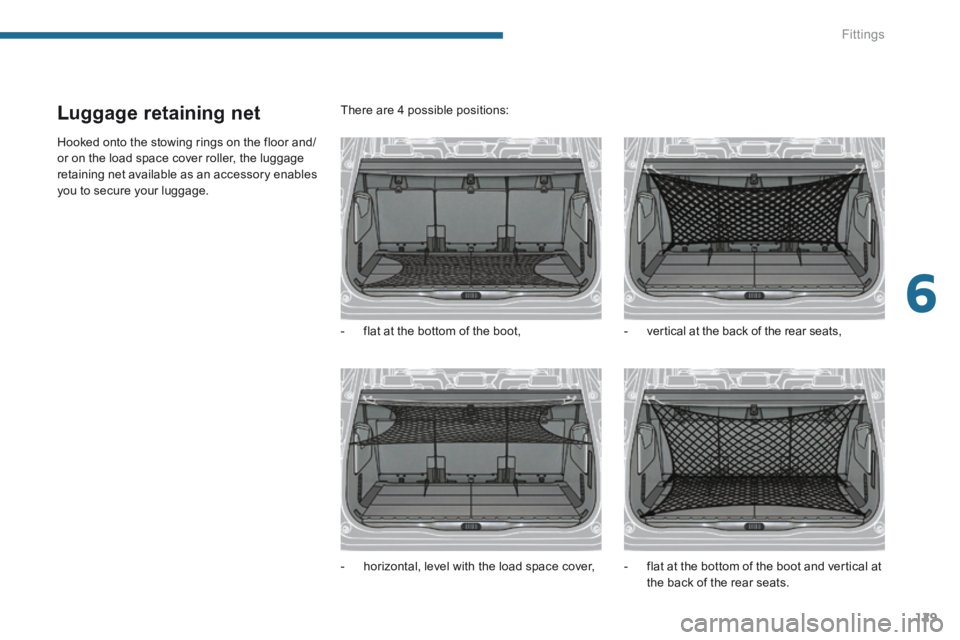

Luggage retaining net
Hooked onto the stowing rings on the floor and/or on the load space cover roller, the luggage retaining net available as an accessory enables you to secure your luggage.
There are 4 possible positions:
- flat at the bottom of the boot,
- horizontal, level with the load space cover,
- vertical at the back of the rear seats,
- flat at the bottom of the boot and vertical at the back of the rear seats.

Fittings
130

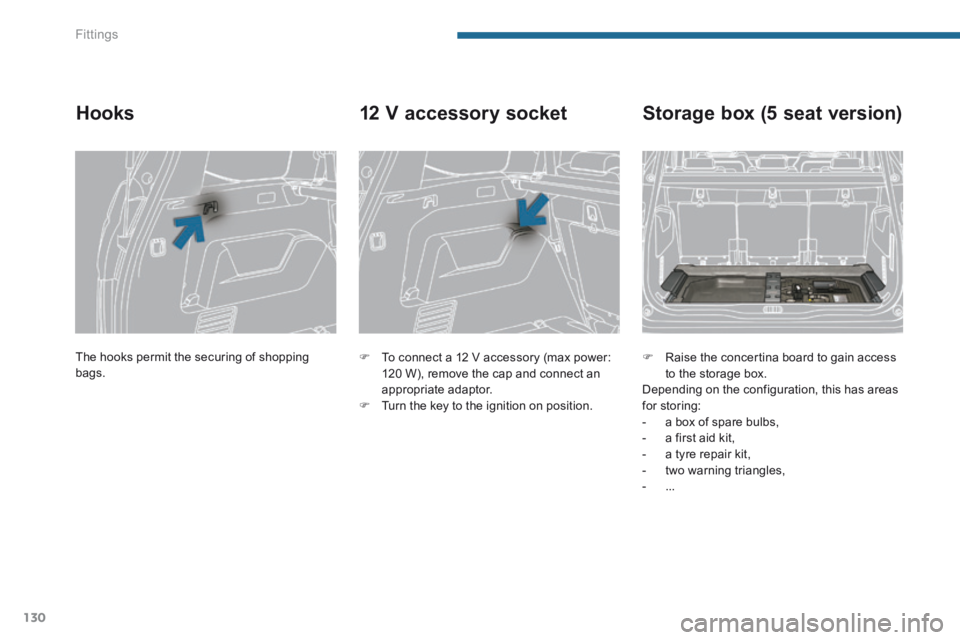

The hooks permit the securing of shopping bags.
Hooks
 To connect a 12 V accessory (max power: 120 W), remove the cap and connect an appropriate adaptor.  Turn the key to the ignition on position.
12 V accessory socket
 Raise the concertina board to gain access to the storage box. Depending on the configuration, this has areas for storing: - a box of spare bulbs, - a first aid kit, - a tyre repair kit, - two warning triangles, - ...
Storage box (5 seat version)

6
Fittings131

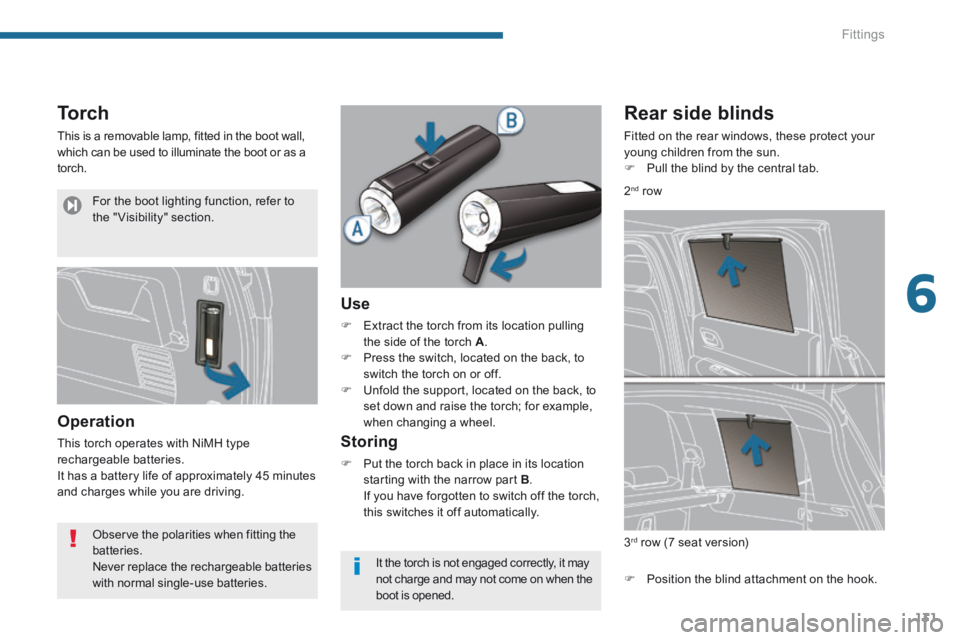

Torch
This is a removable lamp, fitted in the boot wall, which can be used to illuminate the boot or as a torch.
Operation
This torch operates with NiMH type rechargeable batteries. It has a battery life of approximately 45 minutes and charges while you are driving.
Use
 Extract the torch from its location pulling the side of the torch A .  Press the switch, located on the back, to switch the torch on or off.  Unfold the support, located on the back, to set down and raise the torch; for example, when changing a wheel.
Storing
 Put the torch back in place in its location starting with the narrow part B . If you have forgotten to switch off the torch, this switches it off automatically.
Rear side blinds
Fitted on the rear windows, these protect your young children from the sun.  Pull the blind by the central tab.
 Position the blind attachment on the hook.
3 rd row (7 seat version)
2nd row
Observe the polarities when fitting the batteries. Never replace the rechargeable batteries with normal single-use batteries.
It the torch is not engaged correctly, it may not charge and may not come on when the
boot is opened.
For the boot lighting function, refer to the " Visibility" section.

Child safety
132

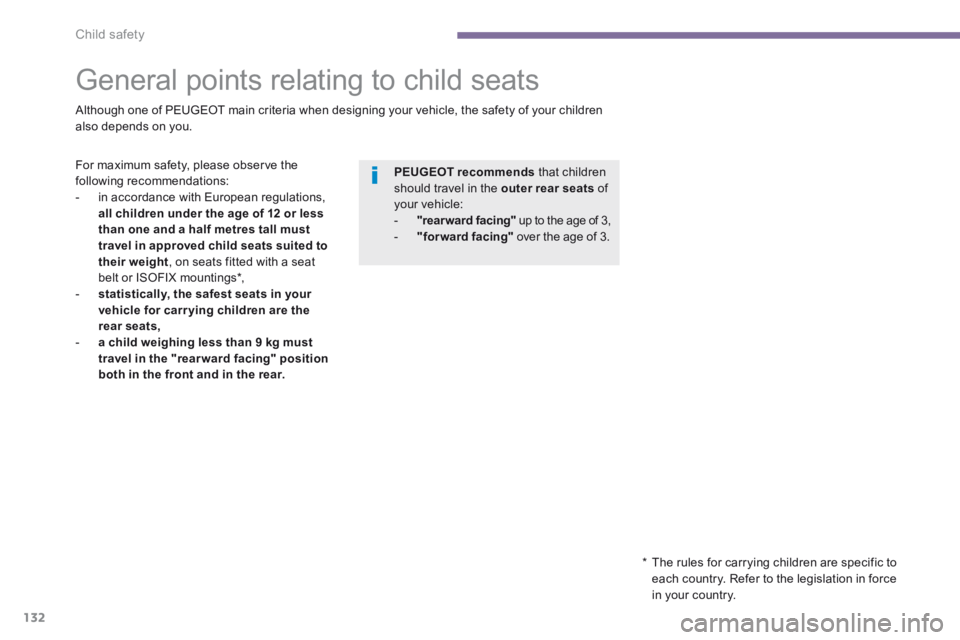

General points relating to child seats
Although one of PEUGEOT main criteria when designing your vehicle, the safety of your children also depends on you.
For maximum safety, please observe the following recommendations: - in accordance with European regulations, all children under the age of 12 or less than one and a half metres tall must travel in approved child seats suited to their weight , on seats fitted with a seat belt or ISOFIX mountings * , - statistically, the safest seats in your vehicle for carr ying children are the rear seats, - a child weighing less than 9 kg must travel in the "rearward facing" position both in the front and in the rear.
* The rules for carrying children are specific to each country. Refer to the legislation in force in your country.
PEUGEOT recommends that children should travel in the outer outer outerrear seats of your vehicle: - "rearward facing" up to the age of 3,
- "forward facing" over the age of 3.

7
Child safety133

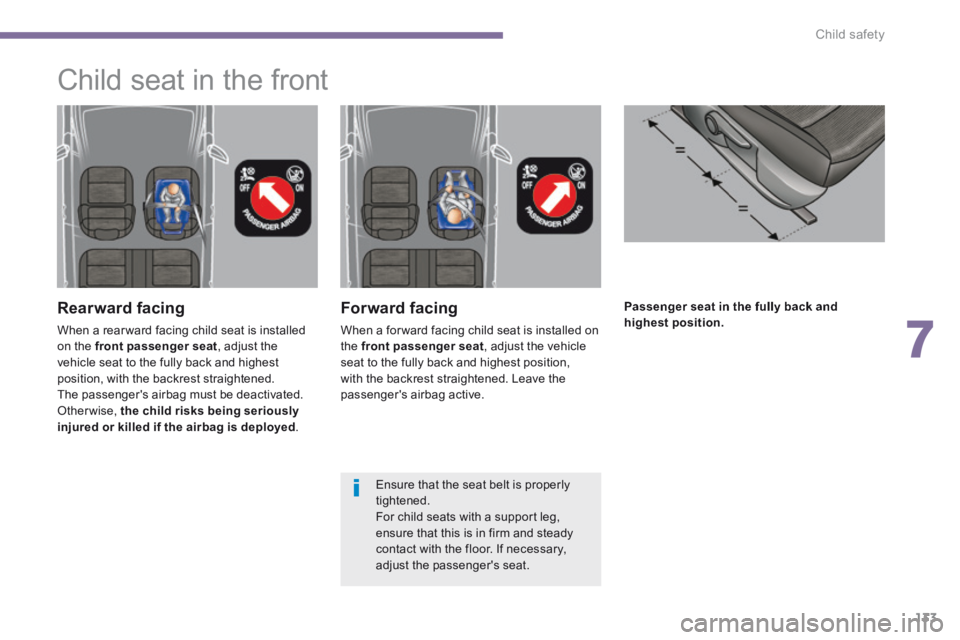

Passenger seat in the fully back and highest position. Forward facing
When a for ward facing child seat is installed on the front passenger seat , adjust the vehicle seat to the fully back and highest position, with the backrest straightened. Leave the passenger's airbag active.
Rearward facing
When a rear ward facing child seat is installed on the front passenger seat , adjust the vehicle seat to the fully back and highest position, with the backrest straightened. The passenger's airbag must be deactivated. Otherwise, the child risks being seriously injured or killed if the airbag is deployed .
Child seat in the front
Ensure that the seat belt is properly tightened. For child seats with a support leg, ensure that this is in firm and steady contact with the floor. If necessary, adjust the passenger's seat.

Child safety
134

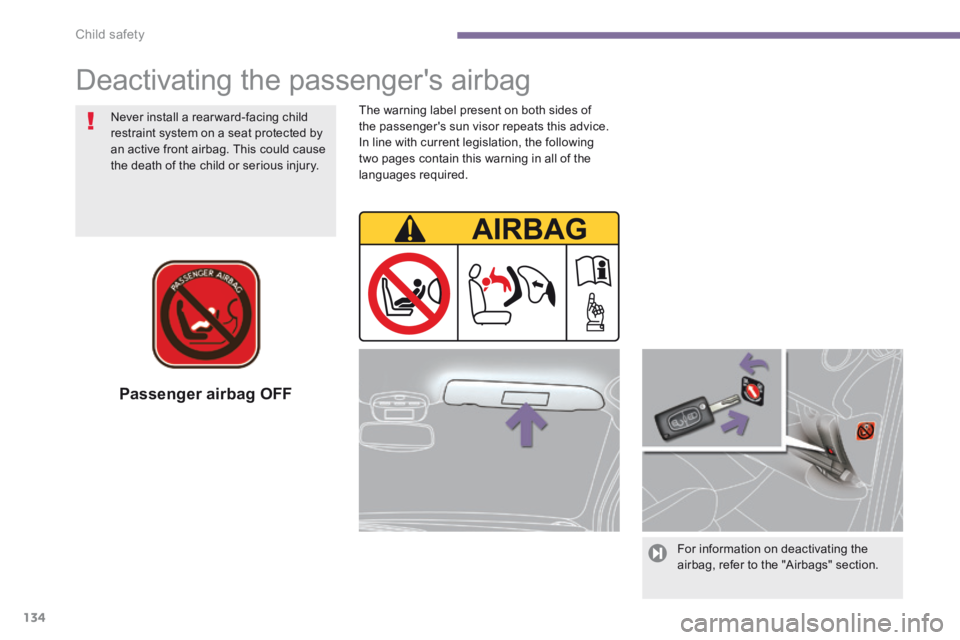

Passenger airbag OFF
For information on deactivating the airbag, refer to the "Airbags" section.
Deactivating the passenger's airbag
Never install a rear ward-facing child restraint system on a seat protected by an active front airbag. This could cause the death of the child or serious injury.
The warning label present on both sides of the passenger's sun visor repeats this advice. In line with current legislation, the following two pages contain this warning in all of the languages required.
