2014 PEUGEOT 5008 Owners Manual

3
Comfort79
Adjustment
Adjust the mirror so that the glass is directed correctly in the "day" position.
Manual day/night model
Day/night position
 Pull the lever to change to the "night" anti-dazzle position.  Push the lever to change to the normal "day" position.

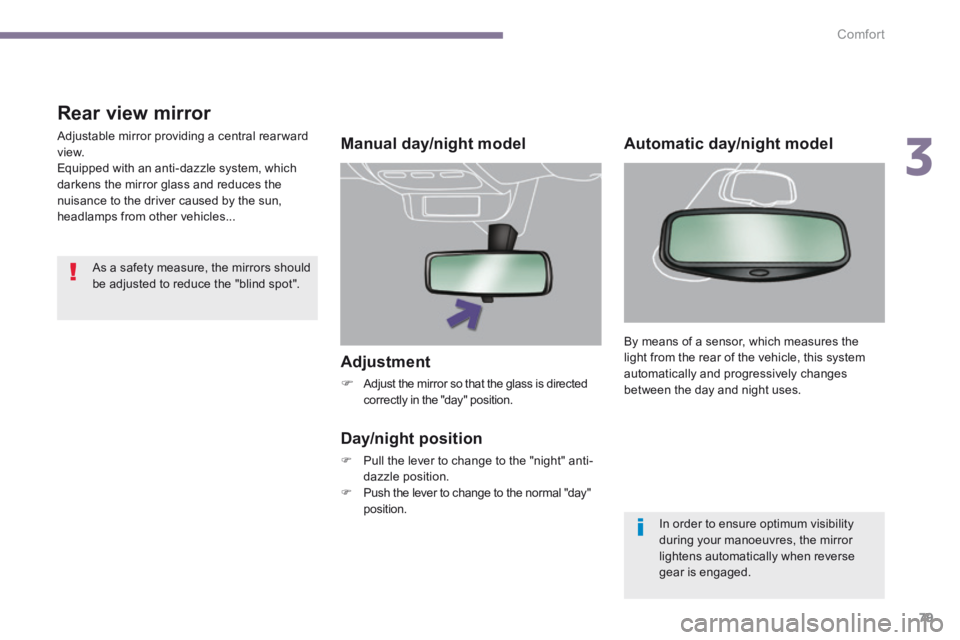

Rear view mirror
Adjustable mirror providing a central rearward view. Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to the driver caused by the sun, headlamps from other vehicles...
Automatic day/night model
By means of a sensor, which measures the light from the rear of the vehicle, this system automatically and progressively changes between the day and night uses.
In order to ensure optimum visibility during your manoeuvres, the mirror lightens automatically when reverse gear is engaged.
As a safety measure, the mirrors should be adjusted to reduce the "blind spot".

Comfort
80

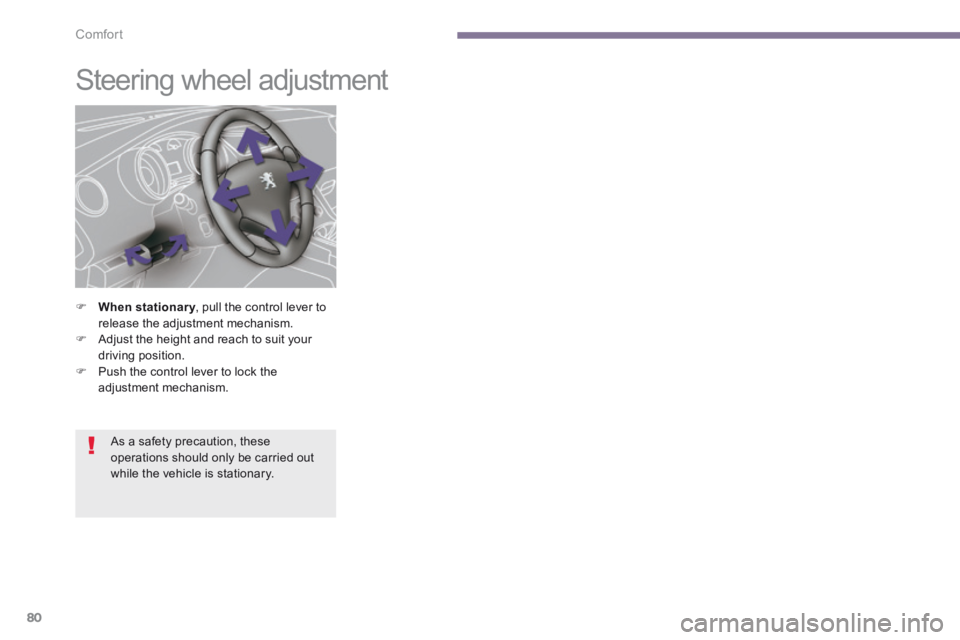

Steering wheel adjustment
 When stationary , pull the control lever to When stationary , pull the control lever to When stationaryrelease the adjustment mechanism.  Adjust the height and reach to suit your driving position.  Push the control lever to lock the adjustment mechanism.
As a safety precaution, these operations should only be carried out while the vehicle is stationary.

4
Access81
Unfolding the key
 First press this button to unfold the key.

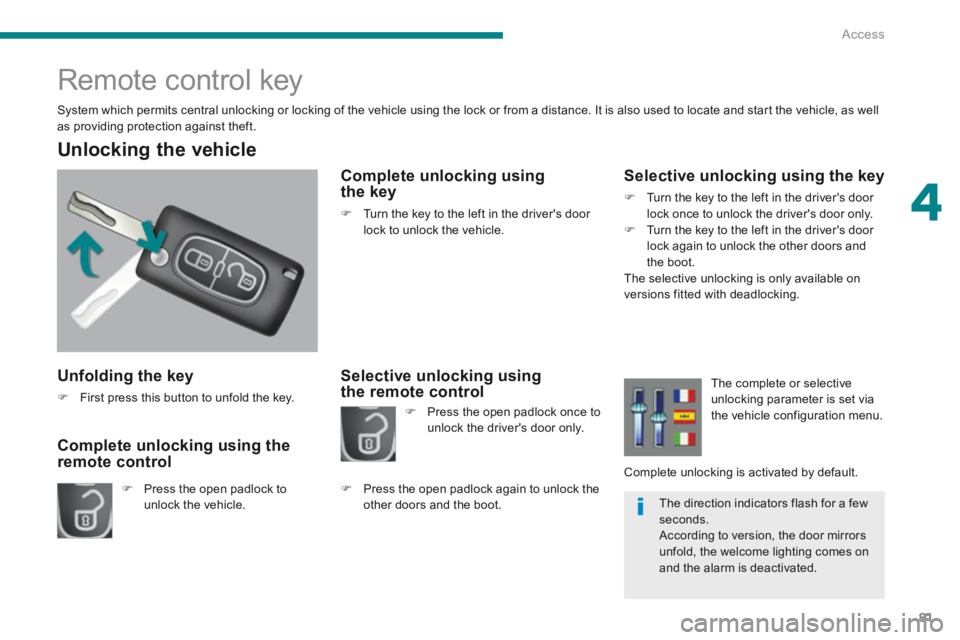

Unlocking the vehicle
 Press the open padlock to unlock the vehicle.
Complete unlocking using the remote control
Remote control key
System which permits central unlocking or locking of the vehicle using the lock or from a distance. It is also used to locate and start the vehicle, as well as providing protection against theft.
Complete unlocking using the key
 Turn the key to the left in the driver's door lock to unlock the vehicle.
Selective unlocking using the remote control
Selective unlocking using the key
 Turn the key to the left in the driver's door lock once to unlock the driver's door only.  Turn the key to the left in the driver's door lock again to unlock the other doors and the boot. The selective unlocking is only available on versions fitted with deadlocking.
 Press the open padlock once to unlock the driver's door only.
 Press the open padlock again to unlock the other doors and the boot.
The complete or selective unlocking parameter is set via the vehicle configuration menu.
Complete unlocking is activated by default.
The direction indicators flash for a few seconds. According to version, the door mirrors unfold, the welcome lighting comes on and the alarm is deactivated.

Access
82
Deadlocking using the remote control
 Press the closed padlock to lock the vehicle completely or press the closed padlock for more than two seconds to close the windows automatically in addition to locking (according to version).
Normal locking using the key
 Turn the key to the right in the driver's door lock to lock the vehicle completely.

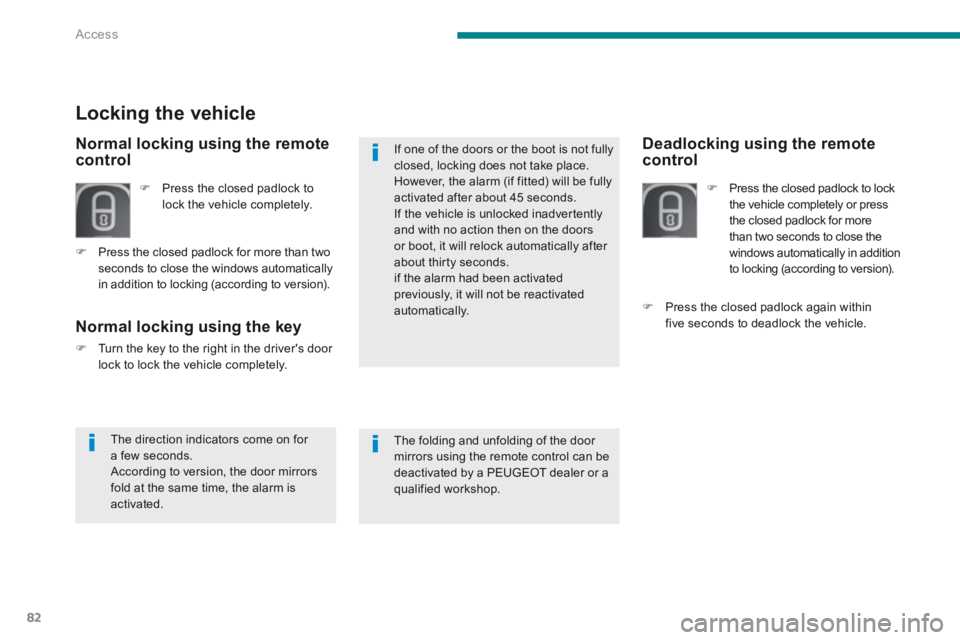

Locking the vehicle
 Press the closed padlock to lock the vehicle completely.
 Press the closed padlock for more than two seconds to close the windows automatically in addition to locking (according to version).
Normal locking using the remote control
 Press the closed padlock again within five seconds to deadlock the vehicle.
The direction indicators come on for a few seconds. According to version, the door mirrors fold at the same time, the alarm is activated.
The folding and unfolding of the door mirrors using the remote control can be deactivated by a PEUGEOT dealer or a qualified workshop.
If one of the doors or the boot is not fully closed, locking does not take place. However, the alarm (if fitted) will be fully activated after about 45 seconds. If the vehicle is unlocked inadvertently
and with no action then on the doors or boot, it will relock automatically after about thirty seconds. if the alarm had been activated previously, it will not be reactivated automatically.

4
Access83

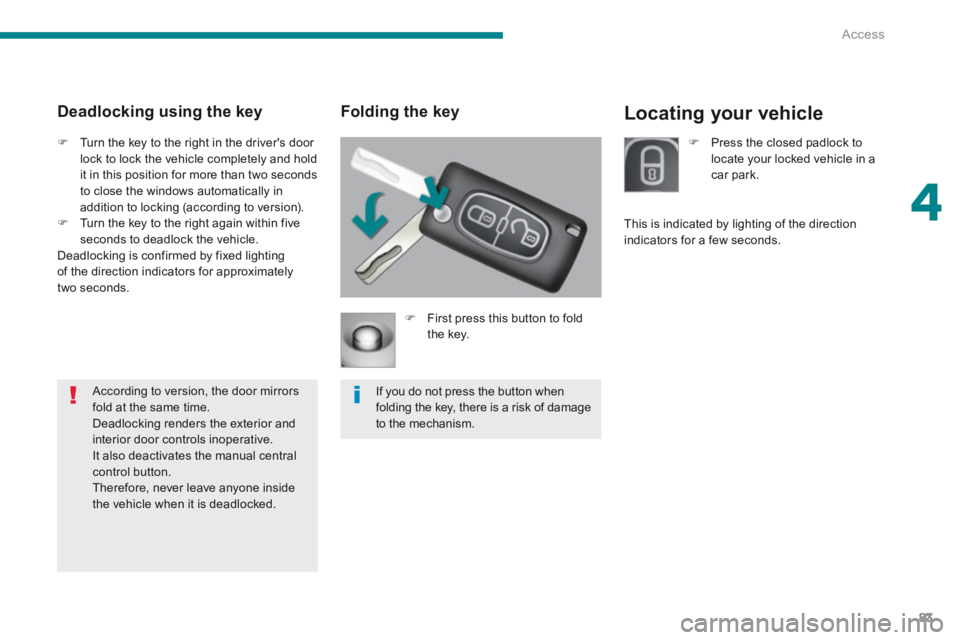

Locating your vehicle Folding the key
 First press this button to fold the key.
If you do not press the button when folding the key, there is a risk of damage to the mechanism.
Deadlocking using the key
 Turn the key to the right in the driver's door lock to lock the vehicle completely and hold it in this position for more than two seconds to close the windows automatically in addition to locking (according to version).  Turn the key to the right again within five seconds to deadlock the vehicle. Deadlocking is confirmed by fixed lighting of the direction indicators for approximately two seconds.
According to version, the door mirrors fold at the same time. Deadlocking renders the exterior and interior door controls inoperative. It also deactivates the manual central control button. Therefore, never leave anyone inside the vehicle when it is deadlocked.
 Press the closed padlock to locate your locked vehicle in a car park.
This is indicated by lighting of the direction indicators for a few seconds.

Access
84

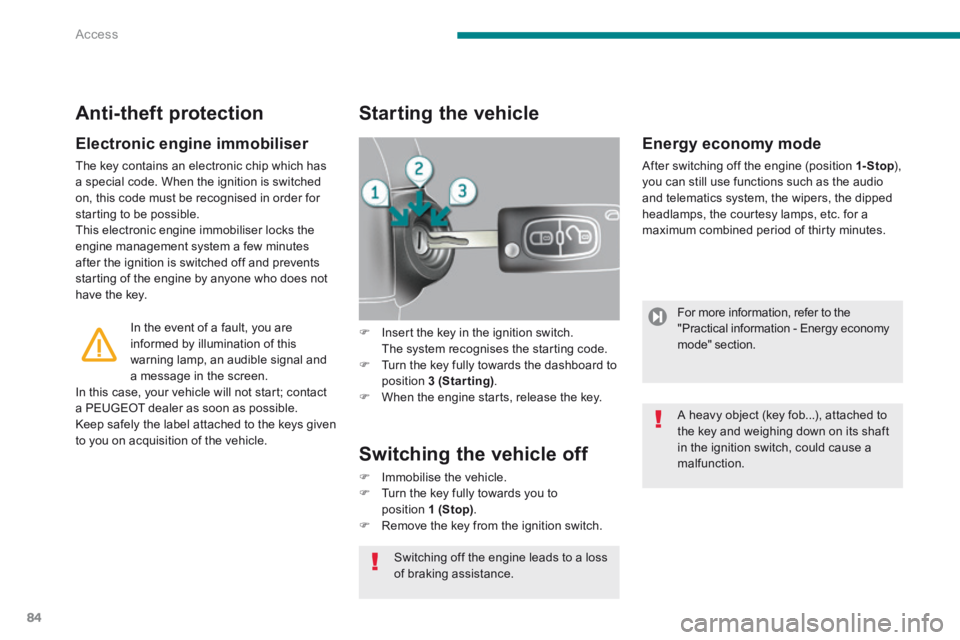

Electronic engine immobiliser
The key contains an electronic chip which has a special code. When the ignition is switched on, this code must be recognised in order for starting to be possible. This electronic engine immobiliser locks the engine management system a few minutes after the ignition is switched off and prevents starting of the engine by anyone who does not have the key.
Anti-theft protection
In the event of a fault, you are informed by illumination of this warning lamp, an audible signal and a message in the screen. In this case, your vehicle will not start; contact a PEUGEOT dealer as soon as possible. Keep safely the label attached to the keys given to you on acquisition of the vehicle.
Starting the vehicle
 Insert the key in the ignition switch. The system recognises the starting code.  Turn the key fully towards the dashboard to position 3 (Starting) .  When the engine starts, release the key.
Switching the vehicle off
 Immobilise the vehicle.  Turn the key fully towards you to position 1 (Stop) .  Remove the key from the ignition switch.
Energy economy mode
After switching off the engine (position 1- Stop ), 1- Stop ), 1- Stopyou can still use functions such as the audio and telematics system, the wipers, the dipped headlamps, the courtesy lamps, etc. for a maximum combined period of thirty minutes.
A heavy object (key fob...), attached to
the key and weighing down on its shaft in the ignition switch, could cause a malfunction.
For more information, refer to the "Practical information - Energy economy mode" section.
Switching off the engine leads to a loss of braking assistance.

4
Access85

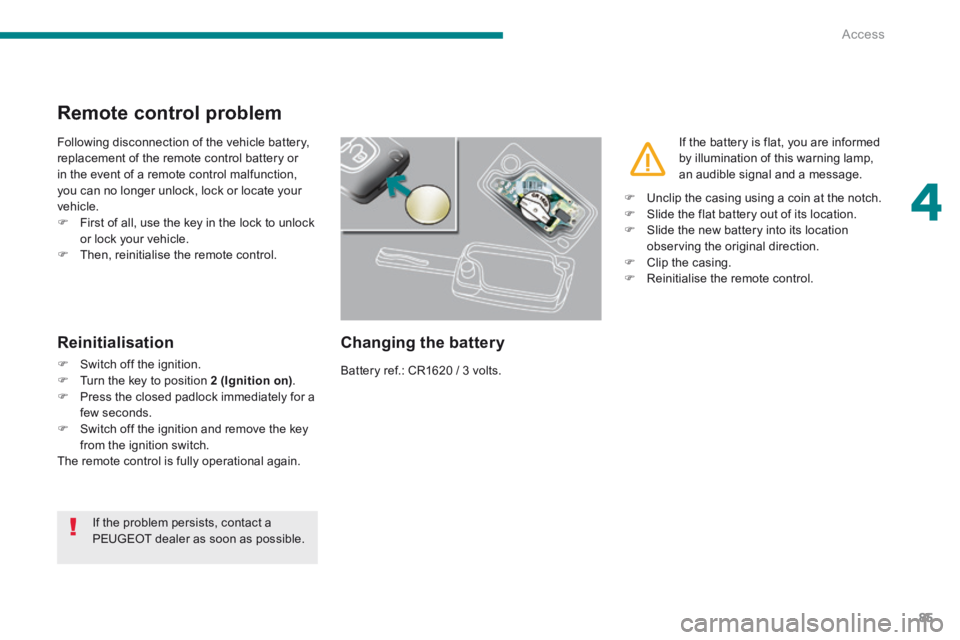

Remote control problem
Following disconnection of the vehicle battery, replacement of the remote control battery or in the event of a remote control malfunction, you can no longer unlock, lock or locate your vehicle.  First of all, use the key in the lock to unlock or lock your vehicle.  Then, reinitialise the remote control.
Changing the battery Reinitialisation
 Switch off the ignition.  Turn the key to position 2 (Ignition on) .  Press the closed padlock immediately for a few seconds.  Switch off the ignition and remove the key
from the ignition switch. The remote control is fully operational again.
If the battery is flat, you are informed by illumination of this warning lamp, an audible signal and a message.
Battery ref.: CR1620 / 3 volts.
If the problem persists, contact a PEUGEOT dealer as soon as possible.
 Unclip the casing using a coin at the notch.  Slide the flat battery out of its location.  Slide the new battery into its location observing the original direction.  Clip the casing.  Reinitialise the remote control.

Access
86

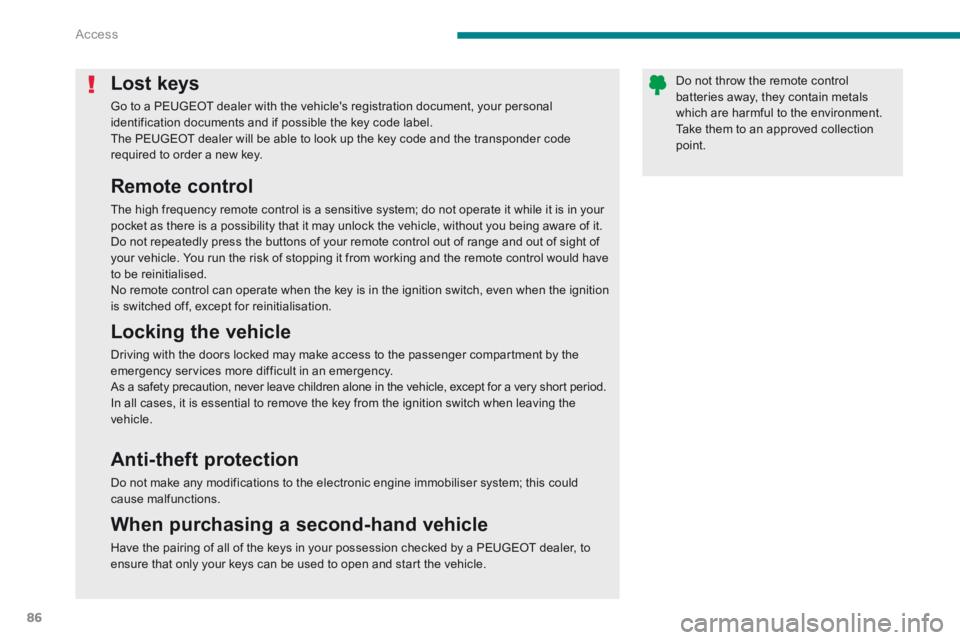

Lost keys
Go to a PEUGEOT dealer with the vehicle's registration document, your personal identification documents and if possible the key code label. The PEUGEOT dealer will be able to look up the key code and the transponder code required to order a new key.
Do not throw the remote control batteries away, they contain metals which are harmful to the environment. Take them to an approved collection point.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it. Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would have to be reinitialised. No remote control can operate when the key is in the ignition switch, even when the ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency. As a safety precaution, never leave children alone in the vehicle, except for a very short period. In all cases, it is essential to remove the key from the ignition switch when leaving the vehicle.
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
When purchasing a second-hand vehicle
Have the pairing of all of the keys in your possession checked by a PEUGEOT dealer, to ensure that only your keys can be used to open and start the vehicle.
