2014 PEUGEOT 5008 Owners Manual

.Familiarisation15
Digital air conditioning: we recommend use of the fully automatic mode by pressing the "AUTO" button.
Ventilation
Recommended interior settings
I require ...
Heating or Manual Air Conditioning
Air distributionAir flowAir recirculation / Air recirculation / Air recirculation / Intake of outside airTemperatureManual A/C
HOT
COLD
DEMISTING DEFROSTING

27
30
198
156
87
201
195
173
152
175
92
Familiarisation
16

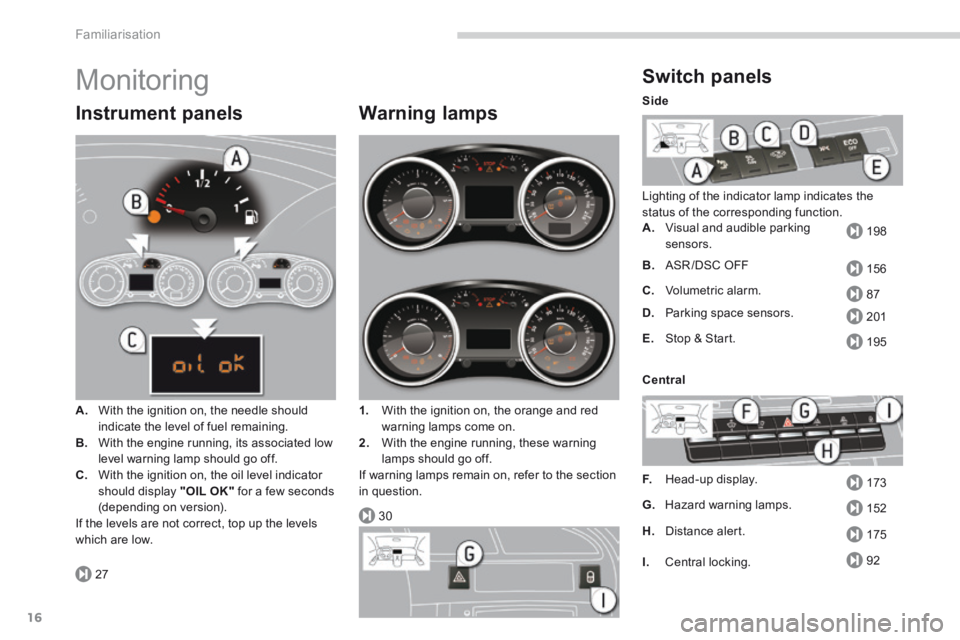

Monitoring
Instrument panels
A. With the ignition on, the needle should indicate the level of fuel remaining.
B. With the engine running, its associated low level warning lamp should go off. C. With the ignition on, the oil level indicator should display "OIL OK" for a few seconds (depending on version). If the levels are not correct, top up the levels which are low.
Warning lamps
1. With the ignition on, the orange and red warning lamps come on.
2. With the engine running, these warning lamps should go off. If warning lamps remain on, refer to the section in question.
Switch panels
Lighting of the indicator lamp indicates the status of the corresponding function. A. Visual and audible parking sensors.
B. ASR /DSC OFF
C. Volumetric alarm.
D. Parking space sensors.
E. Stop & Start.
F. Head-up display.
G. Hazard warning lamps.
Side
Central
H. Distance alert.
I. Central locking.

.
163
159
151
Familiarisation17

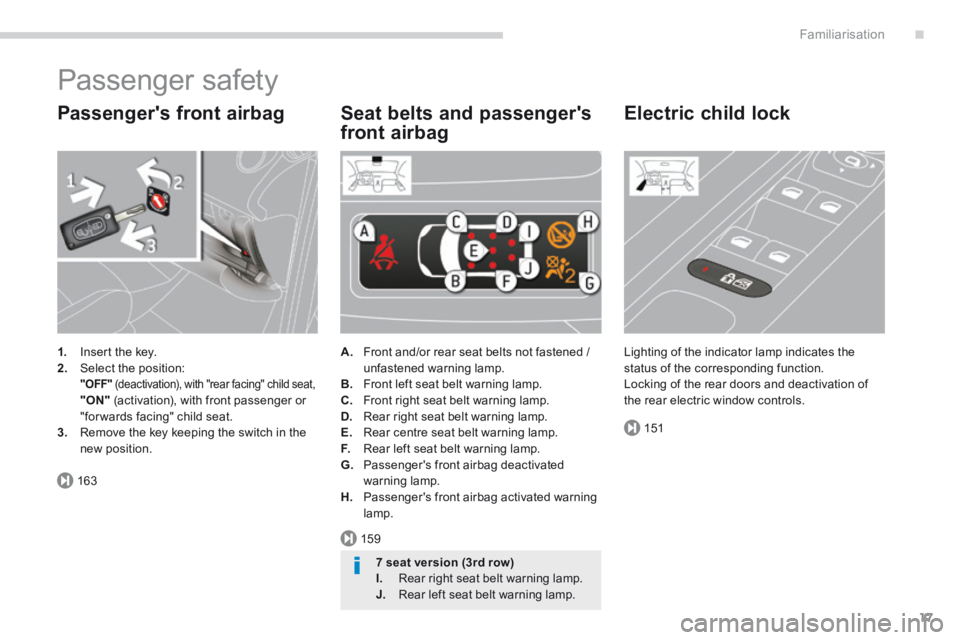

Passenger safety
Passenger's front airbag
1. Insert the key. 2. Select the position: "OFF" (deactivation), with "rear facing" child seat, "ON" (activation), with front passenger or "for wards facing" child seat.
3. Remove the key keeping the switch in the new position.
Seat belts and passenger's
front airbag
A. Front and/or rear seat belts not fastened / unfastened warning lamp. B. Front left seat belt warning lamp. C. Front right seat belt warning lamp. D. Rear right seat belt warning lamp.
E. Rear centre seat belt warning lamp. F. Rear left seat belt warning lamp. G. Passenger's front airbag deactivated warning lamp. H. Passenger's front airbag activated warning lamp.
Electric child lock
Lighting of the indicator lamp indicates the status of the corresponding function. Locking of the rear doors and deactivation of the rear electric window controls.
7 seat version (3rd row)I. Rear right seat belt warning lamp. J. Rear left seat belt warning lamp.

73
74
74
Familiarisation
18

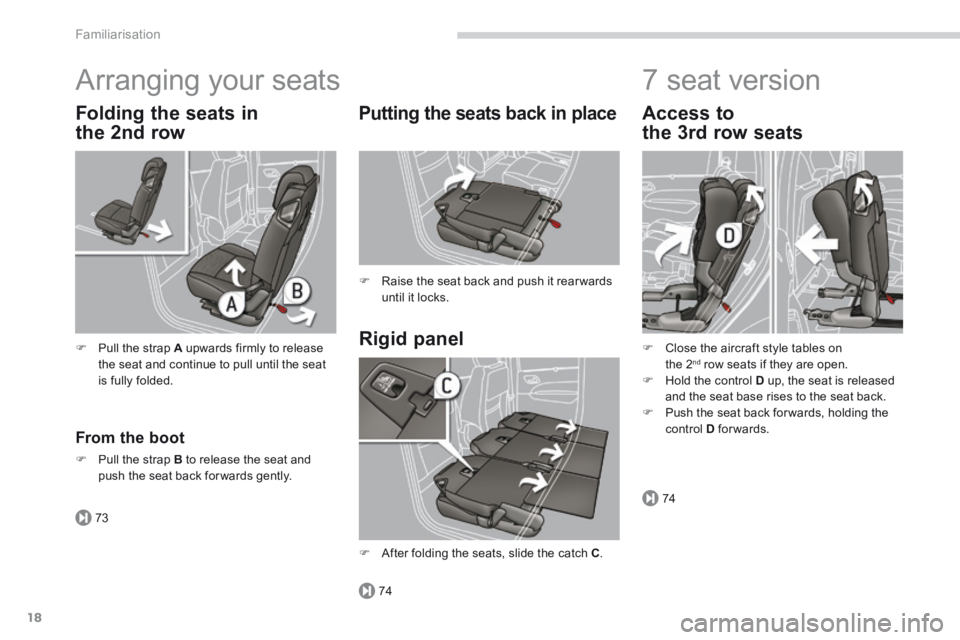

Arranging your seats
Rigid panel
Putting the seats back in place
 Raise the seat back and push it rear wards until it locks.
From the boot
 Pull the strap B to release the seat and push the seat back for wards gently.
Folding the seats in
the 2nd row
 Pull the strap A upwards firmly to release the seat and continue to pull until the seat is fully folded.
Access to
the 3rd row seats
 Close the aircraft style tables on the 2 nd row seats if they are open.  Hold the control D up, the seat is released and the seat base rises to the seat back.  Push the seat back for wards, holding the control D forwards.
7 seat version
 After folding the seats, slide the catch C .

.
75, 127
75, 127
Familiarisation19

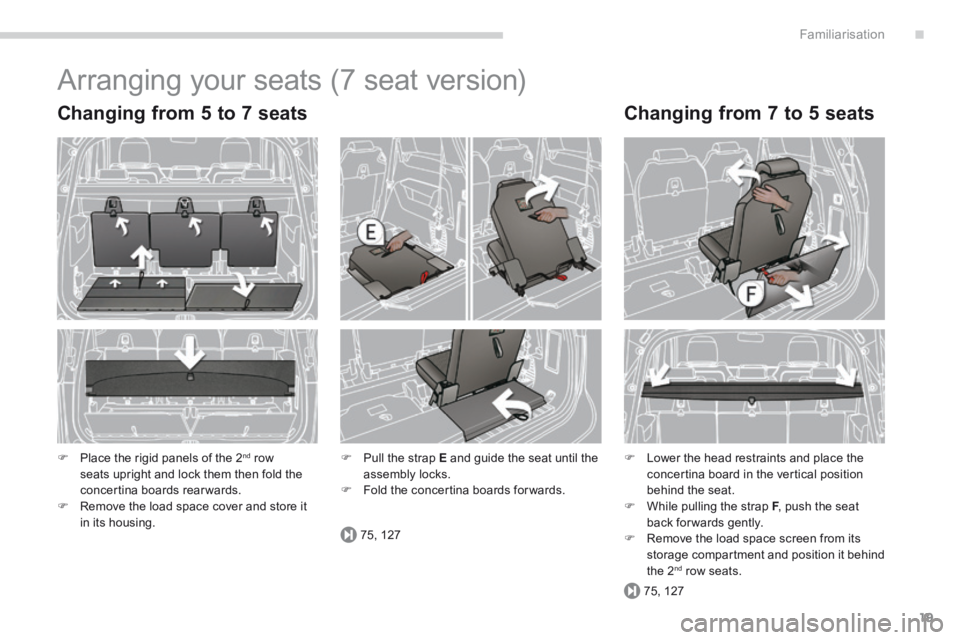

Arranging your seats (7 seat version)
 Pull the strap E and guide the seat until the assembly locks.  Fold the concertina boards forwards.
 Lower the head restraints and place the concertina board in the vertical position behind the seat.  While pulling the strap F , push the seat F , push the seat Fback for wards gently.  Remove the load space screen from its storage compartment and position it behind the 2 nd row seats.
 Place the rigid panels of the 2 nd row seats upright and lock them then fold the concertina boards rearwards.  Remove the load space cover and store it in its housing.
Changing from 7 to 5 seats Changing from 5 to 7 seats

195
Familiarisation
20
Driving safely

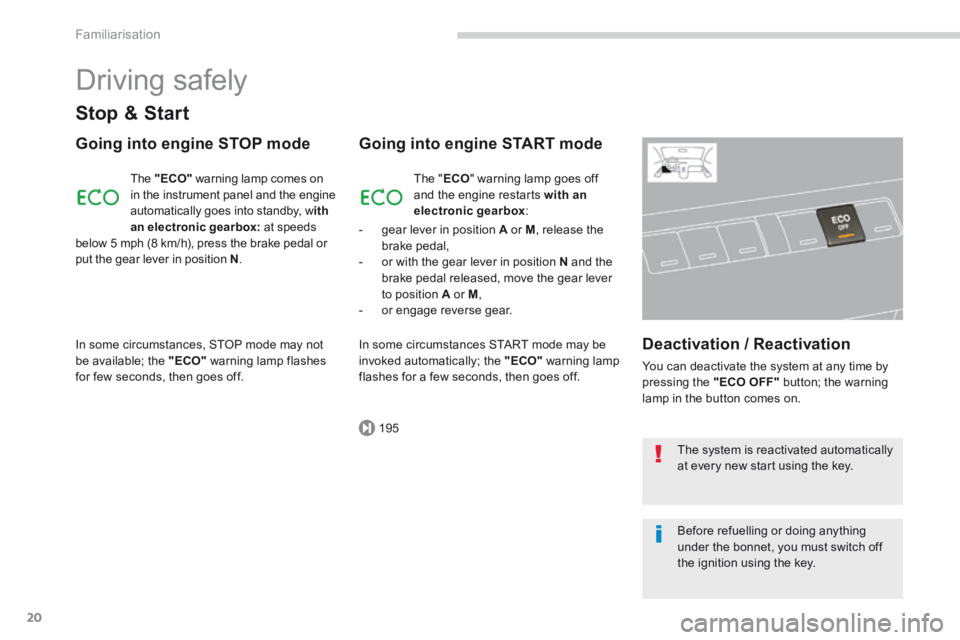

Stop & Start
Going into engine STOP mode
The "ECO" warning lamp comes on in the instrument panel and the engine automatically goes into standby, w ith
an electronic gearbox: at speeds below 5 mph (8 km/h), press the brake pedal or put the gear lever in position N .
In some circumstances, STOP mode may not be available; the "ECO" warning lamp flashes for few seconds, then goes off.
Going into engine START mode
The "ECO" warning lamp goes off and the engine restarts with an electronic gearbox :
In some circumstances START mode may be invoked automatically; the "ECO" warning lamp flashes for a few seconds, then goes off.
Deactivation / Reactivation
You can deactivate the system at any time by pressing the "ECO OFF" button; the warning lamp in the button comes on.
The system is reactivated automatically at every new start using the key.
Before refuelling or doing anything under the bonnet, you must switch off the ignition using the key.
- gear lever in position A or M , release the brake pedal, - or with the gear lever in position N and the brake pedal released, move the gear lever to position A or M , - or engage reverse gear.

.
166
Familiarisation21
Driving safely

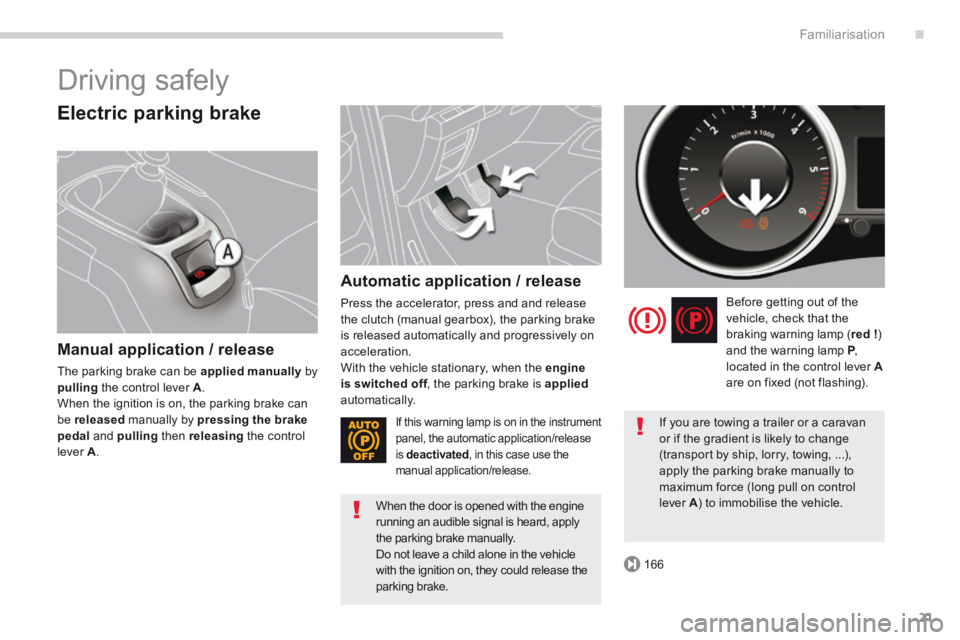

Electric parking brake
Manual application / release
The parking brake can be applied manually by pulling the control lever A . When the ignition is on, the parking brake can be released manually by pressing the brake pedal and pulling then releasing the control lever A .
Automatic application / release
Press the accelerator, press and and release the clutch (manual gearbox), the parking brake is released automatically and progressively on acceleration. With the vehicle stationary, when the engine is switched off , the parking brake is is switched off , the parking brake is is switched offappliedautomatically.
Before getting out of the vehicle, check that the braking warning lamp ( red ! ) and the warning lamp P , P , Plocated in the control lever Aare on fixed (not flashing).
If this warning lamp is on in the instrument panel, the automatic application/release is deactivated , in this case use the manual application/release.
If you are towing a trailer or a caravan
or if the gradient is likely to change (transport by ship, lorry, towing, ...), apply the parking brake manually to maximum force (long pull on control lever A ) to immobilise the vehicle. A ) to immobilise the vehicle. A When the door is opened with the engine running an audible signal is heard, apply the parking brake manually. Do not leave a child alone in the vehicle with the ignition on, they could release the parking brake.

170
173175
Familiarisation
22

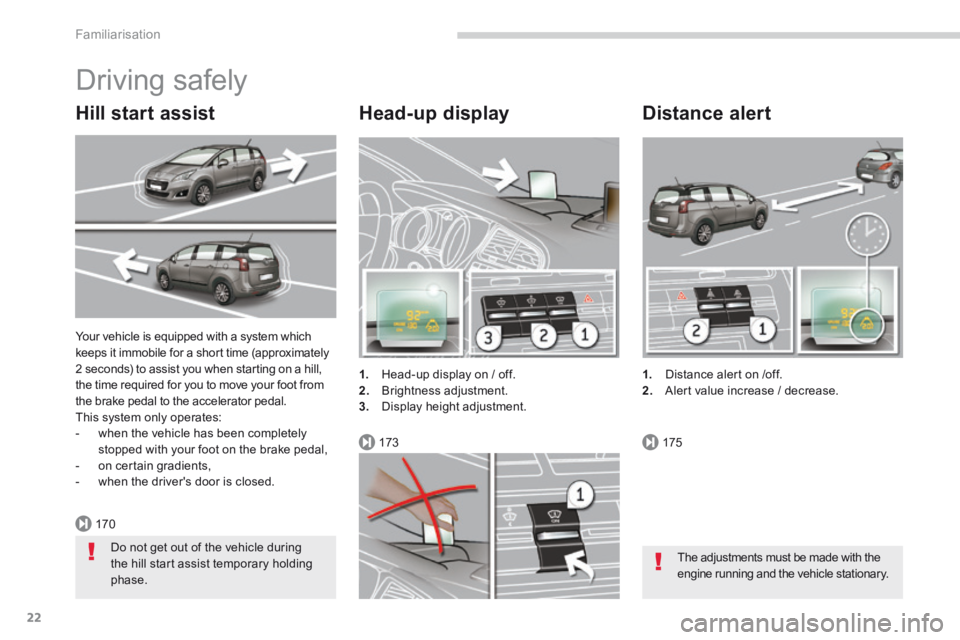

Your vehicle is equipped with a system which keeps it immobile for a short time (approximately 2 seconds) to assist you when starting on a hill, the time required for you to move your foot from the brake pedal to the accelerator pedal. This system only operates: - when the vehicle has been completely stopped with your foot on the brake pedal, - on certain gradients, - when the driver's door is closed.
Driving safely
Head-up display
1. Head-up display on / off. 2. Brightness adjustment. 3. Display height adjustment.
Distance alert
1. Distance alert on /off. 2. Alert value increase / decrease.
Hill start assist
The adjustments must be made with the engine running and the vehicle stationary.
Do not get out of the vehicle during the hill start assist temporary holding phase.
