2014 MERCEDES-BENZ CLA Owners Manual

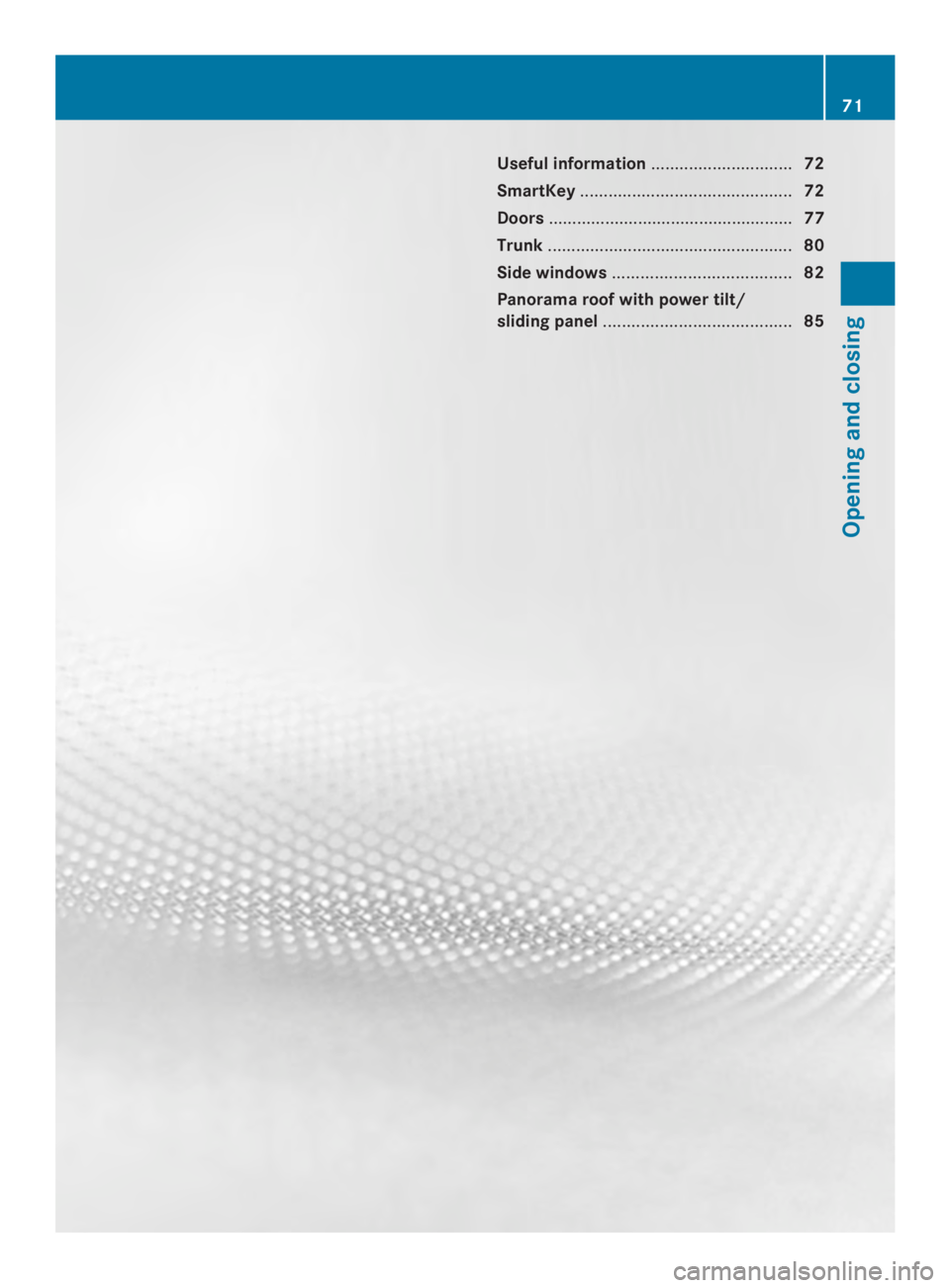

Useful information..............................72
SmartKey.............................................72
Doors....................................................77
Trunk....................................................80
Side windows......................................82
Panorama roof with power tilt/
sliding panel........................................85
71
Opening and closing

Useful information
iThis Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
iRead the information on qualified
specialist workshops: (Ypage 25).
SmartKey
Important safety notes
GWARNING
If children are left unsupervised in the vehicle,
they could:
Ropen the doors, thus endangering other
people or road users.
Rget out and disrupt traffic.
Roperate the vehicle's equipment.
Additionally, children could set the vehicle in
motion if, for example, they:
Rrelease the parking brake.
Rshifting the automatic transmission out of
park positionP
RStart the engine.
There is a risk of an accident and injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children or animals unattended in the
vehicle. Always keep the SmartKey out of
reach of children.
GWARNING
If persons, particularly children are subjected
to prolonged exposure to extreme heat or
cold, there is a risk of injury, possibly even
fatal. Never leave children unattended in the
vehicle.
GWARNING
If you attach heavy or large objects to the
SmartKey, the SmartKey could be
unintentionally turned in the ignition lock.This
could cause the engine to be switched off.
There is a risk of an accident.
Do not attach any heavy or large objects to
the SmartKey. Remove any bulky key rings
before inserting the SmartKey into the
ignition lock.
!Keep the SmartKey away from strong
magnetic fields. Otherwise, the remote
control function could be affected.
Strong magnetic fields can occur in the
vicinity of powerful electrical installations.
Do not keep the SmartKey:
Rwith electronic devices, e.g. a mobile
phone or another SmartKey
Rwith metallic objects, e.g. coins or metal
foil
Rinside metallic objects, e.g. a metal case
SmartKey functions
\nTo lock the vehicle
To open the trunk lid
"To unlock the vehicle
XTo unlock centrally:press button".
72SmartKey
Opening and closing

If you do not open the vehicle within
approximately 40 seconds of unlocking:
Rthe vehicle is locked again.
Rthe theft deterrent locking system is armed
again.
XTo lockcentrally:press button.
The SmartKey centrally locks/unlocks:
Rthe doors
Rthe trunk lid
Rthe fuel filler flap
The turnsignals flash oncewhen unlocking
and three times when locking.
iWhen it is dark, the surround lighting also
comes on if it is activated in the on-board
computer (Ypage 207).
iYou can also set an audible signal to
confirm that the vehicle has been locked.
The audible signal can be activated and
deactivated using the on-board computer
(Ypage 208).
XTo open the trunk lid automatically:
press and hold buttonuntil the trunk lid
opens (Ypage 81).
Changing the settings of the locking
system
You can change the settings of the locking
system. When you then unlock the vehicle
only the driver's door and the fuel filler flap
are unlocked. This is useful if you frequently
travel on your own.
XTo change the setting:press and hold
down theand\nbuttons
simultaneously for approximately six
seconds until the battery check lamp
(Ypage 74) flashes twice.
iIf the setting of the locking system is
changed within the signal range of the
vehicle, pressing the\norbutton:
Rlocks or
Runlocks the vehicle
The SmartKey now functions as follows:
XTo unlock the driver's door:press the
button once.
XTo unlock centrally:press the
button twice.
XTo lock centrally:press the\nbutton.
XTo restore the factory settings:press
and hold down theand\nbuttons
simultaneously for approximately six
seconds until the battery check lamp
flashes twice (Ypage 74).
Mechanical key
General notes
If the vehicle can no longer be unlocked with
the SmartKey, use the mechanical key.
If you use the mechanical key to unlock and
open the driver's door, the anti-theft alarm
system will be triggered (Ypage 70).
There are several ways to turn off the alarm:
XPress theor\nbutton on the
SmartKey.
or
XInsert the SmartKey into the ignition lock.
If you unlock the vehicle using the mechanical
key, the fuel filler flap will not be unlocked
automatically.
XTo unlock the fuel filler flap:insert the
SmartKey into the ignition lock.

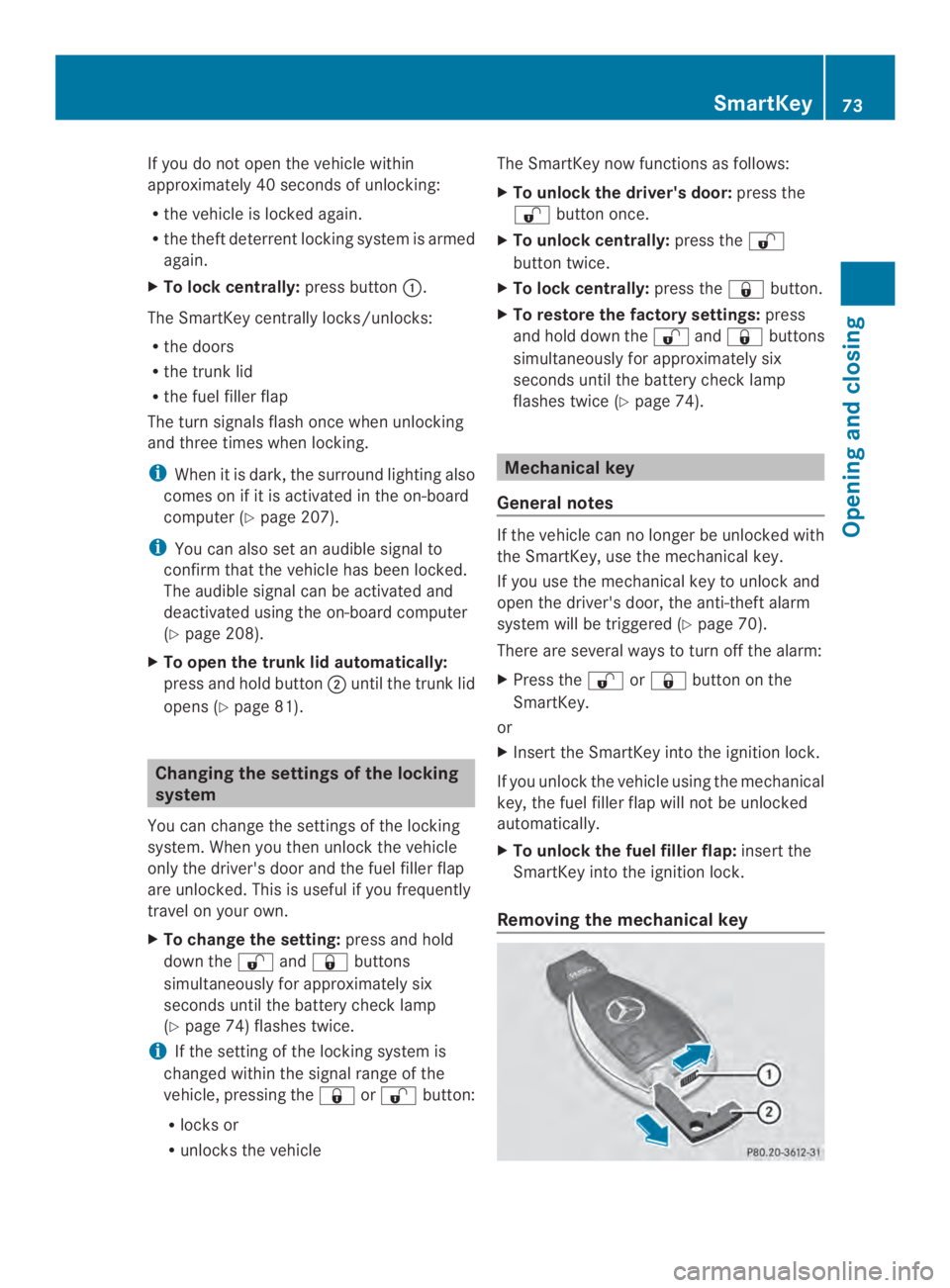

Removing the mechanical key
SmartKey73
Opening and closing
Z

XPush release catchin the direction of
the arrow and at the same time remove
mechanical keyfrom the SmartKey.
For further information about:
Runlocking the driver's door (Ypage 79)
Runlocking the trunk (Ypage 82)
Rlocking the vehicle (Ypage 79)
SmartKey battery
Important safety notes
GWARNING
Batteries contain toxic and corrosive
substances. If batteries are swallowed, it can
result in severe health problems. There is a
risk of fatal injury.
Keep batteries out of the reach of children. If
a battery is swallowed, seek medical attention
immediately.
The SmartKey batteries contain perchlorate
material, which may require special handling
and regard for the environment. National
guidelines must be observed during disposal.
In California, seewww.dtsc.ca.gov/
HazardousWaste/Perchlorate/
index.cfm.
Mercedes-Benz recommends that you have
the batteries replaced at a qualified specialist
workshop.
Checking the battery
XPress the\norbutton.
The battery is working properly if battery
check lamplights up briefly.
The battery is discharged if battery check
lampdoes not light up briefly.
XChange the battery (Ypage 74).
iIf the SmartKey battery is checked within
the signal reception range of the vehicle,
pressing the\norbutton:
Rlocks or
Runlocks the vehicle
iYou can get a battery at any qualified
specialist workshop.
Replacing the battery
You require a CR 2025 3 V cell battery.
XTake the mechanical key out of the
SmartKey (Ypage 73).
XPress mechanical keyinto the opening
in the SmartKey in the direction of the
arrow until battery tray coveropens.
When doing so, do not hold covershut.
XRemove battery tray cover.
74SmartKey
Opening and closing

XRepeatedly tap the SmartKey against your
palm until battery"falls out.
XInsertthe new battery with the positive
terminal facing upwards. Use a lint-free
cloth to do so.
XMake sure that the surface of the battery is
free from lint, grease and all other forms of
contamination.
XInsert the front tabs of battery tray
coverand then press to close it.
XInsert the mechanical key into the
SmartKey.
XCheck the function of all SmartKey buttons
on the vehicle.
SmartKey75
Opening and closing
Z

Problems with the SmartKey
ProblemPossible causes/consequences and
Solutions
You cannot lock or
unlock the vehicle
using the SmartKey.
The SmartKey battery is discharged or nearly discharged.
XTry again to lock/unlock the vehicle using the remote control
function of the SmartKey. Point the tip of the SmartKey at the
driver's door handle from close range and press theor
\nbutton.
If this does not work:
XCheck the SmartKey battery and replace it if necessary
(Ypage 74).
XUnlock (Ypage 79) or lock (Ypage 79) the vehicle using the
mechanical key.
There is interference from a powerful source of radio waves.
XTry again to lock/unlock the vehicle using the remote control
function of the SmartKey. Point the tip of the SmartKey at the
driver's door handle from close range and press the/
\nbutton.
The SmartKey is faulty.
XUnlock (Ypage 79) or lock (Ypage 79) the vehicle using the
mechanical key.
XHave the SmartKey checked at a qualified specialist workshop.
You have lost a
SmartKey.
XHave the SmartKey deactivated at a qualified specialist
workshop.
XReport the loss immediately to the vehicle insurers.
XIf necessary, have the locks changed as well.
You have lost the
mechanical key.
XReport the loss immediately to the vehicle insurers.
XIf necessary, have the locks changed as well.
76SmartKey
Opening and closing

ProblemPossible causes/consequences and
Solutions
The engine cannot be
started using the
SmartKey.
The on-board voltage is too low.
XSwitch off non-essential consumers, e.g. seat heating or interior
lighting, and try to start the engine again.
If this does not work:
XCheck the starter battery and charge it if necessary
(Ypage 299).
or
XJump-start the vehicle (Ypage 303).
or
XConsult a qualified specialist workshop.
The engine cannot be
started using the
SmartKey.
The steering lock is mechanically blocked.
XRemove the SmartKey and reinsert it into the ignition lock. While
doing this, turn the steering wheel in both directions.
Doors
Important safety notes
GWARNING
If children are left unsupervised in the vehicle,
they could:
Ropen the doors, thus endangering other
people or road users.
Rget out and disrupt traffic.
Roperate the vehicle's equipment.
Additionally, children could set the vehicle in
motion if, for example, they:
Rrelease the parking brake.
Rshifting the automatic transmission out of
park positionP
RStart the engine.
There is a risk of an accident and injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children or animals unattended in the
vehicle. Always keep the SmartKey out of
reach of children.
GWARNING
If persons, particularly children are subjected
to prolonged exposure to extreme heat or
cold, there is a risk of injury, possibly even
fatal. Never leave children unattended in the
vehicle.
You should preferably place luggage or loads
in the cargo compartment. Observe the
loading guidelines (Ypage 254).
Unlocking and opening doors from
the inside
iWhen a door is opened, the side window
on that side opens slightly. When the door
is closed, the side window closes again.
!The side windows will not open/close if
the battery is discharged or if the side
windows have iced up. It will then not be
possible to close the door. Do not attempt
to force the door closed. You could
otherwise damage the door or the side
window.
Doors77
Opening and closing
Z

XTo unlock a front door:pull door
handle.
Locking knobpops up.
The door is unlocked and can be opened.
XTo open a front door:pull door
handle.
XTo unlock a rear door:pull up locking
knob.
The door is unlocked and can be opened.
XTo open a rear door:pull door handle.
You can open a door from inside the vehicle
evenifithas been locked. You can open the
rear doors from inside the vehicle unless they
are secured by the child-proof lock
(Ypage 60).
If the vehicle has previously been locked with
the SmartKey, openingadoor from the inside
will trigger the anti-theft alarm system.
Switch off the alarm (Ypage 70).
Centrally locking and unlocking the
vehicle from the inside
You can centrally lock or unlock the vehicle
from the inside. This can be useful if you wish
to lock the vehicle before pulling away, for
example.
XTo unlock:press button.
XTo lock:press button.
If all the doors and the trunk lid are closed,
the vehicle locks.
Meanwhile, the fuel filler flap will not be
locked or unlocked.
You cannot unlock the vehicle centrally from
the inside if the vehicle has been locked with
the SmartKey.
You can open a door from inside the vehicle
even if it has been locked. You can open the
rear doors from inside the vehicle unless they
are secured by the child-proof lock
(Ypage 60).
If the vehicle has previously been locked with
the SmartKey, openingadoor from the inside
will trigger the anti-theft alarm system.
Switch off the alarm (Ypage 70).
If the vehicle has been locked using the
locking button for the central locking, or has
been locked automatically, and a door is
opened from the inside:
Rthe vehicle will be fully unlocked if it had
previously been fully unlocked
Ronly the door which has been opened form
the inside is unlocked if only the driver's
door had been previously unlocked
78Doors
Opening and closing
