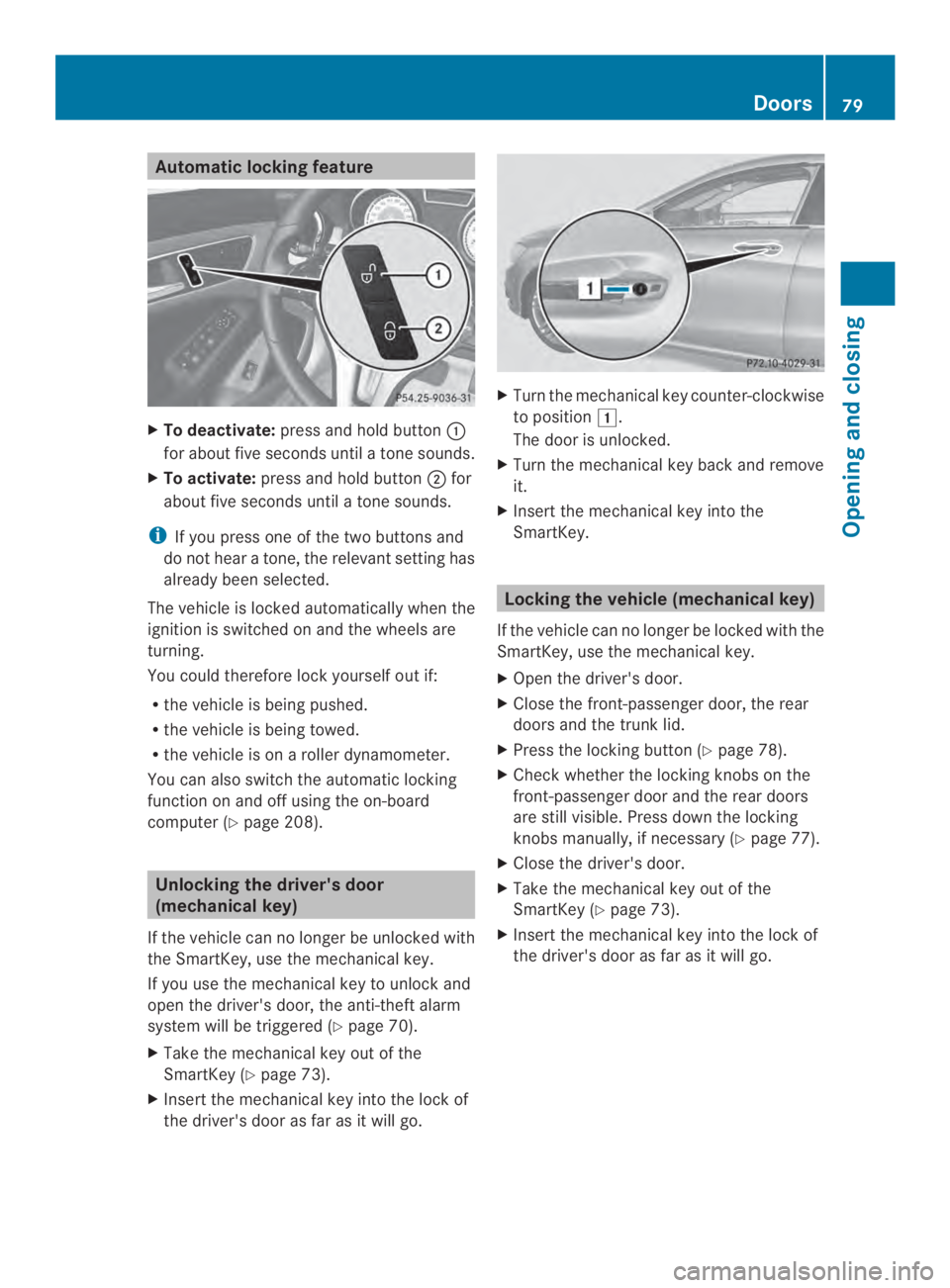

Automatic locking feature
XTo deactivate:press and hold button
for about five seconds until a tone sounds.
XTo activate:press and hold buttonfor
about five seconds until a tone sounds.
iIf you press one of thetwo buttons and
do not hear a tone, the relevant setting has
already been selected.
The vehicle is locked automatically when the
ignitionis switched on and the wheels are
turning.
You could therefore lock yourselfout if:
Rthe vehicle is being pushed.
Rthe vehicle is being towed.
Rthe vehicle is on a roller dynamometer.
You can also switch the automatic locking
function on and off using the on-board
computer (Ypage 208).
Unlocking the driver's door
(mechanical key)
If the vehicle can no longer be unlocked with
the SmartKey, use the mechanical key.
If you use the mechanical key to unlock and
open the driver's door, the anti-theftalarm
system will be triggered (Ypage 70).
XTake the mechanical key out of the
SmartKey (Ypage 73).
XInsert the mechanical key into the lock of
the driver's door as far as it will go.
XTurn the mechanical key counter-clockwise
to position.
The door is unlocked.
XTurn the mechanical key back and remove
it.
XInsert the mechanical key into the
SmartKey.
Locking the vehicle (mechanical key)
If the vehicle can no longer be locked with the
SmartKey, use the mechanical key.
XOpen the driver's door.
XClose the front-passenger door, the rear
doors and the trunk lid.
XPress the locking button (Ypage 78).
XCheck whether the locking knobs on the
front-passenger door and the rear doors
are still visible. Press down the locking
knobs manually, if necessary (Ypage 77).
XClose the driver's door.
XTake the mechanical key out of the
SmartKey (Ypage 73).
XInsert the mechanical key into the lock of
the driver's door as far as it will go.
Doors79
Opening and closing
Z

XTurn the mechanical key clockwise as far
as it will go to position.
XTurn the mechanical key back and remove
it.
XMake sure that the doors and the trunk lid
are locked.
XInsert the mechanical key into the
SmartKey.
iIf you lock the vehicle as described above,
the fuel filler flap is not locked. The anti-
theft alarm system is not armed.
Trunk
Important safety notes
GWARNING
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. Exhaust
gases can enter the vehicle interior if the
trunk lid is open when the engine is running,
especially if the vehicle is in motion.There is
a risk of poisoning.
Always switch off the engine before opening
the trunk lid. Never drive with the trunk lid
open.
GWARNING
If persons, particularly children are subjected
to prolonged exposure to extreme heat or
cold, there is a risk of injury, possibly even
fatal. Never leave children unattended in the
vehicle.
!The trunk lid swings upwards when
opened. Therefore, make sure that there is
sufficient clearance above the trunk lid.
iThe opening dimensions of the trunk lid
can be found in the "Vehicle data" section
(Ypage 351).
You should preferably place luggage or loads
in the cargo compartment. Observe the
loading guidelines (Ypage 254).
Do not leave the SmartKey in the trunk. You
could otherwise lock yourself out.
The trunk lid can be:
Ropened and closed manually from outside
Runlocked from inside with the mechanical
key
Opening/closing manually from
outside
Opening
XPress thebutton on the SmartKey.
XPull handle.
XRaise the trunk lid.
80Trunk
Opening and closing

Closing
XPull down the trunk lid using handle.
XLet the trunk lid drop into the lock.
XIf necessary, lockthe vehicle with the
\nbutton on the SmartKey.
Opening automatically from outside
Important safety notes
GWARNING
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. Exhaust
gases can enter the vehicle interior if the
trunk lid is open when the engine is running,
especially if the vehicle is in motion. There is
a risk of poisoning.
Always switch off the engine before opening
the trunk lid. Never drive with the trunk lid
open.
!The trunk lid swings upwards when
opened. Therefore, make sure that there is
sufficient clearance above the trunk lid.
iOpening dimensions of the trunk lid
(Ypage 351).
Opening
You can open the trunk lid automatically
using the SmartKey or the handle in the trunk
lid.
XPress and hold thebutton on the
SmartKey until the trunk lid opens.
or
XIf the trunk lid is unlocked, pull the trunk lid
handle and let it go again immediately.
Opening automatically from inside
Important safety notes
GWARNING
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. Exhaust
gases can enter the vehicle interior if the
trunk lid is open when the engine is running,
especially if the vehicle is in motion. There is
a risk of poisoning.
Always switch off the engine before opening
the trunk lid. Never drive with the trunk lid
open.
!The trunk lid swings upwards when
opened. Therefore, make sure that there is
sufficient clearance above the trunk lid.
iOpening dimensions of the trunk lid
(Ypage 351).
Opening
You can open the trunk lid from the driver's
seat when the vehicle is stationary and
unlocked.
XTo open:pull remote operating switch for
trunk liduntil the trunk lid opens.
Trunk81
Opening and closing
Z

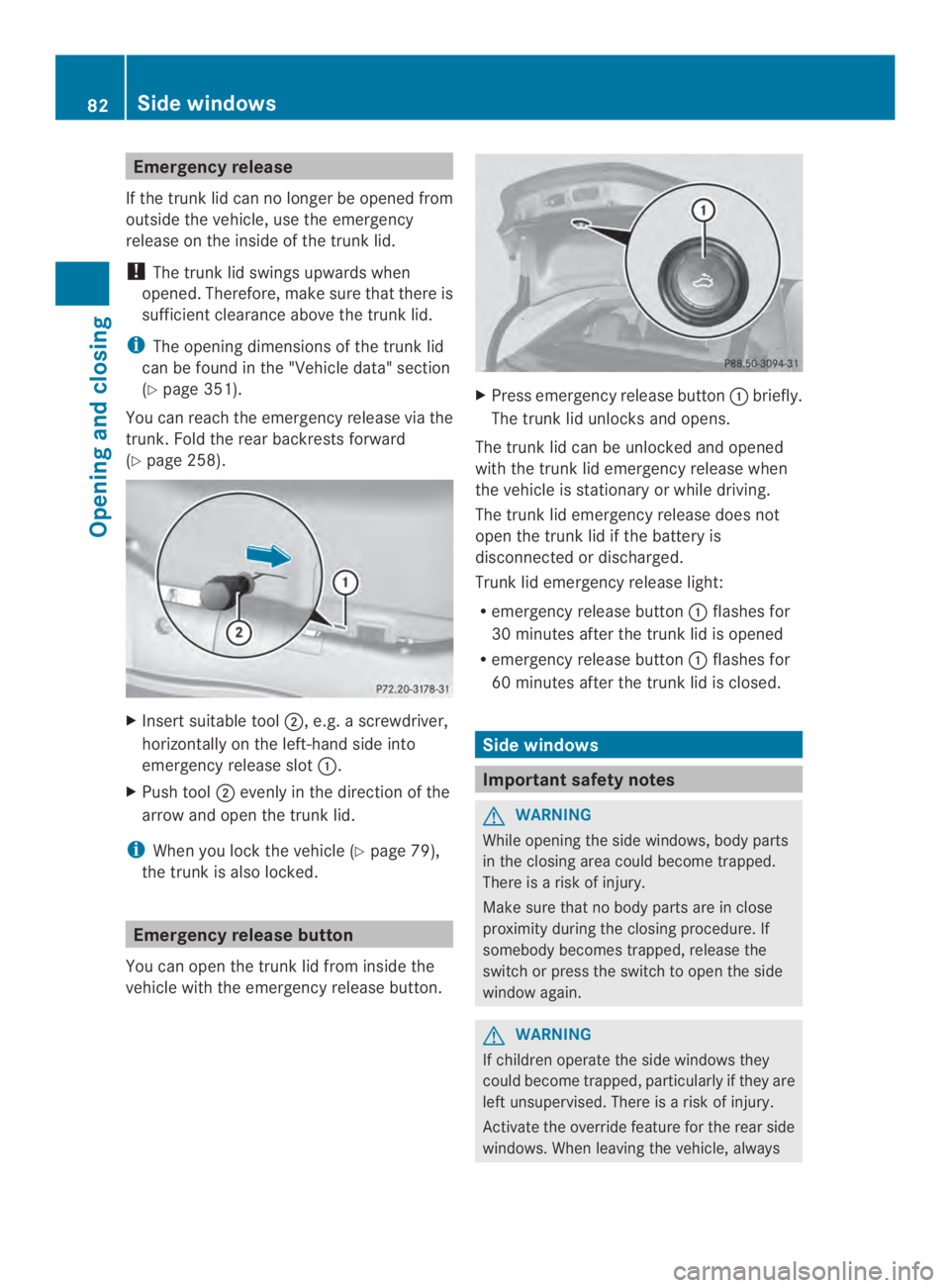

Emergency release
If the trunk lid can no longer be opened from
outside the vehicle, use the emergency
release on the inside of the trunk lid.
!The trunk lid swings upwards when
opened. Therefore, make sure that there is
sufficient clearance above the trunk lid.
iThe opening dimensions of thetrunk lid
can be found in the "Vehicle data" section
(Ypage 351).
You can reach the emergency release via the
trunk. Fold the rear backrests forward
(Ypage 258).
XInsert suitable tool, e.g. a screwdriver,
horizontally on the left-hand side into
emergency release slot.
XPush toolevenly in the direction of the
arrow and open the trunk lid.
iWhen you lock the vehicle (Ypage 79),
the trunk is also locked.
Emergency release button
You can open the trunk lid from inside the
vehicle with the emergency release button.
XPress emergency release buttonbriefly.
The trunk lid unlocks and opens.
The trunk lid can be unlocked and opened
with the trunk lid emergency release when
the vehicle is stationary or while driving.
The trunk lid emergency release does not
open the trunk lid if the battery is
disconnected or discharged.
Trunk lid emergency release light:
Remergency release buttonflashes for
30 minutes after the trunk lid is opened
Remergency release buttonflashes for
60 minutes after the trunk lid is closed.
Side windows
Important safety notes
GWARNING
While opening the side windows, body parts
in the closing area could become trapped.
There is a risk of injury.
Make sure that no body parts are in close
proximity during the closing procedure. If
somebody becomes trapped, release the
switch or press the switch to open the side
window again.
GWARNING
If children operate the side windows they
could become trapped, particularly if they are
left unsupervised. There is a risk of injury.
Activate the override feature for the rear side
windows. When leaving the vehicle, always
82Side windows
Opening and closing

take the SmartKey with you and lock the
vehicle. Never leave children unsupervised in
the vehicle.
Side window reversing feature
The side windows are equipped with an
automatic reversing feature. If a solid object
blocks or restricts a side window during the
closing process, the side window opens again
automatically. However, the automatic
reversing feature is only an aid and does not
relieve you of the responsibility of paying
attentionwhen closing a side window.
GWARNING
The reversing feature does not react:
Rto soft, light and thin objects, e.g. small
fingers
Rover the last 1/6 in(4 mm) of the closing
movement
Rduring resetting
Rwhen closing the side window again
manually immediately after automatic
reversing
This means that the reversing feature cannot
prevent someone being trapped in these
situations. There is a risk of injury.
Make sure that no body parts are in close
proximity during the closing procedure. If
someone becomes trapped, press the switch
to open the side window again.
Opening and closing the side
windows
The switches for all side windows are located
on the driver's door. There is also a switch on
each door for the corresponding side window.
The switches on the driver's door take
precedence.
Front left
Front right
"Rear right
!Rear left
iWhen the override feature for the side
windows is activated (Ypage 61), the side
windows cannot be operated from the rear.
XTurn the SmartKey to position1or2in the
ignition lock.
XTo open:press the corresponding switch.
XTo open fully:press the corresponding
switch beyond the point of resistance.
Automatic closing is started.
XTo close:pull the corresponding switch.
XTo close fully:pull the corresponding
switch beyond the pressure point.
Automatic closing is started.
XTo interrupt the automatic opening/
closing:press/pull the corresponding
switch again.
iIf you press the switch beyond the point
of resistance, an automatic opening/
closing process is started in the
corresponding direction. You can stop
automatic operation by operating the
switch again.
iYou can continue to operate the side
windows after you switch off the engine or
remove the SmartKey. This function is
available for up to five minutes or until the
driver's or front-passenger door is opened.
Side windows83
Opening and closing
Z

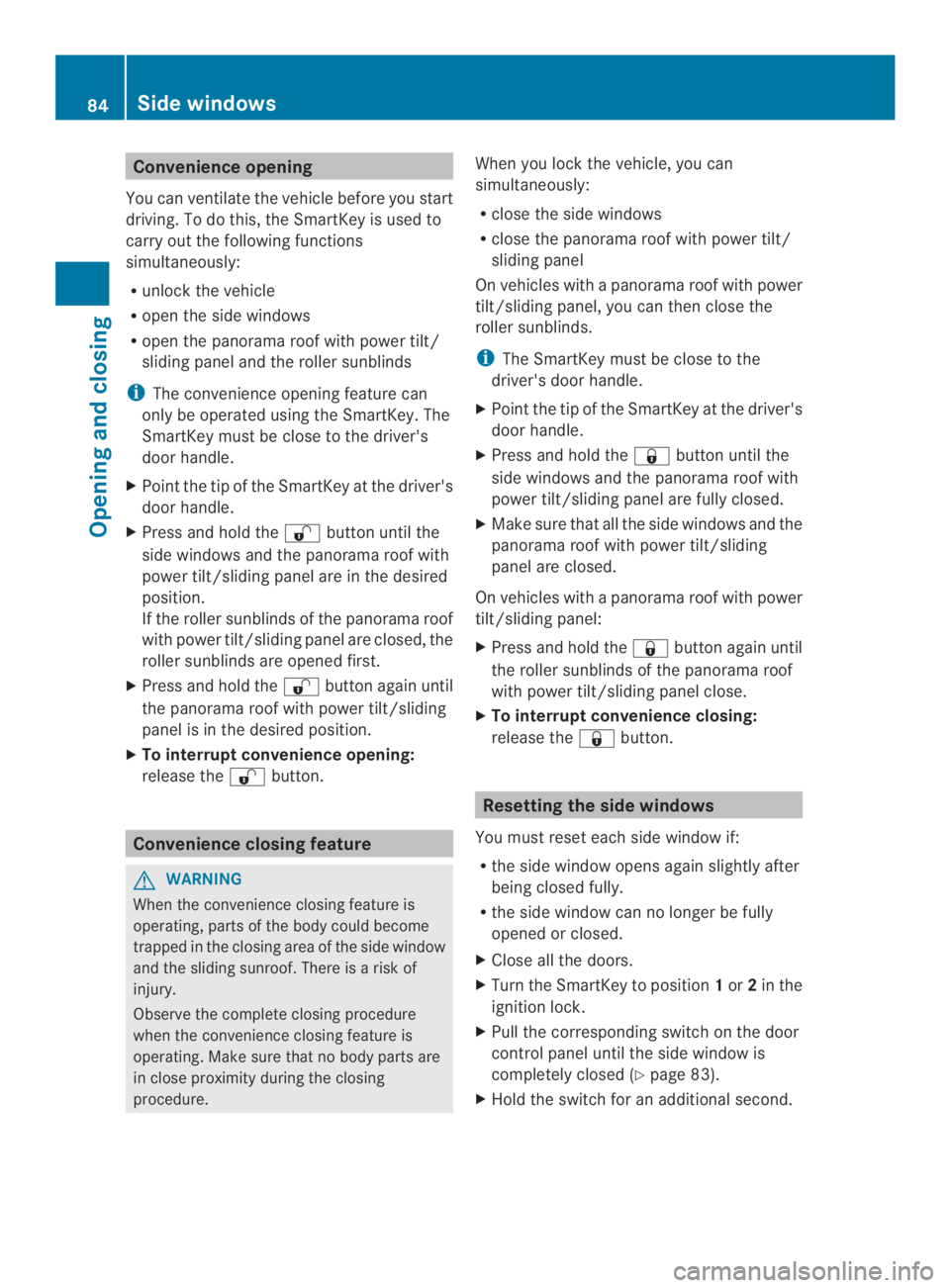

Convenience opening
You can ventilate the vehicle before you start
driving.To do this, the SmartKey is used to
carry out the following functions
simultaneously:
Runlock the vehicle
Ropen the side windows
Ropen the panorama roof with power tilt/
sliding panel and the roller sunblinds
iThe convenience opening feature can
only be operated using the SmartKey. The
SmartKey must be close to the driver's
door handle.
XPoint the tip of the SmartKey at the driver's
door handle.
XPress and hold thebutton until the
side windows and the panorama roof with
power tilt/sliding panel are in the desired
position.
If the roller sunblinds of the panorama roof
with power tilt/sliding panel are closed, the
roller sunblinds are opened first.
XPress and hold thebutton again until
the panorama roof with power tilt/sliding
panel is in the desired position.
XTo interrupt convenience opening:
release thebutton.
Convenience closing feature
GWARNING
When the convenience closing feature is
operating, parts of the body could become
trapped in the closing area of the side window
and the sliding sunroof. There is a risk of
injury.
Observe the complete closing procedure
when the convenience closing feature is
operating. Make sure that no body parts are
in close proximity during the closing
procedure.
When you lock the vehicle, you can
simultaneously:
Rclose the side windows
Rclose the panorama roof with power tilt/
sliding panel
On vehicles with a panorama roof with power
tilt/sliding panel, you can then close the
roller sunblinds.
iThe SmartKey must be close to the
driver's door handle.
XPoint the tip of the SmartKey at the driver's
door handle.
XPress and hold the\nbutton until the
side windows and the panorama roof with
power tilt/sliding panel are fully closed.
XMake sure that all the side windows and the
panorama roof with power tilt/sliding
panel are closed.
On vehicles with a panorama roof with power
tilt/sliding panel:
XPress and hold the\nbutton again until
the roller sunblinds of the panorama roof
with power tilt/sliding panel close.
XTo interrupt convenience closing:
release the\nbutton.
Resetting the side windows
You must reset each side window if:
Rthe side window opens again slightly after
being closed fully.
Rthe side window can no longer be fully
opened or closed.
XClose all the doors.
XTurn the SmartKey to position1or2in the
ignition lock.
XPull the corresponding switch on the door
control panel until the side window is
completely closed (Ypage 83).
XHold the switch for an additional second.
84Side windows
Opening and closing

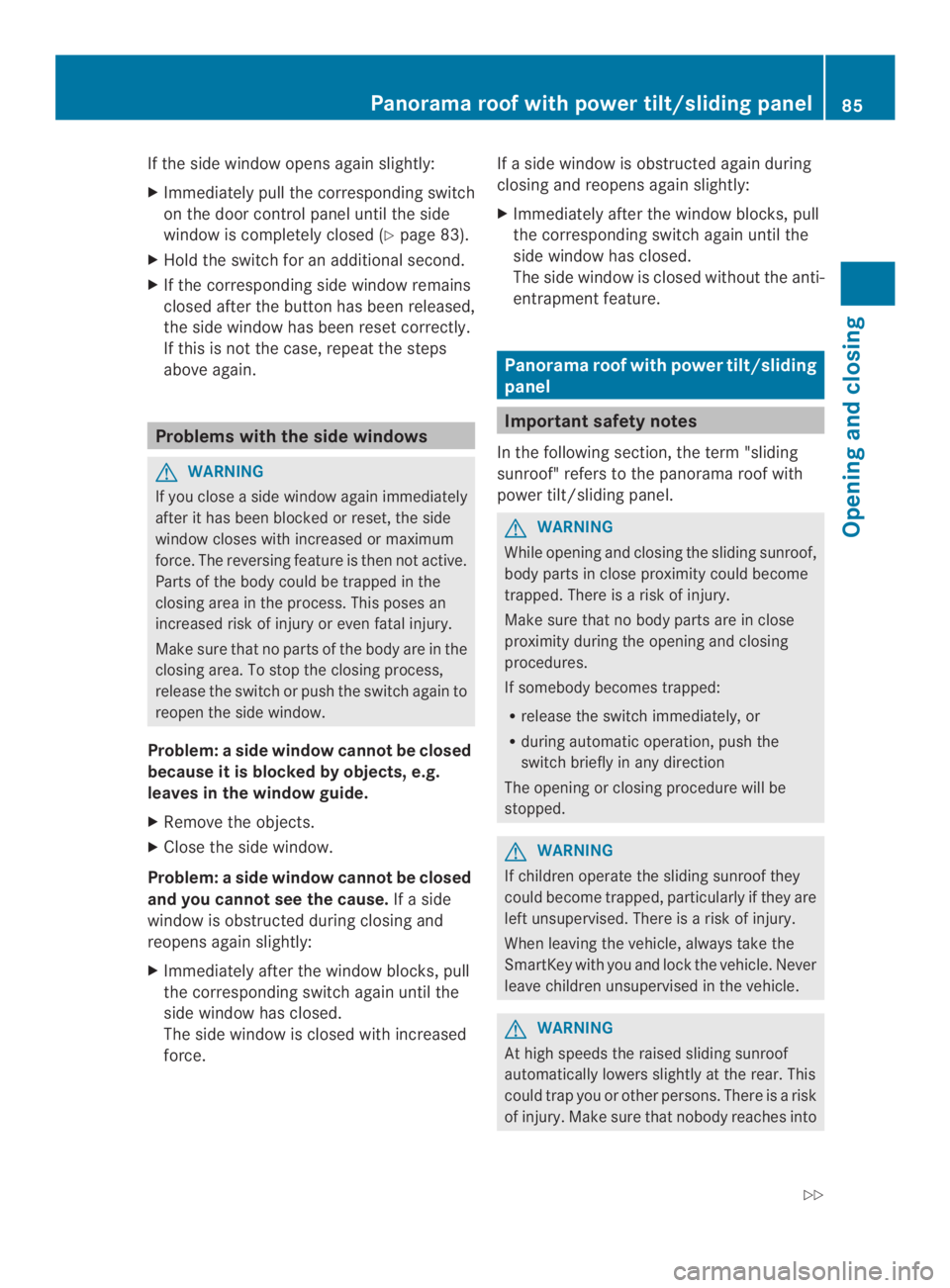

If the side window opens again slightly:
XImmediately pull the corresponding switch
on the door control panel until the side
window is completely closed (Ypage 83).
XHold the switch for an additional second.
XIf the corresponding side window remains
closed after the button has been released,
the side window has been reset correctly.
If this is not the case, repeatthe steps
above again.
Problems with the side windows
GWARNING
If you close a side window again immediately
after it has been blocked or reset, the side
window closes with increased or maximum
force. The reversing feature is then not active.
Parts of the body could be trapped in the
closing area in the process. This poses an
increased risk of injury or even fatal injury.
Make sure that no parts of the body are in the
closing area. To stop the closing process,
release the switch or push the switch again to
reopen the side window.
Problem:aside window cannot be closed
because it is blocked by objects, e.g.
leaves in the window guide.
XRemove the objects.
XClose the side window.
Problem:aside window cannot be closed
and you cannot see the cause.If a side
window is obstructed during closing and
reopens again slightly:
XImmediately afterthe window blocks, pull
the corresponding switch again until the
side window has closed.
The side window is closed with increased
force.
If a side window is obstructed again during
closing and reopens again slightly:
XImmediately after the window blocks, pull
the corresponding switch again until the
side window has closed.
The side window is closed without the anti-
entrapment feature.
Panoramaroof with power tilt/sliding
panel
Important safety notes
In the following section, the term "sliding
sunroof" refers to the panorama roofwith
power tilt/sliding panel.
GWARNING
While opening and closing the sliding sunroof,
body parts in close proximity could become
trapped. There is a risk of injury.
Make sure that no body parts are in close
proximity during the opening and closing
procedures.
If somebody becomes trapped:
Rrelease the switch immediately, or
Rduring automatic operation, push the
switch briefly in any direction
The opening or closing procedure will be
stopped.
GWARNING
If children operate the sliding sunroof they
could become trapped, particularly if they are
left unsupervised. There is a risk of injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children unsupervised in the vehicle.
GWARNING
At high speeds the raised sliding sunroof
automatically lowers slightly at the rear. This
could trap you or other persons. There is a risk
of injury. Make sure that nobody reaches into
Panoramaroof with power tilt/sliding panel85
Opening and closing
Z

the sweep of the sliding sunroofwhilst the
vehicle is in motion.
If somebody becomes trapped, reduce speed
immediately, paying attention to road and
traffic conditions.The sliding sunroof opens
again to its original position.
If the sliding sunroof is not completely raised,
you can then raise it further with the switch.
!Only open the sliding sunroof if it is free
of snow and ice. Otherwise, malfunctions
may occur.
Do not allow anything to protrude from the
sliding sunroof. Otherwise, the seals could
be damaged.
!The weather can change abruptly. It could
start to rain or snow. Make sure that the
sliding sunroof is closed when you leave the
vehicle. The vehicle electronics can be
damaged if water enters the vehicle
interior.
iResonance noises can occur in addition
to the usual airflow noises when the sliding
sunroof is open. They are caused by minor
pressure fluctuations in the vehicle interior.
Change the position of the sliding sunroof
or open a side window slightly to reduce or
eliminate these noises.
Sliding sunroof reversing feature
The sliding sunroof is equipped with an
automatic reversing feature. If a solid object
blocks or restricts the sliding sunroof during
the closing process, the sliding sunroof opens
again automatically.However, the automatic
reversing feature is only an aid and does not
relieve you of the responsibility of paying
attention when closing the sliding sunroof.
GWARNING
The reversing feature does not react:
Rto soft, light and thin objects, e.g. small
fingers
Rover the last 1/6 in(4 mm) of the closing
movement
Rduring resetting
Rwhen closing the sliding sunroof again
manually immediately after automatic
reversing
This means that the reversing feature cannot
prevent someone being trapped in these
situations. There is a risk of injury.
Make sure that no body parts are in close
proximity during the closing procedure.
If somebody becomes trapped:
Rrelease the switch immediately, or
Rduring automatic operation, push the
switch briefly in any direction
The closing process is stopped.
Operating the sliding sunroof
Overhead control panel
To raise
To open
"To close/lower
86Panoramaroof with power tilt/sliding panel
Opening and closing
