2014 MERCEDES-BENZ CLA Owners Manual

Display messagesPossible causes/consequences and
Solutions
XWait foraperiod of at least 60 seconds until the necessary
system checks have been completed.
XMake sure that the display messages do not appear in the
multifunction display.
If these conditions are fulfilled, the front-passenger seat can be
occupied again. Whether the PASSENGER AIR BAG OFF indicator
lamp remains lit or goes out depends on how OCS classifies the
occupant.
If the conditions are not fulfilled, the system is not operating
correctly.
XVisit a qualified specialist workshop immediately.
For further information about the Occupant Classification System,
see (Ypage 45).
Lights
iDisplay messages about LEDs:
This display message will only appear if all LEDs have failed.
Display messagesPossible causes/consequences and
Solutions

Check Left
Cornering Lightor
Check Right
Cornering Light
The left or right-hand cornering light is defective.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 111).
or
XVisit a qualified specialist workshop.

Check Left Low
BeamorCheck
Right Low Beam
The left or right-hand low-beam headlamp is defective.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 111).
or
XVisit a qualified specialist workshop.

Check Rear Left
Turn Signalor
Check Rear Right
Turn Signal
The rear left-hand or rear right-hand turn signal is defective.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 111).
or
XVisit a qualified specialist workshop.
Display messages223
On-board computer and displays
Z

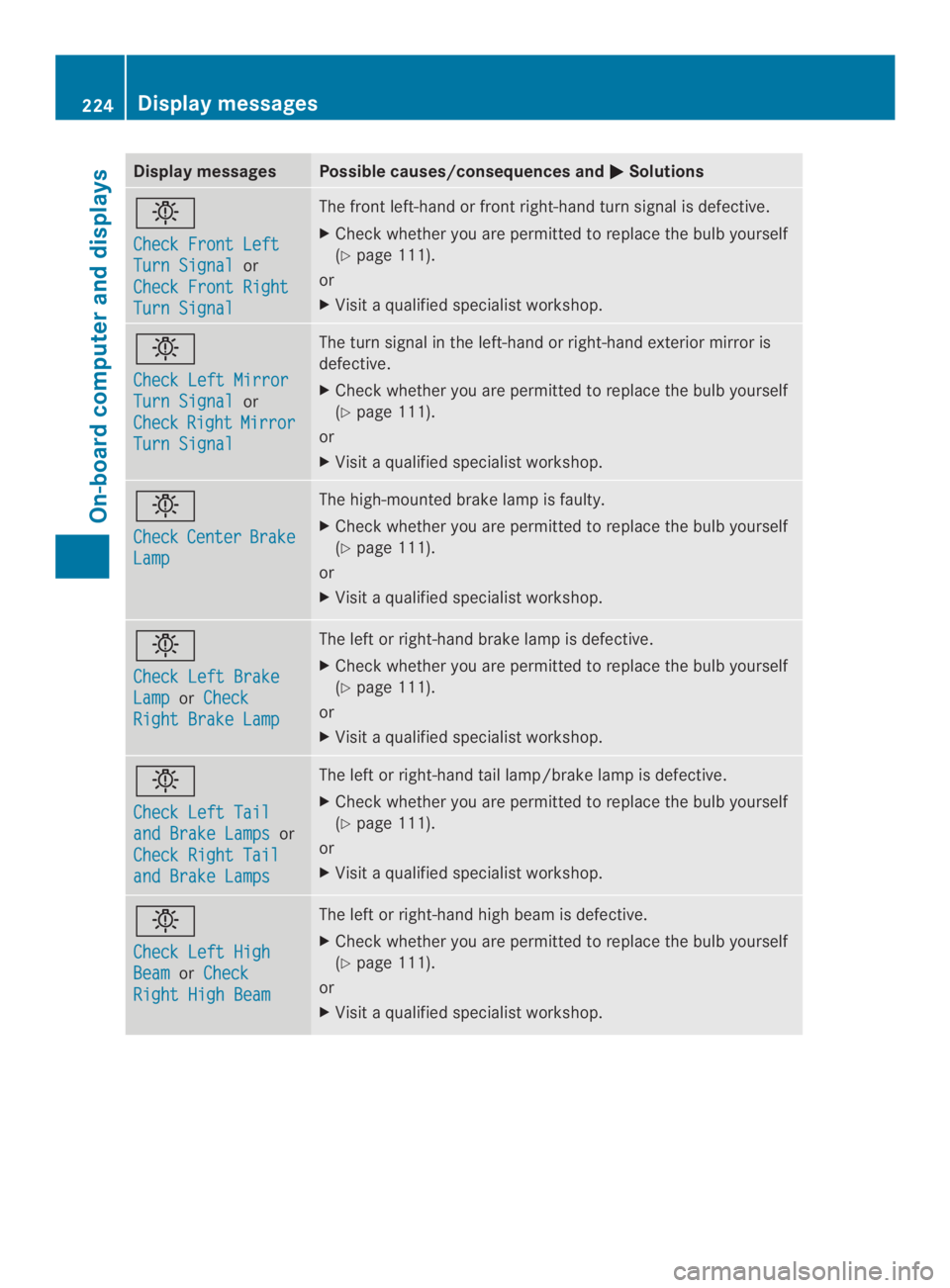

Display messagesPossible causes/consequences and
Solutions

Check Front Left
Turn Signalor
Check Front Right
Turn Signal
The front left-hand or front right-hand turn signal is defective.
XCheckwhether you are permitted to replace the bulb yourself
(Ypage 111).
or
XVisit a qualified specialist workshop.

Check Left Mirror
Turn Signalor
CheckRightMirror
Turn Signal
The turn signal in the left-hand or right-hand exterior mirror is
defective.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 111).
or
XVisit a qualified specialist workshop.

CheckCenterBrake
Lamp
The high-mounted brake lamp is faulty.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 111).
or
XVisit a qualified specialist workshop.

Check Left Brake
LamporCheck
Right Brake Lamp
The left or right-hand brake lamp is defective.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 111).
or
XVisit a qualified specialist workshop.

Check Left Tail
and Brake Lampsor
Check Right Tail
and Brake Lamps
The left or right-hand tail lamp/brake lamp is defective.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 111).
or
XVisit a qualified specialist workshop.

Check Left High
BeamorCheck
Right High Beam
The left or right-hand high beam is defective.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 111).
or
XVisit a qualified specialist workshop.
224Display messages
On-board computer and displays

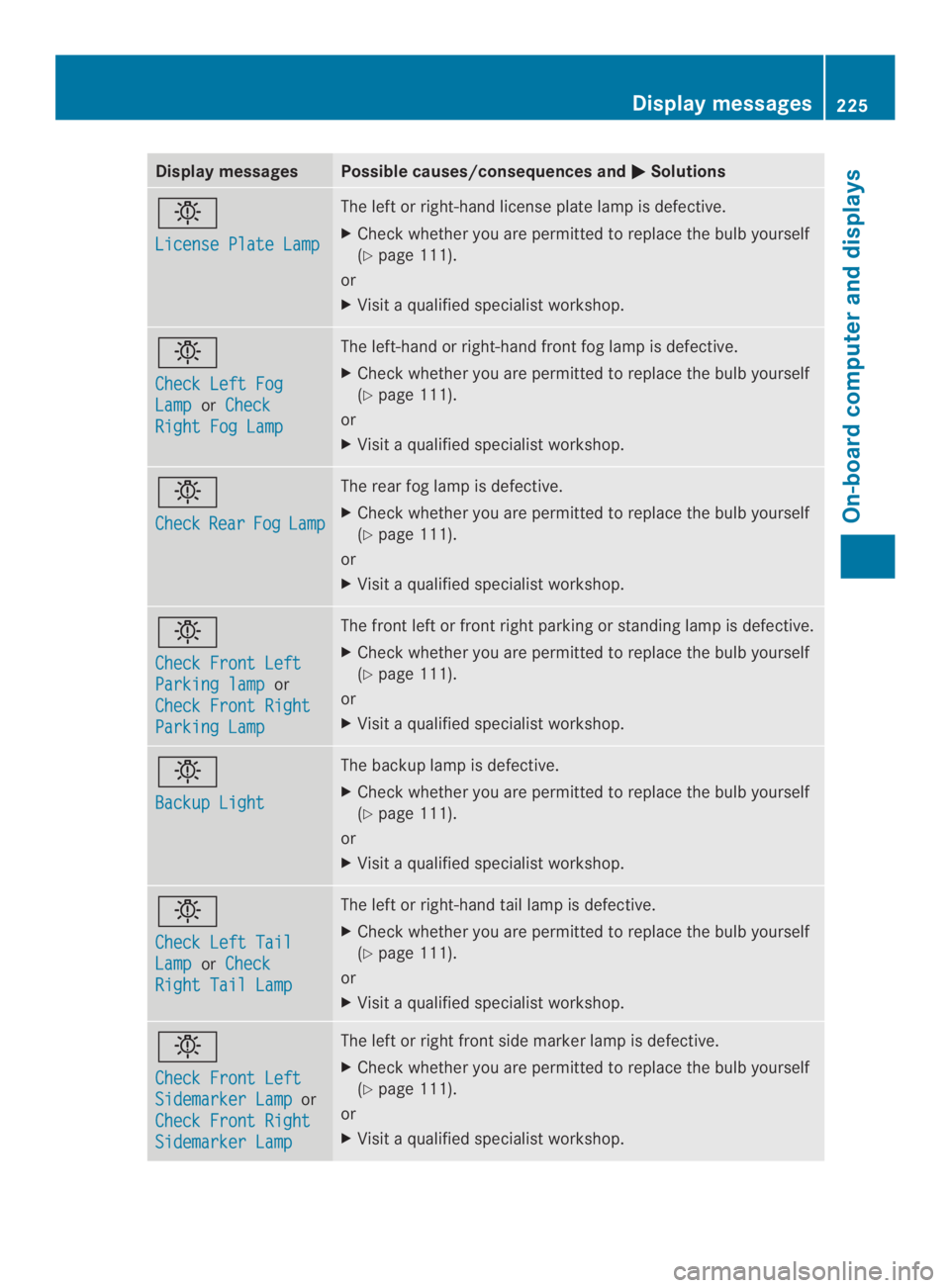

Display messagesPossible causes/consequences and
Solutions

License Plate Lamp
The leftorright-hand license plate lamp is defective.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 111).
or
XVisit a qualified specialist workshop.

Check Left Fog
LamporCheck
Right Fog Lamp
The left-hand or right-hand front fog lamp is defective.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 111).
or
XVisit a qualified specialist workshop.

CheckRearFogLamp
The rear fog lamp is defective.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 111).
or
XVisit a qualified specialist workshop.

Check Front Left
Parking lampor
Check Front Right
Parking Lamp
The front left or front right parking or standing lamp is defective.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 111).
or
XVisit a qualified specialist workshop.

Backup Light
The backup lamp is defective.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 111).
or
XVisit a qualified specialist workshop.

Check Left Tail
LamporCheck
Right Tail Lamp
The left or right-hand tail lamp is defective.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 111).
or
XVisit a qualified specialist workshop.

Check Front Left
Sidemarker Lampor
Check Front Right
Sidemarker Lamp
The left or right front side marker lamp is defective.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 111).
or
XVisit a qualified specialist workshop.
Display messages225
On-board computer and displays
Z

Display messagesPossible causes/consequences and
Solutions

Check Rear Left
Sidemarker Lampor
Check Rear Right
Sidemarker Lamp
The rear leftorright side marker lamp is defective.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 111).
or
XVisit a qualified specialist workshop.

CheckLeftDaytime
Running Lightor
Check Right
Daytime Running
Light
The left-hand or right-hand daytime running lamp is faulty.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 111).
or
XVisit a qualified specialist workshop.

Active Light
System Inoperative
The active light function is defective.
XVisit a qualified specialist workshop.

Malfunction See
Operator's Manual
The exterior lighting is defective.
XVisit a qualified specialist workshop.

AutoLampFunction
Inoperative
The light sensor is defective.
XVisit a qualified specialist workshop.

Switch Off Lights
The lights are still switched on when you leave the vehicle. A
warning tone also sounds.
XTurn the light switch to.
Adaptive Highbeam
Assist Inoperative
Adaptive Highbeam Assist is faulty.
XVisit a qualified specialist workshop.
Adaptive Highbeam
Assist Currently
Unavailable See
Operator's Manual
Adaptive Highbeam Assist is deactivated and temporarily
inoperative. Possible causes are:
Rthe windshield in the camera's field of vision is dirty.
Rvisibility is impaired due to heavy rain, snow or fog.
XClean the windshield.
If the system detects that the camera is fully operational again,
theAdaptive Highbeam Assist Now Availablemessage is
displayed.
Adaptive Highbeam Assist is operational again.
226Display messages
On-board computer and displays

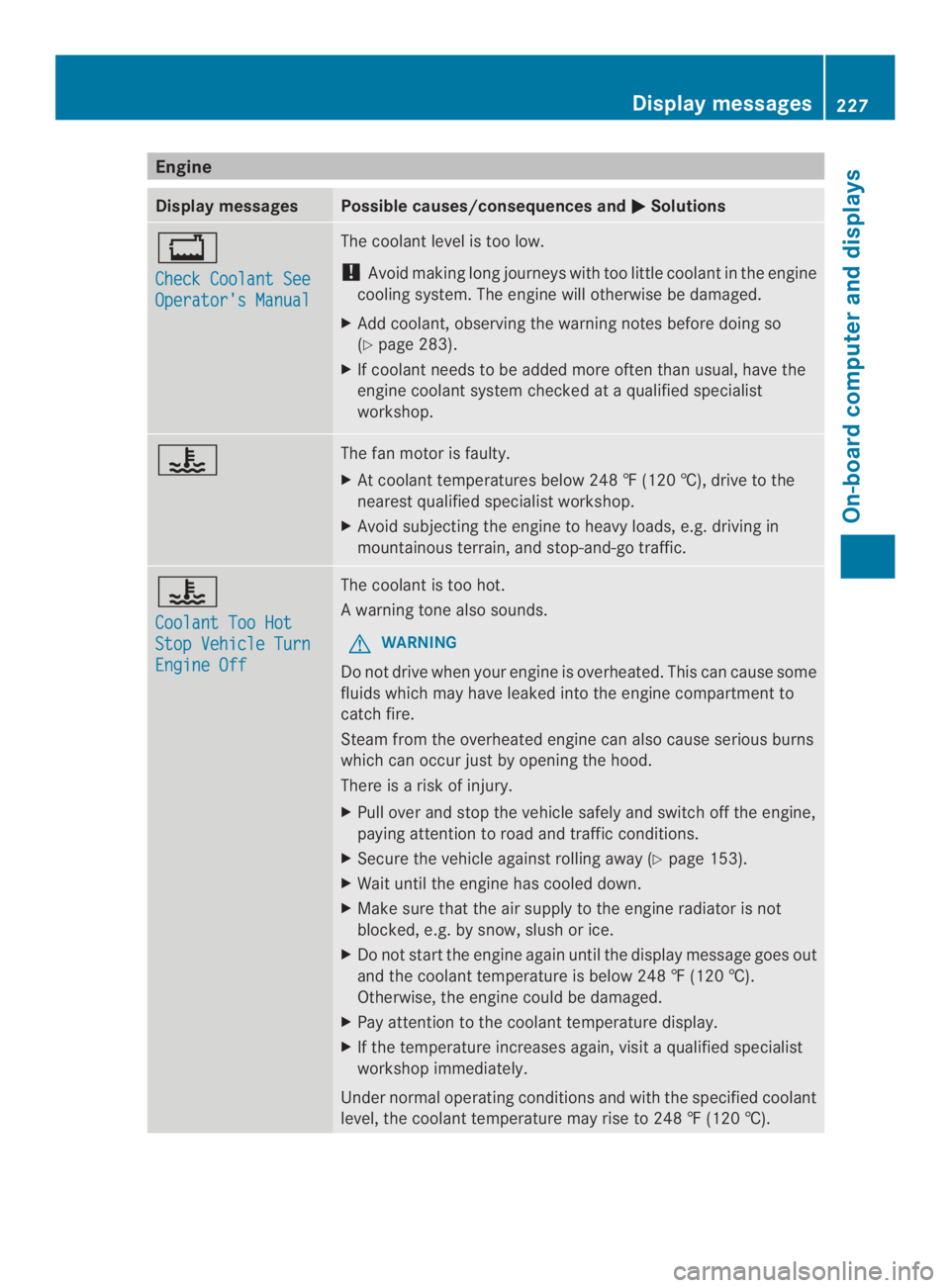

Engine
Display messagesPossible causes/consequences and
Solutions

Check Coolant See
Operator's Manual
The coolant level is too low.
!Avoid making long journeys with too little coolant in the engine
cooling system. The engine will otherwise be damaged.
XAdd coolant, observing the warning notes before doing so
(Ypage 283).
XIf coolant needs to be added more often than usual, have the
engine coolant system checked at a qualified specialist
workshop.
\rThe fan motor is faulty.
XAt coolant temperatures below 248 ‡ (120 †), drive to the
nearestqualified specialist workshop.
XAvoid subjecting the engineto heavy loads, e.g. driving in
mountainous terrain, and stop-and-go traffic.
\r
Coolant Too Hot
Stop Vehicle Turn
Engine Off
The coolant is too hot.
Awarning tone also sounds.
GWARNING
Do notdrive when yourengine is overheated. Thiscan cause some
fluids which may have leaked into the engine compartmentto
catch fire.
Steamfrom the overheated engine can also cause serious burns
which can occur just by opening the hood.
There is a risk of injury.
XPull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
XSecure the vehicle against rolling away (Ypage 153).
XWaituntil the engine has cooled down.
XMake sure thatthe air supply to the engine radiator is not
blocked, e.g. by snow, slush or ice.
XDo not start the engine again until the display message goes out
and the coolant temperature is below 248 ‡ (120 †).
Otherwise, the engine could be damaged.
XPay attention to the coolant temperature display.
XIf the temperature increases again, visit a qualified specialist
workshop immediately.
Under normal operating conditions and with the specified coolant
level, the coolant temperature may rise to 248 ‡ (120 †).
Display messages227
On-board computer and displays
Z

Display messagesPossible causes/consequences and
Solutions
The battery is notbeing charged.
Awarning tone also sounds.
Possible causes are:
Ra defective alternator
Ra torn poly-V-belt
Ra malfunction in the electronics
XPull overand stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
XOpenthe hood.
XCheck whether the poly-V-belt is torn.
If the poly-V-belt is torn:
!Do not continue driving. The engine could otherwise overheat.
XConsult a qualified specialist workshop.
If the poly-V-belt is not damaged:
XVisit a qualified specialist workshop immediately.

Check Engine Oil
At Next Refueling
The engine oil level has dropped to the minimum level.
Awarning tone also sounds.
XCheckthe oil level when next refueling, at the latest
(Ypage 281).
XIf necessary, add engine oil (Ypage 282).
XHave the engine checked at a qualified specialist workshop if
engine oil needs to be added more often than usual.
!Avoid long journeys with too little engine oil. The engine will
otherwise be damaged.
Information on approved engine oils can be obtained from any
qualified specialist workshop or on the Internet at http://
bevo.mercedes-benz.com (USA only).


Fuel Level Low
The fuel level has dropped into the reserve range.
XRefuel at the nearest gas station.
228Display messages
On-board computer and displays

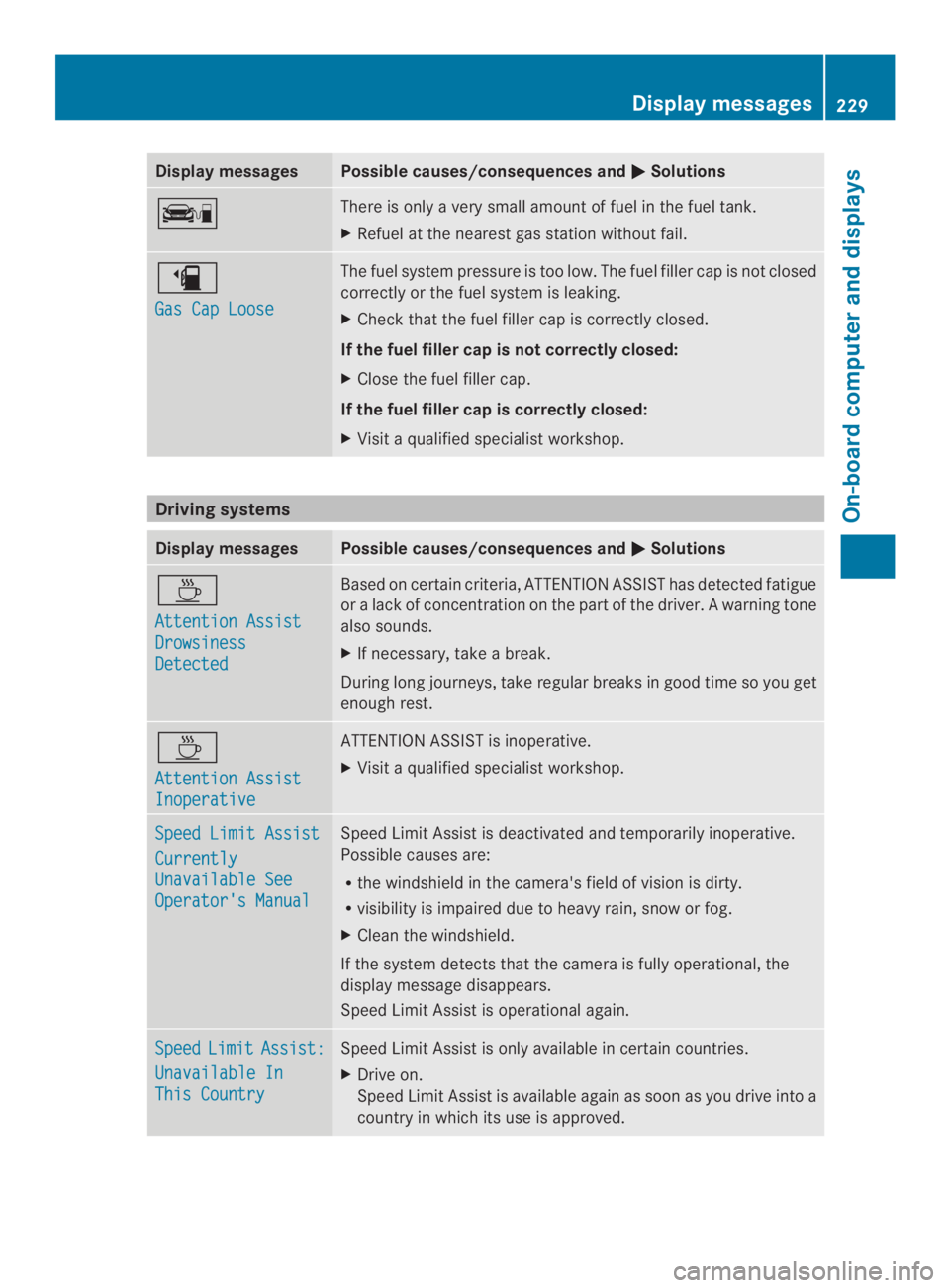

Display messagesPossible causes/consequences and
Solutions
There is only a very small amount of fuel in thefuel tank.
XRefuel at the nearestgas stationwithout fail.


Gas Cap Loose
The fuel system pressure is too low. The fuel filler cap is not closed
correctly or the fuel system is leaking.
XCheck that the fuel filler cap is correctly closed.
If the fuel filler cap is not correctly closed:
XClose the fuel filler cap.
If the fuel filler cap is correctly closed:
XVisit a qualified specialist workshop.
Driving systems
DisplaymessagesPossible causes/consequences and
Solutions

Attention Assist
Drowsiness
Detected
Based on certain criteria, ATTENTION ASSIST has detected fatigue
oralack of concentration on thepart of thedriver. A warning tone
also sounds.
XIf necessary, take a break.
During long journeys, take regular breaks in good time so you get
enough rest.

Attention Assist
Inoperative
ATTENTION ASSIST is inoperative.
XVisitaqualified specialist workshop.
Speed Limit Assist
Currently
Unavailable See
Operator's Manual
Speed Limit Assist is deactivated and temporarily inoperative.
Possible causes are:
Rthe windshield in the camera's field of vision is dirty.
Rvisibility is impaired due to heavy rain, snow or fog.
XClean the windshield.
If the system detects that the camera is fully operational, the
display message disappears.
Speed Limit Assist is operational again.
SpeedLimitAssist:
Unavailable In
This Country
Speed Limit Assist is only available in certain countries.
XDrive on.
Speed Limit Assist is available again as soon as you drive into a
country in which its use is approved.
Display messages229
On-board computer and displays
Z

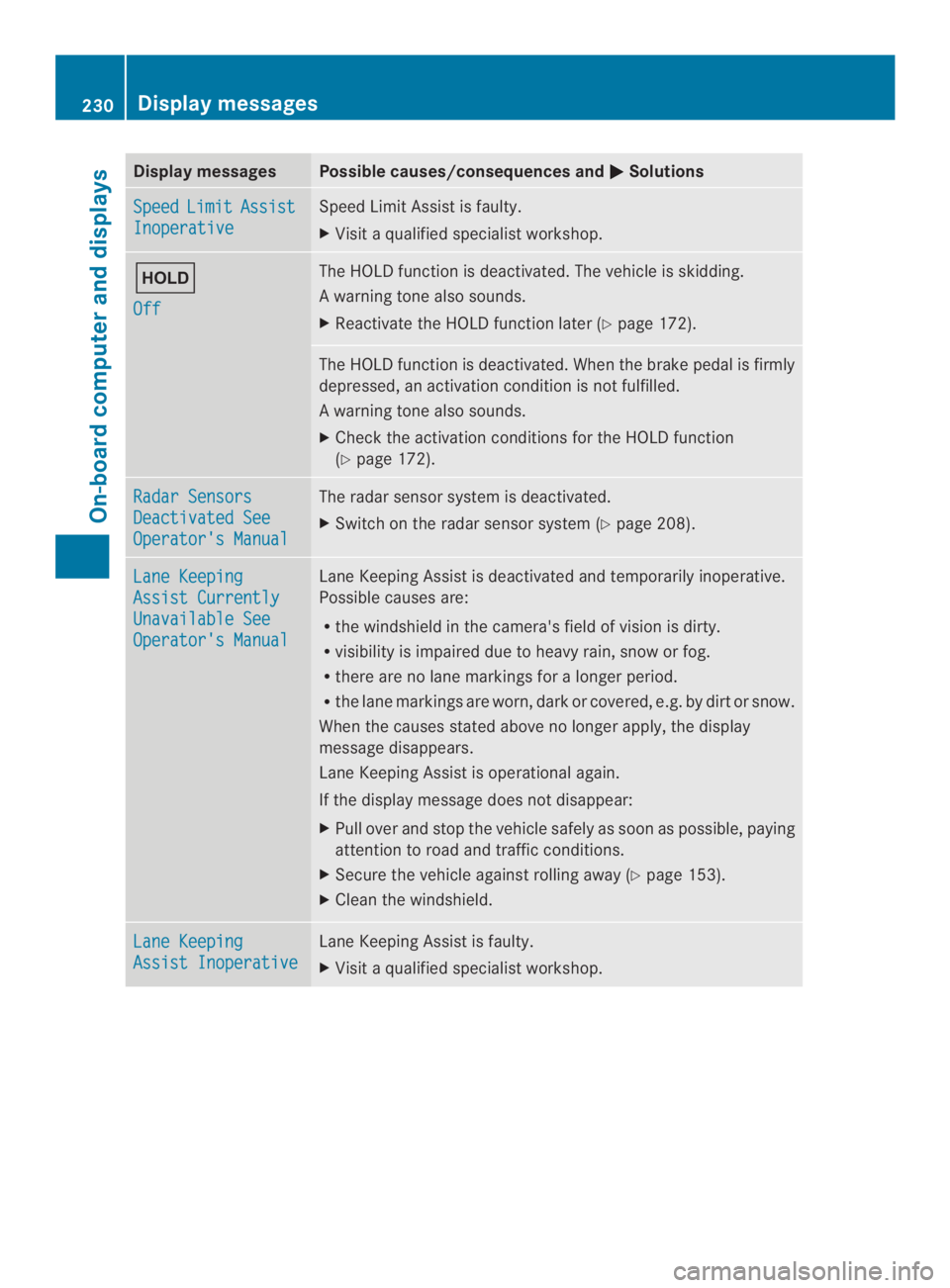

Display messagesPossible causes/consequences and
Solutions
SpeedLimitAssist
Inoperative
Speed Limit Assistis faulty.
XVisit a qualified specialist workshop.

Off
The HOLD function is deactivated. The vehicle is skidding.
Awarning tone also sounds.
XReactivate the HOLD function later (Ypage 172).
The HOLD function is deactivated. When the brakepedal is firmly
depressed, an activation condition is not fulfilled.
Awarning tone also sounds.
XCheck the activation conditions for the HOLD function
(Ypage 172).
Radar Sensors
Deactivated See
Operator's Manual
The radar sensor system is deactivated.
XSwitch on the radar sensor system (Ypage 208).
Lane Keeping
Assist Currently
Unavailable See
Operator's Manual
Lane Keeping Assist is deactivated and temporarily inoperative.
Possible causes are:
Rthe windshield in the camera's field of vision is dirty.
Rvisibility is impaired due to heavy rain, snow or fog.
Rthere are no lane markings for a longer period.
Rthe lane markings are worn, dark or covered, e.g.by dirtorsnow.
Whenthe causes stated above no longer apply, the display
message disappears.
Lane Keeping Assist is operational again.
If the display message does not disappear:
XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
XSecure the vehicle against rolling away (Ypage 153).
XCleanthe windshield.
Lane Keeping
Assist Inoperative
Lane Keeping Assist is faulty.
XVisit a qualified specialist workshop.
230Display messages
On-board computer and displays
