opens. Only once the maneuvering process
has been completed and the rear view camera
has switched off does the flap close again. For
technical reasons, the flap may remain open
briefly after the rear view camera has been
deactivated. If you switch off the engine, the
flap will also close.
iThe text of messages shown in the
COMAND display depends on the language
setting. The following are examples of rear
view camera messages in the COMAND
display.
Observe the notes on cleaning
(Ypage 289).
Important safety notes
The rear view camera is only an aid. It is not
a replacement for your attention to your
immediate surroundings. You are always
responsible for safe maneuvering and
parking. When maneuvering or parking, make
sure that there are no persons, animals or
objects in the area in which you are
maneuvering.
Under the following circumstances, the rear
view camera will not function, or will function
in a limited manner:
Rthe tailgate is open
Rin heavy rain, snow or fog
Rat night or in very dark places
Rif the camera is exposed to very bright light
Rif the area is lit by fluorescent light or LED
lighting (the display may flicker)
Rif there is a sudden change in temperature,
e.g. when driving into a heated garage in
winter
Rif the camera lens is dirty or obstructed
Rif the rear of your vehicle is damaged. In
this event, have the camera position and
setting checked at a qualified specialist
workshop.
Activating/deactivating the rear view
camera
XTo activate:make sure that the SmartKey
is in position2in the ignition lock.
XMake sure that in the audio system/
COMAND, the "Activation by R gear"
function is selected; see the separate
operating instructions for the audio
system/COMAND.
XEngage reverse gear.
Guide lines are used to show the area
behind the vehicle in the Audio/COMAND
display.
To deactivate:the rear view camera is
deactivated if you:
Rselect transmission positionP(vehicles
with automatic transmission)
Rdrive forward ten meters
Rshift the transmission fromRto another
position after 15 seconds
Rdrive forwards at a speed of over5mph
(10 km/h)
Displays in the Audio/COMAND display
The rear view camera may show a distorted
view of obstacles, show them incorrectly or
not at all. The rear view camera does not show
objects in the following positions:
Rvery close to the rear bumper
Runder the rear bumper
Rin the area immediately above the tailgate
handle
!Objects not at ground level may appear to
be further away than they actually are, e.g.:
Rthe bumper of a parked vehicle
Rthe drawbar of a trailer
Rthe ball coupling of a trailer tow hitch
Rthe rear section of an HGV
Ra slanted post
Use the guidelines only for orientation.
Approach objects no further than the
bottom-most guideline.
Driving systems183
Driving and parking
Z

Lanes
White guide line withoutturning the
steering wheel, vehicle width including
the exterior mirrors (static)
Yellow lane marking tires at current
steering wheel angle, vehicle width to the
outer side of the wheels (dynamic)
"Red guide line for the vehicle width
including the exterior mirrors, for current
steering wheel angle (dynamic)
!Bumper
Guide lines
!Bumper
Red guide line at a distanceof
approximately 10 in (0.25 m) from the
rear of the vehicle
Yellow guide line at a distance of
approximately 13 ft(4.0m)from the rear
of the vehicle
Vehicle center axle (marker assistance)
Yellow guide line at a distance of
approximately 3 ft (1.0 m) from the rear
of the vehicle
The lanes and guide lines are only displayed
if you have engaged reverse gear.
The distance specifications only apply to
objects that are at ground level.
Additional displays on vehicles with PARKTRONICand COMAND
Front warning display
Additional PARKTRONIC measurement
operational readiness indicator
"Rearwarning display
Vehicles with PARKTRONIC and
COMAND:if PARKTRONIC is operational
(Ypage 175), an additional operational
readiness indicator will appear in COMAND
display.If the PARKTRONIC warning
displays are active or light up, warning
displaysand"are also active or light up
correspondingly in the COMAND display.
"Reverse parking" function
XMake sure that the rear view camera is
activated and the "Reverse parking"
function is selected; see the separate
operating instructions for the audio
system/COMAND.
The lane and the guide lines are shown.
184Driving systems
Driving and parking

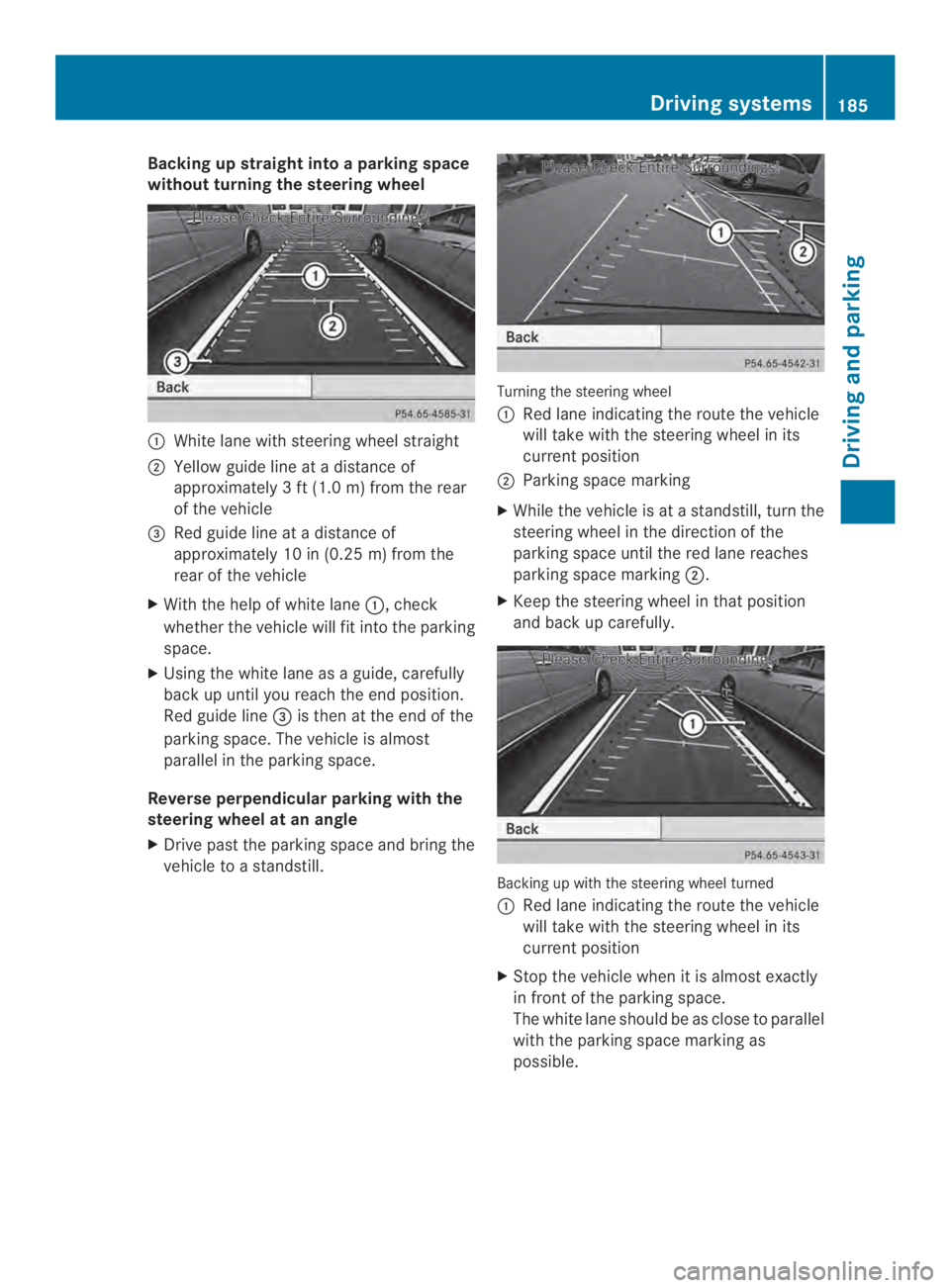

Backing up straight into a parking space
withoutturning the steering wheel
White lane with steering wheel straight
Yellow guide line at a distance of
approximately 3 ft (1.0 m) from the rear
of the vehicle
"Red guide line at a distance of
approximately 10 in (0.25 m) from the
rear of the vehicle
XWith the help of white lane, check
whether the vehicle will fit into the parking
space.
XUsing the white lane as a guide, carefully
back up until you reach the end position.
Red guide line"is then at the end of the
parking space. The vehicle is almost
parallel in the parking space.
Reverse perpendicular parking with the
steering wheel at an angle
XDrive pastthe parking space and bring the
vehicle to a standstill.
Turning the steering wheel
Red lane indicating the route the vehicle
will take with the steering wheel in its
current position
Parking space marking
XWhile the vehicle is at a standstill, turn the
steering wheel in the direction of the
parking space until the red lane reaches
parking space marking.
XKeep the steering wheel in that position
and back up carefully.
Backing up with the steering wheel turned
Red lane indicating the route the vehicle
will take with the steering wheel in its
current position
XStop the vehicle when it is almost exactly
in front of the parking space.
The white lane should be as close to parallel
with the parking space marking as
possible.
Driving systems185
Driving and parking
Z

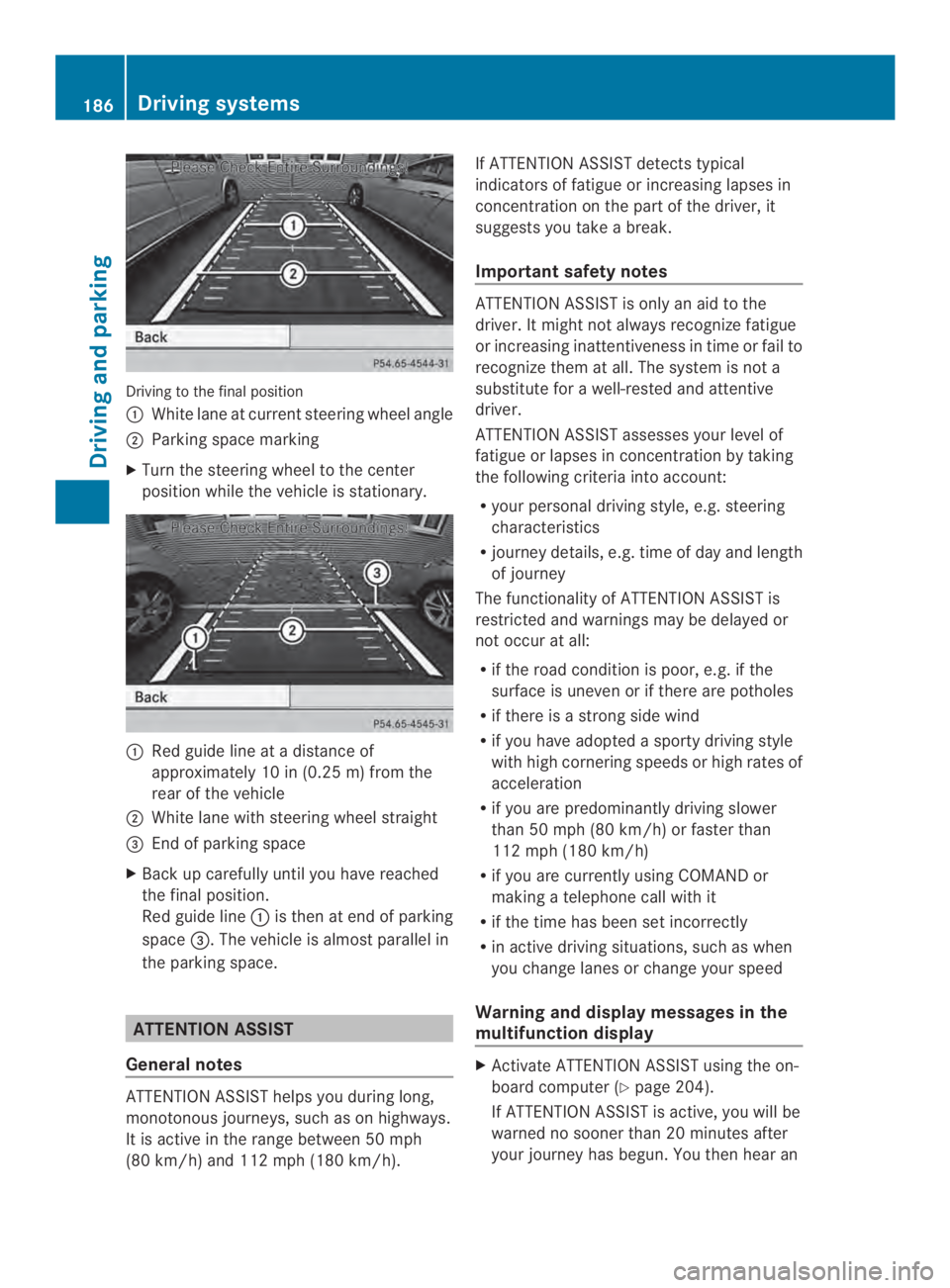

Driving to the final position
White lane at current steering wheel angle
Parking space marking
XTurn the steering wheel to the center
positionwhile the vehicle is stationary.
Red guide line at a distance of
approximately 10 in (0.25 m) from the
rear of the vehicle
White lane with steering wheel straight
"End of parking space
XBack up carefully until you have reached
the final position.
Red guide lineis then at end of parking
space".The vehicle is almost parallel in
the parking space.
ATTENTION ASSIST
General notes
ATTENTION ASSIST helps you during long,
monotonous journeys, such as on highways.
It is active in the range between 50 mph
(80 km/h) and 112 mph (180 km/h).
If ATTENTION ASSIST detects typical
indicators of fatigue or increasing lapses in
concentration on the part of the driver, it
suggests you take a break.
Important safety notes
ATTENTION ASSIST is only an aid to the
driver. It might not always recognize fatigue
or increasing inattentiveness in time or fail to
recognize them at all. The system is not a
substitute for a well-rested and attentive
driver.
ATTENTION ASSIST assesses your level of
fatigue or lapses in concentration by taking
the following criteria into account:
Ryour personal driving style, e.g. steering
characteristics
Rjourney details, e.g. time of day and length
of journey
The functionality of ATTENTION ASSIST is
restricted and warnings may be delayed or
not occur at all:
Rif the road condition is poor, e.g. if the
surface is uneven or if there are potholes
Rif there is a strong side wind
Rif you have adopted a sporty driving style
with high cornering speeds or high rates of
acceleration
Rif you are predominantly driving slower
than 50 mph (80 km/h) or faster than
112 mph (180 km/h)
Rif you are currently using COMAND or
making a telephone call with it
Rif the time has been set incorrectly
Rin active driving situations, such as when
you change lanes or change your speed
Warning and display messages in the
multifunction display
XActivate ATTENTION ASSIST using the on-
board computer (Ypage 204).
If ATTENTION ASSIST is active, you will be
warned no sooner than 20 minutes after
your journey has begun. You then hear an
186Driving systems
Driving and parking

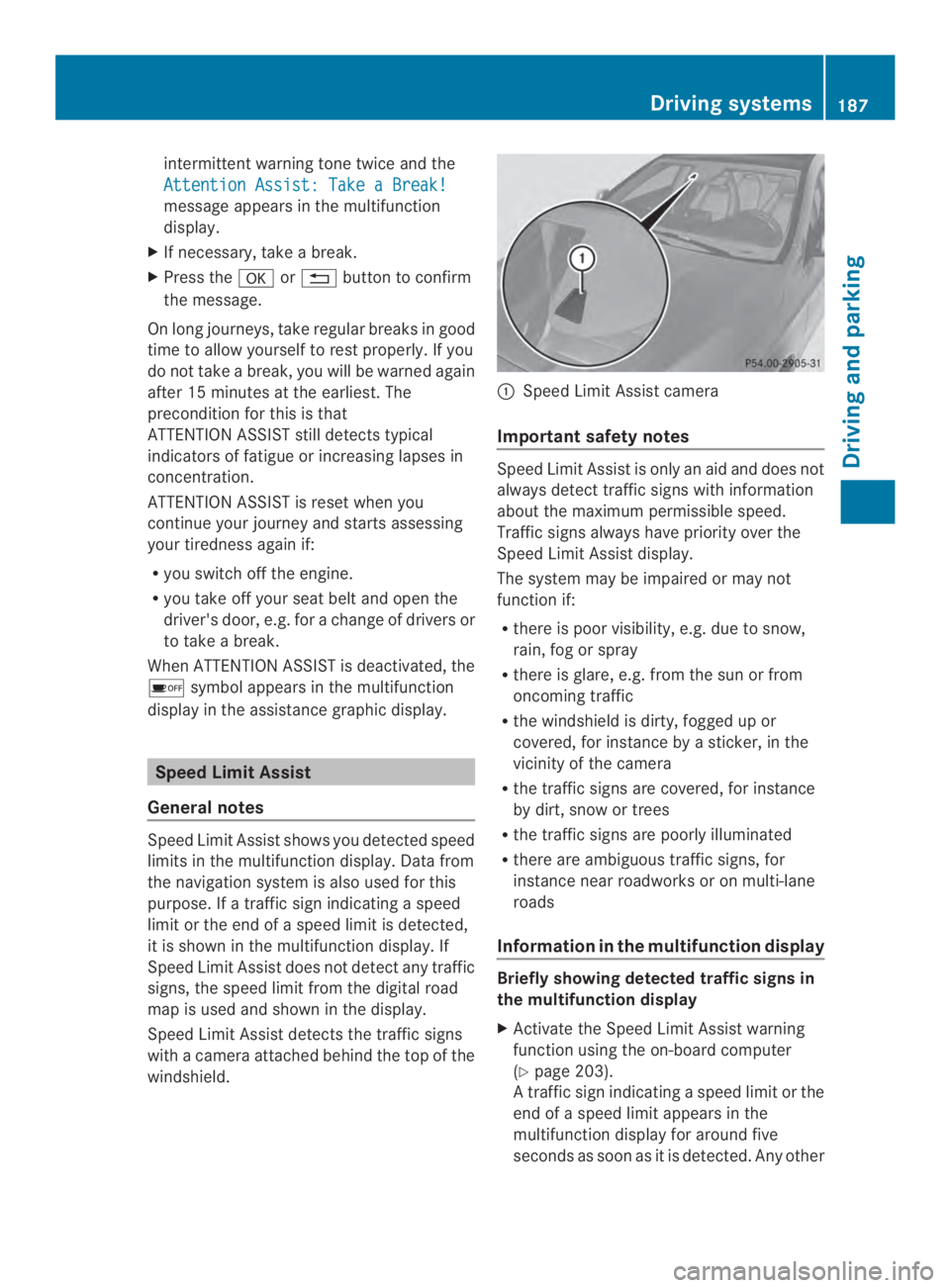

intermittent warning tonetwice and the
Attention Assist: Take a Break!
message appears in the multifunction
display.
XIf necessary, take a break.
XPress theorbutton to confirm
the message.
On long journeys, take regular breaks in good
time to allow yourself to rest properly. If you
do not take a break, you will be warned again
after 15 minutes at the earliest. The
preconditionfor this is that
ATTENTION ASSIST still detects typical
indicators of fatigue or increasing lapses in
concentration.
ATTENTION ASSIST is reset when you
continue your journey and starts assessing
your tiredness again if:
Ryou switch off the engine.
Ryou take off your seat belt and open the
driver's door, e.g. for a change of drivers or
to take a break.
When ATTENTION ASSIST is deactivated, the
symbol appears in the multifunction
display in the assistance graphic display.
Speed Limit Assist
General notes
Speed Limit Assist shows you detected speed
limits in the multifunction display.Data from
the navigation system is also used for this
purpose. If a traffic sign indicating a speed
limit or the end of a speed limit is detected,
it is shown in the multifunction display. If
Speed Limit Assist does notdetectany traffic
signs, the speed limit from the digital road
map is used and shown in the display.
Speed Limit Assist detects the traffic signs
with a camera attached behind the top of the
windshield.
Speed Limit Assist camera
Important safety notes
Speed Limit Assist is only an aid and does not
always detect traffic signs with information
aboutthe maximum permissible speed.
Traffic signs always have priority over the
Speed Limit Assist display.
The system may be impaired or may not
function if:
Rthere is poor visibility, e.g. due to snow,
rain, fog or spray
Rthere is glare, e.g. from the sun or from
oncoming traffic
Rthe windshield is dirty, fogged up or
covered, for instance by a sticker, in the
vicinity of the camera
Rthe traffic signs are covered, for instance
by dirt, snow or trees
Rthe traffic signs are poorly illuminated
Rthere are ambiguous traffic signs, for
instance near roadworks or on multi-lane
roads
Information in the multifunction display
Briefly showing detected traffic signs in
the multifunction display
XActivate the Speed Limit Assist warning
function using the on-board computer
(Ypage 203).
Atraffic sign indicating a speed limitorthe
end of a speed limit appears in the
multifunction display for around five
seconds as soon as it is detected. Any other
Driving systems187
Driving and parking
Z

information in the multifunction display is
hidden for this period.

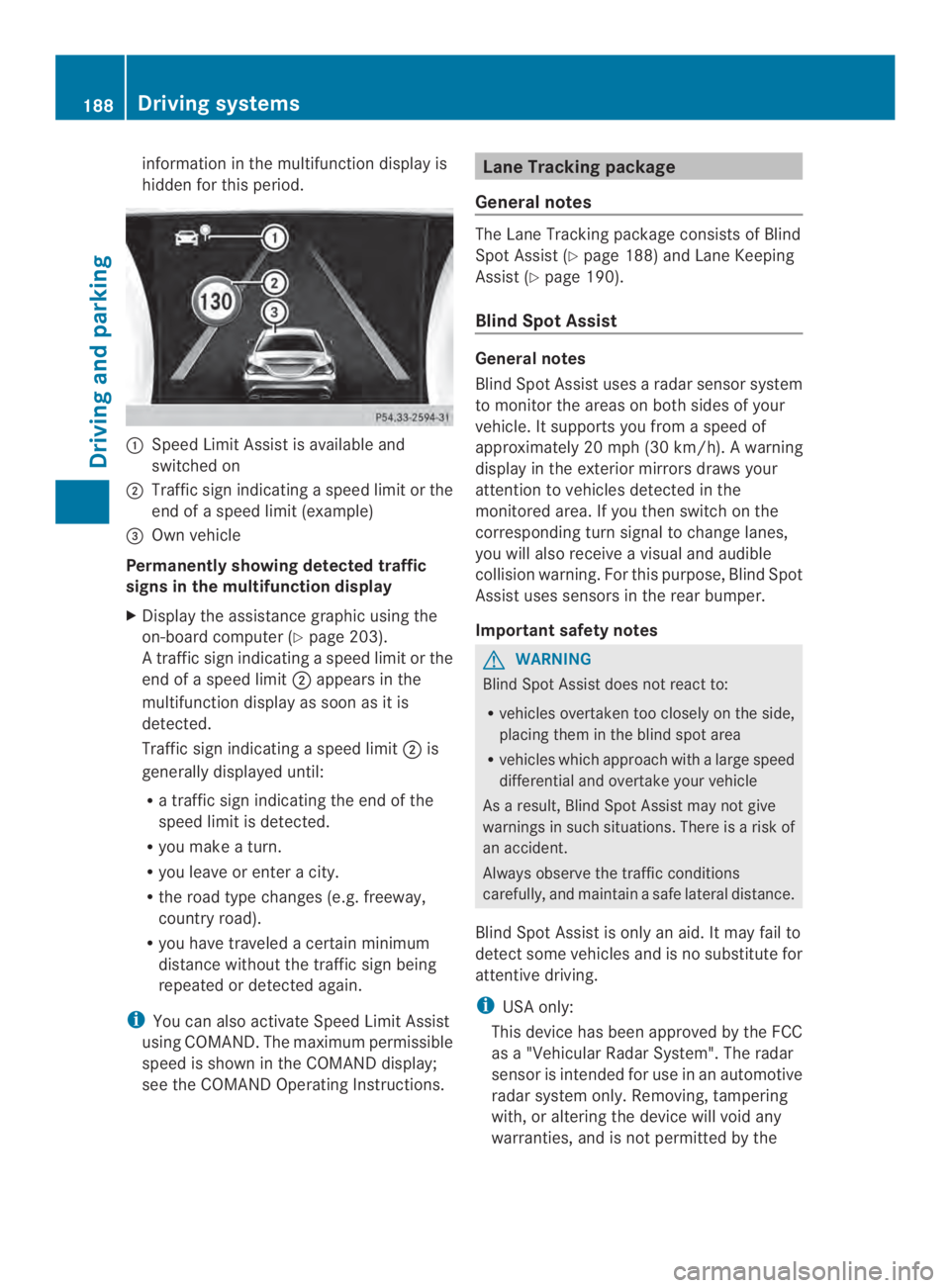

Speed Limit Assist is available and
switched on
Traffic sign indicatingaspeed limit or the
end of a speed limit (example)
"Own vehicle
Permanently showing detected traffic
signs in the multifunction display
XDisplay the assistance graphic using the
on-board computer (Ypage 203).
Atraffic sign indicating a speed limitorthe
end of a speed limitappears in the
multifunction display as soon as it is
detected.
Traffic sign indicating a speed limitis
generally displayed until:
Ra traffic sign indicating the end of the
speed limit is detected.
Ryou make a turn.
Ryou leave or enter a city.
Rthe road type changes (e.g. freeway,
country road).
Ryou have traveled a certain minimum
distance without the traffic sign being
repeated or detected again.
iYou can also activate Speed Limit Assist
using COMAND. The maximum permissible
speed is shown in the COMAND display;
see the COMAND Operating Instructions.
Lane Tracking package
General notes
The Lane Tracking package consists of Blind
Spot Assist (Ypage 188) and Lane Keeping
Assist (Ypage 190).
Blind Spot Assist
General notes
Blind Spot Assist uses a radar sensor system
to monitor the areas on both sides of your
vehicle. It supports you from a speed of
approximately 20 mph(30 km/h). A warning
display in the exteriormirrors draws your
attention to vehicles detected in the
monitored area. If you then switch on the
corresponding turnsignal to change lanes,
you will also receive a visual and audible
collision warning. For this purpose, Blind Spot
Assist uses sensors in the rear bumper.
Important safety notes
GWARNING
Blind Spot Assist does not react to:
Rvehicles overtaken too closely on the side,
placing theminthe blind spot area
Rvehicles which approach with a large speed
differential and overtake your vehicle
As a result, Blind Spot Assist may not give
warnings in such situations. There is a risk of
an accident.
Always observe the traffic conditions
carefully, and maintain a safe lateral distance.
Blind Spot Assist is only an aid. It may fail to
detect some vehicles and is no substitute for
attentive driving.
iUSA only:
This device has been approved by the FCC
as a "VehicularRadar System". The radar
sensor is intended for use in an automotive
radar system only. Removing, tampering
with, or altering the device will void any
warranties, and is notpermitted by the
188Driving systems
Driving and parking

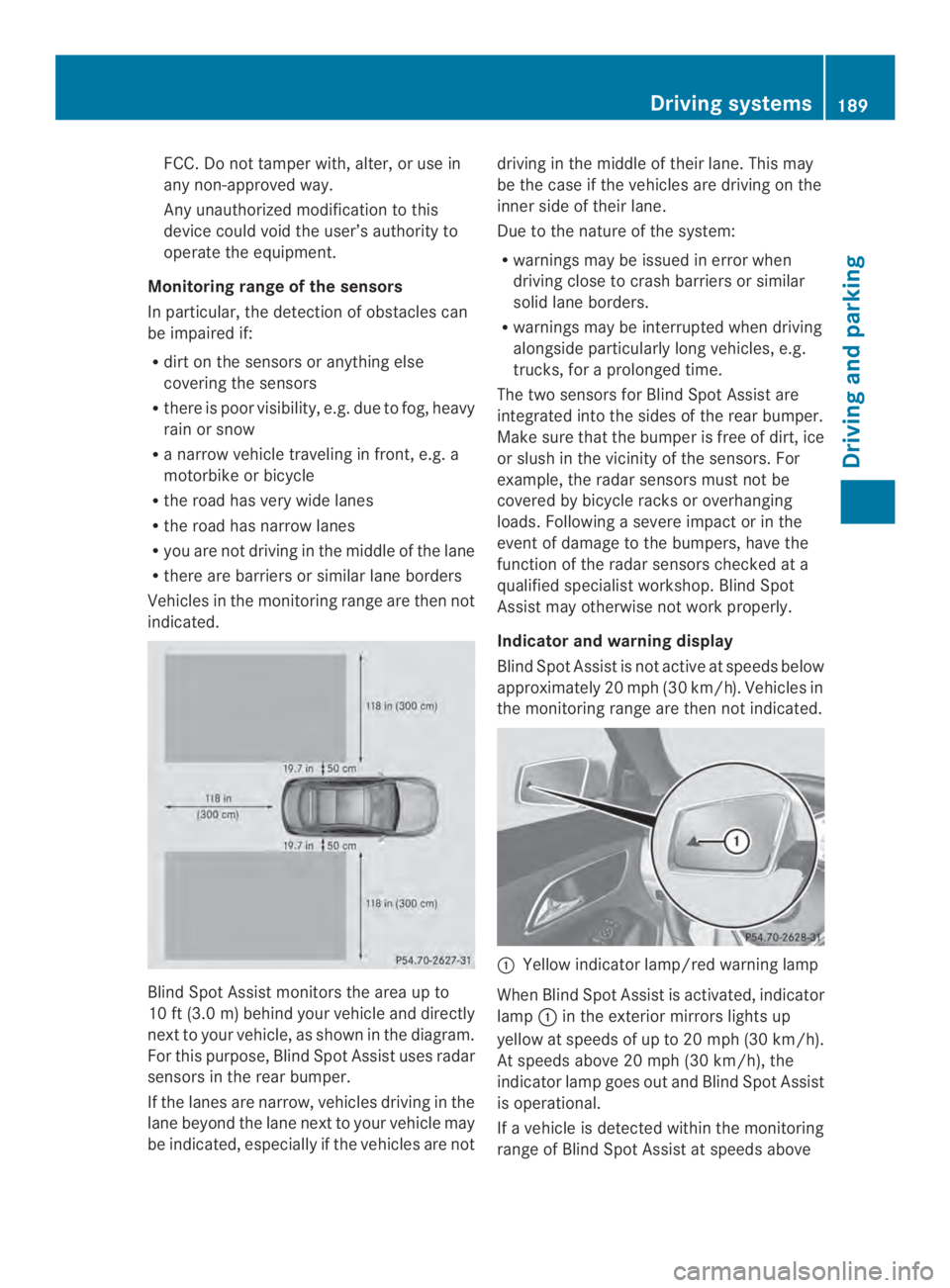

FCC.Do not tamper with, alter, or use in
any non-approved way.
Any unauthorized modification to this
device could void the user’s authority to
operate the equipment.
Monitoring range of the sensors
In particular, the detection of obstacles can
be impaired if:
Rdirt on the sensors or anything else
covering the sensors
Rthere is poor visibility, e.g. due to fog, heavy
rain or snow
Ra narrow vehicle traveling in front, e.g. a
motorbike or bicycle
Rthe road has very wide lanes
Rthe road has narrow lanes
Ryou are not driving in the middle of the lane
Rthere are barriers or similar lane borders
Vehicles in the monitoring range are then not
indicated.
Blind Spot Assist monitors the area up to
10 ft(3.0m)behind your vehicle and directly
nextto your vehicle, as shown in the diagram.
For this purpose, Blind Spot Assist uses radar
sensors in the rear bumper.
If the lanes are narrow, vehicles driving in the
lane beyond the lane next to your vehicle may
be indicated, especially if the vehicles are not
driving in the middle of their lane. This may
be the case if the vehicles are driving on the
inner side of their lane.
Due to the nature of the system:
Rwarnings may be issued in error when
driving close to crash barriers or similar
solid lane borders.
Rwarnings may be interrupted when driving
alongside particularly long vehicles, e.g.
trucks, for a prolonged time.
The two sensors for Blind Spot Assist are
integrated into the sides of the rear bumper.
Make sure that the bumper is free of dirt, ice
or slush in the vicinityofthe sensors. For
example, the radar sensors must not be
covered by bicycle racks or overhanging
loads. Following a severe impact or in the
event of damage to the bumpers, have the
function of the radar sensors checked at a
qualified specialist workshop. Blind Spot
Assist may otherwise not work properly.
Indicator and warning display
Blind Spot Assist is not active at speeds below
approximately 20 mph (30 km/h). Vehicles in
the monitoring range are then not indicated.
Yellow indicator lamp/red warning lamp
When Blind Spot Assist is activated, indicator
lampin the exterior mirrors lights up
yellow at speeds of up to 20 mph(30km/h).
At speeds above 20 mph (30 km/h), the
indicator lamp goes out and Blind Spot Assist
is operational.
If a vehicle is detected withinthe monitoring
range of Blind Spot Assist at speeds above
Driving systems189
Driving and parking
Z

20 mph (30km/h), then warning lampon
the corresponding side lights up red. This
warning is always emitted whenavehicle
enters the blind spot monitoring range from
behind or from the side.When you overtake
a vehicle, the warning only occurs if the
difference in speed is less than7mph
(12 km/h).
The yellow indicator lamp goes out if reverse
gear is engaged. In this event, Blind Spot
Assist is no longer active.
The brightness of the indicator/warning
lamps is adjusted automatically according to
the ambient light.
Collision warning
If a vehicle is detected in the monitoring range
of Blind Spot Assist and you switch on the
corresponding turn signal, a double warning
tone sounds. Red warning lampflashes. If
the turn signal remains on, vehicles detected
are indicated by the flashing of red warning
lamp.There are no further warning tones.
Switching on Blind Spot Assist
XMake sure that Blind Spot Assist is
activated in the on-board computer
(Ypage 205).
XTurn the SmartKey to position2in the
ignition lock.
Warning lampsin the exterior mirrors
light up red for approximately
1.5 seconds and then turn yellow.
Lane Keeping Assist
General notes
Lane Keeping Assist monitors the area in
front of your vehicle by means of a camera at
the top of the windshield. Lane Keeping Assist
detects lane markings on the road and warns
you before you leave your lane
unintentionally.
Lane Keeping Assist camera
If you selectkmon the on-board computer in
theDisplay Unit Speed-/Odometer
function (Ypage 206), Lane Keeping Assist
is active starting ataspeed of 60 km/h. If the
milesdisplay unit is selected, the assistance
range begins at 40 mph.
Important safety notes
GWARNING
Lane Keeping Assist may not always clearly
recognize lane markings.
In this case, Lane Keeping Assist may:
Rgive an unnecessary warning
Rnot give a warning
There is a risk of an accident.
Always pay particular attention to the traffic
situation and stay in lane, in particular if
warned by Lane Keeping Assist.
GWARNING
The Lane Keeping Assist warning does not
returnthe vehicle to the original lane. There
is a risk of an accident.
You should always steer, brake or accelerate
yourself, in particular if warned by Lane
Keeping Assist.
If you fail to adapt your driving style, Lane
Keeping Assist can neither reduce the risk of
an accident nor override the laws of physics.
Lane Keeping Assist cannot take into account
the road, traffic and weather conditions. Lane
Keeping Assist is merely an aid. You are
responsible for the distance to the vehicle in
190Driving systems
Driving and parking
