2014 MERCEDES-BENZ CLA Owners Manual

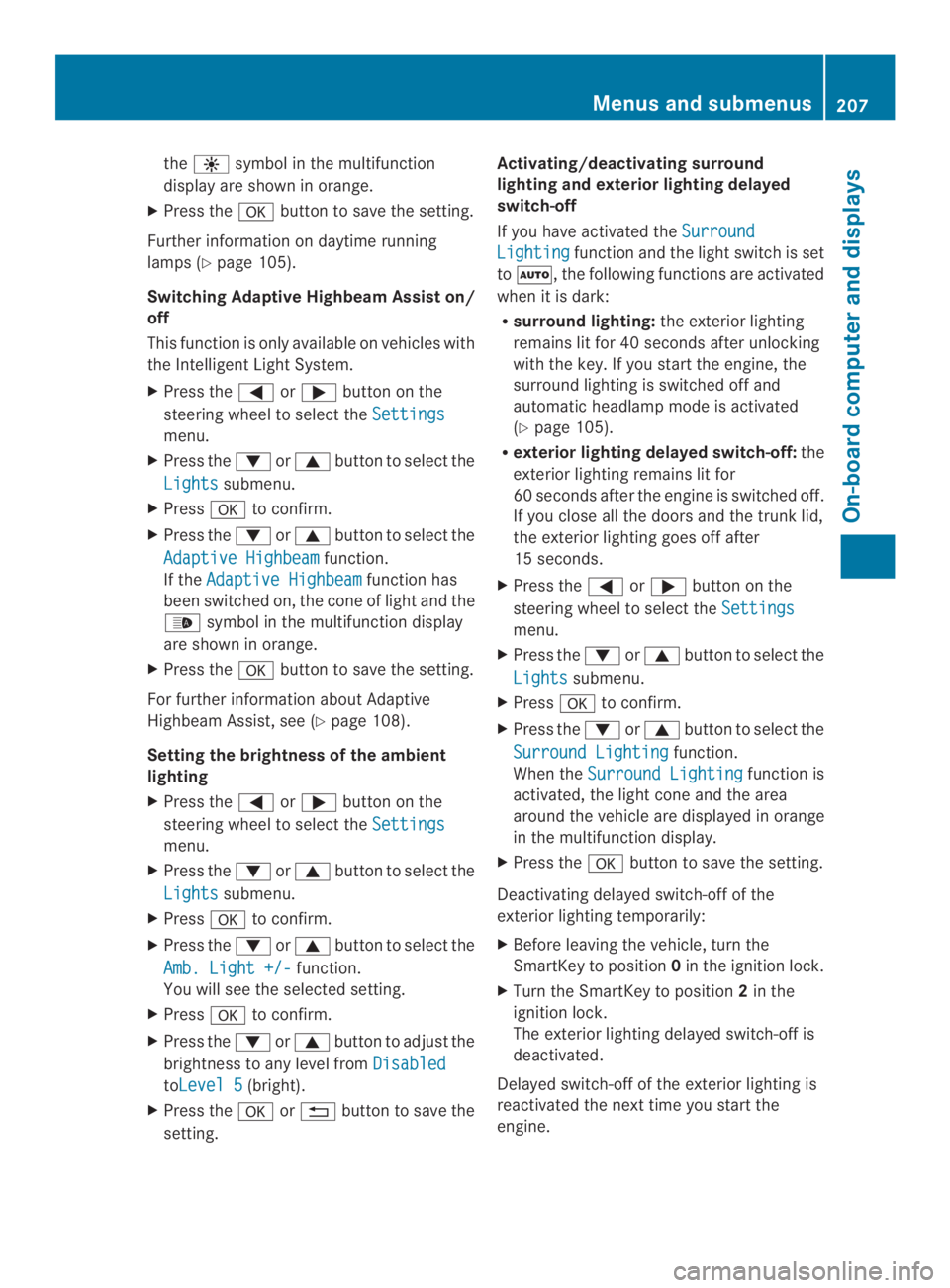

thesymbol in the multifunction
display are shown in orange.
XPress thebutton to save the setting.
Further information on daytime running
lamps (Ypage 105).
Switching Adaptive HighbeamAssist on/
off
This function is only available on vehicles with
the Intelligent Light System.
XPress theorbutton on the
steering wheel to select theSettings
menu.
XPress theorbutton to select the
Lightssubmenu.
XPressto confirm.
XPress theorbutton to select the
Adaptive Highbeamfunction.
If theAdaptive Highbeamfunction has
been switched on, the cone of light and the
symbol in the multifunction display
are shown in orange.
XPress thebutton to save the setting.
For further information about Adaptive
Highbeam Assist, see (Ypage 108).
Setting the brightness of the ambient
lighting
XPress theorbutton on the
steering wheel to select theSettings
menu.
XPress theorbutton to select the
Lightssubmenu.
XPressto confirm.
XPress theorbutton to select the
Amb. Light +/-function.
You will see the selected setting.
XPressto confirm.
XPress theorbutton to adjust the
brightness to any level fromDisabled
toLevel 5(bright).
XPress theorbutton to save the
setting.
Activating/deactivating surround
lighting and exterior lighting delayed
switch-off
If you have activated theSurround
Lightingfunction and the light switch is set
to, the following functions are activated
when it is dark:
Rsurround lighting:the exterior lighting
remains lit for 40 seconds after unlocking
with the key. If you start the engine, the
surround lighting is switched off and
automatic headlamp mode is activated
(Ypage 105).
Rexterior lighting delayed switch-off:the
exterior lighting remains lit for
60 seconds after the engine is switched off.
If you close all the doors and the trunklid,
the exterior lighting goes off after
15 seconds.
XPress theorbutton on the
steering wheel to selecttheSettings
menu.
XPress theorbutton to select the
Lightssubmenu.
XPressto confirm.
XPress theorbutton to select the
Surround Lightingfunction.
When theSurround Lightingfunction is
activated, the light cone and the area
around the vehicle are displayed in orange
in the multifunction display.
XPress thebutton to save the setting.
Deactivating delayed switch-off of the
exterior lighting temporarily:
XBefore leaving the vehicle, turn the
SmartKey to position0in the ignition lock.
XTurn the SmartKey to position2in the
ignition lock.
The exterior lighting delayed switch-off is
deactivated.
Delayed switch-off of the exterior lighting is
reactivated the next time you start the
engine.
Menus and submenus207
On-board computer and displays
Z

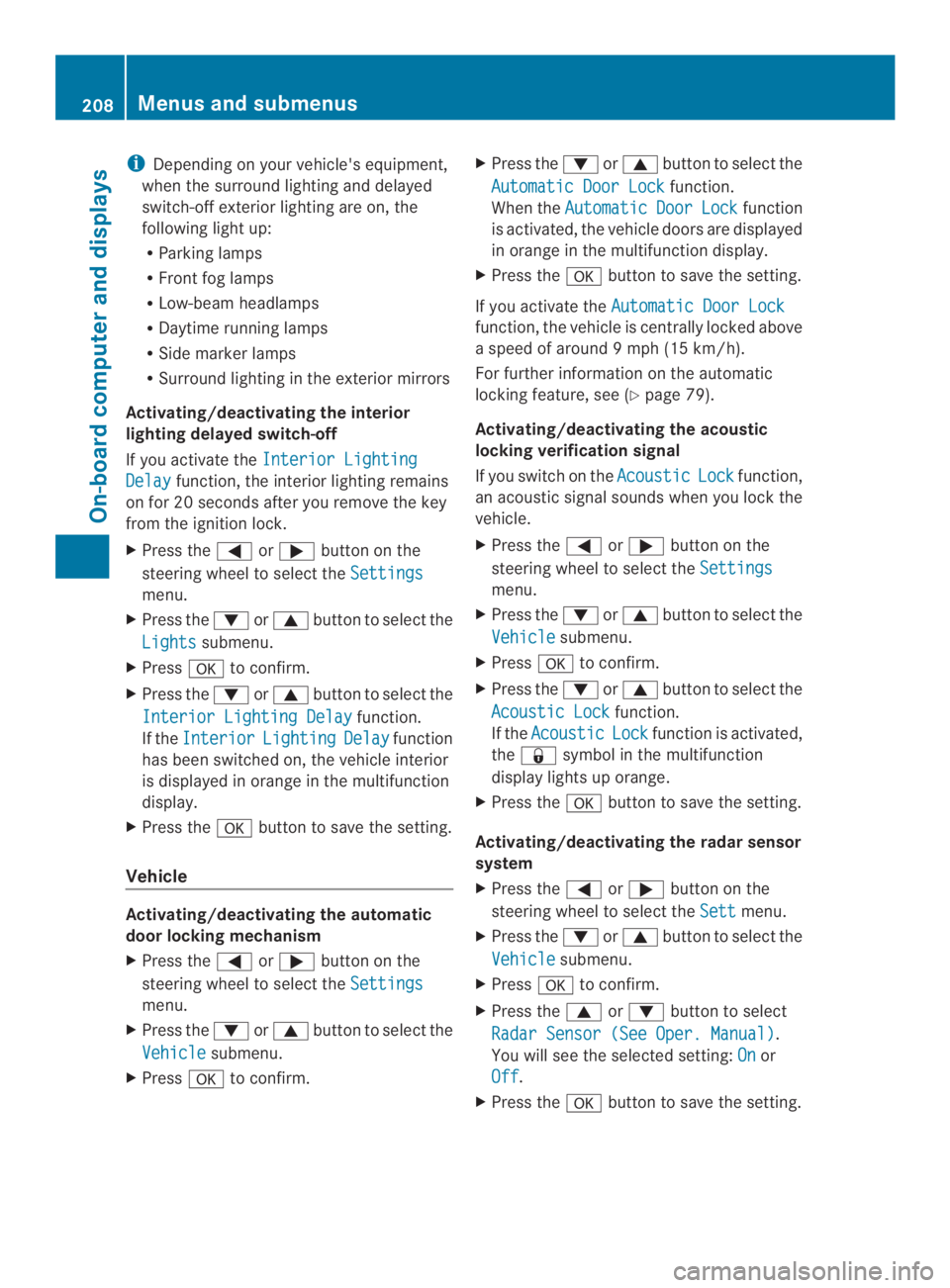

iDepending on your vehicle'sequipment,
when the surround lighting and delayed
switch-offexterior lighting are on, the
following light up:
RParking lamps
RFront fog lamps
RLow-beam headlamps
RDaytime running lamps
RSide marker lamps
RSurround lighting in the exterior mirrors
Activating/deactivating the interior
lighting delayedswitch-off
If you activate theInterior Lighting
Delayfunction, the interior lighting remains
on for 20 seconds after you remove the key
from the ignition lock.
XPress theorbutton on the
steering wheel to select theSettings
menu.
XPress theorbuttonto select the
Lightssubmenu.
XPressto confirm.
XPress theorbutton to select the
Interior Lighting Delayfunction.
If theInteriorLightingDelayfunction
has been switched on, the vehicle interior
is displayed in orange in the multifunction
display.
XPress thebutton to save the setting.
Vehicle
Activating/deactivating the automatic
door locking mechanism
XPress theorbutton on the
steering wheel to select theSettings
menu.
XPress theorbutton to select the
Vehiclesubmenu.
XPressto confirm.
XPress theorbutton to select the
Automatic Door Lockfunction.
When theAutomaticDoorLockfunction
is activated, the vehicle doors are displayed
in orange in the multifunction display.
XPress thebutton to save the setting.
If you activate theAutomatic Door Lock
function, the vehicle is centrally locked above
a speed of around 9 mph (15 km/h).
For further information on the automatic
locking feature, see (Ypage 79).
Activating/deactivating the acoustic
locking verification signal
If you switch on theAcousticLockfunction,
an acoustic signal sounds when you lock the
vehicle.
XPress theorbutton on the
steering wheel to select theSettings
menu.
XPress theorbutton to select the
Vehiclesubmenu.
XPressto confirm.
XPress theorbutton to select the
Acoustic Lockfunction.
If theAcousticLockfunction is activated,
the\nsymbol in the multifunction
display lights up orange.
XPress thebutton to save the setting.
Activating/deactivating the radar sensor
system
XPress theorbutton on the
steering wheel to select theSettmenu.
XPress theorbutton to select the
Vehiclesubmenu.
XPressto confirm.
XPress theorbutton to select
Radar Sensor (See Oper. Manual).
You will see the selected setting:Onor
Off.
XPress thebutton to save the setting.
208Menus and submenus
On-board computer and displays

Convenience
Switching the fold-in mirrors with the
locking feature on/off
This function is only available on vehicles with
the memory function (Ypage 100).
When you activate theAuto. Mirror
Foldingfunction, the exterior mirrors are
folded in when the vehicle is locked.
If you unlock the vehicle and then open a
door, the exterior mirrors fold out again.
If you have switched on theAuto. Mirror
Foldingfunction and you fold in the exterior
mirrors using the buttononthe door
(Ypage 98), they will not fold out
automatically.The exterior mirrors can then
only be folded out using the button on the
door.
XPress theorbutton on the
steering wheel to select theSettings
menu.
XPress theorbutton to select the
Conveniencesubmenu.
XPressto confirm.
XPress theorbutton to select the
Auto. Mirror Foldingfunction.
If theAuto. Mirror Foldingfunction is
activated, the vehicle's exterior mirror is
displayed in orange in the multifunction
display.
XPress thebutton to save the setting.
Restoring the factory settings
XPress theorbutton on the
steering wheel to select theSettmenu.
XPress theorbutton to select the
Factory Settingsubmenu.
XPressto confirm.
TheReset All Settings?message
appears.
XPress theorbutton to select
NoorYes.
XPressto confirm the selection.
If you have selectedYes, the multifunction
display shows a confirmation message.
For safety reasons, theDaytime Running
Lights:function in theLightssubmenu is
only reset if the vehicle is stationary.
AMG menu in AMG vehicles
AMG displays
Digital speedometer
Gear indicator
"Upshift indicator
!Engine oil temperature
Coolant temperature
Transmission fluid temperature
XPressoron the steering wheel
to select theAMGmenu.
Upshift indicatorUP"indicates that the
engine has reached the overrevving range
when in the manual gearshift program.
Upshift indicatorUP"fades out other
messages until you have shifted up.
If the engine oil temperature is below 176 ‡
(80 †), oil temperature!is shown in blue.
Avoid driving at full engine output during this
time.
If the transmission fluid temperature is below
122 ‡ (50 †), oil temperature is shown
in blue. Avoid driving at full engine output
during this time.
Menus and submenus209
On-board computer and displays
Z

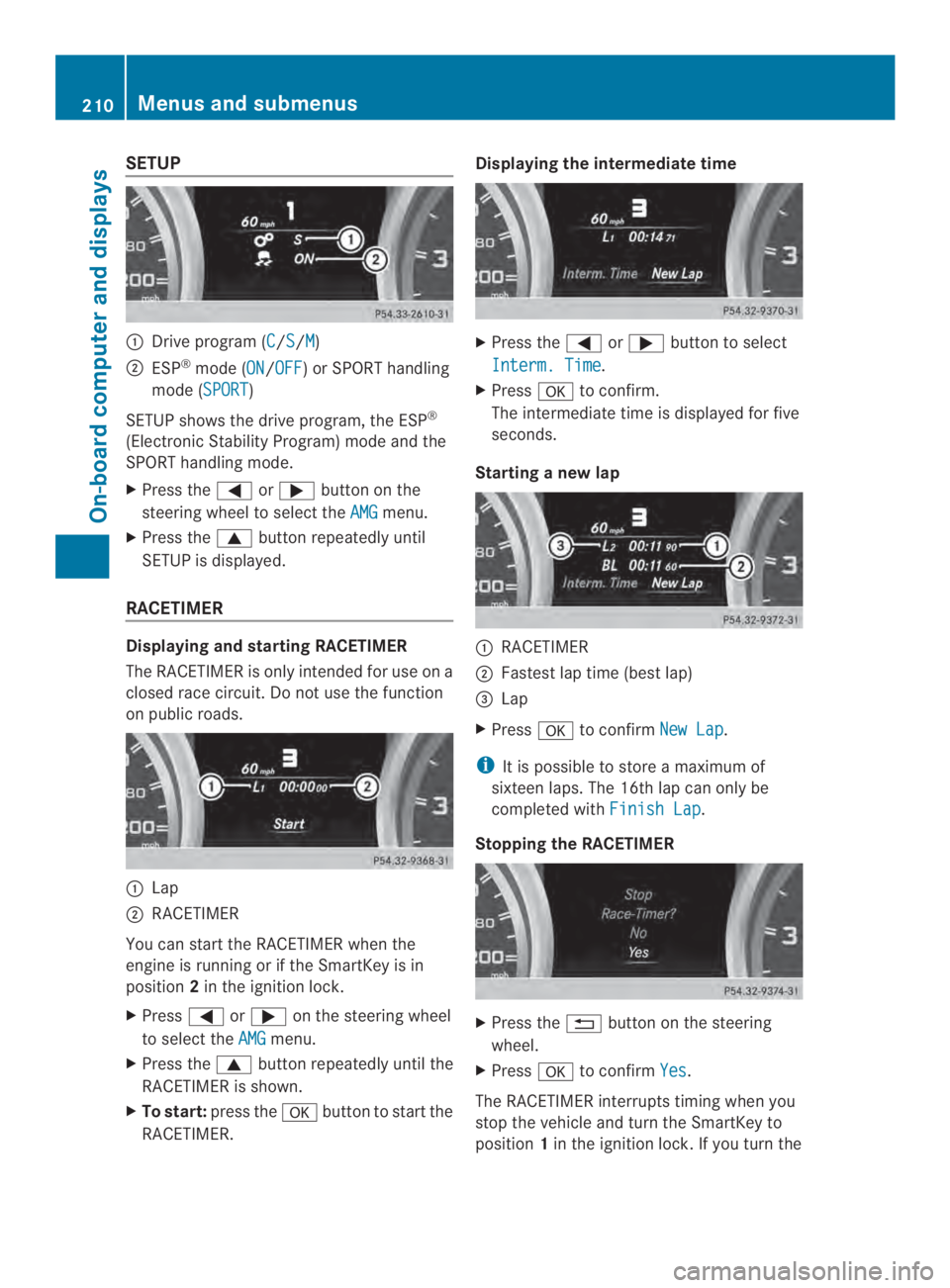

SETUP
Drive program (C/S/M)
ESP®mode (ON/OFF) or SPORT handling
mode (SPORT)
SETUP shows the drive program, the ESP®
(Electronic Stability Program) mode and the
SPORT handling mode.
XPress theorbutton on the
steering wheel to select theAMGmenu.
XPress thebutton repeatedly until
SETUP is displayed.
RACETIMER
Displaying and starting RACETIMER
The RACETIMER is only intended for use on a
closed race circuit. Do not use the function
on publicroads.
Lap
RACETIMER
You can start the RACETIMER when the
engine is running or if the SmartKey is in
position2in the ignition lock.
XPressoron the steering wheel
to select theAMGmenu.
XPress thebutton repeatedly until the
RACETIMER is shown.
XTo start:press thebutton to start the
RACETIMER.
Displaying the intermediate time
XPress theorbutton to select
Interm. Time.
XPressto confirm.
The intermediate time is displayed for five
seconds.
Starting a new lap
RACETIMER
Fastest lap time (best lap)
"Lap
XPressto confirmNew Lap.
iIt is possible to store a maximum of
sixteen laps. The 16th lap can only be
completed withFinish Lap.
Stopping the RACETIMER
XPress thebutton on the steering
wheel.
XPressto confirmYes.
The RACETIMER interrupts timing when you
stop the vehicle and turn the SmartKey to
position1in the ignition lock. If you turn the
210Menus and submenus
On-board computer and displays

SmartKey to position2or3and then press
to confirmStart, timing is continued.

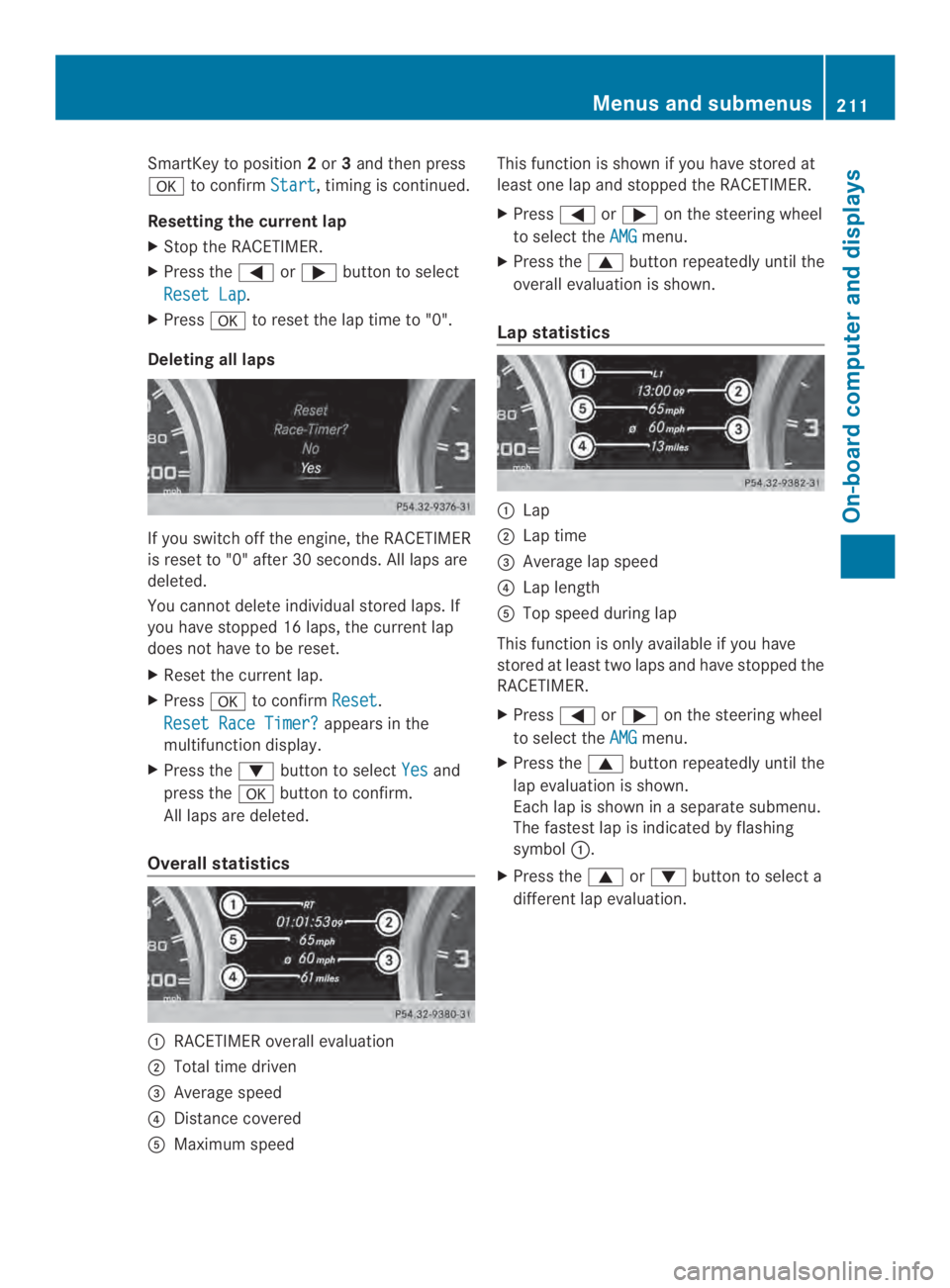

Resetting the current lap
XStop the RACETIMER.
XPress theorbutton to select
Reset Lap.
XPressto reset the lap time to "0".
Deleting all laps
If you switch off the engine, the RACETIMER
is reset to "0" after 30 seconds. All laps are
deleted.
You cannotdelete individual stored laps. If
you have stopped 16 laps, the currentlap
does nothave to be reset.
XReset the currentlap.
XPressto confirmReset.
Reset Race Timer?appears in the
multifunction display.
XPress thebutton to selectYesand
press thebutton to confirm.
All laps are deleted.
Overall statistics
RACETIMER overall evaluation
Total time driven
"Average speed
!Distance covered
Maximum speed
This function is shown if you have stored at
least one lap and stopped theRACETIMER.
XPressoron the steering wheel
to select theAMGmenu.
XPress thebutton repeatedly until the
overall evaluation is shown.
Lap statistics
Lap
Lap time
"Average lap speed
!Lap length
Top speed during lap
This functionis only available if you have
stored at least two laps and have stopped the
RACETIMER.
XPressoron the steering wheel
to select theAMGmenu.
XPress thebutton repeatedly until the
lap evaluation is shown.
Each lap is shown in a separate submenu.
The fastest lap is indicated by flashing
symbol.
XPress theorbutton to select a
different lap evaluation.
Menus and submenus211
On-board computer and displays
Z

Display messages
General notes
Display messages appear in themultifunction display.
Display messages with graphic displays may be shown in simplified forminthe Operator's
Manual and may differ from the messages shown in the multifunction display.
Please respond in accordance with the display messages and follow the additional notes in
this Operator's Manual.
Certain display messages are accompanied by an audible warning tone or a continuous tone.
When the ignition is switched off, all display messages are deleted, apart from some high-
priority display messages. Once the causes of the high-priority display messages have been
rectified, the corresponding display messages are also deleted.
When you stop and park the vehicle, please observe the notes on the HOLD function
(Ypage 172) and parking (Ypage 153).
Hiding display messages
XPress theorbutton on the steering wheel to hide the display message.
The display message is cleared.
The multifunction display shows high-priority display messages in red. Some high-priority
display messages cannot be hidden.
The multifunction display shows these messages continuously until the causes for the
messages have been remedied.
Message memory
The on-board computer saves certain display messages in themessage memory.You can
call up the display messages:
XPressoron the steering wheel to select theServmenu.
If there are display messages, the multifunction display shows, for example,2 Messages.
XPress theorbutton to select the entry, e.g.2 Messages.
XPressto confirm.
XPress theorbutton to scroll through the display messages.
212Display messages
On-board computer and displays

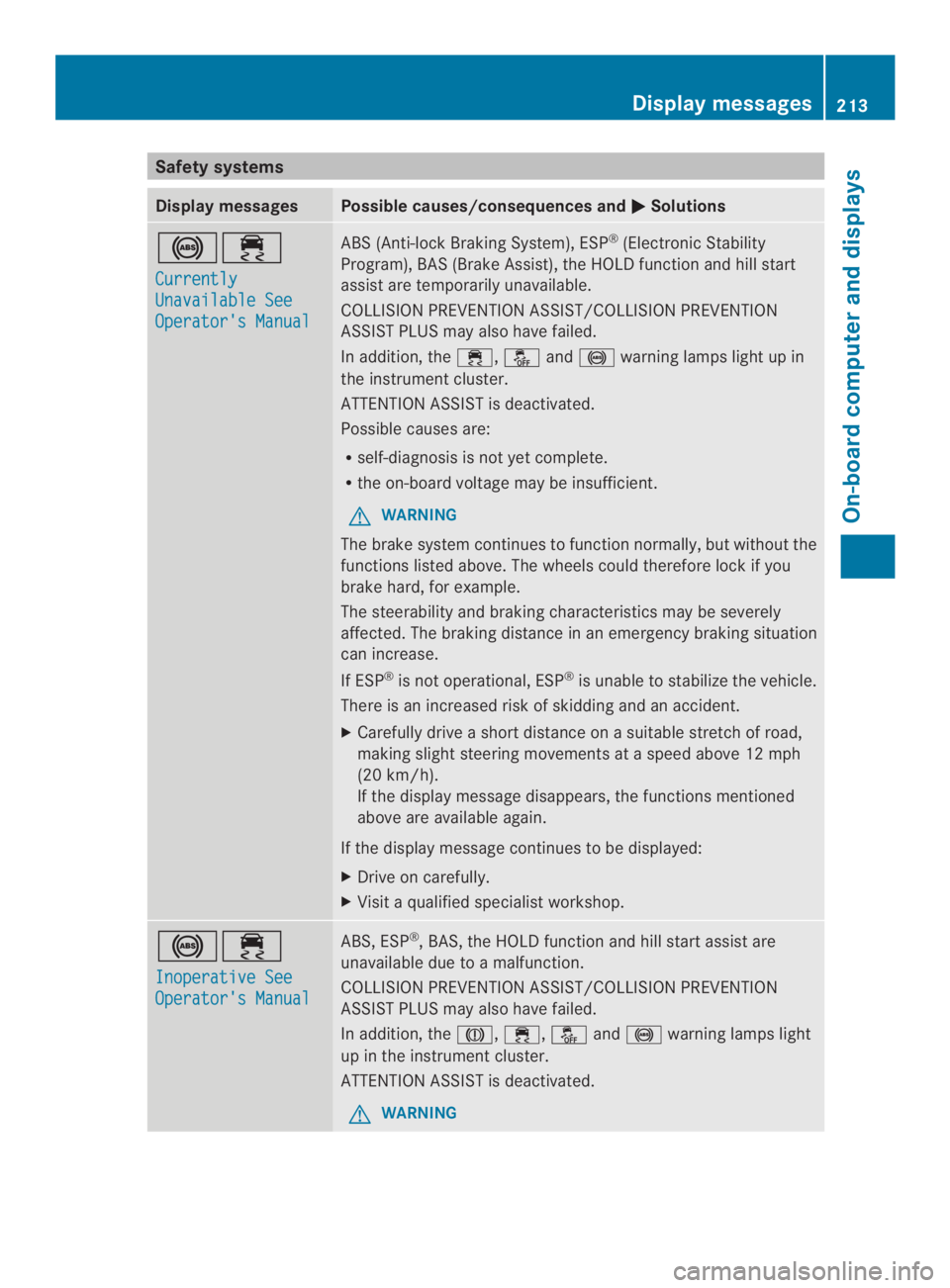

Safety systems
Display messagesPossible causes/consequences and
Solutions

Currently
Unavailable See
Operator's Manual
ABS (Anti-lock Braking System), ESP®(Electronic Stability
Program), BAS (Brake Assist), the HOLD function and hill start
assist are temporarily unavailable.
COLLISION PREVENTION ASSIST/COLLISION PREVENTION
ASSIST PLUS may also have failed.
In addition, the,andwarning lamps light up in
the instrument cluster.
ATTENTION ASSIST is deactivated.
Possible causes are:
Rself-diagnosis is not yet complete.
Rthe on-board voltage may be insufficient.
GWARNING
The brake system continues to function normally, but without the
functions listed above. The wheels could therefore lock if you
brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergency braking situation
can increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XCarefully drive a short distance on a suitable stretch of road,
making slight steering movements at a speed above 12 mph
(20 km/h).
If the display message disappears, the functions mentioned
above are available again.
If the display message continues to be displayed:
XDrive on carefully.
XVisit a qualified specialist workshop.

Inoperative See
Operator's Manual
ABS, ESP®, BAS, the HOLD function and hill start assist are
unavailable due to a malfunction.
COLLISION PREVENTION ASSIST/COLLISION PREVENTION
ASSIST PLUS may also have failed.
In addition, the,,andwarning lamps light
up in the instrument cluster.
ATTENTION ASSIST is deactivated.
GWARNING
Display messages213
On-board computer and displays
Z

Display messagesPossible causes/consequences and
Solutions

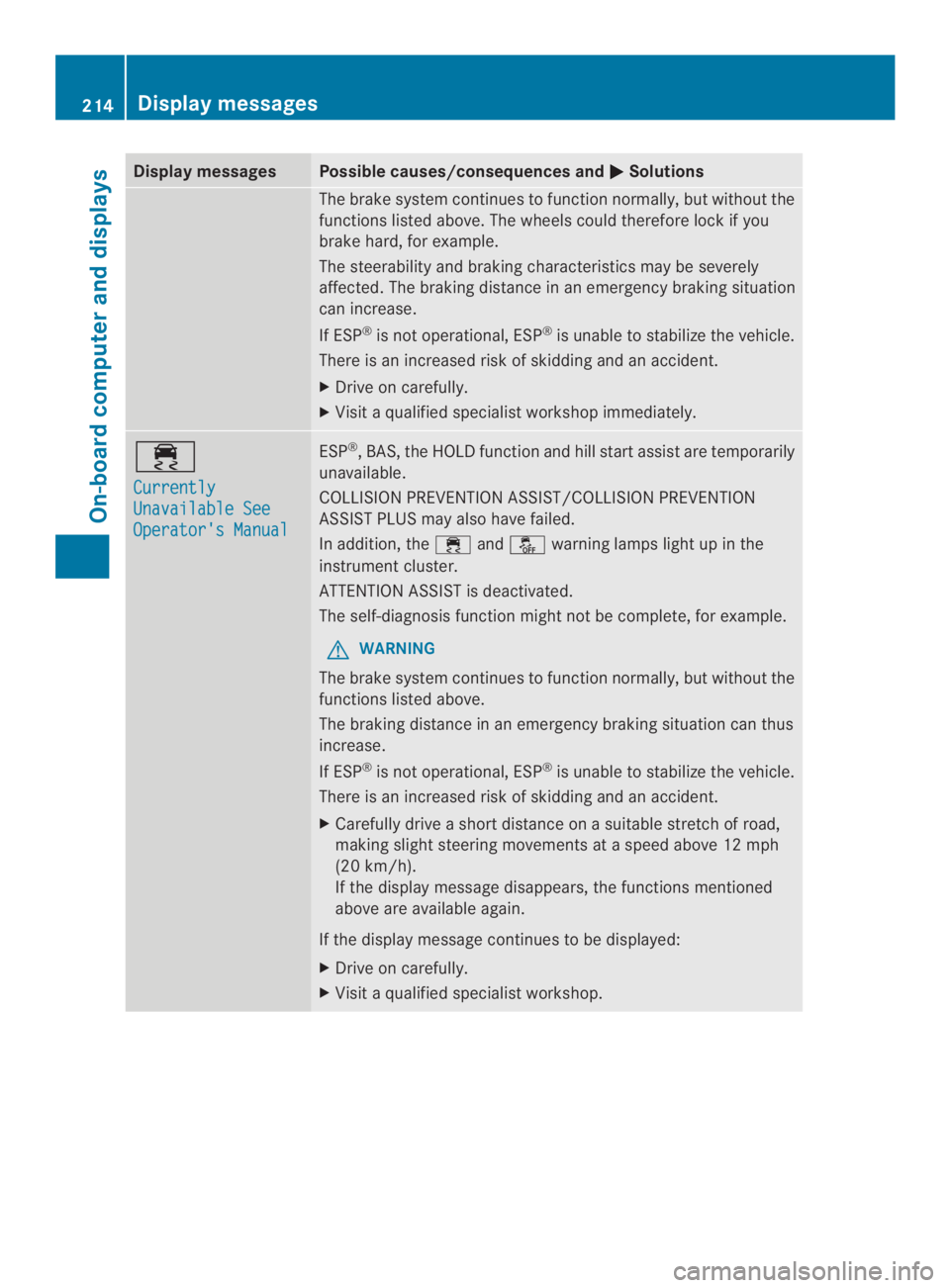

The brake system continues to function normally, but without the
functions listed above. The wheels could therefore lockifyou
brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergency braking situation
can increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XDrive on carefully.
XVisit a qualified specialist workshop immediately.

Currently
Unavailable See
Operator's Manual
ESP®, BAS, the HOLD function and hill start assist are temporarily
unavailable.
COLLISION PREVENTION ASSIST/COLLISION PREVENTION
ASSIST PLUS may also have failed.
In addition, theandwarning lamps light up in the
instrument cluster.
ATTENTION ASSIST is deactivated.
The self-diagnosis function might not be complete, for example.
GWARNING
The brake system continues to function normally, but without the
functions listed above.
The braking distance in an emergency braking situation can thus
increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XCarefully drive a short distance on a suitable stretch of road,
making slight steering movements at a speed above 12 mph
(20 km/h).
If the display message disappears, the functions mentioned
above are available again.
If the display message continues to be displayed:
XDrive on carefully.
XVisit a qualified specialist workshop.
214Display messages
On-board computer and displays
