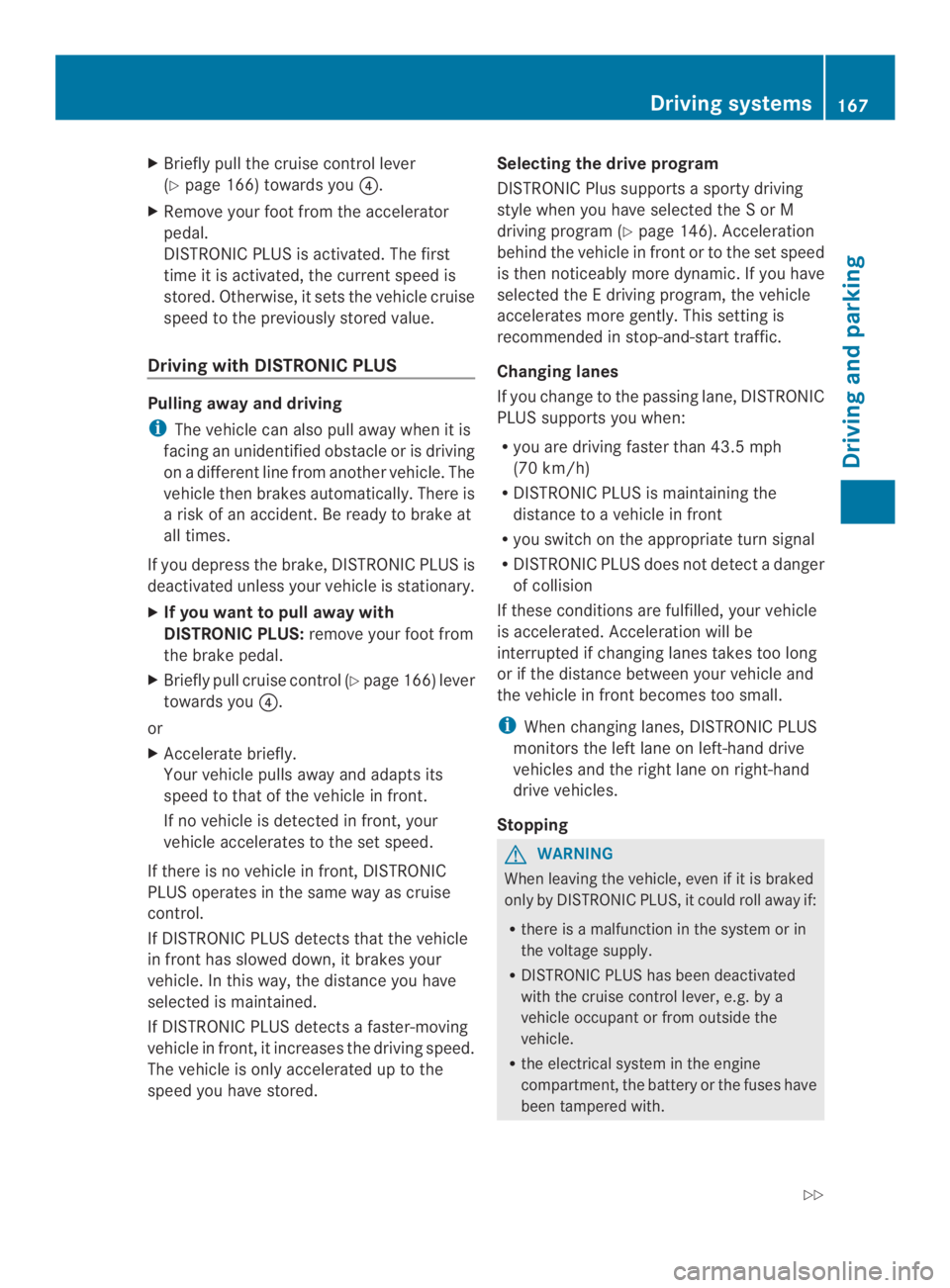

2014 MERCEDES-BENZ CLA Owners Manual

XBriefly pull the cruise control lever
(Ypage 166) towards you!.
XRemove your foot from the accelerator
pedal.
DISTRONIC PLUS is activated. The first
time it is activated, the current speed is
stored. Otherwise, it sets the vehicle cruise
speed to the previously storedvalue.
Driving with DISTRONIC PLUS
Pulling awayand driving
iThe vehicle can also pull away when it is
facing an unidentified obstacle or is driving
on a differentline fromanothervehicle. The
vehicle then brakes automatically. There is
a risk of an accident. Be ready to brake at
all times.
If you depress the brake, DISTRONIC PLUS is
deactivated unless your vehicle is stationary.
XIf you want to pull away with
DISTRONIC PLUS:remove your foot from
the brake pedal.
XBriefly pull cruise control (Ypage 166)lever
towards you!.
or
XAccelerate briefly.
Your vehicle pulls away and adapts its
speed to that of the vehicle in front.
If no vehicle is detected in front, your
vehicle accelerates to the set speed.
If there is no vehicle in front, DISTRONIC
PLUS operates in the same way as cruise
control.
If DISTRONIC PLUS detects that the vehicle
in fronthas slowed down, it brakes your
vehicle.Inthis way, the distance you have
selected is maintained.
If DISTRONIC PLUS detects a faster-moving
vehicle in front, it increases the driving speed.
The vehicle is only accelerated up to the
speed you have stored.
Selecting the drive program
DISTRONIC Plus supports a sporty driving
style when you have selected theSorM
driving program (Ypage 146). Acceleration
behind the vehicle in frontorto the set speed
is then noticeably more dynamic. If you have
selected theEdriving program, the vehicle
accelerates more gently. This setting is
recommended in stop-and-start traffic.
Changing lanes
If you change to the passing lane, DISTRONIC
PLUS supports you when:
Ryou are driving faster than 43.5 mph
(70 km/h)
RDISTRONIC PLUS is maintaining the
distance to a vehicle in front
Ryou switch on the appropriate turn signal
RDISTRONIC PLUS does not detect a danger
of collision
If these conditions are fulfilled, yourvehicle
is accelerated. Acceleration will be
interrupted if changing lanes takes too long
or if the distance between your vehicle and
the vehicle in frontbecomes too small.
iWhen changing lanes, DISTRONIC PLUS
monitors the left lane on left-hand drive
vehicles and the right lane on right-hand
drive vehicles.
Stopping
GWARNING
When leaving the vehicle, even if it is braked
only by DISTRONIC PLUS, it could roll away if:
Rthere is a malfunction in the system or in
the voltage supply.
RDISTRONIC PLUS has been deactivated
with the cruise control lever, e.g. by a
vehicle occupantorfrom outside the
vehicle.
Rthe electrical system in the engine
compartment, the battery or the fuses have
been tampered with.
Driving systems167
Driving and parking
Z

Rthe battery is disconnected.
Rthe accelerator pedal has been depressed,
e.g.by a vehicle occupant.
There is a risk of an accident.
If you wish to exit the vehicle, always turnoff
DISTRONIC PLUS and secure the vehicle
against rolling away.
For further information on deactivating
DISTRONIC PLUS (Ypage 169).
If DISTRONIC PLUS detects that the vehicle
in front is stopping, it brakes yourvehicle until
it is stationary.
Once your vehicle is stationary, it remains
stationary and you do not need to depress the
brake.
iAfter a time, the electric parking brake
secures the vehicle and relieves the service
brake.
iDepending on the specified minimum
distance, your vehicle will come to a
standstill at a sufficientdistance behind the
vehicle in front.The specified minimum
distance is set using the control on the
cruise control lever.
The electric parking brake automatically
secures the vehicle if DISTRONIC PLUS is
activated and:
Rthe seat belt is unfastened and the driver's
door is open.
Rthe engine is switched off, unless it is
automatically switched off by the ECO
start/stop function.
Ra system malfunction occurs.
Rthe power supply is not sufficient.
If a malfunction occurs, then the transmission
may be shifted into positionPautomatically.
Settingaspeed
Keep in mind thatitmay take a briefmoment
until the vehicle has accelerated or braked to
the speed set.
To store the current speed or a higher
speed
To store the current speed or a lower
speed
XPress the cruise control lever upfor a
higher speed or downfor a lower speed.
XTo adjust the set speed in 1 mph
increments (1 km/h increments):briefly
press the cruise control lever upor
downto the pressure point.
Every time the cruise control lever is
pressed upor downthe last speed
stored is increased or reduced.
XTo adjust the set speed in 5 mph
increments (10 km/h increments):
briefly press the cruise control lever
upor downto the pressure point.
Every time the cruise control lever is
pressed upor down, the last speed
stored is increased or reduced.
iDISTRONIC PLUS is not deactivated if you
depress the accelerator pedal. If you
accelerate to overtake, DISTRONIC PLUS
adjusts the vehicle's speed to the last
speed stored after you have finished
overtaking.
Setting the specified minimum distance
You can set the specified minimum distance
for DISTRONIC PLUS by varying the time span
between one and two seconds. With this
function, you can set the minimum distance
that DISTRONIC PLUS keeps to the vehicle in
front, dependent on vehicle speed. You can
168Driving systems
Driving and parking

see this distance in the multifunction display
(Ypage 170).
iMake sure that you maintain the
minimum distance to the vehicle in front as
required by law. Adjust the distance to the
vehicle in front if necessary.
XTo increase:turn control"in
direction.
DISTRONIC PLUS then maintains a greater
distance between your vehicle and the
vehicle in front.
XTo decrease:turn control"in
direction.
DISTRONIC PLUS then maintains a shorter
distance between your vehicle and the
vehicle in front.
Deactivating DISTRONIC PLUS
There are several ways to deactivate
DISTRONIC PLUS:
XBriefly press the cruise control lever
forwards.
or
XBrake, unless the vehicle is stationary.
When you deactivate DISTRONIC PLUS, you
will see theDISTRONIC PLUS Offmessage
in the multifunction display for approximately
five seconds.
iThe last speed stored remains stored until
you switch off the engine. DISTRONIC PLUS
is not deactivated if you depress the
accelerator pedal.
DISTRONIC PLUS is automatically
deactivated if:
Ryou engage the electric parking brake or if
the vehicle is automatically secured with
the electric parking brake
RESP®intervenes or you deactivate ESP®
Rthe transmission is in theP,RorNposition
Ryou pull the cruise control lever towards
you in order to pull awayand the front-
passengerdoor or one of the rear doors is
open
Rthe vehicle is skidding.
Ryou activate Active Parking Assist
If DISTRONIC PLUS is deactivated, you will
hear a warning tone. You will see the
DISTRONIC PLUS offmessage in the
multifunction display for approximately five
seconds.
Driving systems169
Driving and parking
Z

DISTRONIC PLUS displays in the
instrument cluster
Displays in the speedometer
Example: DISTRONIC PLUSdisplays in thespeedometer
When DISTRONIC PLUS is activated, one or
two segmentsin the set speed rangelight
up.
If DISTRONIC PLUS detectsavehicle in front,
segmentsbetween speed of the vehicle in
front"and stored speedlight up.
iFor design reasons, the speed displayed
in the speedometer may differ slightly from
the speed set for DISTRONIC PLUS.
Display when DISTRONIC PLUS is
deactivated
Vehicle in front, if detected
Distance indicator, current distance to
the vehicle in front
"Specified minimum distance to the
vehicle in front; adjustable
!Own vehicle
In the Assistance menu (Ypage 202) of the
on-board computer, you can select the
assistance display.
XSelect theAssistance Graphicfunction
using the on-board computer
(Ypage 203).
Display when DISTRONIC PLUS is
activated
Vehicle in front, if detected
Specified minimum distance to the
vehicle in front; adjustable
"Own vehicle
!DISTRONIC PLUS active (text only
appears when the cruise control lever is
actuated)
XSelect theAssistance Graphicfunction
using the on-board computer
(Ypage 203).
You will initially see the stored speed for
about five seconds when you activate
DISTRONIC PLUS.
Tips for driving with DISTRONIC PLUS
General notes
The following contains descriptions of certain
road and traffic conditions in which you must
be particularly attentive. In such situations,
brake if necessary. DISTRONIC PLUS is then
deactivated.
170Driving systems
Driving and parking

Cornering, going into and coming out of a
bend
The ability of DISTRONIC PLUSto detect
vehicles when cornering is limited. Your
vehicle may brake unexpectedly or late.
Vehicles traveling onadifferent line
DISTRONIC PLUS may not detect vehicles
traveling on a different line. The distance to
the vehicle in frontwill be too short.
Other vehicles changing lanes
DISTRONIC PLUS has not detected the
vehicle cutting in yet. The distance to this
vehicle will be too short.
Narrow vehicles
DISTRONIC PLUS has not yet detected the
vehicle in front on the edge of the road,
because of its narrow width.The distance to
the vehicle in front will be too short.
Obstructions and stationary vehicles
DISTRONIC PLUS does not brake for
obstacles or stationary vehicles. If, for
example, the detected vehicle turns a corner
and reveals an obstacle or stationary vehicle,
DISTRONIC PLUS will not brake for these.
Driving systems171
Driving and parking
Z

Crossing vehicles
DISTRONIC PLUS may detect vehicles that
are crossing your lane by mistake. Activating
DISTRONIC PLUS at traffic lights with
crossing traffic, for example, could cause
your vehicle to pull away unintentionally.
HOLD function
Important safety notes
GWARNING
When leaving the vehicle, it can still roll away
despite being braked by theHOLD function if:
Rthere is a malfunction in the system or in
the voltage supply.
Rthe HOLD function has been deactivated by
pressing the accelerator pedal or the brake
pedal, e.g. by a vehicle occupant.
Rthe electrical system in the engine
compartment, the battery or the fuses have
been tampered with.
Rthe battery is disconnected
There is a risk of an accident.
If you wish to exit the vehicle, always turn off
the HOLD function and secure the vehicle
against rolling away.
!If DISTRONIC PLUS or the HOLD function
is activated, the vehicle brakes
automatically in certain situations. To
prevent damage to the vehicle, deactivate
DISTRONIC PLUS and the HOLD function in
the following or other similarsituations:
Rwhen towing the vehicle
Rin the car wash
Deactivating the HOLD function
(Ypage 173).
General notes
The HOLDfunction can assistthe driver in the
following situations:
Rwhen pulling away, especially on steep
slopes
Rwhen maneuvering on steep slopes
Rwhen waiting in traffic
The vehicle is kept stationary without the
driver having to depress the brake pedal.
The braking effect is canceled and the HOLD
function deactivated when you depress the
accelerator pedal to pull away.
Activation conditions
You can activate the HOLD function if:
Rthe vehicle is stationary
Rthe engine is running or if it has been
automatically switched off by the ECO
start/stop function
Rthe driver's door is closed or your seat belt
is fastened
Rthe electric parking brake is released
Rthe transmission positionD,RorNis
engaged while driving a vehicle with an
automatic transmission
RDISTRONIC PLUS is deactivated
172Driving systems
Driving and parking

Activating the HOLD function
Example: vehicles with a color multifunctiondisplay
XMake sure that the activation conditions
are met.
XDepress the brake pedal.
XQuickly depress the brake pedal further
untilappears in the multifunction
display.
The HOLD function is activated. You can
release the brake pedal.
iIf depressing the brake pedal the first
time does not activate the HOLD function,
wait briefly and then try again.
Deactivating the HOLD function
The HOLD function is deactivated
automatically if:
Ryou accelerate.Onvehicles with automatic
transmission:only when the transmission
is in positionDorR.
Rthe transmission is in positionPon vehicles
with automatic transmission.
Ryou depress the brake pedal againwith a
certain amountofpressure until
disappears from the multifunction display.
Ryou secure the vehicle using the electric
parking brake.
Ryou activate DISTRONIC PLUS.
iAfter a time, the electric parking brake
secures the vehicle and relieves the service
brake.
The electric parking brake automatically
secures the vehicle if the HOLD function is
activated and:
Rthe driver's door is open and the driver's
seat beltis unfastened.
Rthe engine is switched off, unless it is
automatically switched off by the ECO
start/stop function.
Ra system malfunction occurs.
Rthe power supply is not sufficient.
If a malfunction occurs, then the transmission
may be shifted into positionPautomatically.
RACE START
Important safety notes
RACE START enables optimal acceleration
from a standing start. The precondition for
this is a suitable high-grip road surface.
RACE START is intended solely for activation
on dedicated race circuits.
iRACE START is only available in AMG
vehicles.
Conditions for activation
You can activate RACE START if:
Rthe doors, hood and the trunk lid are
closed.
Rthe engine is running and the transmission,
all-wheel drive clutch and the engine are at
operating temperature.
RSPORT handling mode is activated.
(Ypage 66)
Rthe steering wheel is in the straight-ahead
position.
Rthe vehicle is stationary and the brake
pedal is depressed (left foot).
Rthe transmission is in positionD.
Rdrive programMis selected (Ypage 146).
Driving systems173
Driving and parking
Z

Activating RACE START
XDepress the brake pedal withyour left foot
and keep it depressed.
XPull and hold both steering wheel shift
paddles.
XTheRACE START Confirm: Paddle UP
Cancel: Paddle DOWNmessage appears
in the multifunction display.
XRelease both steering wheel shift paddles.
iIf the activation conditions are no longer
fulfilled, RACE START is canceled. The
RACE START Not Possible See
Operator's Manualmessage appears in
the multifunction display.
XTo cancel:pull the left steering wheel
paddle shifter (Ypage 147).
or
XTo confirm:pull the right steering wheel
paddle shifter (Ypage 147).
TheRACE START Available Depress
gas pedalmessage appears in the
multifunction display.
iIf you do not depress the accelerator
pedal within a few seconds, RACE START is
canceled. The multifunction display shows
theRACE START Canceledmessage.
XFully depress the accelerator pedal.
The engine speed is increased.
TheRACE START Release brake to
startmessage appears in the
multifunction display.
iIf you do not release the brake pedal
within a short time, RACE START will be
canceled. The multifunction display shows
theRACE START Canceledmessage.
XTake your foot off the brake, but keep the
accelerator pedal depressed.
The vehicle pulls away at maximum
acceleration.
TheRACESTARTActivemessage appears
in the multifunction display.
RACE START is deactivated when the vehicle
reaches a speed of approximately 30 mph
(Canada: 50 km/h). Drive programSis
activated. SPORT handling mode remains
activated.
RACE START is deactivated immediately if
you release the accelerator pedal during
RACE START or if any of the activation
conditions are no longer fulfilled. TheRACE
START Not PossibleorRACE START
Canceledmessage appears in the
multifunction display.
iIf RACE START is used repeatedly within
a short period of time, it is only available
again after the vehicle has been driven a
certain distance.
4MATIC (permanent four-wheel drive)
4MATIC ensures that all four wheels are
permanently driven. Together with ESP®, it
improves the traction of your vehicle
whenever a drive wheel spins due to
insufficientgrip.
If you fail to adapt yourdriving style, 4MATIC
can neither reduce the risk of accident nor
override the laws of physics. 4MATIC cannot
take account of road, weather and traffic
conditions. 4MATIC is only an aid.You are
responsible for the distance to the vehicle in
front, for vehicle speed, for braking in good
time and for staying in your lane.
If a drive wheel spins due to insufficient grip:
ROnly depress the accelerator pedal as far
as necessary when pulling away.
RAccelerate less when driving.
!Never tow the vehicle with one axle
raised. This may damage the transfer case.
Damage of this sort is not covered by the
Mercedes-Benz Limited Warranty. All
wheels must remain either on the ground
or be fully raised. Observe the instructions
for towing the vehicle with all wheels in full
contact with the ground.
iIn wintry driving conditions, the maximum
effect of 4MATIC can only be achieved if
you use winter tires(M+S tires), with snow
chains if necessary.
174Driving systems
Driving and parking
