2014 MERCEDES-BENZ CLA Owners Manual

Display messagesPossible causes/consequences and
Solutions

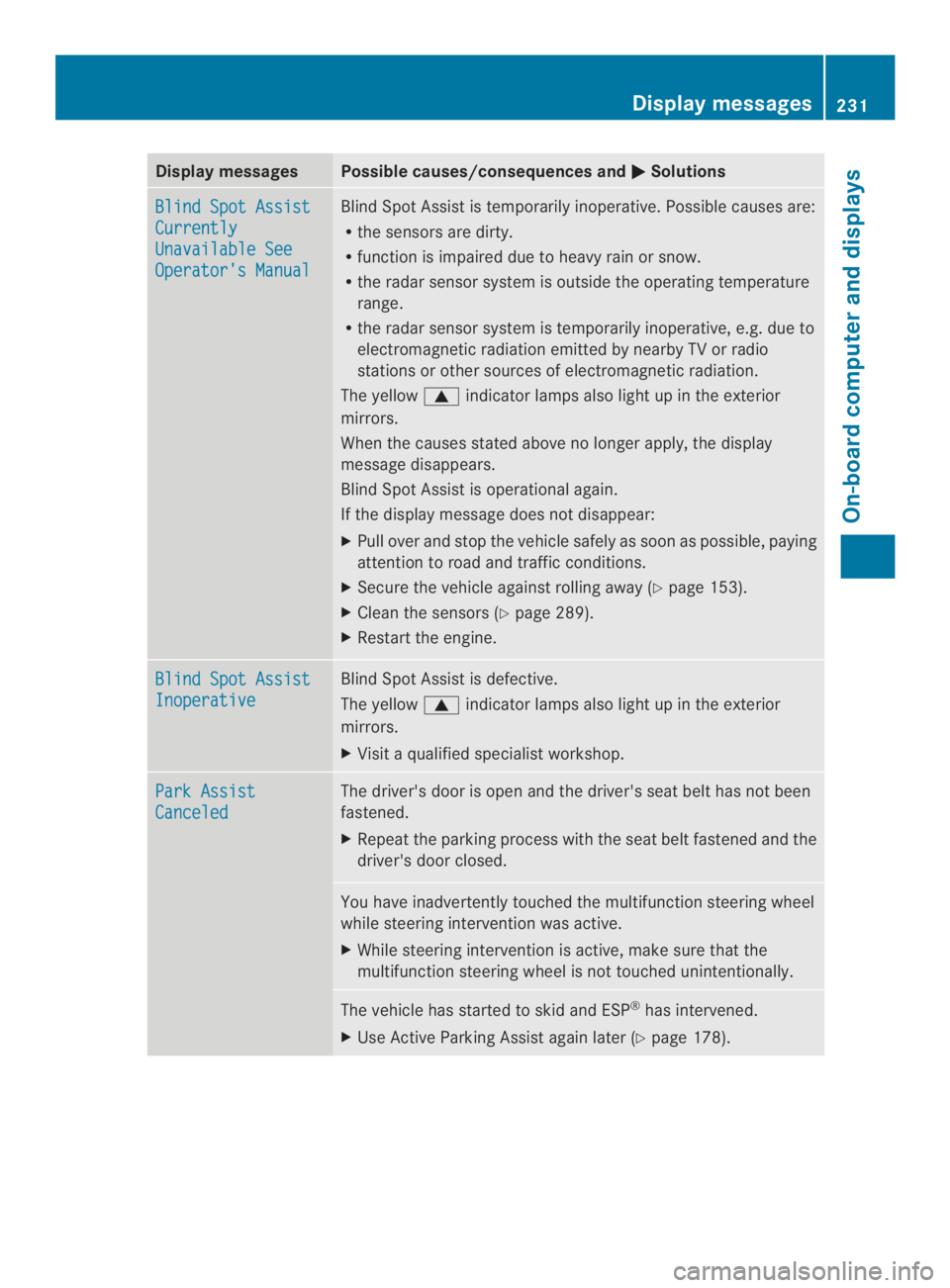

Blind Spot Assist
Currently
Unavailable See
Operator's Manual
Blind Spot Assistis temporarily inoperative. Possible causes are:
Rthe sensors are dirty.
Rfunction is impaired due to heavy rain or snow.
Rthe radar sensor system is outside the operating temperature
range.
Rthe radar sensor system is temporarily inoperative, e.g. due to
electromagnetic radiation emitted by nearby TV or radio
stations or other sources of electromagnetic radiation.
The yellowindicator lamps also light up in the exterior
mirrors.
When the causes stated above no longer apply, the display
message disappears.
Blind Spot Assist is operational again.
If the display message does not disappear:
XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
XSecure the vehicle against rolling away (Ypage 153).
XCleanthe sensors (Ypage 289).
XRestart the engine.
Blind Spot Assist
Inoperative
Blind Spot Assist is defective.
The yellowindicator lamps also light up in the exterior
mirrors.
XVisit a qualified specialist workshop.
Park Assist
Canceled
The driver's door is open and the driver's seat belt has not been
fastened.
XRepeatthe parking process with the seat belt fastened and the
driver's door closed.
You have inadvertently touched the multifunction steering wheel
while steering intervention was active.
XWhile steering intervention is active, make sure that the
multifunction steering wheel is not touched unintentionally.
The vehicle has started to skid and ESP®has intervened.
XUse Active Parking Assist again later (Ypage 178).
Display messages231
On-board computer and displays
Z

Display messagesPossible causes/consequences and
Solutions

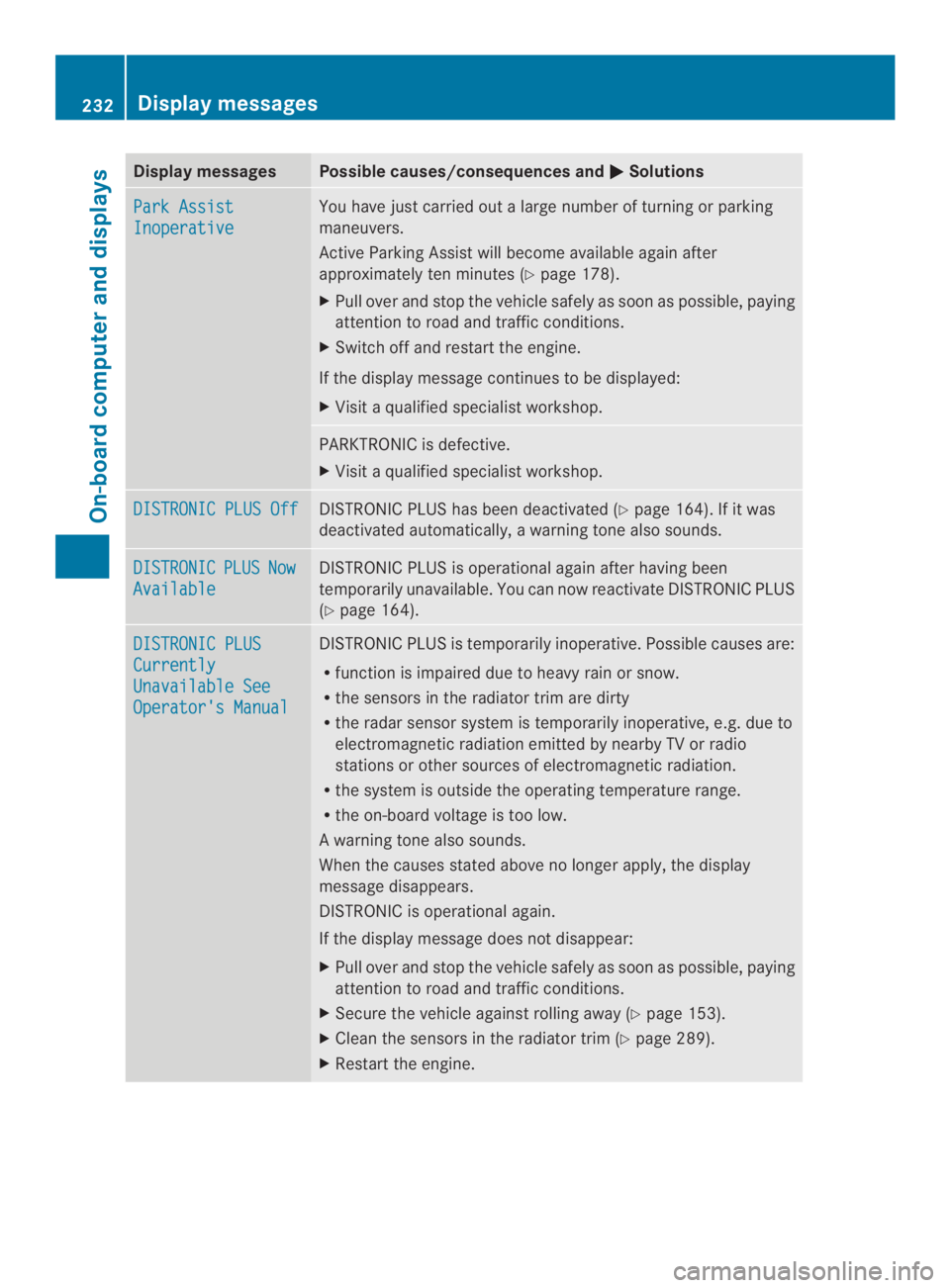

Park Assist
Inoperative
You have just carried out a large number of turning or parking
maneuvers.
Active Parking Assistwill become available again after
approximately ten minutes (Ypage 178).
XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
XSwitch off and restart the engine.
If the display message continues to be displayed:
XVisit a qualified specialist workshop.
PARKTRONIC is defective.
XVisit a qualified specialist workshop.
DISTRONIC PLUS OffDISTRONIC PLUS has been deactivated (Ypage 164). If it was
deactivated automatically, a warning tone also sounds.
DISTRONICPLUSNow
Available
DISTRONIC PLUS is operational again after having been
temporarily unavailable. You can now reactivate DISTRONIC PLUS
(Ypage 164).
DISTRONIC PLUS
Currently
Unavailable See
Operator's Manual
DISTRONIC PLUS is temporarily inoperative. Possible causes are:
Rfunction is impaired due to heavy rain or snow.
Rthe sensors in the radiator trim are dirty
Rthe radar sensor system is temporarily inoperative, e.g. due to
electromagnetic radiation emitted by nearby TV or radio
stations or other sources of electromagnetic radiation.
Rthe system is outside the operating temperature range.
Rthe on-board voltage is too low.
Awarning tone also sounds.
When the causes stated above no longer apply, the display
message disappears.
DISTRONIC is operational again.
If the display message does notdisappear:
XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
XSecure the vehicle against rolling away (Ypage 153).
XClean the sensors in the radiator trim (Ypage 289).
XRestartthe engine.
232Display messages
On-board computer and displays

Display messagesPossible causes/consequences and
Solutions

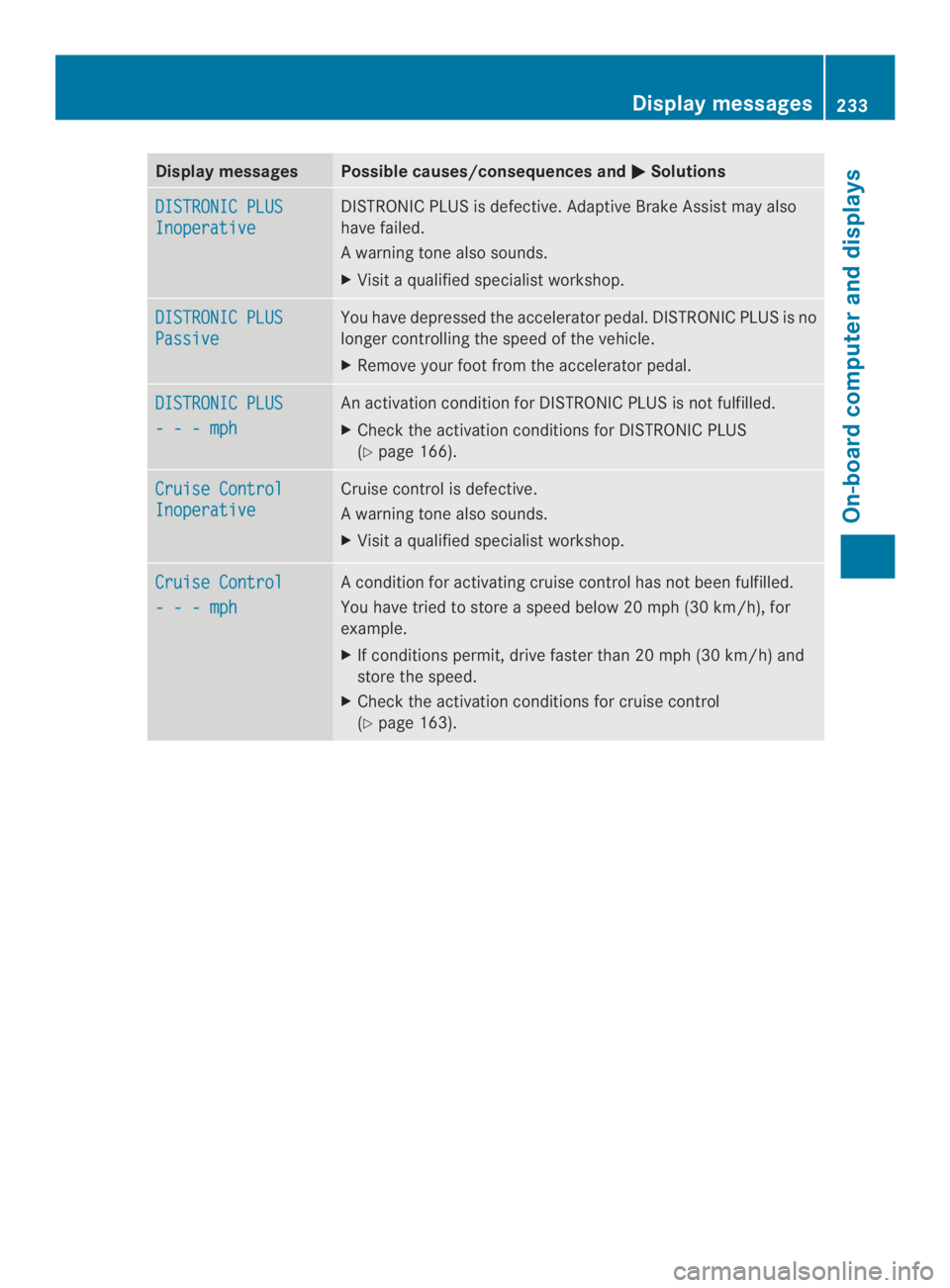

DISTRONIC PLUS
Inoperative
DISTRONIC PLUS is defective. Adaptive Brake Assist may also
have failed.
Awarning tone also sounds.
XVisitaqualified specialist workshop.
DISTRONIC PLUS
Passive
You have depressed the accelerator pedal. DISTRONIC PLUS is no
longer controlling the speed of the vehicle.
XRemove your foot from the accelerator pedal.
DISTRONIC PLUS
- - - mph
An activation condition for DISTRONIC PLUS is not fulfilled.
XCheck the activation conditions for DISTRONIC PLUS
(Ypage 166).
Cruise Control
Inoperative
Cruise control is defective.
Awarning tone also sounds.
XVisitaqualified specialist workshop.
Cruise Control
- - - mph
Acondition for activating cruise control has not been fulfilled.
You have tried to storeaspeed below 20 mph (30 km/h), for
example.
XIf conditions permit, drive faster than 20 mph (30 km/h) and
store the speed.
XCheck the activation conditions for cruise control
(Ypage 163).
Display messages233
On-board computer and displays
Z

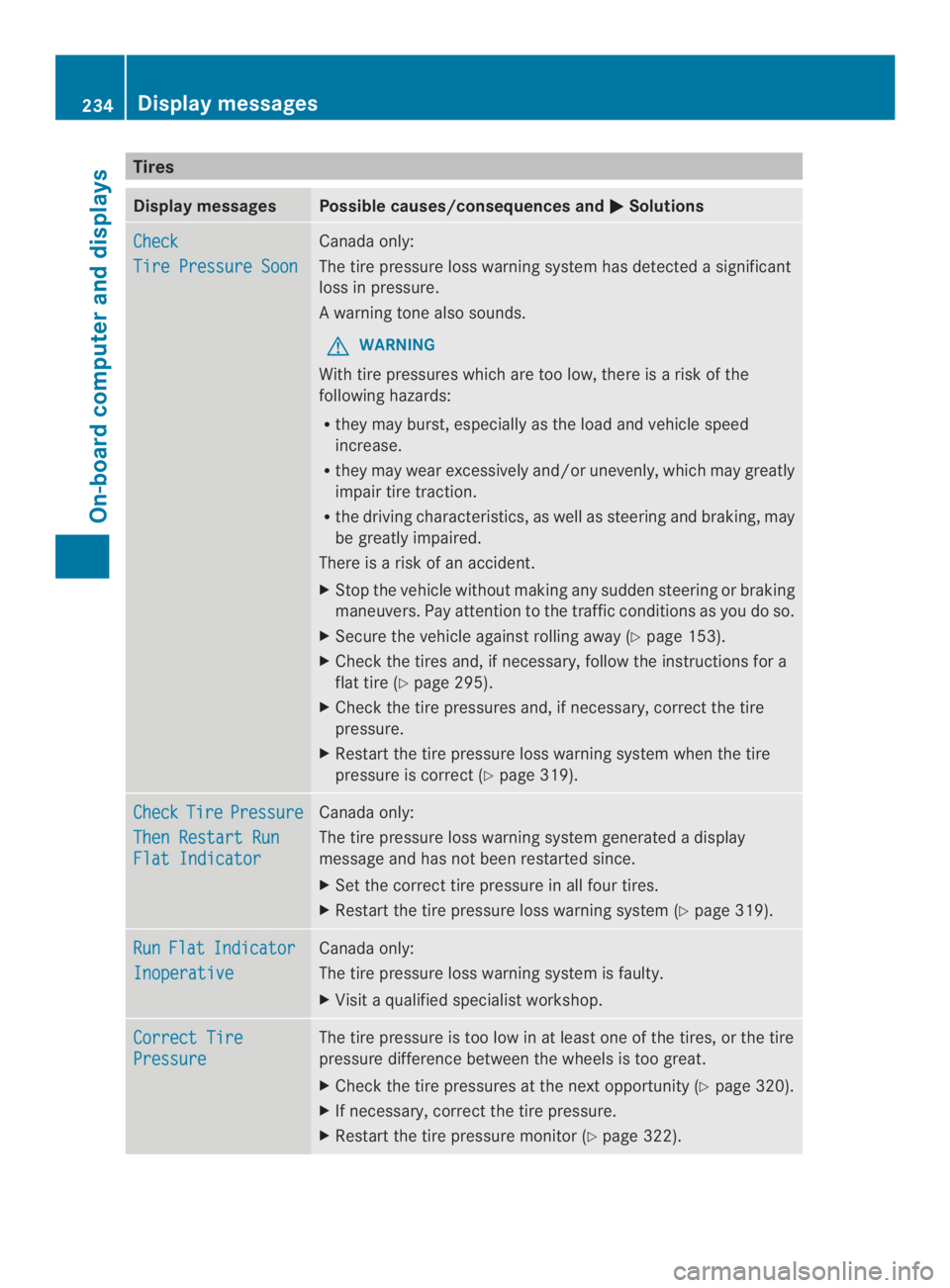

Tires
Display messagesPossible causes/consequences and
Solutions
Check
Tire Pressure Soon
Canada only:
The tire pressure loss warningsystem has detected a significant
loss in pressure.
Awarning tone also sounds.
GWARNING
With tire pressures which are too low, there is a riskofthe
following hazards:
Rthey may burst, especially as the load and vehicle speed
increase.
Rthey may wear excessively and/or unevenly, which may greatly
impair tire traction.
Rthe driving characteristics, as well as steering and braking, may
be greatly impaired.
There is a risk of an accident.
XStop the vehicle without making any sudden steering or braking
maneuvers. Pay attention to the traffic conditions as you do so.
XSecure the vehicle against rolling away (Ypage 153).
XCheck the tires and, if necessary, follow the instructions for a
flat tire (Ypage 295).
XCheck the tire pressures and, if necessary, correct the tire
pressure.
XRestart the tire pressure loss warning system when the tire
pressure is correct (Ypage 319).
CheckTirePressure
Then Restart Run
Flat Indicator
Canada only:
The tire pressure loss warning system generated a display
message and has not been restarted since.
XSet the correct tire pressure in all four tires.
XRestart the tire pressure loss warning system (Ypage 319).
RunFlatIndicator
Inoperative
Canada only:
The tire pressure loss warning system is faulty.
XVisit a qualified specialist workshop.
Correct Tire
Pressure
The tire pressure is too low in at least one of the tires, or the tire
pressure difference between the wheels is too great.
XCheck the tire pressures at the next opportunity (Ypage 320).
XIf necessary, correct the tire pressure.
XRestart the tire pressure monitor (Ypage 322).
234Display messages
On-board computer and displays

Display messagesPossible causes/consequences and
Solutions

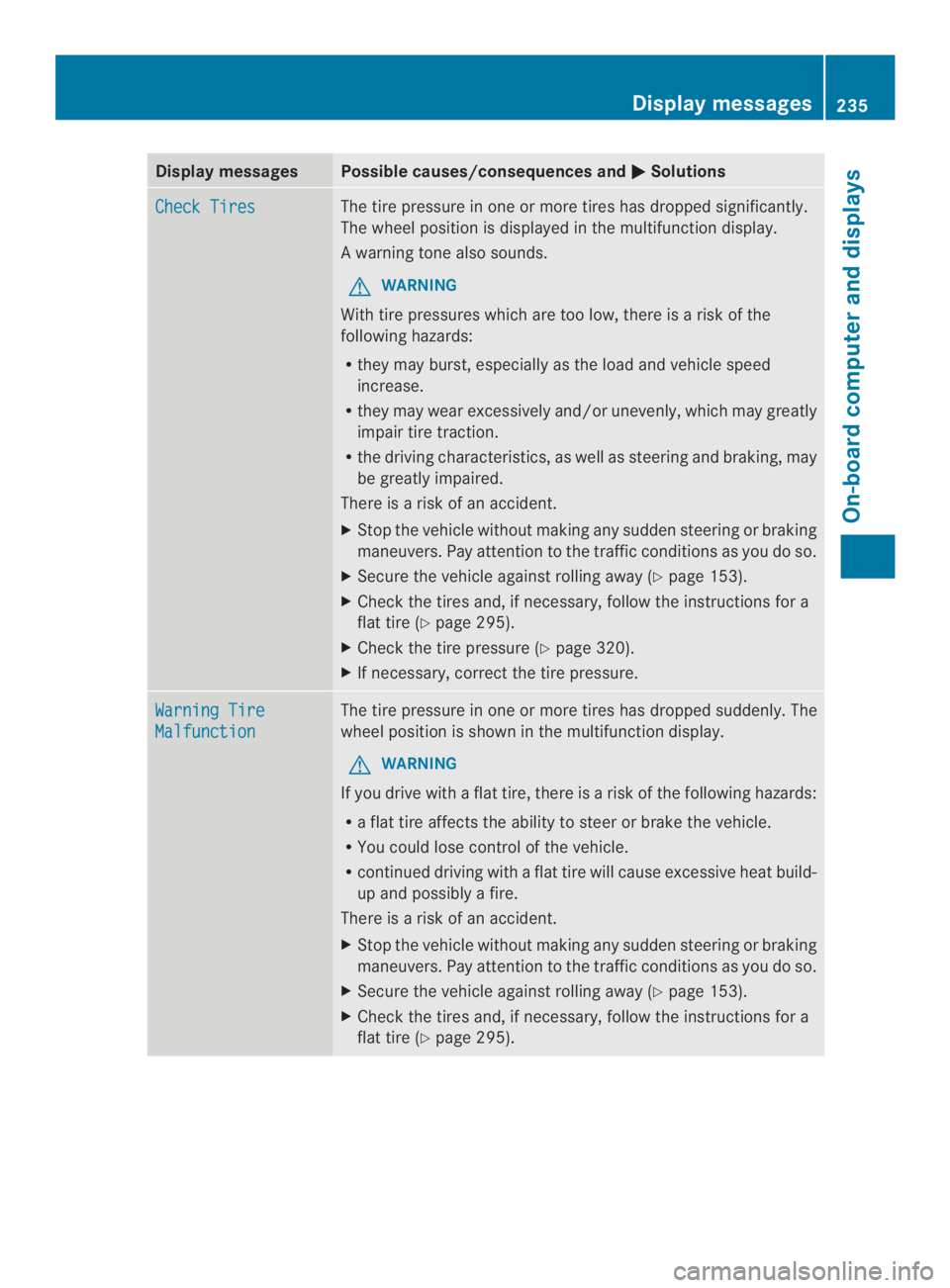

Check TiresThe tire pressure in one or more tires has dropped significantly.
The wheel position is displayed in the multifunction display.
Awarning tone also sounds.
GWARNING
With tire pressures which are too low, there is a riskofthe
following hazards:
Rthey may burst, especially as the load and vehicle speed
increase.
Rthey may wear excessively and/or unevenly, which may greatly
impair tire traction.
Rthe driving characteristics, as well as steering and braking, may
be greatly impaired.
There is a risk of an accident.
XStop the vehicle without making any sudden steering or braking
maneuvers. Pay attention to the traffic conditions as you do so.
XSecure the vehicle against rolling away (Ypage 153).
XCheck the tires and, if necessary, follow the instructions for a
flat tire (Ypage 295).
XCheck the tire pressure (Ypage 320).
XIf necessary, correct the tire pressure.
Warning Tire
Malfunction
The tire pressure in one or more tires has dropped suddenly. The
wheel position is shown in the multifunction display.
GWARNING
If you drive with a flat tire, there is a risk of the following hazards:
Ra flat tire affects the ability to steer or brake the vehicle.
RYou could lose control of the vehicle.
Rcontinued driving with a flat tire will cause excessive heat build-
up and possibly a fire.
There is a risk of an accident.
XStop the vehicle without making any sudden steering or braking
maneuvers. Pay attention to the traffic conditions as you do so.
XSecure the vehicle against rolling away (Ypage 153).
XCheck the tires and, if necessary, follow the instructions for a
flat tire (Ypage 295).
Display messages235
On-board computer and displays
Z

Display messagesPossible causes/consequences and
Solutions

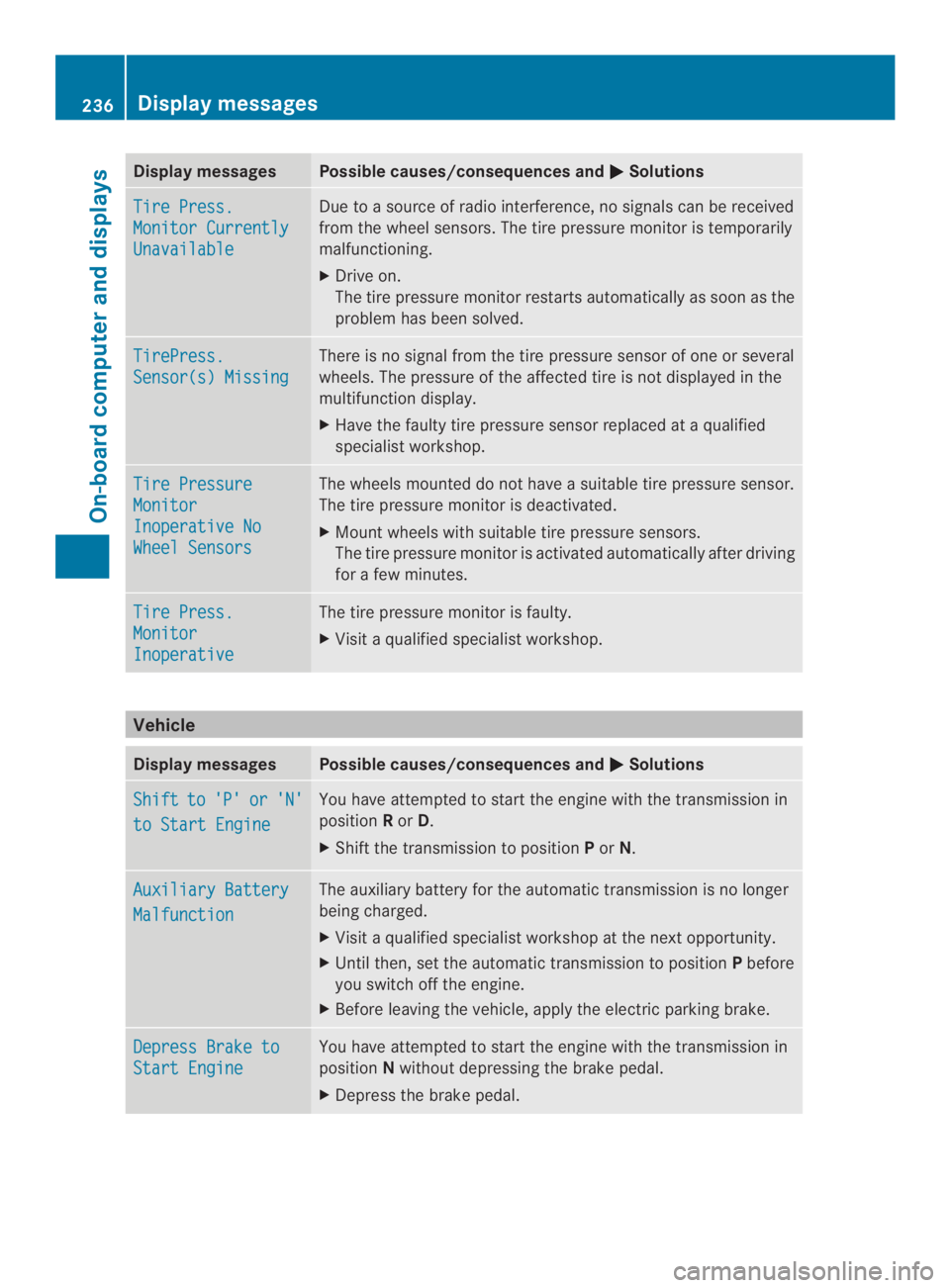

Tire Press.
Monitor Currently
Unavailable
Due to a source of radiointerference, no signals can be received
from the wheel sensors.The tire pressure monitor is temporarily
malfunctioning.
XDrive on.
The tire pressure monitor restarts automatically as soon as the
problem has been solved.
TirePress.
Sensor(s) Missing
There is no signal from the tire pressure sensor of one or several
wheels. The pressure of the affected tire is not displayed in the
multifunction display.
XHave the faulty tire pressure sensor replaced at a qualified
specialist workshop.
Tire Pressure
Monitor
Inoperative No
Wheel Sensors
The wheels mounted do not have a suitable tire pressure sensor.
The tire pressure monitor is deactivated.
XMount wheels with suitable tire pressure sensors.
The tire pressure monitor is activated automatically after driving
for a few minutes.
Tire Press.
Monitor
Inoperative
The tire pressure monitor is faulty.
XVisit a qualified specialist workshop.
Vehicle
Display messagesPossible causes/consequences and
Solutions
Shiftto'P'or'N'
to Start Engine
You have attempted to start the engine with the transmission in
positionRorD.
XShift the transmission to positionPorN.
Auxiliary Battery
Malfunction
The auxiliary battery for the automatic transmission is no longer
being charged.
XVisit a qualified specialist workshop at the next opportunity.
XUntil then, set the automatic transmission to positionPbefore
you switch off the engine.
XBefore leaving the vehicle, apply the electric parking brake.
Depress Brake to
Start Engine
You have attempted to start the engine with the transmission in
positionNwithout depressing the brake pedal.
XDepress the brake pedal.
236Display messages
On-board computer and displays

Display messagesPossible causes/consequences and
Solutions
ToDeselectPorN,
Depress Brake and
Start Engine
You have attempted to shift the transmissionto positionRorD
without starting the engine.
XStart the engine.
XDepress the brake pedal.
iIt is only possible to shift the transmission from positionPto
the desired position if you depress the brake pedal. Only then
can the parking lock be deactivated. If you do not depress the
brake pedal, you can move the DIRECT SELECT lever but the
parking lock remains engaged.
iAt transmission fluid temperatures below4 ‡ (20 †) you
can only shift out of positionPinto another transmission
position when the engine is running.
Apply Brake to
Shift from 'P'
You have attempted to move the transmission selector lever to
positionR,NorDwithout depressing the brake pedal.
XDepress the brake pedal.
Transmission Not
in P
Risk of Vehicle
Rolling Away
The driver's door is open and the transmission is in positionR,N
orD.
Awarning tone also sounds.
XShift the transmission to positionP.
XSecure the vehicle against rolling away (Ypage 153).
Service Required
DoNotShiftGears
Visit Dealer
You cannotchange the transmission position due to a malfunction.
Awarning tone also sounds.
If transmission positionDis selected:
XDrive to a qualified specialist workshop without shifting the
transmission from positionD.
If transmission positionR,NorPis selected:
XNotify a qualified specialist workshop or breakdown service.
Only Sift to 'P'
when Vehicle
is Stationary
The vehicle is moving.
XPull overand stop the vehicle safely as soonas possible, paying
attention to road and traffic conditions.
XShift the transmission to positionP.
Reversing Not
Possible Service
Required
The automatic transmission is malfunctioning. You cannot back
up.
XVisit a qualified specialist workshop.
Display messages237
On-board computer and displays
Z

Display messagesPossible causes/consequences and
Solutions
Transmission
malfunction
The automatictransmission is malfunctioning.
XVisitaqualified specialist workshop.
Transmission
Malfunction Stop
The automatic transmission is malfunctioning.
XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
XSecure the vehicle against rolling away (Ypage 153).
XConsult a qualified specialist workshop.
StopVehicleShift
to P Leave Engine
Running
The automatic transmission has overheated.
XDrive on carefully.
The automatic transmission is available again when the display
message goes out.
If the display message continues to be displayed:
XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
XSecure the vehicle against rolling away (Ypage 153).
XWait until the automatic transmission has cooled down and the
display message has disappeared.
Trans. Oil
Overheated Drive
on with Care
AMG vehicles: the transmission oil has overheated.
Manual drive programMand the temporarily active manual drive
program are no longer available. The engine power output is
reduced.
XAllow the vehicle to cool down.
4matic Currently
Unavailable
4MATIC (permanentall-wheeldrive) has overheated. The vehicle
is only drivenby the frontwheels.
XDrive on.
The airflow cools 4MATIC more quickly.
When the display message goes out, 4MATIC is available again
and the vehicle is driven by all four wheels.
4matic Inoperative4MATIC is malfunctioning. The vehicle is only driven by the front
wheels.
XVisit a qualified specialist workshop.
The trunk lid is open.
XClose the trunk lid.
238Display messages
On-board computer and displays
