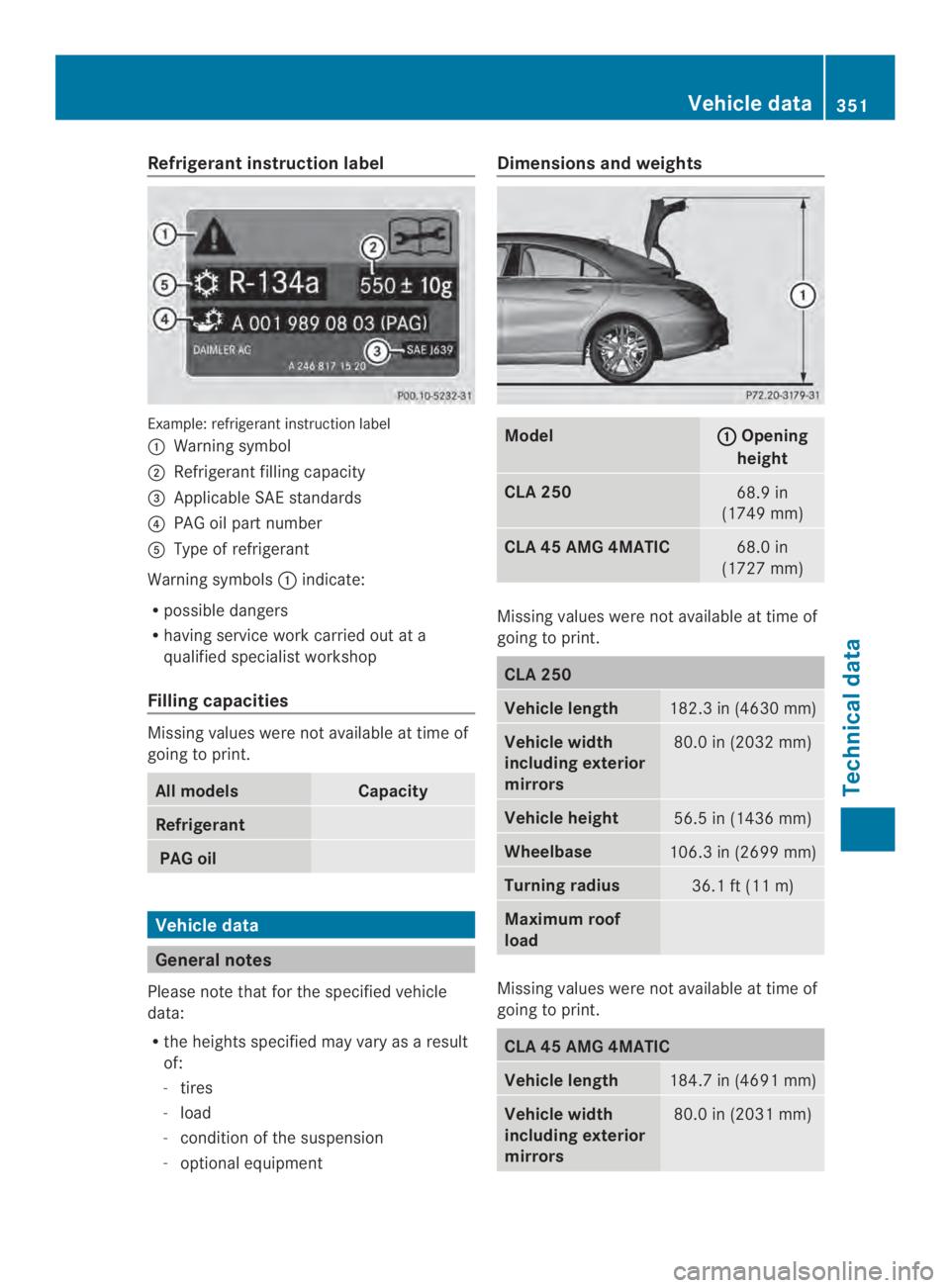

2014 MERCEDES-BENZ CLA Owners Manual

Refrigerant instruction label
Example: refrigerant instruction label
Warning symbol
Refrigerant filling capacity
"Applicable SAE standards
!PAG oil part number
Type of refrigerant
Warning symbolsindicate:
Rpossible dangers
Rhaving service work carried out at a
qualified specialist workshop
Filling capacities
Missing values were not available at time of
going to print.
All modelsCapacity
Refrigerant
PAGoil
Vehicle data
General notes
Please note that for the specified vehicle
data:
Rthe heights specified may vary as a result
of:
-tires
-load
-condition of the suspension
-optional equipment
Dimensions and weights
ModelOpening
height
CLA 25068.9 in
(1749 mm)
CLA 45 AMG 4MATIC68.0 in
(1727 mm)
Missing values were not available at time of
going to print.
CLA 250
Vehicle length182.3 in (4630 mm)
Vehicle width
including exterior
mirrors
80.0 in (2032 mm)
Vehicle height56.5 in (1436 mm)
Wheelbase106.3 in (2699 mm)
Turning radius36.1 ft (11 m)
Maximum roof
load
Missing values were not available at time of
going to print.
CLA 45 AMG 4MATIC
Vehicle length184.7 in (4691 mm)
Vehicle width
including exterior
mirrors
80.0 in (2031 mm)
Vehicle data351
Technical data
Z

CLA 45 AMG 4MATIC
Vehicle height55.7 in (1416 mm)
Wheelbase106.3 in (2699 mm)
Turning radius36.2 ft (11.04 m)
Maximum roof
load
352Vehicle data
Technical data
