2014 MERCEDES-BENZ CLA Owners Manual

XTurn the SmartKey to position1or2in the
ignition lock.
XMake sure that the roller sunblinds are
open.
XPress or pull theswitch in the
corresponding direction.
iIf you press theswitch beyond the
point of resistance, an automatic opening/
closing process is started in the
corresponding direction.You can stop
automatic operation by operating the
switch again.
The automatic raising feature is available
only when the sliding sunroof is closed.
iYou can continue to operate the sliding
sunroof after switching off the engine or
removing the SmartKey from the ignition
lock. This function remains active for five
minutes or until you open a front door.
Operating the roller sunblinds for the
sliding sunroof
Important safety notes
GWARNING
When opening or closing the roller sunblind,
parts of the body could be trapped between
the roller sunblind and the frame or sliding
sunroof. There is a risk of injury.
When opening or closing make sure that no
parts of the body are in the sweep of the roller
sunblind.
If somebody becomes trapped:
Rrelease the switch immediately, or
Rduring automatic operation, push the
switch briefly in any direction
The opening or closing procedure will be
stopped.
The roller sunblinds shield the vehicle interior
from sunlight. The two roller sunblinds can
only be opened and closed together when the
sliding sunroof is closed.
Roller sunblind reversing feature
The roller sunblinds are equipped with an
automatic reversing feature. If a solid object
blocks or restricts a roller sunblind during the
closing process, the roller sunblind opens
again automatically. However, the automatic
reversing feature is only an aid and does not
relieve you of the responsibility of paying
attention when closing the roller sunblinds.
GWARNING
The reversing feature does not react:
Rto soft, light and thin objects, e.g. small
fingers
Rwhen closing the roller sunblind again
manually immediately after automatic
reversing
This means that the reversing feature cannot
prevent someone being trapped in these
situations. There is a risk of injury.
When closing make sure that no parts of the
body are in the sweep of the roller sunblind.
If somebody becomes trapped:
Rrelease the switch immediately, or
Rduring automatic operation, push the
switch briefly in any direction
The closing process is stopped.
Opening and closing
Overhead control panel
To open
To open
"To close
Panoramaroof with power tilt/sliding panel87
Opening and closing
Z

XTurn the SmartKey to position1or2in the
ignition lock.
XPress or pull theswitch in the
corresponding direction.
iIf you press theswitch beyond the
point of resistance, an automatic opening/
closing process is started in the
corresponding direction.You can stop
automatic operation by operating the
switch again.
iAfter opening the sliding sunroof, the
roller sunblind closes slightly
automatically. This reduces drafts in the
vehicle interior.
Resetting the sliding sunroof and the
roller sunblinds
If the sliding sunroof or the roller sunblinds
do not move smoothly, reset the sliding
sunroof and the roller sunblinds:
XTurn the SmartKey to position1or2in the
ignition lock.
XPull theswitch repeatedly to the point
of resistance in the direction of arrow"
until the sliding sunroof is fully closed.
XKeep theswitch pulled for an
additional second.
XPull theswitch repeatedly to the point
of resistance in the direction of arrow"
until the roller sunblinds are fully closed.
XKeep theswitch pulled for an
additional second.
XMake sure that the sliding sunroof
(Ypage 86) and the roller sunblinds
(Ypage 87) can be fully opened and closed
again.
XIf this is not the case, repeat the steps
above again.
Problems with the sliding sunroof
GWARNING
If you do not reset the sliding sunroof after a
malfunction or voltage supply interruption,
then the backing up function will malfunction
or not work. The sliding sunroof closes with
increased or maximum force. Parts of the
body could be trapped in the closing area in
the process. This poses an increased risk of
injury or even fatal injury.
In such or similar situations always make sure
that no parts of the body are in the closing
area. Always reset the sliding sunroof after a
malfunction or voltage supply interruption.
!If the sliding sunroof still cannot be
opened or closed as a result of a
malfunction, contact a qualified specialist
workshop.
Problem: the sunroof cannot be closed
and you cannot see the cause.If the sliding
sunroof is obstructed during closing and
reopens again slightly:
XImmediately after it blocks, pull the
switch down again to the point of
resistance until the sliding sunroof is
closed
The sliding sunroof is closed with increased
force.
If the sliding sunroof is obstructed again
during closing and then reopens slightly:
XImmediately after it blocks, pull the
switch down again to the point of
resistance until the sliding sunroof is
closed
The sliding sunroof is closed without the
anti-entrapment feature.
88Panoramaroof with power tilt/sliding panel
Opening and closing

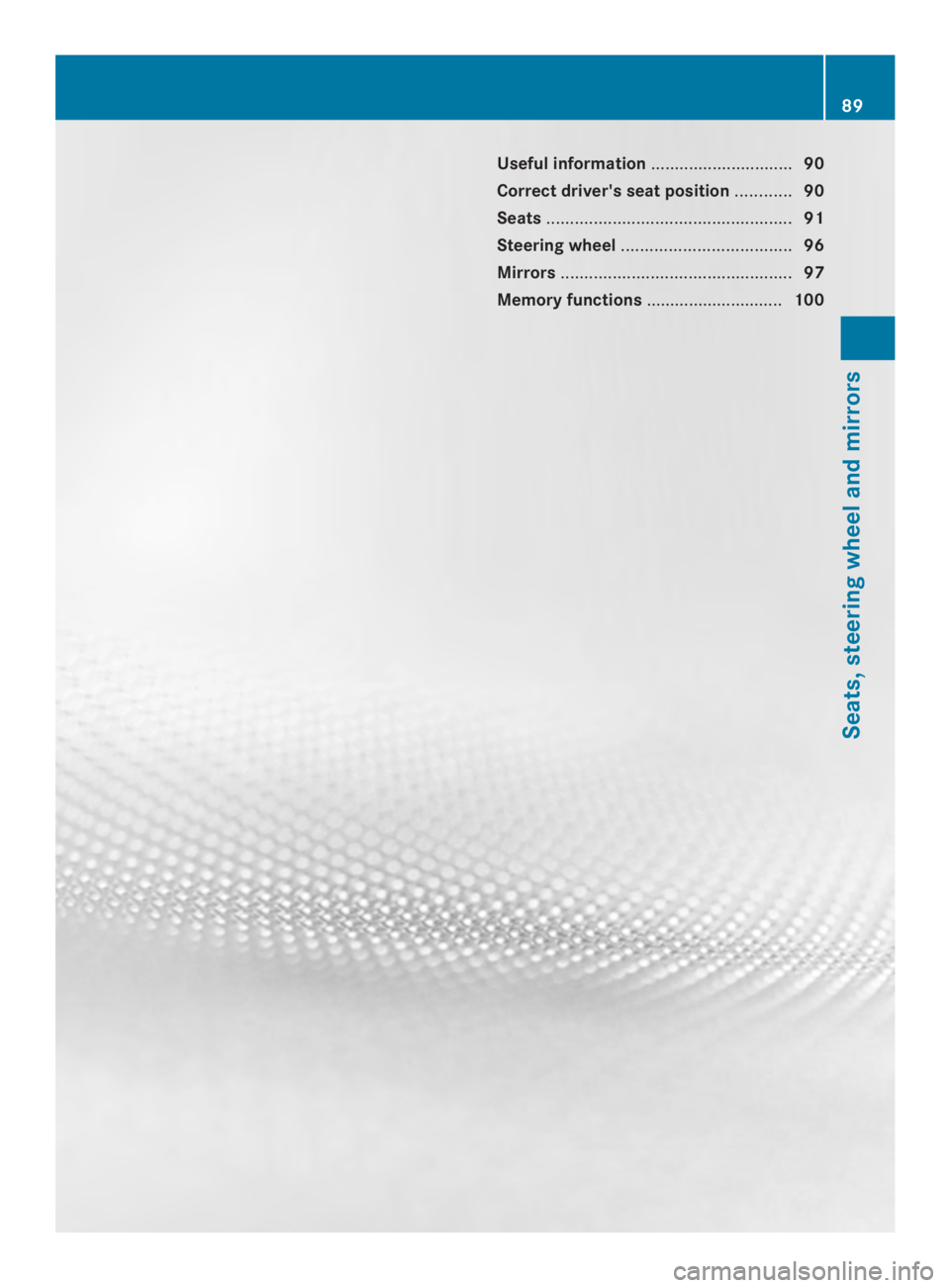

Useful information..............................90
Correct driver's seat position............90
Seats....................................................91
Steering wheel....................................96
Mirrors.................................................97
Memoryfunctions.............................100
89
Seats, steering wheel and mirrors

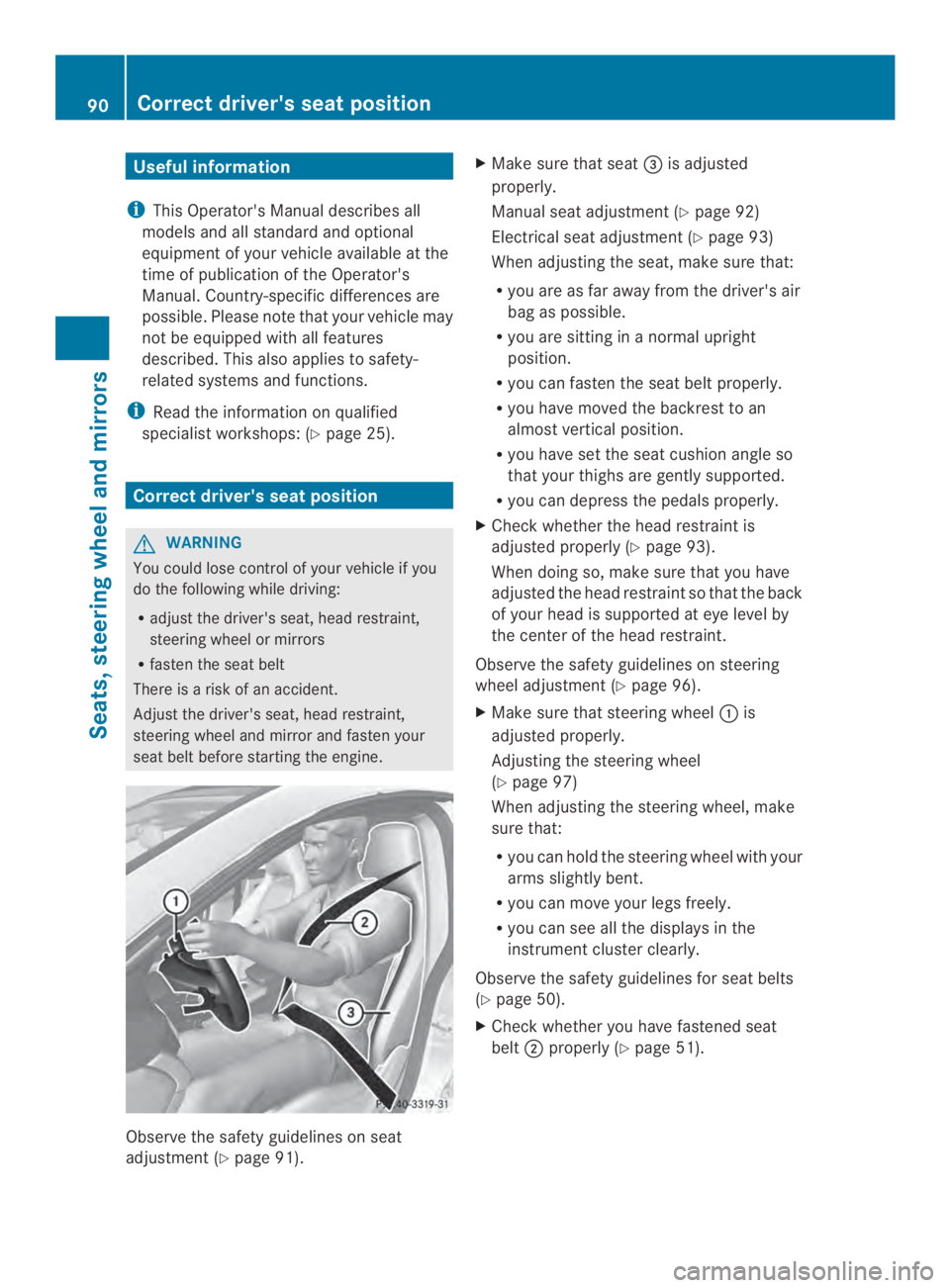

Useful information
iThis Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
iRead the information on qualified
specialist workshops: (Ypage 25).
Correct driver's seat position
GWARNING
You could lose control of your vehicle if you
do the following while driving:
Radjust the driver's seat, head restraint,
steering wheel or mirrors
Rfastenthe seat belt
There is a risk of an accident.
Adjust the driver's seat, head restraint,
steering wheel and mirror and fasten your
seat belt before starting the engine.
Observe the safety guidelines on seat
adjustment (Ypage 91).
XMake sure that seat"is adjusted
properly.
Manual seat adjustment (Ypage 92)
Electrical seat adjustment (Ypage 93)
When adjusting the seat, make sure that:
Ryou are as far away from the driver's air
bag as possible.
Ryou are sitting in a normal upright
position.
Ryou can fasten the seat belt properly.
Ryou have moved the backrest to an
almost vertical position.
Ryou have set the seat cushion angle so
that your thighs are gently supported.
Ryou can depress the pedals properly.
XCheck whether the head restraint is
adjusted properly (Ypage 93).
When doing so, make sure that you have
adjusted the head restraint so that the back
of your head is supported at eye level by
the center of the head restraint.
Observe the safety guidelines on steering
wheel adjustment (Ypage 96).
XMake sure that steering wheelis
adjusted properly.
Adjusting the steering wheel
(Ypage 97)
When adjusting the steering wheel, make
sure that:
Ryou can hold the steering wheel with your
arms slightly bent.
Ryou can move your legs freely.
Ryou can see all the displays in the
instrumentclusterclearly.
Observe the safety guidelines for seat belts
(Ypage 50).
XCheck whether you have fastened seat
beltproperly (Ypage 51).
90Correct driver's seat position
Seats, steering wheel and mirrors

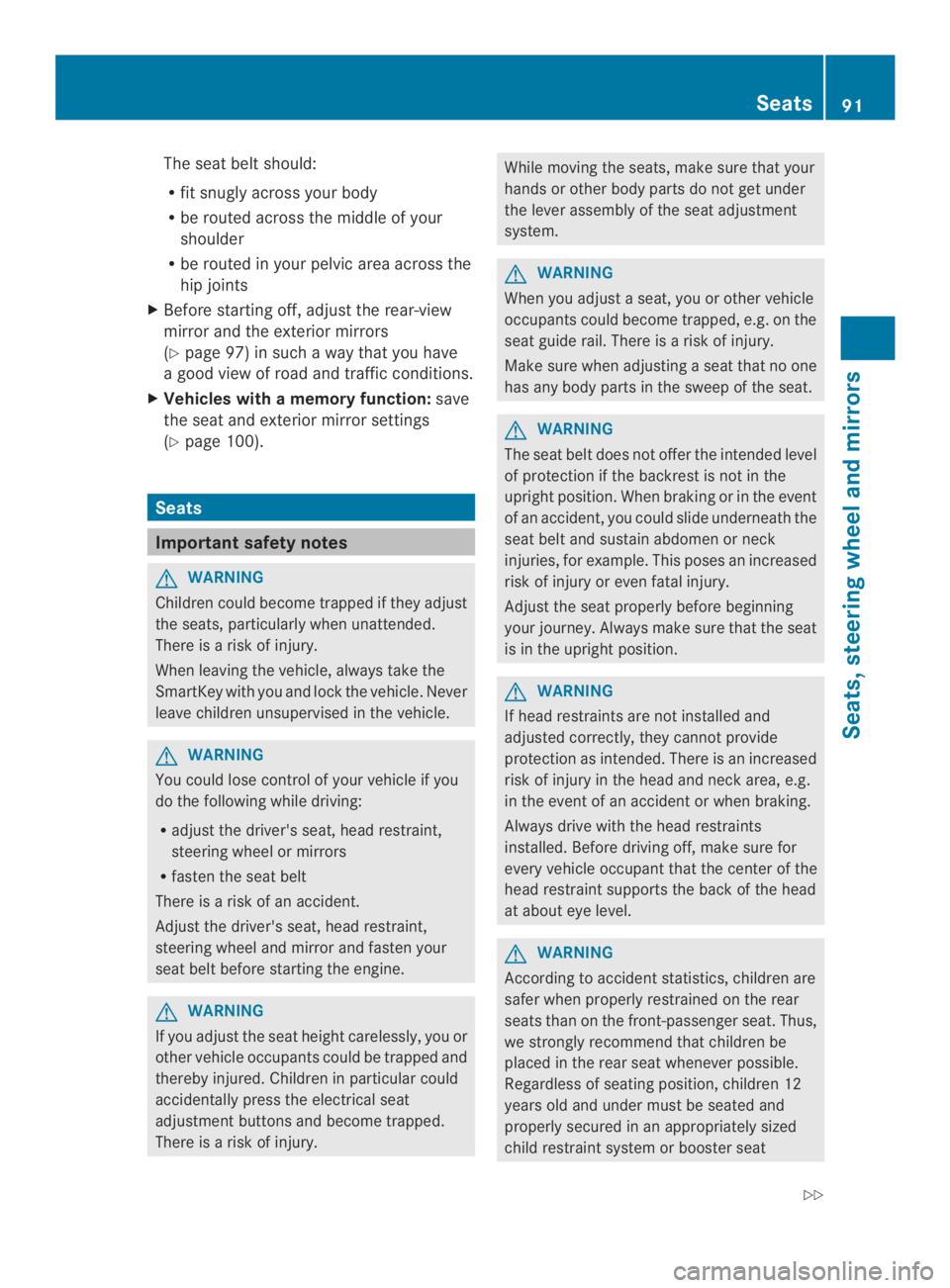

The seat belt should:
Rfit snugly across your body
Rbe routed across the middle of your
shoulder
Rbe routed in your pelvic area across the
hip joints
XBefore starting off, adjust the rear-view
mirror and the exterior mirrors
(Ypage 97) in such a way that you have
a good view of road and traffic conditions.
XVehicles with a memory function:save
the seat and exterior mirror settings
(Ypage 100).
Seats
Important safety notes
GWARNING
Children could become trapped if they adjust
the seats, particularly when unattended.
There is a risk of injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children unsupervised in the vehicle.
GWARNING
You could lose control of your vehicle if you
do the following while driving:
Radjust the driver's seat, head restraint,
steering wheel or mirrors
Rfasten the seat belt
There is a risk of an accident.
Adjust the driver's seat, head restraint,
steering wheel and mirror and fasten your
seat belt before starting the engine.
GWARNING
If you adjust the seat height carelessly, you or
other vehicle occupants could be trapped and
thereby injured. Children in particular could
accidentally press the electrical seat
adjustmentbuttons and become trapped.
There is a riskofinjury.
While moving the seats, make sure thatyour
hands or other body parts do not get under
the lever assembly of the seat adjustment
system.
GWARNING
When you adjust a seat, you or other vehicle
occupants could become trapped, e.g. on the
seat guide rail. There isarisk of injury.
Make sure when adjustingaseat that no one
has any body parts in the sweep of the seat.
GWARNING
The seat belt does not offer the intended level
of protection if the backrest is not in the
upright position.When braking or in the event
of an accident, you could slide underneath the
seat belt and sustain abdomen or neck
injuries, for example. This poses an increased
risk of injury or even fatal injury.
Adjust the seat properly before beginning
your journey. Always make sure that the seat
is in the upright position.
GWARNING
If head restraints are not installed and
adjusted correctly, they cannot provide
protection as intended. There is an increased
risk of injury in the head and neck area, e.g.
in the event of an accident or when braking.
Always drive with the head restraints
installed. Before driving off, make sure for
every vehicle occupant that the center of the
head restraint supports the back of the head
at about eye level.
GWARNING
According to accident statistics, children are
safer when properly restrained on the rear
seats than on the front-passenger seat. Thus,
we strongly recommend that children be
placed in the rear seat whenever possible.
Regardless of seating position, children 12
years old and under must be seated and
properly secured in an appropriately sized
child restraint system or booster seat
Seats91
Seats, steering wheel and mirrors
Z

recommended for the size and weight of the
child.For additional information, see the
"Children in the vehicle" section.
Achild's risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and/
or the child is not properly secured in the child
restraint.
!To avoid damage to the seats and the seat
heating, observe the following information:
Rkeep liquids from spilling on the seats. If
liquid is spilled on the seats, dry them as
soon as possible.
Rif the seat covers are damp or wet, do not
switch on the seat heating. The seat
heating should also not be used to dry
the seats.
Rclean the seat covers as recommended;
see the "Interior care" section.
Rdo not transport heavy loads on the
seats. Do not place sharp objects on the
seat cushions, e.g. knives, nails or tools.
The seats should only be occupied by
passengers, if possible.
Rwhen the seat heating is in operation, do
not cover the seats with insulating
materials, e.g. blankets, coats, bags,
seat covers, child seats or booster seats.
!Make sure that there are no objects in the
footwell or behind the seats when resetting
the seats. There is a risk that the seats
and/or the objects could be damaged.
iThe head restraints in the front and rear
seats can be removed.1
For more information, contact a qualified
specialist workshop.
iFurther related subjects:
RLuggage compartmentenlargement
(folding down the rearseats)
(Ypage 257)
Adjusting the seats manually
Seat fore-and-aft adjustment
XLift handleand slide the seat forwards
or backwards.
XRelease leveragain.
Make sure that you hear the seat engage in
position.
Backrest angle
XRelieve the pressure on the backrest.
XTurn handwheel!forwards or backwards.
Seat height
XPull handle"upwards or push it down
repeatedly until the seat has reached the
desired height.
Seat cushion angle
Adjust the angle so that your thighs are lightly
supported.
XTurn handwheelforwards or backwards.
1Not on vehicles with sportsseats.
92Seats
Seats, steering wheel and mirrors

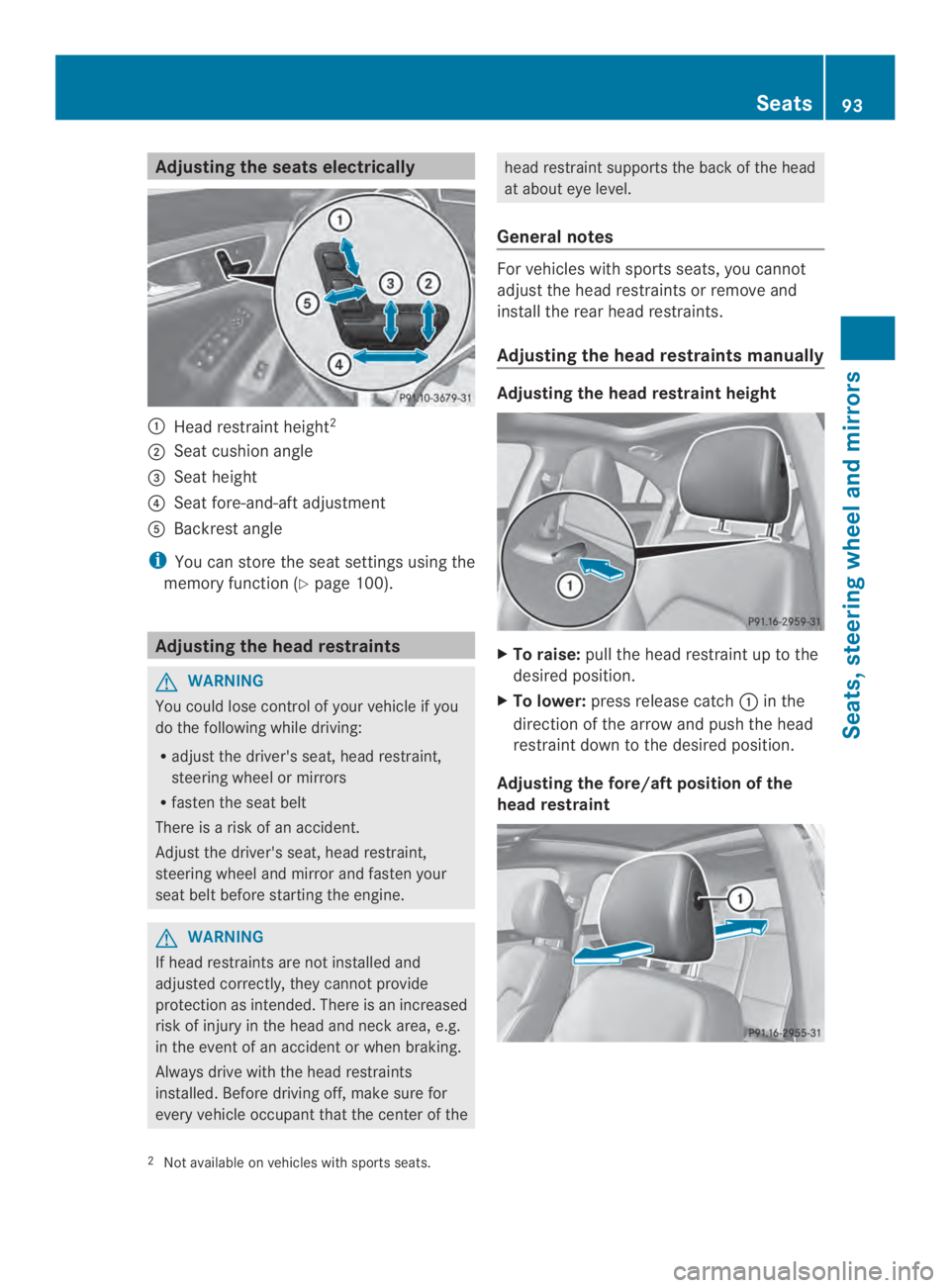

Adjusting the seats electrically
Head restraintheight2
Seat cushion angle
"Seat height
!Seat fore-and-aft adjustment
Backrest angle
iYou can store the seat settings using the
memory function (Ypage 100).
Adjusting the head restraints
GWARNING
You could lose control of your vehicle if you
do the following while driving:
Radjust the driver's seat, head restraint,
steering wheel or mirrors
Rfasten the seat belt
There is a risk of an accident.
Adjust the driver's seat, head restraint,
steering wheel and mirror and fasten your
seat belt before starting the engine.
GWARNING
If head restraints are not installed and
adjusted correctly, they cannot provide
protection as intended. There is an increased
risk of injury in the head and neck area, e.g.
in the event of an accident or when braking.
Always drive with the head restraints
installed. Before driving off, make sure for
every vehicle occupant that the center of the
head restraint supports the back of the head
at about eye level.
General notes
For vehicles with sports seats, you cannot
adjust the head restraints or remove and
install the rear head restraints.
Adjusting the head restraints manually
Adjusting the head restraint height
XTo raise:pull the head restraint up to the
desired position.
XTo lower:press release catchin the
direction of the arrow and push the head
restraint down to the desired position.
Adjusting the fore/aft position of the
head restraint
2Not available on vehicles with sports seats.
Seats93
Seats, steering wheel and mirrors
Z

With this function you can adjust the distance
between the head restraint and the back of
the seat occupant's head.
XTo adjust forwards:pull the head restraint
forwards in the direction of the arrow until
it engages.
There are several notches.
XTo move backwards:press and hold
release buttonand push the head
restraint backwards.
XWhen the head restraint is in the desired
position, release the button and make sure
that the head restraint is engaged in
position.
Adjusting the height of the head
restraints electrically
XTo adjust the head restraint height:slide
the switch for head restraint adjustment
(Ypage 93) up or down in the direction of
the arrow.
Rear seat head restraints
Adjusting the rear seat head restraint
height
XTo raise:pull the head restraint up to the
desired position.
XTo lower:press release catchand push
the head restraint down until it is in the
desired position.
Removing and installing the rear seat
head restraints
GWARNING
If head restraints are not installed and
adjusted correctly, they cannot provide
protection as intended. There is an increased
risk of injury in the head and neck area, e.g.
in the event of an accident or when braking.
Always drive with the head restraints
installed. Before driving off, make sure for
every vehicle occupant that the center of the
head restraint supports the back of the head
at about eye level.
The rear head restraints on the outer seats
can be removed and re-installed.
XFold the seat backrestslightly forwards in
order to remove the head restraint
(Ypage 258).
XTo remove:pull the head restraint up to
the stop.
XPress release catchand pull the head
restraint out of the guides.
XTo re-install:insert the head restraint so
that the notches on the bar are on the left
when viewed in the direction of travel.
XPush the head restraint down until you hear
it engage in position.
Adjusting the 4-way lumbar support
You can adjust the contour of the front seat
backrests individually to provide optimum
support for your back.
94Seats
Seats, steering wheel and mirrors
