XPress and hold one of buttons to !on
the integrated garage door opener.
After a short time, indicator lamp lights
up yellow.
iIndicator lamp lights up yellow as soon
as button , "or !is programmed for
the first time. If the selected button has
already been programmed, indicator
lamp will only light up yellow after ten
seconds have elapsed.
XRelease button , "or !. Indicator
lamp flashes yellow.
XPoint garage door remote control
towards buttons to !on the rear-view
mirror at a distance of 2 to 8 inches (5 to
20 cm).
iThe required distance between remote
control and the integrated garage door
opener depends on the garage door drive
system. Several attempts might be
necessary. You should test every position
for at least 25 seconds before trying
another position.
XPress and hold button on remotecontrol
until indicator lamp lights up green.
If indicator lamp lights up green or
flashes, then programming has been
successful.
XRelease button on remote control for
the garage door drive system.
XIf indicator lamp lights up red: repeat
the programming procedure for the
corresponding button on the rear-view
mirror. When doing so, vary the distance
between remote control and the rear-
view mirror.
iIf the indicator lamp flashes green after
successful programming, the garage door
system is using a rolling code. After
programming, you must synchronize the
garage door opener integrated in the rear-
view mirror with the receiver of the garage
door system.
Synchronizing the rolling code
Observe the "Important safety notes"
(Ypage 273).
Your vehicle must be within reach of the
garage door or exterior gate drive. Make sure
that neither your vehicle nor any persons/
objects are present within the sweep of the
door or gate.
XTurn the SmartKey to position2in the
ignition lock.
XPress the program button of the door or
gate drive (see the door or gate drive
operating instructions, e.g. under
"programming of additional remote
controls").
iUsually, you now have 30seconds to
initiate the next step.
XPress previously programmed button ,
"or !of the integrated garage door
opener until the door closes.
The rolling code synchronization is then
complete.
Notes on programming the remote
control
Canadianradio frequency laws require a
"break" (or interruption) of the transmission
signals after broadcasting for a few seconds.
Therefore, these signals may notlast long
enough for the integrated garage door
opener. The signal is notrecognized during
programming. Comparable with Canadian
law, some U.S.garage door openers also
feature a "break".
Proceed as follows:
Rif you live in Canada
Rif you have difficulties programming the
garage door opener (regardless of where
you live) when using the programming
steps
274Features
Stowage and features

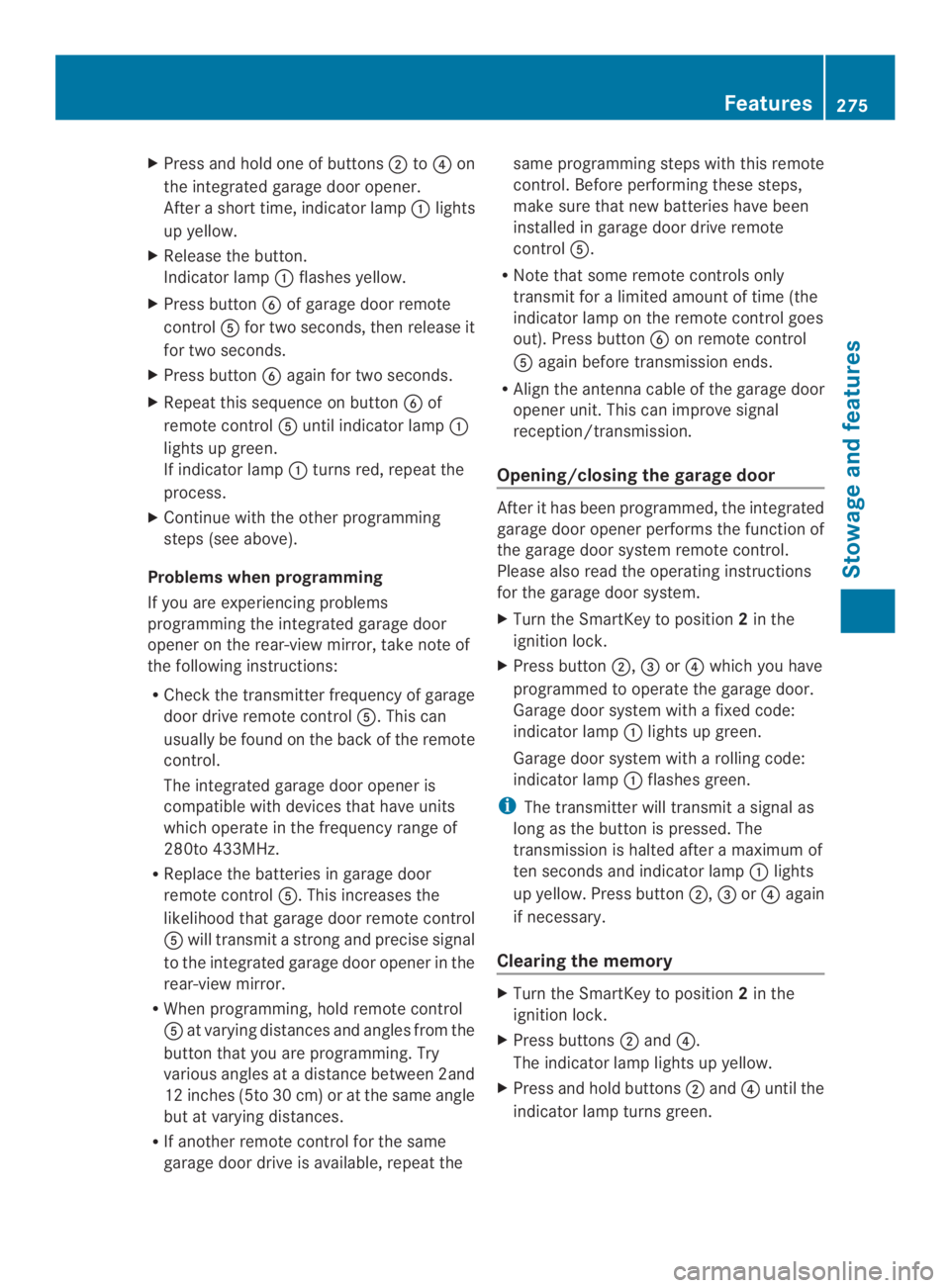

XPress and hold one of buttons to !on
the integrated garage door opener.
After a short time, indicator lamp lights
up yellow.
XRelease the button.
Indicator lamp flashes yellow.
XPress button of garage door remote
control for two seconds, then release it
for two seconds.
XPress button again for two seconds.
XRepeat this sequence on button of
remote control until indicator lamp
lights up green.
If indicator lamp turns red, repeat the
process.
XContinue with the other programming
steps (see above).
Problems when programming
If you are experiencing problems
programming the integrated garage door
opener on the rear-view mirror, take note of
the following instructions:
RCheck the transmitter frequency of garage
door drive remote control .This can
usually be found on the back of the remote
control.
The integrated garage door opener is
compatible with devices that have units
which operate in the frequency range of
280to 433MHz.
RReplace the batteries in garage door
remote control .This increases the
likelihood that garage door remote control
will transmit a strongand precise signal
to the integrated garage door openerinthe
rear-view mirror.
RWhen programming, hold remote control
at varying distances and angles from the
button that you are programming. Try
various angles at a distance between 2and
12 inches (5to 30 cm) or at the same angle
but at varying distances.
RIf another remote control for the same
garage door drive is available, repeat the
same programming steps with this remote
control. Before performing these steps,
make sure that new batteries have been
installed in garage door drive remote
control .
RNote that some remote controls only
transmit for a limited amount of time (the
indicator lamp on the remote control goes
out). Press button on remote control
again before transmission ends.
RAlign the antenna cable of the garage door
opener unit. This can improve signal
reception/transmission.
Opening/closing the garage door
After it has been programmed, the integrated
garage door opener performs the function of
the garage door system remote control.
Please also read the operating instructions
for the garage door system.
XTurn the SmartKey to position2in the
ignition lock.
XPress button , "or !which you have
programmed to operate the garage door.
Garage door system with a fixed code:
indicator lamp lights up green.
Garage door system with a rolling code:
indicator lamp flashes green.
iThe transmitter will transmit a signal as
long as the button is pressed. The
transmission is halted after a maximum of
ten seconds and indicator lamp lights
up yellow. Press button , "or !again
if necessary.
Clearing the memory
XTurn the SmartKey to position2in the
ignition lock.
XPress buttons and !.
The indicator lamp lights up yellow.
XPress and hold buttons and !until the
indicator lamp turns green.
Features275
Stowage and features
Z
