2013 PEUGEOT 3008 Owners Manual

207
TECHNICAL DATA

Engine
s

1.6 litre VTi

120 hp



1.6 litre THP
156 hp



Gearbox

Manual
(5-speed)
Manual
(6-speed)
Automatic
(6-speed)
Cubic capacity (cc)
1 598
1 598
Bore x stroke (mm)
77 x 85.8
77 x 85.8
Max power: EU standard (kW) *
88
115 / 110 - 120 **

Max power engine speed (rpm)
6 000
6 000
Max torque: EU standard (Nm)
160
240
Max torque engine speed (rpm)
4 250
1 400
Fuel
Unleaded
Unleaded
Catalytic converter
yes
yes

Oil capacities (in litres)



Engine (with fi lter replacement)
4.25
4.25
PETROL ENGINES AND GEARBOXES


*
The maximum power corresponds to the type approved value on a test bed, under the conditions defi ned in European legisla-
tion (directive 1999/99/CE).

**
Overseas export

208
TECHNICAL DATA

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

PETROL WEIGHTS AND TOWED LOADS (IN KG)


*
The kerb weight is equal to the unladen weight + driver (75 kg).

**
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

***
Overseas export
Engines


1.6 litre VTi
120 hp



1.6 litre THP
156 hp



Gearboxes

Manual
(5-speed)
Manual
(6-speed)
Automatic
(6-speed)


- Unladen weight
1 399
1 459
1 480


- Kerb weight *

1 474
1 534
1 555


- Payload
621
561


- Gross vehicle weight (GVW)
2 020
2 020
2 030


- Gross train weight (GTW)
on a 12 % gradient
3 220
3 426
3 530/ 2 830 ***



- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 200
1 400 / 800 ***



- Braked trailer ** (with load transfer
within the GTW limit)
1 500
1 500


- Unbraked trailer
735
750


- Recommended nose weight
70
70

209
TECHNICAL DATA

Engines


1.6 litre Turbo e-HDi

115 hp



2 litre Turbo HDi
150 hp



2 litre Turbo HDi
163 hp



Gearbox

Manual
(6-speed)


Electronic gear control
(6-speed)
Manual
(6-speed)
Automatic
(6-speed)
Cubic capacity (cc)
1 560
1 997
Bore x stroke (mm)
75 x 88.3
85 x 88
Max power: EU standard (kW) *
82
110/120
Max power engine speed (rpm)
4 000
3 750
Max torque: EU standard (Nm)
270
320/340
Max torque engine speed (rpm)
1 750
2 000
Fuel
Diesel
Diesel
Catalytic converter
yes
yes
Particle emission fi lter
yes
yes

Oil capacities (in litres)



Engine (with fi lter replacement)
3.75
-
DIESEL ENGINES AND GEARBOXES


*
The maximum power corresponds to the type approved value on a test bed, under the conditions defi ned in European leg-
islation (directive 1999/99/CE).

210
TECHNICAL DATA

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

DIESEL WEIGHTS AND TOWED LOADS (IN KG)



*
The kerb weight is equal to the unladen weight + driver (75 kg).

**
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Engines


1.6 litre Turbo e-HDi
115 hp



2 litre Turbo

HDi
150 hp



2 litre Turbo
HDi
163 hp



Gearbox

Manual
(6-speed)
Electronic
gear control
(6-speed)
Electronic
gear control
(6-speed) Score


Manual
(6-speed)
Automatic
(6-speed)


- Unladen weight
1 421
1 529
1 539


- Kerb weight *

1 497
1 604
1 614


- Payload
609
557
566


- Gross vehicle weight (GVW)
2 030
2 086
2 105


- Gross train weight (GTW)
on a 12 % gradient
3 130
2 920
3 480
3 500


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 100
890
1 400


- Braked trailer ** (with load transfer
with the GTW limit)
1 300
1 090
1 500


- Unbraked trailer
745
750


- Recommended nose weight
70
70

211
TECHNICAL DATA

*
The kerb weight is equal to the unladen weight + driver (75 kg).

**
Exceeding the maximum rear axle weight involves a speed restriction of 50 mph (80 km/h) as defi ned in point 2.7 of the
Directive.

***
Exceeding the gross vehicle weight when the vehicle is towing involves a speed restriction of 50 mph (80 km/h) as defi ned
in point 2.7 of the Directive.

****
Maximum braked trailer weight, within the GTW limit; warning, towing using a lightly loaded towing vehicle may have an
adverse effect on its road holding.
DIESEL WEIGHTS AND TOWED LOADS (IN KG) - COMMERCIAL VEHICLES


The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

Engines


1.6 litre Turbo e-HDi
115 hp



2 litre Turbo HDi
150 hp



Gearbox

es

Manual
(6-speed)
Electronic gear
control
(6-speed) Score
Electronic gear
control
(6-speed)
Manual
(6-speed)

Model codes

9HZ
9HR
9HZ
RHE


- Unladen weight
1 434
1 430
1 538


- Kerb weight *

1 509
1 505
1 613


- Gross vehicle weight (GVW) **

2 150
2 135
2 239


- Gross train weight (GTW)
on a 12 % gradient ***

3 120
2 920
3 130
3 480


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient ****

970
770
995
1 241


- Braked trailer (with load transfer
with the GTW limit)
X
X
X
X


- Unbraked trailer
750
750


- Recommended nose weight
70
70

212
TECHNICAL DATA
DIMENSIONS (IN MM)

213
TECHNICAL DATA

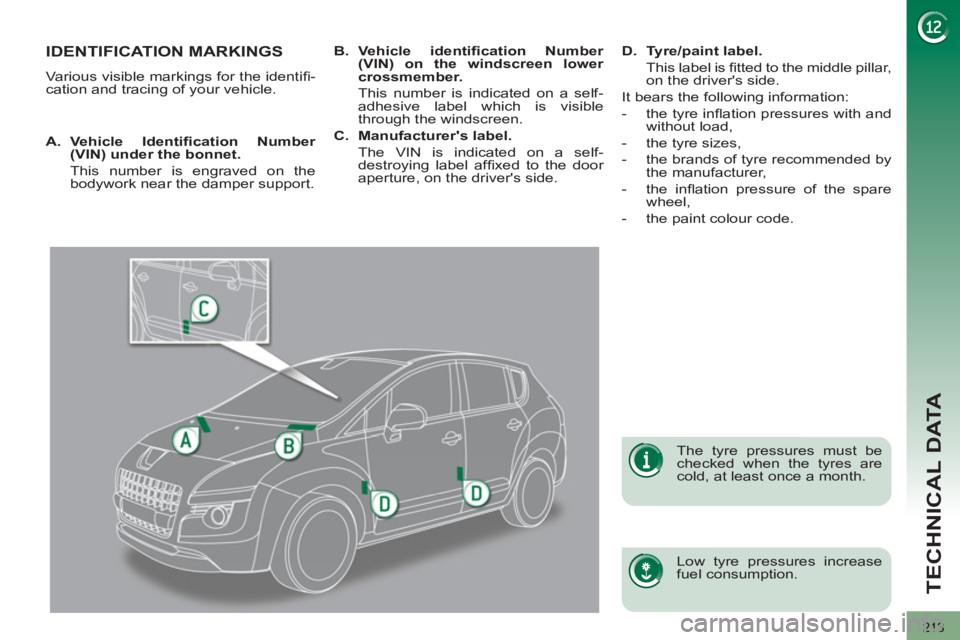

IDENTIFICATION MARKINGS
Various visible markings for the identifi -
cation and tracing of your vehicle.

Low tyre pressures increase
fuel consumption.

The tyre pressures must be
checked when the tyres are
cold, at least once a month.


A.
Vehicle Identifi cation Number
(VIN) under the bonnet.

This number is engraved on the
bodywork near the damper support.
B.
Vehicle identifi cation Number
(VIN) on the windscreen lower
crossmember.

This number is indicated on a self-
adhesive label which is visible
through the windscreen.

C.
Manufacturer's label.

The VIN is indicated on a self-
destroying label affi xed to the door
aperture, on the driver's side.
D.
Tyre/paint label.

This label is fi tted to the middle pillar,
on the driver's side.
It bears the following information:


- the tyre infl ation pressures with and
without load,

- the tyre sizes,

- the brands of tyre recommended by
the manufacturer,

- the infl ation pressure of the spare
wheel,

- the paint colour code.

214
TECHNICAL DATA
