2013 PEUGEOT 3008 Owners Manual

127
SA
F







Dynamic stability control (DSC) The DSC system offers excep-
tional safety in normal driving,
but this should not encourage
the driver to take extra risks or drive
at high speed.
The correct functioning of the sys-
tem depends on observation of the
manufacturer's recommendations re-
garding the wheels (tyres and rims),
the braking components, the elec-
tronic components and the assem-
bly and repair procedures used by
PEUGEOT dealers.
After an impact, have the system
checked by a PEUGEOT dealer or a
qualifi ed workshop.



Deactivation
In exceptional conditions (starting a ve-
hicle which is bogged down, stuck in
snow, on soft ground...), it may be ad-
visable to deactivate the DSC system,
so that the wheels can move freely and
regain grip.


)
Press the "OFF"
button or,
according to version, turn
the dial to this position.
This warning lamp and the in-
dicator lamp in the button or
in the dial come on: the DSC
system no longer acts on the
operation of the engine.

Reactivation
The system is reactivated automatically
each time the ignition is switched back
on or from 30 mph (50 km/h).
Operating fault
If this warning lamp comes on,
accompanied by an audible sig-
nal and a message in the multi-
function screen, this indicates a
malfunction of the system.
Contact a PEUGEOT dealer or a quali-
fi ed workshop to have the system
checked.
This is indicated by fl ashing of
this warning lamp in the instru-
ment panel.

Activation
This system is activated automatically
each time the vehicle is started.
It comes into operation in the event of a
grip or trajectory problem.


)
Press the "OFF"
button
again or, according to ver-
sion, turn the dial to this
position, to reactivate it
manually.

128
SA
F

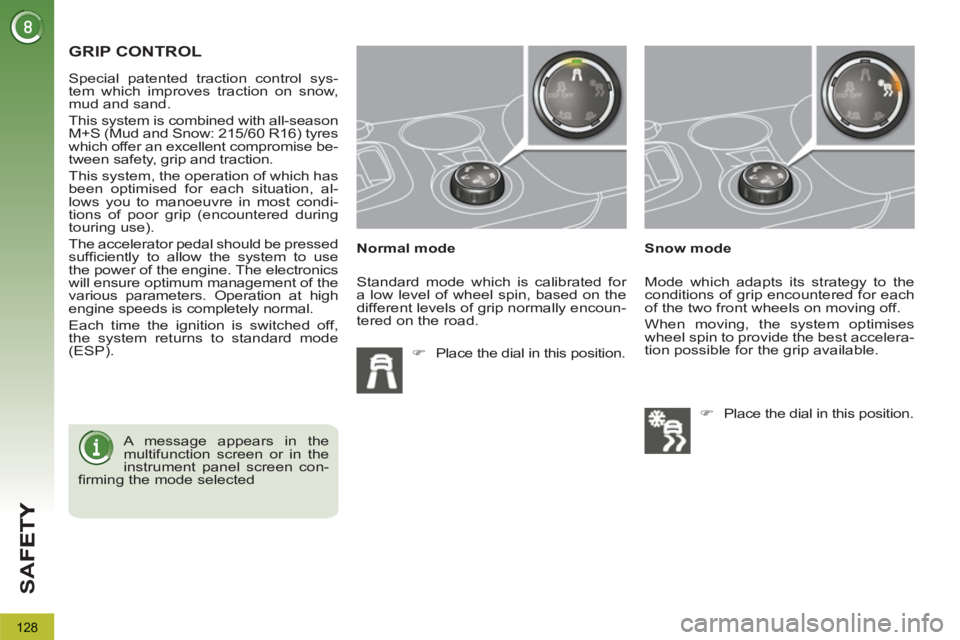

GRIP CONTROL


Normal mode


)
Place the dial in this position.

Snow mode Special patented traction control sys-
tem which improves traction on snow,
mud and sand.
This system is combined with all-season
M+S (Mud and Snow: 215/60 R16) tyres
which offer an excellent compromise be-
tween safety, grip and traction.
This system, the operation of which has
been optimised for each situation, al-
lows you to manoeuvre in most condi-
tions of poor grip (encountered during
touring use).
The accelerator pedal should be pressed
suffi ciently to allow the system to use
the power of the engine. The electronics
will ensure optimum management of the
various parameters. Operation at high
engine speeds is completely normal.
Each time the ignition is switched off,
the system returns to standard mode
(ESP). Standard mode which is calibrated for
a low level of wheel spin, based on the
different levels of grip normally encoun-
tered on the road. Mode which adapts its strategy to the
conditions of grip encountered for each
of the two front wheels on moving off.
When moving, the system optimises
wheel spin to provide the best accelera-
tion possible for the grip available.


)
Place the dial in this position.

A message appears in the
multifunction screen or in the
instrument panel screen con-
fi rming the mode selected

129
SA
F

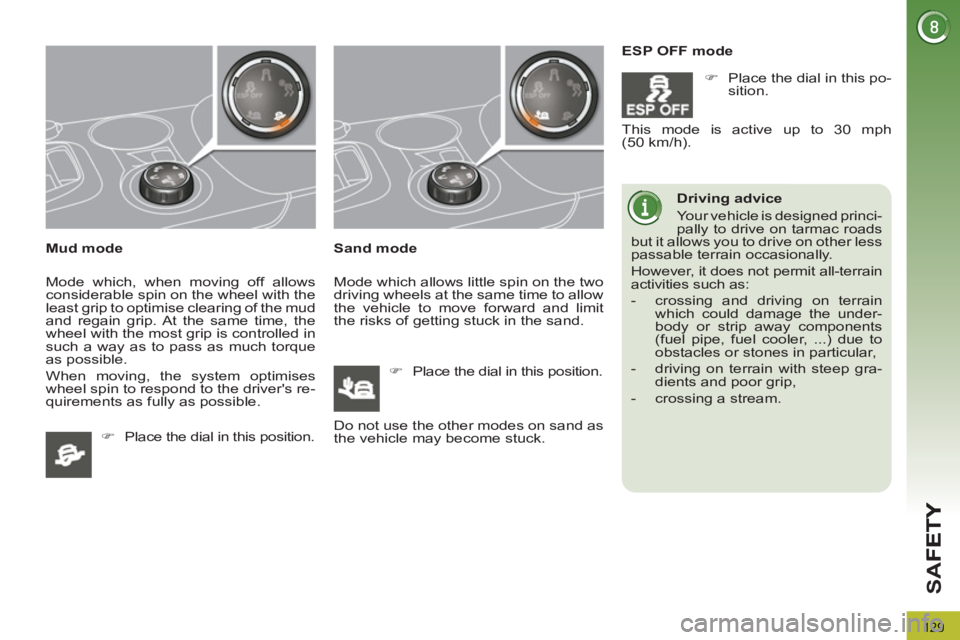

Mud mode
Mode which, when moving off allows
considerable spin on the wheel with the
least grip to optimise clearing of the mud
and regain grip. At the same time, the
wheel with the most grip is controlled in
such a way as to pass as much torque
as possible.
When moving, the system optimises
wheel spin to respond to the driver's re-
quirements as fully as possible.
Sand mode
Mode which allows little spin on the two
driving wheels at the same time to allow
the vehicle to move forward and limit
the risks of getting stuck in the sand.
Driving advice
Your vehicle is designed princi-
pally to drive on tarmac roads
but it allows you to drive on other less
passable terrain occasionally.
However, it does not permit all-terrain
activities such as:


- crossing and driving on terrain
which could damage the under-
body or strip away components
(fuel pipe, fuel cooler, ...) due to
obstacles or stones in particular,

- driving on terrain with steep gra-
dients and poor grip,

- crossing a stream.




)
Place the dial in this position.


)
Place the dial in this position.
ESP OFF mode


)
Place the dial in this po-
sition.
Do not use the other modes on sand as
the vehicle may become stuck. This mode is active up to 30 mph
(50 km/h).

130
SA
F

Height adjustment

Front seat belt not fastened /
unfastened warning lamp









Fastening


)
Pull the strap, then insert the tongue
in the buckle.

)
Check that the seat belt is fastened
correctly by pulling the strap.


)
To adjust the anchorage point,
squeeze the control A
and slide it
until you fi nd a notch.

When the ignition is switched
on, this warning lamp comes
on on the seat belt and pas-
senger's front airbag warning
lamps display, if the driver and/or the
front passenger has not fastened their
seat belt.
From approximately 12 mph (20 km/h)
this warning lamp fl ashes for two min-
utes accompanied by an audible signal.
Once these two minutes have elapsed,
this warning lamp remains on until the
driver and/or the front passenger fas-
tens their seat belt.
Unfastening


)
Press the red button on the buckle.

)
Guide the seat belt as it reels in.

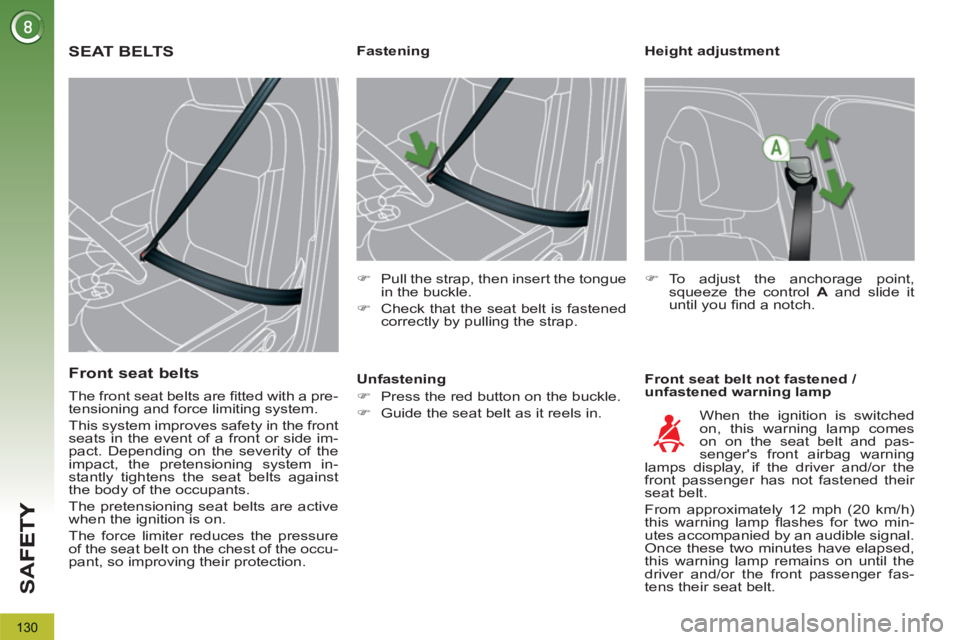

SEAT BELTS

Front seat belts


The front seat belts are fi tted with a pre-
tensioning and force limiting system.
This system improves safety in the front
seats in the event of a front or side im-
pact. Depending on the severity of the
impact, the pretensioning system in-
stantly tightens the seat belts against
the body of the occupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure
of the seat belt on the chest of the occu-
pant, so improving their protection.

131
SA
F


1.
Front and/or rear seat belts not fas-
tened / unfastened warning lamp.

2.
Front left seat belt warning lamp.

3.
Front right seat belt warning lamp.

4.
Rear right seat belt warning lamp.

5.
Rear centre seat belt warning lamp.

6.
Rear left seat belt warning lamp.
Seat belt not fastened / unfastened
warning lamps display
Rear seat belts

The rear seats are each fi tted with a
three-point inertia reel seat belt with
force limiter (with the exception of the
centre rear seat).

Seat belt unfastened warning lamp
This warning lamp comes on on
the seat belt and passenger's
front airbag warning lamps dis-
play, when one or more rear
passengers unfasten their seat belt.
From approximately 12 mph (20 km/h),
this warning lamp fl ashes for two min-
utes accompanied by an audible signal.
Once these two minutes have elapsed,
this warning lamp remains on until the
one or more rear passengers fasten
their seat belt.

Fastening


)
Pull the strap, then insert the tongue
in the buckle.

)
Check that the seat belt is fastened
correctly by pulling the strap.


Unfastening


)
Press the red button on the buckle.

)
Guide the seat belt as it reels in.

The corresponding warning lamp 2
or 3

comes on in red on the seat belt and
passenger's front airbag warning lamps
display if the seat belt is not fastened or
is unfastened.
When the ignition is switched on, with
the engine running or when the vehicle
is moving at less than 12 mph (20 km/h),
the corresponding warning lamps 4
, 5

and 6
come on in red for approximately
30 seconds, if the seat belt is not fas-
tened.
When the vehicle is moving at more
than 12 mph (20 km/h), the correspond-
ing warning lamp 4
, 5
or 6
comes on
in red, accompanied by an audible sig-
nal and a message on the multifunction
screen, if a rear passenger has unfas-
tened their seat belt.






Seat belt unfastened warning
lamps display

132
SA
F




The driver must ensure that
passengers use the seat belts
correctly and that they are all
restrained securely before setting
off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not interchange the seat belt
buckles as they will not fulfi l their role
fully.
The seat belts are fi tted with an inertia
reel permitting automatic adjustment
of the length of the strap to your size.
The seat belt is stowed automatically
when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
The inertia reels are fi tted with an au-
tomatic locking device which comes
into operation in the event of a col-
lision, emergency braking or if the
vehicle rolls over. You can release
the device by pulling fi rmly on the
strap and releasing it so that it reels
in slightly. In order to be effective, a seat belt
must:


- be tightened as close to the body
as possible,

- be pulled in front of you with a
smooth movement, checking that
it does not twist,

-
be used to restrain only one person,


- not bear any trace of cuts or
fraying,

- not be converted or modifi ed to
avoid affecting its performance.
In accordance with current safety
regulations, for all repairs on your
vehicle, go to a qualifi ed workshop
with the skills and equipment need-
ed, which a PEUGEOT dealer is able
to provide.
Have your seat belts checked regu-
larly by a PEUGEOT dealer or a
qualifi ed workshop, particularly if the
straps show signs of damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and reeled in correctly.
Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one and a half metres.
Never use the same seat belt to se-
cure more than one person.
Never allow a child to travel on your
lap.

In the event of an impact

Depending on the nature and se-
riousness of the impact
, the pre-
tensioning device may be deployed
before and independently of the
airbags. Deployment of the preten-
sioners is accompanied by a slight
discharge of harmless smoke and
a noise, due to the activation of the
pyrotechnic cartridge incorporated in
the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a PEUGEOT dealer
or a qualifi ed workshop.

133
SA
F

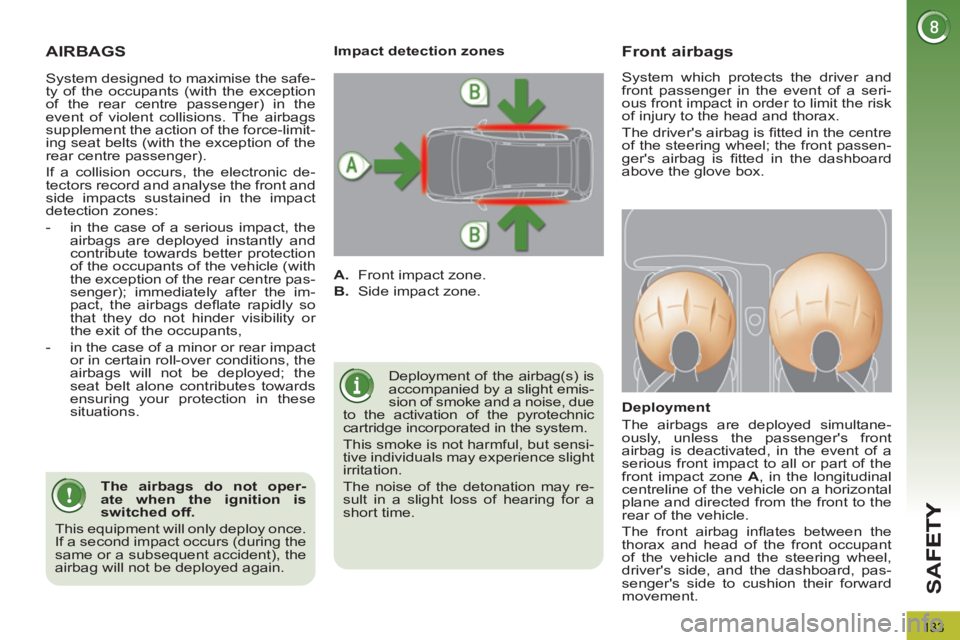

AIRBAGS
Deployment of the airbag(s) is
accompanied by a slight emis-
sion of smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
This smoke is not harmful, but sensi-
tive individuals may experience slight
irritation.
The noise of the detonation may re-
sult in a slight loss of hearing for a
short time.

Front airbags


Deployment
The airbags are deployed simultane-
ously, unless the passenger's front
airbag is deactivated, in the event of a
serious front impact to all or part of the
front impact zone A
, in the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the front to the
rear of the vehicle.
The front airbag infl ates between the
thorax and head of the front occupant
of the vehicle and the steering wheel,
driver's side, and the dashboard, pas-
senger's side to cushion their forward
movement.
Impact detection zones


A.
Front impact zone.

B.
Side impact zone.

The airbags do not oper-
ate when the ignition is
switched off.

This equipment will only deploy once.
If a second impact occurs (during the
same or a subsequent accident), the
airbag will not be deployed again.
System designed to maximise the safe-
ty of the occupants (with the exception
of the rear centre passenger) in the
event of violent collisions. The airbags
supplement the action of the force-limit-
ing seat belts (with the exception of the
rear centre passenger).
If a collision occurs, the electronic de-
tectors record and analyse the front and
side impacts sustained in the impact
detection zones:


- in the case of a serious impact, the
airbags are deployed instantly and
contribute towards better protection
of the occupants of the vehicle (with
the exception of the rear centre pas-
senger); immediately after the im-
pact, the airbags defl ate rapidly so
that they do not hinder visibility or
the exit of the occupants,

- in the case of a minor or rear impact
or in certain roll-over conditions, the
airbags will not be deployed; the
seat belt alone contributes towards
ensuring your protection in these
situations.
System which protects the driver and
front passenger in the event of a seri-
ous front impact in order to limit the risk
of injury to the head and thorax.
The driver's airbag is fi tted in the centre
of the steering wheel; the front passen-
ger's airbag is fi tted in the dashboard
above the glove box.

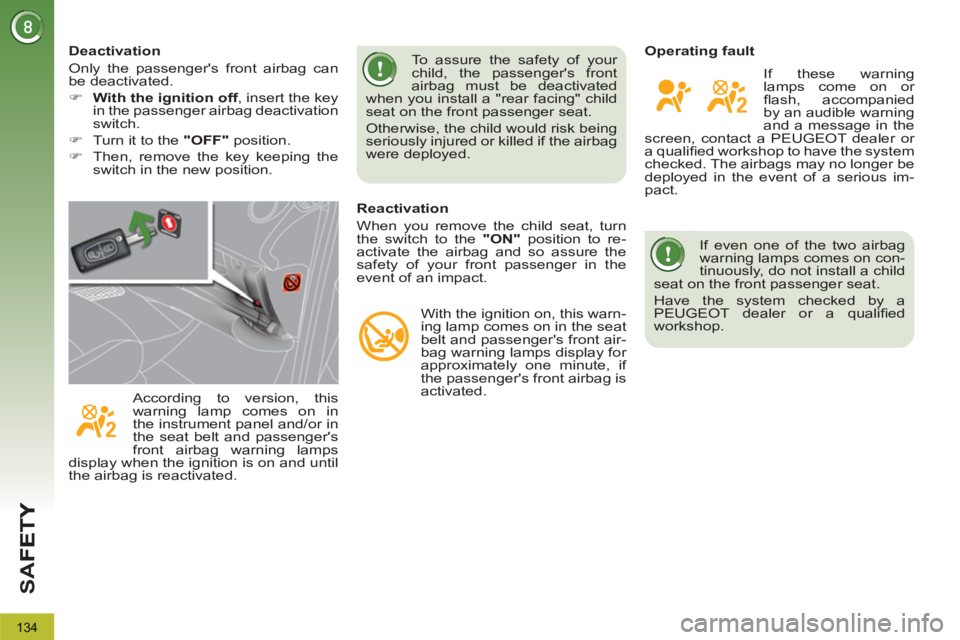

134
SA
F

If even one of the two airbag
warning lamps comes on con-
tinuously, do not install a child
seat on the front passenger seat.
Have the system checked by a
PEUGEOT dealer or a qualifi ed
workshop.

Operating fault
If these warning
lamps come on or
fl ash, accompanied
by an audible warning
and a message in the
screen, contact a PEUGEOT dealer or
a qualifi ed workshop to have the system
checked. The airbags may no longer be
deployed in the event of a serious im-
pact.

Reactivation
When you remove the child seat, turn
the switch to the "ON"
position to re-
activate the airbag and so assure the
safety of your front passenger in the
event of an impact.

With the ignition on, this warn-
ing lamp comes on in the seat
belt and passenger's front air-
bag warning lamps display for
approximately one minute, if
the passenger's front airbag is
activated.
To assure the safety of your
child, the passenger's front
airbag must be deactivated
when you install a "rear facing" child
seat on the front passenger seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were deployed.
According to version, this
warning lamp comes on in
the instrument panel and/or in
the seat belt and passenger's
front airbag warning lamps
display when the ignition is on and until
the airbag is reactivated.
Deactivation
Only the passenger's front airbag can
be deactivated.


)
With the ignition off
, insert the key
in the passenger airbag deactivation
switch.

)
Turn it to the "OFF"
position.

)
Then, remove the key keeping the
switch in the new position.
