2013 PEUGEOT 3008 Owners Manual

191
PRACTICAL INFORMATION

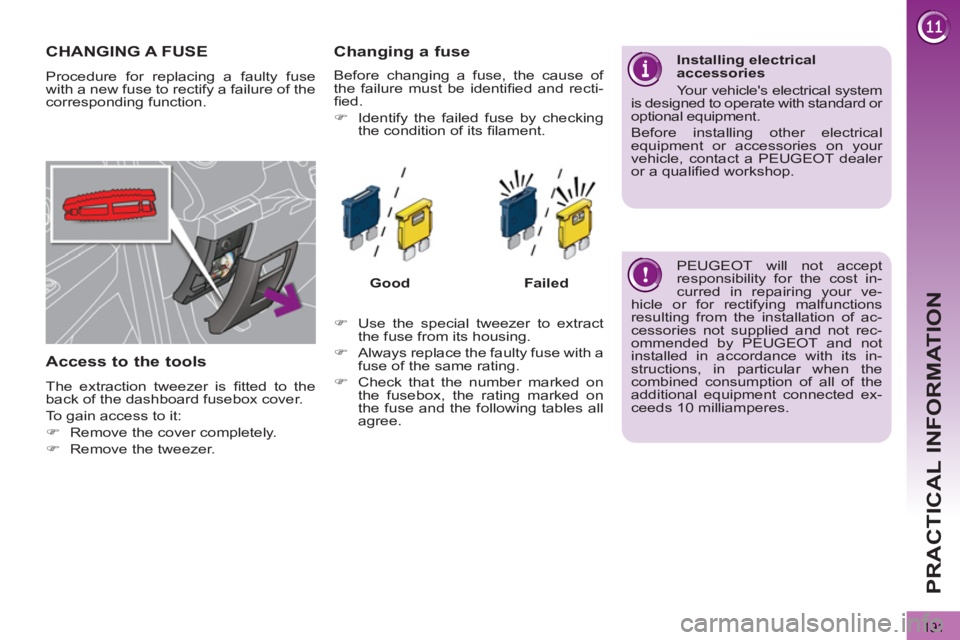

CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
corresponding function.

Access to the tools

The extraction tweezer is fi tted to the
back of the dashboard fusebox cover.
To gain access to it:


)
Remove the cover completely.

)
Remove the tweezer.



Changing a fuse



Good



Failed





)
Use the special tweezer to extract
the fuse from its housing.

)
Always replace the faulty fuse with a
fuse of the same rating.

)
Check that the number marked on
the fusebox, the rating marked on
the fuse and the following tables all
agree.

Installing electrical
accessories
Your vehicle's electrical system
is designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer
or a qualifi ed workshop.
PEUGEOT will not accept
responsibility for the cost in-
curred in repairing your ve-
hicle or for rectifying malfunctions
resulting from the installation of ac-
cessories not supplied and not rec-
ommended by PEUGEOT and not
installed in accordance with its in-
structions, in particular when the
combined consumption of all of the
additional equipment connected ex-
ceeds 10 milliamperes.

Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.


)
Identify the failed fuse by checking
the condition of its fi lament.

192
PRACTICAL INFORMATION

Dashboard fuses

The fusebox is placed in the lower
dashboard.
Fuse tables

Fuse
N°

Rating
(A)


Functions



F1



15

Rear wiper.


F2



-

Not used.


F3



5

Airbag control unit.


F4



10

Electrochrome rear view mirror, air conditioning,
switching and protection unit, rear multimedia.


F5



30

Front one-touch electric windows.


F6



30

Rear one-touch electric windows.


F7



5

Front and rear courtesy lamps, map reading lamps,
rear reading lamps, sun visor lighting, glove box
lighting, centre armrest lighting, boot 12 V relay
control.

193
PRACTICAL INFORMATION

Access to the fuses


)
Refer to the paragraph "Access to
the tools".

Fuse
N°

Rating
(A)

Functions



F8



20

Audio equipment, audio/telephone, CD changer,
multifunction scren, tyre under-infl ation detection,
alarm siren, alarm control unit, telematic unit.


F9



30

Front 12 V socket, cigarette lighter, rear 12 V
socket.


F10



15

Steering mounted controls.


F11



15

Low current ignition switch.


F12



15

Trailer presence, rain / sunshine sensor, supply for
fuses F32, F34, F35.


F13



5

Engine fusebox, airbag control unit.


F14



15

Instrument panel, instrument panel screen, supply
for fuse F33.


F15



30

Locking and deadlocking.


F17



40

Heated rear screen, supply for fuse F30.


SH



-

PARC shunt.

194
PRACTICAL INFORMATION


Fuse
N°



Rating
(A)



Functions




F29



-

Nor used.


F30



5

Heated door mirrors.


F31



30

Boot 12 V socket.


F32



5

Electronic gear control gearbox gear lever.


F33



10

Head-up display, Bluetooth system, air
conditioning.


F34



5

Seat belt warning lamp display.


F35



10

Parking sensors, Hi-Fi amplifi er authorisation.


F36



10

Trailer fusebox control unit, driver's door
control pad.


F37



20

Hi-Fi amplifi er.


F38



30

Driver's electric seat.


F39



20

Panoramic sunroof blind.


F40



-

Not used.

195
PRACTICAL INFORMATION

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery.

Access to the fuses


)
Unclip the cover.

)
Change the fuse (see correspond-
ing paragraph).

)
When you have fi nished, close the
cover carefully to ensure correct
sealing of the fusebox.

Fuse table

Fuse
N°

Rating
(A)


Functions



F1



20

Engine control unit supply, injection pump and
EGR electrovalves (2 litre HDI), injectors
(2 litre HDI).


F2



15

Horn.


F3



10

Front / rear wash-wipe.


F4



10

Daytime running lamps.


F5



15

Purge canister, turbine discharge and Turbo
pressure regulation electrovalves (1.6 litre THP),
oil vapour heater (1.6 litre THP), diesel heater
(1.6 litre HDI).


F6



10

Diagnostic socket, directional headlamps, particle
emission fi lter pump (Diesel), Distance alert,
engine coolant level detector, mirror adjustment
control.


F7



10

Power steering control unit, automatic gearbox,
directional headlamps height adjustment motor.


F8



20

Starter motor control.


F9



10

Clutch and brake pedal switches.


F10



30

Engine control unit actuators (petrol: ignition coils,
electrovalves, oxygen sensors, injectors, heaters,
fuel pump, electronic thermostat)
(Diesel: electrovalves, heaters).


F11



40

Air conditioning fan.

196
PRACTICAL INFORMATION

Fuse
N°

Rating
(A)

Functions



F12



30

Windscreen wipers slow / fast speed.


F13



40

Built-in systems interface supply (ignition positive).


F14



30

Air pump.


F15



10

Right-hand main beam headlamp.


F16



10

Left-hand main beam headlamp.


F17



15

Left-hand dipped headlamp.


F18



15

Right-hand dipped headlamp.


F19



15

Oil vapour heater (1.6 litre VTi), Turbo pressure
regulation electrovalve (Diesel), engine coolant
level detector (Diesel).


F20



10

Electronic thermostat, variable timing electrovalves,
Turbo pressure regulation electrovalve (Diesel),
engine coolant level detector (Diesel).


F21



5

Fan assembly relay supply, Valvetronic
relay control (1.6 l VTi 16V), Turbo cooling
(1.6 litre THP), air fl ow sensor (1.6 litre HDI).

197
PRACTICAL INFORMATION

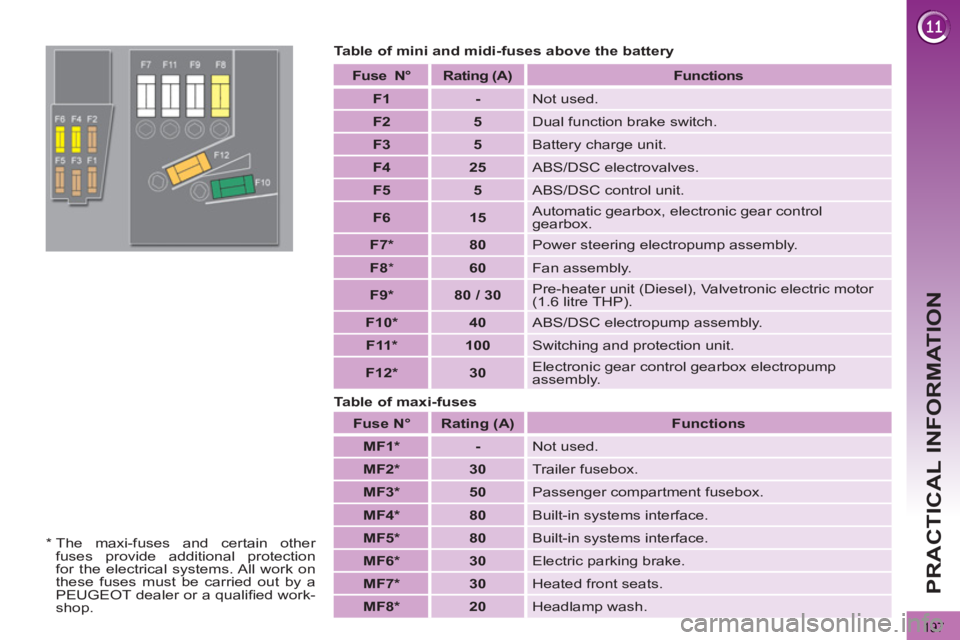

Table of mini and midi-fuses above the battery

Fuse
N°

Rating
(A)

Functions



F1



-

Not used.


F2



5

Dual function brake switch.


F3



5

Battery charge unit.


F4



25

ABS/DSC electrovalves.


F5



5

ABS/DSC control unit.


F6



15

Automatic gearbox, electronic gear control
gearbox.


F7 *



80

Power steering electropump assembly.


F8

*


60

Fan assembly.


F9 *



80 / 30

Pre-heater unit (Diesel), Valvetronic electric motor
(1.6 litre THP).


F10 *



40

ABS/DSC electropump assembly.


F11 *



100

Switching and protection unit.


F12 *



30

Electronic gear control gearbox electropump
assembly.

Fuse

N°

Rating

(A)


Functions



MF1 *



-

Not used.


MF2 *



30

Trailer fusebox.


MF3 *



50

Passenger compartment fusebox.


MF4 *



80

Built-in systems interface.


MF5 *



80

Built-in systems interface.


MF6 *



30

Electric parking brake.


MF7 *



30

Heated front seats.


MF8 *



20

Headlamp wash.
Table of maxi-fuses

*
The maxi-fuses and certain other
fuses provide additional protection
for the electrical systems. All work on
these fuses must be carried out by a
PEUGEOT dealer or a qualifi ed work-
shop.

198
PRACTICAL INFORMATION

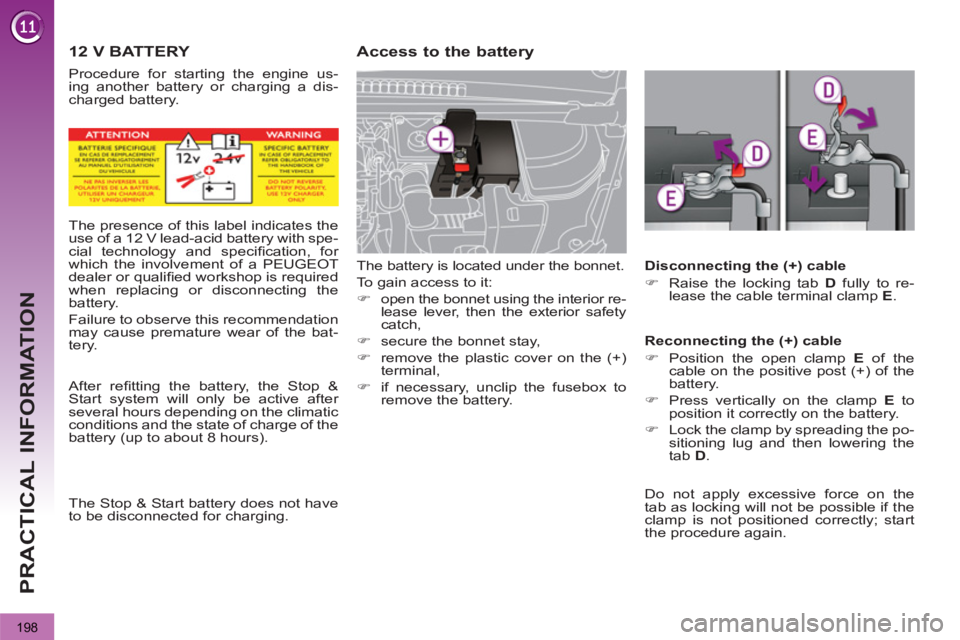

12 V BATTERY





Access to the battery

The battery is located under the bonnet.
To gain access to it:


)
open the bonnet using the interior re-
lease lever, then the exterior safety
catch,

)
secure the bonnet stay,

)
remove the plastic cover on the (+)
terminal,

)
if necessary, unclip the fusebox to
remove the battery.






The presence of this label indicates the
use of a 12 V lead-acid battery with spe-
cial technology and specifi cation, for
which the involvement of a PEUGEOT
dealer or qualifi ed workshop is required
when replacing or disconnecting the
battery.
Failure to observe this recommendation
may cause premature wear of the bat-
tery.

After refi tting the battery, the Stop &
Start system will only be active after
several hours depending on the climatic
conditions and the state of charge of the
battery (up to about 8 hours).

The Stop & Start battery does not have
to be disconnected for charging.
Procedure for starting the engine us-
ing another battery or charging a dis-
charged battery.


Disconnecting the (+) cable


)
Raise the locking tab D
fully to re-
lease the cable terminal clamp E
.


Reconnecting the (+) cable


)
Position the open clamp E
of the
cable on the positive post (+) of the
battery.

)
Press vertically on the clamp E
to
position it correctly on the battery.

)
Lock the clamp by spreading the po-
sitioning lug and then lowering the
tab D
.
Do not apply excessive force on the
tab as locking will not be possible if the
clamp is not positioned correctly; start
the procedure again.
