2013 PEUGEOT 3008 Owners Manual

71
CO
STEERING WHEEL ADJUSTMENT



)
When stationary
, pull the con-
trol lever to release the adjustment
mechanism.

)
Adjust the height and reach to suit
your driving position.

)
Push the control lever to lock the ad-
justment mechanism.
As a safety precaution, these
operations should only be car-
ried out while the vehicle is
stationary.

72
AC
C

Unfolding the key


Unlocking the vehicle



)
Press the open padlock to
unlock the vehicle.

Complete unlocking using the
remote control
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Complete unlocking using the key


)
Turn the key to the left in the driver's
door lock to unlock the vehicle.
Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.



Selective unlocking using the
remote control

Selective unlocking using the key


)
Turn the key to the left in the driver's
door lock once to unlock the driver's
door only.

)
Turn the key to the left in the driver's
door lock again to unlock the other
doors and the boot.

)
Press the open padlock
once to unlock the driver's
door only.

)
Press the open padlock again to un-
lock the other doors and the boot.
Each unlocking is confi rmed by rapid
fl ashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time as the fi rst un-
locking action.
The selective unlocking is only available
on versions fi tted with deadlocking.
The complete or selective
unlocking parameter is set
via the multifunction screen
confi guration menu.
Complete unlocking is activated by de-
fault.



)
First press this button to
unfold the key.

73
AC
C

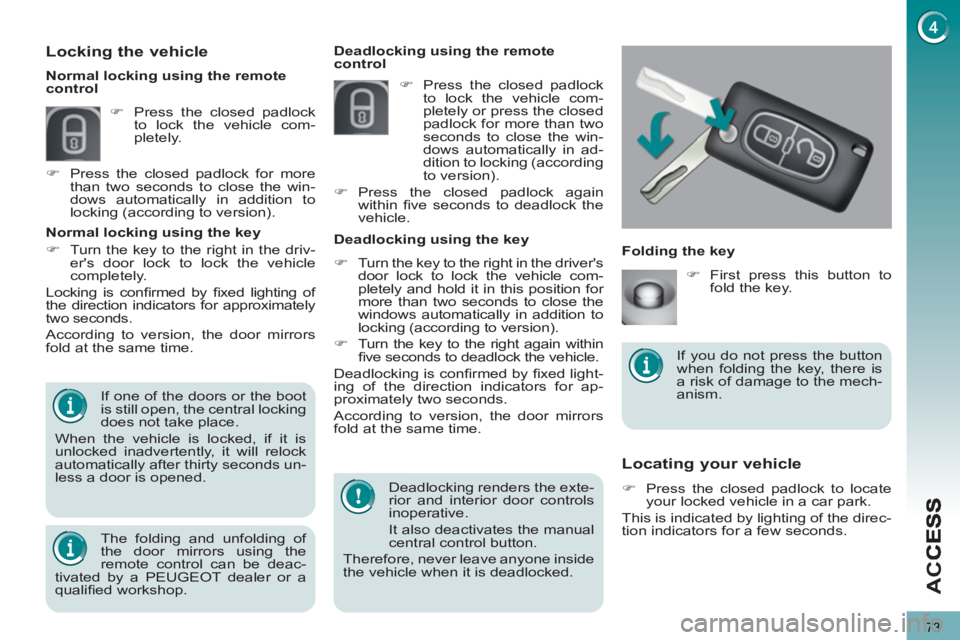

Locating your vehicle


)
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the direc-
tion indicators for a few seconds. Deadlocking renders the exte-
rior and interior door controls
inoperative.

It also deactivates the manual
central control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.






Deadlocking using the remote
control

Deadlocking using the key


Folding the key

)
Press the closed padlock
to lock the vehicle com-
pletely or press the closed
padlock for more than two
seconds to close the win-
dows automatically in ad-
dition to locking (according
to version).
If one of the doors or the boot
is still open, the central locking
does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds un-
less a door is opened.
Normal locking using the key


)
Turn the key to the right in the driv-
er's door lock to lock the vehicle
completely.
Locking is confi rmed by fi xed lighting of
the direction indicators for approximately
two seconds.
According to version, the door mirrors
fold at the same time.
The folding and unfolding of
the door mirrors using the
remote control can be deac-
tivated by a PEUGEOT dealer or a
qualifi ed workshop.

Locking the vehicle



)
Press the closed padlock
to lock the vehicle com-
pletely.

)
Press the closed padlock for more
than two seconds to close the win-
dows automatically in addition to
locking (according to version).

Normal locking using the remote
control


)
Turn the key to the right in the driver's
door lock to lock the vehicle com-
pletely and hold it in this position for
more than two seconds to close the
windows automatically in addition to
locking (according to version).

)
Turn the key to the right again within
fi ve seconds to deadlock the vehicle.
Deadlocking is confi rmed by fi xed light-
ing of the direction indicators for ap-
proximately two seconds.
According to version, the door mirrors
fold at the same time.

)
First press this button to
fold the key.
If you do not press the button
when folding the key, there is
a risk of damage to the mech-
anism.

)
Press the closed padlock again
within fi ve seconds to deadlock the
vehicle.

74
AC
C

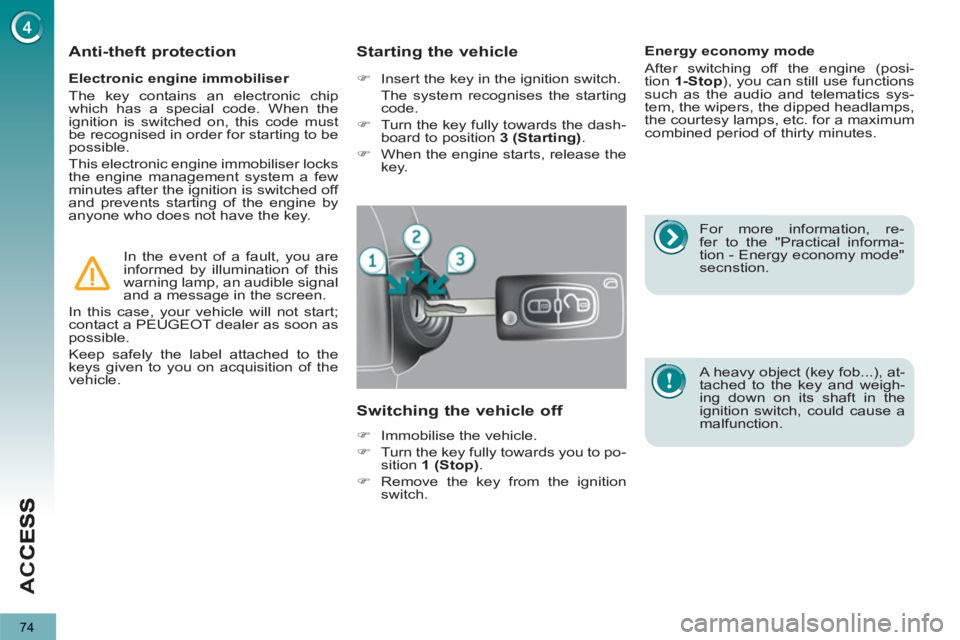

Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
In this case, your vehicle will not start;
contact a PEUGEOT dealer as soon as
possible.
Keep safely the label attached to the
keys given to you on acquisition of the
vehicle.

For more information, re-
fer to the "Practical informa-
tion - Energy economy mode"
secnstion.

Starting the vehicle



)
Insert the key in the ignition switch.
The system recognises the starting
code.

)
Turn the key fully towards the dash-
board to position 3 (Starting)
.

)
When the engine starts, release the
key.

Switching the vehicle off



)
Immobilise the vehicle.

)
Turn the key fully towards you to po-
sition 1 (Stop)
.

)
Remove the key from the ignition
switch.
Energy economy mode
After switching off the engine (posi-
tion 1-Stop
), you can still use functions
such as the audio and telematics sys-
tem, the wipers, the dipped headlamps,
the courtesy lamps, etc. for a maximum
combined period of thirty minutes.

A heavy object (key fob...), at-
tached to the key and weigh-
ing down on its shaft in the
ignition switch, could cause a
malfunction.

75
AC
C

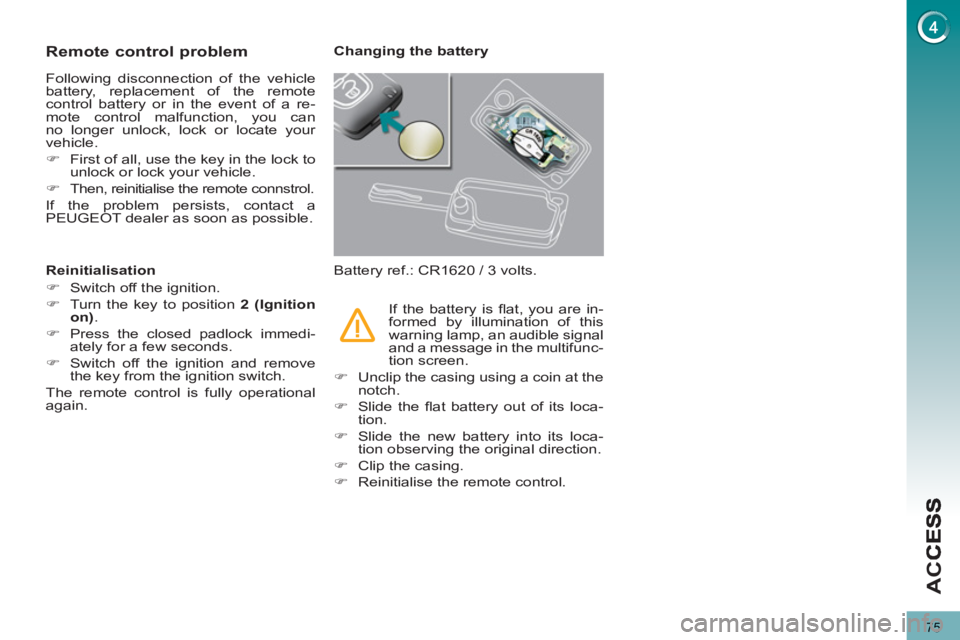

Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote
control battery or in the event of a re-
mote control malfunction, you can
no longer unlock, lock or locate your
vehicle.


)
First of all, use the key in the lock to
unlock or lock your vehicle.

)
Then, reinitialise the remote connstrol.
If the problem persists, contact a
PEUGEOT dealer as soon as possible.
Changing the battery
Battery ref.: CR1620 / 3 volts.

Reinitialisation


)
Switch off the ignition.

)
Turn the key to position 2 (Ignition
on)
.

)
Press the closed padlock immedi-
ately for a few seconds.

)
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. If the battery is fl at, you are in-
formed by illumination of this
warning lamp, an audible signal
and a message in the multifunc-
tion screen.


)
Unclip the casing using a coin at the
notch.

)
Slide the fl at battery out of its loca-
tion.

)
Slide the new battery into its loca-
tion observing the original direction.

)
Clip the casing.

)
Reinitialise the remote control.

AC
C
Lost keys
Visit a PEUGEOT dealer with the vehicle's registration document, your
personal identifi cation documents and if possible the key code label.
The PEUGEOT dealer will be able to look up the key code and the transponder
code required to order a new key.







Do not throw the remote con-
trol batteries away, they con-
tain metals which are harmful
to the environment.
Take them to an approved collection
point.

Remote control

The high frequency remote control is a sensitive system; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
No remote control can operate when the key is in the ignition switch, even when
the ignition is switched off, except for reinitialisation.


Locking the vehicle

Driving with the doors locked may make access to the passenger compartment
by the emergency services more diffi cult in an emergency.
However, the vehicle unlocks automatically in the event of a serious impact
causing airbag deployment.
As a safety precaution, never leave children alone in the vehicle, except for a
very short period.
In all cases, it is essential to remove the key from the ignition switch when leaving
the vehicle.


Anti-theft protection

Do not make any modifi cations to the electronic engine immobiliser system; this
could cause malfunctions.

When purchasing a second-hand vehicle

Have the pairing of all of the keys in your possession checked by a PEUGEOT
dealer, to ensure that only your keys can be used to open and start the ve-
hicle.

77
AC
C
ALARM
System which protects and provides a
deterrent against the theft of your vehi-
cle. It provides two types of protection,
exterior and interior, as well as an anti-
tamper function.

Locking the vehicle with fullalarm


Do not make any modifi ca-
tions to the alarm system, this
could cause malfunctions.

To be effective, this deactiva-
tion must be carried out each
time the ignition is switched
off.

Reactivation of the interior
volumetric protection


)
Unlock the vehicle using the unlock-
ing button on the remote control.

)
Relock the vehicle using the remote
control.
The alarm is activated again with both
types of protection; the indicator lamp in
button A
switches off.


Locking the vehicle with exterior protection alarm only


Activation


)
Switch off the ignition and get out of
the vehicle.

)
Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator lamp
in button A
fl ashes once per second.
Exterior perimiter protection

The system detects opening of the ve-
hicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior volumetric protection

The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior volumetric protection.
Anti-tamper function

The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
Deactivation


)
Unlock the vehicle using the unlock-
ing button on the remote control.
The alarm is deactivated; the indicator
lamp in button A
switches off.

Deactivation of the interior
volumetric protection


)
Switch off the ignition.

)
Within ten seconds, press button A

until the indicator lamp is on contin-
uously.

)
Get out of the vehicle.

)
Lock or deadlock the vehicle using
the locking button on the remote
control.
The exterior protection alarm alone re-
mains activated; the indicator lamp in
button A
fl ashes once per second.

78
AC
C

Triggering
This is indicated by sounding of the si-
ren and fl ashing of the direction indica-
tors for approximately thirty seconds.
After it has been triggered, the alarm is
again operational.

If the alarm is triggered ten
times in succession, the
eleventh time will result in it
becoming inactive.
If the indicator lamp in button A

fl ashes rapidly, this indicates that the
alarm was triggered during your ab-
sence. When the ignition is switched
on, this fl ashing stops immediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key in the driver's door lock.
Do not activate the alarm before dis-
connecting the battery, otherwise the
siren will sound.


Failure of the remote control


)
Unlock the vehicle using the key in
the driver's door lock.

)
Open the door; the alarm is trig-
gered.

)
Switch on the ignition; the alarm
stops.




Malfunction
When the ignition is switched on, illumi-
nation the indicator lamp in button A
for
ten seconds indicates a siren fault.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.


Locking the vehicle without
activating the alarm


)
Lock or deadlock the vehicle using
the key in the driver's door lock.



Automatic operation *
Depending on the legislation in force in
your country, one of these cases may
occur:


- 45 seconds after the vehicle is
locked using the remote control, the
alarm is activated, regardless of the
status of the doors and boot.

- 2 minutes after the last door or the
boot is closed, the alarm is activated.


)
To avoid triggering the alarm on
entering the vehicle, fi rst press the
unlocking button on the remote
control.




*
According to country.
