2013 PEUGEOT 3008 Owners Manual

63
CO

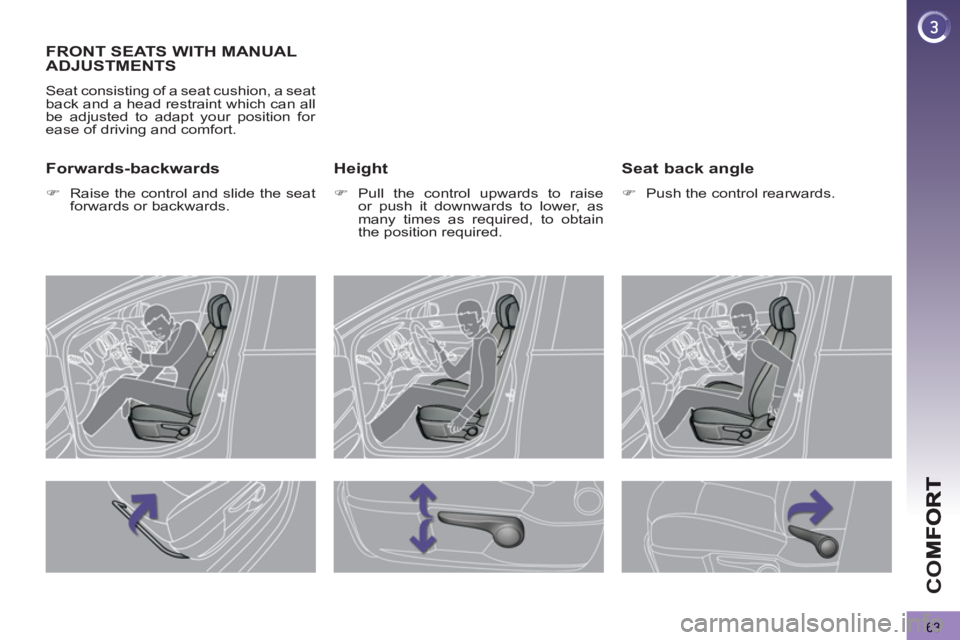

FRONT SEATS WITH MANUALADJUSTMENTS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Height



)
Pull the control upwards to raise
or push it downwards to lower, as
many times as required, to obtain
the position required.

Seat back angle



)
Push the control rearwards.

Forwards-backwards



)
Raise the control and slide the seat
forwards or backwards.

64
CO

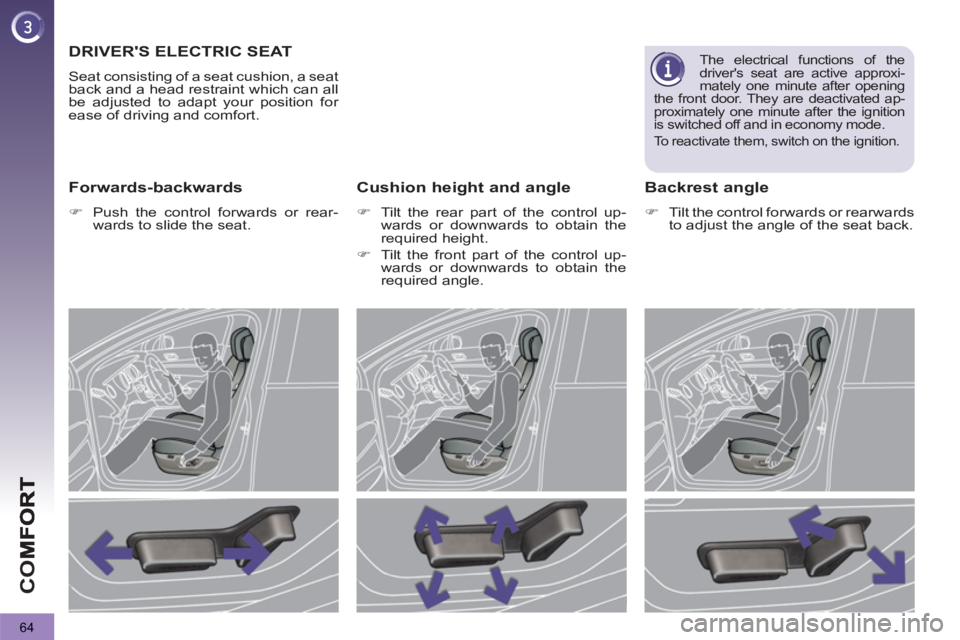

DRIVER'S ELECTRIC SEAT
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Forwards-backwards



)
Push the control forwards or rear-
wards to slide the seat.

Cushion height and angle



)
Tilt the rear part of the control up-
wards or downwards to obtain the
required height.

)
Tilt the front part of the control up-
wards or downwards to obtain the
required angle.

Backrest angle



)
Tilt the control forwards or rearwards
to adjust the angle of the seat back.



The electrical functions of the
driver's seat are active approxi-
mately one minute after opening
the front door. They are deactivated ap-
proximately one minute after the ignition
is switched off and in economy mode.
To reactivate them, switch on the ignition.

65
CO

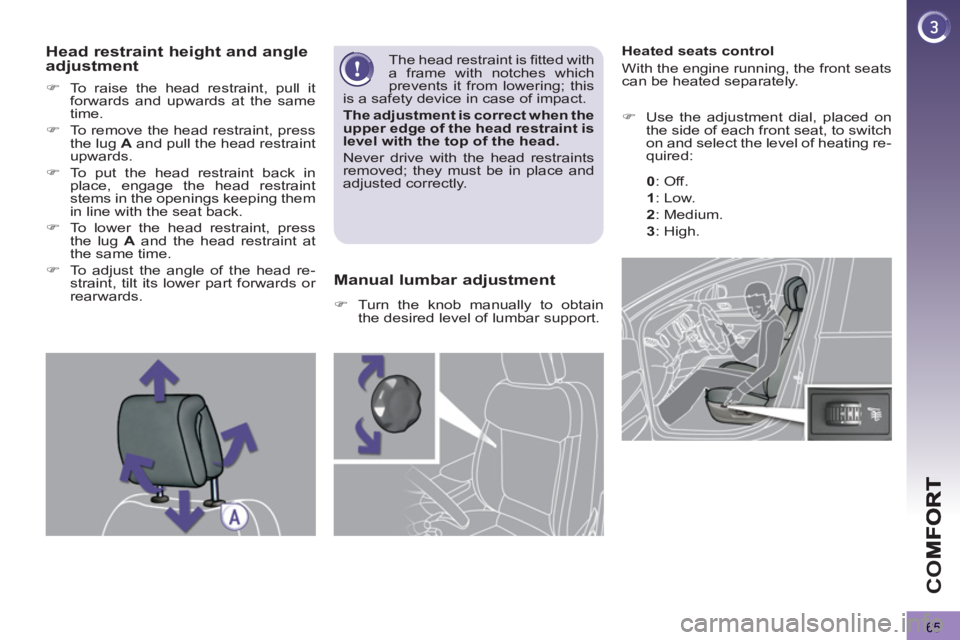

Heated seats control
With the engine running, the front seats
can be heated separately.


)
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:

0
:
Off.

1
:
Low.

2
:
Medium.

3
:
High.
Head restraint height and angle adjustment



)
To raise the head restraint, pull it
forwards and upwards at the same
time.

)
To remove the head restraint, press
the lug A
and pull the head restraint
upwards.

)
To put the head restraint back in
place, engage the head restraint
stems in the openings keeping them
in line with the seat back.

)
To lower the head restraint, press
the lug A
and the head restraint at
the same time.

)
To adjust the angle of the head re-
straint, tilt its lower part forwards or
rearwards.
The head restraint is fi tted with
a frame with notches which
prevents it from lowering; this
is a safety device in case of impact.

The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.

Never drive with the head restraints
removed; they must be in place and
adjusted correctly.


Manual lumbar adjustment



)
Turn the knob manually to obtain
the desired level of lumbar support.

66
CO

Folding the seat backrest


)
Check that no object, either on or
underneath the seat, could hinder
its movement.

)
To make the operation easier, place
the head restraint in the low position
(if the seat is in the fully forward po-
sition).

)
If your vehicle is fi tted with the video
pack, place the protective cover on
the head restraint.

)
Lift the control, located behind the
seat, then guide the seat backrest
forwards. When the seat backrest is in this posi-
tion, the seat behind it and the centre
rear seat must not be occupied.
This position, associated with that of the
rear seats, allows you to transport long
objects inside the vehicle.
The maximum weight on the seat is
30 kg.
Table position, front passenger
seat

Returning the seat to the normal
position


)
Guide the seat backrest rearwards
until it locks in place.

67
CO

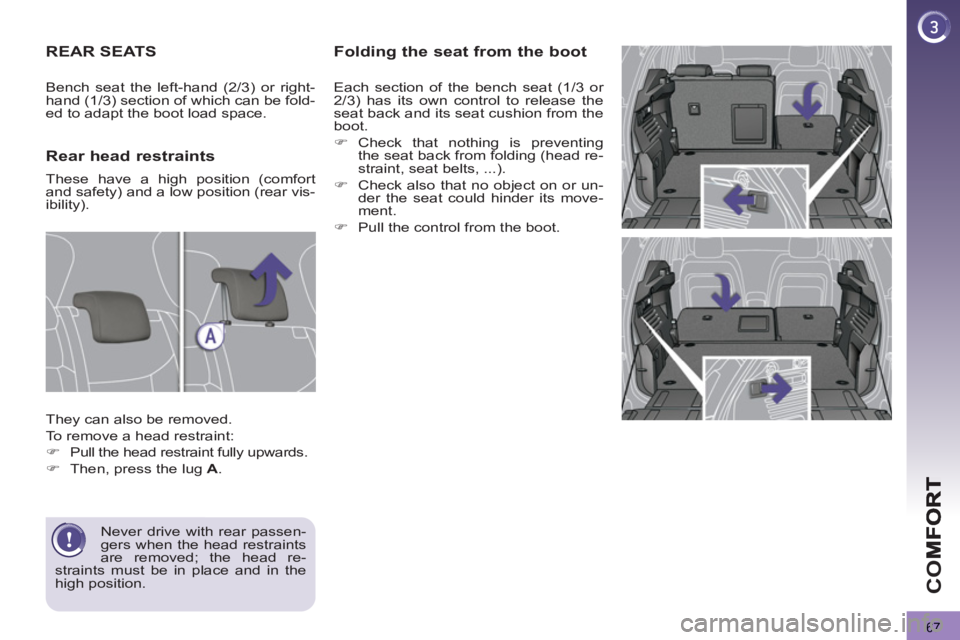

Folding the seat from the boot

Each section of the bench seat (1/3 or
2/3) has its own control to release the
seat back and its seat cushion from the
boot.


)
Check that nothing is preventing
the seat back from folding (head re-
straint, seat belts, ...).

)
Check also that no object on or un-
der the seat could hinder its move-
ment.

)
Pull the control from the boot.

REAR SEATS


Never drive with rear passen-
gers when the head restraints
are removed; the head re-
straints must be in place and in the
high position.

Rear head restraints


They can also be removed.
To remove a head restraint:


)
Pull the head restraint fully upwards.

)
Then, press the lug A
.
Bench seat the left-hand (2/3) or right-
hand (1/3) section of which can be fold-
ed to adapt the boot load space.

These have a high position (comfort
and safety) and a low position (rear vis-
ibility).

68
CO

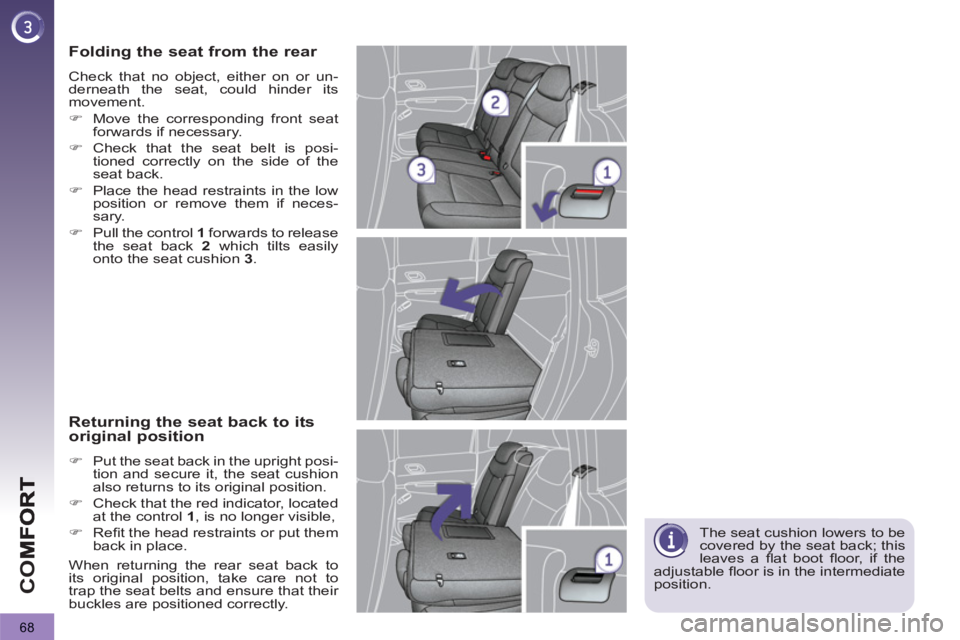

The seat cushion lowers to be
covered by the seat back; this
leaves a fl at boot fl oor, if the
adjustable fl oor is in the intermediate
position.



Folding the seat from the rear

Check that no object, either on or un-
derneath the seat, could hinder its
movement.


)
Move the corresponding front seat
forwards if necessary.

)
Check that the seat belt is posi-
tioned correctly on the side of the
seat back.

)
Place the head restraints in the low
position or remove them if neces-
sary.

)
Pull the control 1
forwards to release
the seat back 2
which tilts easily
onto the seat cushion 3
.


Returning the seat back to its
original position


)
Put the seat back in the upright posi-
tion and secure it, the seat cushion
also returns to its original position.

)
Check that the red indicator, located
at the control 1
, is no longer visible,

)
Refi t the head restraints or put them
back in place.

When returning the rear seat back to
its original position, take care not to
trap the seat belts and ensure that their
buckles are positioned correctly.

69
CO
The objects observed are, in
reality, closer than they ap-
pear.
Take this into account in order to cor-
rectly judge the distance of vehicles
approaching from behind.

MIRRORS
Door mirrors

Each fi tted with an adjustable mirror
glass permitting the lateral rearward
vision necessary for overtaking or park-
ing. They can also be folded for parking
in confi ned spaces.

Folding


- Automatic: lock the vehicle using
the remote control or the key.

- Manual: with the ignition on, pull
control A
rearwards.

The folding and unfolding of
the door mirrors using the
remote control can be deac-
tivated by a PEUGEOT dealer or a
qualifi ed workshop.
Fold the mirrors when putting your
vehicle through an automatic car
wash.

Adjustment

Unfolding


- Automatic: unlock the vehicle using
the remote control or the key.

- Manual: with the ignition on, pull
control A
rearwards.
If the mirrors are folded using
control A
, they will not unfold
when the vehicle is unlocked.
Pull again on control A
.


)

Move control A
to the right or to the left
to select the corresponding mirror.

)
Move control B
in all four directions
to adjust.

)
Return control A
to the central posi-
tion.

Demisting - Defrosting
If your vehicle is fi tted with heated mir-
rors, the demisting-defrosting operates
by switching on the heated rear screen
(refer to the "Rear screen demist-de-
frost" page).









The rear screen demist - de-
frost can only operate when
the engine is running.

70
CO

Adjustment


)
Adjust the mirror so that the glass is di-
rected correctly in the "day" position.


As a safety measure, the mir-
rors should be adjusted to re-
duce the "blind spot".


Manual day/night model

Day / night position


)
Pull the lever to change to the "night"
anti-dazzle position.

)
Push the lever to change to the nor-
mal "day" position.



Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass and re-
duces the nuisance to the driver caused
by the sun, headlamps from other ve-
hicles...
In order to ensure optimum
visibility during your manoeu-
vres, the mirror lightens au-
tomatically when reverse gear is
engaged.







Automatic day/night model
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night uses.
