Access to the spare wheel *

The spare wheel is installed in the boot
under the fl oor.
Depending on country, the spare wheel
may be steel, alloy or of the "space-
saver" type.
To gain access to it, refer to the para-
graph "Access to the tools" on the previ-
ous page.
Taking out the wheel


)
Unscrew the yellow central bolt.

)
Raise the spare wheel towards you
from the rear.

)
Take the wheel out of the boot.


Putting the wheel back in place


)
Put the wheel back in its housing.

)
Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.

)
Tighten fully until the central bolt
clicks to retain the wheel correctly.

)
Put the box back in place in the cen-
tre of the wheel and clip it.

)
Put the polystyrene storage box
back in place.


Tyre under-infl ation detection
The spare wheel is not fi t-
ted with a sensor. The punc-
tured wheel must be repaired by
a PEUGEOT dealer or a qualifi ed
workshop.


* Depending on destination country.

184
PRACTICAL INFORMATION

Parking the vehicle
Immobilise the vehicle where
it does not block traffi c: the
ground must be level, stable and
non-slippery ground.
Apply the parking brake unless it
has been programmed to automatic
mode, switch off the ignition and en-
gage fi rst gear * to lock the wheels.
Check that the braking warning lamp
and the P
warning lamp on the park-
ing brake control come on.
If necessary, place a chock under the
wheel diagonally opposite the wheel
to be changed.
The occupants must get out of the ve-
hicle and wait where they are safe.
Never go underneath a vehicle raised
using a jack; use an axle stand.










Removing a wheel

List of operations


)
Remove the bolt cover from each of
the bolts using the tool 3
(according
to equipment).

)
Fit the security socket 5
on the
wheelbrace 1
to slacken the security
bolt (if your vehicle has them).

)
Slacken the other bolts using the
wheelbrace 1
only.

)
Place the jack 2
in contact with one
of the two front A
or rear B
locations
provided on the underbody, which-
ever is closest to the wheel to be
changed.

)
Extend the jack 2
until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A

or B
used.

)
Raise the vehicle until there is suf-
fi cient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.

)
Remove the bolts and store them in
a clean place.

)
Remove the wheel.



*
position R
for the electronic gear
control gearbox; P
for the automatic
gearbox.

185
PRACTICAL INFORMATION

Fitting the "space-saver"
spare wheel
If your vehicle is fi tted with al-
loy wheels, when tightening the bolts
on fi tting it is normal to notice that the
washers do not come into contact
with the "space-saver" spare wheel.
The wheel is secured by the conical
contact of each bolt.

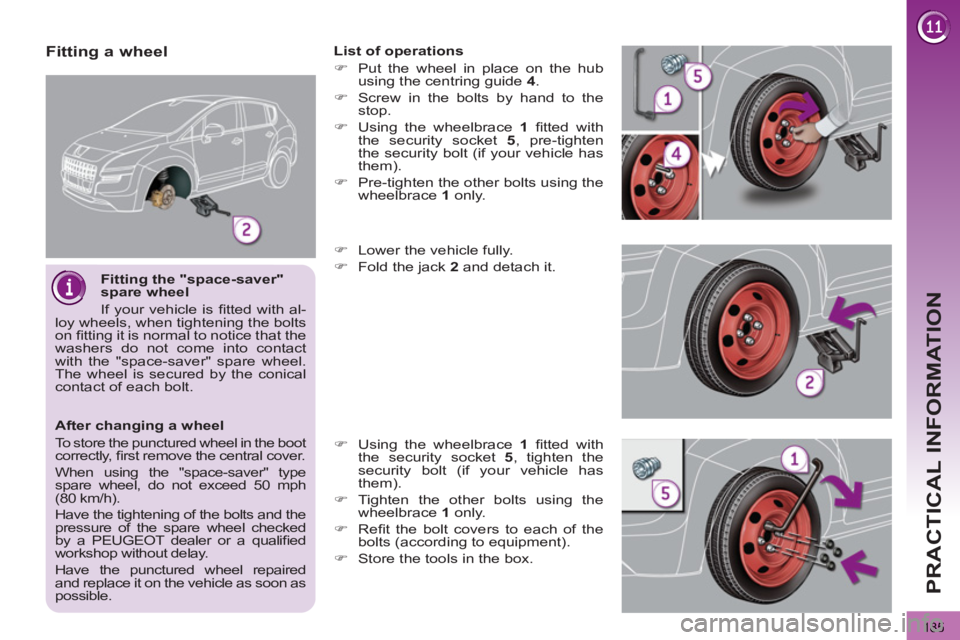

Fitting a wheel

List of operations


)
Put the wheel in place on the hub
using the centring guide 4
.

)
Screw in the bolts by hand to the
stop.

)
Using the wheelbrace 1
fi tted with
the security socket 5
, pre-tighten
the security bolt (if your vehicle has
them).

)
Pre-tighten the other bolts using the
wheelbrace 1
only.

)
Lower the vehicle fully.

)
Fold the jack 2
and detach it.

)
Using the wheelbrace 1
fi tted with
the security socket 5
, tighten the
security bolt (if your vehicle has
them).

)
Tighten the other bolts using the
wheelbrace 1
only.

)
Refi t the bolt covers to each of the
bolts (according to equipment).

)
Store the tools in the box.


After changing a wheel
To store the punctured wheel in the boot
correctly, fi rst remove the central cover.
When using the "space-saver" type
spare wheel, do not exceed 50 mph
(80 km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a PEUGEOT dealer or a qualifi ed
workshop without delay.
Have the punctured wheel repaired
and replace it on the vehicle as soon as
possible.

186
PRACTICAL INFORMATION

Risk of electrocution
Xenon bulbs (D1S-35W) must
be replaced by a PEUGEOT
dealer or a qualifi ed workshop.

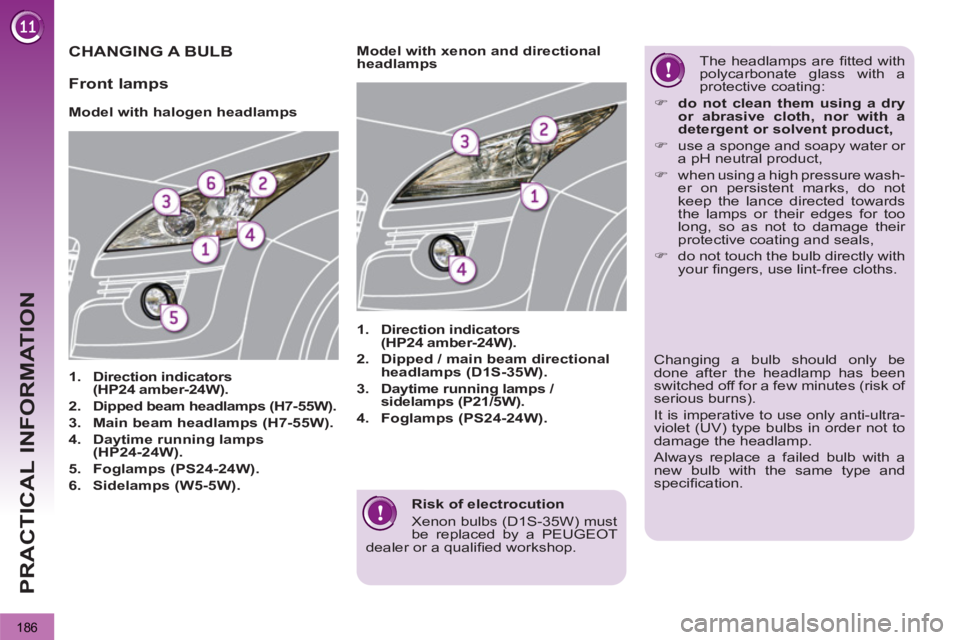

CHANGING A BULB








Model with halogen headlamps


1.
Direction indicators
(HP24 amber-24W).

2.
Dipped beam headlamps (H7-55W).

3.
Main beam headlamps (H7-55W).


4.
Daytime running lamps
(HP24-24W).


5.
Foglamps (PS24-24W).


6.
Sidelamps (W5-5W).





1.
Direction indicators
(HP24 amber-24W).

2.
Dipped / main beam directional
headlamps (D1S-35W).


3.
Daytime running lamps /
sidelamps (P21/5W).

4.
Foglamps (PS24-24W).






























Model with xenon and directional
headlamps The headlamps are fi tted with
polycarbonate glass with a
protective coating:


)
do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,


)
use a sponge and soapy water or
a pH neutral product,

)
when using a high pressure wash-
er on persistent marks, do not
keep the lance directed towards
the lamps or their edges for too
long, so as not to damage their
protective coating and seals,

)
do not touch the bulb directly with
your fi ngers, use lint-free cloths.


Front lamps


Changing a bulb should only be
done after the headlamp has been
switched off for a few minutes (risk of
serious burns).
It is imperative to use only anti-ultra-
violet (UV) type bulbs in order not to
damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specifi cation.

187
PRACTICAL INFORMATION








Changing main beam headlamp and
sidelamp bulbs






Changing dipped beam headlamp bulbs
(models with halogen headlamps)


)
Remove the protective plastic cover
by pulling on the tab.

)
Disconnect the bulb connector.

)
Extract the bulb by pulling and
change it.
To r efi t, carry out these operations in re-
verse order.


)
Remove the protective plastic cover
by pulling on the tab.

)
Disconnect the bulb connector.

)
Remove the bulb by pulling and
change it.
To r efi t, carry out these operations in re-
verse order.

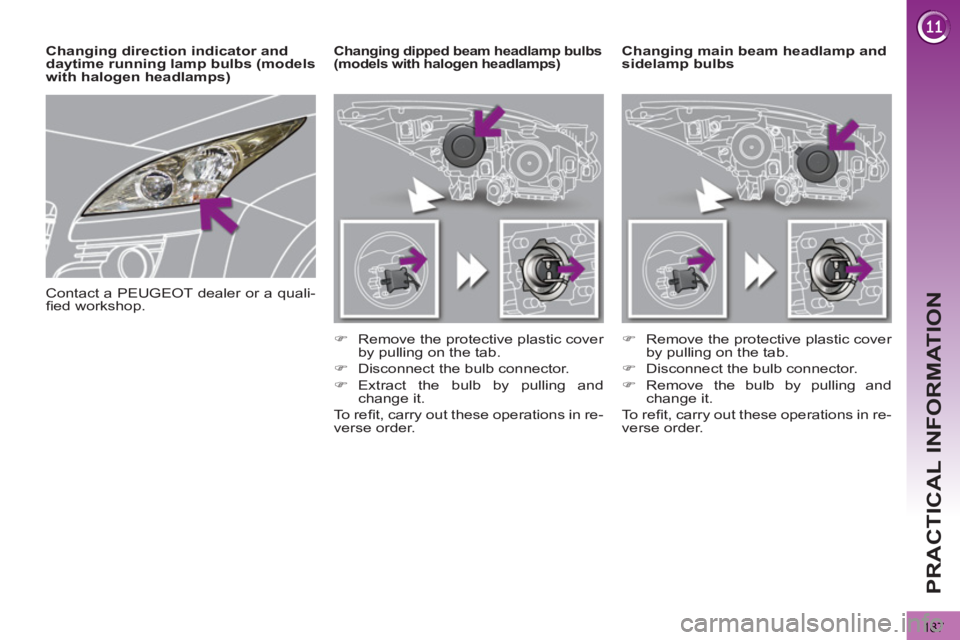

Changing direction indicator and
daytime running lamp bulbs (models
with halogen headlamps)
Contact a PEUGEOT dealer or a quali-
fi ed workshop.

188
PRACTICAL INFORMATION

Changing sidelamp and daytime running
lamp bulbs (models with xenon headlamps)


)
Remove the protective plastic cover
by pulling on the tab.

)
Disconnect the bulb connector.

)
Remove the bulb by pulling and
change it.

To r efi t, carry out these operations in
reverse order.









Changing foglamp bulbs

You can also contact a
PEUGEOT dealer or a quali-
fi ed workshop to have these
bulbs changed.
Contact a PEUGEOT dealer or a quali-
fi ed workshop.


)
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.

)
Tilt the screwdriver to extract the re-
peater and remove it.

)
Disconnect the repeater connector.
To r efi t, carry out these operations in re-
verse order.
Contact a PEUGEOT dealer or a quali-
fi ed workshop to obtain replacement re-
peaters.

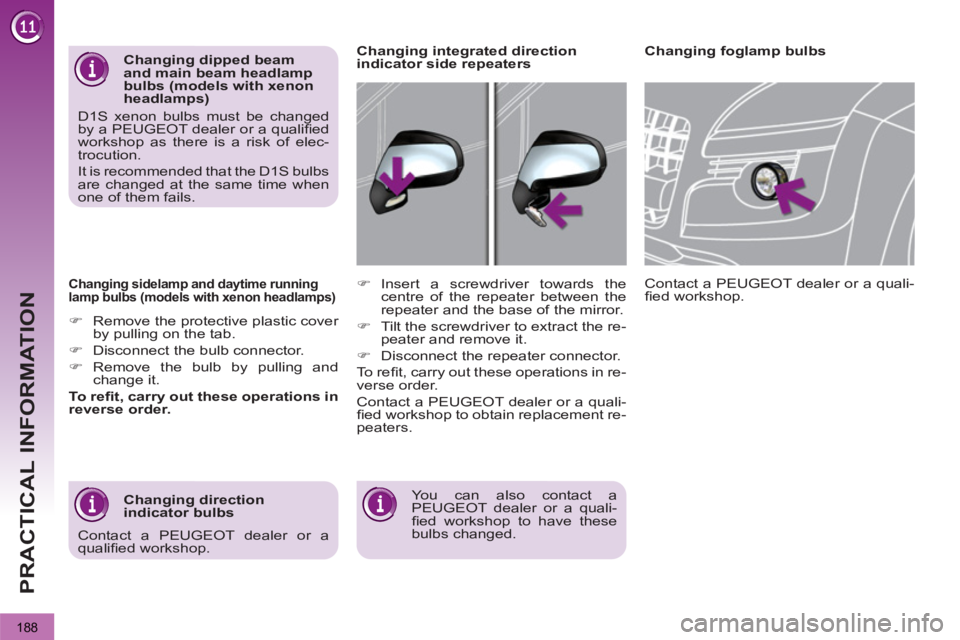

Changing integrated direction
indicator side repeaters







Changing direction
indicator bulbs







Changing dipped beam
and main beam headlamp
bulbs (models with xenon
headlamps)
D1S xenon bulbs must be changed
by a PEUGEOT dealer or a qualifi ed
workshop as there is a risk of elec-
trocution.
It is recommended that the D1S bulbs
are changed at the same time when
one of them fails.
Contact a PEUGEOT dealer or a
qualifi ed workshop.

PRACTICAL INFORMATION


























Rear lamps



1.
Brake lamps / sidelamps (P21-5W).

2.
Reversing lamps (P21W).


3.
Direction indicators (PY21W-21W).

4.
Sidelamps (P5-5W).


5.
Foglamps (P21W).

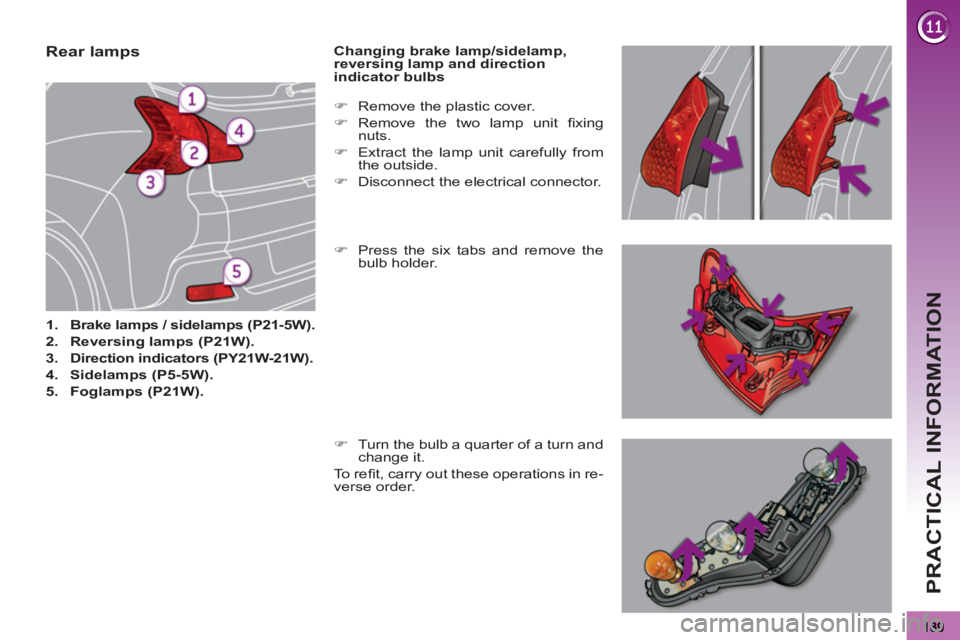

Changing brake lamp/sidelamp,
reversing lamp and direction
indicator bulbs

)
Press the six tabs and remove the
bulb holder.

)
Remove the plastic cover.

)
Remove the two lamp unit fi xing
nuts.

)
Extract the lamp unit carefully from
the outside.

)
Disconnect the electrical connector.

)
Turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in re-
verse order.

190
PRACTICAL INFORMATION

Changing the number plate lamp
bulbs (W5-5W)
Changing sidelamp bulbs (boot)

















Changing foglamp bulbs

)
Open the boot.

)
Remove the plastic fl ap using a
screwdriver.

)
Remove the lamp fi xing nut.

)
Turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in re-
verse order.



)
Reach under the bumper.

)
Turn the bulb a quarter of a turn and
pull it out.



)
Insert a thin screwdriver into one of
the outer holes of the lens.

)
Push it outwards to unclip.

)
Remove the lens.

)
Pull the bulb out and change it.



)
Press the pairs of clips A
then B

then C
to detach and gain access to
the bulb holder.



















Changing the third brake lamp bulb


)
Open the boot and remove the up-
per seal.

)
Unscrew the two nuts.

)
Press the threaded pins while sup-
porting the lamp from the outside.

)
Disconnect the connector and re-
move the screenwash pipe.
