2013 PEUGEOT 3008 Owners Manual

103
FITTINGS
REAR MULTIMEDIA

Multimedia system permitting the
connection of any external portable
system: iPod Video, games consoles,
DVD player, …
Two separate video
sources
can be connected via the RCA
connectors (yellow).
The video is displayed in two
7'' screens, integrated in the
head restraints. Two separate audio
sources
can be connected via the RCA
connectors (red and white).
The audio is heard through
two wireless headphones with
Bluetooth technology which
operate with rechargeable
batteries.
The A/B
button allows you to pair the
headphones with the screen: A
left-
hand side, B
right-hand side.

You have a 12 V charger with two out-
puts permitting simultaneous charging
of both headphones.
It is also possible to connect a 3rd set of
Bluetooth headphones.

Set-up


)
With the engine running, connect
your portable system to the RCA con-
nectors (e.g. with AV1 on the left).

)
Press the system's ON/OFF button,
the indicator lamp comes on and the
AV1 indicator lamps come on.

)
Press and hold the ON/OFF button on
the headphones, the indicator lamp on
the headphones fl ashes in blue.

)
Press and hold the system's ON/OFF
button, the pairing with the head-
phones is complete when the blue in-
dicator lamps on the headphones and
on the system (in the shape of head-
phones) are on continuously.

)
Press the ON/OFF buttons in the
screens if you have a video source.

)
Start playing your portable system.

If your seat is in the table posi-
tion, position a cover to avoid
damaging the screen.
These covers also conceal each
screen.

104
FITTINGS

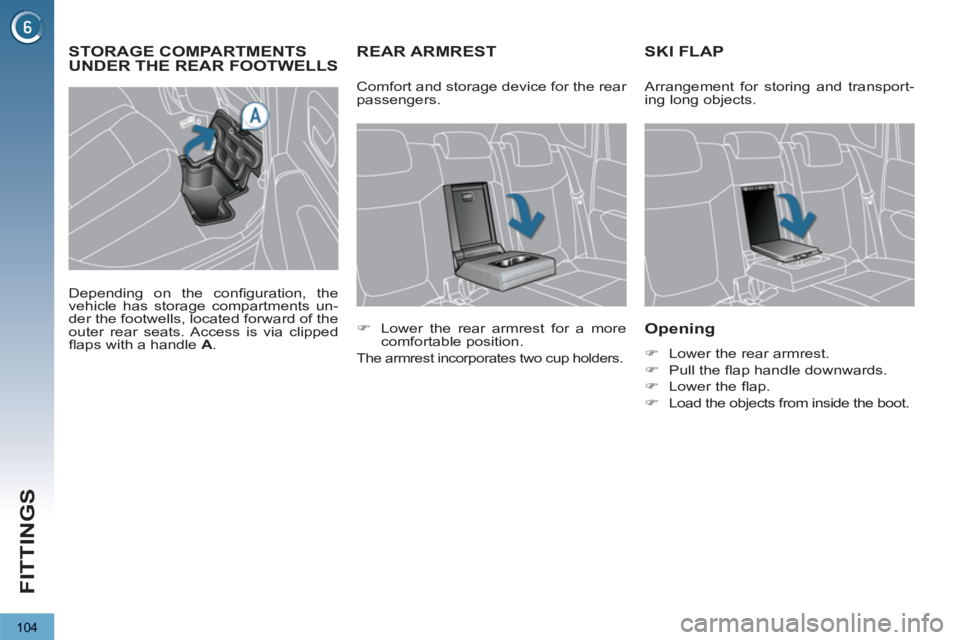

REAR ARMREST SKI FLAP

Opening



)
Lower the rear armrest.

)
Pull the fl ap handle downwards.

)
Lower the fl ap.

)
Load the objects from inside the boot.


)
Lower the rear armrest for a more
comfortable position.
The armrest incorporates two cup holders.

Comfort and storage device for the rear
passengers. Arrangement for storing and transport-
ing long objects.




STORAGE COMPARTMENTSUNDER THE REAR FOOTWELLS


Depending on the confi guration, the
vehicle has storage compartments un-
der the footwells, located forward of the
outer rear seats. Access is via clipped
fl aps with a handle A
.

105
FITTINGS

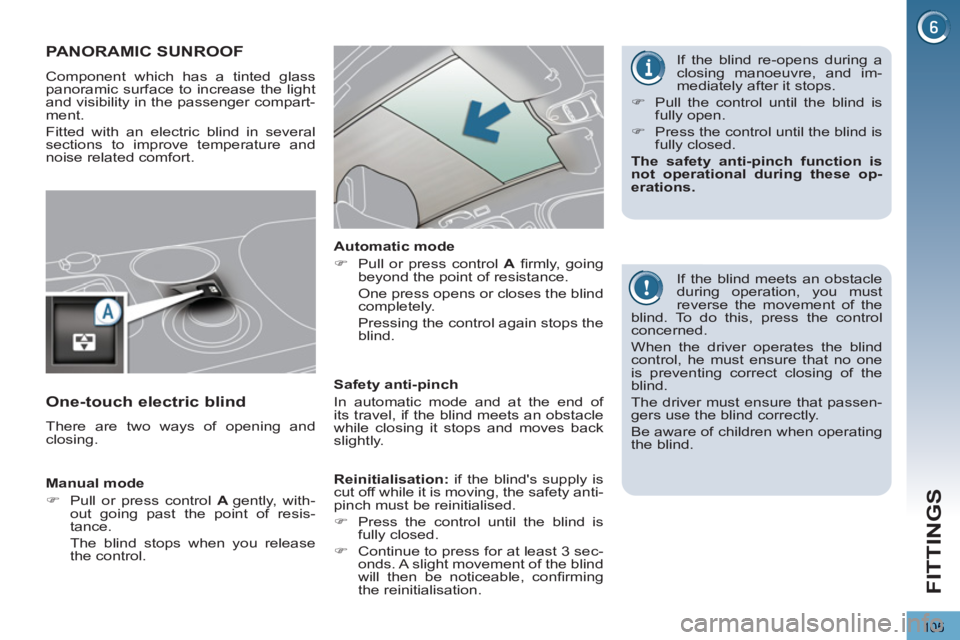

PANORAMIC SUNROOF
Component which has a tinted glass
panoramic surface to increase the light
and visibility in the passenger compart-
ment.
Fitted with an electric blind in several
sections to improve temperature and
noise related comfort.

If the blind meets an obstacle
during operation, you must
reverse the movement of the
blind. To do this, press the control
concerned.
When the driver operates the blind
control, he must ensure that no one
is preventing correct closing of the
blind.
The driver must ensure that passen-
gers use the blind correctly.
Be aware of children when operating
the blind.


Manual mode


)
Pull or press control A
gently, with-
out going past the point of resis-
tance.
The blind stops when you release
the control.

Automatic mode


)
Pull or press control A
fi rmly, going
beyond the point of resistance.
One press opens or closes the blind
completely.
Pressing the control again stops the
blind.


Safety anti-pinch
In automatic mode and at the end of
its travel, if the blind meets an obstacle
while closing it stops and moves back
slightly.

One-touch electric blind

There are two ways of opening and
closing.
If the blind re-opens during a
closing manoeuvre, and im-
mediately after it stops.


)
Pull the control until the blind is
fully open.

)
Press the control until the blind is
fully closed.

The safety anti-pinch function is
not operational during these op-
erations.



Reinitialisation:
if the blind's supply is
cut off while it is moving, the safety anti-
pinch must be reinitialised.


)
Press the control until the blind is
fully closed.

)
Continue to press for at least 3 sec-
onds. A slight movement of the blind
will then be noticeable, confi rming
the reinitialisation.

106
FITTINGS

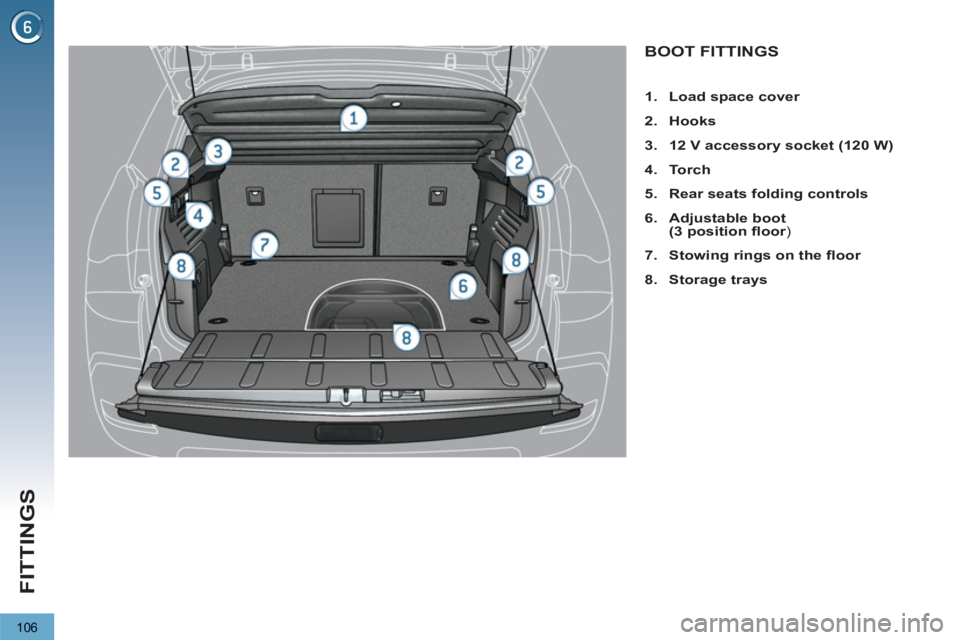

BOOT FITTINGS



1.
Load space cover


2.
Hooks


3.
12 V accessory socket (120 W)


4.
Torch


5.
Rear seats folding controls


6.
Adjustable boot

(3 position fl oor
)

7.
Stowing rings on the fl oor


8.
Storage trays

107
FITTINGS

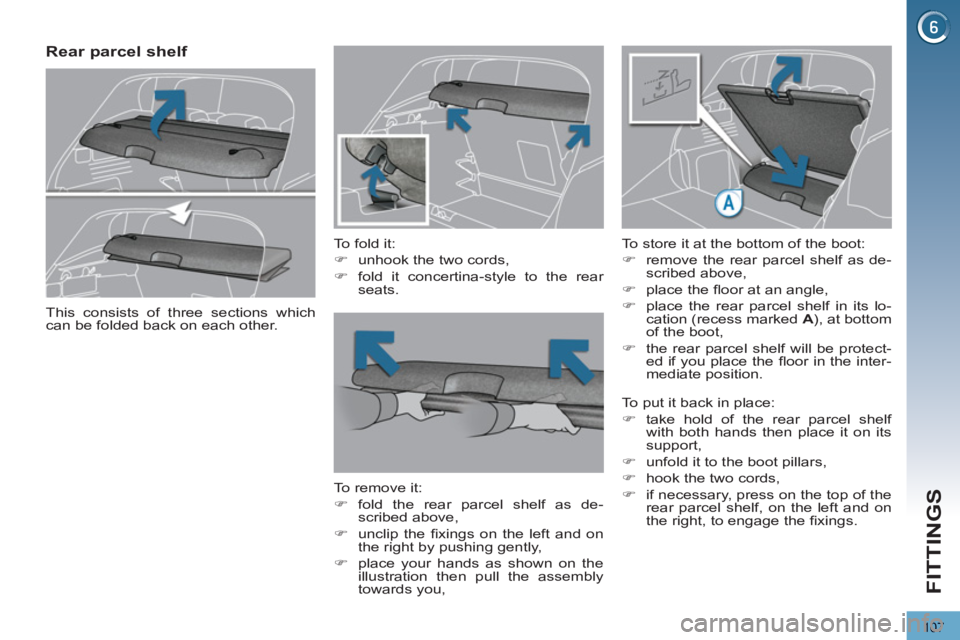

Rear parcel shelf


To fold it:


)
unhook the two cords,

)
fold it concertina-style to the rear
seats.


To remove it:


)
fold the rear parcel shelf as de-
scribed above,

)
unclip the fi xings on the left and on
the right by pushing gently,

)
place your hands as shown on the
illustration then pull the assembly
towards you,

To store it at the bottom of the boot:


)
remove the rear parcel shelf as de-
scribed above,

)
place the fl oor at an angle,

)
place the rear parcel shelf in its lo-
cation (recess marked A
), at bottom
of the boot,

)
the rear parcel shelf will be protect-
ed if you place the fl oor in the inter-
mediate position.
This consists of three sections which
can be folded back on each other.

To put it back in place:


)
take hold of the rear parcel shelf
with both hands then place it on its
support,

)
unfold it to the boot pillars,

)
hook the two cords,

)
if necessary, press on the top of the
rear parcel shelf, on the left and on
the right, to engage the fi xings.

108
FITTINGS

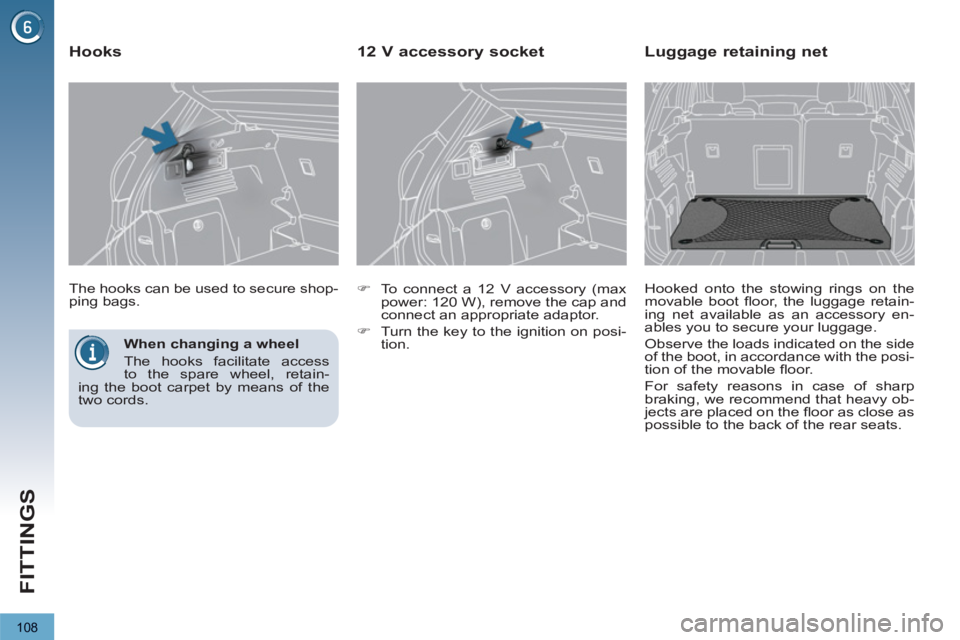

When changing a wheel
The hooks facilitate access
to the spare wheel, retain-
ing the boot carpet by means of the
two cords.
The hooks can be used to secure shop-
ping bags.






Hooks



)
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.

)
Turn the key to the ignition on posi-
tion.








12 V accessory socket





Luggage retaining net

Hooked onto the stowing rings on the
movable boot fl oor, the luggage retain-
ing net available as an accessory en-
ables you to secure your luggage.
Observe the loads indicated on the side
of the boot, in accordance with the posi-
tion of the movable fl oor.
For safety reasons in case of sharp
braking, we recommend that heavy ob-
jects are placed on the fl oor as close as
possible to the back of the rear seats.

109
FITTINGS


)

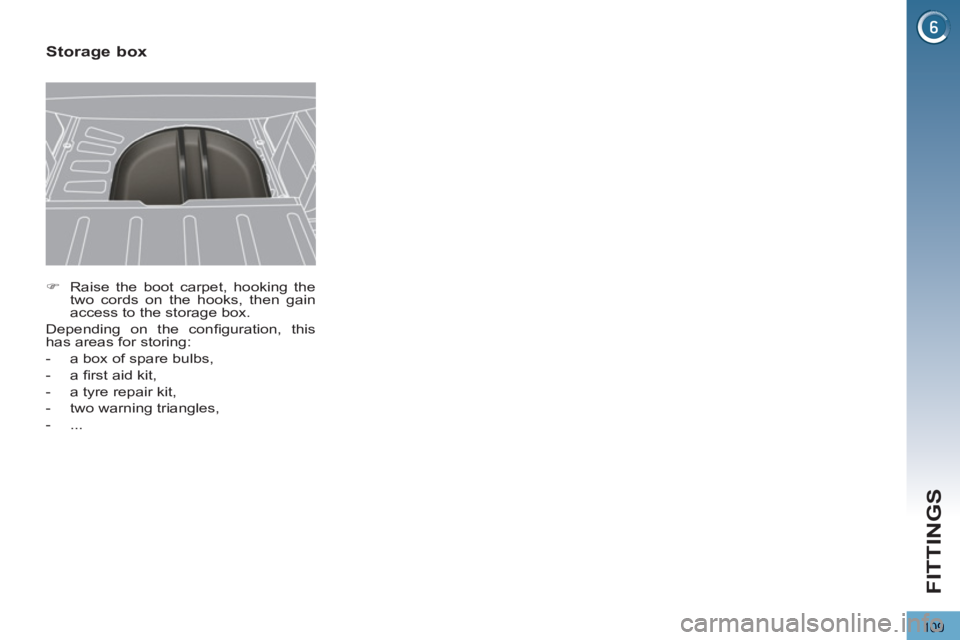

Raise the boot carpet, hooking the
two cords on the hooks, then gain
access to the storage box.
Depending on the confi guration, this
has areas for storing:


- a box of spare bulbs,

- a fi rst aid kit,

- a tyre repair kit,

- two warning triangles,

- ...








Storage box

110
FITTINGS

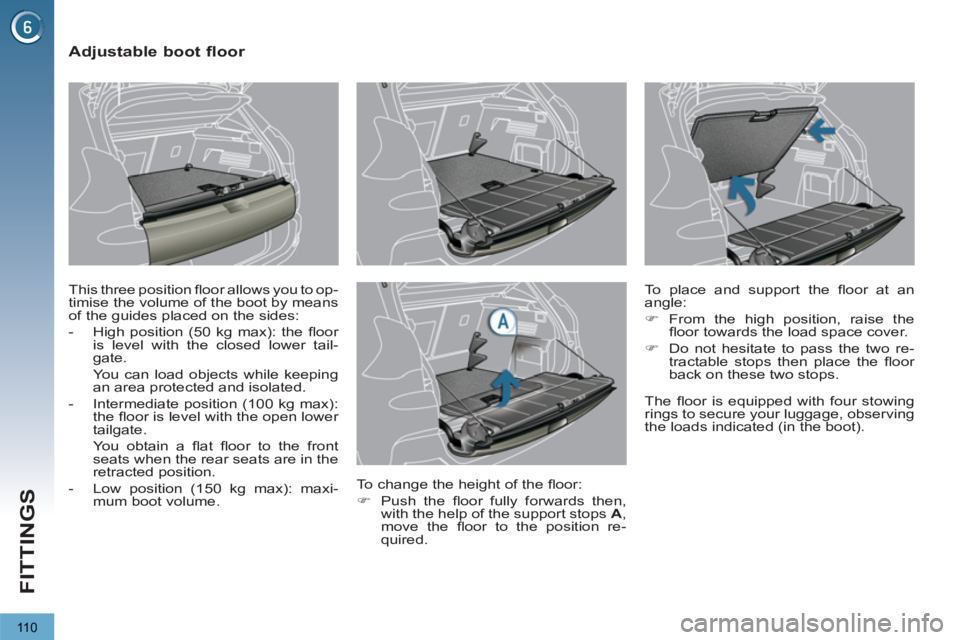

Adjustable boot floor

This three position fl oor allows you to op-
timise the volume of the boot by means
of the guides placed on the sides:


- High position (50 kg max): the fl oor
is level with the closed lower tail-
gate.
You can load objects while keeping
an area protected and isolated.

- Intermediate position (100 kg max):
the fl oor is level with the open lower
tailgate.
You obtain a fl at fl oor to the front
seats when the rear seats are in the
retracted position.

- Low position (150 kg max): maxi-
mum boot volume.
To place and support the fl oor at an
angle:


)
From the high position, raise the
fl oor towards the load space cover.

)
Do not hesitate to pass the two re-
tractable stops then place the fl oor
back on these two stops.


To change the height of the fl oor:


)
Push the fl oor fully forwards then,
with the help of the support stops A
,
move the fl oor to the position re-
quired.
The fl oor is equipped with four stowing
rings to secure your luggage, observing
the loads indicated (in the boot).
