2013 PEUGEOT 3008 Owners Manual

47
M
U

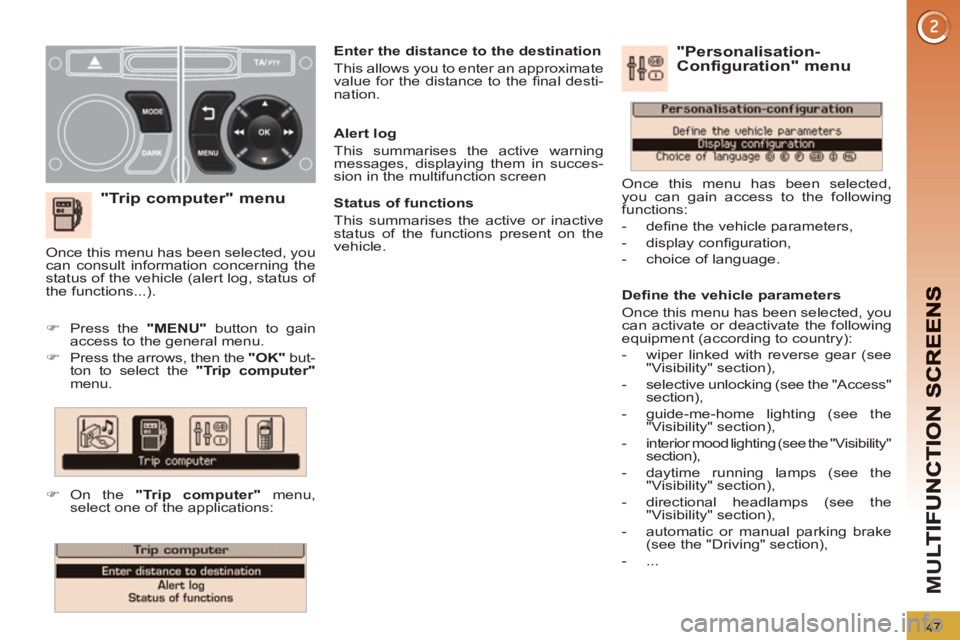

"Trip computer" menu




)
Press the "MENU"
button to gain
access to the general menu.

)
Press the arrows, then the "OK"
but-
ton to select the "Trip computer"

menu.




)
On the "Trip computer"
menu,
select one of the applications:

Enter the distance to the destination
This allows you to enter an approximate
value for the distance to the fi nal desti-
nation.

Once this menu has been selected, you
can consult information concerning the
status of the vehicle (alert log, status of
the functions...).

Defi ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment (according to country):


- wiper linked with reverse gear (see
"Visibility" section),

- selective unlocking (see the "Access"
section),

- guide-me-home lighting (see the
"Visibility" section),

- interior mood lighting (see the "Visibility"
section),

- daytime running lamps (see the
"Visibility" section),

- directional headlamps (see the
"Visibility" section),

- automatic or manual parking brake
(see the "Driving" section),

- ...


"Personalisation-
Configuration" menu

Once this menu has been selected,
you can gain access to the following
functions:


- defi ne the vehicle parameters,

- display confi guration,

- choice of language.



Alert log
This summarises the active warning
messages, displaying them in succes-
sion in the multifunction screen

Status of functions
This summarises the active or inactive
status of the functions present on the
vehicle.

48
M
U

Display confi guration
Once this menu has been selected, you
have access to the following settings:


- brightness-video setting,

- date and time setting,

- selection of the units.


Choice of language
Once this menu has been selected,
you can change the screen display
language.
Example: setting of the duration of the
guide-me-home lighting


)
Press the "
" or "
" buttons, then
the " OK
" button to select the menu
required.




)
Press the "
" or "
" buttons, then
the " OK
" button to select the "Guide-
me-home headlamps" line.




)
Press the "
" or "
" buttons to set the
value required (15, 30 or 60 seconds),
then press the " OK
" button to confi rm.



)
Press the "
" or "
" buttons, then the
" OK
" button to select the " OK
" box and
confi rm or press the "
<
] arrow
" button
to cancel.



"Telephone" menu
With the audio equipment switched on,
once this menu has been selected you
can confi gure your Bluetooth hands-
free kit (pairing), consult the various
telephone directories (calls log, ser-
vices...) and manage your communi-
cations (pick up, hang up, call waiting,
secret mode...).

For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.

For more information on the
telephone application, refer to
the Peugeot Connect Sound
(RD5) section.

49
M
U
Displays in the screen
When the screen is unfolded, it displays
the following information automatically
and directly:


- time,

- date,

- altitude,

- ambient temperature (the value dis-
played fl ashes if there is a risk of
ice),

- doors check,

- warning and vehicle function status
messages, displayed temporarily,

- audio functions,

- trip computer information.

-
satellite navigation system information.

From the audio system control panel:


)
press the dedicated "RADIO"
,
"MUSIC"
, "NAV"
, "TRAFFIC"
,
"SETUP"
or "PHONE"
button for
access to the corresponding menu,

)
turn the navigator to move the se-
lection,

)
press the navigator to confi rm the
selection,
or
16/9 RETRACTABLE COLOUR SCREEN (WITH PEUGEOT CONNECT NAVIGATION (RT6) ORPEUGEOT CONNECT MEDIA NAVIGATION (NG4 3D))

Controls


For operation of the retractable
screen (opening, closing, ad-
justment of the position, etc.),
refer to the paragraph "Access to the
retractable screen".

For more information on
these applications, refer to the
"Audio equipment and tele-
matics" section.

Depending on the equipment
fi tted to your vehicle, the trip
computer information appears
in either the multifunction screen or
the instrument panel screen.

)
press the this button to
abandon the current opera-
tion and return to the previ-
ous display.

50
M
U

"SETUP" menu




)
Press the "SETUP"
button for ac-
cess to the "SETUP"
menu. This al-
lows you to select from the following
functions:


- "Languages" (Peugeot Connect
Navigation (RT6)),

-
"Languages and voice functions"
(Peugeot Connect Media Navigation
(NG4 3D))

- "Date and time",

- "Display",

- "Vehicle parameters" (Peugeot
Connect Navigation (RT6)),

- "Units",

- "System".



Languages (Peugeot Connect
Navigation (RT6))
This menu allows you to select the
lannsguage used by the display.

Languages and voice functions
(Peugeot Connect Media Navigation
(NG4 3D))
This menu allows you to:


- select the language used by the
disnsplay,

- select the settings for voice recogni-
tion (on/off, instructions on use, per-
sonal voice training...),

- adjust the volume of the voice syn-
thesiser.

Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time.

Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).

Vehicle parameters (Peugeot
Connect Navigation (RT6))
This menu allows you to activate or
deactivate certain driving and comfort
equipment * :


- wiper linked with reverse gear (refer
to the "Visibility" section),

- selective unlocking (refer to the
"Access" section),

- guide-me-home and welcome light-
ing (refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- automatic or manual parking brake
(refer to the "Driving" section),

- ...


For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.



Units
This menu allows you to select the
units: temperature (°C or °F) and fuel
consumption (km/l, l/100 or mpg).

System
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text.

*
According to country.

51
M
U

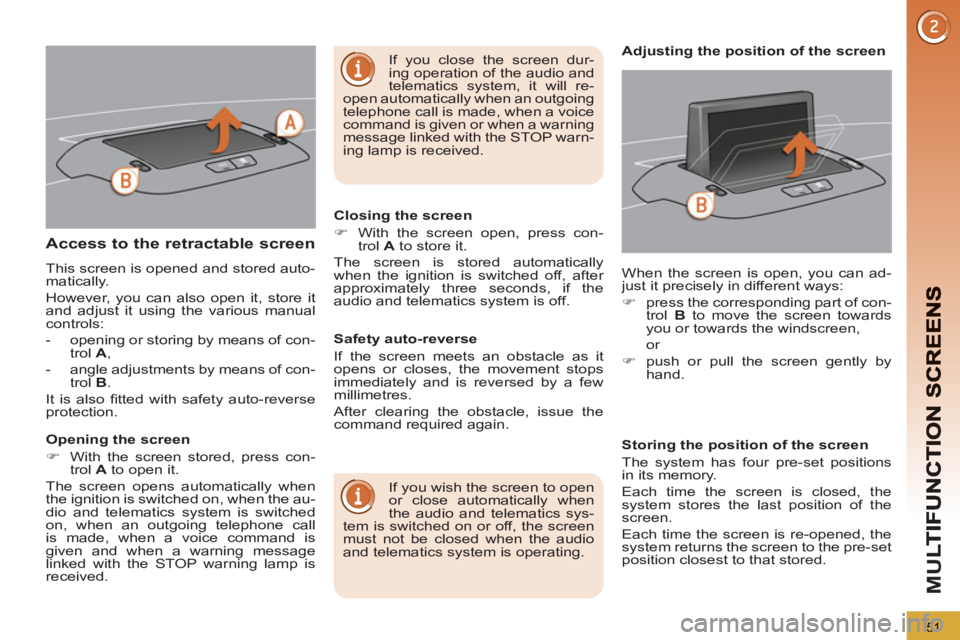

Access to the retractable screen
This screen is opened and stored auto-
matically.
However, you can also open it, store it
and adjust it using the various manual
controls:


- opening or storing by means of con-
trol A
,

- angle adjustments by means of con-
trol B
.
It is also fi tted with safety auto-reverse
protection.

Opening the screen


)
With the screen stored, press con-
trol A
to open it.
The screen opens automatically when
the ignition is switched on, when the au-
dio and telematics system is switched
on, when an outgoing telephone call
is made, when a voice command is
given and when a warning message
linked with the STOP warning lamp is
received.
Closing the screen


)
With the screen open, press con-
trol A
to store it.
The screen is stored automatically
when the ignition is switched off, after
approximately three seconds, if the
audio and telematics system is off.
If you wish the screen to open
or close automatically when
the audio and telematics sys-
tem is switched on or off, the screen
must not be closed when the audio
and telematics system is operating. When the screen is open, you can ad-
just it precisely in different ways:


)
press the corresponding part of con-
trol B
to move the screen towards
you or towards the windscreen,
or


)
push or pull the screen gently by
hand.

Adjusting the position of the screen

Safety auto-reverse
If the screen meets an obstacle as it
opens or closes, the movement stops
immediately and is reversed by a few
millimetres.
After clearing the obstacle, issue the
command required again.

Storing the position of the screen
The system has four pre-set positions
in its memory.
Each time the screen is closed, the
system stores the last position of the
screen.
Each time the screen is re-opened, the
system returns the screen to the pre-set
position closest to that stored.
If you close the screen dur-
ing operation of the audio and
telematics system, it will re-
open automatically when an outgoing
telephone call is made, when a voice
command is given or when a warning
message linked with the STOP warn-
ing lamp is received.

52
M
U

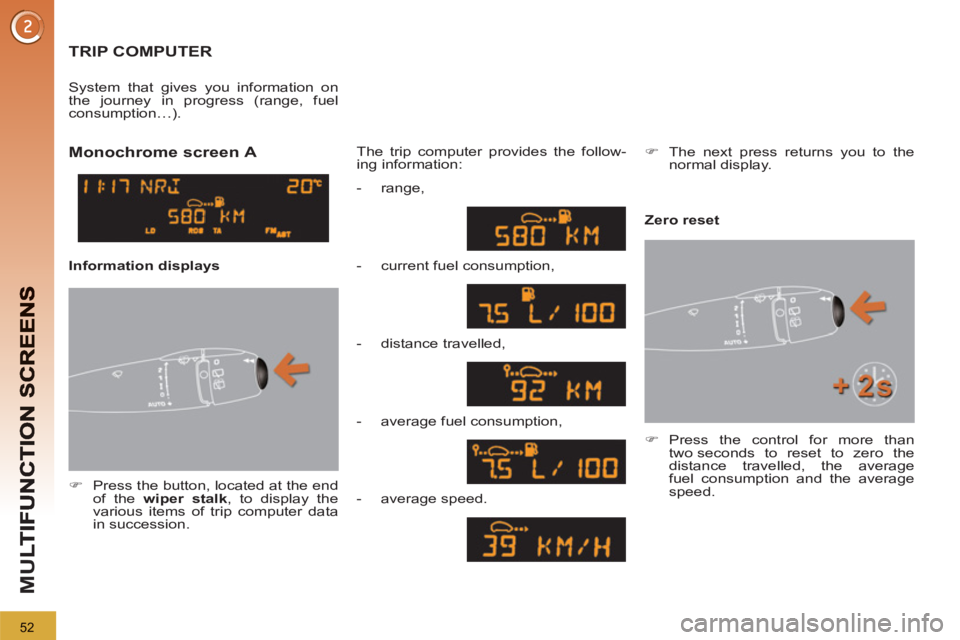

TRIP COMPUTER



)
Press the button, located at the end
of the wiper stalk
, to display the
various items of trip computer data
in succession.

The trip computer provides the follow-
ing information:
System that gives you information on
the journey in progress (range, fuel
consumption…).


)
Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the average
speed.


Monochrome screen A


Zero reset

Information displays


- range,

- current fuel consumption,

- distance travelled,

- average fuel consumption,

- average speed.




)
The next press returns you to the
normal display.

53
M
U

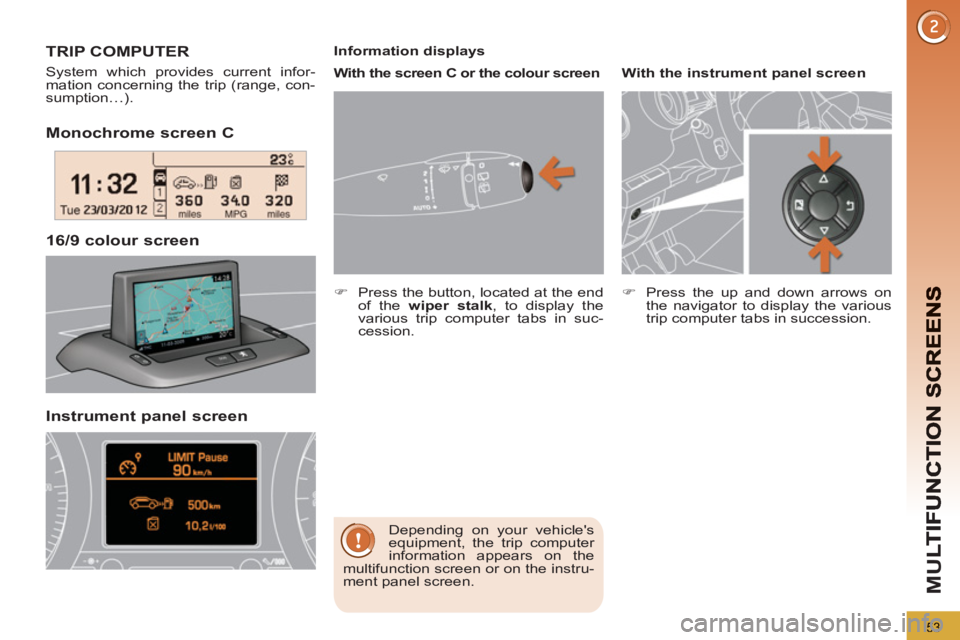

Monochrome screen C
16/9 colour screen
TRIP COMPUTER

System which provides current infor-
mation concerning the trip (range, con-
sumption…).
Depending on your vehicle's
equipment, the trip computer
information appears on the
multifunction screen or on the instru-
ment panel screen.
Instrument panel screen

Information displays

With the screen C or the colour screen


)
Press the button, located at the end
of the wiper stalk
, to display the
various trip computer tabs in suc-
cession.
With the instrument panel screen



)
Press the up and down arrows on
the navigator to display the various
trip computer tabs in succession.

54
M
U

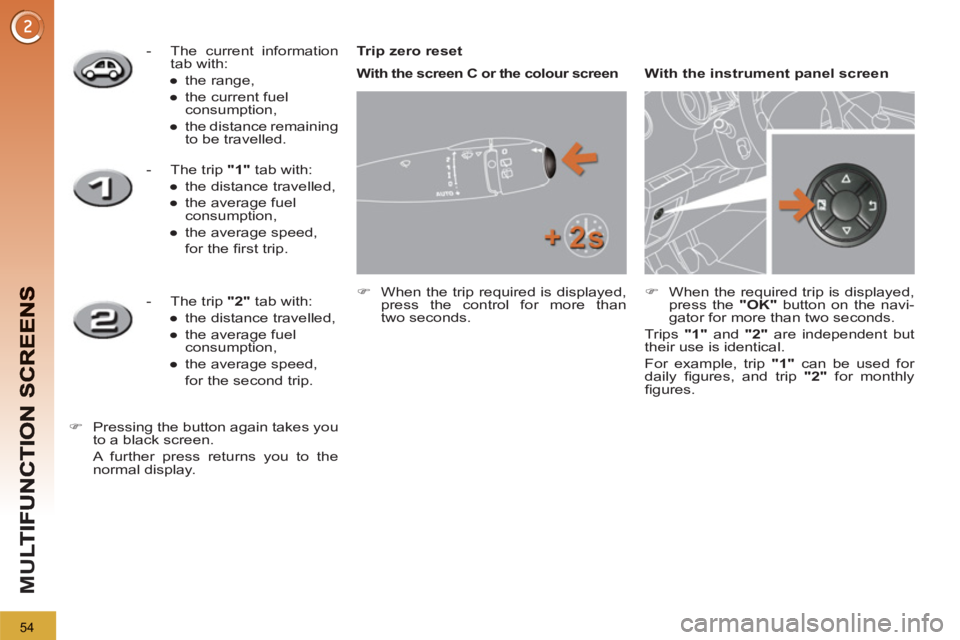

- The current information
tab with:


●
the range,

●
the current fuel
consumption,

●
the distance remaining
to be travelled.





- The trip "1"
tab with:


●
the distance travelled,

●
the average fuel
consumption,

●
the average speed,
for the fi rst trip.





- The trip "2"
tab with:


●
the distance travelled,

●
the average fuel
consumption,

●
the average speed,
for the second trip.





)
Pressing the button again takes you
to a black screen.
A further press returns you to the
normal display.

Trip zero reset


)
When the trip required is displayed,
press the control for more than
two seconds.

)
When the required trip is displayed,
press the "OK"
button on the navi-
gator for more than two seconds.
Trips "1"
and "2"
are independent but
their use is identical.
For example, trip "1"
can be used for
daily fi gures, and trip "2"
for monthly
fi gures.



With the screen C or the colour screen

With the instrument panel screen
