2013 PEUGEOT 3008 Owners Manual

95
VIS
Special position of the
windscreen wipersAutomatic rain sensitive
windscreen wipers
The windscreen wipers operate auto-
matically, without any action on the part
of the driver, if rain is detected (sensor
behind the rear view mirror), adapting
their speed to the intensity of the rain-
fall.

Activation
This is controlled manually by the driver
by pushing the stalk downwards to the
"AUTO"
position.
It is accompanied by a message in the
screen. This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
Do not cover the rain sensor,
linked with the sunshine sen-
sor and located in the centre
of the windscreen behind the rear
view mirror.
Switch off the automatic rain sensi-
tive wipers when using an automatic
car wash.
In winter, to avoid damaging the wip-
er blades, it is advisable to wait until
the windscreen is completely clear of
ice before activating the automatic
rain sensitive wipers.
The automatic rain sensitive
wipers must be reactivated if
the ignition has been off for
more than one minute, by pushing
the stalk downwards.

Switching off
This is controlled manually by the driver
by moving the stalk upwards then re-
turning it to position "0"
.
It is accompanied by a message in the
screen.
Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermittent
mode.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.

To maintain the effectiveness
of the "fl at-blade" type of wiper
blades, it is advisable to:


- handle them with care,

- clean them regularly using soapy
water,

- avoid using them to retain card-
board on the windscreen,

- replace them at the fi rst signs of
wear.




)
Any action on the wiper stalk in the
minute after switching off the igni-
tion places the blades vertically on
the screen.

)
To park the blades again, switch on
the ignition and operate the wiper
stalk.

96
VIS

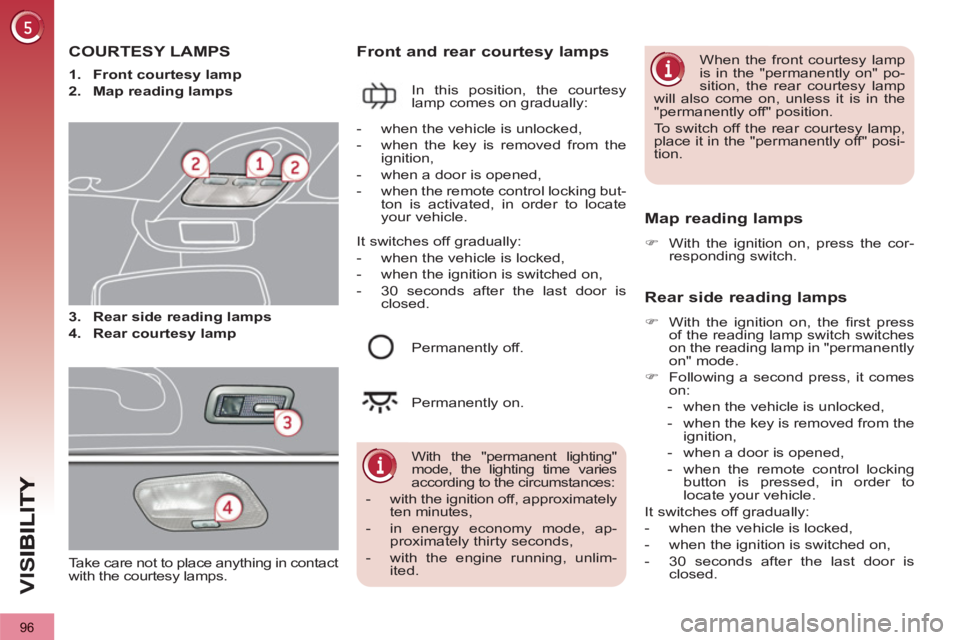

COURTESY LAMPS

3.
Rear side reading lamps


4.
Rear courtesy lamp



Front and rear courtesy lamps

In this position, the courtesy
lamp comes on gradually:
Map reading lamps



)
With the ignition on, press the cor-
responding switch.














With the "permanent lighting"
mode, the lighting time varies
according to the circumstances:


- with the ignition off, approximately
ten minutes,

- in energy economy mode, ap-
proximately thirty seconds,

- with the engine running, unlim-
ited.



- when the vehicle is unlocked,

- when the key is removed from the
ignition,

- when a door is opened,

- when the remote control locking but-
ton is activated, in order to locate
your vehicle.

Permanently off.

Permanently on.
When the front courtesy lamp
is in the "permanently on" po-
sition, the rear courtesy lamp
will also come on, unless it is in the
"permanently off" position.
To switch off the rear courtesy lamp,
place it in the "permanently off" posi-
tion.


Rear side reading lamps



)
With the ignition on, the fi rst press
of the reading lamp switch switches
on the reading lamp in "permanently
on" mode.

)
Following a second press, it comes
on:


- when the vehicle is unlocked,

- when the key is removed from the
ignition,

- when a door is opened,

- when the remote control locking
button is pressed, in order to
locate your vehicle.

It switches off gradually:


- when the vehicle is locked,

- when the ignition is switched on,

- 30 seconds after the last door is
closed.
It switches off gradually:


- when the vehicle is locked,

- when the ignition is switched on,

- 30 seconds after the last door is
closed.

Take care not to place anything in contact
with the courtesy lamps.



1.
Front courtesy lamp


2.
Map reading lamps

97
VIS
INTERIOR MOOD LIGHTING INTERIOR WELCOME LIGHTING

The remote switching on of the passen-
ger compartment lighting makes your
approach to the vehicle easier in poor
light. It operates with the automatic il-
lumination of headlamps.

Switching on



)
Press the open padlock on the re-
mote control.
The courtesy lamps come on; your ve-
hicle is also unlocked.


Switching off

The interior welcome lighting switches off
automatically after a set time or when one
of the doors is opened.


Programming
Switching on

At night, the front courtesy lamp mood
lamp A
comes on automatically when
the sidelamps are switched on.
Switching off

The interior mood lighting switches off
automatically when the sidelamps are
switched off.

The duration of the welcome
lighting is associated with and
identical to that of the automatic
guide-me-home lighting.
The function is activated or
deactivated via the multi-
function screen confi gura-
tion menu.
DOOR MIRROR SPOTLAMPS
To make your approach to the vehicle
easier, these illuminate:


- the zones facing the driver’s and
passenger’s doors,

- the zones forward of the door mirrors
and rearward of the front doors.
Switching on

The spotlamps come on:


- when you unlock the vehicle,

- when you remove the key from the
ignition,

- when you open a door,

- when you use the remote control.

Switching off

They are timed to go off automatically.
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.

98
VIS

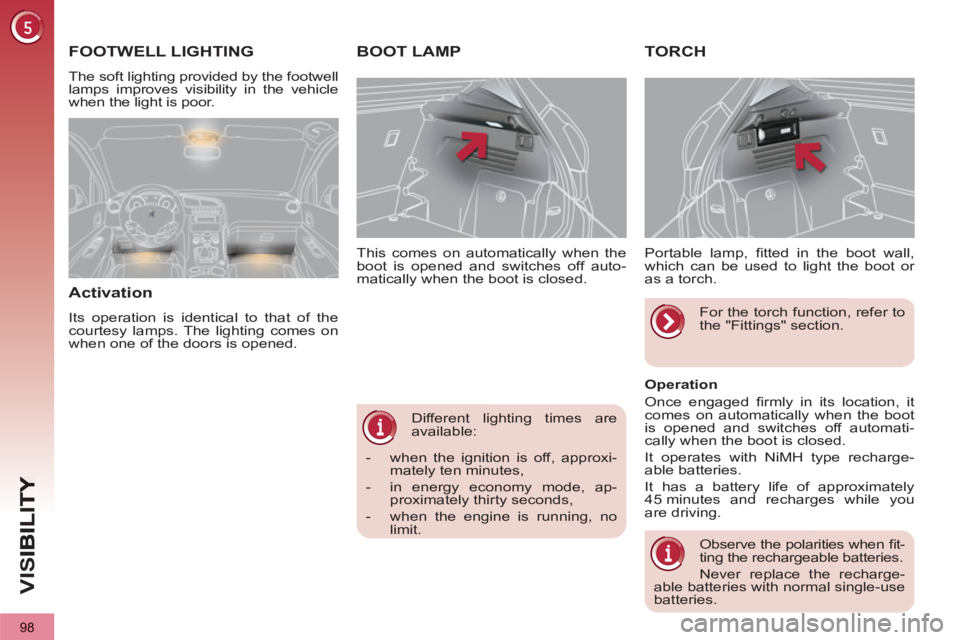

Different lighting times are
available:
This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
BOOT LAMP TORCH

Portable lamp, fi tted in the boot wall,
which can be used to light the boot or
as a torch.

Operation
Once engaged fi rmly in its location, it
comes on automatically when the boot
is opened and switches off automati-
cally when the boot is closed.
It operates with NiMH type recharge-
able batteries.
It has a battery life of approximately
45 minutes and recharges while you
are driving.

Observe the polarities when fi t-
ting the rechargeable batteries.
Never replace the recharge-
able batteries with normal single-use
batteries.

For the torch function, refer to
the "Fittings" section.
FOOTWELL LIGHTING

The soft lighting provided by the footwell
lamps improves visibility in the vehicle
when the light is poor.
Activation

Its operation is identical to that of the
courtesy lamps. The lighting comes on
when one of the doors is opened.


- when the ignition is off, approxi-
mately ten minutes,

- in energy economy mode, ap-
proximately thirty seconds,

- when the engine is running, no
limit.

99

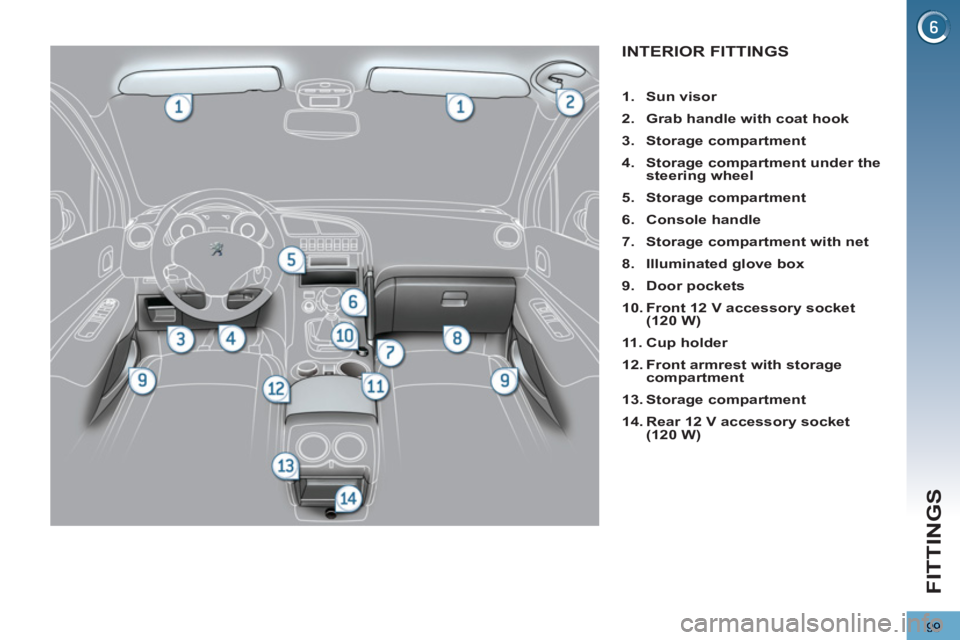

FITTINGS
INTERIOR FITTINGS


1.
Sun visor


2.
Grab handle with coat hook


3.
Storage compartment


4.
Storage compartment under the
steering wheel


5.
Storage compartment


6.
Console handle


7.
Storage compartment with net


8.
Illuminated glove box


9.
Door pockets


10.
Front 12 V accessory socket
(120 W)


11 .
Cup holder


12.
Front armrest with storage
compartment


13.
Storage compartment


14.
Rear 12 V accessory socket
(120 W)

100
FITTINGS
DRIVER'S STORAGE
COMPARTMENTS

Storage box

This has storage areas for the hand-
book pack, ...


)
To open, pull the handle then tilt the
box.

ILLUMINATED GLOVE BOX


This has storage areas, audio sockets
for a portable player and a location for
the SIM card (only with Peugeot Con-
nect Media Navigation (NG4 3D)), ...


)
To open the glove box, raise the
handle.
The lamp comes on when the lid is
opened.
SUN VISOR

Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.


)
With the ignition on, raise the con-
cealing fl ap; the mirror is lit automat-
ically.
This sun visor is also equipped with a
ticket holder.

Card holder

This can be used for a toll payment ticket
or parking card, for example.


Coin storage

Storage


To connect a portable player or
a SIM card, refer to the "Audio
equipment and telematics" sec-
tion.

101
FITTINGS

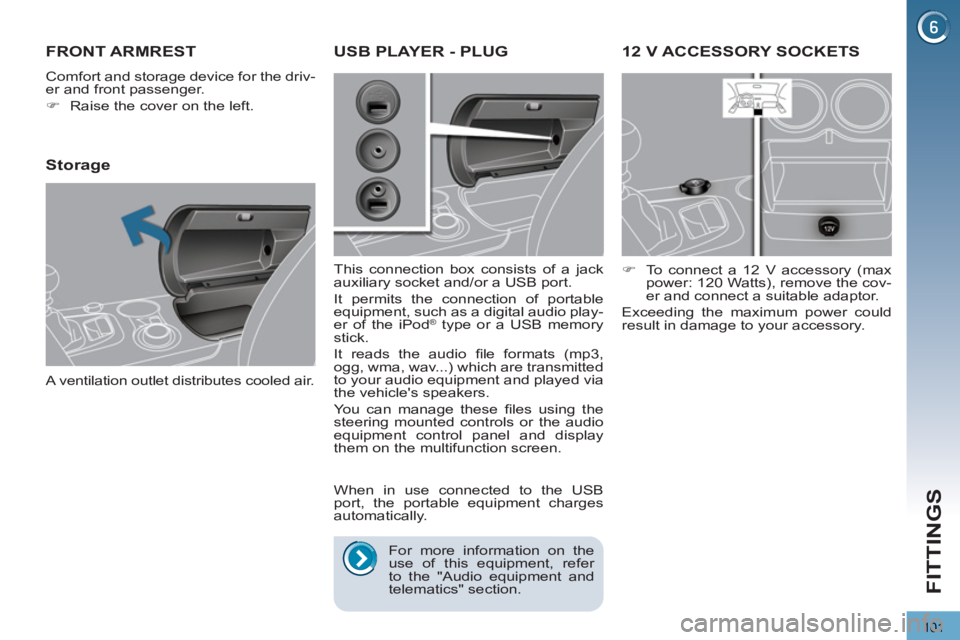

12 V ACCESSORY SOCKETS


)
To connect a 12 V accessory (max
power: 120 Watts), remove the cov-
er and connect a suitable adaptor.
Exceeding the maximum power could
result in damage to your accessory.
FRONT ARMREST
Comfort and storage device for the driv-
er and front passenger.


)
Raise the cover on the left.


Storage

A ventilation outlet distributes cooled air.
USB PLAYER - PLUG


This connection box consists of a jack
auxiliary socket and/or a USB port.
It permits the connection of portable
equipment, such as a digital audio play-
er of the iPod
® type or a USB memory
stick.
It reads the audio fi le formats (mp3,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these fi les using the
steering mounted controls or the audio
equipment control panel and display
them on the multifunction screen.

When in use connected to the USB
port, the portable equipment charges
automatically.

For more information on the
use of this equipment, refer
to the "Audio equipment and
telematics" section.

102
FITTINGS

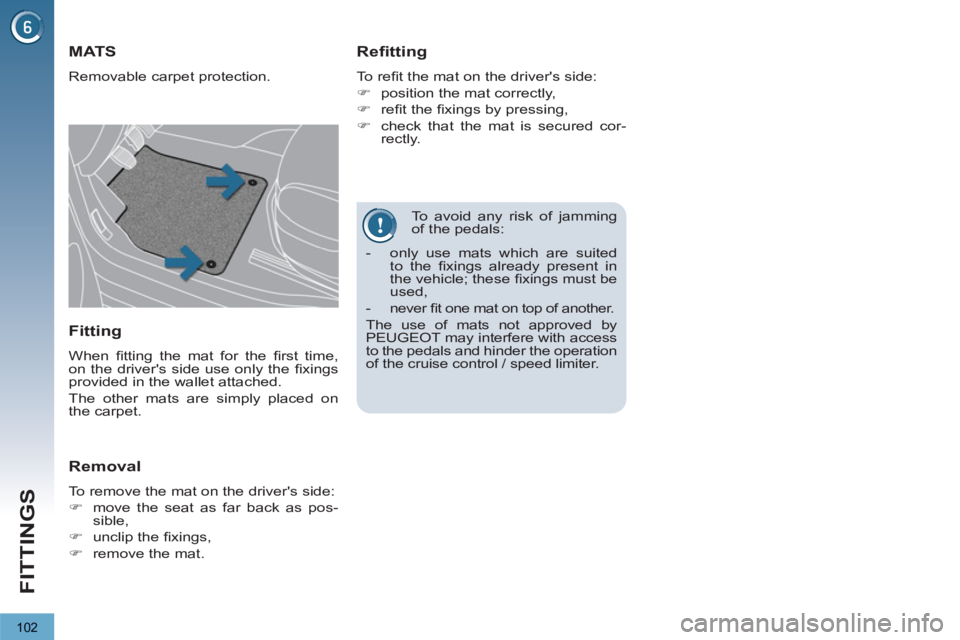

To avoid any risk of jamming
of the pedals:
MATS
Removable carpet protection.


Refitting

To refi t the mat on the driver's side:


)
position the mat correctly,

)
refi t the fi xings by pressing,

)
check that the mat is secured cor-
rectly.


Fitting

When fi tting the mat for the fi rst time,
on the driver's side use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.


Removal

To remove the mat on the driver's side:


)
move the seat as far back as pos-
sible,

)
unclip the fi xings,

)
remove the mat.


- only use mats which are suited
to the fi xings already present in
the vehicle; these fi xings must be
used,

- never fi t one mat on top of another.
The use of mats not approved by
PEUGEOT may interfere with access
to the pedals and hinder the operation
of the cruise control / speed limiter.
