2013 PEUGEOT 3008 Owners Manual

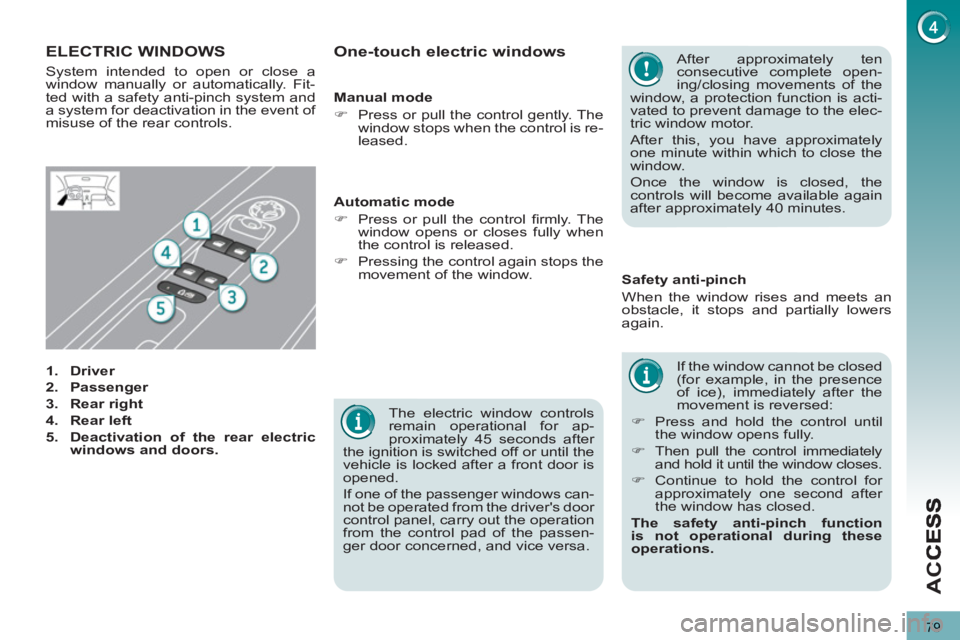

79
AC
C

The electric window controls
remain operational for ap-
proximately 45 seconds after
the ignition is switched off or until the
vehicle is locked after a front door is
opened.
If one of the passenger windows can-
not be operated from the driver's door
control panel, carry out the operation
from the control pad of the passen-
ger door concerned, and vice versa.
ELECTRIC WINDOWS




1.
Driver


2.
Passenger


3.
Rear right


4.
Rear left


5.
Deactivation of the rear electric
windows and doors.




If the window cannot be closed
(for example, in the presence
of ice), immediately after the
movement is reversed:


)
Press and hold the control until
the window opens fully.

)
Then pull the control immediately
and hold it until the window closes.

)
Continue to hold the control for
approximately one second after
the window has closed.

The safety anti-pinch function
is not operational during these
operations.


Safety anti-pinch
When the window rises and meets an
obstacle, it stops and partially lowers
again.
Automatic mode


)
Press or pull the control fi rmly. The
window opens or closes fully when
the control is released.

)
Pressing the control again stops the
movement of the window.



One-touch electric windows

After approximately ten
consecutive complete open-
ing/closing movements of the
window, a protection function is acti-
vated to prevent damage to the elec-
tric window motor.
After this, you have approximately
one minute within which to close the
window.
Once the window is closed, the
controls will become available again
after approximately 40 minutes.
System intended to open or close a
window manually or automatically. Fit-
ted with a safety anti-pinch system and
a system for deactivation in the event of
misuse of the rear controls.
Manual mode


)
Press or pull the control gently. The
window stops when the control is re-
leased.

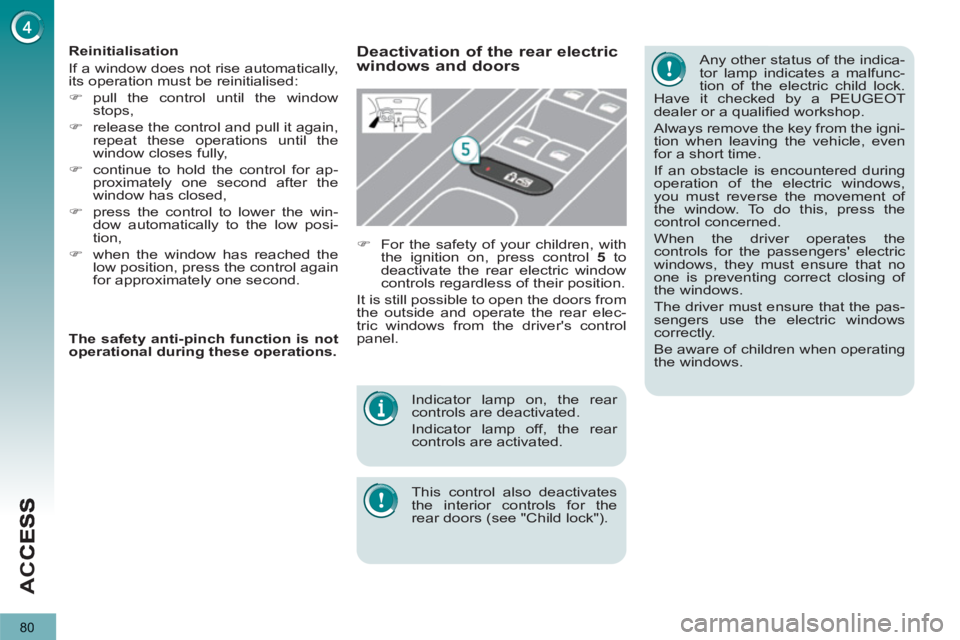

80
AC
C

Indicator lamp on, the rear
controls are deactivated.
Indicator lamp off, the rear
controls are activated.

This control also deactivates
the interior controls for the
rear doors (see "Child lock").
Reinitialisation
If a window does not rise automatically,
its operation must be reinitialised:


)
pull the control until the window
stops,

)
release the control and pull it again,
repeat these operations until the
window closes fully,

)
continue to hold the control for ap-
proximately one second after the
window has closed,

)
press the control to lower the win-
dow automatically to the low posi-
tion,

)
when the window has reached the
low position, press the control again
for approximately one second.
Any other status of the indica-
tor lamp indicates a malfunc-
tion of the electric child lock.
Have it checked by a PEUGEOT
dealer or a qualifi ed workshop.
Always remove the key from the igni-
tion when leaving the vehicle, even
for a short time.
If an obstacle is encountered during
operation of the electric windows,
you must reverse the movement of
the window. To do this, press the
control concerned.
When the driver operates the
controls for the passengers' electric
windows, they must ensure that no
one is preventing correct closing of
the windows.
The driver must ensure that the pas-
sengers use the electric windows
correctly.
Be aware of children when operating
the windows.

Deactivation of the rear electric
windows and doors



)
For the safety of your children, with
the ignition on, press control 5
to
deactivate the rear electric window
controls regardless of their position.
It is still possible to open the doors from
the outside and operate the rear elec-
tric windows from the driver's control
panel.

The safety anti-pinch function is not
operational during these operations.

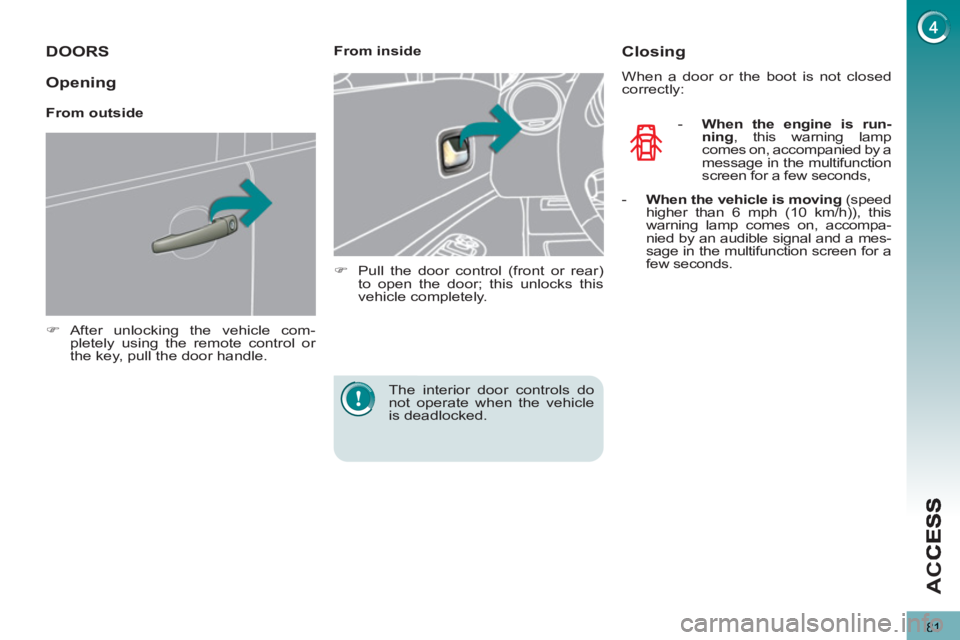

81
AC
C
DOORS


)
After unlocking the vehicle com-
pletely using the remote control or
the key, pull the door handle.



From inside


)
Pull the door control (front or rear)
to open the door; this unlocks this
vehicle completely.




The interior door controls do
not operate when the vehicle
is deadlocked.

Closing

When a door or the boot is not closed
correctly:


- When the engine is run-
ning
, this warning lamp
comes on, accompanied by a
message in the multifunction
screen for a few seconds, Opening

From outside

- When the vehicle is moving
(speed
higher than 6 mph (10 km/h)), this
warning lamp comes on, accompa-
nied by an audible signal and a mes-
sage in the multifunction screen for a
few seconds.

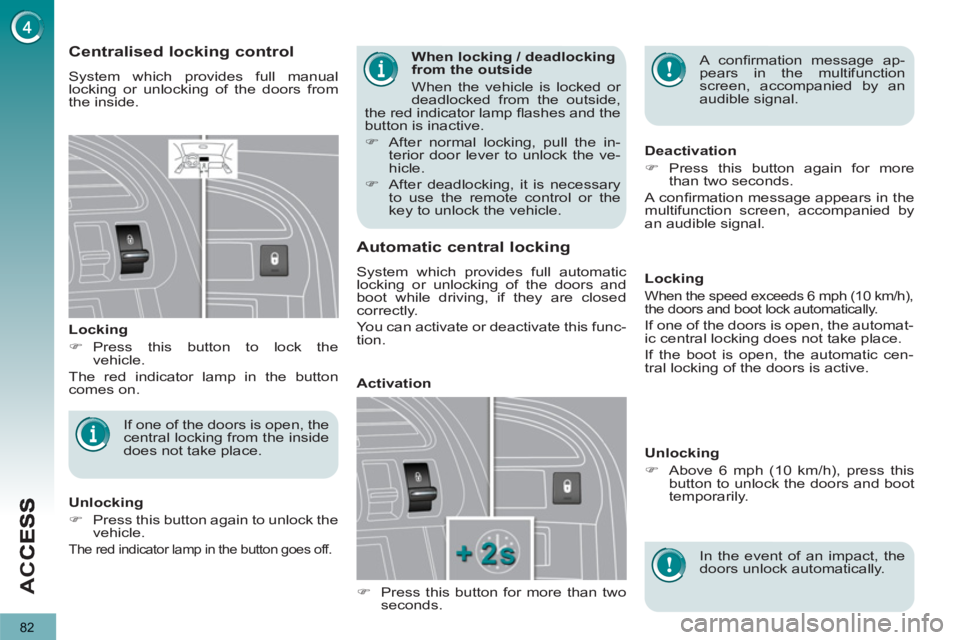

82
AC
C
A confi rmation message ap-
pears in the multifunction
screen, accompanied by an
audible signal. Centralised locking control

System which provides full manual
locking or unlocking of the doors from
the inside.

Locking


)
Press this button to lock the
vehicle.
The red indicator lamp in the button
comes on.
Automatic central locking
System which provides full automatic
locking or unlocking of the doors and
boot while driving, if they are closed
correctly.
You can activate or deactivate this func-
tion.
Locking

When the speed exceeds 6 mph (10 km/h),
the doors and boot lock automatically.
If one of the doors is open, the automat-
ic central locking does not take place.
If the boot is open, the automatic cen-
tral locking of the doors is active.
Deactivation


)
Press this button again for more
than two seconds.
A confi rmation message appears in the
multifunction screen, accompanied by
an audible signal.
If one of the doors is open, the
central locking from the inside
does not take place.

Unlocking


)
Press this button again to unlock the
vehicle.

The red indicator lamp in the button goes off.


Activation

In the event of an impact, the
doors unlock automatically.

Unlocking


)
Above 6 mph (10 km/h), press this
button to unlock the doors and boot
temporarily.



)
Press this button for more than two
seconds.
When locking / deadlocking
from the outside
When the vehicle is locked or
deadlocked from the outside,
the red indicator lamp fl ashes and the
button is inactive.


)
After normal locking, pull the in-
terior door lever to unlock the ve-
hicle.

)
After deadlocking, it is necessary
to use the remote control or the
key to unlock the vehicle.

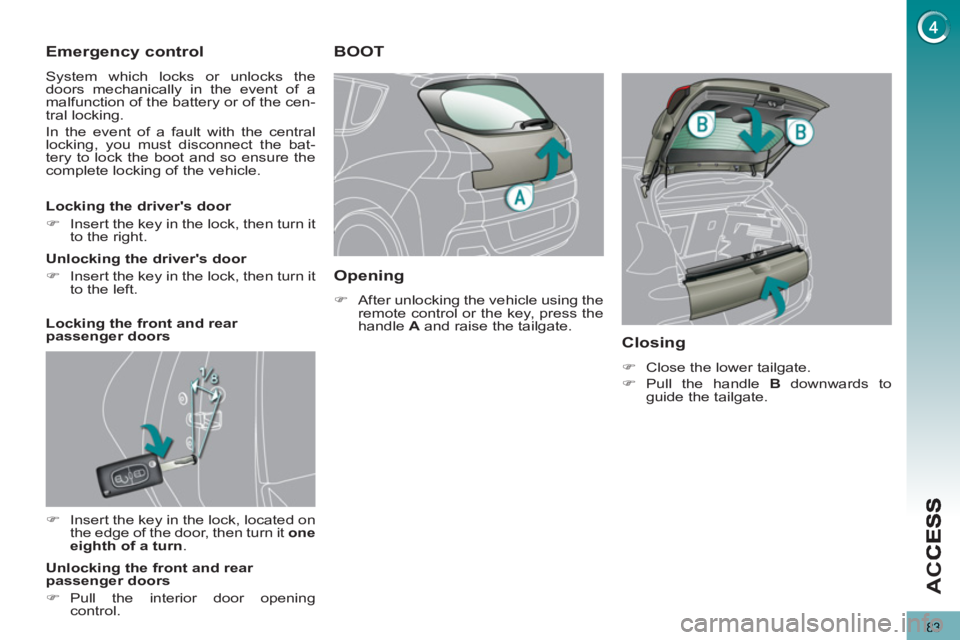

83
AC
C
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the cen-
tral locking.
In the event of a fault with the central
locking, you must disconnect the bat-
tery to lock the boot and so ensure the
complete locking of the vehicle.


)
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn
.

Locking the driver's door


)
Insert the key in the lock, then turn it
to the right.


Unlocking the driver's door


)
Insert the key in the lock, then turn it
to the left.


Locking the front and rear
passenger doors

Unlocking the front and rear
passenger doors


)
Pull the interior door opening
control.




Opening



)
After unlocking the vehicle using the
remote control or the key, press the
handle A
and raise the tailgate.

BOOT
Closin
g


)
Close the lower tailgate.

)
Pull the handle B
downwards to
guide the tailgate.

84
AC
C
LOWER TAILGATE

Openin
g



)
Push the handle C
to the right and
tilt the tailgate D
gently.

Closing



)
Raise the tailgate D
, push it fully to
close it, check that it is secured cor-
rectly.
Before opening the boot, en-
sure that no one is within the
radius of opening.
For reasons of safety, correct opera-
tion and compliance with regulations,
do not drive with the boot and the
lower tailgate open.
If the battery is disconnected, the
boot cannot be opened.
Do not climb onto the lower tailgate
and do not subject it to heavy knocks,
it may be damaged.
Always close the lower tailgate and
check that it is secured correctly be-
fore closing the boot.
When closing the lower tailgate, en-
sure that no person or object is in the
proximity of the moving parts to avoid
any risk of injury or damage.

Do not open the lower tailgate
when a towbar is fi tted.

Maximum authorised weight
on the lower tailgate when
open: 200 kg
.

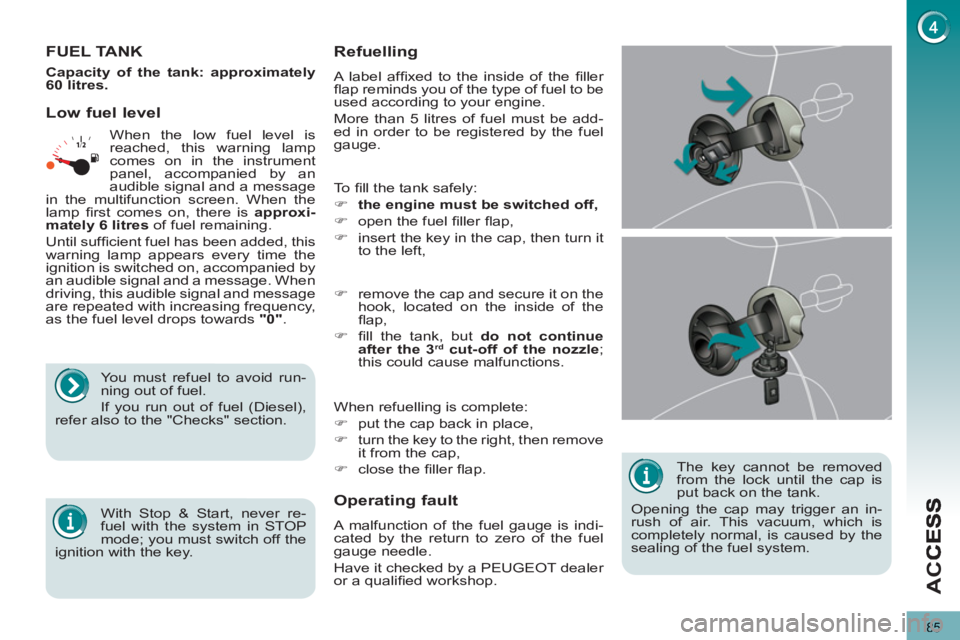

85
AC
C

The key cannot be removed
from the lock until the cap is
put back on the tank.
Opening the cap may trigger an in-
rush of air. This vacuum, which is
completely normal, is caused by the
sealing of the fuel system.
FUEL TANK


To fi ll the tank safely:


)
the engine must be switched off,


)
open the fuel fi ller fl ap,

)
insert the key in the cap, then turn it
to the left,


When refuelling is complete:


)
put the cap back in place,

)
turn the key to the right, then remove
it from the cap,

)
close the fi ller fl ap.




)
remove the cap and secure it on the
hook, located on the inside of the
fl ap,

)
fi ll the tank, but do not continue
after the 3
rd cut-off of the nozzle
;
this could cause malfunctions.

Low fuel level

Operatin
g fault

A malfunction of the fuel gauge is indi-
cated by the return to zero of the fuel
gauge needle.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.


Refuelling

A label affi xed to the inside of the fi ller
fl ap reminds you of the type of fuel to be
used according to your engine.
More than 5 litres of fuel must be add-
ed in order to be registered by the fuel
gauge. When the low fuel level is
reached, this warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a message
in the multifunction screen. When the
lamp fi rst comes on, there is approxi-
mately
6 litres
of fuel remaining.
Until suffi cient fuel has been added, this
warning lamp appears every time the
ignition is switched on, accompanied by
an audible signal and a message. When
driving, this audible signal and message
are repeated with increasing frequency,
as the fuel level drops towards "0"
.

You must refuel to avoid run-
ning out of fuel.
If you run out of fuel (Diesel),
refer also to the "Checks" section.







With Stop & Start, never re-
fuel with the system in STOP
mode; you must switch off the
ignition with the key.

Capacity of the tank: approximately
60 litres.

DIESEL
86
AC
C
Quality of the fuel used for petrol engines

The petrol engines are perfectly com-
patible with E10 or E24 type petrol
biofuels (containing 10 % or 24 % etha-
nol), conforming to European standards
EN 228 and EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type).
For Russia only, the use of RON 92 un-
leaded petrol is possible.

Quality of the fuel used for Diesel engines


The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Contact a
PEUGEOT dealer or a qualifi ed work-
shop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).

(DIESEL)
*

Mechanical device which prevents fi lling
the tank of a Diesel vehicle with petrol. It
avoids the risk of engine damage that can
result from fi lling with the wrong fuel.
Located in the fi ller neck, the misfuel
prevention device appears when the
fi ller cap is removed.


Operation

When a petrol fi ller nozzle is introduced into
the fuel fi ller neck of your Diesel vehicle, it
comes into contact with the fl ap. The sys-
tem remains closed and prevents fi lling.


Do not persist but introduce a Diesel
type fi ller nozzle.


It remains possible to use a
fuel can to fi ll the tank.
In order to ensure a good fl ow
of fuel, do not place the nozzle of the
fuel can in direct contact with the fl ap
of the misfuel prevention device and
pour slowly.

Travelling abroad
As Diesel fuel pump nozzles may be dif-
ferent in other countries, the presence
of the misfuel prevention device may
make refuelling impossible.
Before travelling abroad, we recommend
that you check with the PEUGEOT dealer
network, whether your vehicle is suitable
for the fuel pumps in the country in which
you want to travel.


*
According to country of sale.
