2013 PEUGEOT 3008 Owners Manual

7

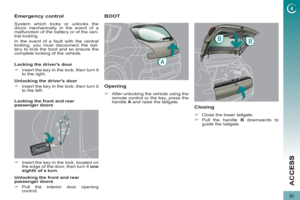

ACCESS
Boot

Opening


)
After unlocking the vehicle using the
remote control or the key, press the
handle A
and lift the tailgate.


Closing


)
After closing the lower tailgate, pull
the handle B
downwards to guide
the tailgate.

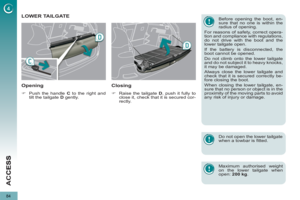

Lower tailgate

83
Opening


)
Push the handle C
to the right and
tilt the tailgate D
.


Closing


)
Raise the tailgate D
, push it fully to
close it, check that it is locked cor-
rectly.

84

8

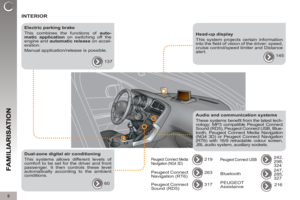

INTERIOR

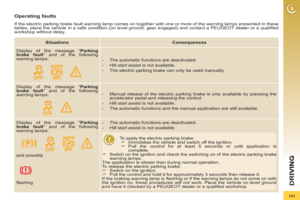

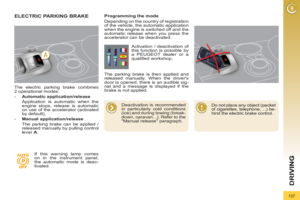

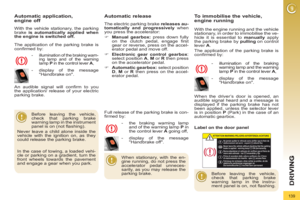

Electric parking brake
This combines the functions of auto-
matic application
on switching off the
engine and automatic release
on accel-
eration.
Manual application/release is possible.
137

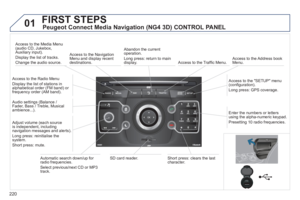

Audio and communication systems
These systems benefi t from the latest tech-
nology: MP3 compatible Peugeot Connect
Sound (RD5), Peugeot Connect USB, Blue-
tooth, Peugeot Connect Media Navigation
(NG4 3D) or Peugeot Connect Navigation
(RT6) with 16/9 retractable colour screen,
JBL audio system, auxiliary sockets.
219

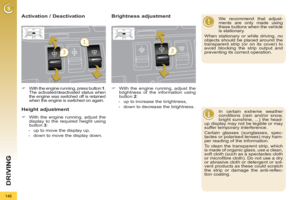

Head-up display
This system projects certain information
into the fi eld of vision of the driver: speed,
cruise control/speed limiter and Distance
alert.
145

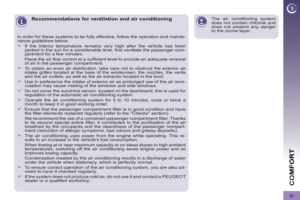

Dual-zone digital air conditioning
This systems allows different levels of
comfort to be set for the driver and front
passenger. It then controls these level
automatically according to the ambient
conditions.
60 Peugeot Connect
Navigation (RT6) 263
317
Peugeot Connect
Sound (RD5)

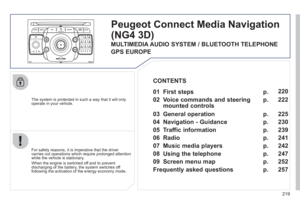

Peugeot Connect Media
Navigation (NG4 3D) Peugeot Connect USB
242,
298,
324
247,
285,
327 Bluetooth
PEUGEOT
Assistance 216

9
INSTRUMENTS AND CONTROLS

1.
Cruise control / speed limiter
switches.

2.
Steering wheel adjustment control.

3.
Lighting and direction indicator
control stalk.

4.
Instrument panel.

5.
Driver's airbag.
Horn.

6.
Gear lever.

7.
Electric parking brake.

8.
Front armrest - Peugeot Connect
USB and/or auxiliary socket.

9.
Bonnet release.

10.
Driver's storage compartment
(Handbook).

11 .
Alarm button.
Parking sensors button.
Dynamic stability control button
(ESC/ASR).
Stop & Start deactivation button.

12.
Manual headlamp adjustment.

13.
Door mirror controls.
Electric window controls.
Child lock.

14.
Front side window demisting vent.

15.
Windscreen demisting vent.

10
INSTRUMENTS AND CONTROLS



1.
Steering lock and ignition.

2.
Audio and telematics system
steering mounted control.

3.
Wipers / screenwash / trip computer
control stalk.

4.
Central adjustable air vents.

5.
Head-up display.

6.
Multifunction screen.

7.
Deactivation of the passenger's
airbag.

8.
Side adjustable air vent.

9.
Glove box - Audio/video sockets.

10.
Storage compartment with net.

11 .
Grip control switch.

12.
12V accessory socket.

13.
Grab handle.

14.
Heating / air conditioning controls.

15.
Audio and telematics system.

16.
Buttons:
- head-up display,
- hazard warning lamps,
- Distance alert,
- central locking.

11

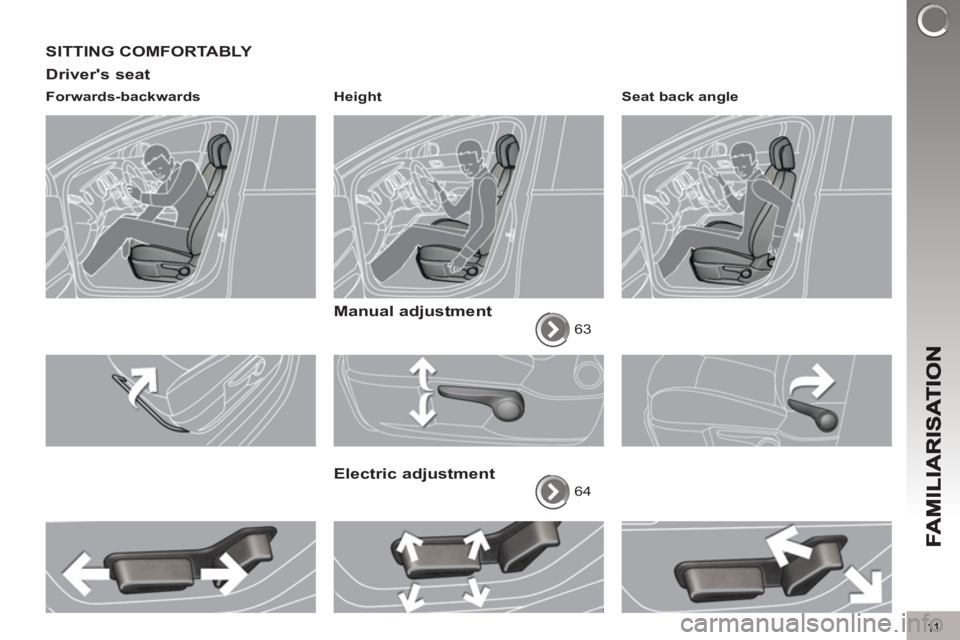

SITTING COMFORTABLY
Driver's seat

Forwards-backwards
Height



Manual adjustment

63


Electric adjustment

64
Seat back angle

12
SITTING COMFORTABLY

Front seats


Head restraint height and
angle

Lumbar
65

Steering wheel adjustment



1.
Release the steering wheel.

2.
Adjust for height and reach.

3.
Lock the steering wheel.
As a safety precaution, these opera-
tions must only be carried out when sta-
tionary.
71

Table position(front passenger seat)

To place objects on the table or to make
the loading of long objects in the vehicle
easier.
66


Front armrest

This incorporates the Peugeot Connect USB
and/or a JACK auxiliary socket.
101

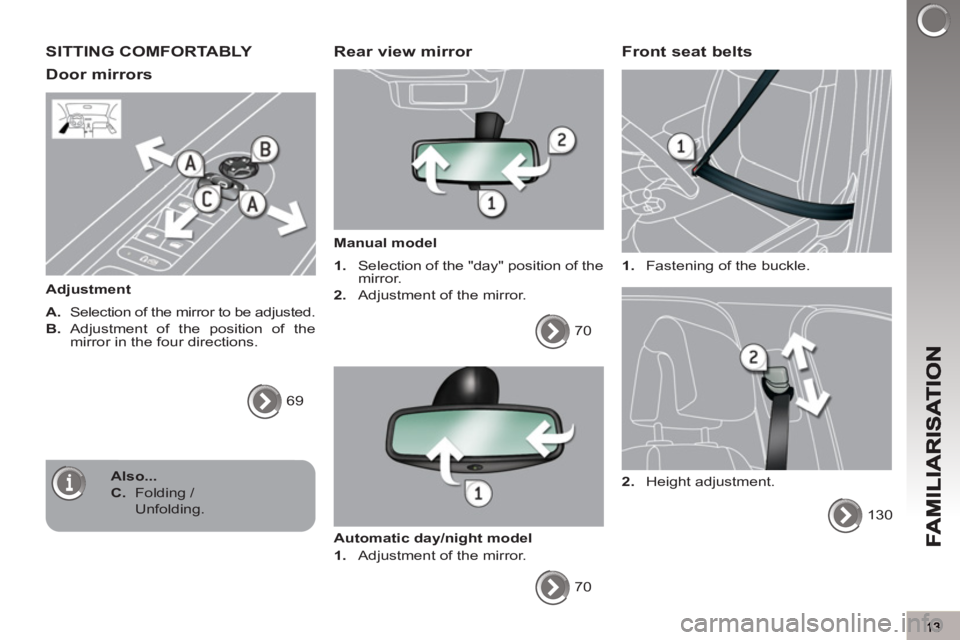

SITTING COMFORTABLY
Door mirrors

Adjustment

A.
Selection of the mirror to be adjusted.

B.
Adjustment of the position of the
mirror in the four directions.
69


Rear view mirror


Manual model


1.
Selection of the "day" position of the
mirror.

2.
Adjustment of the mirror.
70

Automatic day/night model


1.
Adjustment of the mirror.
70

Front seat belts



1.
Fastening of the buckle.
130
2.
Height adjustment.
Also...


C.
Folding /
Unfolding.

14
SEEING CLEARLY

Li
ghting


Ring A
Lighting off.

Ring B Sidelamps.
Dipped / main beam headlamps.
Rear foglamp.
or
Front and rear foglamps. Automatic illumination of head-
lamps.
87

Direction indicators

Raise or lower the lighting stalk passing
the point of resistance; the corresponding
direction indicators will fl ash for as long as
the stalk remains in this position.

"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
This function can be used at any speed,
but it is particularly useful when chang-
ing lane on high-speed roads.
124



Wipers


Stalk A: windscreen wipers

Switching on "AUTO"


)
Press the stalk down and release it.


Switching off "AUTO"


)
Push the stalk up and return it to po-
sition "0"
.
93

Ring B: rear wiper
Park.
Intermittent wipe.
Wash-wipe.
94
