2013 PEUGEOT 3008 Owners Manual

175

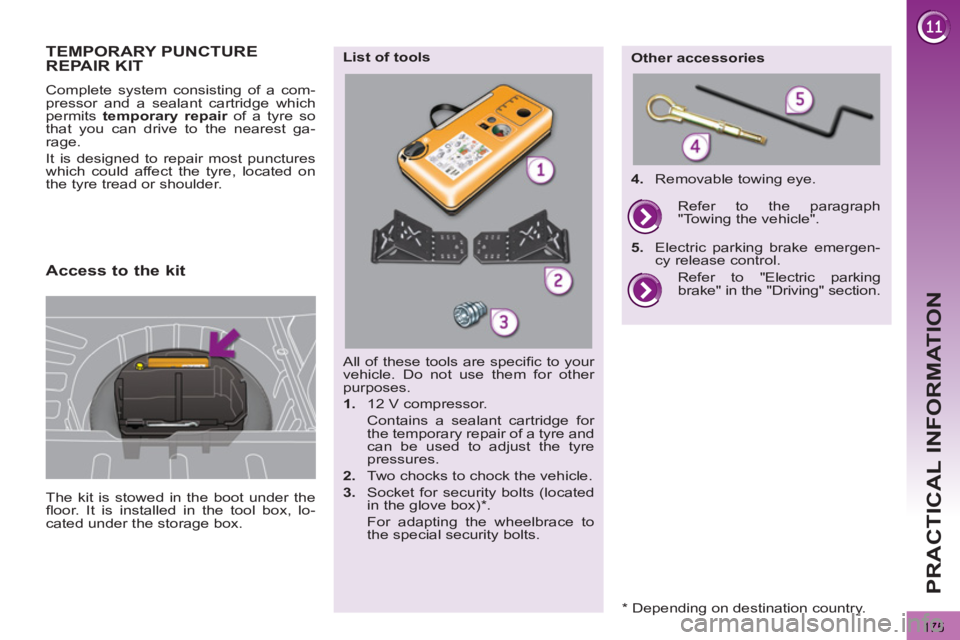

PRACTICAL INFORMATION
TEMPORARY PUNCTURE REPAIR KIT
The kit is stowed in the boot under the
fl oor. It is installed in the tool box, lo-
cated under the storage box.
Complete system consisting of a com-
pressor and a sealant cartridge which
permits temporary repair
of a tyre so
that you can drive to the nearest ga-
rage.
It is designed to repair most punctures
which could affect the tyre, located on
the tyre tread or shoulder.


All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.


1.
12 V compressor.
Contains a sealant cartridge for
the temporary repair of a tyre and
can be used to adjust the tyre
pressures.

2.
Two chocks to chock the vehicle.

3.
Socket for security bolts (located
in the glove box) * .
For adapting the wheelbrace to
the special security bolts.


List of tools

Other accessories

4.
Removable towing eye.
Refer to "Electric parking
brake" in the "Driving" section.
Refer to the paragraph
"Towing the vehicle".

5.
Electric parking brake emergen-
cy release control.

Access to the kit


* Depending on destination country.

176
PRACTICAL INFORMATION

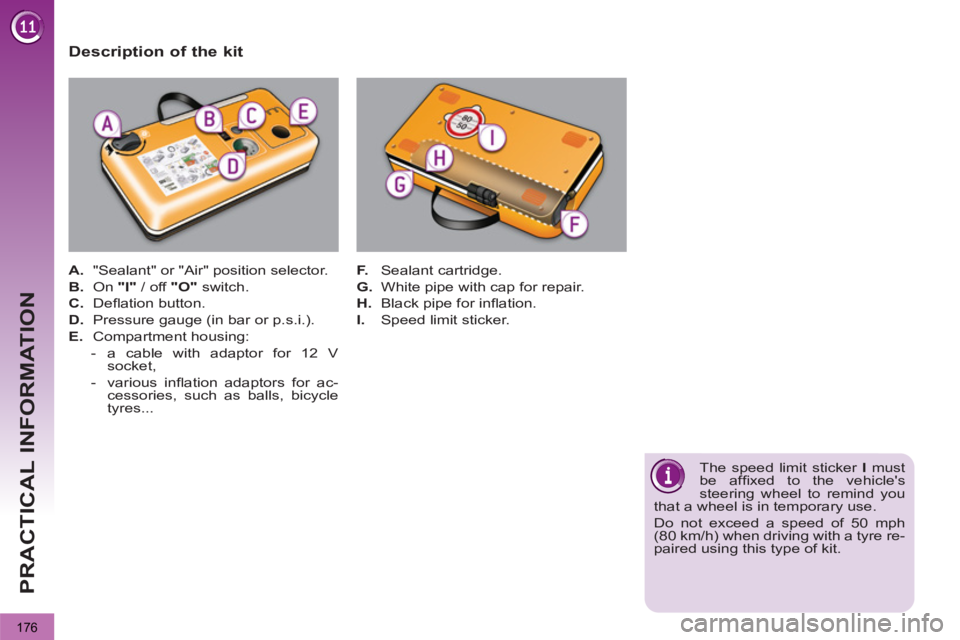

Description of the kit



A.
"Sealant" or "Air" position selector.

B.
On "I"
/ off "O"
switch.

C.
Defl ation button.

D.
Pressure gauge (in bar or p.s.i.).

E.
Compartment housing:


- a cable with adaptor for 12 V
socket,

- various infl ation adaptors for ac-
cessories, such as balls, bicycle
tyres...
F.
Sealant cartridge.

G.
White pipe with cap for repair.

H.
Black pipe for infl ation.

I.
Speed limit sticker.

The speed limit sticker I
must
be affi xed to the vehicle's
steering wheel to remind you
that a wheel is in temporary use.
Do not exceed a speed of 50 mph
(80 km/h) when driving with a tyre re-
paired using this type of kit.

177
PRACTICAL INFORMATION

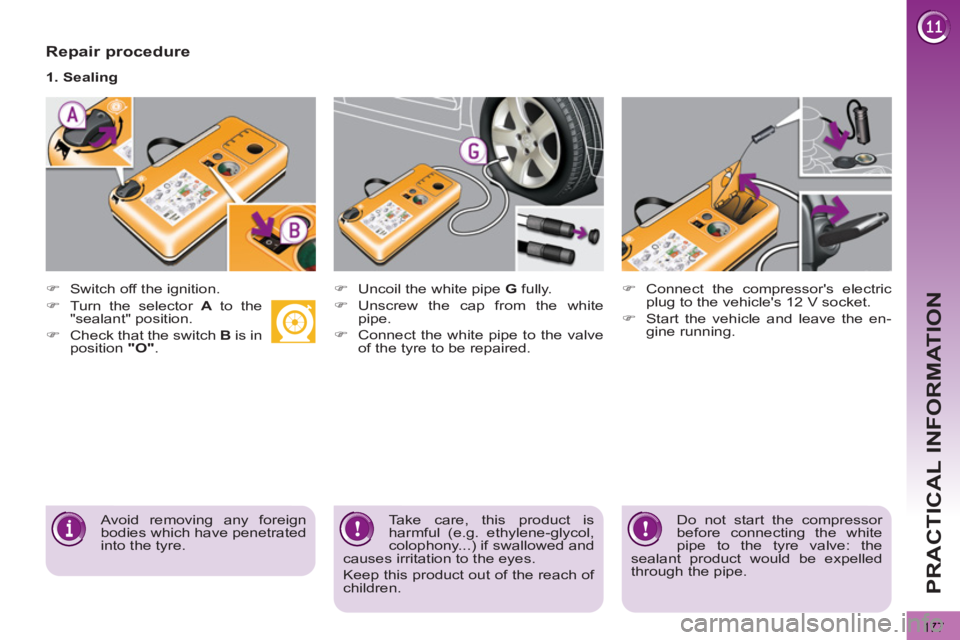

Repair procedure




)
Switch off the ignition.

1. Sealing



)
Uncoil the white pipe G
fully.

)
Unscrew the cap from the white
pipe.

)
Connect the white pipe to the valve
of the tyre to be repaired.



)
Connect the compressor's electric
plug to the vehicle's 12 V socket.

)
Start the vehicle and leave the en-
gine running.


Avoid removing any foreign
bodies which have penetrated
into the tyre.
Take care, this product is
harmful (e.g. ethylene-glycol,
colophony...) if swallowed and
causes irritation to the eyes.
Keep this product out of the reach of
children.
Do not start the compressor
before connecting the white
pipe to the tyre valve: the
sealant product would be expelled
through the pipe.


)
Turn the selector A
to the
"sealant" position.

)
Check that the switch B
is in
position "O"
.

178

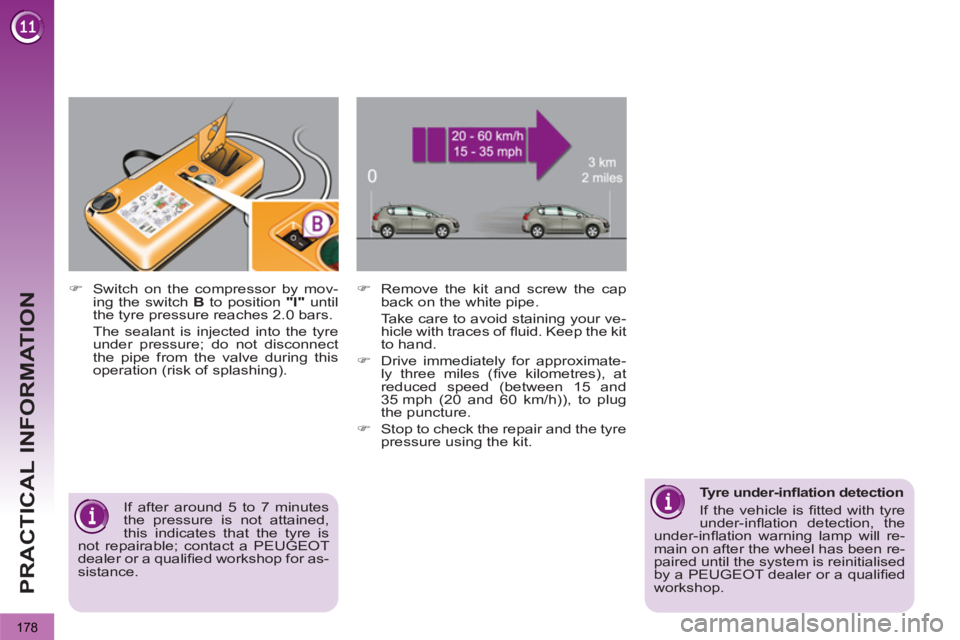

PRACTICAL INFORMATION



)
Remove the kit and screw the cap
back on the white pipe.
Take care to avoid staining your ve-
hicle with traces of fl uid. Keep the kit
to hand.

)
Drive immediately for approximate-
ly three miles (fi ve kilometres), at
reduced speed (between 15 and
35 mph (20 and 60 km/h)), to plug
the puncture.

)
Stop to check the repair and the tyre
pressure using the kit.



)
Switch on the compressor by mov-
ing the switch B
to position "I"
until
the tyre pressure reaches 2.0 bars.
The sealant is injected into the tyre
under pressure; do not disconnect
the pipe from the valve during this
operation (risk of splashing).


If after around 5 to 7 minutes
the pressure is not attained,
this indicates that the tyre is
not repairable; contact a PEUGEOT
dealer or a qualifi ed workshop for as-
sistance.



Tyre under-infl ation detection
If the vehicle is fi tted with tyre
under-infl ation detection, the
under-infl ation warning lamp will re-
main on after the wheel has been re-
paired until the system is reinitialised
by a PEUGEOT dealer or a qualifi ed
workshop.

179
PRACTICAL INFORMATION

As soon as possible, go to a
PEUGEOT dealer or a quali-
fi ed workshop.
You must inform the technician that
you have used this kit. After inspec-
tion, the technician will advise you on
whether the tyre can be repaired or if
it must be replaced.


)
Turn the selector A
to the
"air" position.

)
Uncoil the black pipe H
fully.

)
Connect the black pipe to the valve
of the wheel.



)
Connect the compressor's electric
plug to the vehicle's 12 V socket.

)
Start the vehicle again and leave the
engine running.



)
Adjust the pressure using the com-
pressor (to infl ate: switch B
in po-
sition "I"
; to defl ate: switch B
in
position "O"
and press button C
), in
accordance with the vehicle's tyre
pressure label (located on the left
hand door aperture).
A loss of pressure indicates that the
puncture has not been fully plugged;
contact a PEUGEOT dealer or qual-
ifi ed workshop for assistance.

)
Remove and stow the kit.

)
Drive at reduced speed (50 mph
[80 km/h] max) limiting the distance
travelled to approximately 120 miles
(200 km).


2. Infl ation

180
PRACTICAL INFORMATION

Removing the cartridge




)
Stow the black pipe.

)
Detach the angled base from the
white pipe.

)
Support the compressor vertically.

)
Unscrew the cartridge from the
bottom.


Beware of discharges of fl uid.
The expiry date of the fl uid is
indicated on the cartridge.
The sealant cartridge is designed for
single use; even if only partly used, it
must be replaced.
After use, do not discard the car-
tridge into the environment, take it to
an authorised waste disposal site or
a PEUGEOT dealer.
Do not forget to obtain a new sealant
cartridge, available from PEUGEOT
dealers or from a qualifi ed workshop.



Checking tyre pressures /
inflating accessories



)
Turn the selector A
to the
"Air" position.

)
Uncoil the black pipe H
fully.

)
Connect the black pipe to the valve
of the wheel or accessory.
If necessary, fi t one of the adaptors
supplied with the kit fi rst.

You can also use the compressor, with-
out injecting any product, to:


- check or adjust the pressure of your
tyres,

- infl ate other accessories (balls, bi-
cycle tyres...).




)
Connect the compressor's electri-
cal connector to the vehicle's 12 V
socket.

)
Start the vehicle and let the engine
run.

)
Adjust the pressure using the com-
pressor (to infl ate: switch B
in po-
sition "I"
; to defl ate: switch B
in
position "O"
and press button C
),
according to the vehicle's tyre pres-
sure label or the accessory's pres-
sure label.

)
Remove the kit then stow it.

181
PRACTICAL INFORMATION

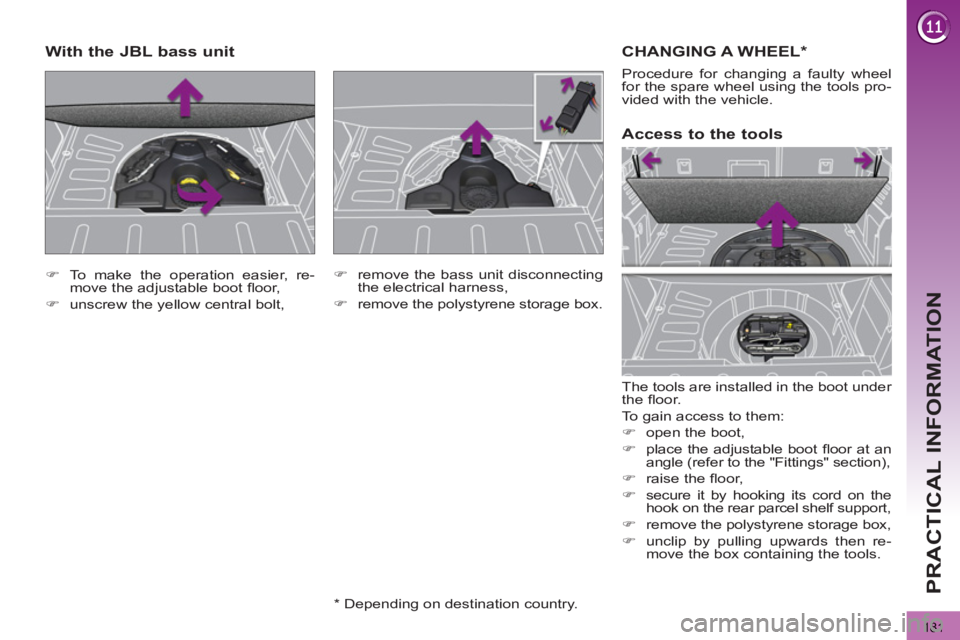

CHANGING A WHEEL *

The tools are installed in the boot under
the fl oor.
To gain access to them:


)
open the boot,

)
place the adjustable boot fl oor at an
angle (refer to the "Fittings" section),

)
raise the fl oor,

)
secure it by hooking its cord on the
hook on the rear parcel shelf support,

)
remove the polystyrene storage box,

)
unclip by pulling upwards then re-
move the box containing the tools.


Access to the tools

Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.


)
To make the operation easier, re-
move the adjustable boot fl oor,

)
unscrew the yellow central bolt,
















With the JBL bass unit


)
remove the bass unit disconnecting
the electrical harness,

)
remove the polystyrene storage box.


* Depending on destination country.

182

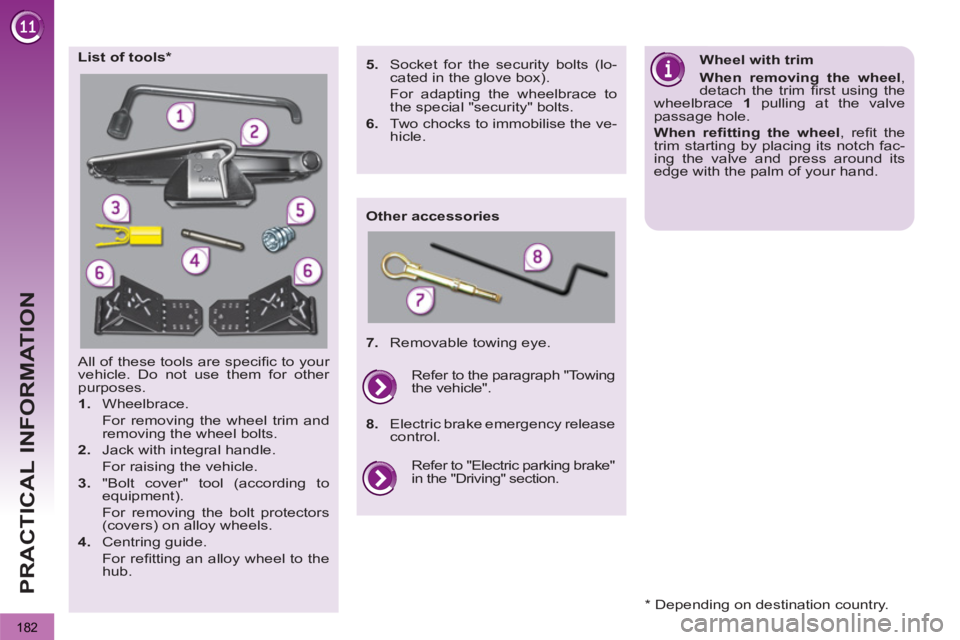

PRACTICAL INFORMATION
All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.


1.
Wheelbrace.
For removing the wheel trim and
removing the wheel bolts.

2.
Jack with integral handle.
For raising the vehicle.

3.
"Bolt cover" tool (according to
equipment).
For removing the bolt protectors
(covers) on alloy wheels.

4.
Centring guide.
For refi tting an alloy wheel to the
hub.
List of tools *

Other accessories
Wheel with trim

When removing the wheel
,
detach the trim fi rst using the
wheelbrace 1
pulling at the valve
passage hole.

When refi tting the wheel
, refi t the
trim starting by placing its notch fac-
ing the valve and press around its
edge with the palm of your hand.

5.
Socket for the security bolts (lo-
cated in the glove box).
For adapting the wheelbrace to
the special "security" bolts.

6.
Two chocks to immobilise the ve-
hicle.


7.
Removable towing eye.
Refer to "Electric parking brake"
in the "Driving" section. Refer to the paragraph "Towing
the vehicle".

8.
Electric brake emergency release
control.

* Depending on destination country.
