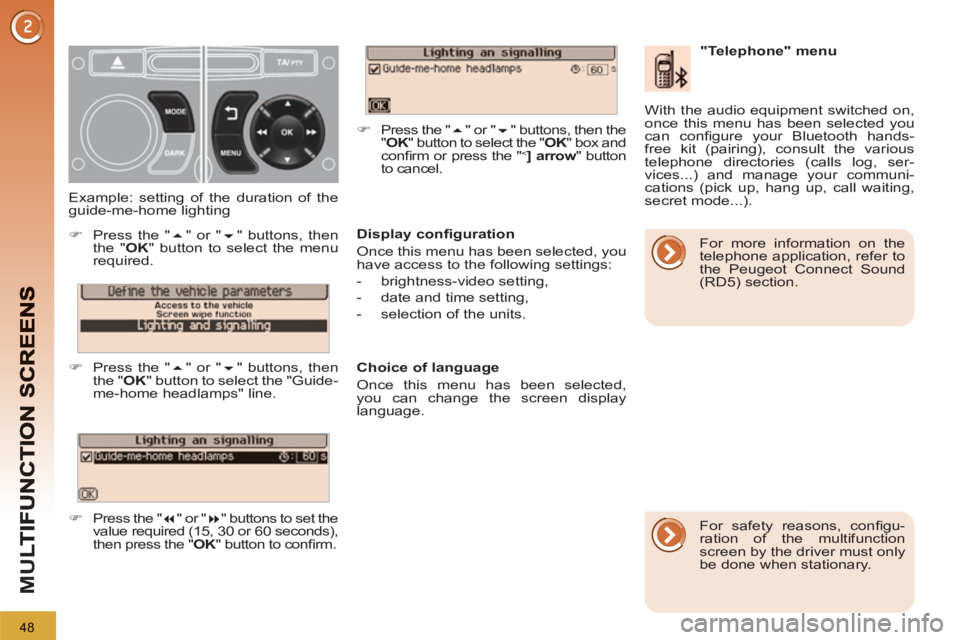

48
M
U

Display confi guration
Once this menu has been selected, you
have access to the following settings:


- brightness-video setting,

- date and time setting,

- selection of the units.


Choice of language
Once this menu has been selected,
you can change the screen display
language.
Example: setting of the duration of the
guide-me-home lighting


)
Press the "
" or "
" buttons, then
the " OK
" button to select the menu
required.




)
Press the "
" or "
" buttons, then
the " OK
" button to select the "Guide-
me-home headlamps" line.




)
Press the "
" or "
" buttons to set the
value required (15, 30 or 60 seconds),
then press the " OK
" button to confi rm.



)
Press the "
" or "
" buttons, then the
" OK
" button to select the " OK
" box and
confi rm or press the "
<
] arrow
" button
to cancel.



"Telephone" menu
With the audio equipment switched on,
once this menu has been selected you
can confi gure your Bluetooth hands-
free kit (pairing), consult the various
telephone directories (calls log, ser-
vices...) and manage your communi-
cations (pick up, hang up, call waiting,
secret mode...).

For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.

For more information on the
telephone application, refer to
the Peugeot Connect Sound
(RD5) section.

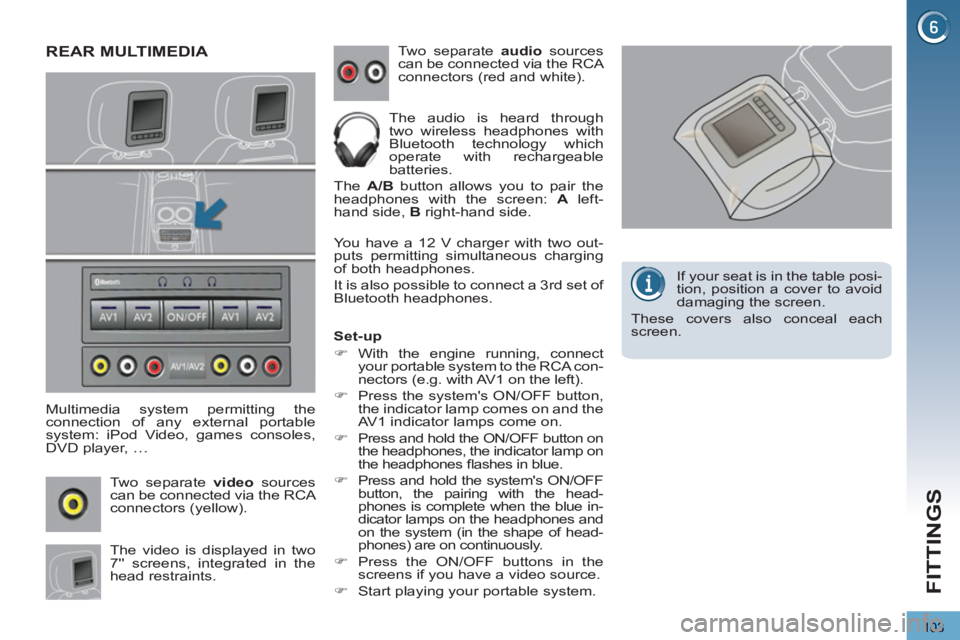

103
FITTINGS
REAR MULTIMEDIA

Multimedia system permitting the
connection of any external portable
system: iPod Video, games consoles,
DVD player, …
Two separate video
sources
can be connected via the RCA
connectors (yellow).
The video is displayed in two
7'' screens, integrated in the
head restraints. Two separate audio
sources
can be connected via the RCA
connectors (red and white).
The audio is heard through
two wireless headphones with
Bluetooth technology which
operate with rechargeable
batteries.
The A/B
button allows you to pair the
headphones with the screen: A
left-
hand side, B
right-hand side.

You have a 12 V charger with two out-
puts permitting simultaneous charging
of both headphones.
It is also possible to connect a 3rd set of
Bluetooth headphones.

Set-up


)
With the engine running, connect
your portable system to the RCA con-
nectors (e.g. with AV1 on the left).

)
Press the system's ON/OFF button,
the indicator lamp comes on and the
AV1 indicator lamps come on.

)
Press and hold the ON/OFF button on
the headphones, the indicator lamp on
the headphones fl ashes in blue.

)
Press and hold the system's ON/OFF
button, the pairing with the head-
phones is complete when the blue in-
dicator lamps on the headphones and
on the system (in the shape of head-
phones) are on continuously.

)
Press the ON/OFF buttons in the
screens if you have a video source.

)
Start playing your portable system.

If your seat is in the table posi-
tion, position a cover to avoid
damaging the screen.
These covers also conceal each
screen.

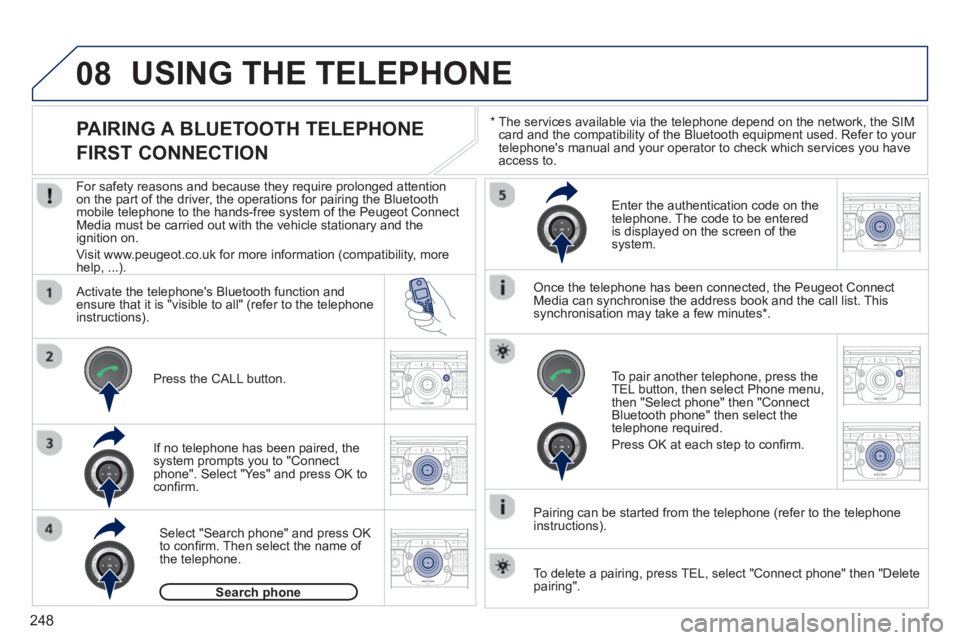

248
08
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV TRAFFIC
SETUPADDR
BOOK2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV TRAFFIC
SETUPADDR
BOOK
*

The services available via the telephone depend on the network, the SIMcard and the compatibility of the Bluetooth equipment used. Refer to your
telephone's manual and your operator to check which services you haveaccess to.
USING THE TELEPHONE











PAIRING A BLUETOOTH TELEPHONE
FIRST CONNECTION

For safety reasons and because they require prolonged attentionon the part of the driver, the operations for pairing the Bluetooth mobile telephone to the hands-free system of the Peugeot ConnectMedia must be carried out with the vehicle stationary and theignition on.
Visit www.peu
geot.co.uk for more information (compatibility, morehelp, ...). p)


Activate the telephone's Bluetooth function andensure that it is "visible to all" (refer to the telephone
instructions).
If no tele
phone has been paired, the
system prompts you to "Connect
phone". Select "Yes" and press OK to confi rm.
Ent
er the authentication code on thetelephone. The code to be entered
is displayed on the screen of the system.

To pair another telephone, press the
TEL button, then select Phone menu,then "Select phone" then "Connect Bluetooth phone" then select the
telephone required.
Press
OK at each step to confi rm.
Once the telephone has been connected, the Peugeot ConnectMedia can synchronise the address book and the call list. This
synchronisation may take a few minutes * .
Pairin
g can be started from the telephone (refer to the telephone
instructions). Press the
CALL button.

Select "Search phone" and press OK
to confi rm. Then select the name of
the telephone.
Search phonep
To delete a pairing, press TEL, select "Connect phone" then "Delete
pairing".

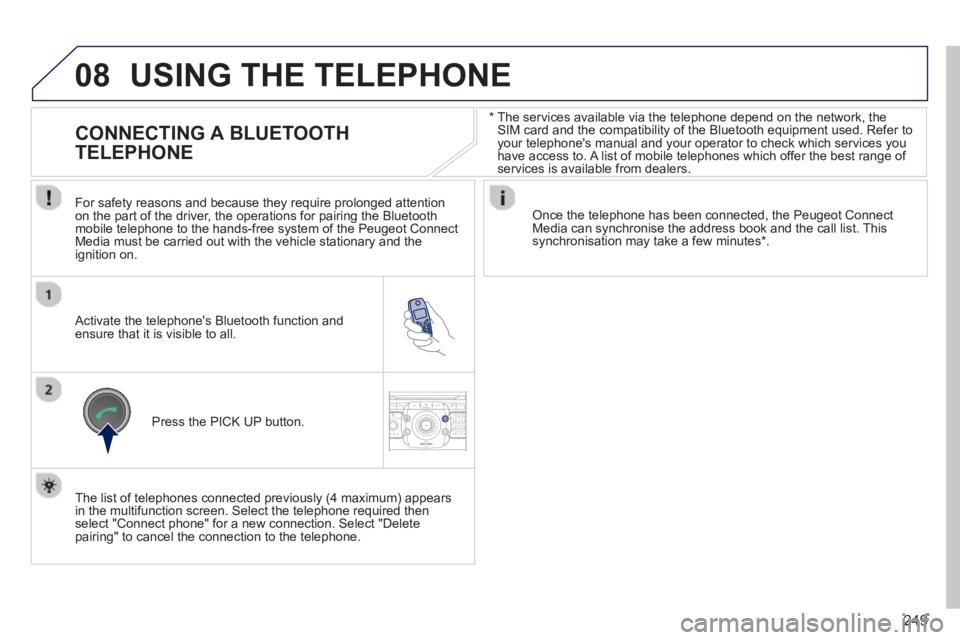

249
08
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV TRAFFIC
SETUPADDR
BOOK
*

The services available via the telephone depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Refer toyour telephone's manual and your operator to check which services you have access to. A list of mobile telephones which offer the best range of services is available from dealers.

USING THE TELEPHONE
CONNECTING A BLUETOOTH
TELEPHONE
For safety reasons and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetoothmobile telephone to the hands-free system of the Peugeot ConnectMedia must be carried out with the vehicle stationary and the
ignition on.

Activate the telephone's Bluetooth function and ensure that it is visible to all.
Once the telephone has been connected, the Peugeot Connect Media can synchronise the address book and the call list. This synchronisation may take a few minutes * .


Press the PI
CK UP button.
The list of telephones connected previousl
y (4 maximum) appears
in the multifunction screen. Select the telephone required then
select "Connect phone" for a new connection. Select "Delete pairing" to cancel the connection to the telephone.

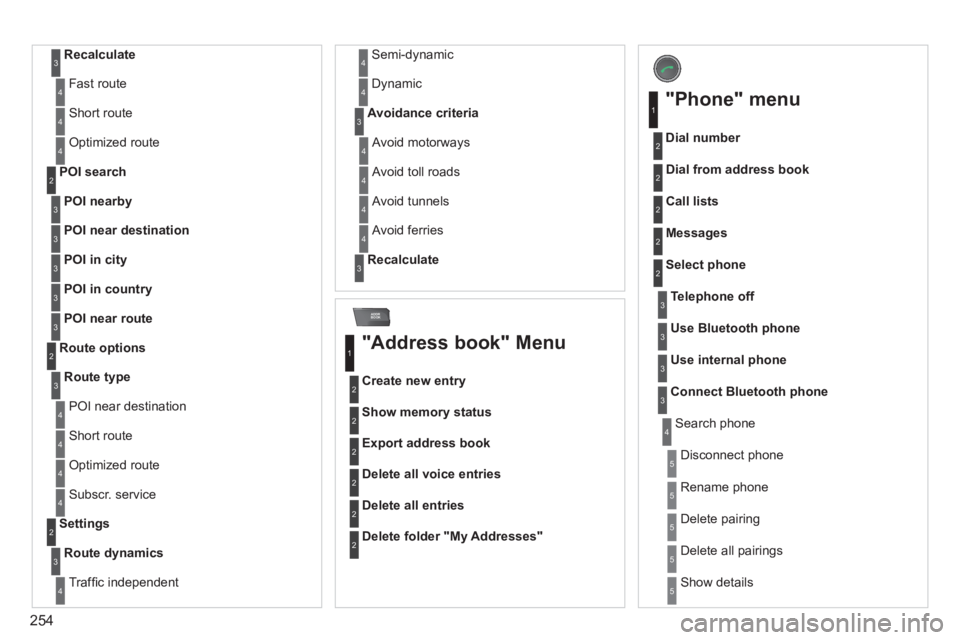

254
ADDR
BOOK
Recalculate3
Fast route4
Short route 4
Optimized route 4
POI nearby
POI search2
3
POI near destination3
POI in city3
POI in country3
POI near route3
Route type
Route options2
3

POI near destination4
Short route 4
Optimized route 4
Subscr. service4
Route dynamics
Settings2
3

Traffi c independent4
Semi-dynamic4

Dynamic 4
Avoidance criteria3

Avoid motorways4

Avoid toll roads 4

Avoid tunnels4

Avoid ferries 4
Recalculate3
"Address book" Menu
Create new entry

1
2
Show memory status2
Export address book2
Delete all voice entries 2
Delete all entries 2
Delete folder "My Addresses"2


"Phone" menu


Dial number

1
2


Dial from address book2


Call lists2

Messages 2


Select phone2
Search phone4
Telephone off3
Use Bluetooth phone3
Use internal phone3
Connect Bluetooth phone3

Disconnect phone5
Rename phone 5

Delete pairing 5

Delete all pairings 5
Show details5

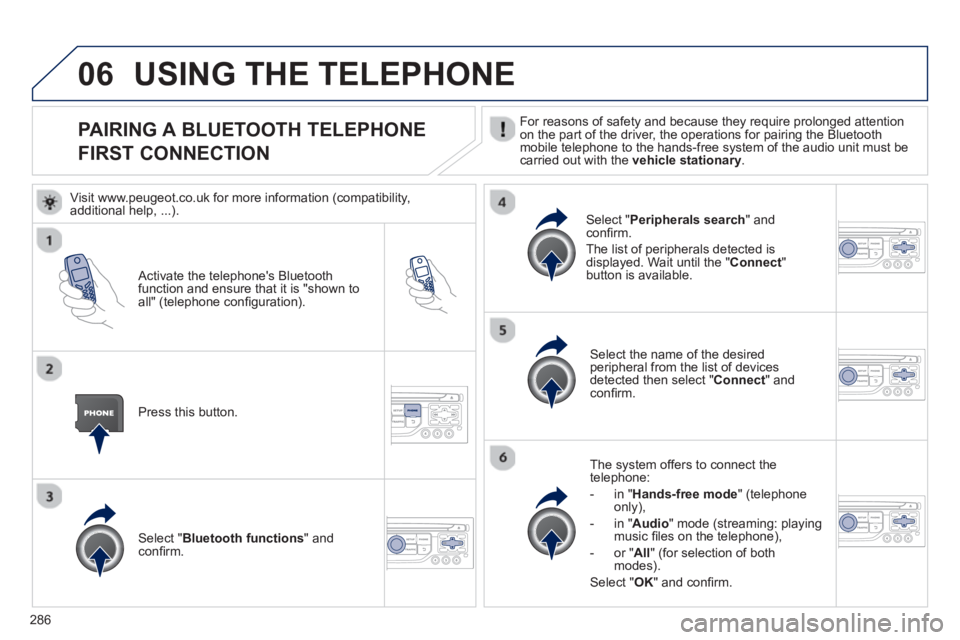

286
06
PAIRING A BLUETOOTH TELEPHONE
FIRST CONNECTION For reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetoothmobile telephone to the hands-free system of the audio unit must be carried out with the vehicle stationary.
Activate the telephone's Bluetoothfunction and ensure that it is "shown to all" (telephone confi guration).
Pr
ess this button.
Select the name of the desired
peripheral from the list of devices detected then select "Connect
" and confi rm.
The s
ystem offers to connect the
telephone:
-
in"Hands-free mode" (telephoneonly),
-
in "Audio" mode (streaming: playingmusic fi les on the telephone),
-
or "All
" (for selection of both
modes).
Select " OK
" and confi rm.
Select " Bluetooth functions " and confi rm.
Select "Peripherals search" andconfi rm.
The list of peripherals detected is
displayed. Wait until the " Connect"button is available.
USING THE TELEPHONE

Visit www.peugeot.co.uk for more information (compatibility,
additional help, ...).

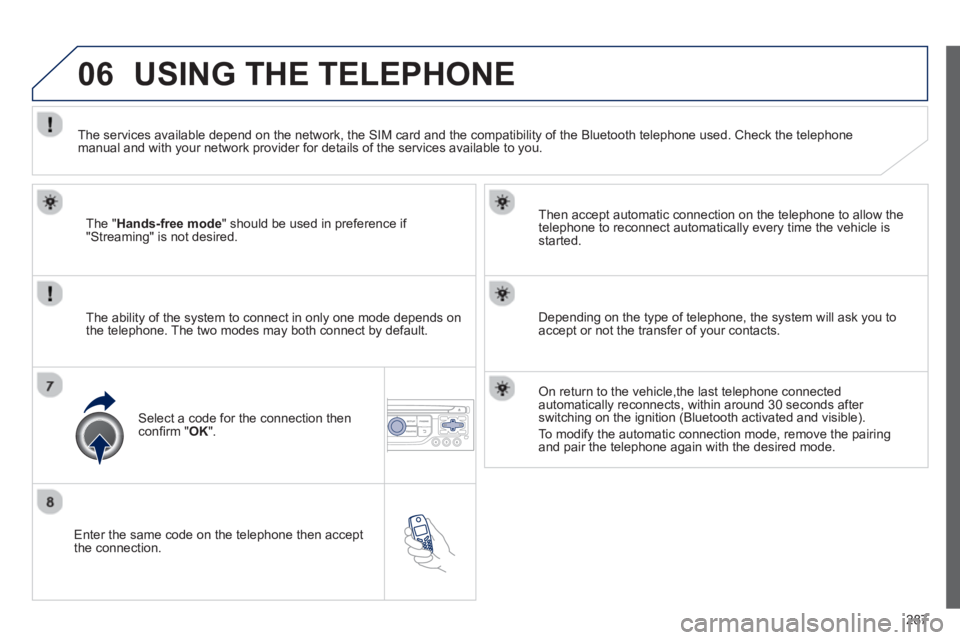

287
06
Enter the same code on the telephone then accept
the connection.
Then accept automatic connection on the telephone to allow the
te
lephone to reconnect automatically every time the vehicle is started.

The abilit
y of the system to connect in only one mode depends on
the telephone. The two modes may both connect by default.
USING THE TELEPHONE

The "Hands-free mode
" should be used in preference if "Streaming" is not desired.
The services available depend on the network, the
SIM card and the compatibility of the Bluetooth telephone used. Check the telephone manual and with your network provider for details of the services available to you.
Select a code for the connection thenconfi rm "OK".


Depending on the type of telephone, the system will ask you to
accept or not the transfer of your contacts.

On return to the vehicle,the last telephone connected
automatically reconnects, within around 30 seconds after switching on the ignition (Bluetooth activated and visible).
To modi
fy the automatic connection mode, remove the pairingand pair the telephone again with the desired mode.

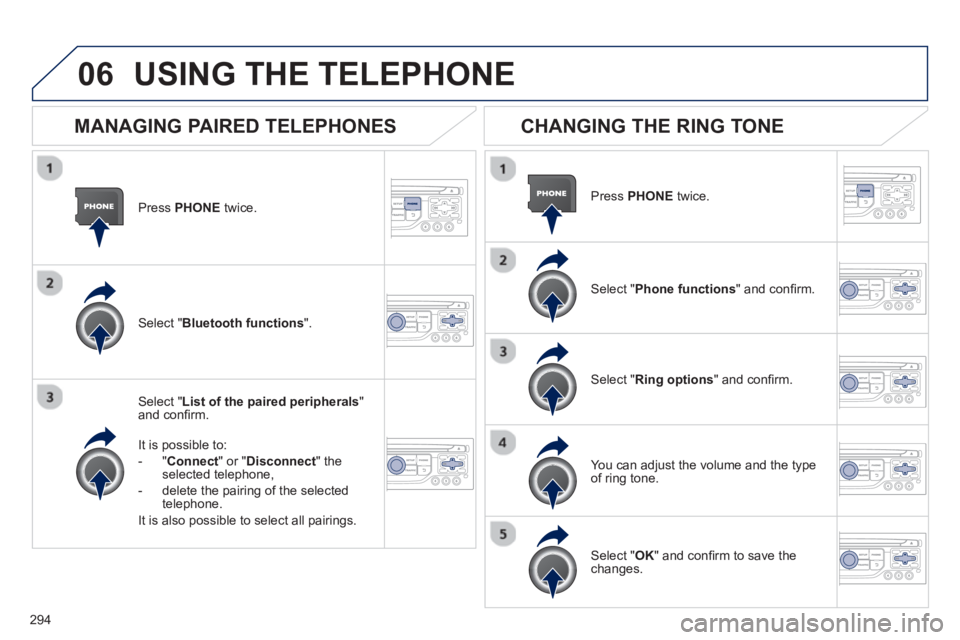

294
06
Press PHONEtwice.
Select " List of the paired peripherals"and confi rm.
It is
possible to:
-"Connec
t" or " Disconnect
" theselected telephone,
- delete the pairin
g of the selected
telephone.
It is also possible to select all pairings.

USING THE TELEPHONE


MANAGING PAIRED TELEPHONES
CHANGING THE RING TONE
Press PHONEtwice.
Select " Phone functions
" and confi rm.
Select " Ring options" and confi rm.
You can ad
just the volume and the type
of ring tone.
Select " Bluetooth functions".
Select " OK
" and confi rm to save thechanges.
