2013 NISSAN QUEST Owners Manual

Black plate (133,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

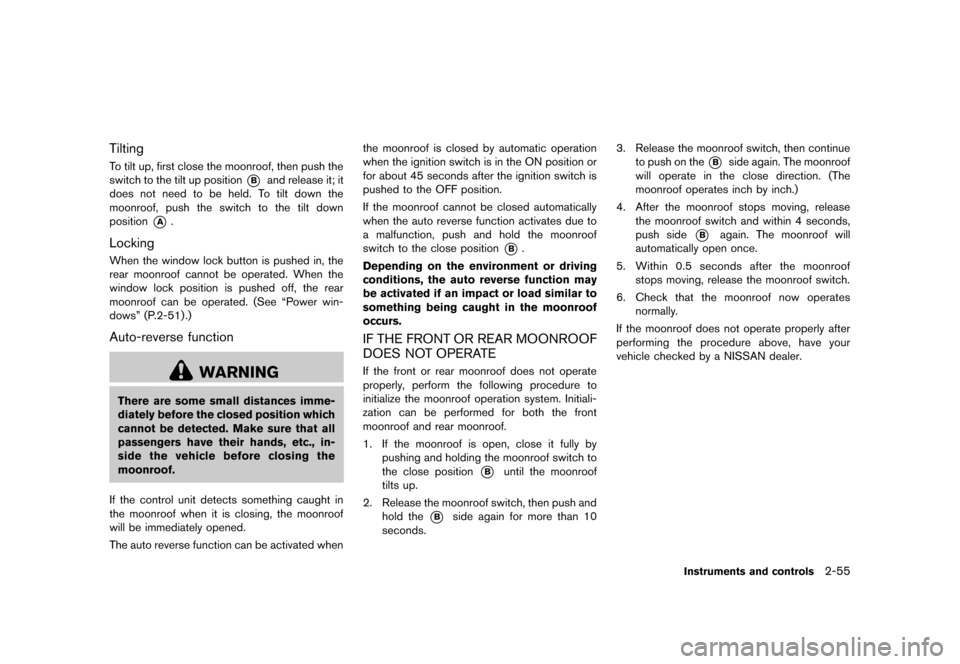

TiltingGUID-71C9D819-F26A-4EE7-848B-DF749AB96C52To tilt up, first close the moonroof, then push the
switch to the tilt up position
*Band release it; it
does not need to be held. To tilt down the
moonroof, push the switch to the tilt down
position
*A.
LockingGUID-2B4725F8-8023-4BBB-9A25-2063EA7D24B0When the window lock button is pushed in, the
rear moonroof cannot be operated. When the
window lock position is pushed off, the rear
moonroof can be operated. (See “Power win-
dows” (P.2-51) .)
Auto-reverse functionGUID-42AC8800-B709-488D-ADE1-B48120CFF197
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
moonroof.
If the control unit detects something caught in
the moonroof when it is closing, the moonroof
will be immediately opened.
The auto reverse function can be activated when the moonroof is closed by automatic operation
when the ignition switch is in the ON position or
for about 45 seconds after the ignition switch is
pushed to the OFF position.
If the moonroof cannot be closed automatically
when the auto reverse function activates due to
a malfunction, push and hold the moonroof
switch to the close position
*B.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.
IF THE FRONT OR REAR MOONROOF
DOES NOT OPERATE
GUID-837D8DA1-D393-41F7-9FCA-B31DD791AD27If the front or rear moonroof does not operate
properly, perform the following procedure to
initialize the moonroof operation system. Initiali-
zation can be performed for both the front
moonroof and rear moonroof.
1. If the moonroof is open, close it fully by pushing and holding the moonroof switch to
the close position
*Buntil the moonroof
tilts up.
2. Release the moonroof switch, then push and hold the
*Bside again for more than 10
seconds. 3. Release the moonroof switch, then continue
to push on the
*Bside again. The moonroof
will operate in the close direction. (The
moonroof operates inch by inch.)
4. After the moonroof stops moving, release the moonroof switch and within 4 seconds,
push side
*Bagain. The moonroof will
automatically open once.
5. Within 0.5 seconds after the moonroof
stops moving, release the moonroof switch.
6. Check that the moonroof now operates
normally.
If the moonroof does not operate properly after
performing the procedure above, have your
vehicle checked by a NISSAN dealer.
Instruments and controls2-55
Condition:

Black plate (134,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
2-56Instruments and controls
GUID-08475AB5-E7EE-444D-B54C-04FD913450AB

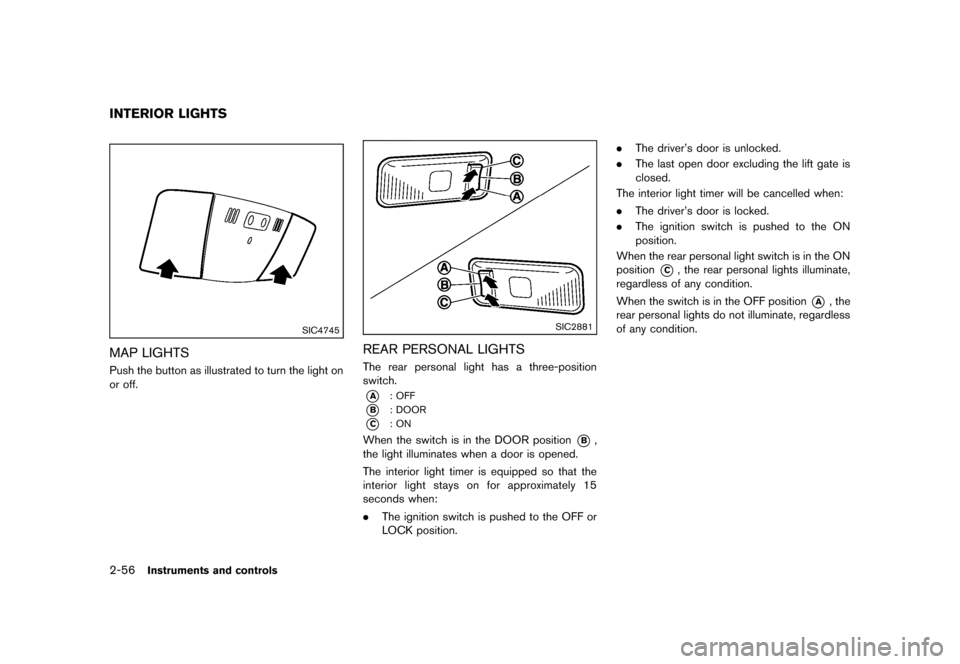

SIC4745
MAP LIGHTSGUID-E985AFC5-D8DB-4646-8101-A8DD86745424Push the button as illustrated to turn the light on
or off.
SIC2881
REAR PERSONAL LIGHTSGUID-91E3FE2A-E183-4DB8-88A5-A5FB31B3884DThe rear personal light has a three-position
switch.
*A: OFF
*B: DOOR
*C: ON
When the switch is in the DOOR position*B,
the light illuminates when a door is opened.
The interior light timer is equipped so that the
interior light stays on for approximately 15
seconds when:
. The ignition switch is pushed to the OFF or
LOCK position. .
The driver’s door is unlocked.
. The last open door excluding the lift gate is
closed.
The interior light timer will be cancelled when:
. The driver’s door is locked.
. The ignition switch is pushed to the ON
position.
When the rear personal light switch is in the ON
position
*C, the rear personal lights illuminate,
regardless of any condition.
When the switch is in the OFF position
*A, the
rear personal lights do not illuminate, regardless
of any condition.
INTERIOR LIGHTS
Condition:

Black plate (135,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

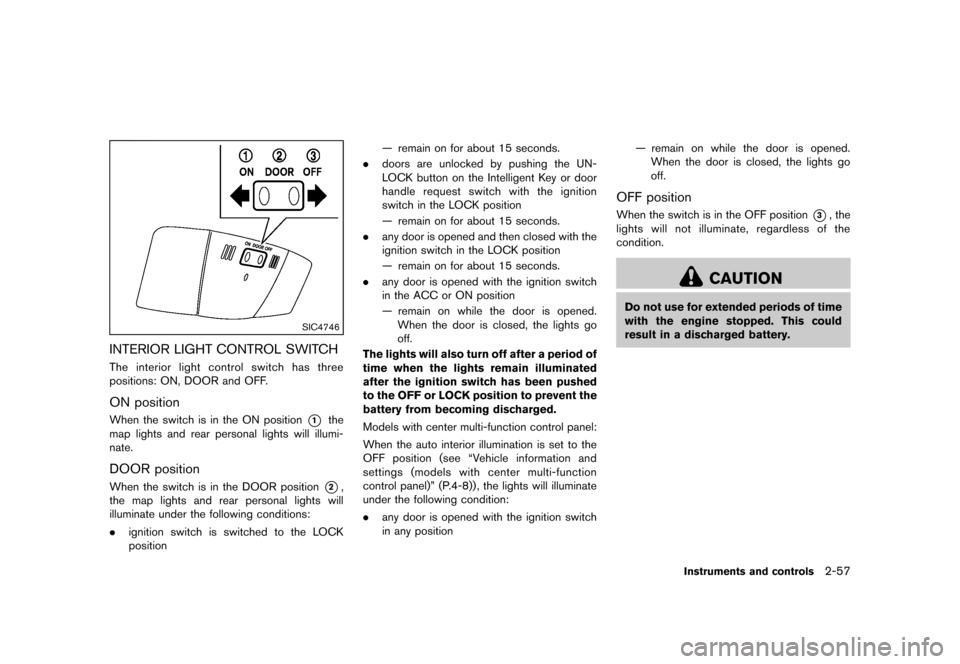

SIC4746
INTERIOR LIGHT CONTROL SWITCHGUID-D34CF121-E823-48BC-AE90-42AF090DE2D0The interior light control switch has three
positions: ON, DOOR and OFF.
ON positionGUID-4BF6F47A-80E8-4E85-B391-088041B945A7When the switch is in the ON position*1the
map lights and rear personal lights will illumi-
nate.
DOOR positionGUID-6DC4E6E9-76A6-4D00-909F-12F819722D9BWhen the switch is in the DOOR position*2,
the map lights and rear personal lights will
illuminate under the following conditions:
. ignition switch is switched to the LOCK
position — remain on for about 15 seconds.
. doors are unlocked by pushing the UN-
LOCK button on the Intelligent Key or door
handle request switch with the ignition
switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened and then closed with the
ignition switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened with the ignition switch
in the ACC or ON position
— remain on while the door is opened.
When the door is closed, the lights go
off.
The lights will also turn off after a period of
time when the lights remain illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.
Models with center multi-function control panel:
When the auto interior illumination is set to the
OFF position (see “Vehicle information and
settings (models with center multi-function
control panel)” (P.4-8)) , the lights will illuminate
under the following condition:
. any door is opened with the ignition switch
in any position — remain on while the door is opened.
When the door is closed, the lights go
off.
OFF positionGUID-197D664B-84F7-45E5-AC9E-DB5ABB3978F4When the switch is in the OFF position*3, the
lights will not illuminate, regardless of the
condition.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.
Instruments and controls2-57
Condition:

Black plate (136,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
2-58Instruments and controls
GUID-3A69E32E-8217-4F99-803C-BB82226672A4

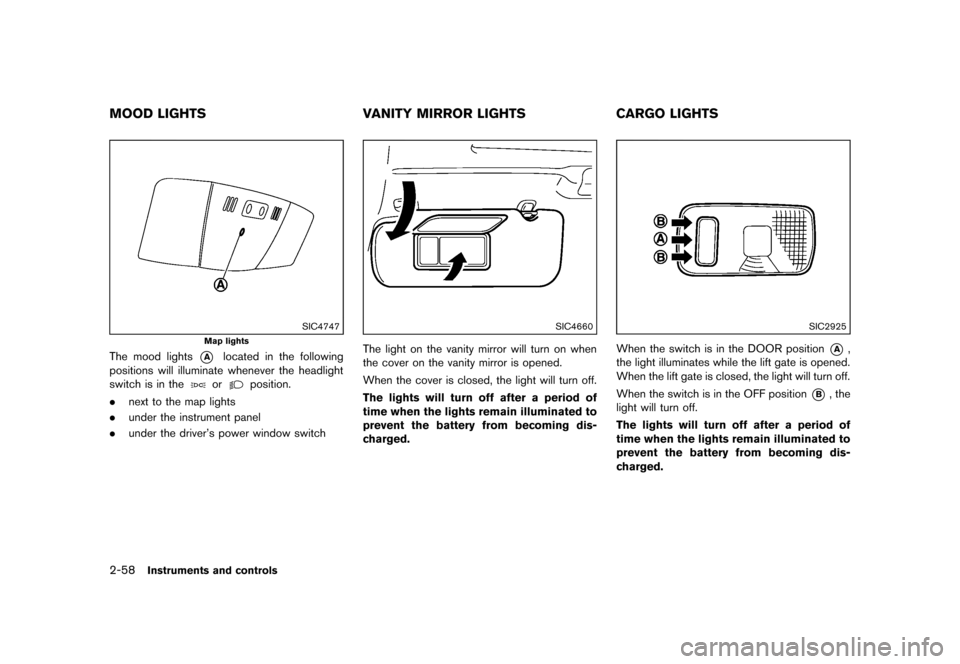

SIC4747
Map lights
The mood lights*Alocated in the following
positions will illuminate whenever the headlight
switch is in the
orposition.
. next to the map lights
. under the instrument panel
. under the driver’s power window switch
GUID-5E0E5511-7965-47D6-BAE7-6D7DF580137C
SIC4660
The light on the vanity mirror will turn on when
the cover on the vanity mirror is opened.
When the cover is closed, the light will turn off.
The lights will turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
GUID-61C79262-3671-4A21-8917-20AEB1ADD9A7
SIC2925
When the switch is in the DOOR position*A,
the light illuminates while the lift gate is opened.
When the lift gate is closed, the light will turn off.
When the switch is in the OFF position
*B, the
light will turn off.
The lights will turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
MOOD LIGHTS VANITY MIRROR LIGHTSCARGO LIGHTS
Condition:

Black plate (137,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

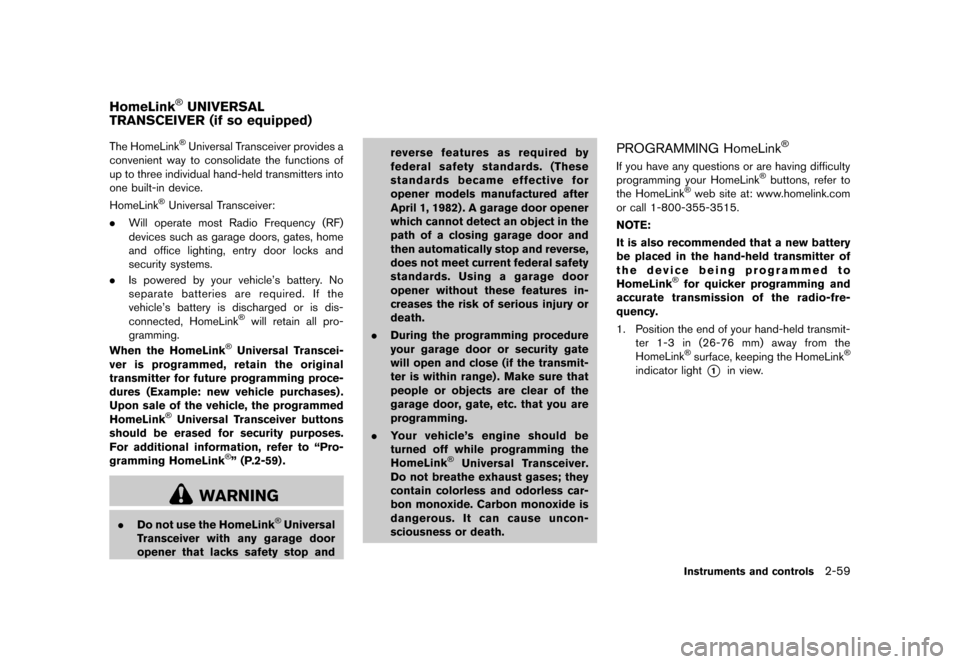

GUID-2A7177D1-CE10-4F5C-86AD-990CD5A71A4DThe HomeLink®Universal Transceiver provides a
convenient way to consolidate the functions of
up to three individual hand-held transmitters into
one built-in device.
HomeLink
®Universal Transceiver:
. Will operate most Radio Frequency (RF)
devices such as garage doors, gates, home
and office lighting, entry door locks and
security systems.
. Is powered by your vehicle’s battery. No
separate batteries are required. If the
vehicle’s battery is discharged or is dis-
connected, HomeLink
®will retain all pro-
gramming.
When the HomeLink
®Universal Transcei-
ver is programmed, retain the original
transmitter for future programming proce-
dures (Example: new vehicle purchases) .
Upon sale of the vehicle, the programmed
HomeLink
®Universal Transceiver buttons
should be erased for security purposes.
For additional information, refer to “Pro-
gramming HomeLink
®” (P.2-59) .
WARNING
. Do not use the HomeLink®Universal
Transceiver with any garage door
opener that lacks safety stop and reverse features as required by
federal safety standards. (These
standards became effective for
opener models manufactured after
April 1, 1982) . A garage door opener
which cannot detect an object in the
path of a closing garage door and
then automatically stop and reverse,
does not meet current federal safety
standards. Using a garage door
opener without these features in-
creases the risk of serious injury or
death.
. During the programming procedure
your garage door or security gate
will open and close (if the transmit-
ter is within range) . Make sure that
people or objects are clear of the
garage door, gate, etc. that you are
programming.
. Your vehicle’s engine should be
turned off while programming the
HomeLink
®Universal Transceiver.
Do not breathe exhaust gases; they
contain colorless and odorless car-
bon monoxide. Carbon monoxide is
dangerous. It can cause uncon-
sciousness or death.
PROGRAMMING HomeLink®GUID-02EFDA1C-79EA-4993-82FD-A81D310C2B7BIf you have any questions or are having difficulty
programming your HomeLink®buttons, refer to
the HomeLink®web site at: www.homelink.com
or call 1-800-355-3515.
NOTE:
It is also recommended that a new battery
be placed in the hand-held transmitter of
the device being programmed to
HomeLink
®for quicker programming and
accurate transmission of the radio-fre-
quency.
1. Position the end of your hand-held transmit- ter 1-3 in (26-76 mm) away from the
HomeLink
®surface, keeping the HomeLink®
indicator light*1in view.
Instruments and controls2-59
HomeLink®UNIVERSAL
TRANSCEIVER (if so equipped)
Condition:

Black plate (138,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
2-60Instruments and controls

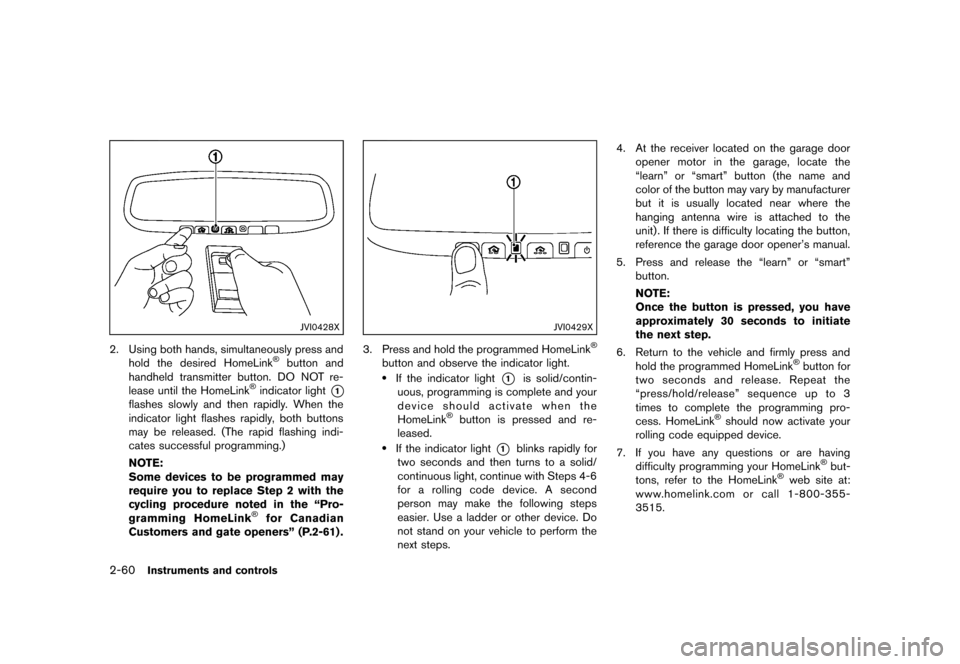

JVI0428X
2. Using both hands, simultaneously press andhold the desired HomeLink®button and
handheld transmitter button. DO NOT re-
lease until the HomeLink
®indicator light*1
flashes slowly and then rapidly. When the
indicator light flashes rapidly, both buttons
may be released. (The rapid flashing indi-
cates successful programming.)
NOTE:
Some devices to be programmed may
require you to replace Step 2 with the
cycling procedure noted in the “Pro-
gramming HomeLink
®for Canadian
Customers and gate openers” (P.2-61) .
JVI0429X
3. Press and hold the programmed HomeLink®
button and observe the indicator light..If the indicator light*1is solid/contin-
uous, programming is complete and your
device should activate when the
HomeLink
®button is pressed and re-
leased.
.If the indicator light*1blinks rapidly for
two seconds and then turns to a solid/
continuous light, continue with Steps 4-6
for a rolling code device. A second
person may make the following steps
easier. Use a ladder or other device. Do
not stand on your vehicle to perform the
next steps. 4. At the receiver located on the garage door
opener motor in the garage, locate the
“learn” or “smart” button (the name and
color of the button may vary by manufacturer
but it is usually located near where the
hanging antenna wire is attached to the
unit). If there is difficulty locating the button,
reference the garage door opener’s manual.
5. Press and release the “learn” or “smart” button.
NOTE:
Once the button is pressed, you have
approximately 30 seconds to initiate
the next step.
6. Return to the vehicle and firmly press and hold the programmed HomeLink
®button for
two seconds and release. Repeat the
“press/hold/release” sequence up to 3
times to complete the programming pro-
cess. HomeLink
®should now activate your
rolling code equipped device.
7. If you have any questions or are having difficulty programming your HomeLink
®but-
tons, refer to the HomeLink®web site at:
www.homelink.com or call 1-800-355-
3515.
Condition:

Black plate (139,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

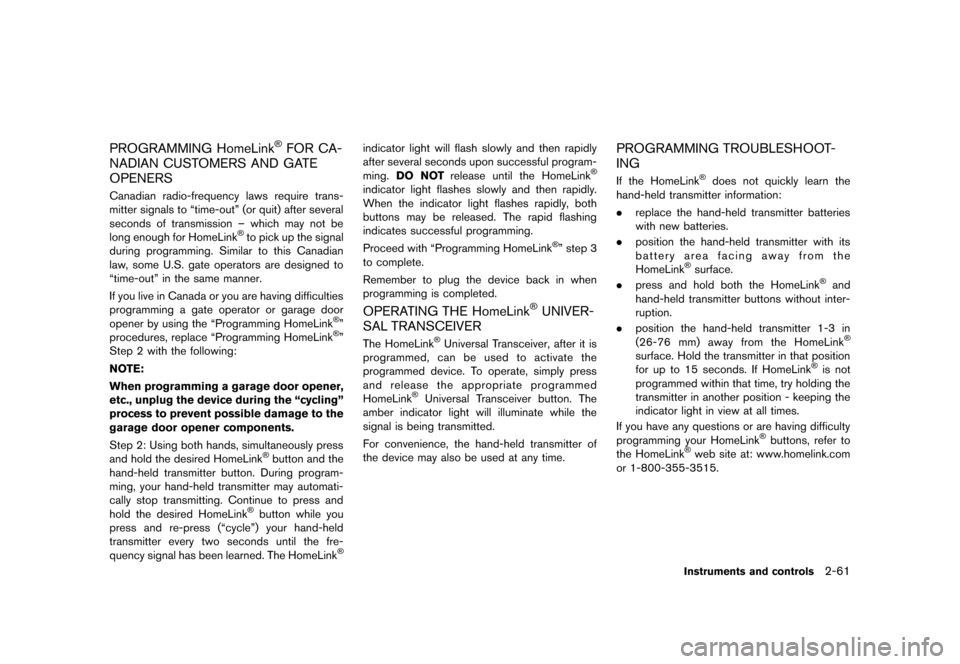

PROGRAMMING HomeLink®FOR CA-
NADIAN CUSTOMERS AND GATE
OPENERS
GUID-8E685F42-B055-4E0C-9A56-3D217E7A41C9Canadian radio-frequency laws require trans-
mitter signals to “time-out” (or quit) after several
seconds of transmission – which may not be
long enough for HomeLink
®to pick up the signal
during programming. Similar to this Canadian
law, some U.S. gate operators are designed to
“time-out” in the same manner.
If you live in Canada or you are having difficulties
programming a gate operator or garage door
opener by using the “Programming HomeLink
®”
procedures, replace “Programming HomeLink®”
Step 2 with the following:
NOTE:
When programming a garage door opener,
etc., unplug the device during the “cycling”
process to prevent possible damage to the
garage door opener components.
Step 2: Using both hands, simultaneously press
and hold the desired HomeLink
®button and the
hand-held transmitter button. During program-
ming, your hand-held transmitter may automati-
cally stop transmitting. Continue to press and
hold the desired HomeLink
®button while you
press and re-press (“cycle”) your hand-held
transmitter every two seconds until the fre-
quency signal has been learned. The HomeLink
®
indicator light will flash slowly and then rapidly
after several seconds upon successful program-
ming. DO NOT release until the HomeLink
®
indicator light flashes slowly and then rapidly.
When the indicator light flashes rapidly, both
buttons may be released. The rapid flashing
indicates successful programming.
Proceed with “Programming HomeLink
®” step 3
to complete.
Remember to plug the device back in when
programming is completed.
OPERATING THE HomeLink®UNIVER-
SAL TRANSCEIVER
GUID-50FE11E6-5C22-4C06-B685-CE1B460CA8ABThe HomeLink®Universal Transceiver, after it is
programmed, can be used to activate the
programmed device. To operate, simply press
and release the appropriate programmed
HomeLink
®Universal Transceiver button. The
amber indicator light will illuminate while the
signal is being transmitted.
For convenience, the hand-held transmitter of
the device may also be used at any time.
PROGRAMMING TROUBLESHOOT-
ING
GUID-A74B64CF-4A06-448A-A031-4FFBE07569D0If the HomeLink®does not quickly learn the
hand-held transmitter information:
. replace the hand-held transmitter batteries
with new batteries.
. position the hand-held transmitter with its
battery area facing away from the
HomeLink
®surface.
. press and hold both the HomeLink®and
hand-held transmitter buttons without inter-
ruption.
. position the hand-held transmitter 1-3 in
(26-76 mm) away from the HomeLink
®
surface. Hold the transmitter in that position
for up to 15 seconds. If HomeLink®is not
programmed within that time, try holding the
transmitter in another position - keeping the
indicator light in view at all times.
If you have any questions or are having difficulty
programming your HomeLink
®buttons, refer to
the HomeLink®web site at: www.homelink.com
or 1-800-355-3515.
Instruments and controls2-61
Condition:

Black plate (140,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
2-62Instruments and controls

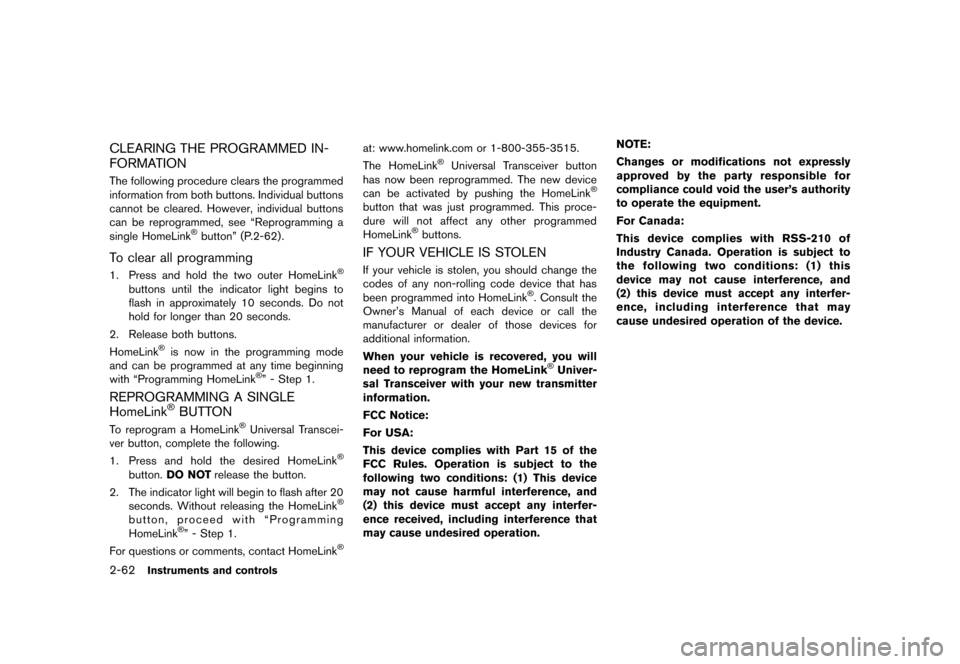

CLEARING THE PROGRAMMED IN-
FORMATION
GUID-FE1C47CB-9DB3-462C-A343-ABBAF393C142The following procedure clears the programmed
information from both buttons. Individual buttons
cannot be cleared. However, individual buttons
can be reprogrammed, see “Reprogramming a
single HomeLink
®button” (P.2-62).
To clear all programmingGUID-9B983557-9125-4E81-99F4-5372A7AB6CF31. Press and hold the two outer HomeLink®
buttons until the indicator light begins to
flash in approximately 10 seconds. Do not
hold for longer than 20 seconds.
2. Release both buttons.
HomeLink
®is now in the programming mode
and can be programmed at any time beginning
with “Programming HomeLink
®” - Step 1.
REPROGRAMMING A SINGLE
HomeLink®BUTTONGUID-E78A9C0B-B071-4FEA-ADC0-AD19C68AE3C3To reprogram a HomeLink®Universal Transcei-
ver button, complete the following.
1. Press and hold the desired HomeLink
®
button. DO NOT release the button.
2. The indicator light will begin to flash after 20 seconds. Without releasing the HomeLink
®
button, proceed with “Programming
HomeLink®” - Step 1.
For questions or comments, contact HomeLink®
at: www.homelink.com or 1-800-355-3515.
The HomeLink®Universal Transceiver button
has now been reprogrammed. The new device
can be activated by pushing the HomeLink
®
button that was just programmed. This proce-
dure will not affect any other programmed
HomeLink
®buttons.
IF YOUR VEHICLE IS STOLENGUID-088A235A-29F6-44BC-84FC-F6B175E0B9F7If your vehicle is stolen, you should change the
codes of any non-rolling code device that has
been programmed into HomeLink
®. Consult the
Owner’s Manual of each device or call the
manufacturer or dealer of those devices for
additional information.
When your vehicle is recovered, you will
need to reprogram the HomeLink
®Univer-
sal Transceiver with your new transmitter
information.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation. NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.
Condition:
