2013 NISSAN QUEST Owners Manual

Black plate (125,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
SIC4721
2nd row center console
2nd row center consoleGUID-7D7F11C4-300C-402A-975E-CD32A0B8C6D9Pull up on lever*Ato open the console box lid.
To remove the 2nd row center console box:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Pull up on handle*Bon rear of console and
tilt the console up.
2. Move the console box toward the rear of the vehicle and lift out.
To reinstall the 2nd row center console
box:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Tilt the console box forward and install the front of the console box so that the hook
engages the slot in the base. 2. Push down the rear of the console box to
lock the console in place.
SIC4731
CARGO FLOOR BOXGUID-08E23E82-0E1D-4CF3-A521-071CD427F369To open the cargo floor box lid, pull the strap
*A.
To hold lid open, secure the strap
*Bto the
hook on the under side of cargo floor box lid.
WARNING
To prevent injury in an accident or
sudden stop, do not drive with the
cargo floor box lids open. Always
remove the strap
*Bfrom hook and
close the cargo floor box lids before
driving.
Instruments and controls2-47
Condition:

Black plate (126,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

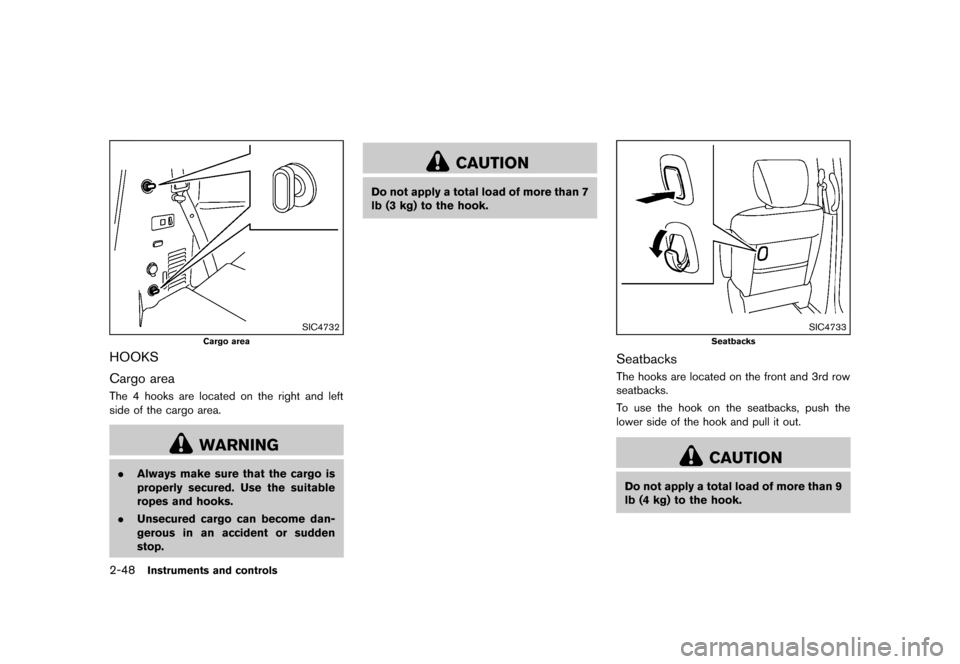

2-48Instruments and controls
SIC4732
Cargo area
HOOKSGUID-906FAE38-262D-4F92-AD3B-038068F41DE2
Cargo areaGUID-EE3D8B5B-02E7-4A9C-9AE1-4771969747AEThe 4 hooks are located on the right and left
side of the cargo area.
WARNING
.Always make sure that the cargo is
properly secured. Use the suitable
ropes and hooks.
. Unsecured cargo can become dan-
gerous in an accident or sudden
stop.
CAUTION
Do not apply a total load of more than 7
lb (3 kg) to the hook.
SIC4733
Seatbacks
SeatbacksGUID-BE72E849-4191-475F-BEE0-F4E846E68F0AThe hooks are located on the front and 3rd row
seatbacks.
To use the hook on the seatbacks, push the
lower side of the hook and pull it out.
CAUTION
Do not apply a total load of more than 9
lb (4 kg) to the hook.
Condition:

Black plate (127,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
SIC4737
ROOF RACK (if so equipped)GUID-8868EAD9-A82E-4E35-B88D-4326BA738D60Always distribute the luggage evenly on the roof
rack. Do not load more than 99 lb (45 kg) on the
roof rails. Observe the maximum load limit
shown on the crossbars or roof carriers when
you attach them on the roof rails. Contact a
NISSAN dealer for crossbar or other equipment
information. Be careful that your vehicle does
not exceed the Gross Vehicle Weight Rating
(GVWR) or its Gross Axle Weight Rating
(GAWR front and rear) . The GVWR and GAWR
are located on the F.M.V.S.S. or C.V.M.S.S.
certification label (located on the driver’s door
pillar) . For more information regarding GVWR
and GAWR, see “Vehicle loading information”(P.9-12) .
WARNING
.
Drive extra carefully when the vehi-
cle is loaded at or near the cargo
carrying capacity, especially if the
significant portion of that load is
carried on the roof rack.
. Heavy loading of the roof rack has
the potential to affect the vehicle
stability and handling during sud-
den or unusual handling maneuvers.
. Roof rack load should be evenly
distributed.
. Do not exceed maximum roof rack
load weight capacity.
. Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
CAUTION
Use care when placing or removing
items from the roof rack. If you cannot comfortably lift the items onto the roof
rack from the ground, use a ladder or
stool.
Instruments and controls2-49
Condition:

Black plate (128,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

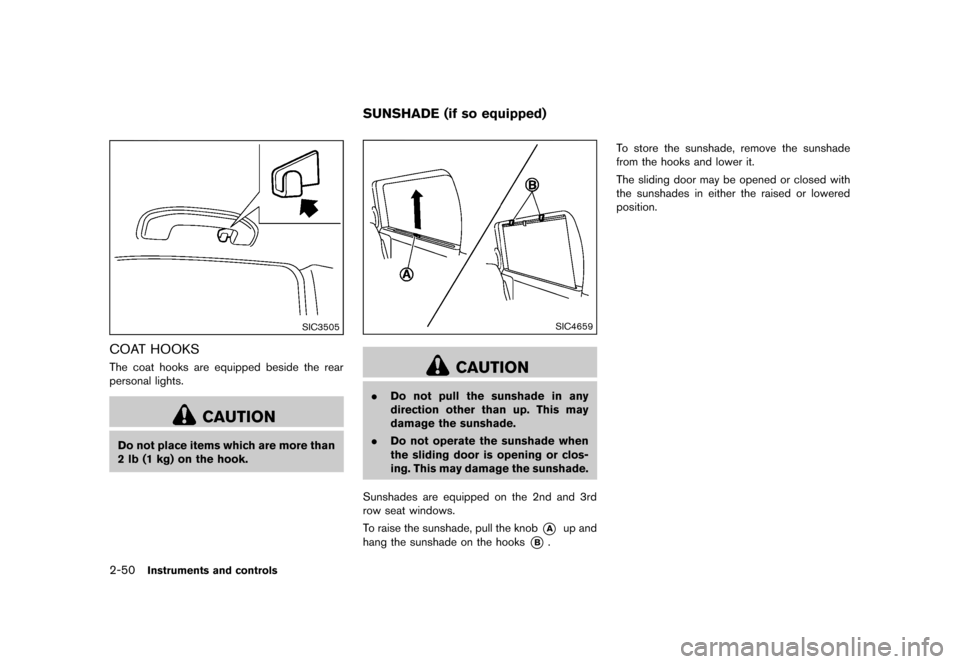

2-50Instruments and controls
SIC3505
COAT HOOKSGUID-9AE4801A-5C6C-4505-B98D-76E2E06FF140The coat hooks are equipped beside the rear
personal lights.
CAUTION
Do not place items which are more than
2 lb (1 kg) on the hook.
GUID-1CEE0B2F-BAC3-436D-A3EE-D6D30849CE4D
SIC4659
CAUTION
.Do not pull the sunshade in any
direction other than up. This may
damage the sunshade.
. Do not operate the sunshade when
the sliding door is opening or clos-
ing. This may damage the sunshade.
Sunshades are equipped on the 2nd and 3rd
row seat windows.
To raise the sunshade, pull the knob
*Aup and
hang the sunshade on the hooks
*B. To store the sunshade, remove the sunshade
from the hooks and lower it.
The sliding door may be opened or closed with
the sunshades in either the raised or lowered
position.
SUNSHADE (if so equipped)
Condition:

Black plate (129,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

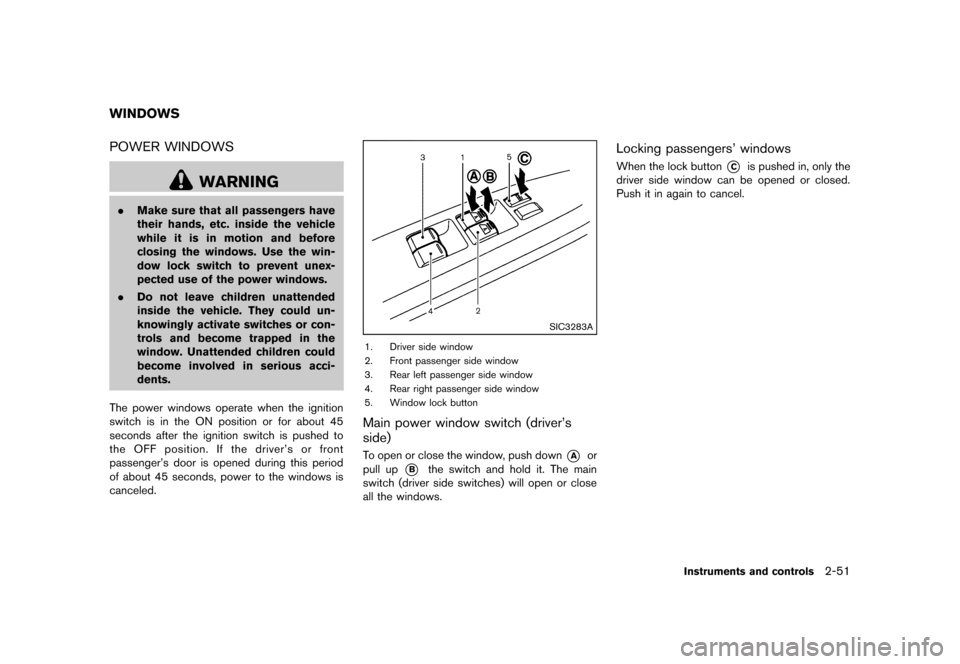

GUID-5B1CF570-77D7-45AC-AA62-7BB516F0676FPOWER WINDOWSGUID-F37D68C6-CC41-4AC8-9699-012350C333BE
WARNING
.Make sure that all passengers have
their hands, etc. inside the vehicle
while it is in motion and before
closing the windows. Use the win-
dow lock switch to prevent unex-
pected use of the power windows.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols and become trapped in the
window. Unattended children could
become involved in serious acci-
dents.
The power windows operate when the ignition
switch is in the ON position or for about 45
seconds after the ignition switch is pushed to
the OFF position. If the driver’s or front
passenger’s door is opened during this period
of about 45 seconds, power to the windows is
canceled.
SIC3283A
1. Driver side window
2. Front passenger side window
3. Rear left passenger side window
4. Rear right passenger side window
5. Window lock button
Main power window switch (driver’s
side)
GUID-CBC8B420-9F44-49EE-8F25-61A5E56B79AATo open or close the window, push down*Aor
pull up
*Bthe switch and hold it. The main
switch (driver side switches) will open or close
all the windows.
Locking passengers’ windowsGUID-8A125988-E14E-4C7B-B3FE-5E9EA08ECC5EWhen the lock button*Cis pushed in, only the
driver side window can be opened or closed.
Push it in again to cancel.
Instruments and controls2-51
WINDOWS
Condition:

Black plate (130,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

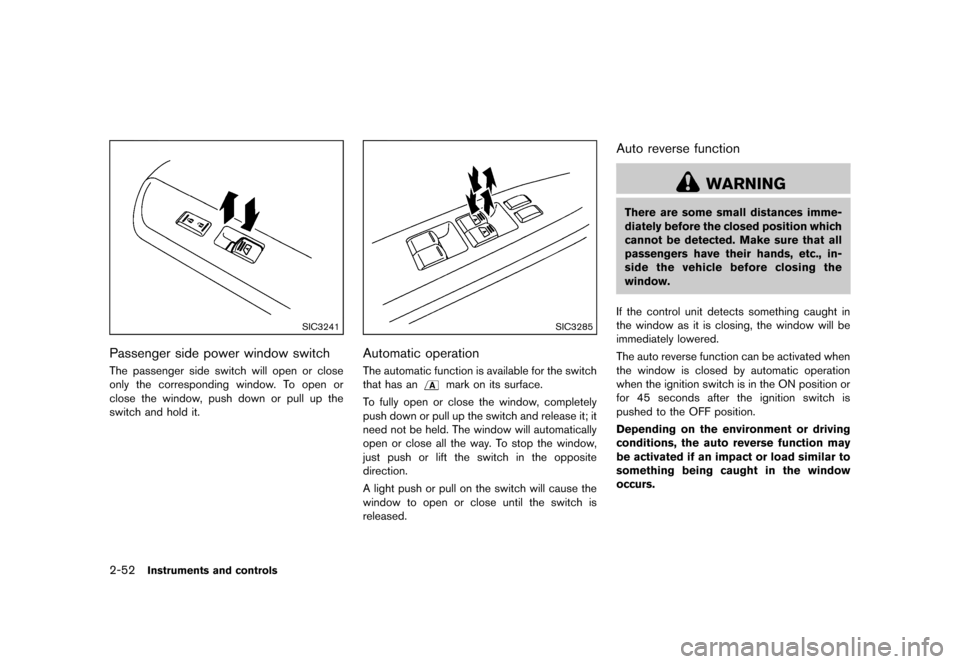

2-52Instruments and controls
SIC3241
Passenger side power window switchGUID-4D63CF9B-AD06-4F88-810D-AD74B22F51B4The passenger side switch will open or close
only the corresponding window. To open or
close the window, push down or pull up the
switch and hold it.
SIC3285
Automatic operationGUID-8BA4761C-6CA5-42AC-8F3B-B4C5C25BAE5BThe automatic function is available for the switch
that has an
mark on its surface.
To fully open or close the window, completely
push down or pull up the switch and release it; it
need not be held. The window will automatically
open or close all the way. To stop the window,
just push or lift the switch in the opposite
direction.
A light push or pull on the switch will cause the
window to open or close until the switch is
released.
Auto reverse functionGUID-2F2524F5-629D-4809-A276-D1D9E1D16E3D
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.
If the control unit detects something caught in
the window as it is closing, the window will be
immediately lowered.
The auto reverse function can be activated when
the window is closed by automatic operation
when the ignition switch is in the ON position or
for 45 seconds after the ignition switch is
pushed to the OFF position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.
Condition:

Black plate (131,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

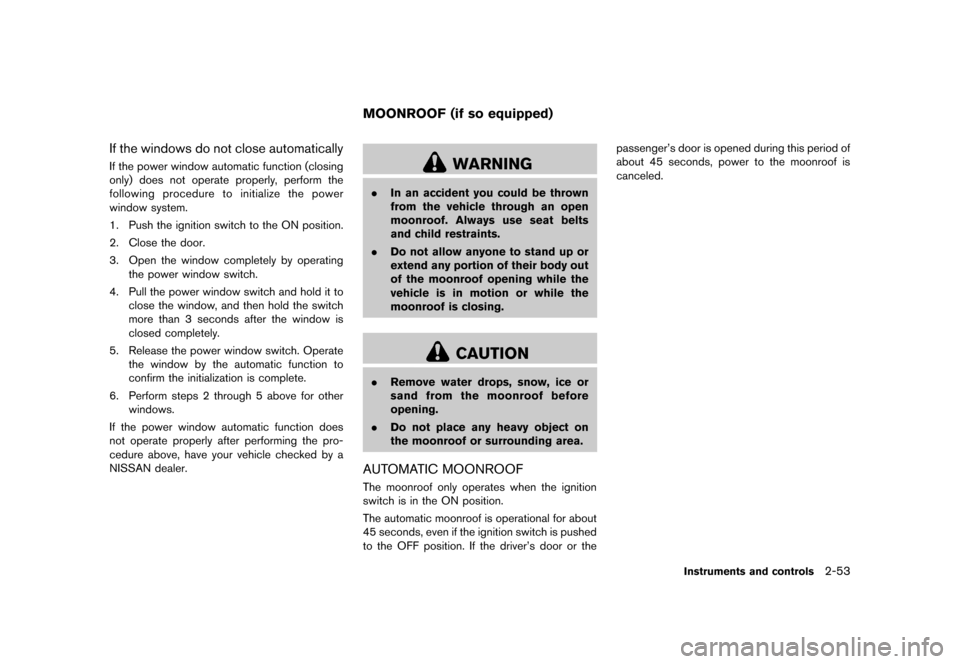

If the windows do not close automaticallyGUID-B57256CE-E38F-46BD-9BF2-339E88C5AEA0If the power window automatic function (closing
only) does not operate properly, perform the
following procedure to initialize the power
window system.
1. Push the ignition switch to the ON position.
2. Close the door.
3. Open the window completely by operatingthe power window switch.
4. Pull the power window switch and hold it to close the window, and then hold the switch
more than 3 seconds after the window is
closed completely.
5. Release the power window switch. Operate the window by the automatic function to
confirm the initialization is complete.
6. Perform steps 2 through 5 above for other windows.
If the power window automatic function does
not operate properly after performing the pro-
cedure above, have your vehicle checked by a
NISSAN dealer.
GUID-9D7DE658-FCF8-4333-8CEE-044062238F85
WARNING
. In an accident you could be thrown
from the vehicle through an open
moonroof. Always use seat belts
and child restraints.
. Do not allow anyone to stand up or
extend any portion of their body out
of the moonroof opening while the
vehicle is in motion or while the
moonroof is closing.
CAUTION
.Remove water drops, snow, ice or
sand from the moonroof before
opening.
. Do not place any heavy object on
the moonroof or surrounding area.
AUTOMATIC MOONROOFGUID-EBF0890A-0A4B-4E51-A530-73E7CCA17AA3The moonroof only operates when the ignition
switch is in the ON position.
The automatic moonroof is operational for about
45 seconds, even if the ignition switch is pushed
to the OFF position. If the driver’s door or the passenger’s door is opened during this period of
about 45 seconds, power to the moonroof is
canceled.
Instruments and controls2-53
MOONROOF (if so equipped)
Condition:

Black plate (132,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

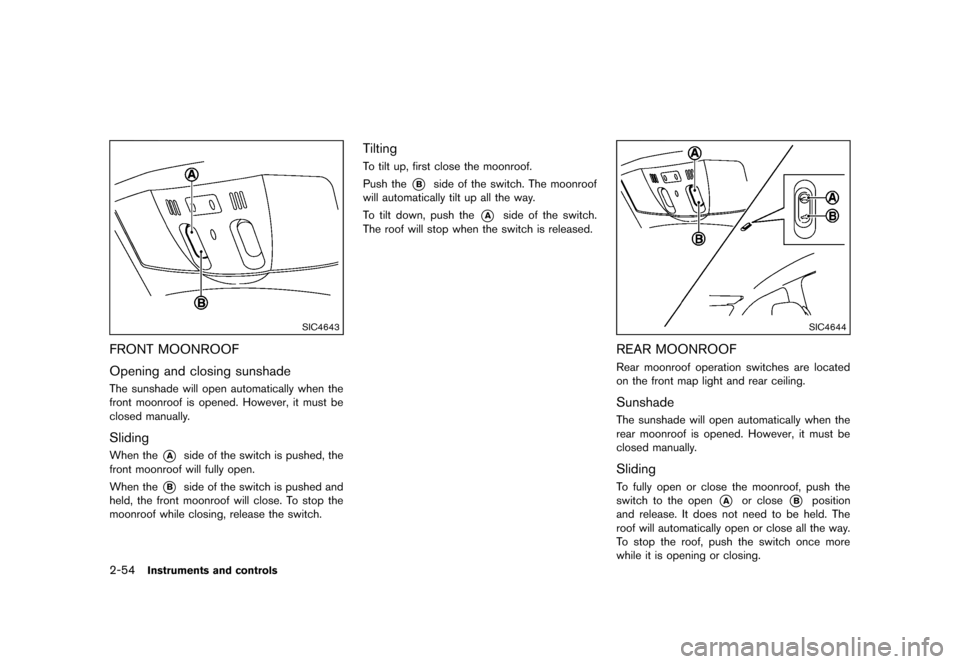

2-54Instruments and controls
SIC4643
FRONT MOONROOFGUID-7F86BC68-BD6D-4DC9-9A4C-7F4EAF3581A7
Opening and closing sunshadeGUID-80F1F048-C11E-4710-BCF9-EFAC1260135CThe sunshade will open automatically when the
front moonroof is opened. However, it must be
closed manually.
SlidingGUID-05648DC7-921E-4D31-B1AD-B750F10F7875When the*Aside of the switch is pushed, the
front moonroof will fully open.
When the
*Bside of the switch is pushed and
held, the front moonroof will close. To stop the
moonroof while closing, release the switch.
TiltingGUID-23F77C69-6CE0-42AF-819F-844C239C28D7To tilt up, first close the moonroof.
Push the
*Bside of the switch. The moonroof
will automatically tilt up all the way.
To tilt down, push the
*Aside of the switch.
The roof will stop when the switch is released.
SIC4644
REAR MOONROOFGUID-7A943627-5CF9-4290-9BB9-87576C272B12Rear moonroof operation switches are located
on the front map light and rear ceiling.
SunshadeGUID-00DBAC84-798B-4E18-B9F6-DB1FC10BE18BThe sunshade will open automatically when the
rear moonroof is opened. However, it must be
closed manually.
SlidingGUID-049BBD6F-890F-4061-BDF2-459EE68E6E08To fully open or close the moonroof, push the
switch to the open
*Aor close*Bposition
and release. It does not need to be held. The
roof will automatically open or close all the way.
To stop the roof, push the switch once more
while it is opening or closing.
