2013 NISSAN QUEST Owners Manual

Black plate (285,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
SAA3607

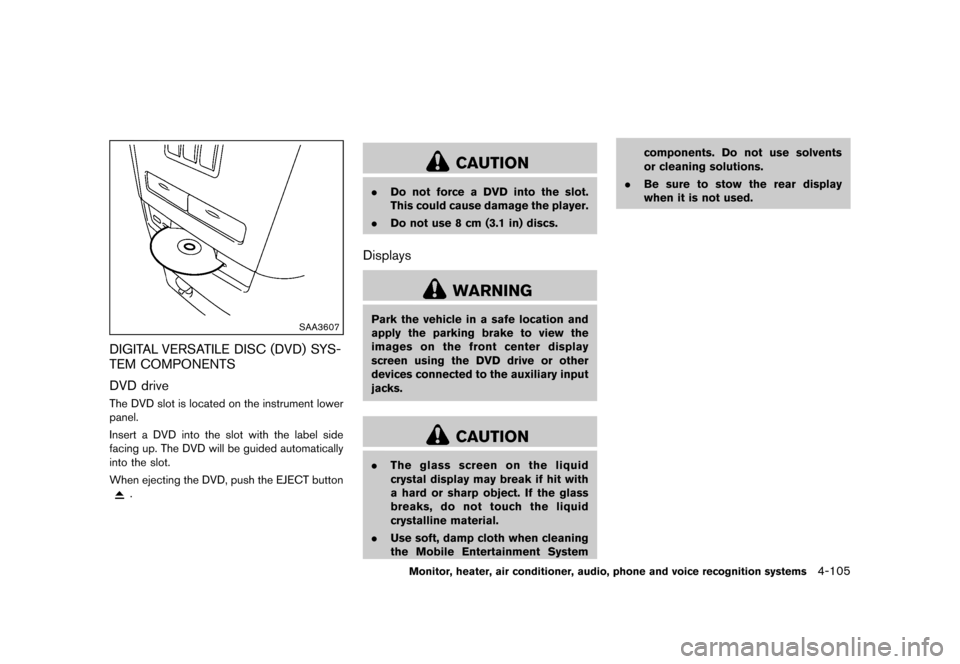

DIGITAL VERSATILE DISC (DVD) SYS-
TEM COMPONENTS
GUID-5FB1D909-00A2-4E17-AB46-BB2EFCC4849A
DVD driveGUID-4D956875-F736-4FC5-A527-F8CF590BB438The DVD slot is located on the instrument lower
panel.
Insert a DVD into the slot with the label side
facing up. The DVD will be guided automatically
into the slot.
When ejecting the DVD, push the EJECT button
.
CAUTION
.Do not force a DVD into the slot.
This could cause damage the player.
. Do not use 8 cm (3.1 in) discs.
DisplaysGUID-E350D9CB-3823-4CB1-8C99-1BC70D4DD9A9
WARNING
Park the vehicle in a safe location and
apply the parking brake to view the
images on the front center display
screen using the DVD drive or other
devices connected to the auxiliary input
jacks.
CAUTION
.The glass screen on the liquid
crystal display may break if hit with
a hard or sharp object. If the glass
breaks, do not touch the liquid
crystalline material.
. Use soft, damp cloth when cleaning
the Mobile Entertainment System components. Do not use solvents
or cleaning solutions.
. Be sure to stow the rear display
when it is not used.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-105
Condition:

Black plate (286,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
4-106Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA3655

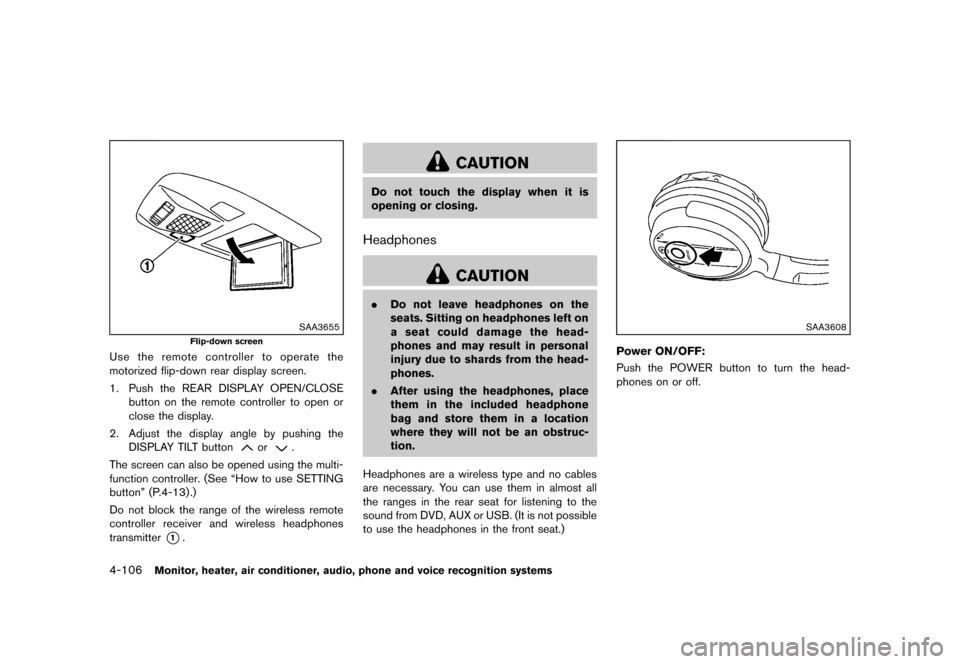

Flip-down screen
Use the remote controller to operate the
motorized flip-down rear display screen.
1. Push the REAR DISPLAY OPEN/CLOSEbutton on the remote controller to open or
close the display.
2. Adjust the display angle by pushing the DISPLAY TILT button
or.
The screen can also be opened using the multi-
function controller. (See “How to use SETTING
button” (P.4-13).)
Do not block the range of the wireless remote
controller receiver and wireless headphones
transmitter
*1.
CAUTION
Do not touch the display when it is
opening or closing.
HeadphonesGUID-C8155863-6400-425E-9F4D-1405C4FE58D9
CAUTION
. Do not leave headphones on the
seats. Sitting on headphones left on
a seat could damage the head-
phones and may result in personal
injury due to shards from the head-
phones.
. After using the headphones, place
them in the included headphone
bag and store them in a location
where they will not be an obstruc-
tion.
Headphones are a wireless type and no cables
are necessary. You can use them in almost all
the ranges in the rear seat for listening to the
sound from DVD, AUX or USB. (It is not possible
to use the headphones in the front seat.)
SAA3608
Power ON/OFF:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the POWER button to turn the head-
phones on or off.
Condition:

Black plate (287,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
SAA3609

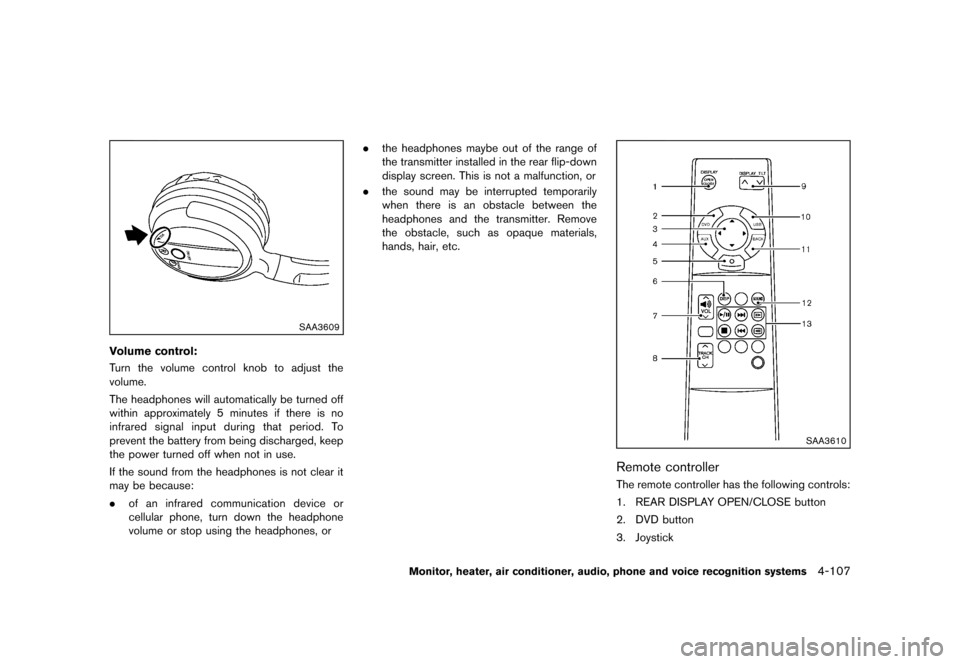

Volume control:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn the volume control knob to adjust the
volume.
The headphones will automatically be turned off
within approximately 5 minutes if there is no
infrared signal input during that period. To
prevent the battery from being discharged, keep
the power turned off when not in use.
If the sound from the headphones is not clear it
may be because:
.of an infrared communication device or
cellular phone, turn down the headphone
volume or stop using the headphones, or .
the headphones maybe out of the range of
the transmitter installed in the rear flip-down
display screen. This is not a malfunction, or
. the sound may be interrupted temporarily
when there is an obstacle between the
headphones and the transmitter. Remove
the obstacle, such as opaque materials,
hands, hair, etc.
SAA3610
Remote controllerGUID-2588A2CA-F93C-4D91-A8CA-5D040A0DDECAThe remote controller has the following controls:
1. REAR DISPLAY OPEN/CLOSE button
2. DVD button
3. Joystick
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-107
Condition:

Black plate (288,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
4-108Monitor, heater, air conditioner, audio, phone and voice recognition systems

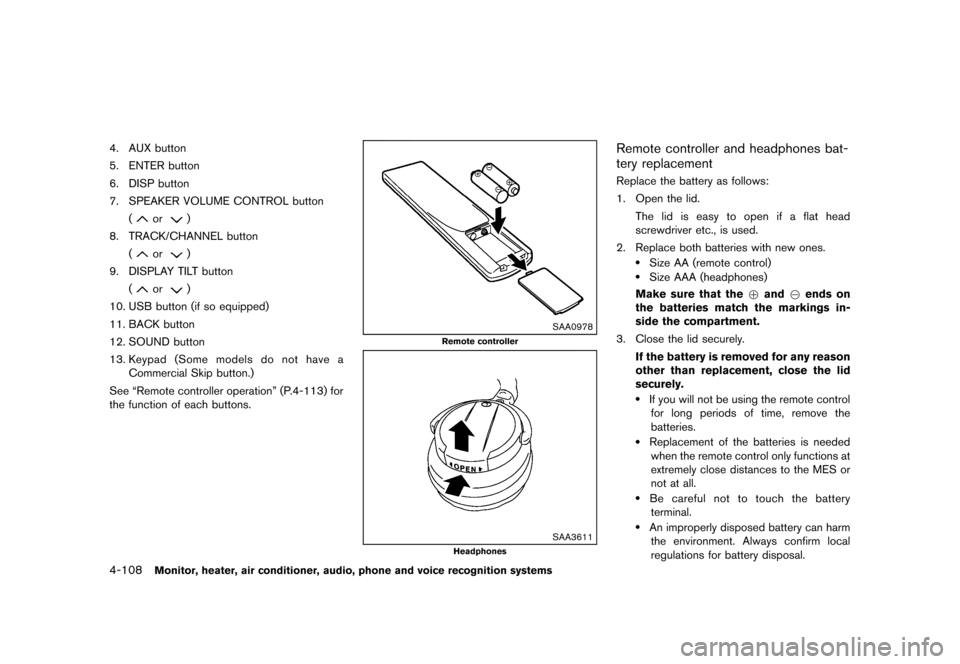

4. AUX button
5. ENTER button
6. DISP button
7. SPEAKER VOLUME CONTROL button(
or)
8. TRACK/CHANNEL button
(
or)
9. DISPLAY TILT button (
or)
10. USB button (if so equipped)
11. BACK button
12. SOUND button
13. Keypad (Some models do not have a
Commercial Skip button.)
See “Remote controller operation” (P.4-113) for
the function of each buttons.
SAA0978
Remote controller
SAA3611
Headphones
Remote controller and headphones bat-
tery replacement
GUID-8A1D3DE9-0E1F-4753-9D1D-E5F067E6239FReplace the battery as follows:
1. Open the lid. The lid is easy to open if a flat head
screwdriver etc., is used.
2. Replace both batteries with new ones.
.Size AA (remote control).Size AAA (headphones)
Make sure that the +and 7ends on
the batteries match the markings in-
side the compartment.
3. Close the lid securely.
If the battery is removed for any reason
other than replacement, close the lid
securely.
.If you will not be using the remote controlfor long periods of time, remove the
batteries.
.Replacement of the batteries is neededwhen the remote control only functions at
extremely close distances to the MES or
not at all.
.Be careful not to touch the batteryterminal.
.An improperly disposed battery can harm the environment. Always confirm local
regulations for battery disposal.
Condition:

Black plate (289,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
.When changing batteries, do not let dustor oil get on the remote control and
headphones.

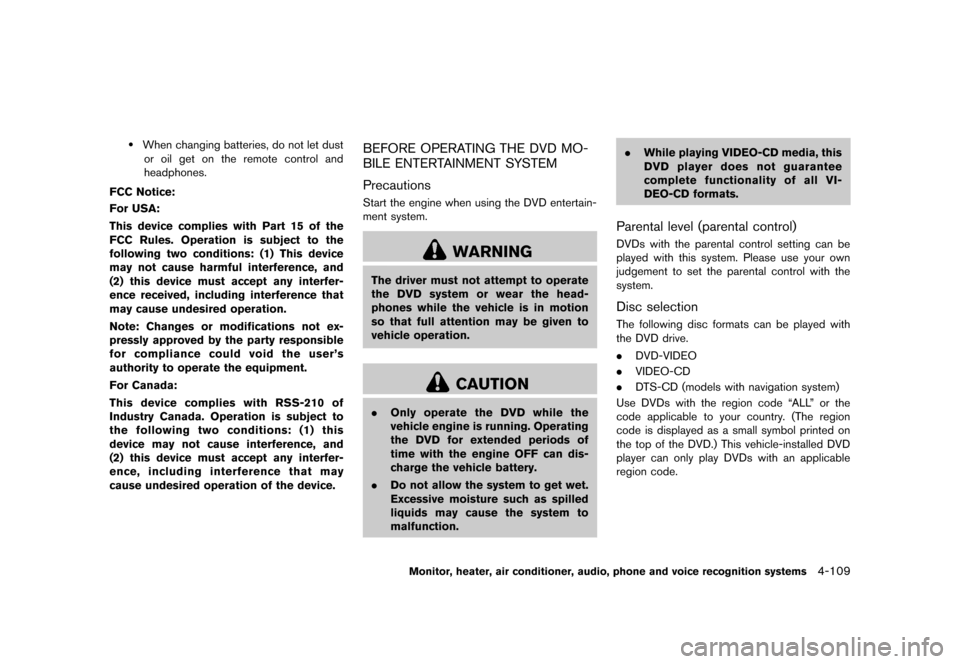

FCC Notice:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.
BEFORE OPERATING THE DVD MO-
BILE ENTERTAINMENT SYSTEM
GUID-388A77D2-69A0-4B20-A0E4-DDCE2B1067DC
PrecautionsGUID-5D3D657D-6968-44A5-A144-3182D0634837Start the engine when using the DVD entertain-
ment system.
WARNING
The driver must not attempt to operate
the DVD system or wear the head-
phones while the vehicle is in motion
so that full attention may be given to
vehicle operation.
CAUTION
. Only operate the DVD while the
vehicle engine is running. Operating
the DVD for extended periods of
time with the engine OFF can dis-
charge the vehicle battery.
. Do not allow the system to get wet.
Excessive moisture such as spilled
liquids may cause the system to
malfunction. .
While playing VIDEO-CD media, this
DVD player does not guarantee
complete functionality of all VI-
DEO-CD formats.
Parental level (parental control)GUID-A58211E7-DD2A-4035-81DA-19A2C8A67243DVDs with the parental control setting can be
played with this system. Please use your own
judgement to set the parental control with the
system.
Disc selectionGUID-1F9B68E6-F4DF-443B-BE00-D8AD25A6E450The following disc formats can be played with
the DVD drive.
.DVD-VIDEO
. VIDEO-CD
. DTS-CD (models with navigation system)
Use DVDs with the region code “ALL” or the
code applicable to your country. (The region
code is displayed as a small symbol printed on
the top of the DVD.) This vehicle-installed DVD
player can only play DVDs with an applicable
region code.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-109
Condition:

Black plate (290,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
4-110Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA2497

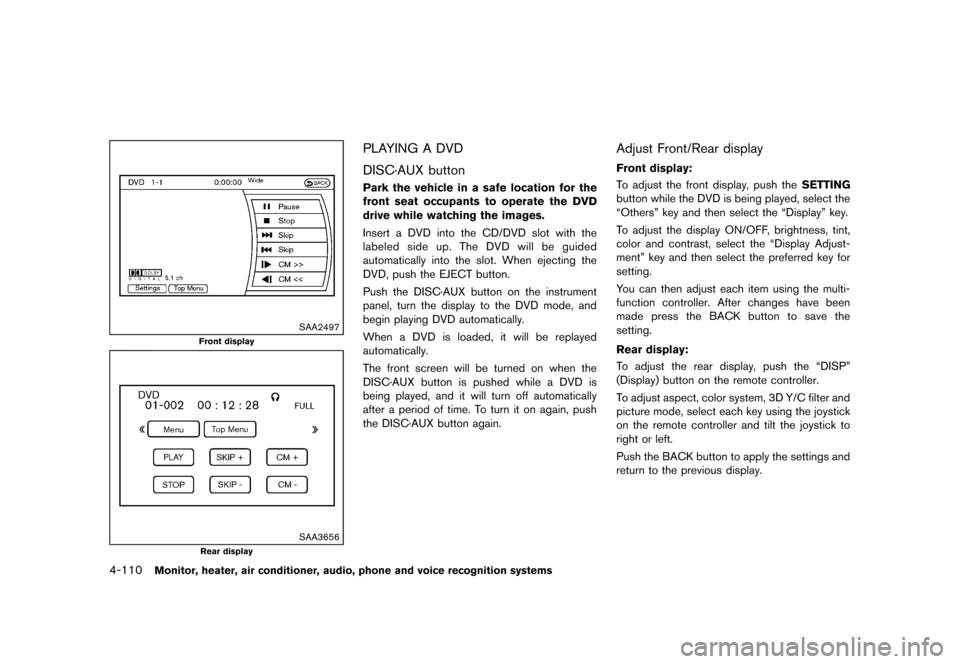

Front display
SAA3656
Rear display
PLAYING A DVDGUID-8F95C3F1-CBC0-4993-966D-B8CAD8A4BB3F
DISC·AUX buttonGUID-B86663CA-BC07-4E91-929F-99AD6ABA7280Park the vehicle in a safe location for the
front seat occupants to operate the DVD
drive while watching the images.
Insert a DVD into the CD/DVD slot with the
labeled side up. The DVD will be guided
automatically into the slot. When ejecting the
DVD, push the EJECT button.
Push the DISC·AUX button on the instrument
panel, turn the display to the DVD mode, and
begin playing DVD automatically.
When a DVD is loaded, it will be replayed
automatically.
The front screen will be turned on when the
DISC·AUX button is pushed while a DVD is
being played, and it will turn off automatically
after a period of time. To turn it on again, push
the DISC·AUX button again.
Adjust Front/Rear displayGUID-D354ED4E-B9CD-431D-845A-31A5483116CD
Front display:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the front display, push theSETTING
button while the DVD is being played, select the
“Others” key and then select the “Display” key.
To adjust the display ON/OFF, brightness, tint,
color and contrast, select the “Display Adjust-
ment” key and then select the preferred key for
setting.
You can then adjust each item using the multi-
function controller. After changes have been
made press the BACK button to save the
setting.
Rear display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the rear display, push the “DISP”
(Display) button on the remote controller.
To adjust aspect, color system, 3D Y/C filter and
picture mode, select each key using the joystick
on the remote controller and tilt the joystick to
right or left.
Push the BACK button to apply the settings and
return to the previous display.
Condition:

Black plate (291,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
DVD operation keysGUID-B86DB395-DEC5-4D6C-A71D-E9C3F49F2777To operate the DVD drive, select the desired key
displayed on the operation screen using the
multi-function controller.
PAUSE:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “” key to pause the DVD. To
resume playing the DVD, use the “PLAY” key.
To pause the DVD, it is also possible to push the
“
” button on the keypad of the remote
controller.
PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “” key to start playing the DVD,
for example, after pausing the DVD.
To start playing the DVD, it is also possible to
push the “
” button on the keypad of the
remote controller.
STOP:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “” key to stop playing the DVD.
To stop playing the DVD, it is also possible to
push the “
” button on the keypad of the
remote controller.
SKIP (FORWARD):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “” key to skip the chapter(s) of
the disc forward. The chapters will advance the number of times the ENTER button is pushed.
To skip the chapter(s) forward, it is also possible
to push the “
” button on the keypad of the
remote controller.
SKIP (REWIND):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “” key to skip the chapter(s) of
the disc backward. The chapters will go back
the number of times the ENTER button is
pushed.
To skip the chapter(s) backward, it is also
possible to push the “
” button on the
keypad of the remote controller.
/Commercial Skip (if so
equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This function is only for DVD-VIDEO and DVD-
VR.
Select the “
” or “” key to skip forward or
backwards by the set amount as defined in the
DVD settings menu.
To skip forward or backward, it is also possible
to push the “
” or “” button on the
keypad of the remote controller.
SAA2498
Front screen (models with navigation system)
SAA3656
Rear screen (models with navigation system)
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-111
Condition:

Black plate (292,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

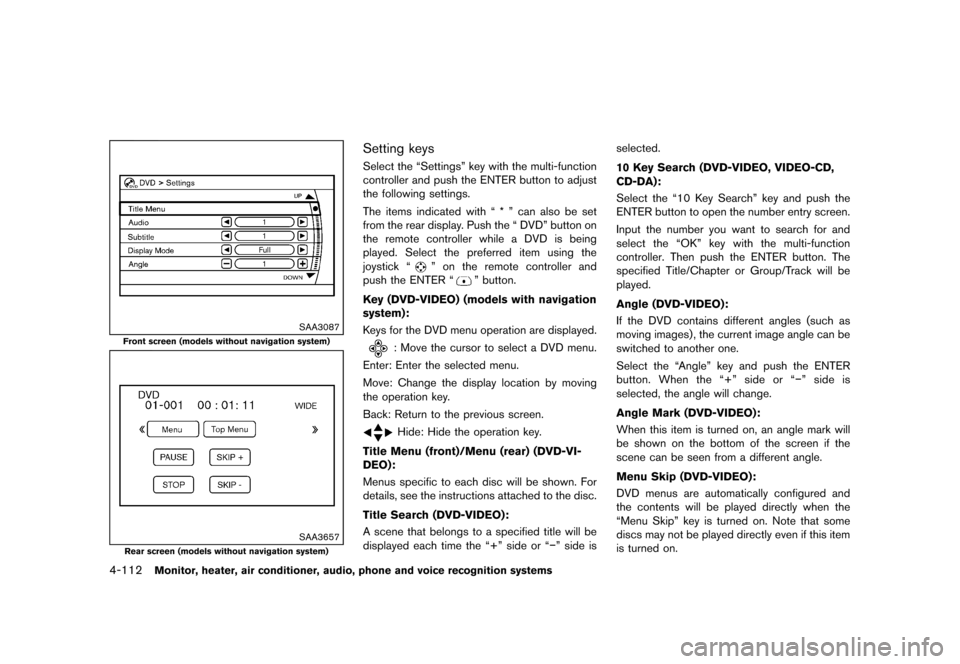

4-112Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA3087
Front screen (models without navigation system)
SAA3657
Rear screen (models without navigation system)
Setting keysGUID-D63AE974-8FAC-4DB4-92D2-3F23ED97403DSelect the “Settings” key with the multi-function
controller and push the ENTER button to adjust
the following settings.
The items indicated with “ * ” can also be set
from the rear display. Push the “ DVD” button on
the remote controller while a DVD is being
played. Select the preferred item using the
joystick “
” on the remote controller and
push the ENTER “
” button.
Key (DVD-VIDEO) (models with navigation
system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Keys for the DVD menu operation are displayed.
: Move the cursor to select a DVD menu.
Enter: Enter the selected menu.
Move: Change the display location by moving
the operation key.
Back: Return to the previous screen.
Hide: Hide the operation key.
Title Menu (front)/Menu (rear) (DVD-VI-
DEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Menus specific to each disc will be shown. For
details, see the instructions attached to the disc.
Title Search (DVD-VIDEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407A scene that belongs to a specified title will be
displayed each time the “+” side or “−” side is selected.
10 Key Search (DVD-VIDEO, VIDEO-CD,
CD-DA):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “10 Key Search” key and push the
ENTER button to open the number entry screen.
Input the number you want to search for and
select the “OK” key with the multi-function
controller. Then push the ENTER button. The
specified Title/Chapter or Group/Track will be
played.
Angle (DVD-VIDEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407If the DVD contains different angles (such as
moving images), the current image angle can be
switched to another one.
Select the “Angle” key and push the ENTER
button. When the “+” side or “−” side is
selected, the angle will change.
Angle Mark (DVD-VIDEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned on, an angle mark will
be shown on the bottom of the screen if the
scene can be seen from a different angle.
Menu Skip (DVD-VIDEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407DVD menus are automatically configured and
the contents will be played directly when the
“Menu Skip” key is turned on. Note that some
discs may not be played directly even if this item
is turned on.
Condition:
