2013 NISSAN QUEST Owners Manual

Black plate (293,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
CM Skip (DVD-VIDEO) (models with navi-
gation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The number of seconds for CM Skip can be set
to 15, 30 or 60 seconds.
DRC (DVD-VIDEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407DRC (Dynamic Range Compression) allows
tuning of the dynamic range of sound recorded
in the Dolby Digital format.
DVD Language (DVD-VIDEO, VIDEO-CD):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “DVD Language” key and push the
ENTER button to open the number entry screen.
Input the number corresponding to the preferred
language and select the “OK” key with the multi-
function controller. Then push the ENTER
button. The DVD top menu language will be
changed to the one selected.
Display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the image quality of the screen, select the
preferred adjustment items and push the ENTER
button.
Audio:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the preferred language using the multi-
function controller and push the ENTER button.
Subtitle (DVD-VIDEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the preferred language using the multi-
function controller and push the ENTER button.To turn off the subtitles, push and hold the
ENTER button until a beep sounds.
Display Mode (DVD-VIDEO, VIDEO-CD):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose from the “Full”, “Wide”, “Normal” or
“Cinema” mode using the multi-function con-
troller and push the ENTER button again.
Play Mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the preferred play mode using the multi-
function controller and push the ENTER button.
Remote controller operationGUID-816E5A31-1B94-4815-A03C-0AB03B00B3A9Use the remote controller to adjust the following
items.
Rear display open/close:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To open or close the flip-down rear display, push
the “
” button.
Joystick:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Use the joystick “” to select the items
displayed on the rear screen.
ENTER button:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the ENTER “” button to make the
selected item complete on the rear screen.
BACK button:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push to go back to the previous screen or
cancel the selection. Display tilt:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the display angle by pushing the DIS-
PLAY TILT button “
”.
DVD mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To select the DVD mode, push the DVD button.
USB mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To select the USB mode, push the USB button.
AUX mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To select the AUX (auxiliary input jacks) , mode,
push the AUX button.
Volume:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To control the speaker volume level, push the
VOL button “
”.
Display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the rear display screen (aspect, color
system, 3D Y/C filter and picture mode etc.) ,
push the DISP button.
Sound:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To change the language, push the SOUND
button. Each time the button is pushed, the
language will change to each language stored in
the DVD.
Track/Channel:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To skip to the previous or next DVD scene
selection, push the TRACK CH button “
”.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-113
Condition:

Black plate (294,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

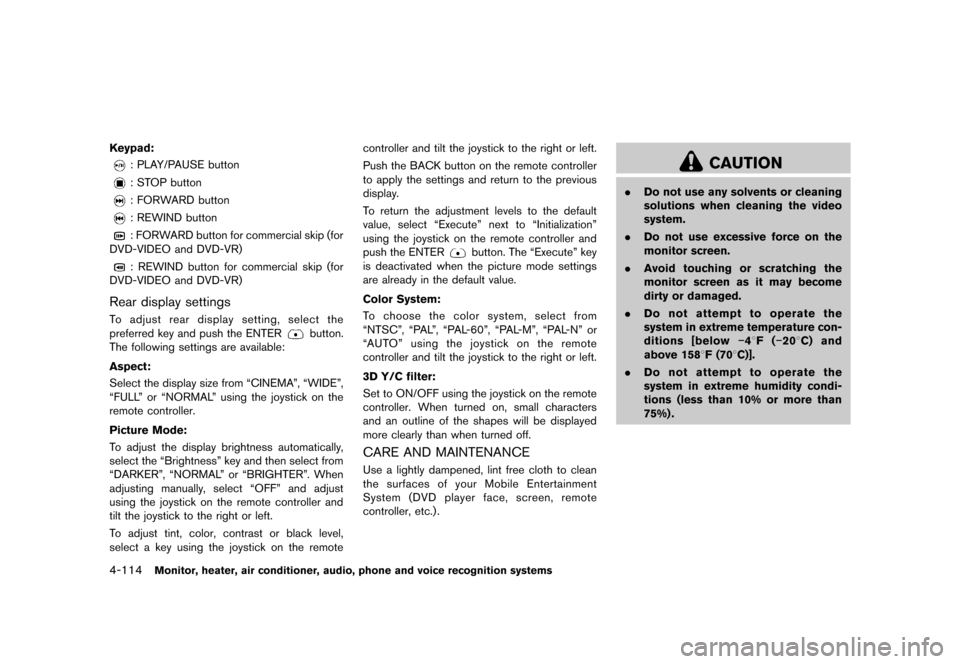

4-114Monitor, heater, air conditioner, audio, phone and voice recognition systems
Keypad:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407: PLAY/PAUSE button
: STOP button
: FORWARD button
: REWIND button
: FORWARD button for commercial skip (for
DVD-VIDEO and DVD-VR)
: REWIND button for commercial skip (for
DVD-VIDEO and DVD-VR)
Rear display settingsGUID-00567E6D-1555-4281-8A99-57190FBFC391To adjust rear display setting, select the
preferred key and push the ENTER
button.
The following settings are available:
Aspect:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the display size from “CINEMA”, “WIDE”,
“FULL” or “NORMAL” using the joystick on the
remote controller.
Picture Mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the display brightness automatically,
select the “Brightness” key and then select from
“DARKER”, “NORMAL” or “BRIGHTER”. When
adjusting manually, select “OFF” and adjust
using the joystick on the remote controller and
tilt the joystick to the right or left.
To adjust tint, color, contrast or black level,
select a key using the joystick on the remote controller and tilt the joystick to the right or left.
Push the BACK button on the remote controller
to apply the settings and return to the previous
display.
To return the adjustment levels to the default
value, select “Execute” next to “Initialization”
using the joystick on the remote controller and
push the ENTER
button. The “Execute” key
is deactivated when the picture mode settings
are already in the default value.
Color System:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To choose the color system, select from
“NTSC”, “PAL”, “PAL-60”, “PAL-M”, “PAL-N” or
“AUTO” using the joystick on the remote
controller and tilt the joystick to the right or left.
3D Y/C filter:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Set to ON/OFF using the joystick on the remote
controller. When turned on, small characters
and an outline of the shapes will be displayed
more clearly than when turned off.
CARE AND MAINTENANCEGUID-A7F955DE-E9EA-46F4-9DFB-E580911AB596Use a lightly dampened, lint free cloth to clean
the surfaces of your Mobile Entertainment
System (DVD player face, screen, remote
controller, etc.) .
CAUTION
. Do not use any solvents or cleaning
solutions when cleaning the video
system.
. Do not use excessive force on the
monitor screen.
. Avoid touching or scratching the
monitor screen as it may become
dirty or damaged.
. Do not attempt to operate the
system in extreme temperature con-
ditions [below −48F (−208C) and
above 1588F (708C)].
. Do not attempt to operate the
system in extreme humidity condi-
tions (less than 10% or more than
75%) .
Condition:

Black plate (295,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

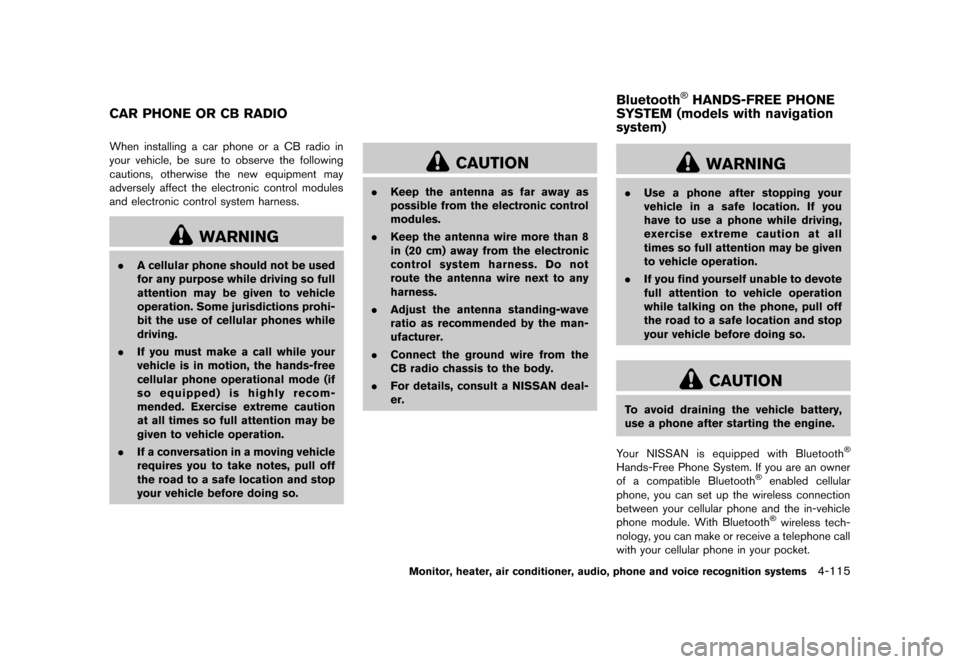

GUID-105D6E67-2A52-412D-A202-BB6065AD5B2BWhen installing a car phone or a CB radio in
your vehicle, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.
WARNING
.A cellular phone should not be used
for any purpose while driving so full
attention may be given to vehicle
operation. Some jurisdictions prohi-
bit the use of cellular phones while
driving.
. If you must make a call while your
vehicle is in motion, the hands-free
cellular phone operational mode (if
so equipped) is highly recom-
mended. Exercise extreme caution
at all times so full attention may be
given to vehicle operation.
. If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION
.Keep the antenna as far away as
possible from the electronic control
modules.
. Keep the antenna wire more than 8
in (20 cm) away from the electronic
control system harness. Do not
route the antenna wire next to any
harness.
. Adjust the antenna standing-wave
ratio as recommended by the man-
ufacturer.
. Connect the ground wire from the
CB radio chassis to the body.
. For details, consult a NISSAN deal-
er.
GUID-983C61FF-2D71-4F38-99B2-426D4B127A2D
WARNING
.Use a phone after stopping your
vehicle in a safe location. If you
have to use a phone while driving,
exercise extreme caution at all
times so full attention may be given
to vehicle operation.
. If you find yourself unable to devote
full attention to vehicle operation
while talking on the phone, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery,
use a phone after starting the engine.
Your NISSAN is equipped with Bluetooth
®
Hands-Free Phone System. If you are an owner
of a compatible Bluetooth®enabled cellular
phone, you can set up the wireless connection
between your cellular phone and the in-vehicle
phone module. With Bluetooth
®wireless tech-
nology, you can make or receive a telephone call
with your cellular phone in your pocket.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-115
CAR PHONE OR CB RADIO Bluetooth
®HANDS-FREE PHONE
SYSTEM (models with navigation
system)
Condition:

Black plate (296,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

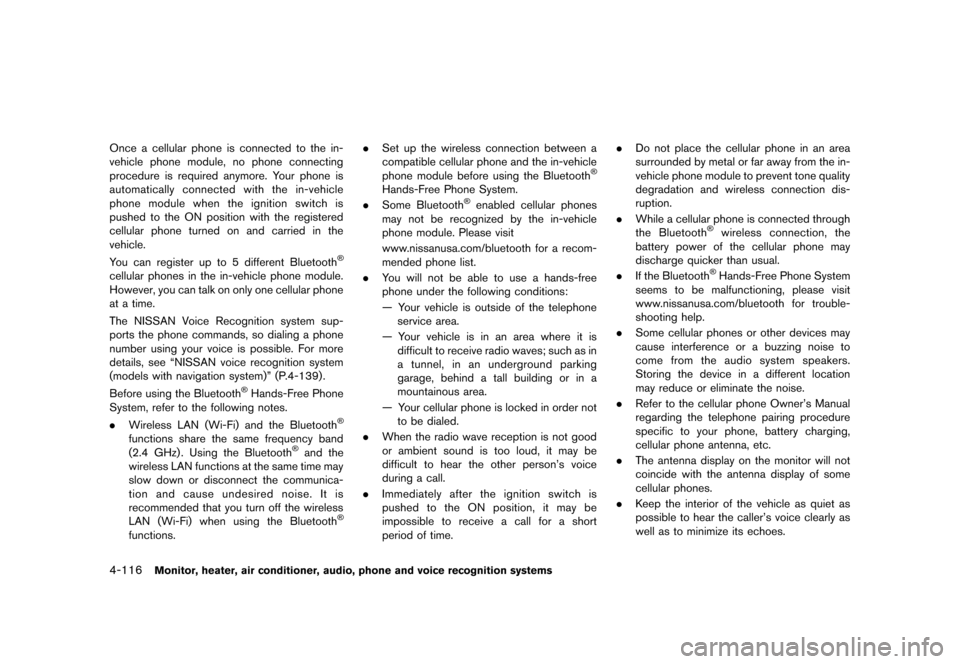

4-116Monitor, heater, air conditioner, audio, phone and voice recognition systems
Once a cellular phone is connected to the in-
vehicle phone module, no phone connecting
procedure is required anymore. Your phone is
automatically connected with the in-vehicle
phone module when the ignition switch is
pushed to the ON position with the registered
cellular phone turned on and carried in the
vehicle.
You can register up to 5 different Bluetooth
®
cellular phones in the in-vehicle phone module.
However, you can talk on only one cellular phone
at a time.
The NISSAN Voice Recognition system sup-
ports the phone commands, so dialing a phone
number using your voice is possible. For more
details, see “NISSAN voice recognition system
(models with navigation system)” (P.4-139).
Before using the Bluetooth
®Hands-Free Phone
System, refer to the following notes.
. Wireless LAN (Wi-Fi) and the Bluetooth
®
functions share the same frequency band
(2.4 GHz) . Using the Bluetooth®and the
wireless LAN functions at the same time may
slow down or disconnect the communica-
tion and cause undesired noise. It is
recommended that you turn off the wireless
LAN (Wi-Fi) when using the Bluetooth
®
functions. .
Set up the wireless connection between a
compatible cellular phone and the in-vehicle
phone module before using the Bluetooth
®
Hands-Free Phone System.
. Some Bluetooth®enabled cellular phones
may not be recognized by the in-vehicle
phone module. Please visit
www.nissanusa.com/bluetooth for a recom-
mended phone list.
. You will not be able to use a hands-free
phone under the following conditions:
— Your vehicle is outside of the telephone
service area.
— Your vehicle is in an area where it is difficult to receive radio waves; such as in
a tunnel, in an underground parking
garage, behind a tall building or in a
mountainous area.
— Your cellular phone is locked in order not to be dialed.
. When the radio wave reception is not good
or ambient sound is too loud, it may be
difficult to hear the other person’s voice
during a call.
. Immediately after the ignition switch is
pushed to the ON position, it may be
impossible to receive a call for a short
period of time. .
Do not place the cellular phone in an area
surrounded by metal or far away from the in-
vehicle phone module to prevent tone quality
degradation and wireless connection dis-
ruption.
. While a cellular phone is connected through
the Bluetooth
®wireless connection, the
battery power of the cellular phone may
discharge quicker than usual.
. If the Bluetooth
®Hands-Free Phone System
seems to be malfunctioning, please visit
www.nissanusa.com/bluetooth for trouble-
shooting help.
. Some cellular phones or other devices may
cause interference or a buzzing noise to
come from the audio system speakers.
Storing the device in a different location
may reduce or eliminate the noise.
. Refer to the cellular phone Owner’s Manual
regarding the telephone pairing procedure
specific to your phone, battery charging,
cellular phone antenna, etc.
. The antenna display on the monitor will not
coincide with the antenna display of some
cellular phones.
. Keep the interior of the vehicle as quiet as
possible to hear the caller’s voice clearly as
well as to minimize its echoes.
Condition:

Black plate (297,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
.If reception between callers is unclear,
adjusting the incoming or outgoing call
volume may improve the clarity.
REGULATORY INFORMATIONGUID-862365A4-73C3-4F77-A5BF-38C30FE38AAE
FCC Regulatory informationGUID-FB6526D6-1BE9-483D-95DB-A49FA94DDF01.CAUTION: To maintain compliance with
FCC’s RF exposure guidelines, use only
the supplied antenna. Unauthorized antenna,
modification, or attachments could damage
the transmitter and may violate FCC regula-
tions.
. Operation is subject to the following two
conditions:
1. this device may not cause interference and
2. this device must accept any interference, including interference that may cause un-
desired operation of the device
IC Regulatory informationGUID-D053C761-A3AB-4F99-99B1-35EAE4E4988A.Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the
device.
. This Class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations. Bluetooth trademark:
Bluetooth®is a trademark owned
by Bluetooth SIG, Inc., and
licensed to Clarion Co., Ltd.
VOICE COMMANDSGUID-65525BB4-2601-468A-A99C-DFF488459702You can use voice commands to operate various
Bluetooth®Hands-Free Phone System features
using the NISSAN Voice Recognition system.
For more details, see “NISSAN voice recogni-
tion system (models with navigation system)”
(P.4-139) .
SAA3603
CONTROL BUTTONSGUID-4FDD5CFC-0810-443E-AC13-8900AD975E241. TALK/PHONE SENDbutton
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-117
Condition:

Black plate (298,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
4-118Monitor, heater, air conditioner, audio, phone and voice recognition systems

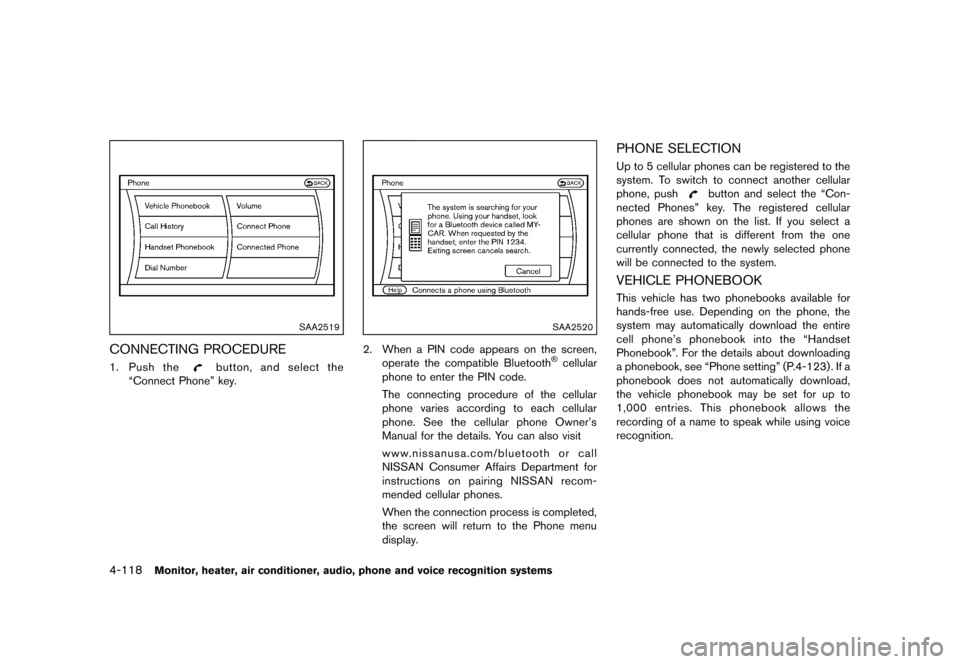

SAA2519
CONNECTING PROCEDUREGUID-21176BFE-792B-4765-B92B-3205D8DDC7DE1.Push thebutton, and select the
“Connect Phone” key.
SAA2520
2. When a PIN code appears on the screen,
operate the compatible Bluetooth®cellular
phone to enter the PIN code.
The connecting procedure of the cellular
phone varies according to each cellular
phone. See the cellular phone Owner’s
Manual for the details. You can also visit
www.nissanusa.com/bluetooth or call
NISSAN Consumer Affairs Department for
instructions on pairing NISSAN recom-
mended cellular phones.
When the connection process is completed,
the screen will return to the Phone menu
display.
PHONE SELECTIONGUID-F52BBCCB-61A6-493C-B3E7-26527D277517Up to 5 cellular phones can be registered to the
system. To switch to connect another cellular
phone, push
button and select the “Con-
nected Phones” key. The registered cellular
phones are shown on the list. If you select a
cellular phone that is different from the one
currently connected, the newly selected phone
will be connected to the system.
VEHICLE PHONEBOOKGUID-0478067C-C8CA-44D7-A573-BD04C0FFD3FDThis vehicle has two phonebooks available for
hands-free use. Depending on the phone, the
system may automatically download the entire
cell phone’s phonebook into the “Handset
Phonebook”. For the details about downloading
a phonebook, see “Phone setting” (P.4-123) . If a
phonebook does not automatically download,
the vehicle phonebook may be set for up to
1,000 entries. This phonebook allows the
recording of a name to speak while using voice
recognition.
Condition:

Black plate (299,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

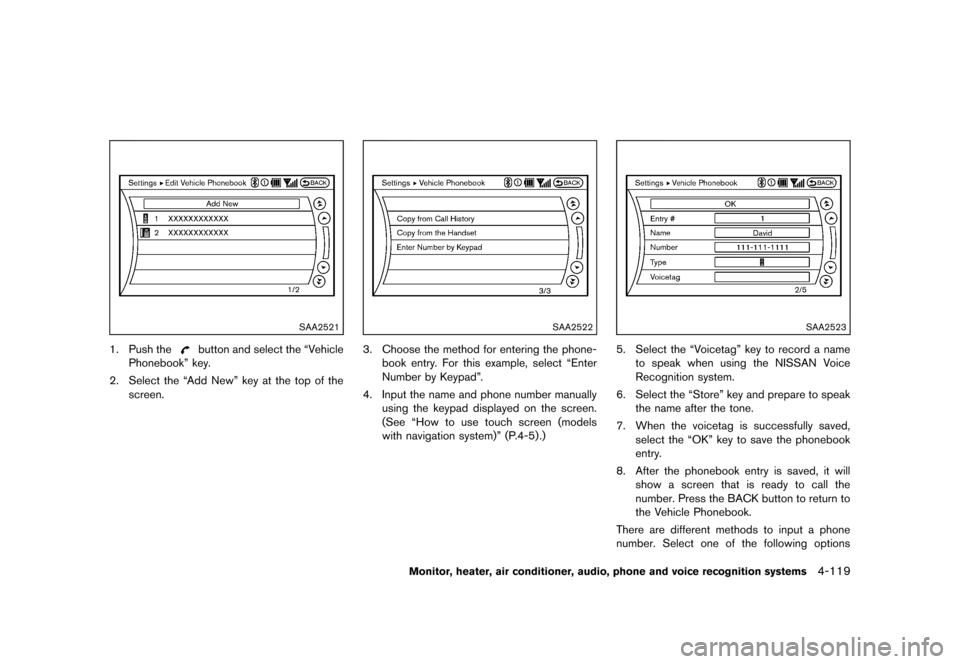

SAA2521
1. Push thebutton and select the “Vehicle
Phonebook” key.
2. Select the “Add New” key at the top of the screen.
SAA2522
3. Choose the method for entering the phone-
book entry. For this example, select “Enter
Number by Keypad”.
4. Input the name and phone number manually using the keypad displayed on the screen.
(See “How to use touch screen (models
with navigation system)” (P.4-5) .)
SAA2523
5. Select the “Voicetag” key to record a name
to speak when using the NISSAN Voice
Recognition system.
6. Select the “Store” key and prepare to speak the name after the tone.
7. When the voicetag is successfully saved, select the “OK” key to save the phonebook
entry.
8. After the phonebook entry is saved, it will show a screen that is ready to call the
number. Press the BACK button to return to
the Vehicle Phonebook.
There are different methods to input a phone
number. Select one of the following options
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-119
Condition:

Black plate (300,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
4-120Monitor, heater, air conditioner, audio, phone and voice recognition systems

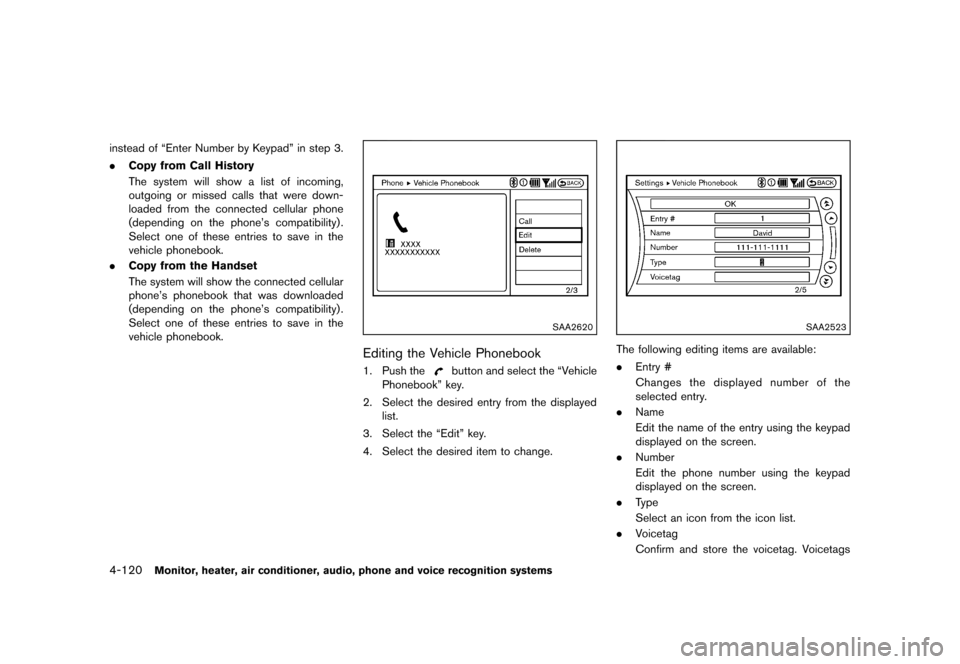

instead of “Enter Number by Keypad” in step 3.
.Copy from Call History
The system will show a list of incoming,
outgoing or missed calls that were down-
loaded from the connected cellular phone
(depending on the phone’s compatibility) .
Select one of these entries to save in the
vehicle phonebook.
. Copy from the Handset
The system will show the connected cellular
phone’s phonebook that was downloaded
(depending on the phone’s compatibility) .
Select one of these entries to save in the
vehicle phonebook.
SAA2620
Editing the Vehicle PhonebookGUID-DCA53C75-BAF5-473E-9820-3B6F07F337A61. Push thebutton and select the “Vehicle
Phonebook” key.
2. Select the desired entry from the displayed list.
3. Select the “Edit” key.
4. Select the desired item to change.
SAA2523
The following editing items are available:
. Entry #
Changes the displayed number of the
selected entry.
. Name
Edit the name of the entry using the keypad
displayed on the screen.
. Number
Edit the phone number using the keypad
displayed on the screen.
. Type
Select an icon from the icon list.
. Voicetag
Confirm and store the voicetag. Voicetags
Condition:
