2013 NISSAN QUEST Owners Manual

Black plate (13,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
GUID-3F5BDD52-9AA5-463B-87CB-C132C6049CB4
SSI0824
1. Side ventilator (P.4-38)
2. Meters and gauges (P.2-5)
3. Push-button ignition switch (P.5-8)
4. Hazard warning flasher switch (P.6-2)
5. Selector lever (P.5-13)
6. Center display— Center color display* (P.4-3) — Navigation system**
7. Center multi-function control panel* (P.4-3) — Navigation system**
— Vehicle information and setting buttons*
(P.4-8)
— RearView Monitor* (P. 4-23)
— Around View Monitor* (P. 4-29) 8.
Rear window and outside mirror* defroster
switch (P.2-32)
9. Center ventilator (P.4-38)
10. Heater/air conditioner control (P.4-39) or audio system (P.4-53)
11. Parking brake (P.5-17)
12. Tilting telescopic steering wheel lever (P.3-32)
13. Front passenger air bag status light (P.1-54)
14. Heated seat switch* (P.2-38)
15. Cup holders (P.2-43)
16. Power outlet (P.2-40)
17. Instrument lower box (P.2-46) or CD/DVD slot (P.4-105)
18. Power outlet main switch* (P.2-40)
19. Audio system (P.4-53)
20. Glove box (P.2-45)
*: if so equipped
**: Refer to the separate Navigation System Own- er’s Manual (if so equipped) .
Illustrated table of contents0-7
INSTRUMENT PANEL
Condition:

Black plate (14,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
0-8Illustrated table of contents
GUID-073633CE-DDD1-43BA-93E3-2242C44257FC
JVC0210X
1. Instrument brightness control switch (P.2-37)
2. Tachometer (P.2-7)
3. Speedometer (P.2-6)
4. Fuel gauge (P.2-8)
5. Warning/indicator lights (P.2-11)
6. Trip computer switch (P.2-22)
7. Dot matrix liquid crystal display (P.2-18)— Trip computer (P.2-22)
8. Engine coolant temperature gauge (P.2-7)
9. Odometer/twin trip odometer (P.2-6)/Continu- ously Variable Transmission (CVT) position
indicator (P.2-16)
10. TRIP/RESET switch for twin trip odometer (P.2-6)
METERS AND GAUGES
Condition:

Black plate (15,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
GUID-3A4CEA77-5BE4-4FE6-B1A8-2659A7636D0E
SDI2715
VQ35DE ENGINEGUID-EEC870E3-1878-4751-8AE6-5D5884DD625A1. Power steering fluid reservoir (P.8-11)
2. Drive belt location (P.8-15)
3. Engine oil filler cap (P.8-8)
4. Brake fluid reservoir (P.8-12)
5. Air cleaner (P.8-17)
6. Fuse/fusible link holder (P.8-20)7. Window washer fluid reservoir (P.8-13)
8. Engine coolant reservoir (P.8-7)
9. Radiator filler cap (P.8-7)
10. Engine oil dipstick (P.8-8)
11. Battery (P.8-13)
Illustrated table of contents0-9
ENGINE COMPARTMENT
Condition:

Black plate (16,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
0-10Illustrated table of contents
GUID-6043B04C-5484-4ADB-BE61-405D49B73B56
Warninglight Name
Page
Anti-lock Braking System
(ABS) warning light 2-12
Blind Spot Warning (BSW)
system warning light*2-12
Brake warning light
2-12
Charge warning light2-13
Engine oil pressure warning
light 2-13
Hydraulic pump electric power
steering warning light2-13
Intelligent Key system warning
light2-14
Low tire pressure warning light 2-14
Master warning light
2-15
Seat belt warning light 2-15
Supplemental air bag warning
light 2-15
Vehicle Dynamic Control (VDC)
warning light2-16Indicator
light Name Page
Continuously Variable Trans-
mission (CVT) position indicator
light 2-16
Cruise indicator light
2-16
Exterior light indicator2-16
Front passenger air bag status
light 2-16
High beam indicator light 2-16
Malfunction Indicator Light
(MIL)2-17
Overdrive off indicator light 2-17
Security indicator light
2-17
Turn signal/hazard indicator
lights 2-17
Vehicle Dynamic Control (VDC)
off indicator light2-18
*: if so equipped
WARNING AND INDICATOR LIGHTS
Condition:

Black plate (17,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
1 Safety — Seats, seat belts and supplementalrestraint system
Seats ...
........................................................................\
.................... 1-2
Front seats ...
........................................................................\
.... 1-3
2nd row seats ...
...................................................................... 1-6
3rd row seats ...
....................................................................... 1-7
Head restraints ...
.................................................................... 1-7
Adjustable headrests ...
....................................................... 1-10
Armrests ...
........................................................................\
..... 1-13
Flexible seating ...
................................................................. 1-13
Seat belts ...
........................................................................\
......... 1-16
Precautions on seat belt usage ...
.................................... 1-16
Pregnant women ...
.............................................................. 1-18
Injured persons ...
................................................................. 1-18
Three-point type seat belt ...
.............................................. 1-18
Seat belt extenders ...
.......................................................... 1-24
Seat belt maintenance ...
.................................................... 1-24
Child safety ...
........................................................................\
...... 1-25
Infants ...
........................................................................\
.......... 1-26
Small children ...
.................................................................... 1-26
Larger children ...
.................................................................. 1-26
Child restraints ...
........................................................................\
1-27
Precautions on child restraints ...
..................................... 1-27
Lower Anchors and Tethers for CHildren
System (LATCH) ...
.............................................................. 1-29 Top tether strap child restraint
...
................................... 1-31
Rear-facing child restraint installation
using LATCH ...
................................................................... 1-32
Rear-facing child restraint installation using the
seat belts ...
........................................................................\
.. 1-34
Forward-facing child restraint installation
using LATCH ...
................................................................... 1-37
Forward-facing child restraint installation using the
seat belt ...
........................................................................\
.... 1-39
Installing top tether strap (2nd row seats) ...
.............. 1-42
Installing top tether strap (3rd row seat) ...
................. 1-43
Booster seats ...
.................................................................. 1-43
Supplemental restraint system ...
........................................... 1-47
Precautions on supplemental restraint system ...
....... 1-47
NISSAN advanced air bag system (front seats) ...
..... 1-53
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems ...
.................................... 1-58
Seat belts with pretensioners (front seats) ...
............. 1-59
Supplemental air bag warning labels ...
....................... 1-60
Supplemental air bag warning light ...
.......................... 1-61
Repair and replacement procedure ...
.......................... 1-61
Condition:

Black plate (18,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

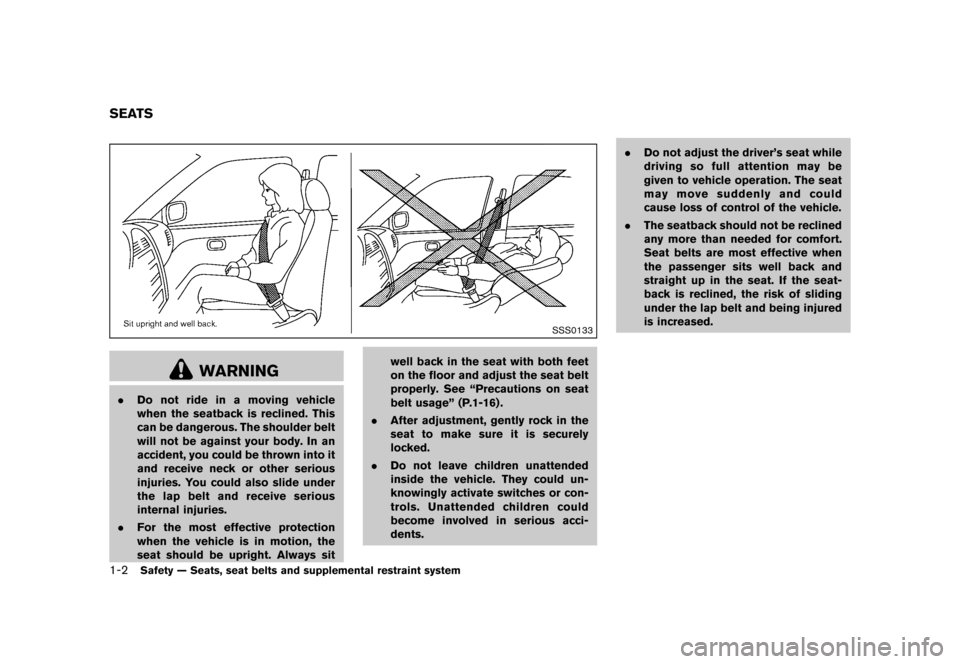

1-2Safety — Seats, seat belts and supplemental restraint system
GUID-DE2C7BDD-4D98-4DFC-BCAF-32596CEFB86B
SSS0133
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back in the seat with both feet
on the floor and adjust the seat belt
properly. See “Precautions on seat
belt usage” (P.1-16) .
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents. .
Do not adjust the driver’s seat while
driving so full attention may be
given to vehicle operation. The seat
may move suddenly and could
cause loss of control of the vehicle.
. The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
SEATS
Condition:

Black plate (19,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
SSS0792
FRONT SEATSGUID-307D5A41-7EBD-493D-9945-9B4D20449743
Front manual seat adjustmentGUID-A88B0604-0482-4E80-9991-EE2DA9ABA481
Forward and backward:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull the lever*1up and hold it while you slide
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.
Reclining:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To recline the seatback, pull the lever*2up and
lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.
The reclining feature allows adjustment of the seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
(P.1-16) .) Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the transmission in the P (Park)
position.
SSS0793
Seat lifter (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.
Front power seat adjustmentGUID-F70E7AF5-80AF-4C06-A9D0-0B5CAA04522F
Operating tips:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.
The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
. Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
See “Automatic drive positioner” (P.3-37) for the
Safety — Seats, seat belts and supplemental restraint system1-3
Condition:

Black plate (20,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

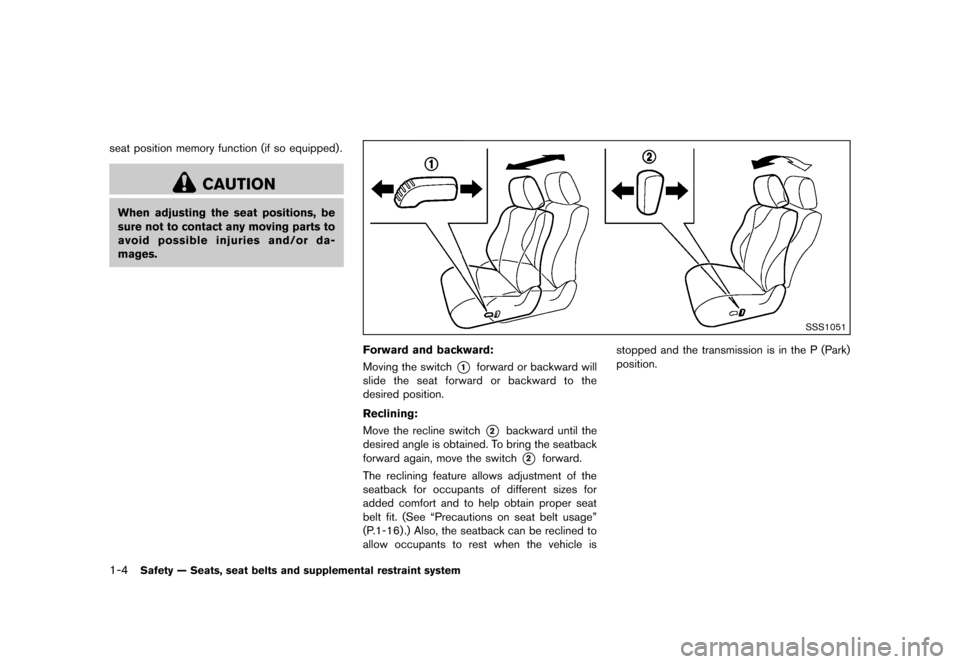

1-4Safety — Seats, seat belts and supplemental restraint system
seat position memory function (if so equipped).
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or da-
mages.
SSS1051
Forward and backward:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Moving the switch*1forward or backward will
slide the seat forward or backward to the
desired position.
Reclining:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Move the recline switch*2backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch
*2forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
(P.1-16) .) Also, the seatback can be reclined to
allow occupants to rest when the vehicle is stopped and the transmission is in the P (Park)
position.
