2013 NISSAN QUEST Owners Manual

Black plate (173,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
GUID-4CFDB9D2-58AF-4A8C-90ED-BCCDAEB2429B

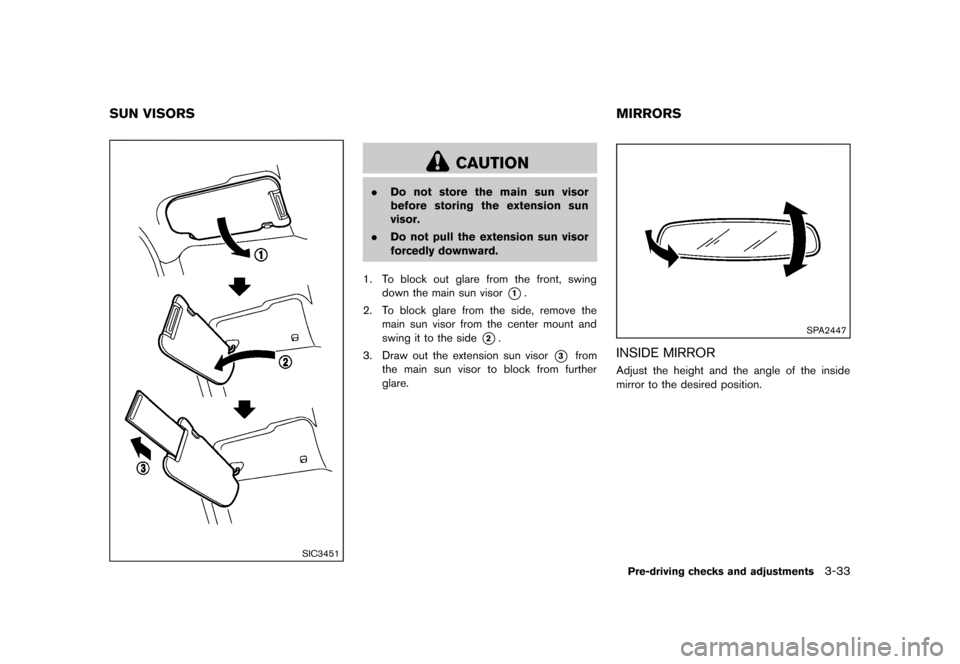

SIC3451
CAUTION
.Do not store the main sun visor
before storing the extension sun
visor.
. Do not pull the extension sun visor
forcedly downward.
1. To block out glare from the front, swing down the main sun visor
*1.
2. To block glare from the side, remove the main sun visor from the center mount and
swing it to the side
*2.
3. Draw out the extension sun visor
*3from
the main sun visor to block from further
glare.
GUID-64DBF7D1-4713-4227-96C7-5B25E941248E
SPA2447
INSIDE MIRRORGUID-A519B782-D726-414C-B567-ECBC5D961F3EAdjust the height and the angle of the inside
mirror to the desired position.
Pre-driving checks and adjustments3-33
SUN VISORS MIRRORS
Condition:

Black plate (174,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
3-34Pre-driving checks and adjustments
SPA2143
Manual anti-glare typeGUID-1D65C108-5B16-4D9F-964E-FAEC8D474701The night position*1will reduce glare from the
headlights of vehicles behind you at night.
Use the day position
*2when driving in daylight
hours.
WARNING
Use the night position only when ne-
cessary, because it reduces rear view
clarity.
SPA2422A
Type A
SPA2450
Type B
Automatic anti-glare typeGUID-1BF23A99-F7FF-4C78-BE01-4E0480FD45F8The inside mirror is designed so that it
automatically changes reflection according to
the intensity of the headlights of the following
vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is pushed
to the ON position.
When the anti-glare system is turned on, the
indicator light
*Awill illuminate and excessive
glare from the headlights of the vehicle behind
you will be reduced.
Type A: Push the
switch*Bto make the
inside rearview mirror operate normally and the
indicator light will turn off. Push the
switch
again to turn the system on.
Type B: Push the “*” switch
*Cto make the
inside rearview mirror operate normally. The
indicator light will turn off. Push the “I” switch
*Dto turn the system on.
Do not allow any object to cover the
sensors
*Eor apply glass cleaner on
them. Doing so will reduce the sensitivity
of the sensor, resulting in improper opera-
tion.
For the compass (if so equipped) operation, see
“Compass” (P.2-8) .
For the HomeLink
®Universal Transceiver opera-
Condition:

Black plate (175,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

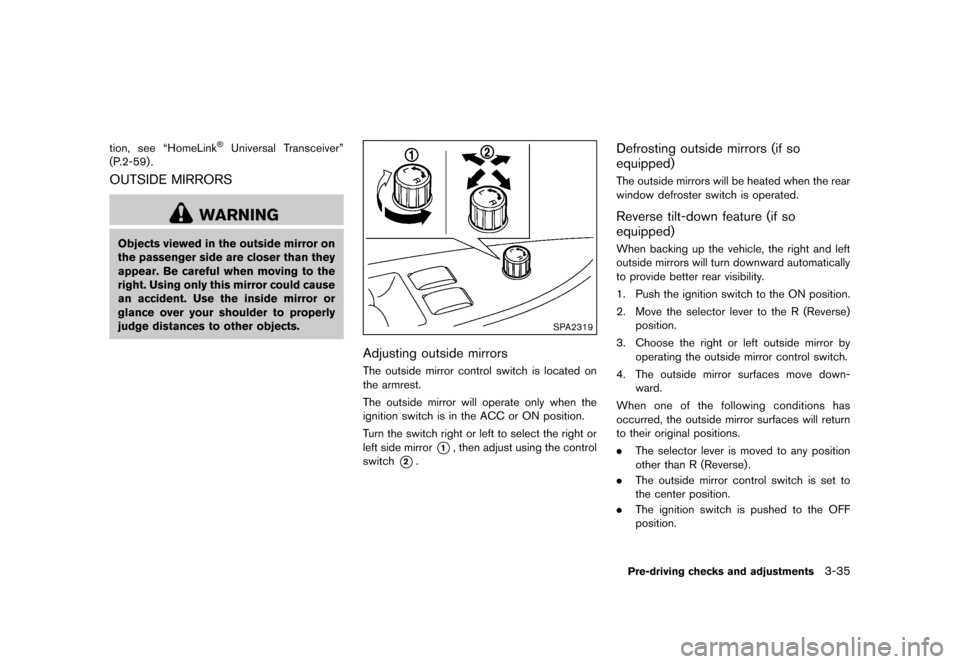

tion, see “HomeLink®Universal Transceiver”
(P.2-59) .
OUTSIDE MIRRORSGUID-453562C8-408F-49F2-AD9F-C932B1E3BE8B
WARNING
Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
SPA2319
Adjusting outside mirrorsGUID-3DE81B55-145D-473A-8597-17FABDD1E16AThe outside mirror control switch is located on
the armrest.
The outside mirror will operate only when the
ignition switch is in the ACC or ON position.
Turn the switch right or left to select the right or
left side mirror
*1, then adjust using the control
switch
*2.
Defrosting outside mirrors (if so
equipped)
GUID-5C48E210-5008-4308-866B-AB2FFF2BB8A7The outside mirrors will be heated when the rear
window defroster switch is operated.
Reverse tilt-down feature (if so
equipped)
GUID-A189001C-CDA4-4A60-B7F7-80745BCD7DA2When backing up the vehicle, the right and left
outside mirrors will turn downward automatically
to provide better rear visibility.
1. Push the ignition switch to the ON position.
2. Move the selector lever to the R (Reverse) position.
3. Choose the right or left outside mirror by operating the outside mirror control switch.
4. The outside mirror surfaces move down- ward.
When one of the following conditions has
occurred, the outside mirror surfaces will return
to their original positions.
. The selector lever is moved to any position
other than R (Reverse).
. The outside mirror control switch is set to
the center position.
. The ignition switch is pushed to the OFF
position.
Pre-driving checks and adjustments3-35
Condition:

Black plate (176,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
3-36Pre-driving checks and adjustments

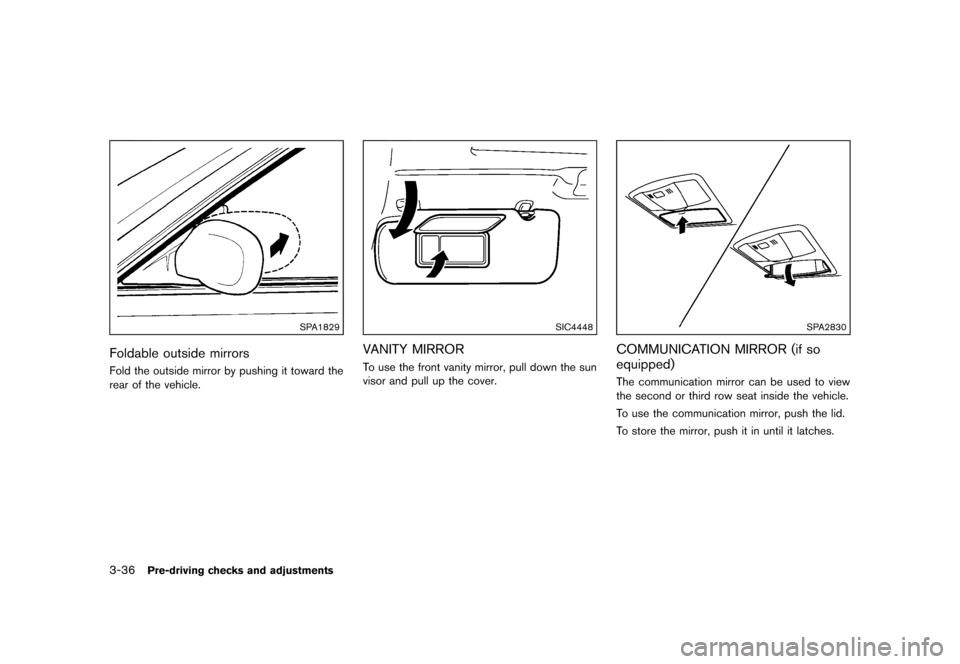

SPA1829
Foldable outside mirrorsGUID-C1C0EE4F-25B0-44D4-AE32-5F77B5E3E29FFold the outside mirror by pushing it toward the
rear of the vehicle.
SIC4448
VANITY MIRRORGUID-C84F4FB4-8EE7-48D6-B741-CC07C946F427To use the front vanity mirror, pull down the sun
visor and pull up the cover.
SPA2830
COMMUNICATION MIRROR (if so
equipped)
GUID-B811515D-3E5A-4885-B966-B002ED367C00The communication mirror can be used to view
the second or third row seat inside the vehicle.
To use the communication mirror, push the lid.
To store the mirror, push it in until it latches.
Condition:

Black plate (177,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

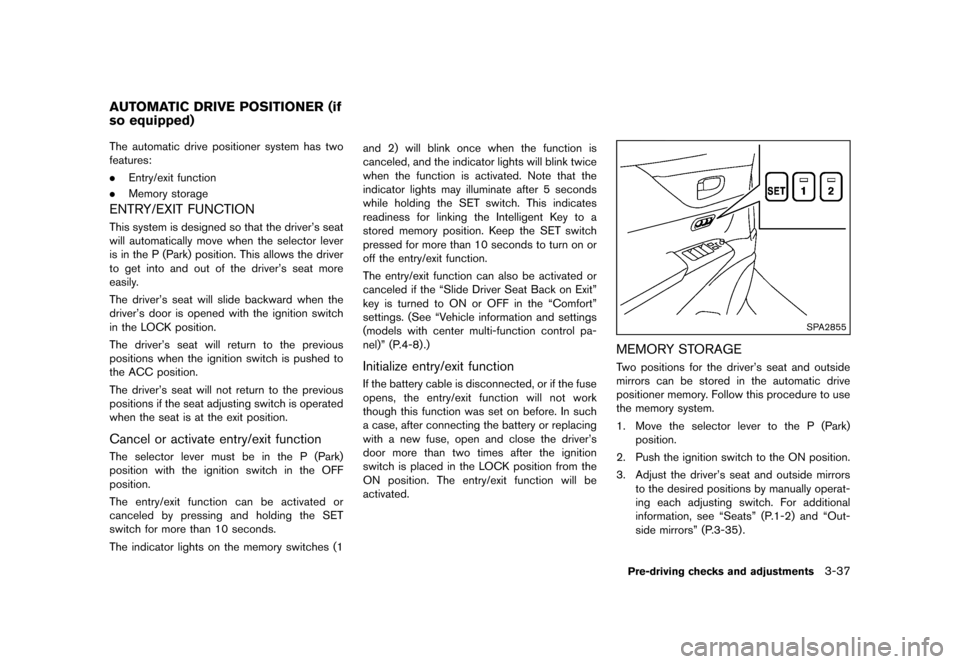

GUID-D7276E5F-FB84-463B-BDF9-A346295A447BThe automatic drive positioner system has two
features:
.Entry/exit function
. Memory storage
ENTRY/EXIT FUNCTIONGUID-5F29AE45-A8DA-42BF-A7C8-04256D167074This system is designed so that the driver’s seat
will automatically move when the selector lever
is in the P (Park) position. This allows the driver
to get into and out of the driver’s seat more
easily.
The driver’s seat will slide backward when the
driver’s door is opened with the ignition switch
in the LOCK position.
The driver’s seat will return to the previous
positions when the ignition switch is pushed to
the ACC position.
The driver’s seat will not return to the previous
positions if the seat adjusting switch is operated
when the seat is at the exit position.
Cancel or activate entry/exit functionGUID-97B13C13-98B1-43DA-BF4E-6CC11E5EE734The selector lever must be in the P (Park)
position with the ignition switch in the OFF
position.
The entry/exit function can be activated or
canceled by pressing and holding the SET
switch for more than 10 seconds.
The indicator lights on the memory switches (1 and 2) will blink once when the function is
canceled, and the indicator lights will blink twice
when the function is activated. Note that the
indicator lights may illuminate after 5 seconds
while holding the SET switch. This indicates
readiness for linking the Intelligent Key to a
stored memory position. Keep the SET switch
pressed for more than 10 seconds to turn on or
off the entry/exit function.
The entry/exit function can also be activated or
canceled if the “Slide Driver Seat Back on Exit”
key is turned to ON or OFF in the “Comfort”
settings. (See “Vehicle information and settings
(models with center multi-function control pa-
nel)” (P.4-8) .)
Initialize entry/exit functionGUID-E526DD89-2FEC-4DC6-8386-CED70B431AFFIf the battery cable is disconnected, or if the fuse
opens, the entry/exit function will not work
though this function was set on before. In such
a case, after connecting the battery or replacing
with a new fuse, open and close the driver’s
door more than two times after the ignition
switch is placed in the LOCK position from the
ON position. The entry/exit function will be
activated.
SPA2855
MEMORY STORAGEGUID-BEDCA7A8-8409-4EC2-8EAE-7F30A20C2AA8Two positions for the driver’s seat and outside
mirrors can be stored in the automatic drive
positioner memory. Follow this procedure to use
the memory system.
1. Move the selector lever to the P (Park)
position.
2. Push the ignition switch to the ON position.
3. Adjust the driver’s seat and outside mirrors to the desired positions by manually operat-
ing each adjusting switch. For additional
information, see “Seats” (P.1-2) and “Out-
side mirrors” (P.3-35) .
Pre-driving checks and adjustments3-37
AUTOMATIC DRIVE POSITIONER (if
so equipped)
Condition:

Black plate (178,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
3-38Pre-driving checks and adjustments

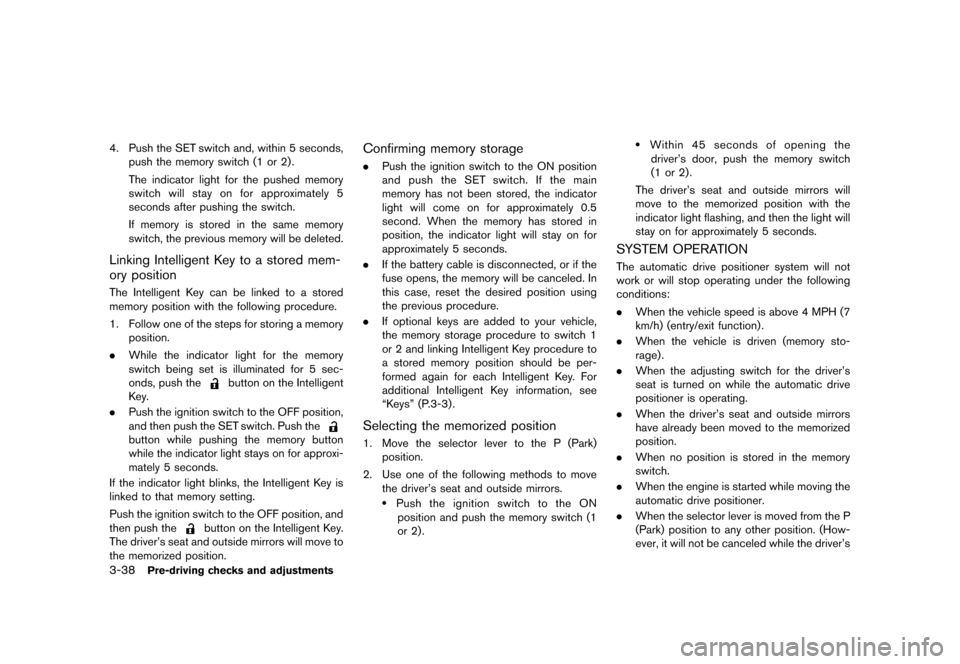

4. Push the SET switch and, within 5 seconds,push the memory switch (1 or 2) .
The indicator light for the pushed memory
switch will stay on for approximately 5
seconds after pushing the switch.
If memory is stored in the same memory
switch, the previous memory will be deleted.
Linking Intelligent Key to a stored mem-
ory position
GUID-04712762-5C07-46C9-89DF-7F2803A498EBThe Intelligent Key can be linked to a stored
memory position with the following procedure.
1. Follow one of the steps for storing a memoryposition.
. While the indicator light for the memory
switch being set is illuminated for 5 sec-
onds, push the
button on the Intelligent
Key.
. Push the ignition switch to the OFF position,
and then push the SET switch. Push the
button while pushing the memory button
while the indicator light stays on for approxi-
mately 5 seconds.
If the indicator light blinks, the Intelligent Key is
linked to that memory setting.
Push the ignition switch to the OFF position, and
then push the
button on the Intelligent Key.
The driver’s seat and outside mirrors will move to
the memorized position.
Confirming memory storageGUID-C7D22E67-E6D7-436F-A7E9-FBD8970F3E83. Push the ignition switch to the ON position
and push the SET switch. If the main
memory has not been stored, the indicator
light will come on for approximately 0.5
second. When the memory has stored in
position, the indicator light will stay on for
approximately 5 seconds.
. If the battery cable is disconnected, or if the
fuse opens, the memory will be canceled. In
this case, reset the desired position using
the previous procedure.
. If optional keys are added to your vehicle,
the memory storage procedure to switch 1
or 2 and linking Intelligent Key procedure to
a stored memory position should be per-
formed again for each Intelligent Key. For
additional Intelligent Key information, see
“Keys” (P.3-3) .
Selecting the memorized positionGUID-66874194-881E-4A22-96FF-EE790B2F0E221. Move the selector lever to the P (Park)
position.
2. Use one of the following methods to move the driver’s seat and outside mirrors.
.Push the ignition switch to the ONposition and push the memory switch (1
or 2) .
.Within 45 seconds of opening thedriver’s door, push the memory switch
(1 or 2) .
The driver’s seat and outside mirrors will
move to the memorized position with the
indicator light flashing, and then the light will
stay on for approximately 5 seconds.
SYSTEM OPERATIONGUID-B0CC6635-8934-4D55-BA9A-D54FF3D35461The automatic drive positioner system will not
work or will stop operating under the following
conditions:
. When the vehicle speed is above 4 MPH (7
km/h) (entry/exit function) .
. When the vehicle is driven (memory sto-
rage).
. When the adjusting switch for the driver’s
seat is turned on while the automatic drive
positioner is operating.
. When the driver’s seat and outside mirrors
have already been moved to the memorized
position.
. When no position is stored in the memory
switch.
. When the engine is started while moving the
automatic drive positioner.
. When the selector lever is moved from the P
(Park) position to any other position. (How-
ever, it will not be canceled while the driver’s
Condition:

Black plate (179,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

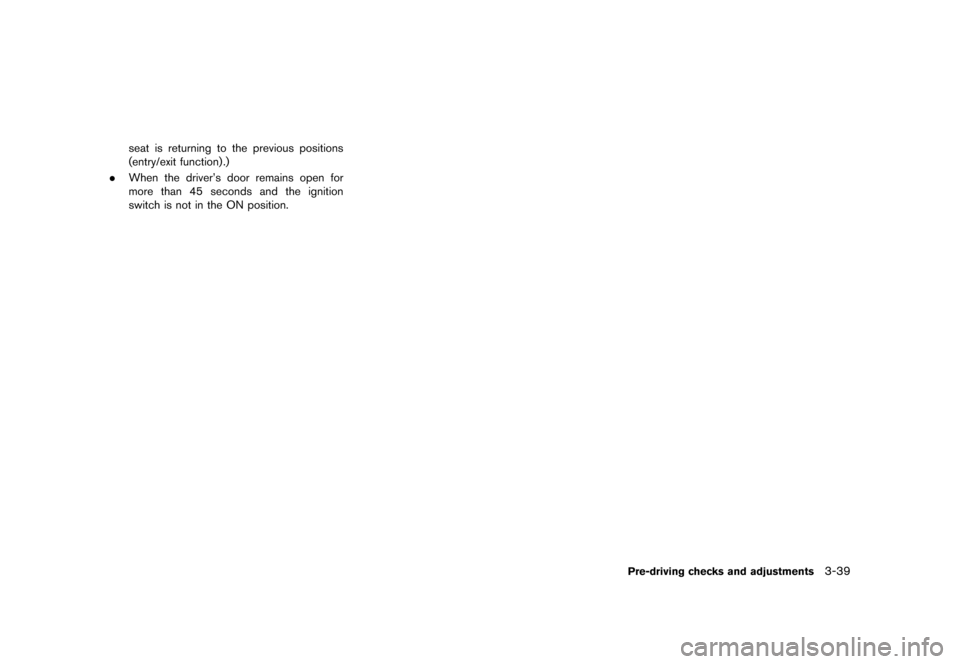

seat is returning to the previous positions
(entry/exit function).)
. When the driver’s door remains open for
more than 45 seconds and the ignition
switch is not in the ON position.
Pre-driving checks and adjustments3-39
Condition:

Black plate (180,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
3-40Pre-driving checks and adjustments

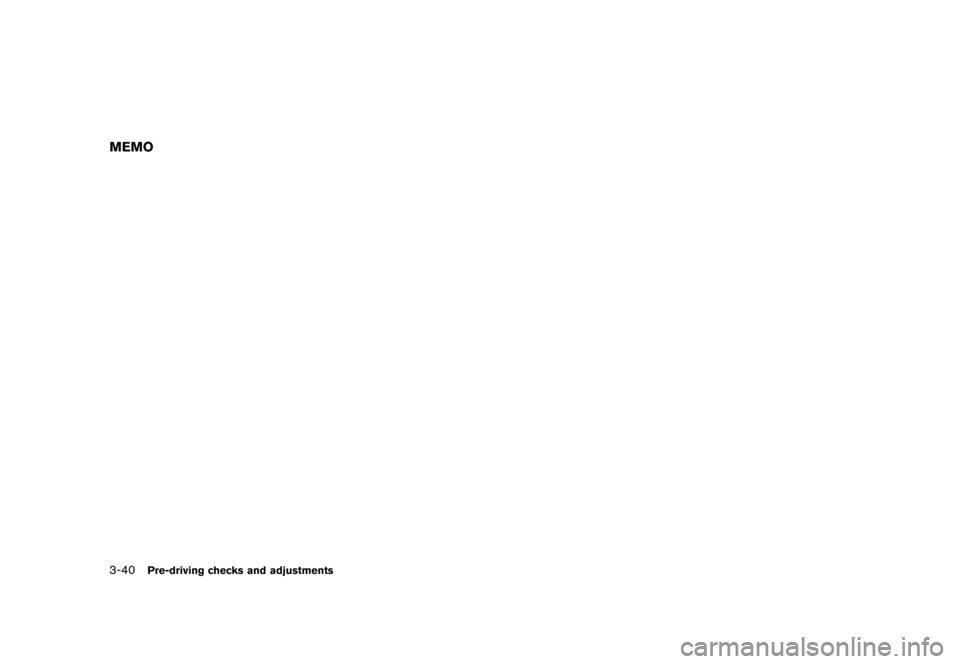

MEMO
