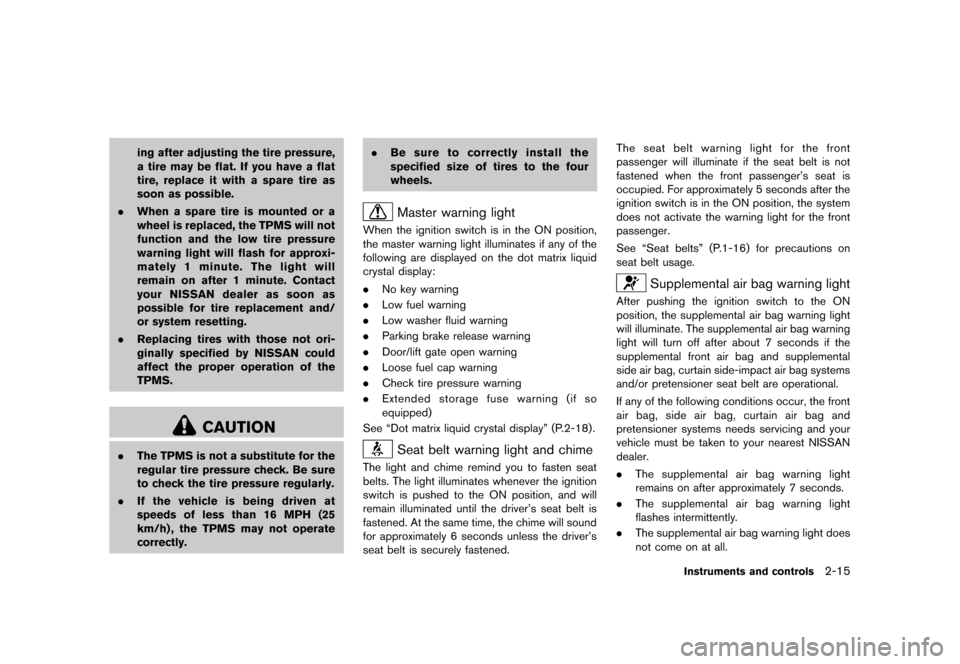

ing after adjusting the tire pressure,
a tire may be flat. If you have a flat
tire, replace it with a spare tire as
soon as possible.
. When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will
remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
CAUTION
.The TPMS is not a substitute for the
regular tire pressure check. Be sure
to check the tire pressure regularly.
. If the vehicle is being driven at
speeds of less than 16 MPH (25
km/h) , the TPMS may not operate
correctly. .
Be sure to correctly install the
specified size of tires to the four
wheels.
Master warning lightGUID-AE6F59CE-42B9-444F-B156-919C688575F5When the ignition switch is in the ON position,
the master warning light illuminates if any of the
following are displayed on the dot matrix liquid
crystal display:
.No key warning
. Low fuel warning
. Low washer fluid warning
. Parking brake release warning
. Door/lift gate open warning
. Loose fuel cap warning
. Check tire pressure warning
. Extended storage fuse warning (if so
equipped)
See “Dot matrix liquid crystal display” (P.2-18) .
Seat belt warning light and chimeGUID-A109F64D-D61F-4A96-AD87-98431E7D57E1The light and chime remind you to fasten seat
belts. The light illuminates whenever the ignition
switch is pushed to the ON position, and will
remain illuminated until the driver’s seat belt is
fastened. At the same time, the chime will sound
for approximately 6 seconds unless the driver’s
seat belt is securely fastened. The seat belt warning light for the front
passenger will illuminate if the seat belt is not
fastened when the front passenger’s seat is
occupied. For approximately 5 seconds after the
ignition switch is in the ON position, the system
does not activate the warning light for the front
passenger.
See “Seat belts” (P.1-16) for precautions on
seat belt usage.
Supplemental air bag warning lightGUID-053868B0-D825-4DAD-80BD-8335FF04C712After pushing the ignition switch to the ON
position, the supplemental air bag warning light
will illuminate. The supplemental air bag warning
light will turn off after about 7 seconds if the
supplemental front air bag and supplemental
side air bag, curtain side-impact air bag systems
and/or pretensioner seat belt are operational.
If any of the following conditions occur, the front
air bag, side air bag, curtain air bag and
pretensioner systems needs servicing and your
vehicle must be taken to your nearest NISSAN
dealer.
.
The supplemental air bag warning light
remains on after approximately 7 seconds.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light does
not come on at all.
Instruments and controls2-15
Condition:

Black plate (94,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
2-16Instruments and controls
Unless checked and repaired, the Supplemental
Restraint Systems (air bag systems) and/or the
pretensioners may not function properly.
For additional information, see “Supplemental
restraint system” (P.1-47) .
WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked by a NISSAN dealer as
soon as possible.
Vehicle Dynamic Control (VDC)
warning light
GUID-AE9CC0E0-4545-43E8-B644-9AA218EEAC08The light will blink when the Vehicle Dynamic
Control (VDC) system or the traction control
system is operating, thus alerting the driver that
the vehicle is nearing its traction limits. The road
surface may be slippery.
If the VDC warning light comes on and stays on
while the VDC system is on, this light alerts the
driver to the fact that the VDC system’s fail-safe
mode is operating, for example the VDC system may not be functioning properly. Have the
system checked by a NISSAN dealer. If a
malfunction occurs in the system, the VDC
system function will be canceled but the vehicle
is still driveable. For additional information, see
“Vehicle Dynamic Control (VDC) system” (P.5-
31).
INDICATOR LIGHTSGUID-74D81D00-89E2-45CA-8D90-62256806AA00
Continuously Variable Transmis-
sion (CVT) position indicator light
GUID-EA4324B0-97BD-4543-B6F9-6455691DD2E7When the ignition switch is pushed to the ON
position, the indicator shows the automatic
selector shift position. (See “Continuously Vari-
able Transmission (CVT)” (P.5-13) .)
Cruise indicator lightGUID-DDE42649-20AF-4630-87BB-B2941A1E1FEE
Cruise main switch indicator:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This light illuminates when the cruise control
main switch is pushed. The light turns off when
the main switch is pushed again. When the
cruise main switch indicator light illuminates, the
cruise control system is operational. (See
“Cruise control” (P.5-24).)
Cruise malfunction:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407If the cruise indicator light blinks while the
engine is running, it may indicate the cruise
control system is not functioning properly. Have
the system checked by a NISSAN dealer. (See “Cruise control” (P.5-24).)
Exterior light indicatorGUID-DF342439-0FE3-4496-9A16-C533B45E0A28This indicator illuminates when the headlight
switch is turned to the AUTO (if so equipped) ,
orposition and the front side marker
lights, the front parking lights, instrument panel
lights, tail lights, rear side marker lights, license
plate lights or headlights are on. The indicator
turns off when these lights are turned off.
Front passenger air bag status lightGUID-367FC65F-F709-47F5-B2C8-55C6BB057E93The front passenger air bag status light ()
will be lit and the passenger front air bag will be
OFF depending on how the front passenger
seat is being used.
For front passenger air bag status light opera-
tion, see “NISSAN advanced air bag system
(front seats)” (P.1-53) of this manual.
High beam indicator lightGUID-615CDEB6-E7A5-47B7-A115-94D5A95A46BCThis light comes on when the headlight high
beam is on and goes out when the low beam is
selected.
Condition:

Black plate (95,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

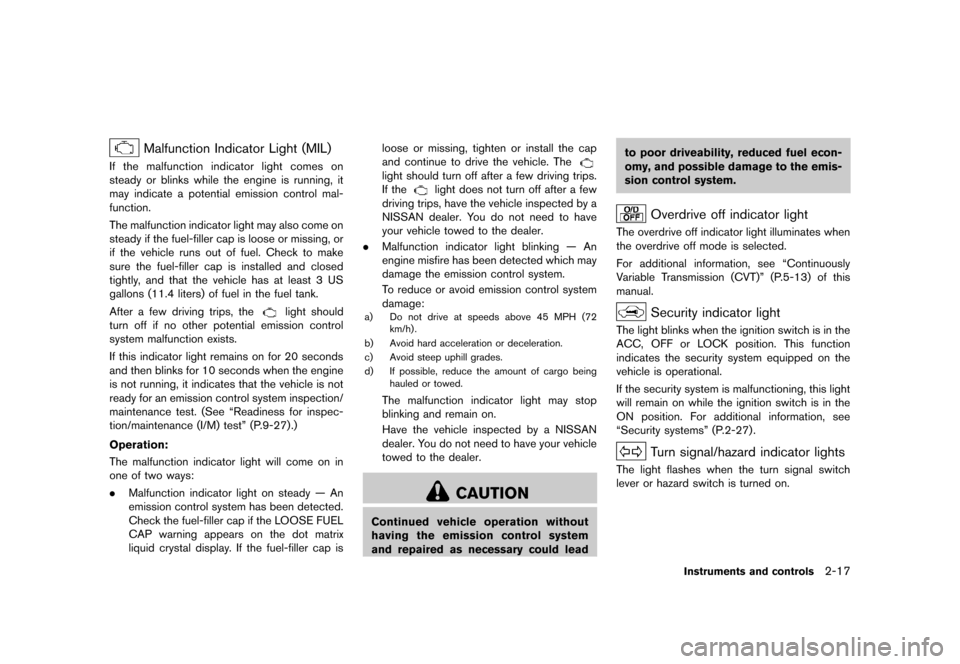

Malfunction Indicator Light (MIL)GUID-1C68E634-2F16-4A6B-85E1-536C36C54FC0If the malfunction indicator light comes on
steady or blinks while the engine is running, it
may indicate a potential emission control mal-
function.
The malfunction indicator light may also come on
steady if the fuel-filler cap is loose or missing, or
if the vehicle runs out of fuel. Check to make
sure the fuel-filler cap is installed and closed
tightly, and that the vehicle has at least 3 US
gallons (11.4 liters) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light remains on for 20 seconds
and then blinks for 10 seconds when the engine
is not running, it indicates that the vehicle is not
ready for an emission control system inspection/
maintenance test. (See “Readiness for inspec-
tion/maintenance (I/M) test” (P.9-27).)
Operation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The malfunction indicator light will come on in
one of two ways:
. Malfunction indicator light on steady — An
emission control system has been detected.
Check the fuel-filler cap if the LOOSE FUEL
CAP warning appears on the dot matrix
liquid crystal display. If the fuel-filler cap is loose or missing, tighten or install the cap
and continue to drive the vehicle. The
light should turn off after a few driving trips.
If the
light does not turn off after a few
driving trips, have the vehicle inspected by a
NISSAN dealer. You do not need to have
your vehicle towed to the dealer.
. Malfunction indicator light blinking — An
engine misfire has been detected which may
damage the emission control system.
To reduce or avoid emission control system
damage:
a) Do not drive at speeds above 45 MPH (72
km/h) .
b) Avoid hard acceleration or deceleration.
c) Avoid steep uphill grades.
d) If possible, reduce the amount of cargo being hauled or towed.
The malfunction indicator light may stop
blinking and remain on.
Have the vehicle inspected by a NISSAN
dealer. You do not need to have your vehicle
towed to the dealer.
CAUTION
Continued vehicle operation without
having the emission control system
and repaired as necessary could lead to poor driveability, reduced fuel econ-
omy, and possible damage to the emis-
sion control system.
Overdrive off indicator lightGUID-B248403A-7160-4641-9641-C1D42F7AEF5DThe overdrive off indicator light illuminates when
the overdrive off mode is selected.
For additional information, see “Continuously
Variable Transmission (CVT)” (P.5-13) of this
manual.
Security indicator lightGUID-ECFD3652-2277-449D-95FC-FDE76A31BDDEThe light blinks when the ignition switch is in the
ACC, OFF or LOCK position. This function
indicates the security system equipped on the
vehicle is operational.
If the security system is malfunctioning, this light
will remain on while the ignition switch is in the
ON position. For additional information, see
“Security systems” (P.2-27) .
Turn signal/hazard indicator lightsGUID-DEC39268-26DF-4838-A9EA-6A903EF57EBBThe light flashes when the turn signal switch
lever or hazard switch is turned on.
Instruments and controls2-17
Condition:

Black plate (96,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
2-18Instruments and controls
Vehicle Dynamic Control (VDC) off
indicator light
GUID-36C6A5CB-7D96-42B6-B569-12EA0CD78A19The light comes on when the vehicle dynamic
control off switch is pushed to OFF. This
indicates that the vehicle dynamic control
system and traction control system are not
operating.
AUDIBLE REMINDERSGUID-5CBEA2B2-B021-4887-B30F-E3C585323EDD
Key reminder chimeGUID-2453E6AA-C9B7-4D05-8394-0F1BB506FF53A chime will sound if the driver side door is
opened while the ignition switch is pushed to
the ACC position. Make sure the ignition switch
is pushed to the OFF position, and take the
Intelligent Key with you when leaving the vehicle.
Light reminder chimeGUID-BFB5E744-D2B8-408B-834A-688BCF472327A chime will sound when the driver side door is
opened with the light switch in the
or
position and the ignition switch in the ACC
or OFF position.
Turn the light switch off when you leave the
vehicle.
Models with Autolight system:
The chime will also sound for 2 seconds when
the ignition switch is turned to the OFF position
with the fog lights on while the headlight switch
is in the AUTO position.
Parking brake reminder chimeGUID-B170CCAE-51B0-4C2A-93DA-57D00974E4A8The chime will sound if the vehicle is driven at
more than 4 MPH (7 km/h) with the parking
brake applied. Stop the vehicle and release the
parking brake.
Brake pad wear warningGUID-11093B54-7D84-4D73-B07E-6FB94DF62F91The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the warning
sound is heard.
GUID-DF977CB1-DA21-4D82-92AC-EC347BF184E2
JVI0254X

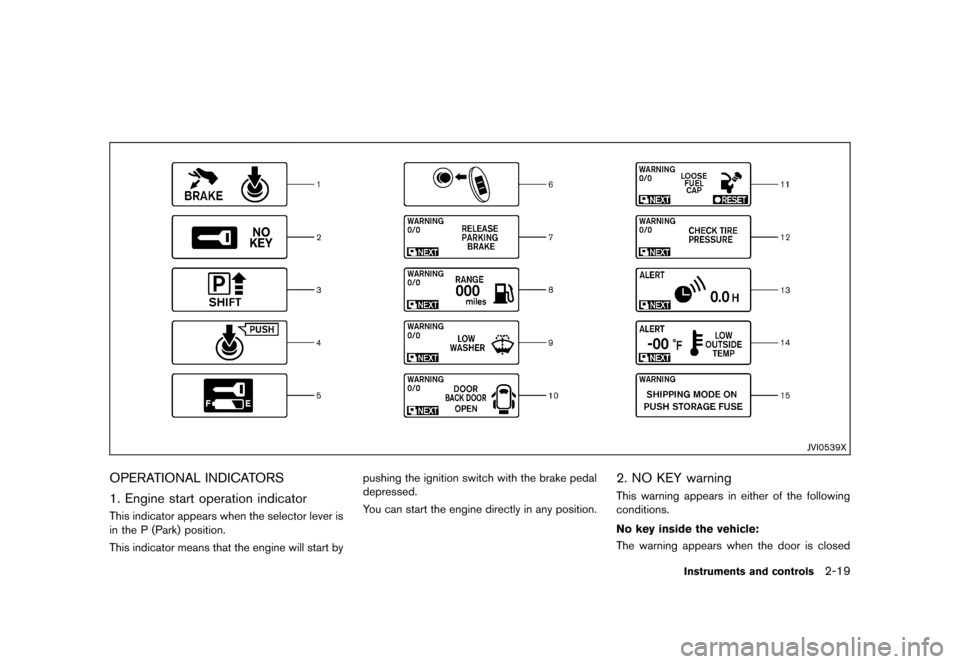

The dot matrix liquid crystal display*1is
located in the speedometer, and it displays,
the key operation information and other warn-
ings and information.
For the detail about the Intelligent Key system,
see “Intelligent Key system” (P.3-13) .
DOT MATRIX LIQUID CRYSTAL
DISPLAY
Condition:

Black plate (97,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
JVI0539X
OPERATIONAL INDICATORSGUID-AD5B0BAF-2C91-4EC9-A709-EB982E1C0773
1. Engine start operation indicatorGUID-3A8E6F2E-0AEB-4F35-B6FE-0018789257BCThis indicator appears when the selector lever is
in the P (Park) position.
This indicator means that the engine will start bypushing the ignition switch with the brake pedal
depressed.
You can start the engine directly in any position.
2. NO KEY warningGUID-75410B7B-4F58-4067-BDFB-93074F70EDACThis warning appears in either of the following
conditions.
No key inside the vehicle:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The warning appears when the door is closed
Instruments and controls2-19
Condition:

Black plate (98,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

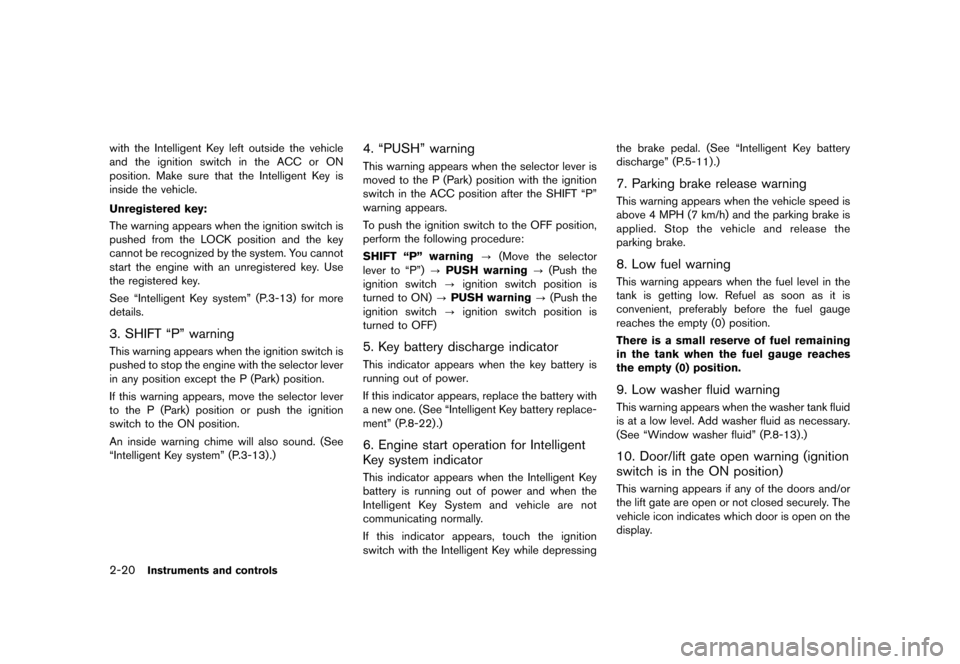

2-20Instruments and controls
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.
Unregistered key:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The warning appears when the ignition switch is
pushed from the LOCK position and the key
cannot be recognized by the system. You cannot
start the engine with an unregistered key. Use
the registered key.
See “Intelligent Key system” (P.3-13) for more
details.
3. SHIFT “P” warningGUID-39C72E43-25FF-4A4F-B9A5-6B99999E8518This warning appears when the ignition switch is
pushed to stop the engine with the selector lever
in any position except the P (Park) position.
If this warning appears, move the selector lever
to the P (Park) position or push the ignition
switch to the ON position.
An inside warning chime will also sound. (See
“Intelligent Key system” (P.3-13) .)
4. “PUSH” warningGUID-8B1B73E4-768D-4801-A346-AFE043207C1EThis warning appears when the selector lever is
moved to the P (Park) position with the ignition
switch in the ACC position after the SHIFT “P”
warning appears.
To push the ignition switch to the OFF position,
perform the following procedure:
SHIFT “P” warning?(Move the selector
lever to “P”) ?PUSH warning ?(Push the
ignition switch ?ignition switch position is
turned to ON) ?PUSH warning ?(Push the
ignition switch ?ignition switch position is
turned to OFF)
5. Key battery discharge indicatorGUID-967F63CE-1C05-4DC3-99FB-8F1F04EBE95FThis indicator appears when the key battery is
running out of power.
If this indicator appears, replace the battery with
a new one. (See “Intelligent Key battery replace-
ment” (P.8-22) .)
6. Engine start operation for Intelligent
Key system indicator
GUID-0A04A4BE-EA21-48A0-88E9-6C87C0E9DC4DThis indicator appears when the Intelligent Key
battery is running out of power and when the
Intelligent Key System and vehicle are not
communicating normally.
If this indicator appears, touch the ignition
switch with the Intelligent Key while depressing the brake pedal. (See “Intelligent Key battery
discharge” (P.5-11).)
7. Parking brake release warningGUID-029C1509-C86D-41F0-AE2B-6B98338F1BE8This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied. Stop the vehicle and release the
parking brake.
8. Low fuel warningGUID-3F6A4C14-3A53-4889-81A1-9712B64C7CFBThis warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (0) position.
There is a small reserve of fuel remaining
in the tank when the fuel gauge reaches
the empty (0) position.
9. Low washer fluid warningGUID-56C625DC-ABE9-4A02-8BC9-E75B59CC1B40This warning appears when the washer tank fluid
is at a low level. Add washer fluid as necessary.
(See “Window washer fluid” (P.8-13).)
10. Door/lift gate open warning (ignition
switch is in the ON position)
GUID-369BA1E4-345B-4EDC-949F-A60010E2FCAEThis warning appears if any of the doors and/or
the lift gate are open or not closed securely. The
vehicle icon indicates which door is open on the
display.
Condition:

Black plate (99,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

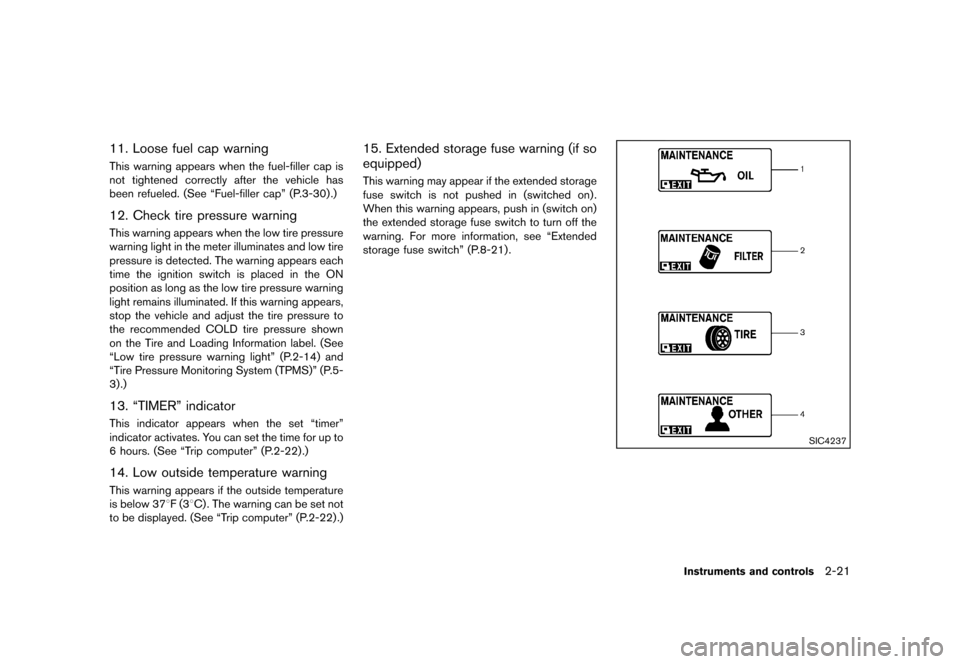

11. Loose fuel cap warningGUID-AE37C079-2D1D-4EC5-BC3E-A6F3746AC355This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See “Fuel-filler cap” (P.3-30) .)
12. Check tire pressure warningGUID-DA5B077D-A7AE-4C80-ABBC-FC03EE16A559This warning appears when the low tire pressure
warning light in the meter illuminates and low tire
pressure is detected. The warning appears each
time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated. If this warning appears,
stop the vehicle and adjust the tire pressure to
the recommended COLD tire pressure shown
on the Tire and Loading Information label. (See
“Low tire pressure warning light” (P.2-14) and
“Tire Pressure Monitoring System (TPMS)” (P.5-
3) .)
13. “TIMER” indicatorGUID-1125717D-01A2-4EE0-BD94-FCEC2E95C1E9This indicator appears when the set “timer”
indicator activates. You can set the time for up to
6 hours. (See “Trip computer” (P.2-22) .)
14. Low outside temperature warningGUID-05A3065E-96A4-4FAF-9E94-F0DF064F6767This warning appears if the outside temperature
is below 378F (38C) . The warning can be set not
to be displayed. (See “Trip computer” (P.2-22) .)
15. Extended storage fuse warning (if so
equipped)
GUID-6AB8FBE8-1539-40E0-88C7-FC678D1B5DB6This warning may appear if the extended storage
fuse switch is not pushed in (switched on) .
When this warning appears, push in (switch on)
the extended storage fuse switch to turn off the
warning. For more information, see “Extended
storage fuse switch” (P.8-21) .
SIC4237
Instruments and controls2-21
Condition:

Black plate (100,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

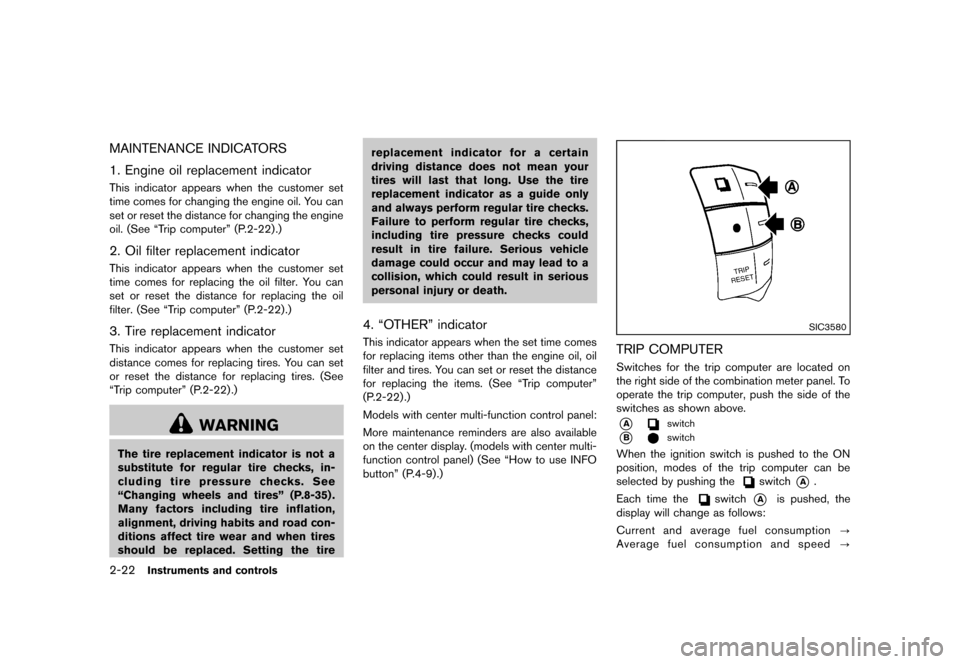

2-22Instruments and controls
MAINTENANCE INDICATORSGUID-FA009BEE-2E37-4E85-BAC3-65B2871DE287
1. Engine oil replacement indicatorGUID-B49EC615-22D1-4111-845C-214CE38146A9This indicator appears when the customer set
time comes for changing the engine oil. You can
set or reset the distance for changing the engine
oil. (See “Trip computer” (P.2-22) .)
2. Oil filter replacement indicatorGUID-8EC15863-1C70-4332-BAFA-4C2E8EE6FBFCThis indicator appears when the customer set
time comes for replacing the oil filter. You can
set or reset the distance for replacing the oil
filter. (See “Trip computer” (P.2-22).)
3. Tire replacement indicatorGUID-83F3C488-F446-4361-92F6-CBED0996F98CThis indicator appears when the customer set
distance comes for replacing tires. You can set
or reset the distance for replacing tires. (See
“Trip computer” (P.2-22) .)
WARNING
The tire replacement indicator is not a
substitute for regular tire checks, in-
cluding tire pressure checks. See
“Changing wheels and tires” (P.8-35) .
Many factors including tire inflation,
alignment, driving habits and road con-
ditions affect tire wear and when tires
should be replaced. Setting the tirereplacement indicator for a certain
driving distance does not mean your
tires will last that long. Use the tire
replacement indicator as a guide only
and always perform regular tire checks.
Failure to perform regular tire checks,
including tire pressure checks could
result in tire failure. Serious vehicle
damage could occur and may lead to a
collision, which could result in serious
personal injury or death.
4. “OTHER” indicatorGUID-3F118BD8-4E3B-4C42-83AA-190A2A80C162This indicator appears when the set time comes
for replacing items other than the engine oil, oil
filter and tires. You can set or reset the distance
for replacing the items. (See “Trip computer”
(P.2-22) .)
Models with center multi-function control panel:
More maintenance reminders are also available
on the center display. (models with center multi-
function control panel) (See “How to use INFO
button” (P.4-9).)
SIC3580
TRIP COMPUTERGUID-930DEE09-4374-4996-AC0B-1BBE0A7E2A37Switches for the trip computer are located on
the right side of the combination meter panel. To
operate the trip computer, push the side of the
switches as shown above.
*Aswitch
*Bswitch
When the ignition switch is pushed to the ON
position, modes of the trip computer can be
selected by pushing the
switch*A.
Each time the
switch*Ais pushed, the
display will change as follows:
Current and average fuel consumption ?
Average fuel consumption and speed ?
Condition:
