2013 NISSAN QUEST Owners Manual

Black plate (429,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
HEADLIGHTSGUID-1DDF8B44-6A31-4E64-A9A2-A7AC87475D78Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, contact a NISSAN dealer.
ReplacingGUID-B4433D6E-5EF8-404D-ABE2-E3D27A5E9E7FIf replacement is required, see a NISSAN dealer.
Xenon headlight model:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
WARNING
HIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xe-
non headlights replaced at a NISSAN
dealer. For additional information, see
“Headlight and turn signal switch” (P.2-
32) . Halogen headlight model:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb.
CAUTION
.
Do not leave the bulb out of the
headlight reflector for a long period
of time. Dust, moisture, smoke, etc.
entering the headlight body may
affect bulb performance.
. High pressure halogen gas is sealed
inside the halogen bulb. The bulb
may break if the glass envelope is
scratched or the bulb is dropped.
. Only touch the plastic base when
handling the bulb. Never touch the
glass envelope.
. Aiming is not necessary after repla-
cing the bulb. When aiming adjust-
ment is necessary, contact a
NISSAN dealer.
Use the same number and wattage as originally
installed as shown in the chart.
SDI2719
Disconnect the battery negative cable before
replacing bulbs.
Maintenance and do-it-yourself8-25
Condition:

Black plate (430,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
8-26Maintenance and do-it-yourself
EXTERIOR AND INTERIOR LIGHTSGUID-74DA7277-F276-48A5-BDCF-43B331EA01E6
ItemWattage (W)Bulb No.
Headlight
Low beams (Xenon)* 35D2S
High beam (Halogen) 60HB3
Low beam (Halogen) 55H11
Front turn signal/parking light* 27/8S25
Side turn signal light (if so equipped)* LED —
Front fog light (if so equipped) 35 H8
Front side marker light 5 T10
Rear combination light*
Turn signal 21 WY21W
Stop/tail and side marker 21/5 W21/5W
Back-up 16 W16W
License plate light* 5 T10
Front map light 8 —
Rear personal light 8 —
Vanity mirror light (if so equipped) 2 —
Step light* 8 —
High-mounted stop light* LED —
Cargo light 8 —
Glove box light* 3.4 —
*: See a NISSAN dealer for replacement.
NOTE: Always check with the Parts Department
at a NISSAN dealer for the latest information
about parts.
Replacement proceduresGUID-9456DF2D-1ECF-49AE-8081-B2431E050E93All other lights are either type A, B, C, D, E or F.
When replacing a bulb, first remove the lens
and/or cover.
Condition:

Black plate (431,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
SDI1679
SDI2200
Front side marker light
1. Remove the rubber cover.
2. Remove the bulb as illustrated.
SDI2184
Front fog light (if so equipped)
Maintenance and do-it-yourself8-27
Condition:

Black plate (432,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
8-28Maintenance and do-it-yourself

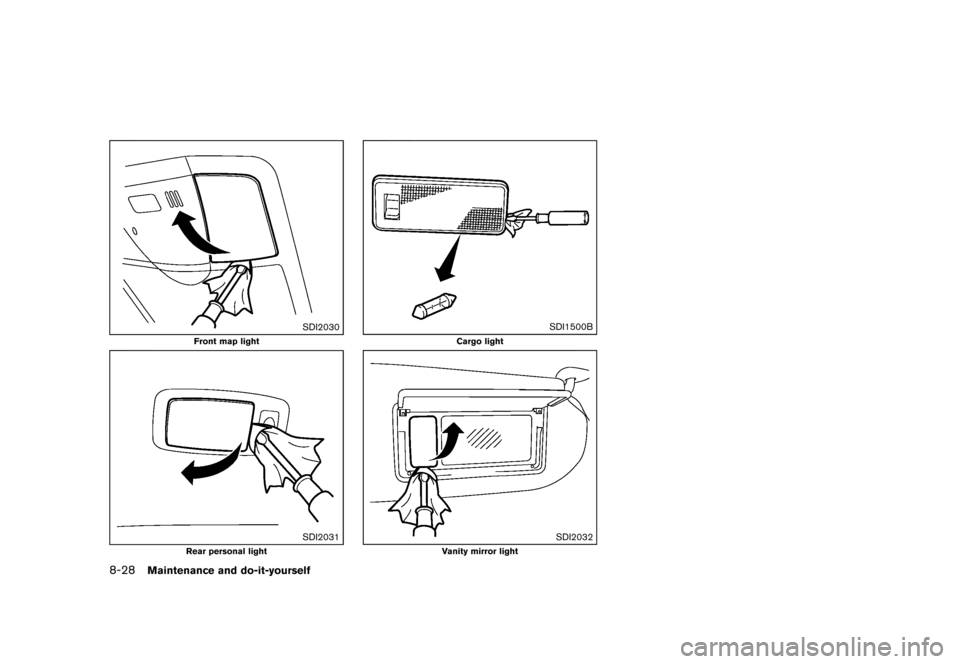

SDI2030
Front map light
SDI2031
Rear personal light
SDI1500B
Cargo light
SDI2032
Vanity mirror light
Condition:

Black plate (433,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
GUID-89F90EC9-1A21-4C1D-B1C6-EA0BAF7C2106If you have a flat tire, see “Flat tire” (P.6-3) .
TIRE PRESSUREGUID-6E7250AB-AD14-4FBE-A46C-D5F24A0415DC
Tire Pressure Monitoring System (TPMS)GUID-3AC4D70E-6B75-4BF7-9B81-983A94E44C75This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire
pressure of all tires except the spare. When
the low tire pressure warning light is lit and the
CHECK TIRE PRESSURE warning appears on
the dot matrix liquid crystal display, one or more
of your tires is significantly under-inflated.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h).
Also, this system may not detect a sudden drop
in tire pressure (for example a flat tire while
driving) .
For more details, see “Low tire pressure warning
light” (P.2-14) , “Tire Pressure Monitoring Sys-
tem (TPMS)” (P.5-3) and “Tire Pressure Mon-
itoring System (TPMS)” (P.6-3) .
Tire inflation pressureGUID-B1306429-C2A4-4116-B9C4-C79D19196D15Check the pressure of the tires (including
the spare) often and always prior to long
distance trips. The recommended tire
pressure specifications are shown on the
Tire and Loading Information label under
the “Cold Tire Pressure” heading. The Tire
and Loading Information label is affixed tothe driver side center pillar. Tire pressures
should be checked regularly because:
.Most tires naturally lose air over time.
.Tires can lose air suddenly when driven
over potholes or other objects or if the
vehicle strikes a curb while parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or driven
less than 1 mile (1.6 km) at moderate
speeds.
The TPMS with Easy Fill Tire Alert provides
visual and audible signals outside the
vehicle for inflating the tires to the recom-
mended COLD tire pressure. (See “TPMS
with Easy Fill Tire Alert” (P.5-6).)
Incorrect tire pressure, including un-
der inflation, may adversely affect tire
life and vehicle handling.
WARNING
.Improperly inflated tires can fail
suddenly and cause an accident.
.The Gross Vehicle Weight rating
(GVWR) is located on the F.M.V.
S.S./C.M.V.S.S. certification la-
bel. The vehicle weight capacity
is indicated on the Tire and
Loading Information label. Do
not load your vehicle beyond
this capacity. Overloading your
vehicle may result in reduced
tire life, unsafe operating condi-
tions due to premature tire fail-
ure, or unfavorable handling
characteristics and could also
lead to a serious accident. Load-
ing beyond the specified capa-
city may also result in failure of
other vehicle components.
.Before taking a long trip, or
whenever you heavily load your
vehicle, use a tire pressure
gauge to ensure that the tire
pressures are at the specified
level.
.For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
Maintenance and do-it-yourself8-29
WHEELS AND TIRES
Condition:

Black plate (434,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
8-30Maintenance and do-it-yourself
“Tire Safety Information” (Cana-
da) in the Warranty Information
Booklet.
SDI2197
Tire and Loading Information labelGUID-F769ACFA-6743-412C-BA4F-C2F1B56720AD*1Seating capacity: The maximum num-
ber of occupants that can be seated in
the vehicle.
*2Vehicle load limit: See “Vehicle load-
ing information” (P.9-12).
*3Original size: The size of the tires
originally installed on the vehicle at the
factory.
*4Cold tire pressure: Inflate the tires to
this pressure when the tires are cold.
Tires are considered COLD after the
vehicle has been parked for 3 or more
Condition:

Black plate (435,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
hours, or driven less than 1 mile (1.6
km) at moderate speeds. The recom-
mended cold tire inflation is set by the
manufacturer to provide the best
balance of tire wear, vehicle handling,
driveability, tire noise, etc., up to the
vehicle’s GVWR.
*5Tire size — see “Tire labeling” (P.8-
32).
*6Spare tire size or compact spare tire
size (if so equipped)
SDI1949

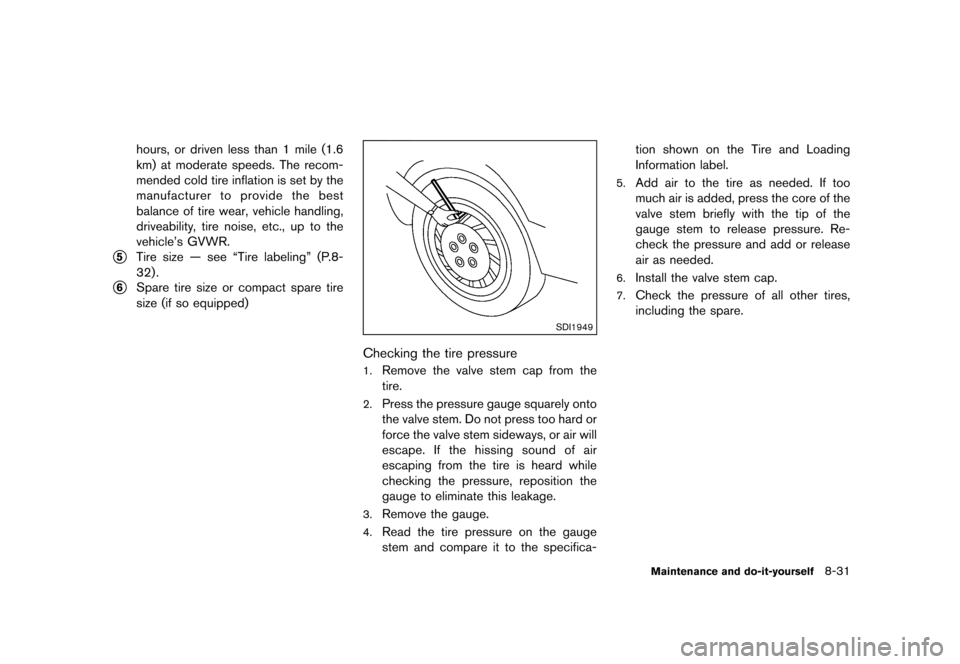

Checking the tire pressureGUID-E53B851B-3C87-4189-A840-3E52F60651EF1.Remove the valve stem cap from the
tire.
2.Press the pressure gauge squarely onto
the valve stem. Do not press too hard or
force the valve stem sideways, or air will
escape. If the hissing sound of air
escaping from the tire is heard while
checking the pressure, reposition the
gauge to eliminate this leakage.
3.Remove the gauge.
4.Read the tire pressure on the gauge
stem and compare it to the specifica-tion shown on the Tire and Loading
Information label.
5.Add air to the tire as needed. If too
much air is added, press the core of the
valve stem briefly with the tip of the
gauge stem to release pressure. Re-
check the pressure and add or release
air as needed.
6.Install the valve stem cap.
7.Check the pressure of all other tires,
including the spare.
Maintenance and do-it-yourself8-31
Condition:

Black plate (436,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
8-32Maintenance and do-it-yourself

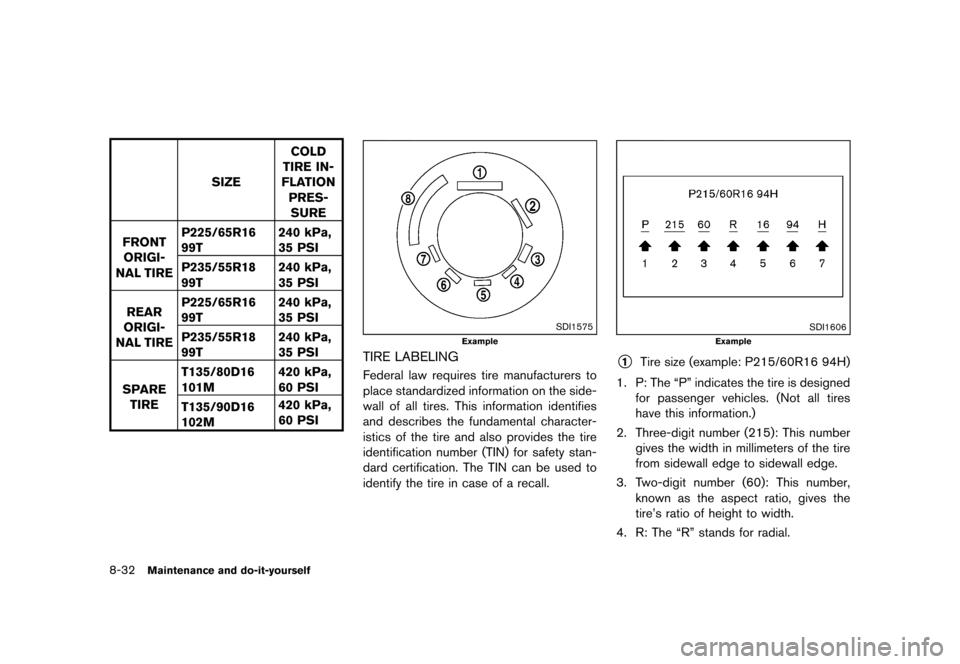

SIZECOLD
TIRE IN-
FLATION
PRES-SURE
FRONT ORIGI-
NAL TIRE P225/65R16
99T
240 kPa,
35 PSI
P235/55R18
99T 240 kPa,
35 PSI
REAR
ORIGI-
NAL TIRE P225/65R16
99T
240 kPa,
35 PSI
P235/55R18
99T 240 kPa,
35 PSI
SPARE TIRE T135/80D16
101M
420 kPa,
60 PSI
T135/90D16
102M 420 kPa,
60 PSI
SDI1575
Example
TIRE LABELINGGUID-E94BEFF8-822B-4E1F-B6EE-20563A10CB9FFederal law requires tire manufacturers to
place standardized information on the side-
wall of all tires. This information identifies
and describes the fundamental character-
istics of the tire and also provides the tire
identification number (TIN) for safety stan-
dard certification. The TIN can be used to
identify the tire in case of a recall.
SDI1606
Example
*1Tire size (example: P215/60R16 94H)
1. P: The “P” indicates the tire is designed for passenger vehicles. (Not all tires
have this information.)
2. Three-digit number (215): This number gives the width in millimeters of the tire
from sidewall edge to sidewall edge.
3. Two-digit number (60): This number, known as the aspect ratio, gives the
tire’s ratio of height to width.
4. R: The “R” stands for radial.
Condition:
