2013 NISSAN QUEST Owners Manual

Black plate (29,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

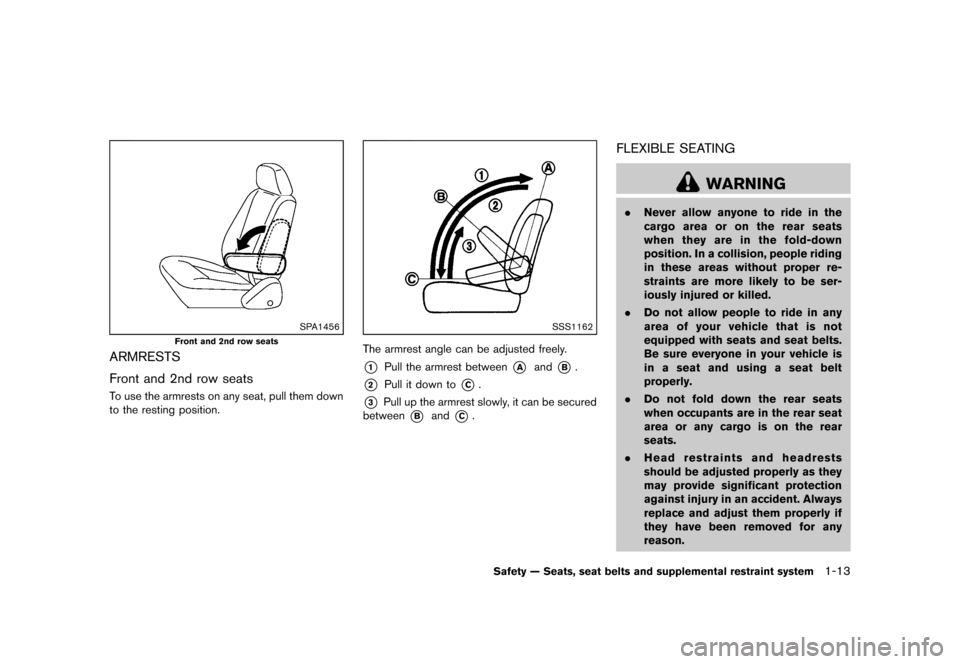

SPA1456
Front and 2nd row seats
ARMRESTSGUID-16EF2763-6783-4401-9358-77E5AC3DEC94
Front and 2nd row seatsGUID-3495E38D-4395-4737-9E1B-ABC7A43B6E87To use the armrests on any seat, pull them down
to the resting position.
SSS1162
The armrest angle can be adjusted freely.
*1Pull the armrest between*Aand*B.
*2Pull it down to*C.
*3Pull up the armrest slowly, it can be secured
between
*Band*C.
FLEXIBLE SEATINGGUID-66453B23-9B97-441E-8F66-55F330B008AD
WARNING
. Never allow anyone to ride in the
cargo area or on the rear seats
when they are in the fold-down
position. In a collision, people riding
in these areas without proper re-
straints are more likely to be ser-
iously injured or killed.
. Do not allow people to ride in any
area of your vehicle that is not
equipped with seats and seat belts.
Be sure everyone in your vehicle is
in a seat and using a seat belt
properly.
. Do not fold down the rear seats
when occupants are in the rear seat
area or any cargo is on the rear
seats.
. Head restraints and headrests
should be adjusted properly as they
may provide significant protection
against injury in an accident. Always
replace and adjust them properly if
they have been removed for any
reason.
Safety — Seats, seat belts and supplemental restraint system1-13
Condition:

Black plate (30,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

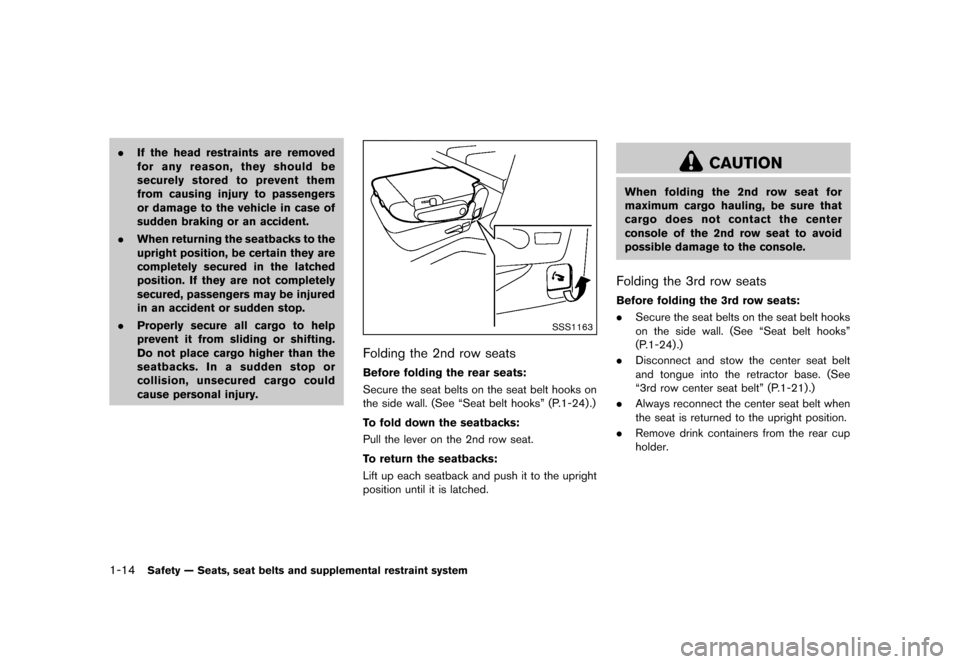

1-14Safety — Seats, seat belts and supplemental restraint system
.If the head restraints are removed
for any reason, they should be
securely stored to prevent them
from causing injury to passengers
or damage to the vehicle in case of
sudden braking or an accident.
. When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured
in an accident or sudden stop.
. Properly secure all cargo to help
prevent it from sliding or shifting.
Do not place cargo higher than the
seatbacks. In a sudden stop or
collision, unsecured cargo could
cause personal injury.
SSS1163
Folding the 2nd row seatsGUID-3B7D99A2-3421-40DA-8D4B-AC4F06EF9D93
Before folding the rear seats:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Secure the seat belts on the seat belt hooks on
the side wall. (See “Seat belt hooks” (P.1-24) .)
To fold down the seatbacks:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull the lever on the 2nd row seat.
To return the seatbacks:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Lift up each seatback and push it to the upright
position until it is latched.
CAUTION
When folding the 2nd row seat for
maximum cargo hauling, be sure that
cargo does not contact the center
console of the 2nd row seat to avoid
possible damage to the console.
Folding the 3rd row seatsGUID-B00DC0B2-8166-4AA2-B328-836A43E43FB6
Before folding the 3rd row seats:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.Secure the seat belts on the seat belt hooks
on the side wall. (See “Seat belt hooks”
(P.1-24) .)
. Disconnect and stow the center seat belt
and tongue into the retractor base. (See
“3rd row center seat belt” (P.1-21) .)
. Always reconnect the center seat belt when
the seat is returned to the upright position.
. Remove drink containers from the rear cup
holder.
Condition:

Black plate (31,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

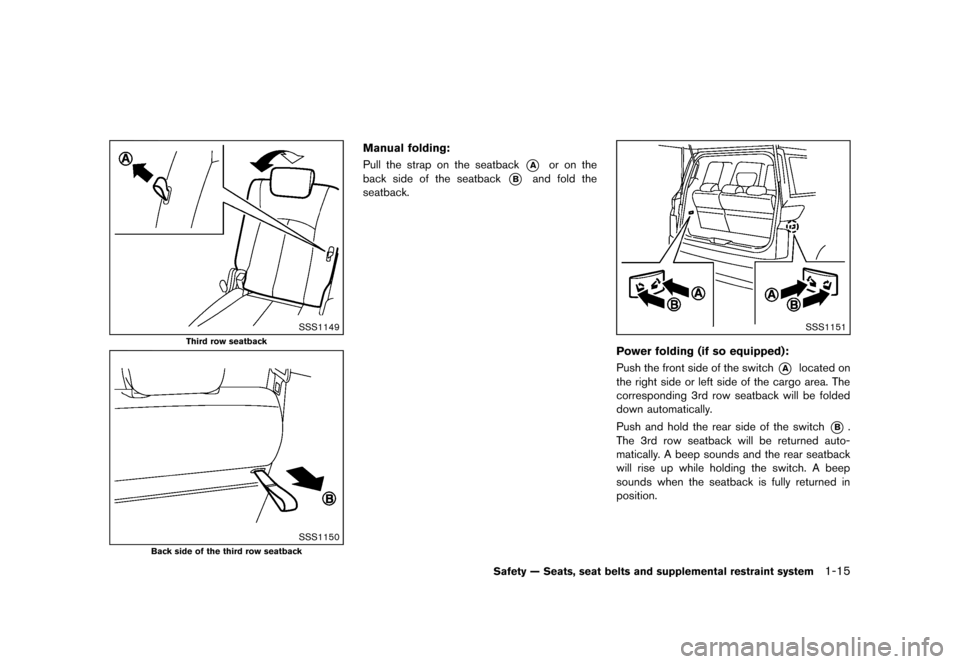

SSS1149
Third row seatback
SSS1150
Back side of the third row seatback
Manual folding:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull the strap on the seatback*Aor on the
back side of the seatback
*Band fold the
seatback.
SSS1151
Power folding (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the front side of the switch*Alocated on
the right side or left side of the cargo area. The
corresponding 3rd row seatback will be folded
down automatically.
Push and hold the rear side of the switch
*B.
The 3rd row seatback will be returned auto-
matically. A beep sounds and the rear seatback
will rise up while holding the switch. A beep
sounds when the seatback is fully returned in
position.
Safety — Seats, seat belts and supplemental restraint system1-15
Condition:

Black plate (32,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

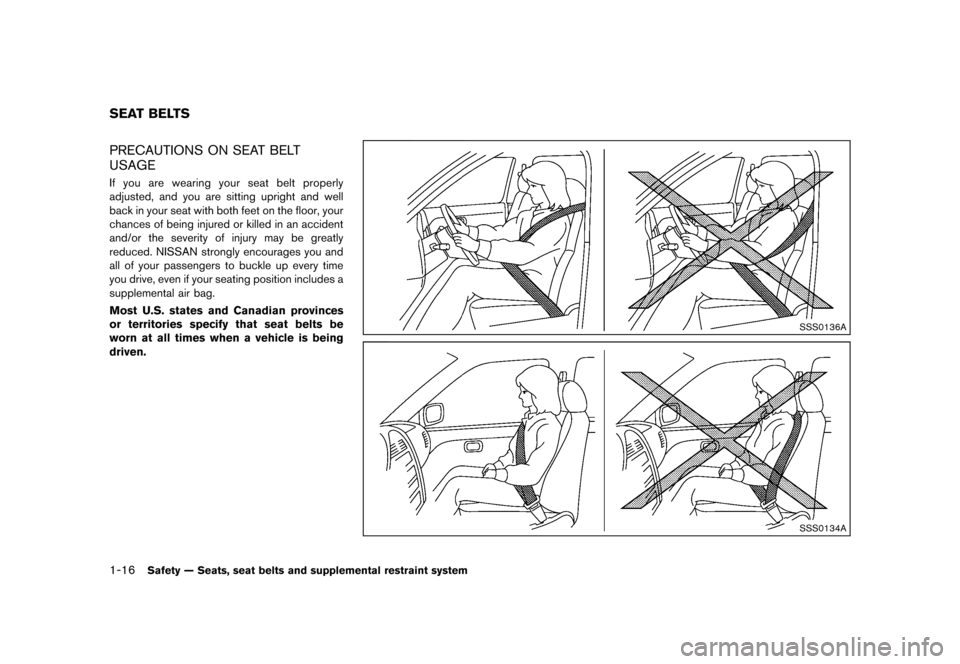

1-16Safety — Seats, seat belts and supplemental restraint system
GUID-BE88658E-3F81-4D04-A30B-D404F45829A8PRECAUTIONS ON SEAT BELT
USAGE
GUID-DF2A1FAE-8E7C-4F50-926A-2C005C70B986If you are wearing your seat belt properly
adjusted, and you are sitting upright and well
back in your seat with both feet on the floor, your
chances of being injured or killed in an accident
and/or the severity of injury may be greatly
reduced. NISSAN strongly encourages you and
all of your passengers to buckle up every time
you drive, even if your seating position includes a
supplemental air bag.
Most U.S. states and Canadian provinces
or territories specify that seat belts be
worn at all times when a vehicle is being
driven.
SSS0136A
SSS0134A
SEAT BELTS
Condition:

Black plate (33,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
WARNING
.Every person who drives or rides in
this vehicle should use a seat belt at
all times. Children should be prop-
erly restrained in the rear seat and,
if appropriate, in a child restraint.
. The seat belt should be properly
adjusted to a snug fit. Failure to do
so may reduce the effectiveness of
the entire restraint system and in-
crease the chance or severity of
injury in an accident. Serious injury
or death can occur if the seat belt is
not worn properly.
. Always route the shoulder belt over
your shoulder and across your
chest. Never put the belt behind
your back, under your arm or across
your neck. The belt should be away
from your face and neck, but not
falling off your shoulder.
. Position the lap belt as low and
snug as possible AROUND THE
HIPS, NOT THE WAIST. A lap belt
worn too high could increase the
risk of internal injuries in an acci-
dent. .
Be sure the seat belt tongue is
securely fastened to the proper
buckle.
. Do not wear the seat belt inside out
or twisted. Doing so may reduce its
effectiveness.
. Do not allow more than one person
to use the same seat belt.
. Never carry more people in the
vehicle than there are seat belts.
. If the seat belt warning light glows
continuously while the ignition is
turned ON with all doors closed and
all seat belts fastened, it may in-
dicate a malfunction in the system.
Have the system checked by a
NISSAN dealer.
. No changes should be made to the
seat belt system. For example, do
not modify the seat belt, add mate-
rial or install devices that may
change the seat belt routing or
tension. Doing so may affect the
operation of the seat belt system.
Modifying or tampering with the
seat belt system may result in
serious personal injury. .
Once a seat belt pretensioner has
activated, it cannot be reused and
must be replaced together with the
retractor. See a NISSAN dealer.
. Removal and installation of the
pretensioner seat belt system com-
ponents should be done by a
NISSAN dealer.
. All seat belt assemblies, including
retractors and attaching hardware,
should be inspected after any colli-
sion by a NISSAN dealer. NISSAN
recommends that all seat belt as-
semblies in use during a collision be
replaced unless the collision was
minor and the belts show no da-
mage and continue to operate prop-
erly.
Seat belt assemblies not in use
during a collision should also be
inspected and replaced if either
damage or improper operation is
noted.
. All child restraints and attaching
hardware should be inspected after
any collision. Always follow the
restraint manufacturer’s inspection
instructions and replacement re-
Safety — Seats, seat belts and supplemental restraint system1-17
Condition:

Black plate (34,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

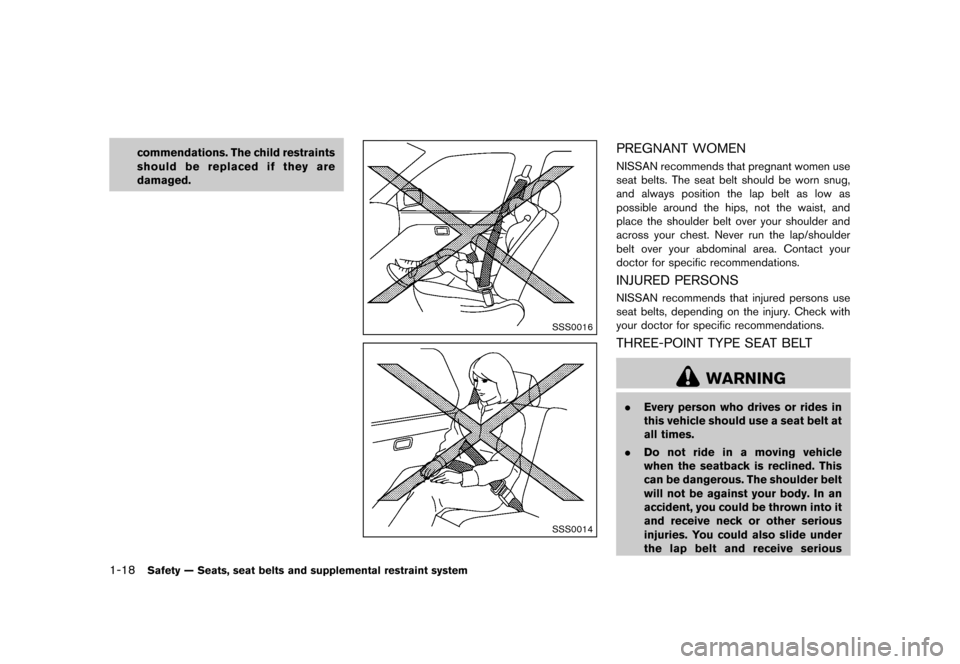

1-18Safety — Seats, seat belts and supplemental restraint system
commendations. The child restraints
should be replaced if they are
damaged.
SSS0016
SSS0014
PREGNANT WOMENGUID-28EC30BC-B46B-4C03-94D8-1E255F0C2942NISSAN recommends that pregnant women use
seat belts. The seat belt should be worn snug,
and always position the lap belt as low as
possible around the hips, not the waist, and
place the shoulder belt over your shoulder and
across your chest. Never run the lap/shoulder
belt over your abdominal area. Contact your
doctor for specific recommendations.
INJURED PERSONSGUID-A3C5DD2D-4D58-457B-A581-D91503B61491NISSAN recommends that injured persons use
seat belts, depending on the injury. Check with
your doctor for specific recommendations.
THREE-POINT TYPE SEAT BELTGUID-E36D93C3-7CB8-48EF-8651-2F6EA43B566C
WARNING
.Every person who drives or rides in
this vehicle should use a seat belt at
all times.
. Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
Condition:

Black plate (35,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

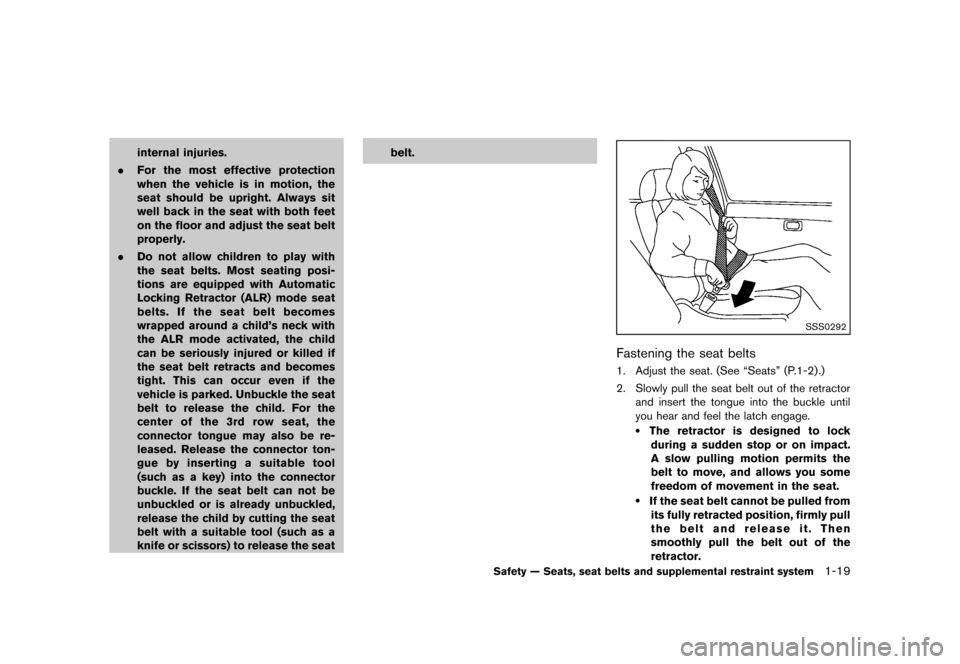

internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat with both feet
on the floor and adjust the seat belt
properly.
. Do not allow children to play with
the seat belts. Most seating posi-
tions are equipped with Automatic
Locking Retractor (ALR) mode seat
belts. If the seat belt becomes
wrapped around a child’s neck with
the ALR mode activated, the child
can be seriously injured or killed if
the seat belt retracts and becomes
tight. This can occur even if the
vehicle is parked. Unbuckle the seat
belt to release the child. For the
center of the 3rd row seat, the
connector tongue may also be re-
leased. Release the connector ton-
gue by inserting a suitable tool
(such as a key) into the connector
buckle. If the seat belt can not be
unbuckled or is already unbuckled,
release the child by cutting the seat
belt with a suitable tool (such as a
knife or scissors) to release the seat belt.
SSS0292
Fastening the seat beltsGUID-43B6EAF4-EB60-4EE9-9AB5-7CA62408433C1. Adjust the seat. (See “Seats” (P.1-2) .)
2. Slowly pull the seat belt out of the retractor
and insert the tongue into the buckle until
you hear and feel the latch engage.
.The retractor is designed to lockduring a sudden stop or on impact.
A slow pulling motion permits the
belt to move, and allows you some
freedom of movement in the seat.
.If the seat belt cannot be pulled from
its fully retracted position, firmly pull
the belt and release it. Then
smoothly pull the belt out of the
retractor.
Safety — Seats, seat belts and supplemental restraint system1-19
Condition:

Black plate (36,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

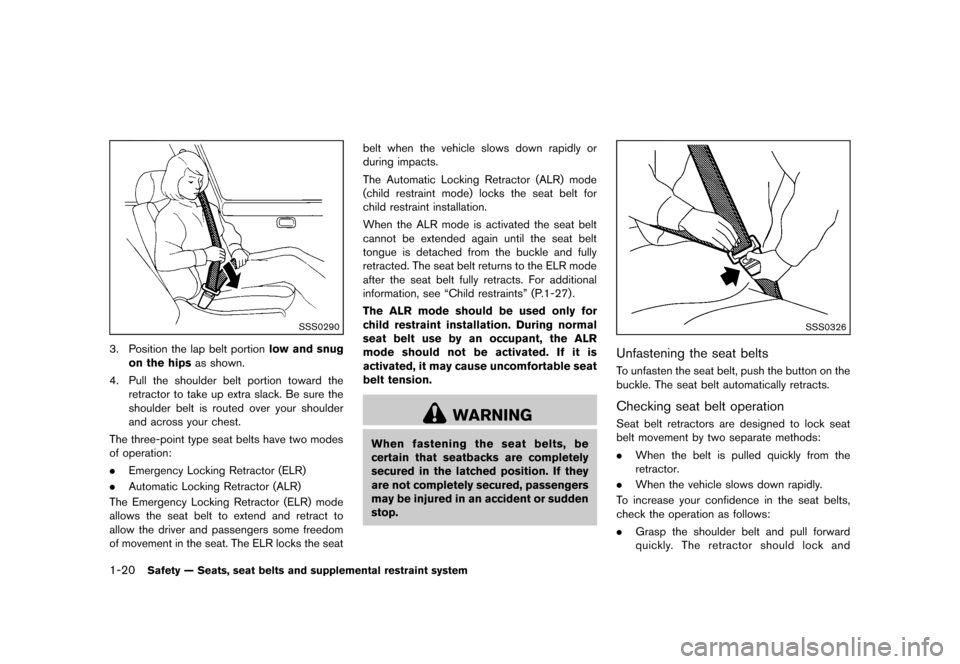

1-20Safety — Seats, seat belts and supplemental restraint system
SSS0290
3. Position the lap belt portionlow and snug
on the hips as shown.
4. Pull the shoulder belt portion toward the retractor to take up extra slack. Be sure the
shoulder belt is routed over your shoulder
and across your chest.
The three-point type seat belts have two modes
of operation:
. Emergency Locking Retractor (ELR)
. Automatic Locking Retractor (ALR)
The Emergency Locking Retractor (ELR) mode
allows the seat belt to extend and retract to
allow the driver and passengers some freedom
of movement in the seat. The ELR locks the seat belt when the vehicle slows down rapidly or
during impacts.
The Automatic Locking Retractor (ALR) mode
(child restraint mode) locks the seat belt for
child restraint installation.
When the ALR mode is activated the seat belt
cannot be extended again until the seat belt
tongue is detached from the buckle and fully
retracted. The seat belt returns to the ELR mode
after the seat belt fully retracts. For additional
information, see “Child restraints” (P.1-27) .
The ALR mode should be used only for
child restraint installation. During normal
seat belt use by an occupant, the ALR
mode should not be activated. If it is
activated, it may cause uncomfortable seat
belt tension.
WARNING
When fastening the seat belts, be
certain that seatbacks are completely
secured in the latched position. If they
are not completely secured, passengers
may be injured in an accident or sudden
stop.
SSS0326
Unfastening the seat beltsGUID-52F4A959-95D0-4198-9856-EA720FB17839To unfasten the seat belt, push the button on the
buckle. The seat belt automatically retracts.
Checking seat belt operationGUID-9F29B22B-3613-472F-83F5-715F8DB64C63Seat belt retractors are designed to lock seat
belt movement by two separate methods:
.
When the belt is pulled quickly from the
retractor.
. When the vehicle slows down rapidly.
To increase your confidence in the seat belts,
check the operation as follows:
. Grasp the shoulder belt and pull forward
quickly. The retractor should lock and
Condition:
