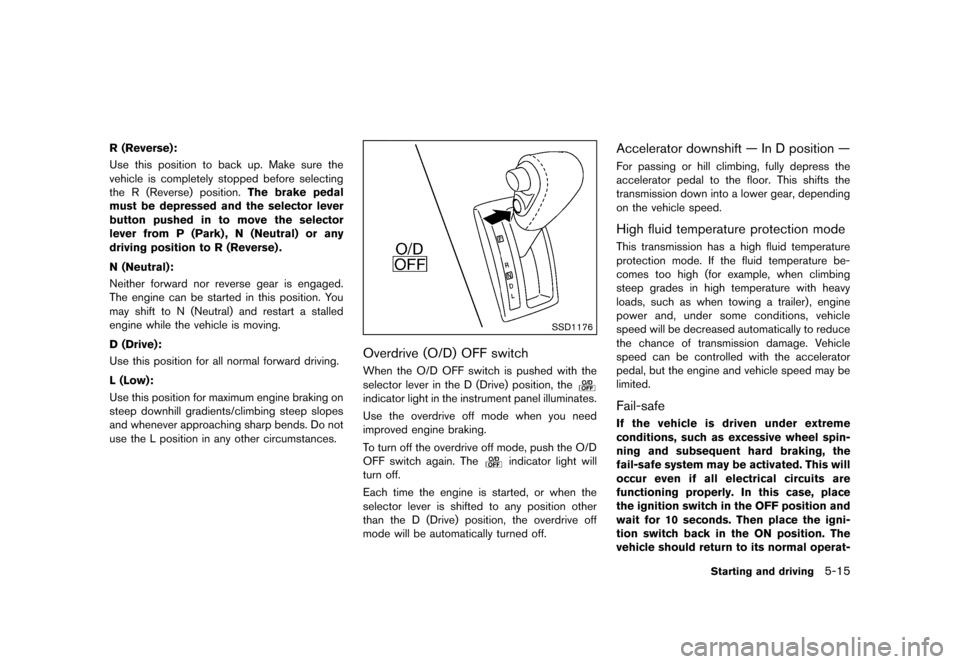

R (Reverse):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Use this position to back up. Make sure the
vehicle is completely stopped before selecting
the R (Reverse) position.The brake pedal
must be depressed and the selector lever
button pushed in to move the selector
lever from P (Park) , N (Neutral) or any
driving position to R (Reverse) .
N (Neutral):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Neither forward nor reverse gear is engaged.
The engine can be started in this position. You
may shift to N (Neutral) and restart a stalled
engine while the vehicle is moving.
D (Drive):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Use this position for all normal forward driving.
L (Low):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Use this position for maximum engine braking on
steep downhill gradients/climbing steep slopes
and whenever approaching sharp bends. Do not
use the L position in any other circumstances.
SSD1176
Overdrive (O/D) OFF switchGUID-ABC541E2-C15D-47C3-BECA-952AC6C42B5BWhen the O/D OFF switch is pushed with the
selector lever in the D (Drive) position, the
indicator light in the instrument panel illuminates.
Use the overdrive off mode when you need
improved engine braking.
To turn off the overdrive off mode, push the O/D
OFF switch again. The
indicator light will
turn off.
Each time the engine is started, or when the
selector lever is shifted to any position other
than the D (Drive) position, the overdrive off
mode will be automatically turned off.
Accelerator downshift — In D position —GUID-6F2528F8-7C30-4D84-ACB1-886040E69E34For passing or hill climbing, fully depress the
accelerator pedal to the floor. This shifts the
transmission down into a lower gear, depending
on the vehicle speed.
High fluid temperature protection modeGUID-C0263A9D-0737-4C81-B0F9-D670C4B337C5This transmission has a high fluid temperature
protection mode. If the fluid temperature be-
comes too high (for example, when climbing
steep grades in high temperature with heavy
loads, such as when towing a trailer), engine
power and, under some conditions, vehicle
speed will be decreased automatically to reduce
the chance of transmission damage. Vehicle
speed can be controlled with the accelerator
pedal, but the engine and vehicle speed may be
limited.
Fail-safeGUID-86C18CEC-91C6-4574-ACFA-37D36E7C0DACIf the vehicle is driven under extreme
conditions, such as excessive wheel spin-
ning and subsequent hard braking, the
fail-safe system may be activated. This will
occur even if all electrical circuits are
functioning properly. In this case, place
the ignition switch in the OFF position and
wait for 10 seconds. Then place the igni-
tion switch back in the ON position. The
vehicle should return to its normal operat-
Starting and driving5-15
Condition:

Black plate (358,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
5-16Starting and driving

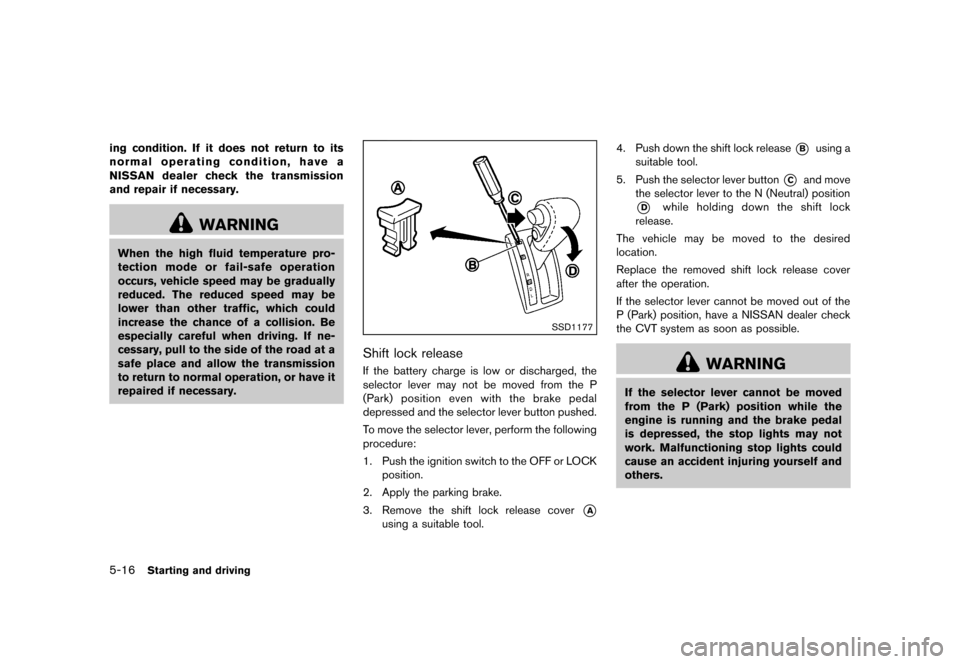

ing condition. If it does not return to its
normal operating condition, have a
NISSAN dealer check the transmission
and repair if necessary.
WARNING
When the high fluid temperature pro-
tection mode or fail-safe operation
occurs, vehicle speed may be gradually
reduced. The reduced speed may be
lower than other traffic, which could
increase the chance of a collision. Be
especially careful when driving. If ne-
cessary, pull to the side of the road at a
safe place and allow the transmission
to return to normal operation, or have it
repaired if necessary.
SSD1177
Shift lock releaseGUID-D1B1011E-24FC-4DA4-8FB1-638355580FE5If the battery charge is low or discharged, the
selector lever may not be moved from the P
(Park) position even with the brake pedal
depressed and the selector lever button pushed.
To move the selector lever, perform the following
procedure:
1. Push the ignition switch to the OFF or LOCKposition.
2. Apply the parking brake.
3. Remove the shift lock release cover
*A
using a suitable tool. 4. Push down the shift lock release
*Busing a
suitable tool.
5. Push the selector lever button
*Cand move
the selector lever to the N (Neutral) position
*Dwhile holding down the shift lock
release.
The vehicle may be moved to the desired
location.
Replace the removed shift lock release cover
after the operation.
If the selector lever cannot be moved out of the
P (Park) position, have a NISSAN dealer check
the CVT system as soon as possible.
WARNING
If the selector lever cannot be moved
from the P (Park) position while the
engine is running and the brake pedal
is depressed, the stop lights may not
work. Malfunctioning stop lights could
cause an accident injuring yourself and
others.
Condition:

Black plate (359,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
GUID-FFFD8FE1-A4DB-4F7E-B037-579C5105C22D

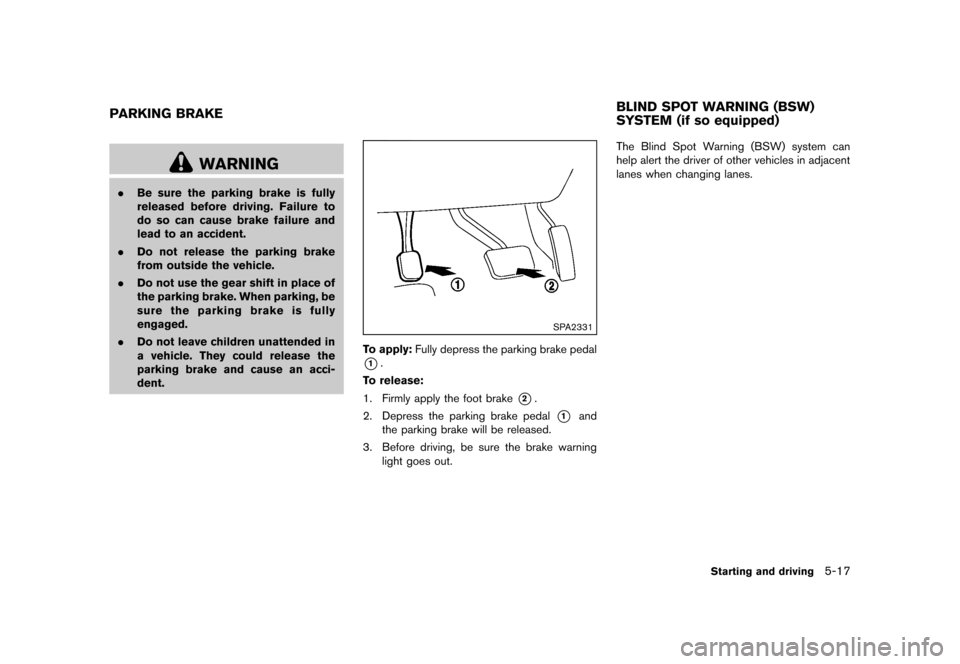

WARNING
.Be sure the parking brake is fully
released before driving. Failure to
do so can cause brake failure and
lead to an accident.
. Do not release the parking brake
from outside the vehicle.
. Do not use the gear shift in place of
the parking brake. When parking, be
sure the parking brake is fully
engaged.
. Do not leave children unattended in
a vehicle. They could release the
parking brake and cause an acci-
dent.
SPA2331
To apply: Fully depress the parking brake pedal
*1.
To release:
1. Firmly apply the foot brake
*2.
2. Depress the parking brake pedal
*1and
the parking brake will be released.
3. Before driving, be sure the brake warning light goes out.
GUID-8C590A26-003A-4629-B1A7-BD81A3C3475EThe Blind Spot Warning (BSW) system can
help alert the driver of other vehicles in adjacent
lanes when changing lanes.
Starting and driving5-17
PARKING BRAKE BLIND SPOT WARNING (BSW)
SYSTEM (if so equipped)
Condition:

Black plate (360,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
5-18Starting and driving
SSD1178
The BSW system uses radar sensors*A
installed near the rear bumper to detect other
vehicles beside your vehicle in an adjacent lane.
SSD1030
Detection zone
The radar sensors can detect vehicles on either
side of your vehicle within the detection zone
shown as illustrated. This detection zone starts
from the outside mirror of your vehicle and
extends approximately 10 ft (3.0 m) behind the
rear bumper, and approximately 10 ft (3.0 m)
sideways.
The BSW system operates above approximately
20 MPH (32 km/h). If the radar sensors detect a
vehicle in the detection zone, the BSW indicator
light illuminates. If the driver then activates the
turn signal, a chime will sound twice and the
BSW indicator light will flash.
WARNING
.The BSW system is not a replace-
ment for proper driving procedure
and is not designed to prevent
contact with vehicles or objects.
When changing lanes, always use
the side and rear mirrors and turn
and look in the direction you will
move to ensure it is safe to change
lanes. Never rely solely on the BSW
system.
. The BSW system may not provide a
warning for vehicles that pass
through the detection zone quickly.
Condition:

Black plate (361,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
SSD1184
BSW indicator light
SSD1029
BSW system warning light
SSD1179
BSW switch
BSW SYSTEM OPERATIONGUID-B7B4A2DD-5B73-4122-8C65-5DB3CA4A4566If the radar sensors detect a vehicle in the
detection zone, the BSW indicator light in the
outside mirror will illuminate in the direction of
the detected vehicle. If the turn signal is then
activated, the BSW indicator light flashes and a
chime sounds twice. The indicator light con-
tinues to flash until the detected vehicle leaves
the detection zone.
The BSW indicator lights illuminate for a few
seconds when the ignition switch is pushed to
the ON position.
The brightness of the BSW indicator lights is
adjusted automatically depending on the bright-ness of the ambient light.
A chime sounds if the radar sensors have
already detected vehicles when the driver
activates the turn signal. If a vehicle comes into
the detection zone after the driver activates the
turn signal, then only the BSW indicator light
flashes and no chime sounds. (See “BSW
driving situations” (P.5-20).)
The BSW system is automatically turned on
when the engine is started and the BSW ON
indicator light
*1illuminates on the switch. You
can turn the BSW system off by pushing the
BSW switch on the instrumental panel.
NOTE:
If you continue to push the BSW switch
from off to on for over 4 seconds, a chime
will sound. This will change the default
status of the BSW system to OFF so that
this system will not automatically turn on
when the engine is started. If this proce-
dure is repeated, the default status will
return to ON.
WARNING
. Do not use the BSW system when
towing a trailer because the system
may not function properly.
Starting and driving5-19
Condition:

Black plate (362,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
5-20Starting and driving
.Excessive noise (for example, audio
system volume, open vehicle win-
dow) will interfere with the chime
sound, and it may not be heard.
. The radar sensors may not be able to detect
and activate BSW when certain objects are
present such as:
— Pedestrians, bicycles, animals
— Several types of vehicles such as motor-
cycles
— Oncoming vehicles
— Vehicles remaining in the detection zone when you accelerate from a stop (See
“BSW driving situations” (P.5-20) .)
— A vehicle merging into an adjacent lane at a speed approximately the same as
your vehicle (See “BSW driving situa-
tions” (P.5-20) .)
— A vehicle approaching rapidly from be- hind. (See “BSW driving situations” (P.5-
20).)
— A vehicle which your vehicle overtakes rapidly. (See “BSW driving situations”
(P.5-20) .)
. Severe weather or road spray conditions
may reduce the ability of the radar to detect
other vehicles. .
The radar sensors detection zone is de-
signed based on a standard lane width.
When driving in a wider lane, the radar
sensors may not detect vehicles in an
adjacent lane. When driving in a narrow
lane, the radar sensors may detect vehicles
driving two lanes away.
. The radar sensors are designed to ignore
most stationary objects, however objects
such as guardrails, walls, foliage and parked
vehicles may occasionally be detected. This
is a normal operating condition.
SSD1026
BSW DRIVING SITUATIONSGUID-71ACE2ED-D9A7-422C-85CA-C5F85697B842
Another vehicle approaching from be-
hind
GUID-94FEA650-D18D-4A7A-91B7-9E8035334637The BSW indicator light illuminates if a vehicle
enters the detection zone from behind in an
adjacent lane.
However, if the overtaking vehicle is traveling
much faster than your vehicle, the indicator light
may not illuminate before the detected vehicle is
beside your vehicle. Always use the side and
rear mirrors and turn and look in the direction
your vehicle will move to ensure it is safe to
change lanes.
Condition:

Black plate (363,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
SSD1031
If the driver activates the turn signal, then the
BSW indicator light flashes and a chime will
sound twice.
NOTE:
If the driver activates the turn signal before
a vehicle enters the detection zone, the
BSW indicator light will flash but no chime
will sound when the other vehicle is
detected.
SSD1032
NOTE:
If you accelerate from a stop with a vehicle
in the detection zone, the other vehicle
may not be detected.
SSD1033
Overtaking other vehiclesGUID-E148AB76-62C4-493D-9302-A57F3667E723The BSW indicator light illuminates if you
overtake a vehicle and that vehicle stays in the
detection zone for approximately 3 seconds.
The radar sensors may not detect slower moving
vehicles if they are passed quickly.
Starting and driving5-21
Condition:

Black plate (364,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

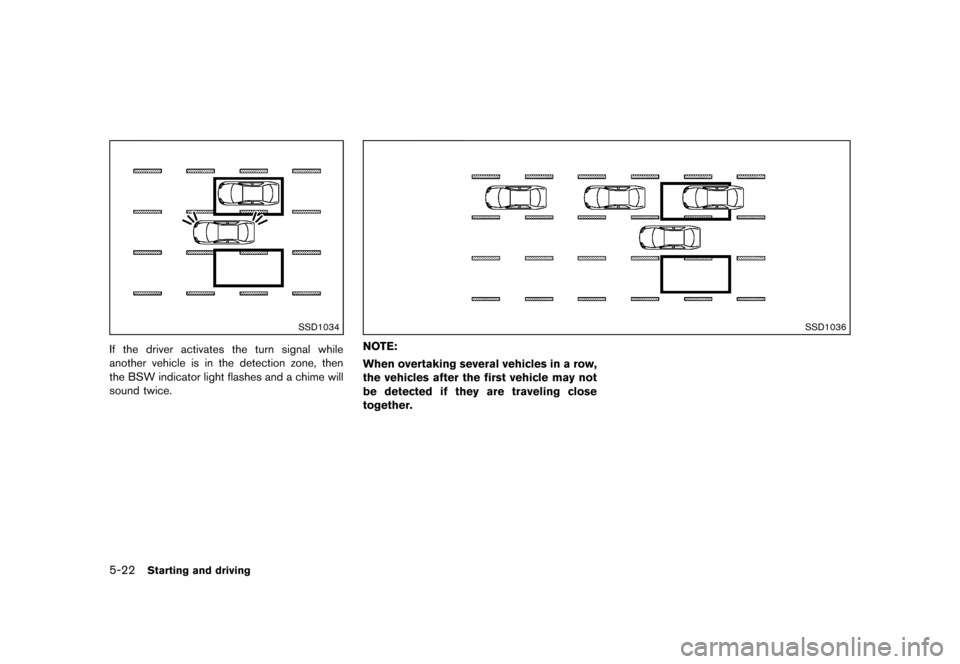

5-22Starting and driving
SSD1034
If the driver activates the turn signal while
another vehicle is in the detection zone, then
the BSW indicator light flashes and a chime will
sound twice.
SSD1036
NOTE:
When overtaking several vehicles in a row,
the vehicles after the first vehicle may not
be detected if they are traveling close
together.
Condition:
