2013 NISSAN QUEST Owners Manual

Black plate (77,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

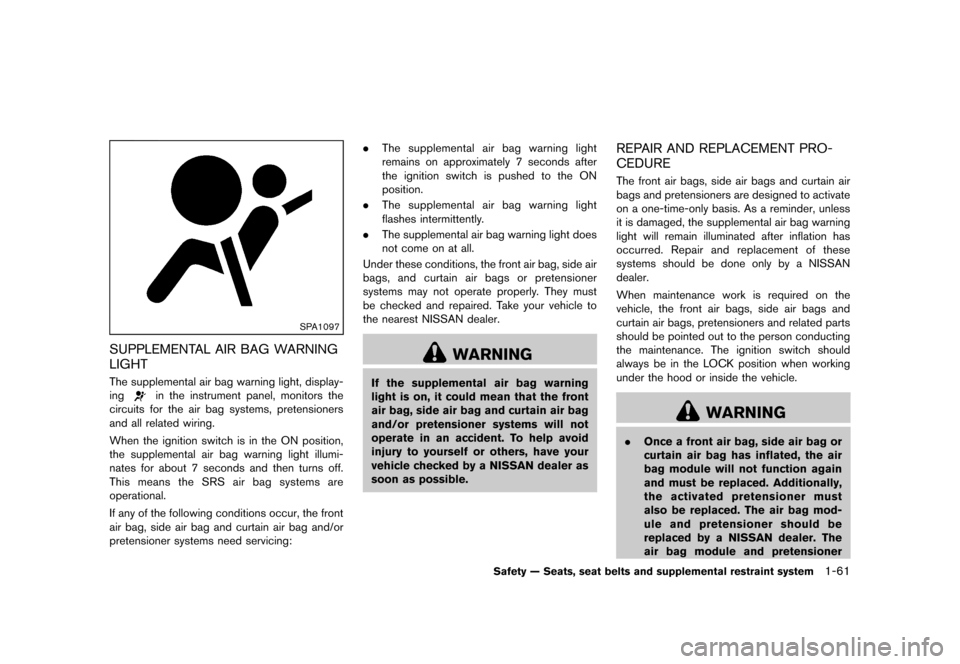

SPA1097
SUPPLEMENTAL AIR BAG WARNING
LIGHT
GUID-63CE3EBF-C153-41F1-8ADB-13B5BEF67FA8The supplemental air bag warning light, display-
ing
in the instrument panel, monitors the
circuits for the air bag systems, pretensioners
and all related wiring.
When the ignition switch is in the ON position,
the supplemental air bag warning light illumi-
nates for about 7 seconds and then turns off.
This means the SRS air bag systems are
operational.
If any of the following conditions occur, the front
air bag, side air bag and curtain air bag and/or
pretensioner systems need servicing: .
The supplemental air bag warning light
remains on approximately 7 seconds after
the ignition switch is pushed to the ON
position.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light does
not come on at all.
Under these conditions, the front air bag, side air
bags, and curtain air bags or pretensioner
systems may not operate properly. They must
be checked and repaired. Take your vehicle to
the nearest NISSAN dealer.
WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag and curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked by a NISSAN dealer as
soon as possible.
REPAIR AND REPLACEMENT PRO-
CEDURE
GUID-F52DD8FA-AF84-402B-A3CD-7BF3DE1C4982The front air bags, side air bags and curtain air
bags and pretensioners are designed to activate
on a one-time-only basis. As a reminder, unless
it is damaged, the supplemental air bag warning
light will remain illuminated after inflation has
occurred. Repair and replacement of these
systems should be done only by a NISSAN
dealer.
When maintenance work is required on the
vehicle, the front air bags, side air bags and
curtain air bags, pretensioners and related parts
should be pointed out to the person conducting
the maintenance. The ignition switch should
always be in the LOCK position when working
under the hood or inside the vehicle.
WARNING
. Once a front air bag, side air bag or
curtain air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally,
the activated pretensioner must
also be replaced. The air bag mod-
ule and pretensioner should be
replaced by a NISSAN dealer. The
air bag module and pretensioner
Safety — Seats, seat belts and supplemental restraint system1-61
Condition:

Black plate (78,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
1-62Safety — Seats, seat belts and supplemental restraint system

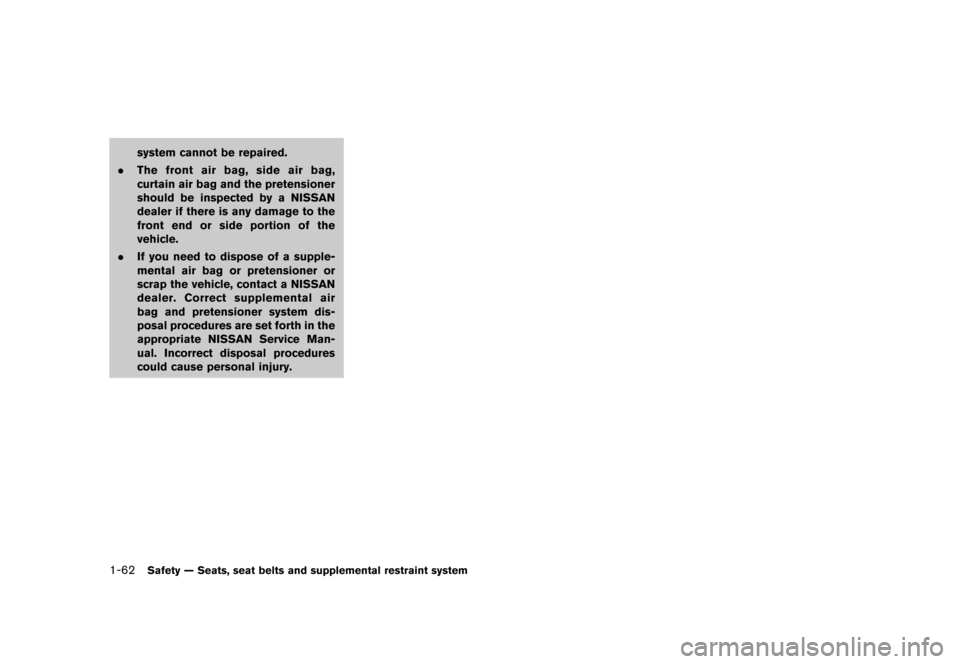

system cannot be repaired.
. The front air bag, side air bag,
curtain air bag and the pretensioner
should be inspected by a NISSAN
dealer if there is any damage to the
front end or side portion of the
vehicle.
. If you need to dispose of a supple-
mental air bag or pretensioner or
scrap the vehicle, contact a NISSAN
dealer. Correct supplemental air
bag and pretensioner system dis-
posal procedures are set forth in the
appropriate NISSAN Service Man-
ual. Incorrect disposal procedures
could cause personal injury.
Condition:

Black plate (79,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
2 Instruments and controls
Cockpit...
........................................................................\
................ 2-3
Instrument panel ...
........................................................................\
2-4
Meters and gauges ...
................................................................... 2-5
Meter/ring illumination and needle sweep ...
.................... 2-5
Speedometer and odometer ...
............................................ 2-6
Tachometer ...
........................................................................\
... 2-7
Engine coolant temperature gauge ...
................................ 2-7
Fuel gauge ...
........................................................................\
.... 2-8
Compass (if so equipped) ...
...................................................... 2-8
Zone variation change procedure ...
................................ 2-10
Warning/indicator lights and audible reminders ...
............ 2-11
Checking bulbs ...
................................................................. 2-12
Warning lights ...
................................................................... 2-12
Indicator lights ...
................................................................... 2-16
Audible reminders ...
............................................................ 2-18
Dot matrix liquid crystal display ...
.......................................... 2-18
Operational indicators ...
..................................................... 2-19
Maintenance indicators ...
................................................... 2-22
Trip computer ...
.................................................................... 2-22
Security systems ...
.................................................................... 2-27
Vehicle security system ...
.................................................. 2-27
NISSAN vehicle immobilizer system ...
........................... 2-28
Windshield wiper and washer switch ...
............................... 2-30
Rear window wiper and washer switch ...
........................... 2-31 Rear window and outside mirror defroster switch
...
....... 2-32
Headlight and turn signal switch ...
....................................... 2-32
Xenon headlights (if so equipped) ...
............................ 2-32
Headlight switch ...
............................................................ 2-33
Turn signal switch ...
.......................................................... 2-37
Fog light switch (if so equipped) ...
.............................. 2-37
Horn ...
........................................................................\
.................. 2-38
Heated seats (if so equipped) ...
........................................... 2-38
Blind Spot Warning (BSW) switch (if so equipped) ...
..... 2-39
Vehicle Dynamic Control (VDC) OFF switch ...
................. 2-40
Power outlet ...
........................................................................\
.... 2-40
Storage ...
........................................................................\
............ 2-43
Cup holders ...
..................................................................... 2-43
Sunglasses holder (if so equipped) ...
.......................... 2-45
Glove box ...
........................................................................\
. 2-45
Instrument lower box (if so equipped) ...
..................... 2-46
Console box ...
.................................................................... 2-46
Cargo floor box ...
............................................................... 2-47
Hooks ...
........................................................................\
........ 2-48
Roof rack (if so equipped) ...
.......................................... 2-49
Coat hooks ...
...................................................................... 2-50
Sunshade (if so equipped) ...
................................................. 2-50
Windows ...
........................................................................\
......... 2-51
Power windows ...
.............................................................. 2-51
Condition:
>

Black plate (80,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

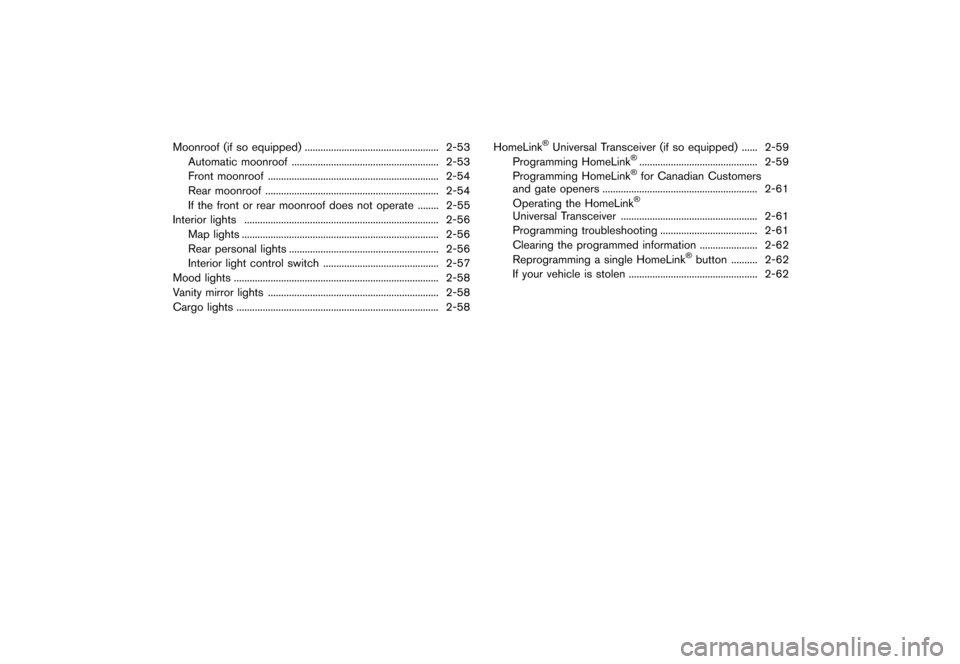

Moonroof (if so equipped)...
................................................... 2-53
Automatic moonroof ...
........................................................ 2-53
Front moonroof ...
................................................................. 2-54
Rear moonroof ...
.................................................................. 2-54
If the front or rear moonroof does not operate ...
........ 2-55
Interior lights ...
........................................................................\
.. 2-56
Map lights ...
........................................................................\
... 2-56
Rear personal lights ...
......................................................... 2-56
Interior light control switch ...
............................................ 2-57
Mood lights ...
........................................................................\
...... 2-58
Vanity mirror lights ...
................................................................. 2-58
Cargo lights ...
........................................................................\
..... 2-58 HomeLink®Universal Transceiver (if so equipped)
...
...... 2-59
Programming HomeLink®...
............................................. 2-59
Programming HomeLink®for Canadian Customers
and gate openers ...
........................................................... 2-61
Operating the HomeLink
®
Universal Transceiver ...
.................................................... 2-61
Programming troubleshooting ...
..................................... 2-61
Clearing the programmed information ...
...................... 2-62
Reprogramming a single HomeLink
®button ...
.......... 2-62
If your vehicle is stolen ...
................................................. 2-62
Condition:

Black plate (81,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
GUID-DCC2794A-4B62-4A96-BA3A-A529DCB296EE

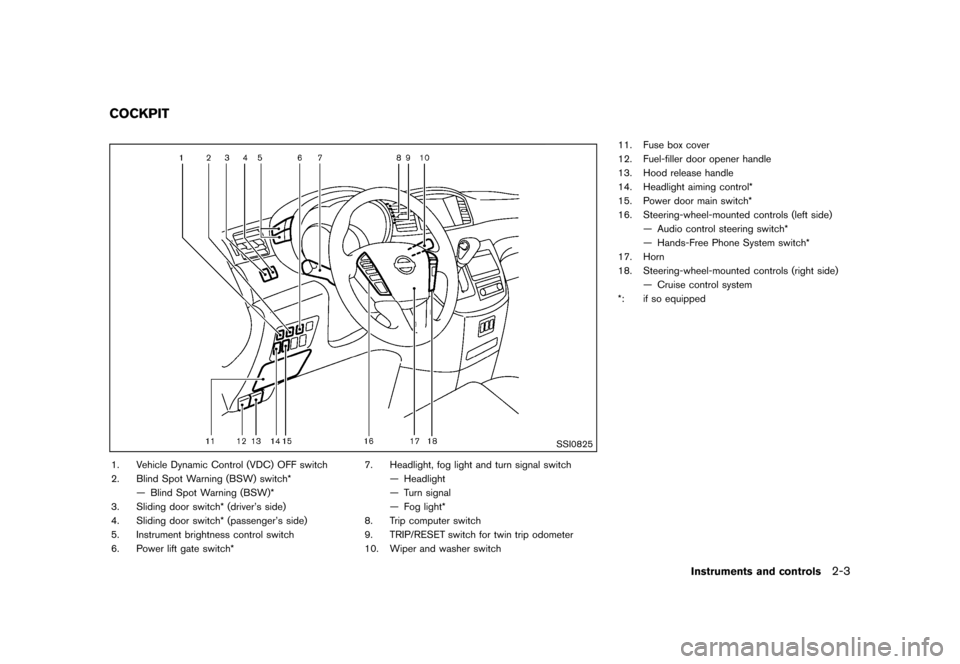

SSI0825
1. Vehicle Dynamic Control (VDC) OFF switch
2. Blind Spot Warning (BSW) switch*— Blind Spot Warning (BSW)*
3. Sliding door switch* (driver’s side)
4. Sliding door switch* (passenger’s side)
5. Instrument brightness control switch
6. Power lift gate switch* 7. Headlight, fog light and turn signal switch
— Headlight
— Turn signal
— Fog light*
8. Trip computer switch
9. TRIP/RESET switch for twin trip odometer
10. Wiper and washer switch 11. Fuse box cover
12. Fuel-filler door opener handle
13. Hood release handle
14. Headlight aiming control*
15. Power door main switch*
16. Steering-wheel-mounted controls (left side)
— Audio control steering switch*
— Hands-Free Phone System switch*
17. Horn
18. Steering-wheel-mounted controls (right side) — Cruise control system
*: if so equipped
Instruments and controls2-3
COCKPIT
Condition:

Black plate (82,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
2-4Instruments and controls
GUID-0C8F786C-EE91-435E-980B-4A330DFE7B46

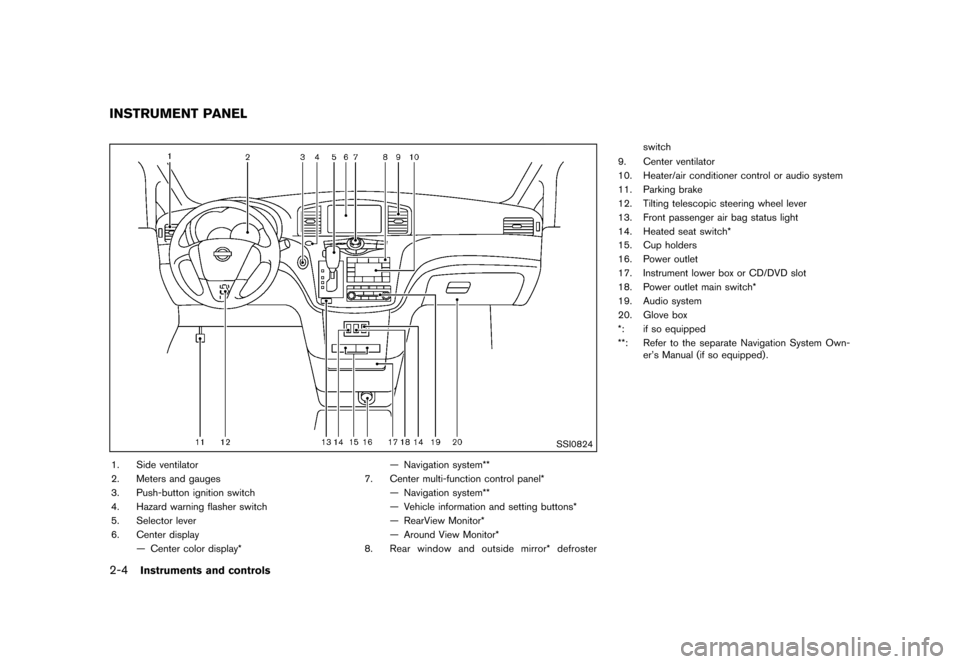

SSI0824
1. Side ventilator
2. Meters and gauges
3. Push-button ignition switch
4. Hazard warning flasher switch
5. Selector lever
6. Center display— Center color display* — Navigation system**
7. Center multi-function control panel* — Navigation system**
— Vehicle information and setting buttons*
— RearView Monitor*
— Around View Monitor*
8. Rear window and outside mirror* defroster switch
9. Center ventilator
10. Heater/air conditioner control or audio system
11. Parking brake
12. Tilting telescopic steering wheel lever
13. Front passenger air bag status light
14. Heated seat switch*
15. Cup holders
16. Power outlet
17. Instrument lower box or CD/DVD slot
18. Power outlet main switch*
19. Audio system
20. Glove box
*: if so equipped
**: Refer to the separate Navigation System Own- er’s Manual (if so equipped) .
INSTRUMENT PANEL
Condition:

Black plate (83,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
GUID-37D11D36-26FF-4EBB-A6F1-92389D9391F7
JVC0210X
1. Instrument brightness control switch
2. Tachometer
3. Speedometer
4. Fuel gauge
5. Warning/indicator lights
6. Trip computer switch
7. Dot matrix liquid crystal display— Trip computer
8. Engine coolant temperature gauge
9. Odometer/twin trip odometer/Continuously Vari- able Transmission (CVT) position indicator
10. TRIP/RESET switch for twin trip odometer
The needle indicators may move slightly
after the ignition switch is pushed to the OFF position. This is not a malfunction.
METER/RING ILLUMINATION AND
NEEDLE SWEEP
GUID-6FB96EED-2227-43A8-9F52-B32907E5E8C9The ring illumination surrounding meters and
gauges illuminates when the driver’s door is
closed after getting into the vehicle with the
Intelligent Key carried in.
When the engine is started, the indicator
needles will sweep in the speedometer and
tachometer and the ring illumination will be
brightened gradually. This function can be
turned off. (See “Trip computer” (P.2-22) .)
Instruments and controls2-5
METERS AND GAUGES
Condition:

Black plate (84,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

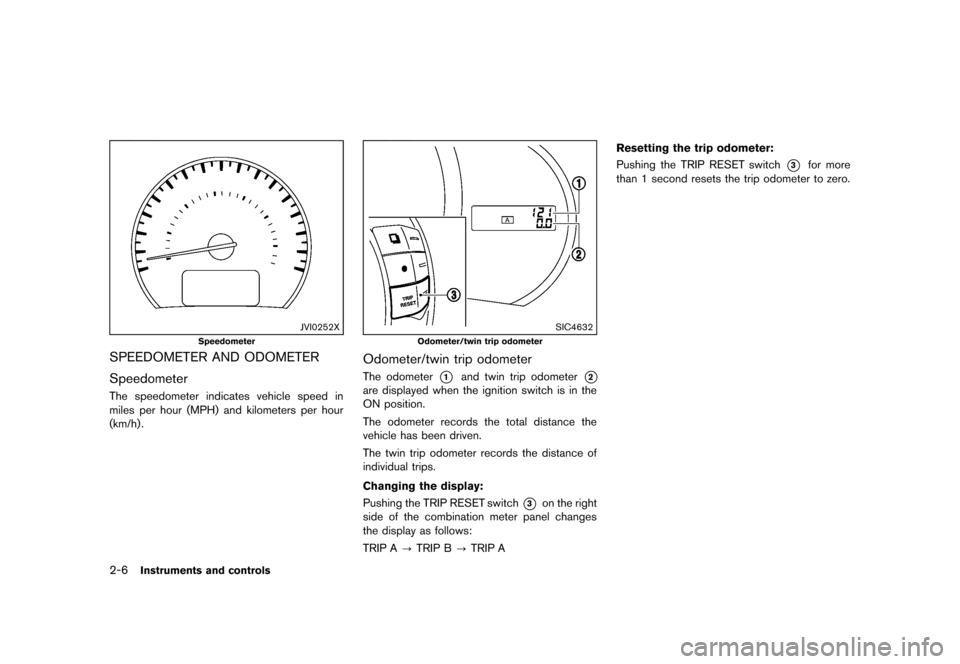

2-6Instruments and controls
JVI0252X
Speedometer
SPEEDOMETER AND ODOMETERGUID-77958C18-38E6-4515-81A8-602B476070B8
SpeedometerGUID-149DA615-AB5B-4172-8BCC-7CBFBA50FC98The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h) .
SIC4632
Odometer/twin trip odometer
Odometer/twin trip odometerGUID-2708C880-F080-4F4D-98C7-A14C9193EC2EThe odometer*1and twin trip odometer*2
are displayed when the ignition switch is in the
ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.
Changing the display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the TRIP RESET switch*3on the right
side of the combination meter panel changes
the display as follows:
TRIP A ?TRIP B ?TRIP A Resetting the trip odometer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the TRIP RESET switch*3for more
than 1 second resets the trip odometer to zero.
Condition:
