2013 NISSAN QUEST Owners Manual

Black plate (181,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

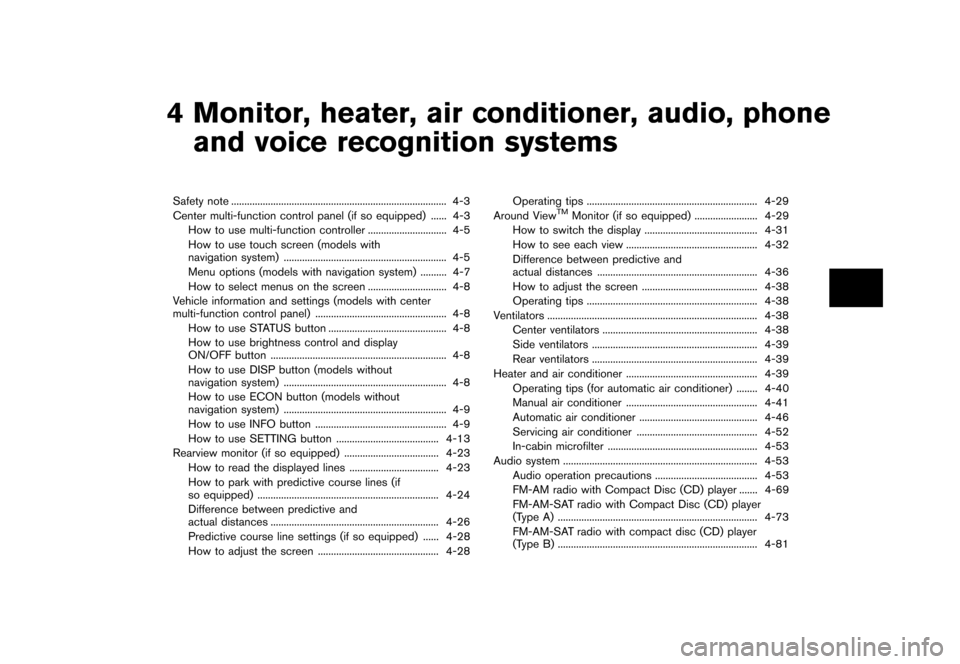

4 Monitor, heater, air conditioner, audio, phoneand voice recognition systems
Safety note ...
........................................................................\
.......... 4-3
Center multi-function control panel (if so equipped) ...
...... 4-3
How to use multi-function controller ...
.............................. 4-5
How to use touch screen (models with
navigation system) ...
.............................................................. 4-5
Menu options (models with navigation system) ...
.......... 4-7
How to select menus on the screen ...
.............................. 4-8
Vehicle information and settings (models with center
multi-function control panel) ...
.................................................. 4-8
How to use STATUS button ...
............................................. 4-8
How to use brightness control and display
ON/OFF button ...
................................................................... 4-8
How to use DISP button (models without
navigation system) ...
.............................................................. 4-8
How to use ECON button (models without
navigation system) ...
.............................................................. 4-9
How to use INFO button ...
.................................................. 4-9
How to use SETTING button ...
....................................... 4-13
Rearview monitor (if so equipped) ...
.................................... 4-23
How to read the displayed lines ...
.................................. 4-23
How to park with predictive course lines (if
so equipped) ...
..................................................................... 4-24
Difference between predictive and
actual distances ...
................................................................ 4-26
Predictive course line settings (if so equipped) ...
...... 4-28
How to adjust the screen ...
.............................................. 4-28 Operating tips
...
................................................................. 4-29
Around ViewTMMonitor (if so equipped) ...
........................ 4-29
How to switch the display ...
........................................... 4-31
How to see each view ...
.................................................. 4-32
Difference between predictive and
actual distances ...
............................................................. 4-36
How to adjust the screen ...
............................................ 4-38
Operating tips ...
................................................................. 4-38
Ventilators ...
........................................................................\
........ 4-38
Center ventilators ...
........................................................... 4-38
Side ventilators ...
............................................................... 4-39
Rear ventilators ...
............................................................... 4-39
Heater and air conditioner ...
.................................................. 4-39
Operating tips (for automatic air conditioner) ...
........ 4-40
Manual air conditioner ...
.................................................. 4-41
Automatic air conditioner ...
............................................. 4-46
Servicing air conditioner ...
.............................................. 4-52
In-cabin microfilter ...
......................................................... 4-53
Audio system ...
........................................................................\
.. 4-53
Audio operation precautions ...
....................................... 4-53
FM-AM radio with Compact Disc (CD) player ...
....... 4-69
FM-AM-SAT radio with Compact Disc (CD) player
(Type A) ...
........................................................................\
.... 4-73
FM-AM-SAT radio with compact disc (CD) player
(Type B) ...
........................................................................\
.... 4-81
Condition:

Black plate (182,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

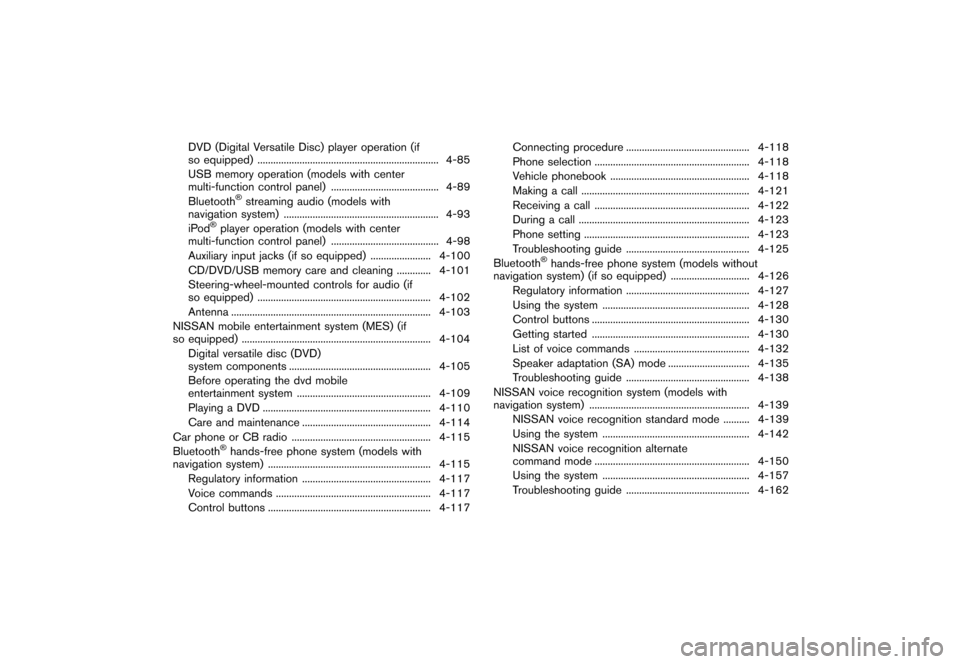

DVD (Digital Versatile Disc) player operation (if
so equipped)...
..................................................................... 4-85
USB memory operation (models with center
multi-function control panel) ...
......................................... 4-89
Bluetooth
®streaming audio (models with
navigation system) ...
........................................................... 4-93
iPod
®player operation (models with center
multi-function control panel) ...
......................................... 4-98
Auxiliary input jacks (if so equipped) ...
....................... 4-100
CD/DVD/USB memory care and cleaning ...
............. 4-101
Steering-wheel-mounted controls for audio (if
so equipped) ...
.................................................................. 4-102
Antenna ...
........................................................................\
.... 4-103
NISSAN mobile entertainment system (MES) (if
so equipped) ...
........................................................................\
4-104
Digital versatile disc (DVD)
system components ...
...................................................... 4-105
Before operating the dvd mobile
entertainment system ...
................................................... 4-109
Playing a DVD ...
................................................................ 4-110
Care and maintenance ...
................................................. 4-114
Car phone or CB radio ...
..................................................... 4-115
Bluetooth
®hands-free phone system (models with
navigation system) ...
.............................................................. 4-115
Regulatory information ...
................................................. 4-117
Voice commands ...
........................................................... 4-117
Control buttons ...
.............................................................. 4-117 Connecting procedure
...
............................................... 4-118
Phone selection ...
........................................................... 4-118
Vehicle phonebook ...
..................................................... 4-118
Making a call ...
................................................................ 4-121
Receiving a call ...
........................................................... 4-122
During a call ...
................................................................. 4-123
Phone setting ...
............................................................... 4-123
Troubleshooting guide ...
............................................... 4-125
Bluetooth
®hands-free phone system (models without
navigation system) (if so equipped) ...
.............................. 4-126
Regulatory information ...
............................................... 4-127
Using the system ...
........................................................ 4-128
Control buttons ...
............................................................ 4-130
Getting started ...
............................................................ 4-130
List of voice commands ...
............................................ 4-132
Speaker adaptation (SA) mode ...
............................... 4-135
Troubleshooting guide ...
............................................... 4-138
NISSAN voice recognition system (models with
navigation system) ...
............................................................. 4-139
NISSAN voice recognition standard mode ...
.......... 4-139
Using the system ...
........................................................ 4-142
NISSAN voice recognition alternate
command mode ...
........................................................... 4-150
Using the system ...
........................................................ 4-157
Troubleshooting guide ...
............................................... 4-162
Condition:

Black plate (183,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

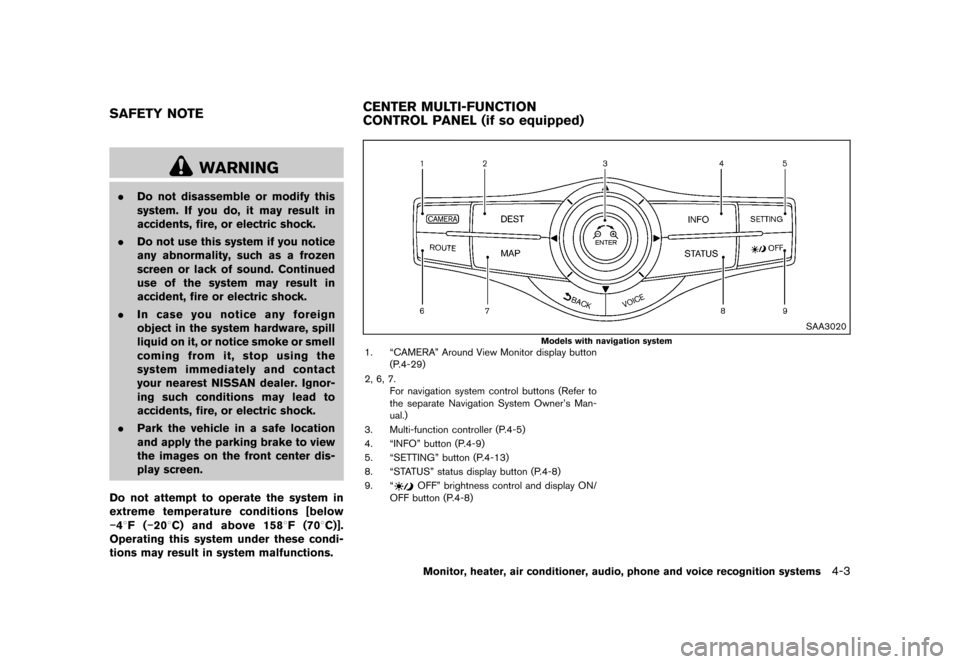

GUID-9E91A2AF-7FD6-419C-9FB6-2BB1D192A590
WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in
accident, fire or electric shock.
. In case you notice any foreign
object in the system hardware, spill
liquid on it, or notice smoke or smell
coming from it, stop using the
system immediately and contact
your nearest NISSAN dealer. Ignor-
ing such conditions may lead to
accidents, fire, or electric shock.
. Park the vehicle in a safe location
and apply the parking brake to view
the images on the front center dis-
play screen.
Do not attempt to operate the system in
extreme temperature conditions [below
−48F (−208C) and above 1588F (708C)].
Operating this system under these condi-
tions may result in system malfunctions.
GUID-FCD5479C-66CC-40C2-9130-A25FC2C7475B
SAA3020
Models with navigation system1. “CAMERA” Around View Monitor display button (P.4-29)
2, 6, 7. For navigation system control buttons (Refer to
the separate Navigation System Owner’s Man-
ual.)
3. Multi-function controller (P.4-5)
4. “INFO” button (P.4-9)
5. “SETTING” button (P.4-13)
8. “STATUS” status display button (P.4-8)
9. “
OFF” brightness control and display ON/
OFF button (P.4-8)
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-3
SAFETY NOTE CENTER MULTI-FUNCTION
CONTROL PANEL (if so equipped)
Condition:

Black plate (184,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
4-4Monitor, heater, air conditioner, audio, phone and voice recognition systems

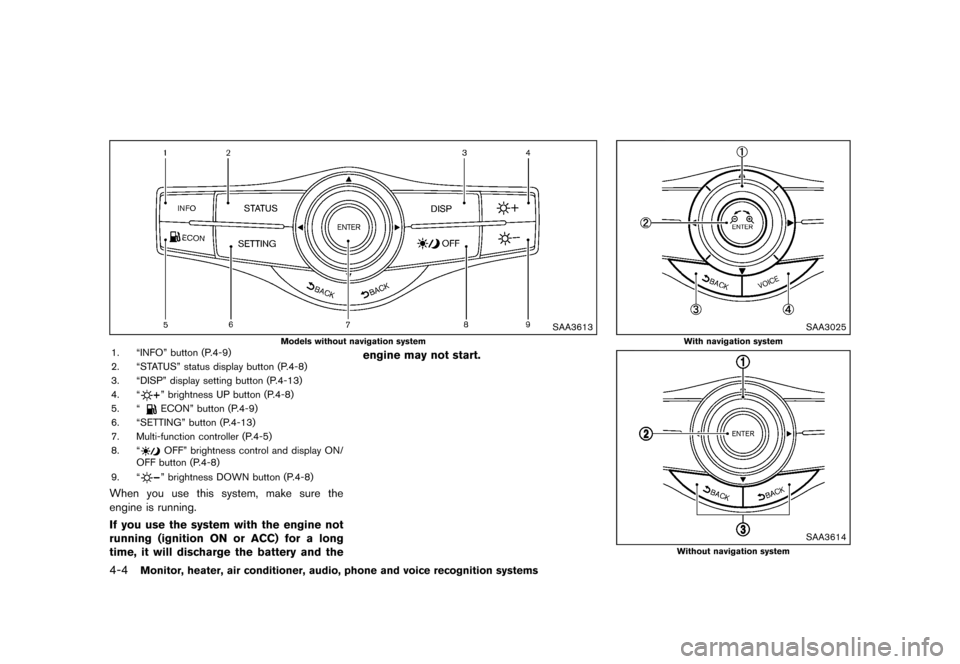

SAA3613
Models without navigation system1. “INFO” button (P.4-9)
2. “STATUS” status display button (P.4-8)
3. “DISP” display setting button (P.4-13)
4. “
” brightness UP button (P.4-8)
5. “
ECON” button (P.4-9)
6. “SETTING” button (P.4-13)
7. Multi-function controller (P.4-5)
8. “
OFF” brightness control and display ON/
OFF button (P.4-8)
9. “
” brightness DOWN button (P.4-8)
When you use this system, make sure the
engine is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery and the engine may not start.
SAA3025
With navigation system
SAA3614
Without navigation system
Condition:

Black plate (185,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

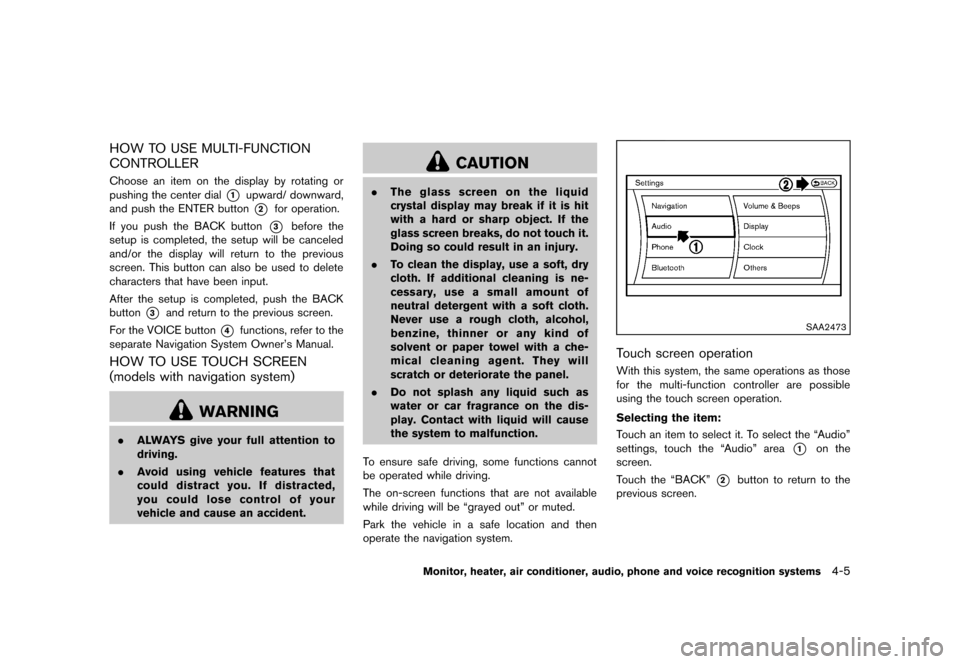

HOW TO USE MULTI-FUNCTION
CONTROLLER
GUID-7E48C6E3-13FB-400D-A81F-BF7E3F9AA50BChoose an item on the display by rotating or
pushing the center dial
*1upward/ downward,
and push the ENTER button
*2for operation.
If you push the BACK button
*3before the
setup is completed, the setup will be canceled
and/or the display will return to the previous
screen. This button can also be used to delete
characters that have been input.
After the setup is completed, push the BACK
button
*3and return to the previous screen.
For the VOICE button
*4functions, refer to the
separate Navigation System Owner’s Manual.
HOW TO USE TOUCH SCREEN
(models with navigation system)
GUID-341874AE-CB3F-4BF9-A452-77225AECC7B8
WARNING
. ALWAYS give your full attention to
driving.
. Avoid using vehicle features that
could distract you. If distracted,
you could lose control of your
vehicle and cause an accident.
CAUTION
.The glass screen on the liquid
crystal display may break if it is hit
with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
. To clean the display, use a soft, dry
cloth. If additional cleaning is ne-
cessary, use a small amount of
neutral detergent with a soft cloth.
Never use a rough cloth, alcohol,
benzine, thinner or any kind of
solvent or paper towel with a che-
mical cleaning agent. They will
scratch or deteriorate the panel.
. Do not splash any liquid such as
water or car fragrance on the dis-
play. Contact with liquid will cause
the system to malfunction.
To ensure safe driving, some functions cannot
be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then
operate the navigation system.
SAA2473
Touch screen operationGUID-6C7F3DCF-7A3A-4832-B1C2-2CEC2C25F75EWith this system, the same operations as those
for the multi-function controller are possible
using the touch screen operation.
Selecting the item:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch an item to select it. To select the “Audio”
settings, touch the “Audio” area
*1on the
screen.
Touch the “BACK”
*2button to return to the
previous screen.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-5
Condition:

Black plate (186,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

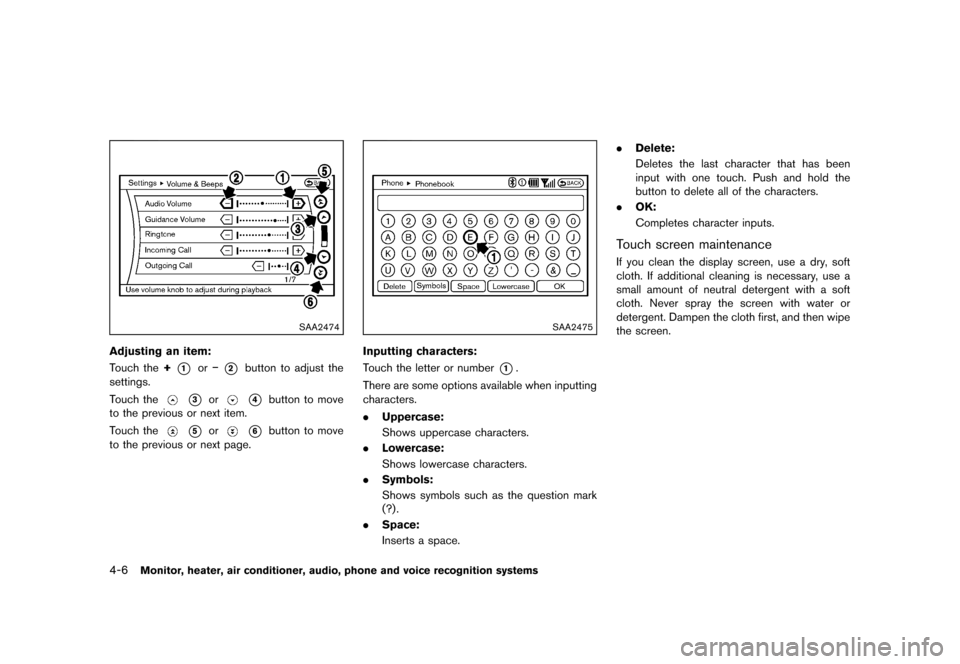

4-6Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA2474
Adjusting an item:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the+*1or−*2button to adjust the
settings.
Touch the
*3or*4button to move
to the previous or next item.
Touch the
*5or*6button to move
to the previous or next page.
SAA2475
Inputting characters:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the letter or number*1.
There are some options available when inputting
characters.
. Uppercase:
Shows uppercase characters.
. Lowercase:
Shows lowercase characters.
. Symbols:
Shows symbols such as the question mark
(?) .
. Space:
Inserts a space. .
Delete:
Deletes the last character that has been
input with one touch. Push and hold the
button to delete all of the characters.
. OK:
Completes character inputs.
Touch screen maintenanceGUID-AFAED2A8-6A07-41CC-809A-1C057428DB6FIf you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or
detergent. Dampen the cloth first, and then wipe
the screen.
Condition:

Black plate (187,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

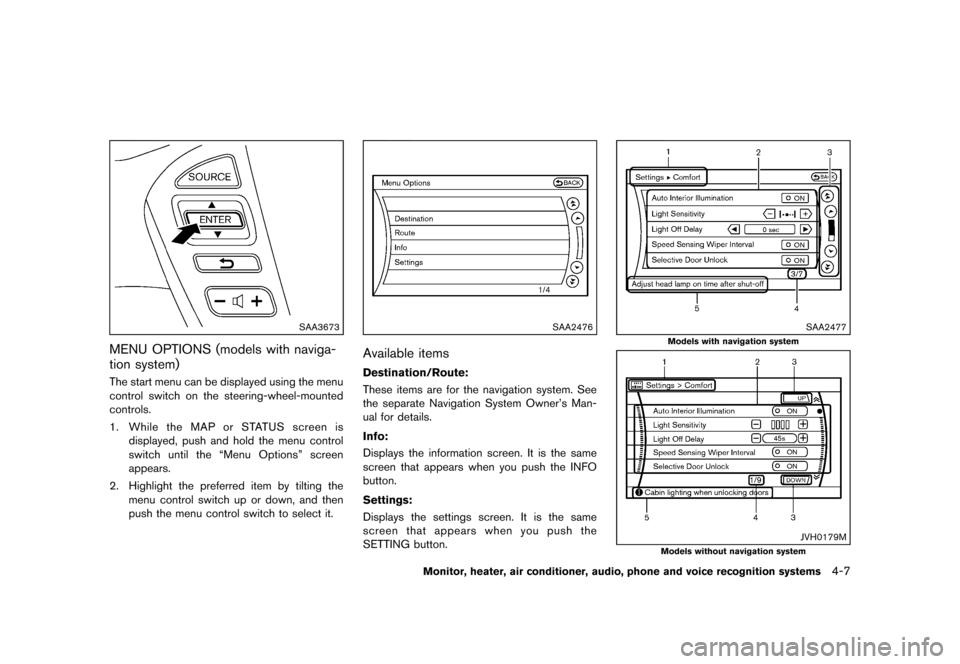

SAA3673
MENU OPTIONS (models with naviga-
tion system)
GUID-8F3B6C5E-FAE9-415A-9ACD-618B61F5B9C7The start menu can be displayed using the menu
control switch on the steering-wheel-mounted
controls.
1.While the MAP or STATUS screen is
displayed, push and hold the menu control
switch until the “Menu Options” screen
appears.
2. Highlight the preferred item by tilting the menu control switch up or down, and then
push the menu control switch to select it.
SAA2476
Available itemsGUID-3FA860EC-9FDE-4C31-8D7B-830C470BA446
Destination/Route:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407These items are for the navigation system. See
the separate Navigation System Owner’s Man-
ual for details.
Info:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Displays the information screen. It is the same
screen that appears when you push the INFO
button.
Settings:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Displays the settings screen. It is the same
screen that appears when you push the
SETTING button.
SAA2477
Models with navigation system
JVH0179M
Models without navigation system
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-7
Condition:

Black plate (188,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

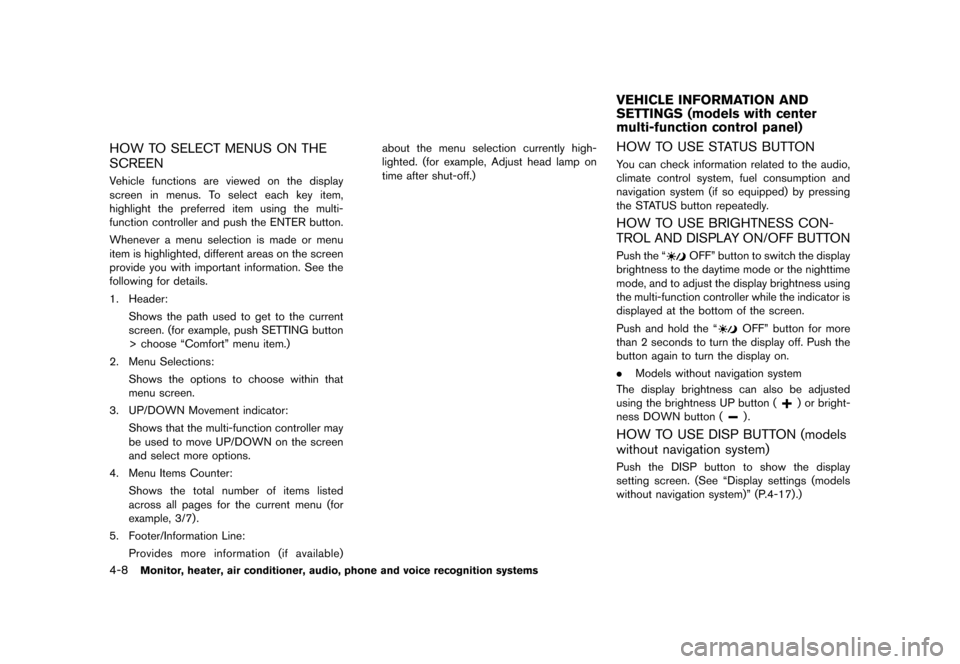

4-8Monitor, heater, air conditioner, audio, phone and voice recognition systems
HOW TO SELECT MENUS ON THE
SCREEN
GUID-716D8DAB-A607-460F-8940-58011D08B09BVehicle functions are viewed on the display
screen in menus. To select each key item,
highlight the preferred item using the multi-
function controller and push the ENTER button.
Whenever a menu selection is made or menu
item is highlighted, different areas on the screen
provide you with important information. See the
following for details.
1. Header:Shows the path used to get to the current
screen. (for example, push SETTING button
> choose “Comfort” menu item.)
2. Menu Selections: Shows the options to choose within that
menu screen.
3. UP/DOWN Movement indicator: Shows that the multi-function controller may
be used to move UP/DOWN on the screen
and select more options.
4. Menu Items Counter: Shows the total number of items listed
across all pages for the current menu (for
example, 3/7) .
5. Footer/Information Line: Provides more information (if available) about the menu selection currently high-
lighted. (for example, Adjust head lamp on
time after shut-off.)
GUID-7BBC7C19-BC3A-4F90-83F0-4A61141D4E5AHOW TO USE STATUS BUTTONGUID-2540E297-82D5-49AA-93C3-3697B4CB844FYou can check information related to the audio,
climate control system, fuel consumption and
navigation system (if so equipped) by pressing
the STATUS button repeatedly.
HOW TO USE BRIGHTNESS CON-
TROL AND DISPLAY ON/OFF BUTTON
GUID-A4523688-0453-4924-B713-BBFFF57D6E1EPush the “OFF” button to switch the display
brightness to the daytime mode or the nighttime
mode, and to adjust the display brightness using
the multi-function controller while the indicator is
displayed at the bottom of the screen.
Push and hold the “
OFF” button for more
than 2 seconds to turn the display off. Push the
button again to turn the display on.
. Models without navigation system
The display brightness can also be adjusted
using the brightness UP button (
) or bright-
ness DOWN button (
) .
HOW TO USE DISP BUTTON (models
without navigation system)
GUID-FEE84327-8387-4374-B2AA-46CF2799FB7FPush the DISP button to show the display
setting screen. (See “Display settings (models
without navigation system)” (P.4-17).)
VEHICLE INFORMATION AND
SETTINGS (models with center
multi-function control panel)
Condition:
