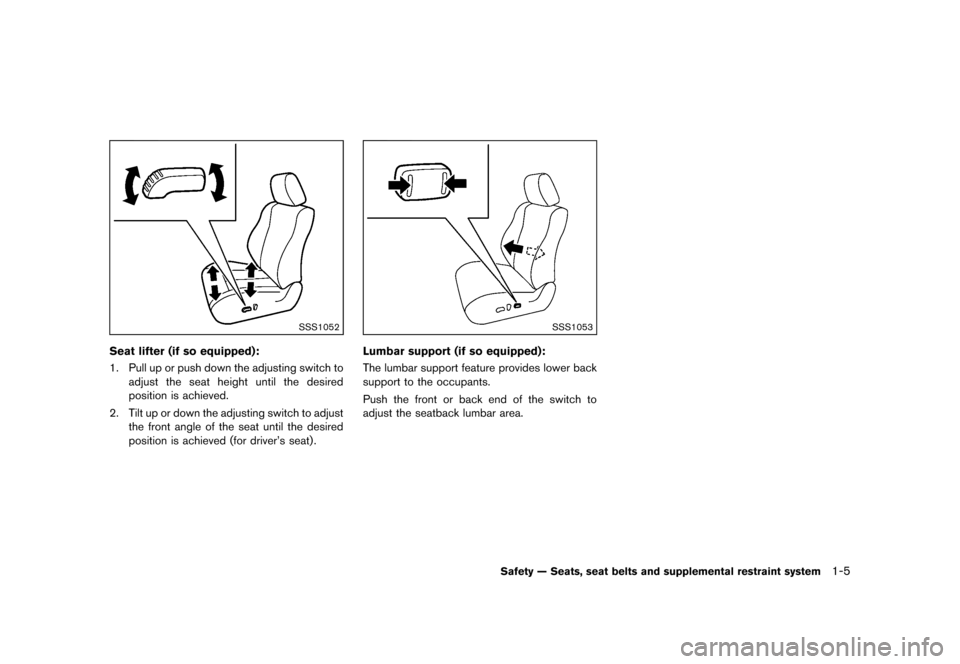

SSS1052
Seat lifter (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Pull up or push down the adjusting switch toadjust the seat height until the desired
position is achieved.
2. Tilt up or down the adjusting switch to adjust the front angle of the seat until the desired
position is achieved (for driver’s seat) .
SSS1053
Lumbar support (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The lumbar support feature provides lower back
support to the occupants.
Push the front or back end of the switch to
adjust the seatback lumbar area.
Safety — Seats, seat belts and supplemental restraint system1-5
Condition:

Black plate (22,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

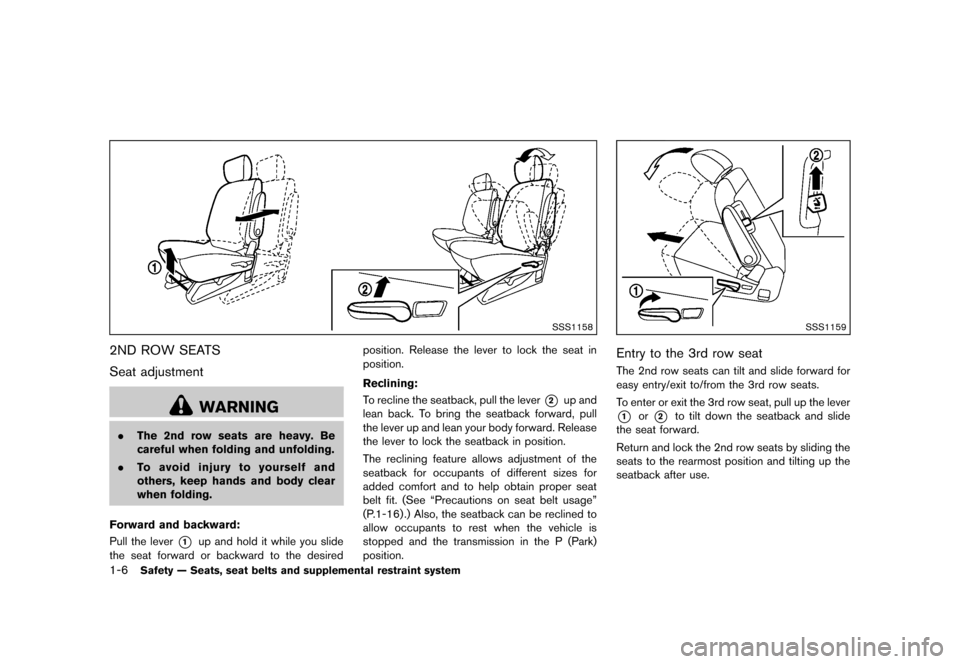

1-6Safety — Seats, seat belts and supplemental restraint system
SSS1158
2ND ROW SEATSGUID-2240C526-61B5-4CAA-B4A1-DFBFD534D67A
Seat adjustmentGUID-192F3E84-B91C-48ED-8CA8-20B30DF09154
WARNING
.The 2nd row seats are heavy. Be
careful when folding and unfolding.
. To avoid injury to yourself and
others, keep hands and body clear
when folding.
Forward and backward:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull the lever*1up and hold it while you slide
the seat forward or backward to the desired position. Release the lever to lock the seat in
position.
Reclining:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To recline the seatback, pull the lever*2up and
lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
(P.1-16) .) Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the transmission in the P (Park)
position.
SSS1159
Entry to the 3rd row seatGUID-259686ED-D6B9-4228-94B1-ABE2875BB4A6The 2nd row seats can tilt and slide forward for
easy entry/exit to/from the 3rd row seats.
To enter or exit the 3rd row seat, pull up the lever
*1or*2to tilt down the seatback and slide
the seat forward.
Return and lock the 2nd row seats by sliding the
seats to the rearmost position and tilting up the
seatback after use.
Condition:

Black plate (23,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
SSS1149
3RD ROW SEATSGUID-8B174BCB-55A9-4070-AE4A-06F3342E7335
RecliningGUID-6FD9F8E0-B172-4C02-918D-29C8C54903D6Pull the strap on the seatback*Aand lean
back. Release the strap at the desired angle.
The reclining feature allows adjustment of the
seatback for occupants of different sizes to help
obtain proper seat belt fit. (See “Precautions on
seat belt usage” (P.1-16) .) The seatback may
also be reclined to allow occupants to rest when
the vehicle is parked.
WARNING
. After adjustment, check to be sure
the seat is securely locked.
. Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat with both feet
on the floor and adjust the seat belt
properly. See “Precautions on seat
belt usage” (P.1-16) .
HEAD RESTRAINTSGUID-D3AB025F-F8D3-4E68-B9EC-18DE1462D6A0
WARNING
Head restraints supplement the other
vehicle safety systems. They may pro-
vide additional protection against injury
in certain rear end collisions. Adjust the
head restraints properly, as specified in
this section. Check the adjustment after
someone else uses the seat. Do not
attach anything to the head restraint
stalks or remove the head restraint. Do
not use the seat if the head restraint
has been removed. If the head restraint
was removed, install and properly ad-
just the head restraint before an occu-
pant uses the seating position. Failure
to follow these instructions can reduce
the effectiveness of the head restraints.
This may increase the risk of serious
injury or death in a collision.
Safety — Seats, seat belts and supplemental restraint system1-7
Condition:

Black plate (24,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

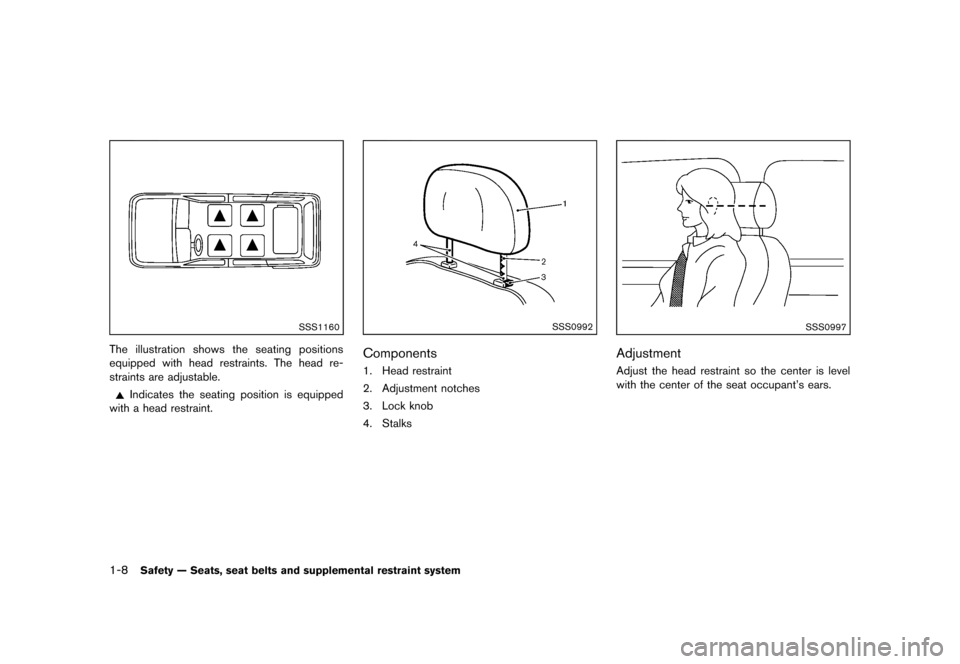

1-8Safety — Seats, seat belts and supplemental restraint system
SSS1160
The illustration shows the seating positions
equipped with head restraints. The head re-
straints are adjustable.
Indicates the seating position is equipped
with a head restraint.
SSS0992
ComponentsGUID-5C119838-4038-49C0-9346-9010437E97BF1. Head restraint
2. Adjustment notches
3. Lock knob
4. Stalks
SSS0997
AdjustmentGUID-27CA7AD9-B2AB-43C3-B7A0-D0C6FC3C25BCAdjust the head restraint so the center is level
with the center of the seat occupant’s ears.
Condition:

Black plate (25,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

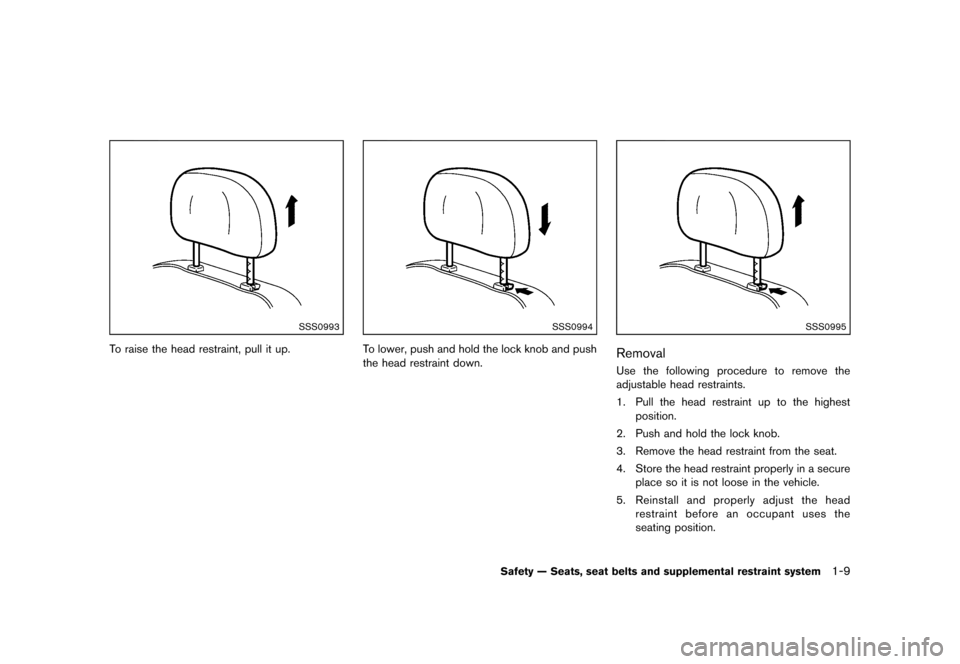

SSS0993
To raise the head restraint, pull it up.
SSS0994
To lower, push and hold the lock knob and push
the head restraint down.
SSS0995
RemovalGUID-CEE94709-EBFB-4E0C-9DBE-D1237155CA80Use the following procedure to remove the
adjustable head restraints.
1. Pull the head restraint up to the highestposition.
2. Push and hold the lock knob.
3. Remove the head restraint from the seat.
4. Store the head restraint properly in a secure place so it is not loose in the vehicle.
5. Reinstall and properly adjust the head
restraint before an occupant uses the
seating position.
Safety — Seats, seat belts and supplemental restraint system1-9
Condition:

Black plate (26,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

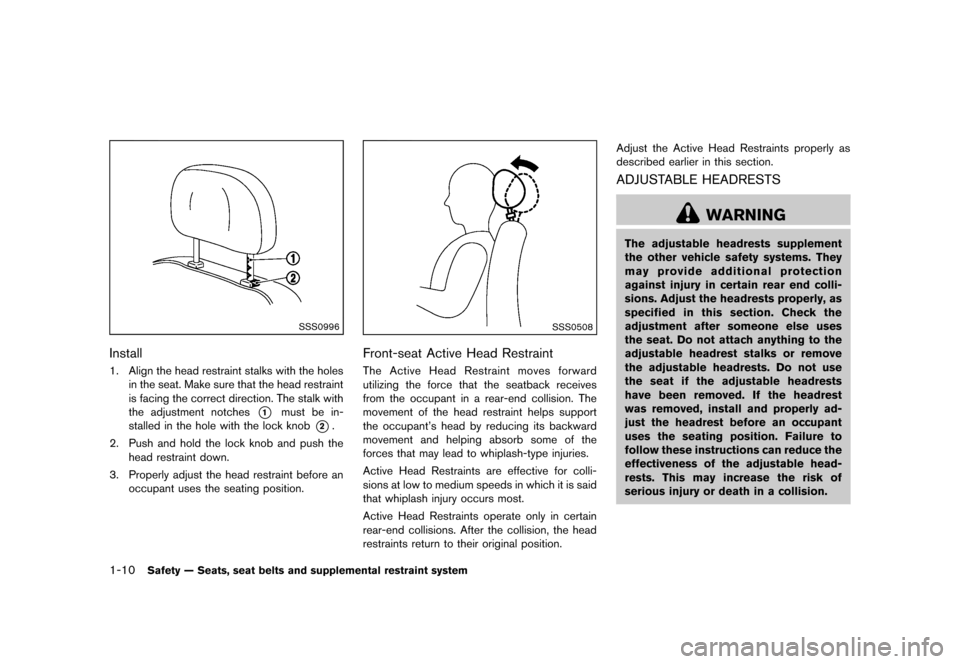

1-10Safety — Seats, seat belts and supplemental restraint system
SSS0996
InstallGUID-5EFE2FCB-BFE5-4BAD-B0D6-E956D9CA4E9C1. Align the head restraint stalks with the holesin the seat. Make sure that the head restraint
is facing the correct direction. The stalk with
the adjustment notches
*1must be in-
stalled in the hole with the lock knob
*2.
2. Push and hold the lock knob and push the head restraint down.
3. Properly adjust the head restraint before an occupant uses the seating position.
SSS0508
Front-seat Active Head RestraintGUID-AEB6FB97-A306-48D9-B169-12C2DFABF9A6The Active Head Restraint moves forward
utilizing the force that the seatback receives
from the occupant in a rear-end collision. The
movement of the head restraint helps support
the occupant’s head by reducing its backward
movement and helping absorb some of the
forces that may lead to whiplash-type injuries.
Active Head Restraints are effective for colli-
sions at low to medium speeds in which it is said
that whiplash injury occurs most.
Active Head Restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original position. Adjust the Active Head Restraints properly as
described earlier in this section.
ADJUSTABLE HEADRESTSGUID-190BD67C-B579-4C85-ADDB-04626518D897
WARNING
The adjustable headrests supplement
the other vehicle safety systems. They
may provide additional protection
against injury in certain rear end colli-
sions. Adjust the headrests properly, as
specified in this section. Check the
adjustment after someone else uses
the seat. Do not attach anything to the
adjustable headrest stalks or remove
the adjustable headrests. Do not use
the seat if the adjustable headrests
have been removed. If the headrest
was removed, install and properly ad-
just the headrest before an occupant
uses the seating position. Failure to
follow these instructions can reduce the
effectiveness of the adjustable head-
rests. This may increase the risk of
serious injury or death in a collision.
Condition:

Black plate (27,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

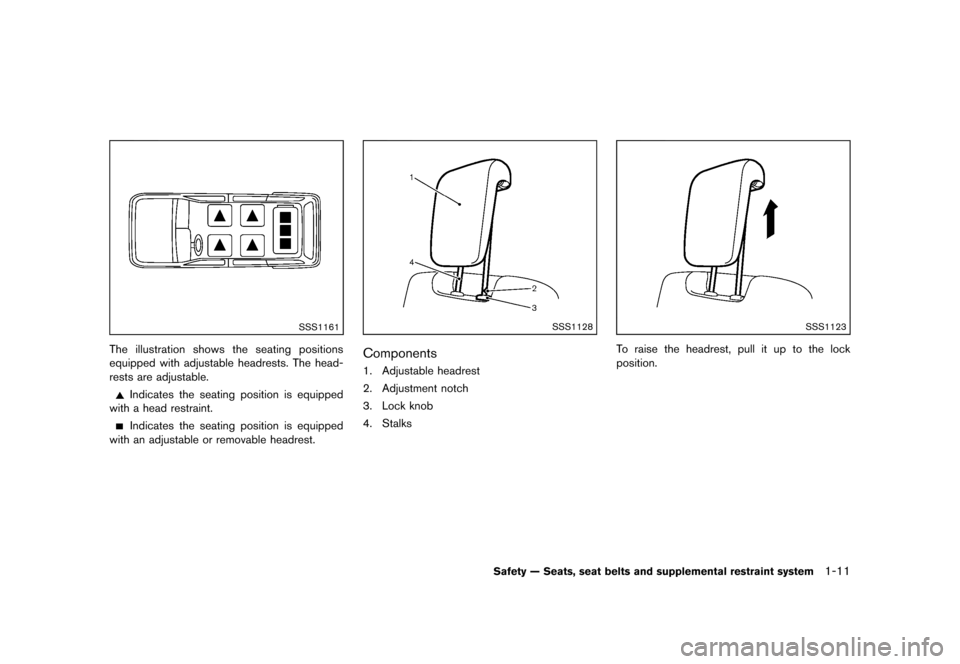

SSS1161
The illustration shows the seating positions
equipped with adjustable headrests. The head-
rests are adjustable.
Indicates the seating position is equipped
with a head restraint.
Indicates the seating position is equipped
with an adjustable or removable headrest.
SSS1128
ComponentsGUID-B4887CB0-1B76-4D51-8A7E-C594B35727B01. Adjustable headrest
2. Adjustment notch
3. Lock knob
4. Stalks
SSS1123
To raise the headrest, pull it up to the lock
position.
Safety — Seats, seat belts and supplemental restraint system1-11
Condition:

Black plate (28,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
1-12Safety — Seats, seat belts and supplemental restraint system
SSS1124
To lower, push and hold the lock knob and push
the headrest down.
SSS1125
RemovalGUID-23A3AB02-D327-4071-89E8-9C2707E69878Use the following procedure to remove the
adjustable headrests.
1. Pull the headrest up to the highest position.
2. Push and hold the lock knob.
3. Remove the headrest from the seat.
4. Store the headrest properly in a secureplace so it is not loose in the vehicle.
5. Reinstall and properly adjust the headrest before an occupant uses the seating posi-
tion.
SSS1126
InstallGUID-AAA46AD7-793A-453B-9BEA-B07FE539292D1. Align the headrest stalks with the holes in
the seat. Make sure that the headrest is
facing the correct direction. The stalk with
the adjustment notch must be installed in the
hole with the lock knob
*1.
2. Push and hold the lock knob and push the headrest down.
3. Properly adjust the headrest before an
occupant uses the seating position.
