2012 SSANGYONG RODIUS Service Manual

02-12
Electrical equipment ▶
Electric devices should be handled more carefully.
Currently, the engine has a lot of electric devices. there could be poor engine performance,
incomplete combustion and other abnormal symptoms due to short circuit or poor contact.
Before work on engine and each electrical equipment, be sure to disconnect battery negative
(-) terminal.
When replacing the electric device, use only genuine part and check the conditions of
connections and grounds. Loosened connection or ground make cause a fire and personal
injury. -
-Fuel and lubrication system ▶
Do not allow the fluid and engine oil to make contact with the body paintwork and hoses.
If work on the fluid system such as fuel and oil, working area should be well ventilated and
smoking should be prohibited.
Gasket or seal on the fuel/lubrication system should be replaced with new ones and bolts and
nuts should be tightened as specified.
After removal/installation works, be sure to check whether there is leak on the connecting
section. -
-
-
-
If fine dust or foreign material enters into DI engine's fuel system, there can be serious damages
in HP pump and injectors. Thus, be sure to plug the inlets of removed fuel line components with
cap and protect removed parts not to be contaminated with dirt. (Refer to cleanness in this
manual while working on DI engine fuel system)

02-130000-00
D20DTR Engine
1. BELT LAYOUT
It is single drive type and uses FEAD (Front End Accessories Drive) design to make a compact
layout.
Components ▶
HPS
(Hydraulic Power Steering)
1 Crankshaft pulley (DDU)
2 Auto tensioner
3 Tensioner pulley
4 Vacuum pump
5 A/C compressor pulley
6 Alternator pulley
7 Water pump pulley
8 Idle pulley #1
9 Idle pulley #2
10 Power steering pump pulley

02-14
The strut type tensioner automatically adjusts the belt tension to provide the reliability and
durability for the system. And, the belt tension is decreased to minimize the friction loss and
improve the belt operating noise.
1) Crankshaft Pulley (Isolation Damper)
(1) Overview
(2) Sectional drawing
Axial & radial bearing
Sleeve
Hub
Isolation pulley rubber Pulley
Damper rubber
Inertia ring

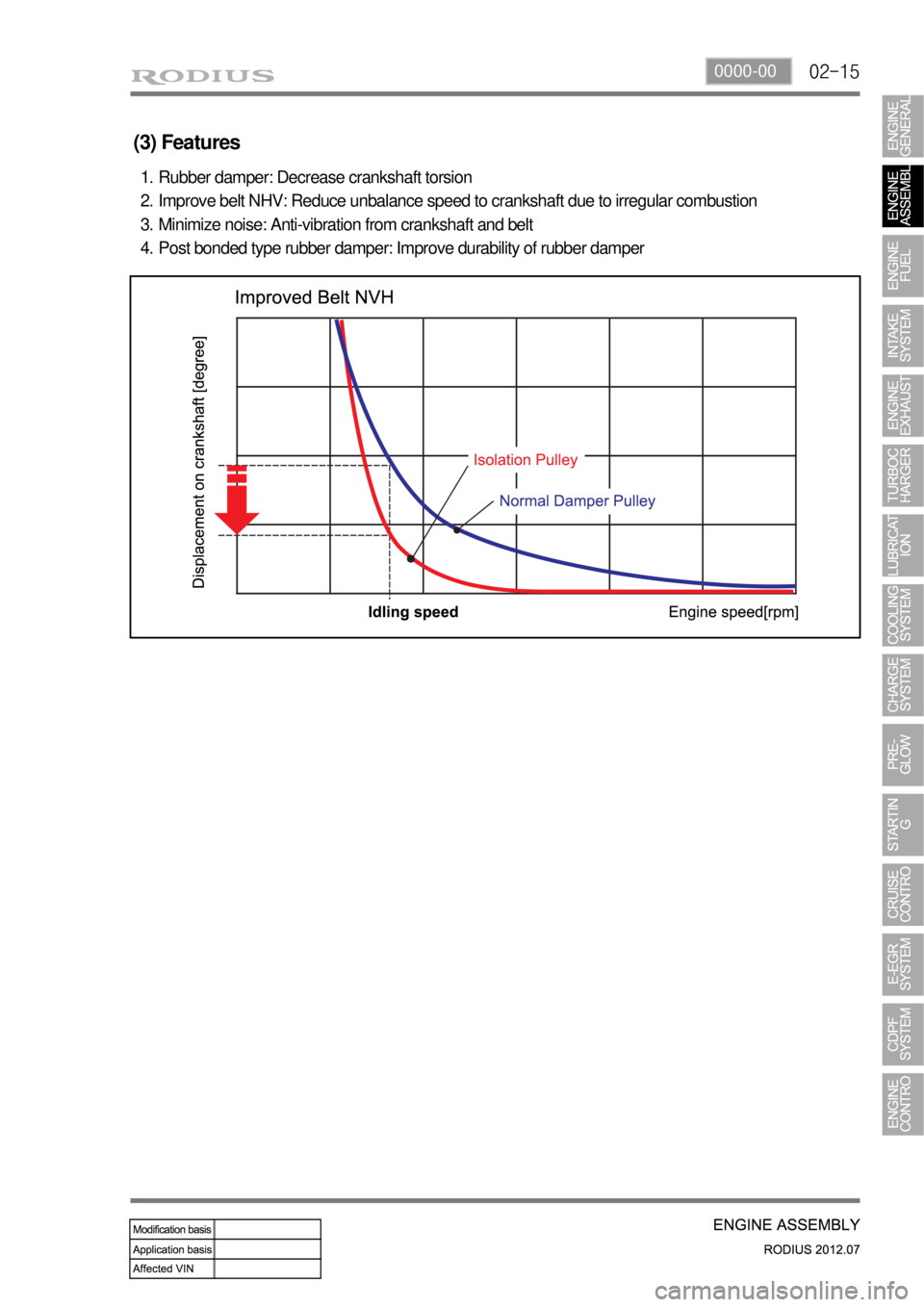

02-150000-00
(3) Features
Rubber damper: Decrease crankshaft torsion
Improve belt NHV: Reduce unbalance speed to crankshaft due to irregular combustion
Minimize noise: Anti-vibration from crankshaft and belt
Post bonded type rubber damper: Improve durability of rubber damper 1.
2.
3.
4.

02-16
2) Belt Tensioner
(1) Overview
The torque deviation from crankshaft affects the components in belt drive system and the belt
movement. The auto tensioner system is to adjust this deviation automatically.
In D20DTR engine, one of the mechanical tensioner, pivot damped tensioner is used to keep the
damping force, system reliability and durability. The single belt drive system needs to use the
automatic belt tensioning device to transfer the power to pulleys effectively. To get this, the
tensioner uses the spring and damping unit.
(2) Location
Belt tensioner

02-170000-00
Vacuum pump
Pump capacity: 210 cc/rev
Camshaft speed:
375 to 3,000 rpm
Lubrication temperature:
-40 to 155°C
Oil: 5W30
Drive type: Driven by exhaust
Camshaft sprocket
EGR cooler bypass valve
This valve is controlled by ECU. When the
engine is cooled, the exhaust gas goes to
combustion chamber without passing through
EGR cooler because the valve is closed by
vacuum pressure.
2. VACUUM PUMP
Vacuum pump generates the vacuum pressure and supplies it to EGR cooler bypass solenoid.
This pump is single vane type and displacement is 210 cc/rev. The lubrication oil is supplied
through the hole in hollow shaft.
Components ▶
Brake booster and naster
cylinder

02-18
1) Location
2) Operation
The vacuum pump is engaged to the exhaust camshaft.
Connection between vacuum pump
and exhaust camshaft
Oil supply and driving
Vacuum pumpExhaust camshaft

02-190000-00
Rear mounting insulator
2WD M/T 2WD A/T 4WD A/T
P/N: 31900-21M20 P/N: 31900-21A20 P/N: 31900-21A40
3. ENGINE MOUNTING
D20DTR engine uses 3-point mounting type that supports the engine and transmission
simultaneously.
Components ▶
Front mounting insulator (Left side)
Location InsulatorFront mounting insulator (Right side)
Location Insulator
