2012 SSANGYONG RODIUS Service Manual

04-34120-01
1. SPECIFICATIONS
Front Axle ▶
Rear Axle ▶
Description Specification
Drive shaft type CV joint
Axle housing type Build up
DifferentialType Conventional type
Gear type Hypoid Gear
Final gear reduction ratioEngine + M/T 3.54
Engine + A/T 4.55
OilCapacity 1.2L
Specification SAE 80W / 90
Description Specification
Axle shaft type Semi-floating
Axle housing type Build up
DifferentialType Conventional type
Gear type Hypoid Gear
Final gear reduction ratioEngine + M/T 3.54
Engine + A/T 4.55
OilCapacity 1.7L
Specification SAE 80W / 90

05-33240-01
Weight 32.4 kg (including oil)
Oil capacity 1.4L
Oil type ATF DEXRON II or III
Location Transfer case
Major element Housing Part-time
Bolt 11EA, M8 x 1.25
Input shaft A/T: outer spline
Description Specifications
Total length 343mm
1. SPECIFICATIONS

05-4
Component Changes according to New Transfer Case
- Some components in front axle have been changed according to new transfer case.
2. MAJOR CHANGES
Adopted New Part-Time Transfer Case
Side View Rear View
- New Part-Time transfer case has been introduced in 2012 Model.
Hub assembly
Knuckle
Front axle shaft
Hub actuator

05-53240-01
Side View Rear View
1. OVERVIEW
By using the planetary gear sets, two-gears shift type part time transfer case achieves direct
connection when selecting 4WD "HIGH" and 2.48 of reduction gear ratio when selecting 4WD
"LOW". The silent chain in transfer case transfers the output power to front wheels.
The simple operation of switches on instrument panel allows to shift between "2H" and "4H" easily
while driving (for 4L: stop vehicle first). The warning lamp warns the driver when the system is
defective.

05-6
Operation ▶
Description Mode Conditions
Driving mode 2H 2 Wheel drive
(rear wheel)Rear-wheel drive mode. This is used under
normal or high-speed driving conditions on public
roads or highways.
4H 4 Wheel drive
(high speed)This is used under sandy, muddy or snow-
covered road conditions
4L 4 Wheel drive
(low speed)This is used for maximum traction.
When cornering with low speed in 4WD condition,
there could be tire dragging, some
mechanical shocks and resistances in vehicle’s
drive train. These are normal conditions due to
internal resistance in the drive train when the
4WD system is properly working
Mode change2H ↔
4H 2 Wheel drive
↔4 Wheel driveShifting is possible while driving at the speed of
70 km/h or less
2H, 4H
↔ 4L 2 Wheel drive,
4 Wheel drive
(high speed)
↔4 Wheel drive
(low speed)
To make the mode change easily, stop the
vehicle on level ground and turn the mode
switch to the desired position and move the
shift lever to "N"-"R"-"N" while depressing
the brake pedal. For Automatic Transmission:
Stop the vehicle on level ground and move
the gear selector lever into the “N” position.
Turn the switch to the desired position. -
For Manual Transmission:
Stop the vehicle on level ground and move
the gear selector lever into the “N” position.
Then turn the switch to the desired position
while depressing the clutch pedal. -

05-73240-01

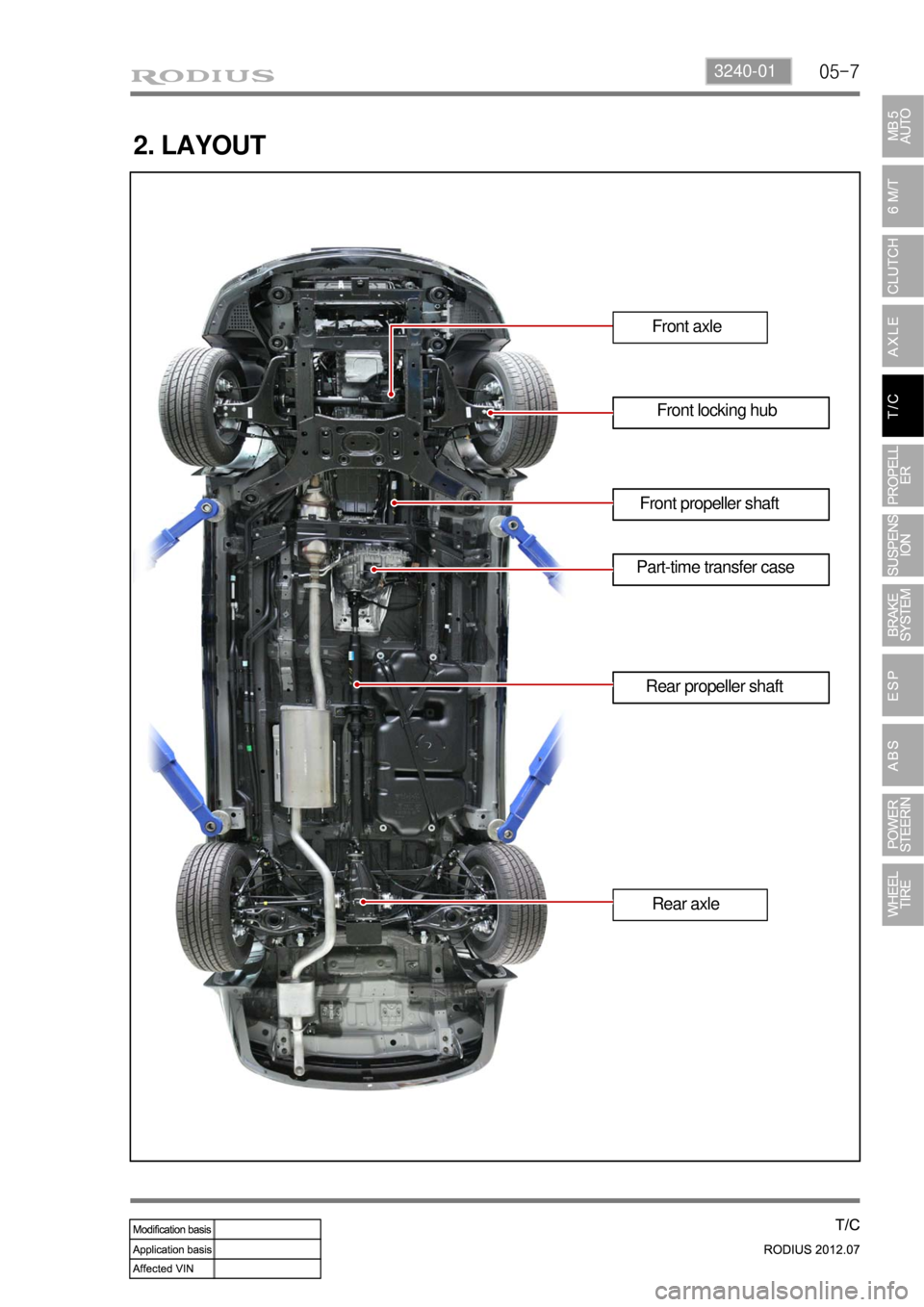

2. LAYOUT
Front axle
Front locking hub
Front propeller shaft
Part-time transfer case
Rear propeller shaft
Rear axle

05-8
3. SYSTEM LAYOUT

05-93240-01
4. IWE LOCKING HUB SYSTEM
1) Overview
The vacuum locking hub uses the IWE (Integrated Wheel End) system, and in this system, the
vacuum is generated only within the hub actuator.
It is structured to transmit power to the front section after the actuator hub is engaged following
the release of vacuum from the drive shaft end gear and the hub end gear
Booster
Operating Process
Vacuum pump
Vacuum generation process in front hub actuator ▶
