2012 SSANGYONG RODIUS Service Manual

03-197410-01
When seating
When jumping
(3) Operation of center seat
Pull up the center seat when to jump
Push down the center seat when to seat -
-

03-20
(4) OPERATION OF REAR SEAT
Rear 1st seat (swivel seat) ▶
Jumping mechanism
Seat back folding cableSeat back flat cable
Sliding cable
Swivel leverSliding lever

03-217410-01
(5) Operation of rear seat (Rear 1st and 2nd seat)
Seat sliding ▶
Front
Rear

03-22
Rear 1st/2nd seat
Rear 2nd
Rear 1st
(6) Seat back flat
- When to recline or to flat fully.
(7) Seat back folding
- Fold the rear 1st or 2nd raw seat back to put something on or to utilize it as a table.

03-237410-01
(8) Seat swing (Rear 1st seat)
- Turn around seat as the swing lever is pulled.
- As the seat is folded, disconnect hook and spread out the board
(9) Rear 3rd seat
Pull the lever behind back seat to fold the back seat. -

04-37340-01

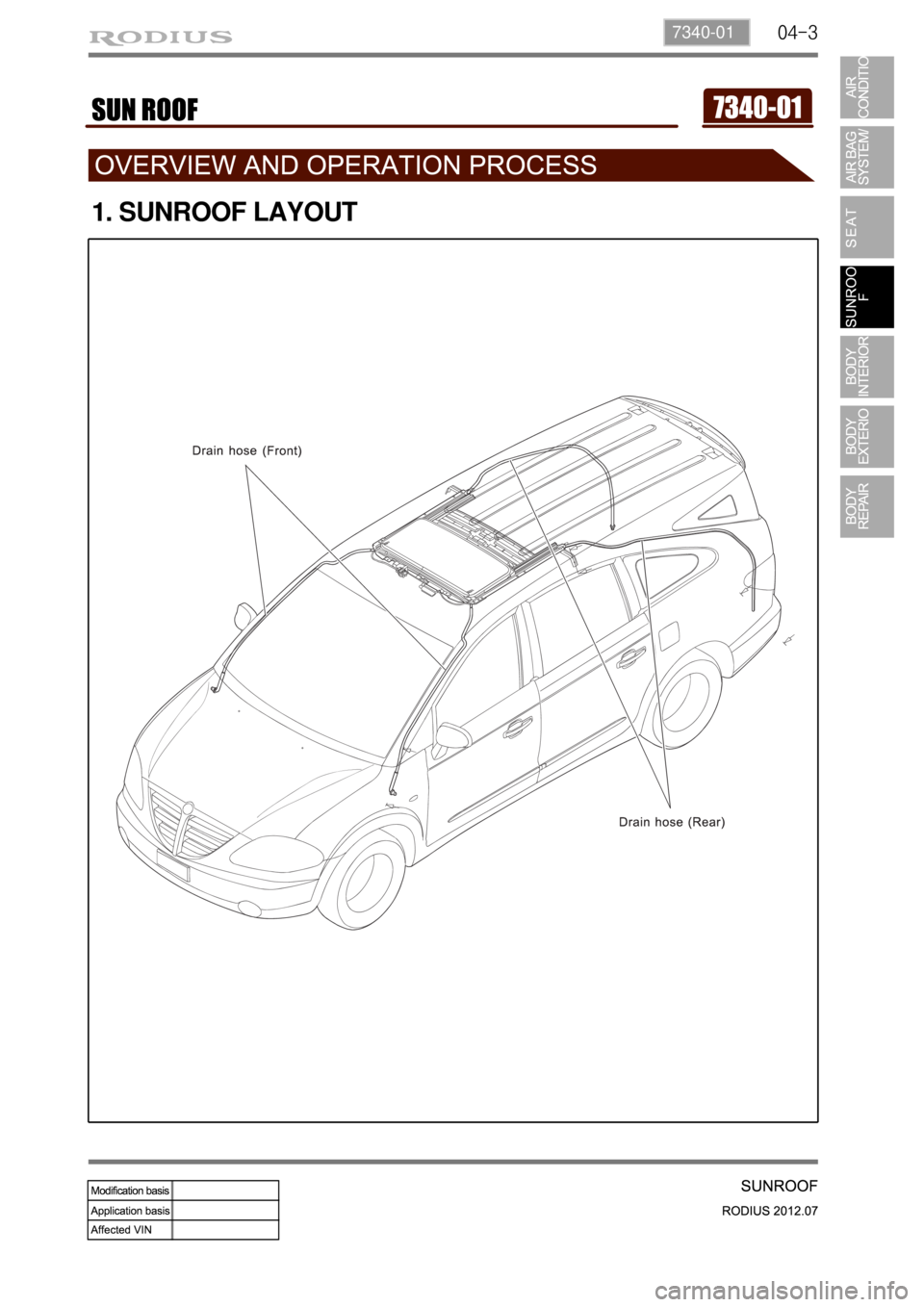

1. SUNROOF LAYOUT

04-4
2. COMPONENTS OF SUNROOF

04-57340-01
Drain hose Control switch Sun shade & glass
Control unit Sun roof motor
3. COMPONENTS AND LOCATIONS
