03-192210-01
2) Cleanness
(1) Cleanness of DI engine fuel system
Cleanness of DI engine fuel system and service procedures ▶
The fuel system for DI engine consists of transfer (low pressure) line and high pressure line.
Its highest pressure reaches over 1,800 bar.
<007a00960094008c0047008a00960094009700960095008c0095009b009a0047009000950047009000950091008c008a009b00960099004700880095008b0047006f007700470097009c00940097004700880099008c004700940088008a008f0090009500
8c008b00470088009b0047009b008f008c004700940090008a>rometer 100 μm of
preciseness.
The pressure regulation and injector operation are done by electric source from engine ECU.
Accordingly, if the internal valve is stuck due to foreign materials, injector remains open.
Even in this case, the HP pump still operates to supply high pressurized fuel. This increases the
pressure to combustion chamber (over 250 bar) and may cause fatal damage to engine.
You can compare the thickness of injector nozzle hole and hair as shown in below figure (left
side). The below figure shows the clearance between internal operating elements.
The core elements of fuel system has very high preciseness that is easily affected by dust or very
small foreign material. Therefore, make sure to keep the preliminary works and job procedures in
next pages. If not, lots of system problems and claims may arise.
Hair
Nozzle holeValve actuator lift - 0.028 mm
Diameter
0.04 mm
Operating
clearance
0.002 mm
Diameter
2.0 mm

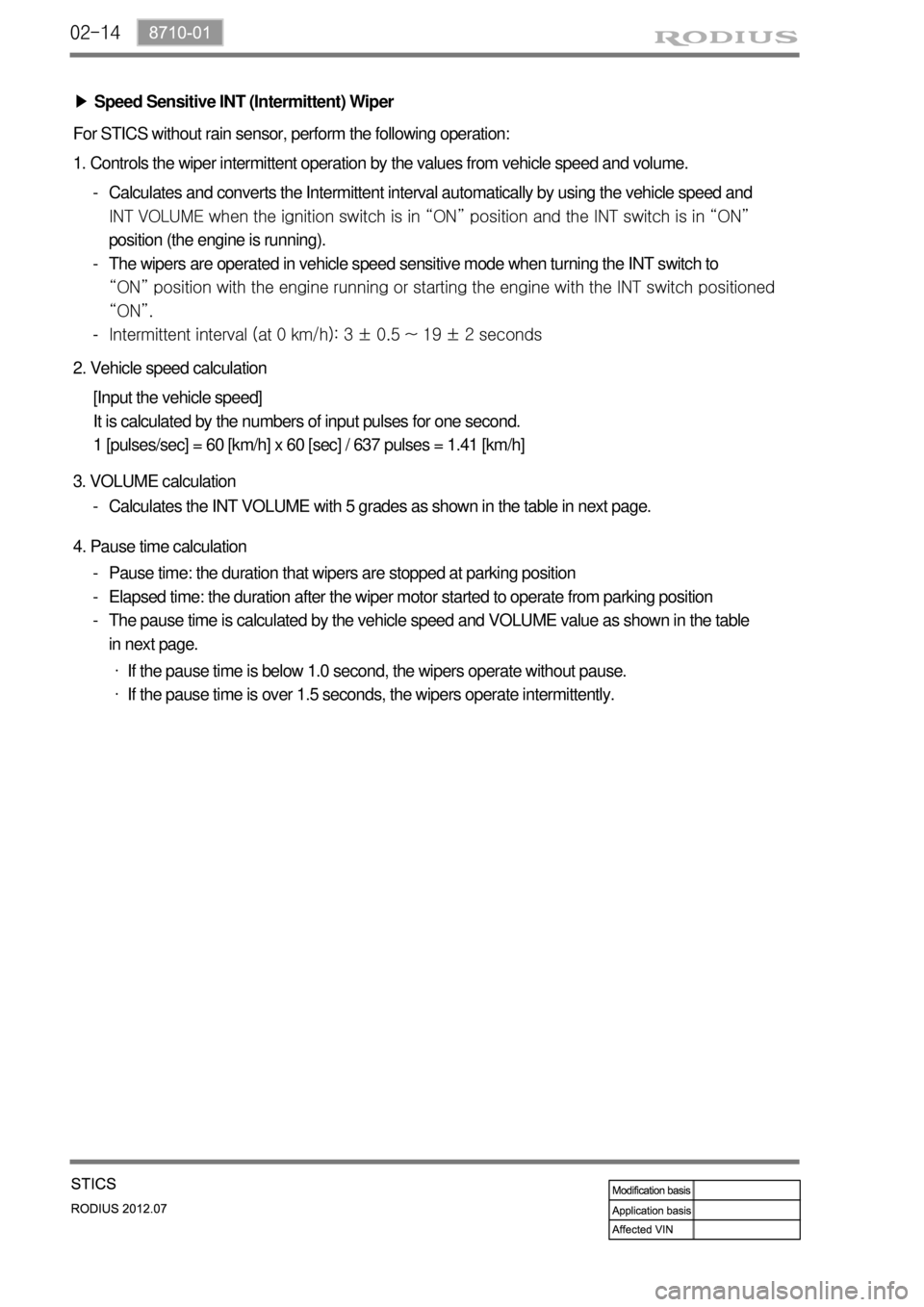

02-14
▶ Speed Sensitive INT (Intermittent) Wiper
For STICS without rain sensor, perform the following operation:
1. Controls the wiper intermittent operation by the values from vehicle speed and volume.
Calculates and converts the Intermittent interval automatically by using the vehicle speed and
<00700075007b0047007d00760073007c0074006c0047009e008f008c00950047009b008f008c00470090008e00950090009b0090009600950047009a009e0090009b008a008f00470090009a004700900095004702c80076007502c9004700970096009a00
90009b009000960095004700880095008b0047009b008f008c> INT switch is in “ON”
position (the engine is running).
The wipers are operated in vehicle speed sensitive mode when turning the INT switch to
<02c80076007502c9004700970096009a0090009b0090009600950047009e0090009b008f0047009b008f008c0047008c0095008e00900095008c00470099009c0095009500900095008e0047009600990047009a009b00880099009b00900095008e004700
9b008f008c0047008c0095008e00900095008c0047009e0090>th the INT switch positioned
“ON”.
<00700095009b008c009900940090009b009b008c0095009b004700900095009b008c0099009d008800930047004f0088009b004700570047009200940056008f005000610047005a004700b7004700570055005c004700a5004700580060004700b7004700
590047009a008c008a00960095008b009a> -
-
-
2. Vehicle speed calculation
[Input the vehicle speed]
It is calculated by the numbers of input pulses for one second.
1 [pulses/sec] = 60 [km/h] x 60 [sec] / 637 pulses = 1.41 [km/h]
3. VOLUME calculation
Calculates the INT VOLUME with 5 grades as shown in the table in next page. -
4. Pause time calculation
Pause time: the duration that wipers are stopped at parking position
Elapsed time: the duration after the wiper motor started to operate from parking position
The pause time is calculated by the vehicle speed and VOLUME value as shown in the table
in next page. -
-
-
If the pause time is below 1.0 second, the wipers operate without pause.
If the pause time is over 1.5 seconds, the wipers operate intermittently. ·
·
