▶Auto Door Unlock (Crash Unlock: Automatic Door Unlock in Collision)
The air bag collision signal input cannot be accepted within 7 seconds after turning the
ignition key to "ON" position.
After this period, the door lock system outputs "UNLOCK" for all doors for 5 seconds from
40 ms after receiving the air bag collision signal.
Even though the key is turned to "OFF" position during the output of "UNLOCK", the output
continues on for remaining period.
The function is erased when turning "OFF" the ignition switch. 1.
2.
3.
4.
Cautions for door lock/unlock control
The "Unlock" control by air bag signal prevails over any "LOCK" or "UNLOCK" control by
other functions.
The "LOCK/UNLOCK" request by other functions will be ignored after/during the output of
"UNLOCK" by the air bag.
However, the door lock is controlled by other functions when the ignition switch is "OFF".
"LOCK" (or "UNLOCK") output is ignored if "LOCK" (or "UNLOCK") output is required while
performing the output of "LOCK" (or "UNLOCK").
(However, UNLOCK by air bag signal and operation by the remote control key are valid.)
If the door lock system outputs "LOCK" and "UNLOCK" simultaneously, only the "LOCK"
output can be activated. 1.
2.
3.
4.

02-44
▶Time Lag Power Window Control
The power window relay output is "ON" when turning on the ignition switch.
The power window relay output is "ON" for 30 seconds when turning off the ignition
switch.
The power window relay output is "OFF" when opening the driver's door or the
passenger's door.
The power window relay is turned "OFF" when receiving the remote control key lock signal
(armed mode) during its extended operation period of 30 seconds. 1.
2.
3.

02-458710-01

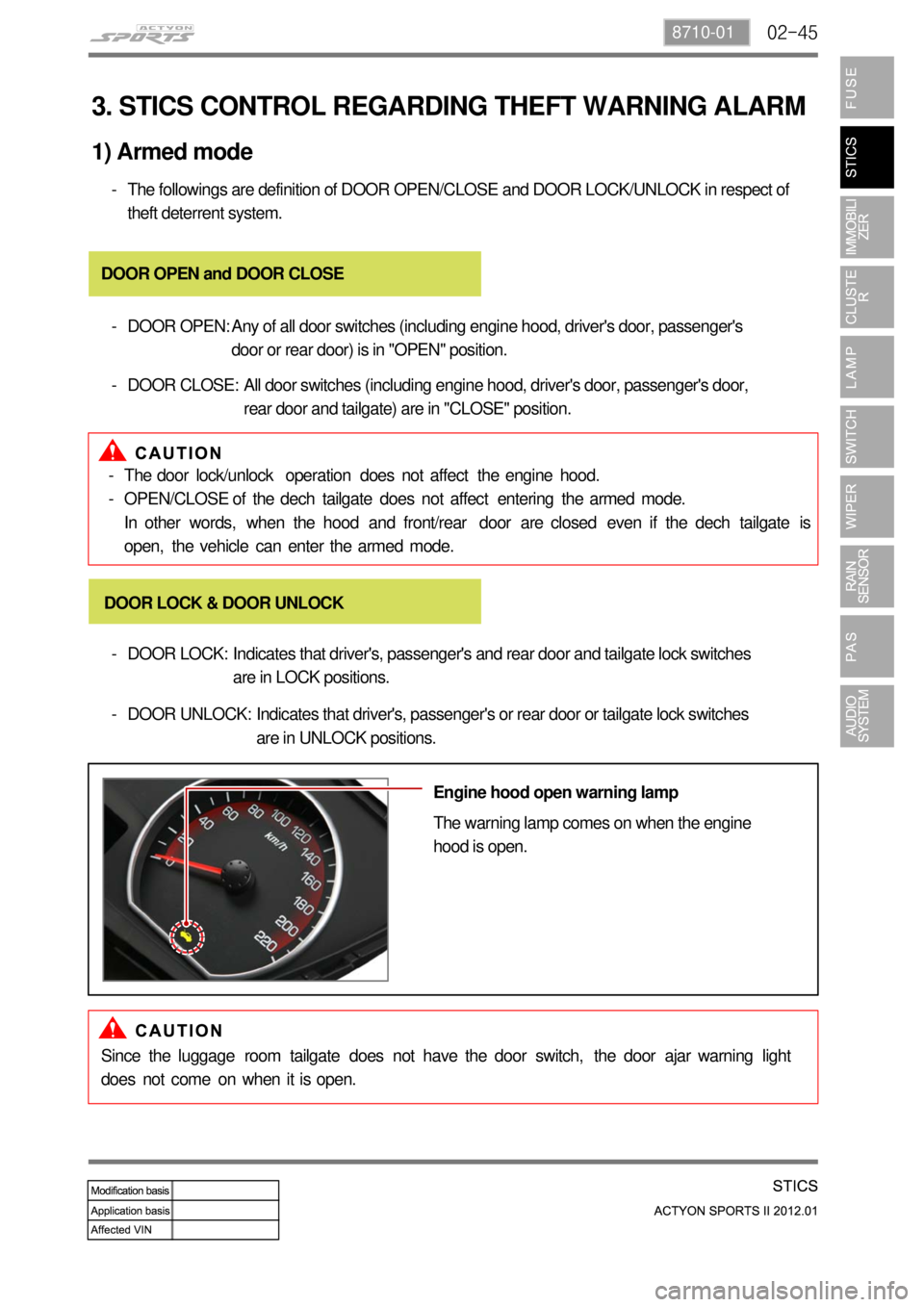

3. STICS CONTROL REGARDING THEFT WARNING ALARM
1) Armed mode
The followings are definition of DOOR OPEN/CLOSE and DOOR LOCK/UNLOCK in respect of
theft deterrent system. -
DOOR OPEN and DOOR CLOSE
DOOR OPEN: - Any of all door switches (including engine hood, driver's door, passenger's
door or rear door) is in "OPEN" position.
DOOR CLOSE: - All door switches (including engine hood, driver's door, passenger's door,
rear door and tailgate) are in "CLOSE" position.
The door lock/unlock operation does not affect the engine hood.
OPEN/CLOSE of the dech tailgate does not affect entering the armed mode.
In other words, when the hood and front/rear door are closed even if the dech tailgate is
open, the vehicle can enter the armed mode. -
-
DOOR LOCK & DOOR UNLOCK
DOOR LOCK: -
Indicates that driver's, passenger's and rear door and tailgate lock switches
are in LOCK positions.
DOOR UNLOCK: -
Indicates that driver's, passenger's or rear door or tailgate lock switches
are in UNLOCK positions.
Engine hood open warning lamp
The warning lamp comes on when the engine
hood is open.
Since the luggage room tailgate does not have the door switch, the door ajar warning light
does not come on when it is open.

02-46
2) Description of Theft Deterrent Function
(1) Armed mode activation requirements
The "LOCK" output is "ON" when the "LOCK" signal is received from transmitter while the
ignition key is removed and all doors are closed.
The armed mode is activated when the door lock switch is locked (hazard warning flasher
blink twice).
The armed mode is still activated and the hazard warning flasher blink twice when the
"LOCK" signal is received from the remote control key again in armed mode.
When the "LOCK" signal is received from the remote control key while any of doors is not
closed, only the "LOCK" output can be done and then activates the armed ready mode
(without theft deterrent horn and hazard warning flasher). At this moment, if the ignition key is
inserted or the door lock switch is unlocked, it cancels the armed mode and activates the
normal mode.
When the door is opened or the ignition key is not inserted into ignition switch within 30
seconds after receiving "UNLOCK" signal from the remote control key, it outputs "LOCK" and
then activates armed mode (RELOCK operation). Also, at this moment, the system blinks
hazard warning flasher twice.
The armed mode will not be activated except above conditions.
Ex) The armed mode will not be activated when the door is locked by the ignition key. a.
b.
c.
d.
e.

02-478710-01
(2) Armed mode cancellation requirements
(3) Warning operation requirements
(4) Warning operation
(5) Warning cancellation requirements
(6) Operation when warning is cancelled
Receiving UNLOCK signal from the remote control key or starting the engine. a.
When opening the door in armed mode
When unlocking the door lock switch in armed mode by other than the remote control key
When closing and then opening the door after completion of warning (27 seconds) a.
b.
c.
The theft deterrent horn and hazard warning flasher output is "ON" for 27 seconds at the interval
of 1 second. a.
Cancels warning by using any signal from the remote control key (LOCK, UNLOCK, PANIC,
ESCORT) during warning operation.
Cancels warning after 27 seconds (remaining time) while the ignition key is turned to "ON"
position.
If the ignition switch is turned to ON position when the warning is activated in armed mode,
the warning is cancelled immediately and the warning buzzer stops after 27 seconds
(remaining time). a.
b.
c.
The theft deterrent horn and hazard warning flasher outputs are "OFF". a.

02-48
(7) Operation when warning is cancelled
The theft deterrent horn and hazard warning flasher is activated when fitting the battery in armed mode.
(The same operation as when alarm condition is met in armed mode is performed.)
PANIC Warning ▶
The PANIC warning output is "ON" for 27 seconds using the horn and hazard warning
flasher, when receiving the PANIC signal from the remote control key.
The PANIC warning output is "OFF" when pressing any button on the remote control key
during PANIC warning.
The followings are about the theft deterrent warnings. 1.
2.
3.
The theft deterrent warning is deactivated when receiving PANIC signal from the
remote control key during theft deterrent warning.
The theft deterrent warning output is "ON" when the theft deterrent conditions are
established during PANIC warning (PANIC output is "OFF").
The PANIC warning output is "ON" when receiving the PANIC signal from the remote
control key in Armed Ready / Armed / Warning Completion / Relock Ready mode
(maintaining the theft deterrent mode). a.
b.
c.
This function operates only in armed mode. 4.
RemovedNormal Armed Warning Remark
Normal O
RELOCK operation:
When the door is not
opened or the ignition key
is not inserted into ignition
switch for 30 seconds after
receiving "UNLOCK" signal,
outputs "LOCK" and then
activates armed mode Armed Ready O
Armed O
Warning O
Warning Completion O O O
RELOCK Ready O
Installed

02-498710-01
Automatic Hazard Warning Lamp Switch (SHP: Safety Hazard Protection) ▶
When the automatic hazard warning lamp switch is pressed for approx. 0.1 to 0.59
seconds, the hazard warning lamp blinks 3 times at an interval of 0.35 seconds.
When the automatic hazard warning lamp switch is pressed for approx. 0.6 seconds or
longer, the hazard warning lamp blinks 10 times at an interval of 0.35 seconds.
This function is only available when the ignition key is in the "ON" position.
If the ignition key is turned to the "OFF" position during this function is activated, this
function is immediately deactivated.
If the system receives signals for the turn signal lamp operation during this function is
activated, this function is immediately deactivated.
While the turn signal lamp signals are already inputted, pressing the automatic hazard
warning lamp switch does not activate the automatic hazard warning lamp function. 1.
2.
3.
4.
5.
6.
Automatic hazard warning lamp switch ▶
Press briefly (0.1 ~ 0.59 seconds): The hazard
warning lamp blinks three times.
Press and hold (more than 0.6 seconds): The
hazard warning lamp blinks ten times. ·
·

02-50
▶Specifications of Remote Control Key
When any of switches on remote control key is pressed, the integrated CPU in remote control key
sends the coded control message to the CPU in receiver to control the vehicle. (same as the key
of ACTYON SPORTS)
Door Unlock and Panic Function
Breifly press (below 0.5 sec): Door unlock and theft deterrent
mode is deactivated
Press and hold (over 2 sec): Panic function
Door unlock (Briefly press) 1.
If you send the door unlock signal using the remote control key, with all the doors locked,
the door will be opened and the theft deterrent mode will be deactivated. If the door
coupled switch of front room lamp is pressed, the lamp will come on for 30 seconds. It
will turn off immediately after the lock button of the remote control is pressed. ·
Panic function: activated in the theft deterrent mode 2.
If you press and hold the door unlock and panic buttons, the buzzer will sound for 27
seconds and the hazard warning flasher blinks.
The function is inactivated if any button of remote control is pressed.
* For the previous model, only the theft deterrent horn has been activated. ·
·
LED flasher
Briefly press: blink once
Press and hold: blink twice
Door Lock and Escort Function
Breifly press (below 0.5 sec): Door lock and theft deterrent mode is activated
Press and hold (over 0.5 sec): Escort function
Door unlock (Briefly press) 1.
Pressing this button locks all doors and activates the theft deterrent mode. ·
Escort function 2.
If you press the button for more than 0.5 seconds in theft deterrent mode, the headlamp
comes on for about 20 seconds.
This function is deactivated if you press the door lock button of the remote control key. ·
·
