2011 MITSUBISHI PAJERO IV Owners Manual

USB input terminal*
E00761900015
You can connect
your USB memory device or
iPod* to play music files stored in the USB memo-
ry device or iPod.
The following explains how to connect and remove
a USB memory device or iPod.
Refer to the following sections for details on how
to play music files:
Refer to “To play tracks from USB device” on
page 5-43.

*: “iPod” is a registered trademark of Apple Inc. in
the United States and other countries.
How to connect a USB memory device E00762000273
1. Park your vehicle in a safe place and turn the
ignition switch to the “LOCK” position.
2. Open

the USB input terminal cover (A) in
the glove box. 3. Connect the connector cable (C) to the USB
memory device (B). 4. Connect the connector cable (C) to the USB
input terminal (D). CAUTION
l
Keep the lid
of the glove box closed while
driving the vehicle. A lid or the contents
of the glove box could otherwise cause in-
juries.
NOTE l Do
not connect

the USB memory device to
the USB input terminal directly.
The USB memory device may be damaged.
l When closing the glove box, be careful not
to trap the connector cable.
5. To remove the connector cable, turn the igni- tion switch to the “LOCK” position first and
perform the installation steps in reverse.
How to connect an iPod E00762100014
1. Park your vehicle in a safe place and turn the
ignition switch to the “LOCK” position.
2. Open

the USB input terminal cover (A) in
the glove box. For pleasant driving
5-82
5

OBKE12E1

3. Connect the Dock connector (C) to the iPod
(B). NOTE
l Use
a genuine
Dock connector from Apple
Inc.
4. Connect the Dock connector (C) to the USB input terminal (D). CAUTION
l
Keep the lid
of the glove box closed while
driving the vehicle. A lid or the contents
of the glove box could otherwise cause in-
juries.
NOTE l When
closing the

glove box, be careful not
to trap the connector cable.
5. To remove the Dock connector, turn the igni- tion switch to the “LOCK” position first and
perform the installation steps in reverse.
Types of connectable devices and sup-
ported file specifications E00762200015
Device types E00762300162
Devices of the following types can be connected. Model name Condition
USB memory device Storage capacity of 256
Mbytes or more
iPod touch *
F/W Ver.1.1.1 or later
iPod classic *
F/W Ver.1.0 or later
iPod (fifth generation) *
F/W Ver.1.2.2 or later
iPod nano (fifth genera-
tion) *
F/W Ver.1.2 or later
iPod nano (second gen-
eration) *
F/W Ver.1.1.2 or later
Models other than USB
memory devices
and
iPods Digital

audio player sup-
porting mass storage
class
* : “iPod touch,”

“iPod classic,” “iPod” and “iPod
nano” are registered trademarks of Apple Inc. in
the United States and other countries. NOTE
l Depending
on the

type of the USB memory
device or other device connected, the connec-
ted device may not function properly or the
available functions may be limited.
l Use the iPod whose firmware has been upda-
ted to the latest version.
l You can charge your iPod by connecting it to
the USB input terminal when the ignition
switch is in the “ACC” or “ON” position.
l Do not keep your USB memory device or
iPod in your vehicle.
l It is recommended that you back up files in
case of data damage. For pleasant driving
5-83 5

OBKE12E1

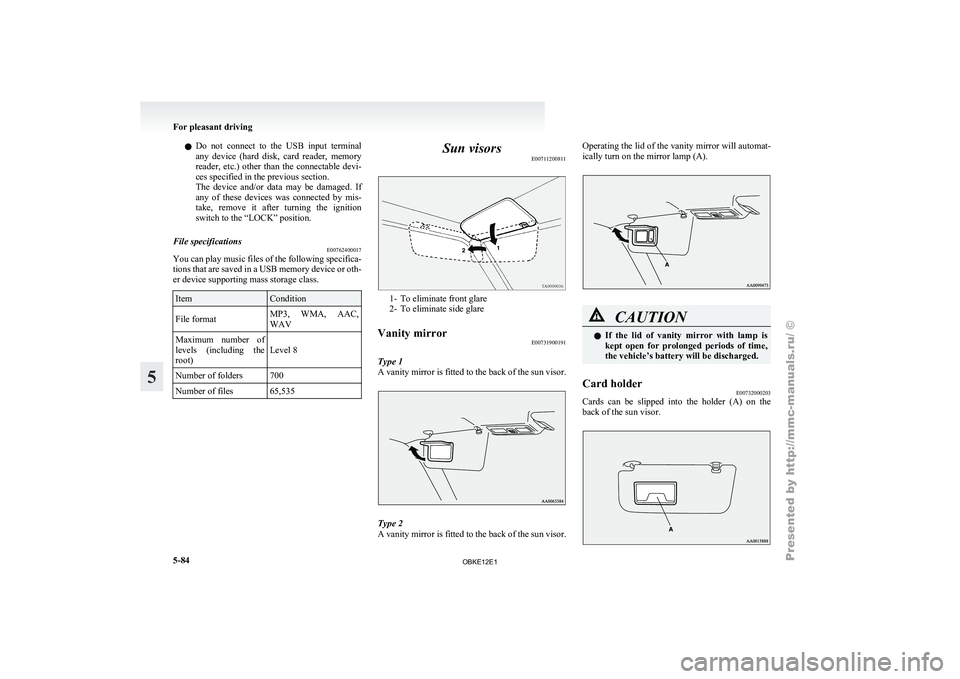

l
Do not
connect to the USB input terminal
any device (hard disk, card reader, memory
reader, etc.) other than the connectable devi-
ces specified in the previous section.
The device and/or data may be damaged. If
any of these devices was connected by mis-
take, remove it after turning the ignition
switch to the “LOCK” position.
File specifications E00762400017
You can play music files of the following specifica-
tions that are

saved in a USB memory device or oth-
er device supporting mass storage class. Item Condition
File format MP3, WMA, AAC,
WAV
Maximum number of
levels (including the
root) Level 8
Number of folders

700
Number of files 65,535 Sun visors
E00711200811 1- To eliminate front glare
2- To eliminate side glare
Vanity mirror E00731900191
Type 1
A vanity mirror

is fitted to the back of the sun visor. Type 2
A vanity
mirror

is fitted to the back of the sun visor. Operating the lid of the vanity mirror will automat-
ically turn on the mirror lamp (A).
CAUTION
l
If the lid
of vanity mirror with lamp is
kept open for prolonged periods of time,
the vehicle’s battery will be discharged.
Card holder E00732000203
Cards can be slipped into the holder (A) on the
back of the sun visor. For pleasant driving
5-84
5

OBKE12E1

Slide plate*
E00732100086
To block out
the glare of the sunlight from behind
the inside rear-view mirror, swing down the sun vi-
sor, and then pull out the slide plate (B). To block out a broader range of glare from your
side, swing
the

sun visor sideways and pull out the
slide plate (B). Ashtray*
E00711400640 CAUTION
l
Put out
matches
and cigarettes before
they are placed in the ashtray.
l Don’t put papers and other things that
burn into your ashtrays. If you do, ciga-
rettes or other smoking materials could
set them on fire, causing damage.
l Always close the ashtray. If left open, oth-
er cigarette butts in the ashtray may be re-
kindled.
To use the ashtray, open the lid. Mounting position for moveable ash-
tray
There is
a

mounting position on the front console
box. NOTE
l The
moveable ashtray

can also be fitted in
the cup holder for the rear seat (3-door mod-
els) and in the cup holder for the third seat (5-
door models). Refer to “Cup holder” on page
5-94. For pleasant driving
5-85 5

OBKE12E1

Cigarette lighter*
E00711501042
The cigarette lighter
can be used while the ignition
switch is in the “ON” or “ACC” position. 1- Open the lid
2- Push all the way in.
The cigarette

lighter will automatically return to its
original position with a “click” when ready. Pull it
out for use.
After use, insert the cigarette lighter to its original
position in the socket.
NOTE
l Do not leave the cigarette lighter removed
from its socket, because the socket might be-
come clogged by foreign material and be
short-circuited. CAUTION
l
Do not touch
the heating element or the
cigarette lighter housing, hold the knob
only to prevent burns.
l Do not allow children to operate or play
with the cigarette lighter as burns may oc-
cur.
l Something is wrong with the cigarette
lighter if it does not pop back out within
approximately 30 seconds of being push-
ed in. We recommend you to have it
checked.
l Do not use any electric appliance that is
not approved by MITSUBISHI
MOTORS. Doing so could damage the
socket. If you used the cigarette lighter af-
ter damaging the socket, the cigarette
lighter might pop out or fail to come out
after being pushed in.
l When the cigarette lighter socket is used
as a power source for an electric appli-
ance, be sure that the electric appliance
operates at 12 V and has an electric ca-
pacity of 120 W or less. In addition, long
use of the electric appliance without run-
ning the engine may run down the battery. Accessory socket
E00711600987
The accessory socket

can be used while the igni-
tion switch is in the “ON” or “ACC” position. CAUTION
l
Be aware
that
using electronic equipment
with the engine off may run the battery
down.
l When you connect an electrical device,
make sure it is rated at 12 V and its elec-
trical capacity does not exceed 120 W.
When using some sockets at the same
time, make sure the total power consump-
tion of the electrical accessories does not
exceed 120 W at 12 V.
l When the accessory socket is not in use,
be sure to close the cap or plug, because
the socket might become clogged by for-
eign material and be short-circuited.
NOTE l The
two or

more accessory sockets can be
used simultaneously. For pleasant driving
5-86
5

OBKE12E1

Type 1
Pull out
the
plug (A) in the instrument panel to un-
cover the socket. Use it to plug in an electrical device.
Instrument panel* Type 2
Open the
cap

(B) on the centre console box and the
side wall of the luggage compartment to uncover
the socket. Use it to plug in an electrical device.
Console box
Rear (3-door models)
Rear (5-door models) Interior lamps
E00712001015 1- Luggage compartment lamp
2- Rear personal lamps
3-
Door courtesy lamps
4-

Ceiling lamp (Type 1)*
5- Ceiling lamp (Type 2)*
6- Interior lamp switch Room & map lamps
7- Foot lamps*
NOTE l If you leave the interior lamps on without run-
ning the engine, you will run down the bat-
tery. Before you leave the vehicle, make sure
that all the interior lamps are off. For pleasant driving
5-87 5

OBKE12E1

Interior lamp switch
E00717300494
The interior lamp
switch can be used to turn the
room & map lamps and rear personal lamps on and
off. 1 ( ) - The room & map lamps and rear per-
sonal lamps go

on regardless of open-
ing and closing of the doors and back-
door. 2 (DOOR) - The room & map lamps and rear per-
sonal lamps go

on when any of the
doors or the backdoor is opened.
When all doors and backdoor are
closed, the room & map lamps and
rear personal lamps are illuminated
and dimmed gradually for
15 seconds and then go off.
However, the lamps go off immedi-
ately without being dimmed in the
following cases:
l The doors and backdoor are
closed and the ignition switch
is turned to the “ON” position.
l All the doors and the backdoor
are locked using the central
door lock function or the key-
less entry system (if so equip-
ped).
NOTE l On
vehicles with

keyless entry system, if the
ignition key is removed with the doors and
backdoor closed, the room & map lamps and
rear personal lamps are illuminated for
15 seconds and then go off.
The dimming period is also adjustable.
For further information, we recommend you
to consult a MITSUBISHI MOTORS Author-
ized Service Point.
l When the room & map lamp switch is in the
“ON” position, closing the doors and back-
door does not cause the room & map lamps
to go off. 3 ( ) -
The room & map lamps and rear per-
sonal lamps are

off regardless of
opening and closing of the doors and
backdoor.
NOTE l When
the room

& map lamp switch is in the
“ON” position, the interior lamp switch can-
not be used to turn off the room & map lamps.
Room & map lamps E00717400062
With the doors and backdoor closed and the interi-
or lamp switch

in the “DOOR” or “ ” position,
pressing the

lens (A) illuminates the room & map
lamps and pressing the lens again turns them off.
If any of the doors or the backdoor is opened with
the interior lamp switch in the “DOOR” position,
the room & map lamps illuminate. When it is
closed, the room & map lamps are dimmed gradual-
ly for 15 seconds and then go off. For pleasant driving
5-88
5

OBKE12E1

NOTE
l When
any of
the doors or the backdoor is
opened and the interior lamp switch in the
“ ” position, the room & map lamps remain
on even when the lens is pressed.
Rear personal lamps E00712600290
With the

doors and backdoor closed and the interi-
or lamp switch

in the “DOOR” position, pressing
the lens (A) makes the lamp go on and pressing the
lens again makes it go off. If any of the doors or the backdoor is opened, the
lamps go
on.

When it is subsequently closed, the
lamps are dimmed gradually for 15 seconds then
go off.
Type 1 *: Front of the vehicle
Type 2
*: Front of the vehicle
NOTE l When
the interior

lamp switch is in the “ ”
position, the lamp

remains off even when the
lens (A) is pressed and any of the doors or
the backdoor is opened. Luggage compartment lamp
E00712700536 1 ( ) - The lamp illuminates.
2 ( o ) - The lamp goes on when any of the doors or the

backdoor is opened.
When all the doors and the backdoor
are closed, the lamp is illuminated
for 15 seconds, then goes off.
However, the lamp goes off immedi-
ately without being dimmed in case
of the followings:
l The ignition switch is turned
to the “ON” position.
l All the doors and the backdoor
are locked using the central
door lock function or the key-
less entry system (if so equip-
ped). For pleasant driving
5-89 5

OBKE12E1
