No. Symbol Electrical sys-
tem Capacity
21 — — —
22 Windscreen
wiper 20 A
23 Tail lamp (right) 7.5 A
24 Tail lamp (left) 7.5 A
25 Headlamp low
beam (right) 10 A
*2
20 A *3
26 Headlamp low
beam (left) 10 A
*2
20 A *3
27 Headlamp high-
beam (right) 10 A
28 Headlamp high-
beam (left) 10 A
29 Audio
30 A*1
30 Heater
50 A*1
*1 : Fusible link
*2 : Vehicles without discharge headlamps
*3 : Vehicles with discharge headlamps l
Some fuses
may not be installed on your ve-
hicle, depending on the vehicle model or spec-
ifications. l
The
table above
shows the main equipment
corresponding to each fuse.
Engine compartment fuse location (Type B) No. Symbol Electrical sys-
tem Capacity
31 Anti-lock brake
system
60 A
*
32 Brake system
40 A*
33 Glow relay
80 A*
* : Fusible link l
Some fuses
may
not be installed on your ve-
hicle, depending on the vehicle model or spec-
ifications.
l The table above shows the main equipment
corresponding to each fuse.
Identification of fuse E01008100164 Capacity Colour
7.5 A Brown Capacity Colour
10 A Red
15 A Blue
20 A Yellow (fuse type)/Light blue (fusible link type)
25 A Transparent
30 A Green (fuse type)/
Pink (fusible link type)
40 A Green
50 A Red
60 A Yellow
80 A Black
140 A Reddish brown Fuse replacement
E01007800702
1. Before replacing a fuse, always turn off the
electrical circuit

concerned and place the ig-
nition switch in the “LOCK” position.
2. Pull the fuse block lid (A) to remove it.
3. Remove the fuse puller (B) from the fuse block lid. Maintenance
8-22
8

OBKE12E1

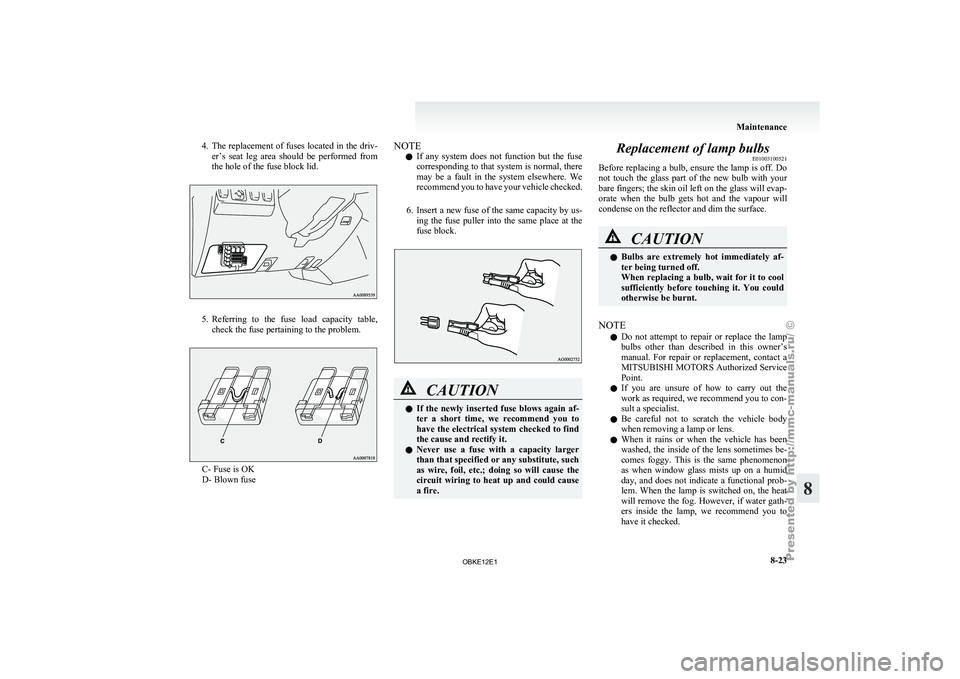

4. The replacement of fuses located in the driv-
er’s seat leg area should be performed from
the hole of the fuse block lid. 5. Referring to
the
fuse load capacity table,
check the fuse pertaining to the problem. C- Fuse is OK
D- Blown fuse NOTE
l If any
system

does not function but the fuse
corresponding to that system is normal, there
may be a fault in the system elsewhere. We
recommend you to have your vehicle checked.
6. Insert a new fuse of the same capacity by us- ing the fuse puller into the same place at the
fuse block. CAUTION
l
If the
newly
inserted fuse blows again af-
ter a short time, we recommend you to
have the electrical system checked to find
the cause and rectify it.
l Never use a fuse with a capacity larger
than that specified or any substitute, such
as wire, foil, etc.; doing so will cause the
circuit wiring to heat up and could cause
a fire. Replacement of lamp bulbs
E01003100521
Before replacing a

bulb, ensure the lamp is off. Do
not touch the glass part of the new bulb with your
bare fingers; the skin oil left on the glass will evap-
orate when the bulb gets hot and the vapour will
condense on the reflector and dim the surface. CAUTION
l
Bulbs are
extremely
hot immediately af-
ter being turned off.
When replacing a bulb, wait for it to cool
sufficiently before touching it. You could
otherwise be burnt.
NOTE l Do
not attempt

to repair or replace the lamp
bulbs other than described in this owner’s
manual. For repair or replacement, contact a
MITSUBISHI MOTORS Authorized Service
Point.
l If you are unsure of how to carry out the
work as required, we recommend you to con-
sult a specialist.
l Be careful not to scratch the vehicle body
when removing a lamp or lens.
l When it rains or when the vehicle has been
washed, the inside of the lens sometimes be-
comes foggy. This is the same phenomenon
as when window glass mists up on a humid
day, and does not indicate a functional prob-
lem. When the lamp is switched on, the heat
will remove the fog. However, if water gath-
ers inside the lamp, we recommend you to
have it checked. Maintenance
8-23 8

OBKE12E1

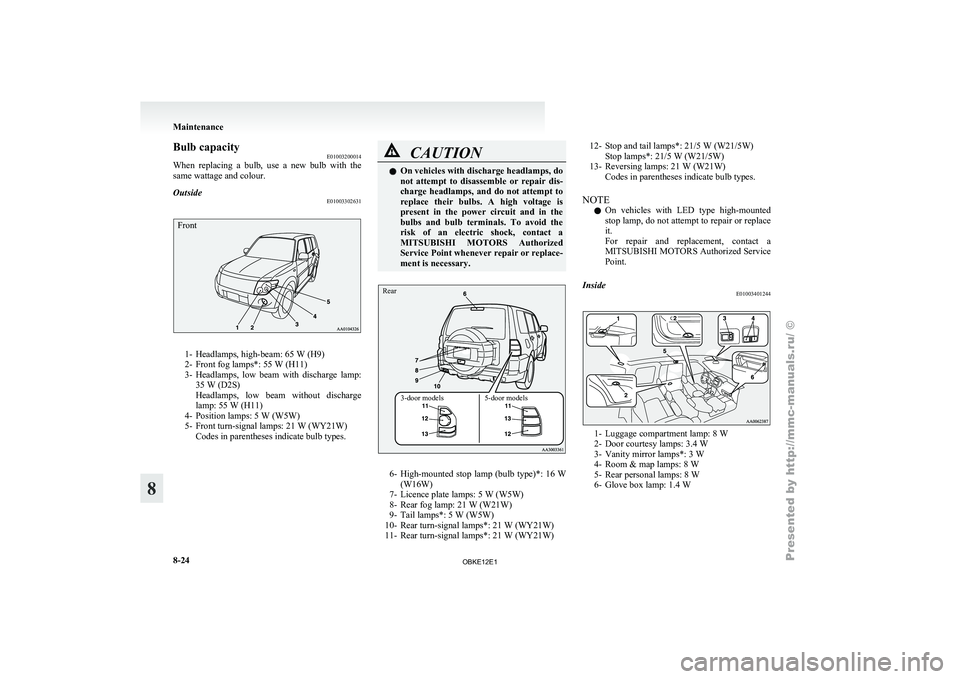

Bulb capacity
E01003200014
When replacing a
bulb, use a new bulb with the
same wattage and colour.
Outside E01003302631
Front1- Headlamps, high-beam: 65 W (H9)
2- Front fog lamps*: 55 W (H11)
3-
Headlamps,

low beam with discharge lamp:
35 W (D2S)
Headlamps, low beam without discharge
lamp: 55 W (H11)
4- Position lamps: 5 W (W5W)
5- Front turn-signal lamps: 21 W (WY21W) Codes in parentheses indicate bulb types. CAUTION
l
On vehicles with discharge headlamps, do
not attempt to

disassemble or repair dis-
charge headlamps, and do not attempt to
replace their bulbs. A high voltage is
present in the power circuit and in the
bulbs and bulb terminals. To avoid the
risk of an electric shock, contact a
MITSUBISHI MOTORS Authorized
Service Point whenever repair or replace-
ment is necessary.
3-door models 5-door models
Rear
6- High-mounted stop
lamp
(bulb type)*: 16 W
(W16W)
7- Licence plate lamps: 5 W (W5W)
8- Rear fog lamp: 21 W (W21W)
9- Tail lamps*: 5 W (W5W)
10- Rear turn-signal lamps*: 21 W (WY21W)
11- Rear turn-signal lamps*: 21 W (WY21W) 12- Stop and tail lamps*: 21/5 W (W21/5W)
Stop lamps*: 21/5 W (W21/5W)
13- Reversing lamps: 21 W (W21W) Codes in parentheses indicate bulb types.
NOTE l On
vehicles

with LED type high-mounted
stop lamp, do not attempt to repair or replace
it.
For repair and replacement, contact a
MITSUBISHI MOTORS Authorized Service
Point.
Inside E01003401244 1- Luggage compartment lamp: 8 W
2- Door courtesy lamps: 3.4 W
3-
Vanity mirror lamps*:

3 W
4- Room & map lamps: 8 W
5- Rear personal lamps: 8 W
6- Glove box lamp: 1.4 W Maintenance
8-24
8

OBKE12E1

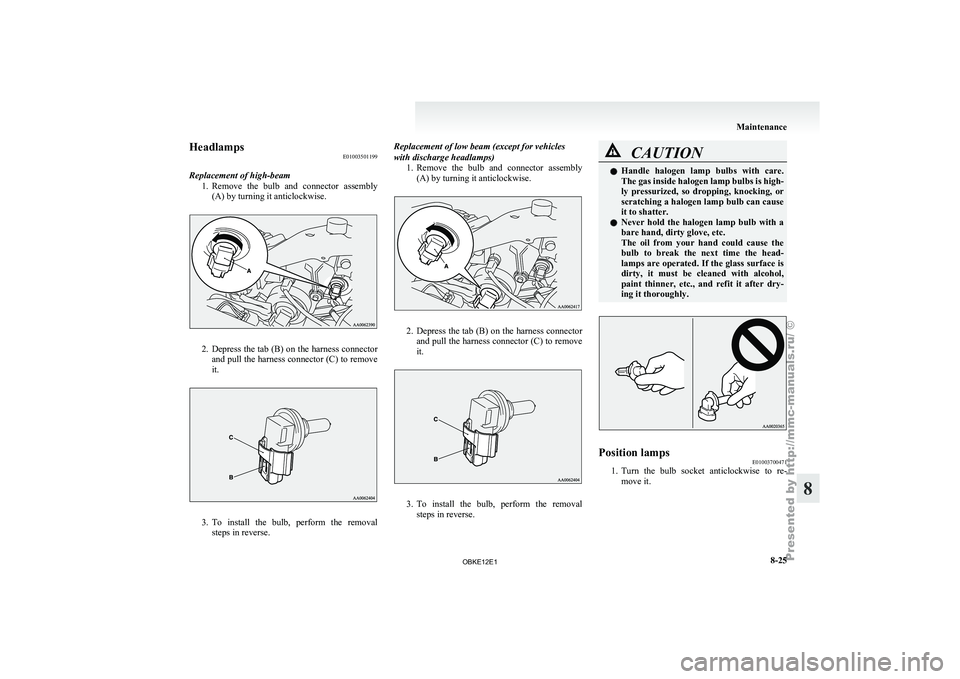

Headlamps
E01003501199
Replacement of high-beam 1. Remove the bulb
and connector assembly
(A) by turning it anticlockwise. 2. Depress the tab (B) on the harness connector
and pull

the harness connector (C) to remove
it. 3. To
install the bulb, perform the removal
steps in reverse. Replacement of low beam (except for vehicles
with discharge headlamps)
1.Remove the bulb

and connector assembly
(A) by turning it anticlockwise. 2. Depress the tab (B) on the harness connector
and pull

the harness connector (C) to remove
it. 3. To install the bulb, perform the removal
steps in reverse. CAUTION
l
Handle halogen lamp
bulbs with care.
The gas inside halogen lamp bulbs is high-
ly pressurized, so dropping, knocking, or
scratching a halogen lamp bulb can cause
it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the
bulb to break the next time the head-
lamps are operated. If the glass surface is
dirty, it must be cleaned with alcohol,
paint thinner, etc., and refit it after dry-
ing it thoroughly. Position lamps
E01003700471
1. Turn the bulb socket anticlockwise to re-
move it. Maintenance
8-25 8

OBKE12E1

2. Remove the bulb from the socket by pulling
out. 3. To install the bulb, perform the removal
steps in reverse.
Front turn-signal lamps E01003800733
1. Turn
the
bulb socket anticlockwise to re-
move it.
2. Remove

the bulb from the socket by pulling
out. 3. To install the bulb, perform the removal
steps in reverse.
Front fog lamps* E01004001553
1. Remove the

5 clips (A, C) and screw (B) by
following procedures

then turn up the cover
(D). 2. Depress the tab (E) on the harness connector
(F) and

pull the harness connector to remove
it. 3. Remove the entire socket and bulb assembly
(G) by turning it anticlockwise. CAUTION
l
Handle halogen
lamp
bulbs with care.
The gas inside halogen lamp bulbs is high-
ly pressurized, so dropping, knocking, or
scratching a halogen lamp bulb can cause
it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the
bulb to break the next time the fog lamps
are operated. If the glass surface is dirty,
it must be cleaned with alcohol, paint thin-
ner, etc., and refit it after drying thorough-
ly. Maintenance
8-26
8

OBKE12E1

4. To install the bulb, perform the removal
steps in reverse.
NOTE l When
refitting
the clips (H and I) of the cov-
er, push the pin (J). Rear combination lamps
E01004200659
On corner side 1.Remove the screws that hold the lamp unit.
2. Slide

the lamp unit out sideways to remove it.
Left side
Right side 3. Remove the socket and bulb assemblies by
turning them
anticlockwise. Remove the
bulb by pulling it out.
3-door models 5-door models A- Rear turn-signal lamp*
B- Stop and tail lamp* Stop lamp*
C- Reversing lamp
4.

To install the bulb, perform the removalsteps in reverse.
On bumper* 1. Remove the lens mounting screws. Maintenance
8-27 8

OBKE12E1

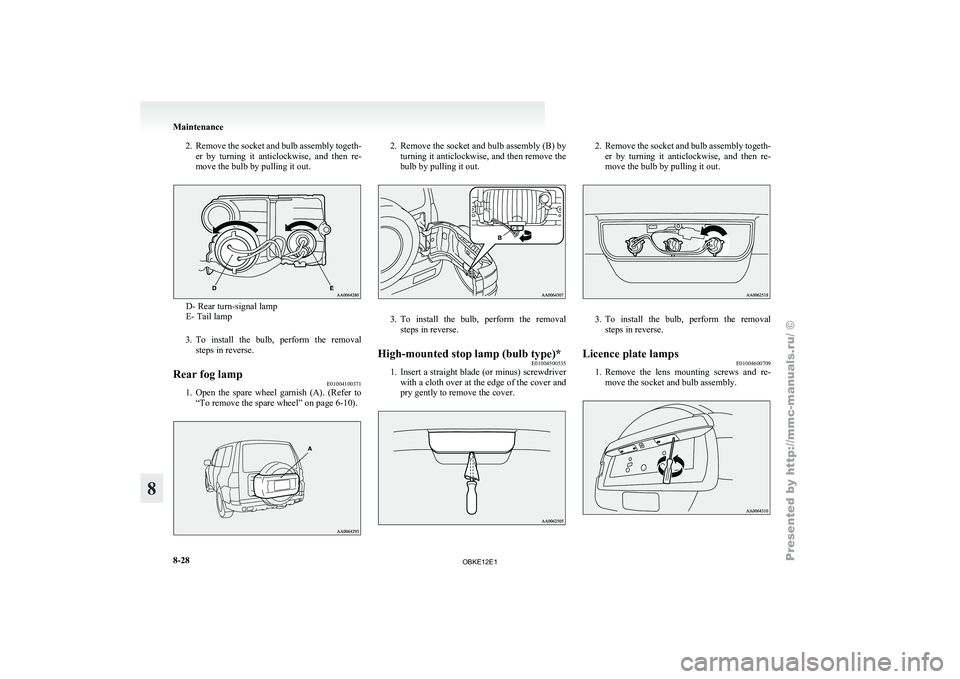

2. Remove the socket and bulb assembly togeth-
er by turning it anticlockwise, and then re-
move the bulb by pulling it out. D- Rear turn-signal lamp
E- Tail lamp
3. To install the

bulb, perform the removal
steps in reverse.
Rear fog lamp E01004100371
1. Open the spare wheel garnish (A). (Refer to
“To remove the spare wheel” on page 6-10). 2. Remove the socket and bulb assembly (B) by
turning it
anticlockwise, and then remove the
bulb by pulling it out. 3. To install the bulb, perform the removal
steps in reverse.
High-mounted stop lamp (bulb type)* E01004500535
1. Insert
a

straight blade (or minus) screwdriver
with a

cloth over at the edge of the cover and
pry gently to remove the cover. 2. Remove the socket and bulb assembly togeth-
er by
turning it anticlockwise, and then re-
move the bulb by pulling it out. 3. To install the bulb, perform the removal
steps in reverse.
Licence plate lamps E01004600709
1. Remove
the

lens mounting screws and re-
move the socket and bulb assembly. Maintenance
8-28
8

OBKE12E1

2. Remove the socket and bulb assembly (A) to-
gether by turning it anticlockwise and then re-
move the bulb by pulling it out. 3. To install the bulb, perform the removal
steps in reverse. NOTE
l When
installing the
lens, make sure the direc-
tion of the lens is installed as shown in the il-
lustration. *: Right side of the vehicle
Room & map lamps E01004700524
1. Insert a straight blade (or minus) screwdriver
with a

cloth over its tip into the lens and pry
gently to remove it. 2. Remove the bulb from the lamp holder.3. To install the bulb, perform the removal
steps in reverse.
NOTE l When installing

the lens, align the tab on the
lens with the hole on the vehicle side. Rear personal lamps
E01005200252
When replacing a bulb, keep the interior lamp
switch in the “ ” (OFF) position. Maintenance
