2011 MITSUBISHI PAJERO IV Owners Manual

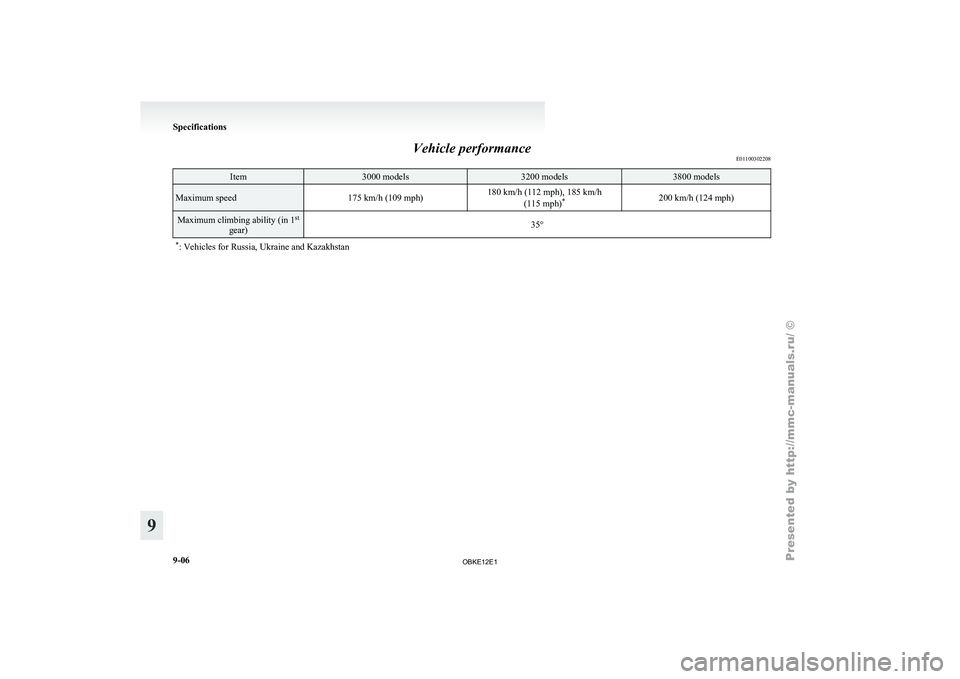

Vehicle performance
E01100302208Item 3000 models 3200 models 3800 models
Maximum speed
175 km/h (109 mph)180 km/h (112 mph), 185 km/h
(115 mph) *
200 km/h (124 mph)Maximum climbing ability (in 1
st
gear) 35°
* : Vehicles for Russia, Ukraine and Kazakhstan Specifications
9-06
9

OBKE12E1

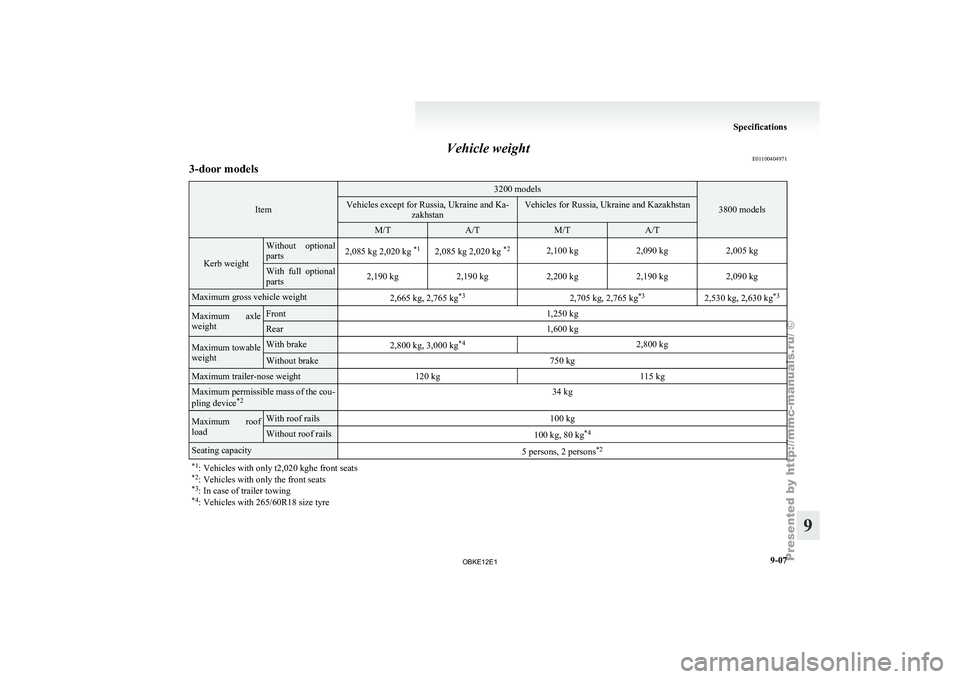

Vehicle weight
E01100404971
3-door models Item 3200 models
3800 modelsVehicles except for Russia, Ukraine and Ka-
zakhstan Vehicles for Russia, Ukraine and Kazakhstan
M/T A/T M/T A/T
Kerb weight Without optional
parts
2,085 kg 2,020 kg
*1
2,085 kg 2,020 kg *2
2,100 kg 2,090 kg2,005 kg With full optional
parts
2,190 kg
2,190 kg2,200 kg2,190 kg2,090 kgMaximum gross vehicle weight
2,665 kg, 2,765 kg*3
2,705 kg, 2,765 kg*3
2,530 kg, 2,630 kg *3Maximum axle
weight Front
1,250 kgRear
1,600 kgMaximum towable
weight With brake
2,800 kg, 3,000 kg*4
2,800 kgWithout brake
750 kgMaximum trailer-nose weight
120 kg 115 kgMaximum permissible mass of the cou-
pling device
*2 34 kgMaximum roof
load With roof rails
100 kgWithout roof rails
100 kg, 80 kg*4 Seating capacity
5 persons, 2 persons*2
*1 : Vehicles with only t2,020 kghe front seats
*2 : Vehicles with only the front seats
*3 : In case of trailer towing
*4 : Vehicles with 265/60R18 size tyre Specifications
9-07 9

OBKE12E1

NOTE
l Trailer specifications indicate the manufacturer’s recommendation.
5-door models Item 3000 models 3200 models
3800 modelsVehicles except for Russia, Uk-
raine and Kazakhstan Vehicles for Russia, Ukraine and
Kazakhstan M/T A/T M/T A/T M/T A/T
Kerb weight Without optional
parts
2,100 kg 2,110 kg 2,280 kg,
2,185 kg *1 2,265 kg,
2,170 kg *1
2,265 kg 2,255 kg 2,160 kg With full optional
parts
2,200 kg 2,210 kg 2,395 kg,
2,300 kg *1 2,380 kg,
2,285 kg *1
2,390 kg 2,380 kg 2,270 kgMaximum gross vehicle weight
2,810 kg, 2,835 kg*2
3,030 kg, 3,130 kg*2 2,910 kg,
3,010 kg *2 Maximum axle
weight Front
1,250 kg 1,330 kg1,300 kgRear
1,650 kg, 1,765 kg*2
1,780 kg, 1,925 kg*2Maximum towable
weight With brake
1,800 kg
3,300 kg*3
, 3,500 kg *4
3,300 kgWithout brake
750 kgMaximum trailer-nose weight
75 kg140 kg 135 kgMaximum permissible mass of the cou-
pling device
*1 34 kgMaximum roof
load With roof rails
100 kgWithout roof rails
100 kg*3
, 80 kg *4 Seating capacity
7 persons, 2 persons*1
*1 : Vehicles with only the front seats
*2 : In case of trailer towing
*3 : Vehicles with 265/65R17 size tyre
*4 : Vehicles with 265/60R18 size tyre Specifications
9-08
9

OBKE12E1

NOTE
l Trailer specifications indicate the manufacturer’s recommendation. Specifications
9-09 9

OBKE12E1

Engine specifications
E01100602575Item 3000 models 3200 models 3800 models
Engine model
6G724M416G75No. of cylinders
6-V (60 °)4 in line6-V (60 °)Total displacement
2,972 cc3,200 cc3,828 ccBore
91.1 mm98.5 mm95.0 mmStroke
76.0 mm105.0 mm90.0 mmCamshaft
Single overheadDouble overheadSingle overheadMixture preparation
Electronic injectionElectronic injectionElectronic injectionMaximum output (EEC net)
131 kW/5,250 r/min147 kW/3,800 r/min182 kW/6,000 r/min
*1
184 kW/6,000 r/min *2Maximum torque (EEC net)
261 Nm/4,000 r/min441 Nm/2,000 r/min329 Nm/2,750 r/min
*1 : 3-door models
*2 : 5-door models Specifications
9-10
9

OBKE12E1

Electrical system
E01100802320Item 3000 models 3200 models 3800 models
Voltage
12 VBattery Type (JIS)
75D23L, 80D26L*
80D26L 75D23L, 80D26L* Capacity (5HR)
52 Ah, 55 Ah*
55 Ah 52 Ah, 55 Ah* Alternator capacity
120 A130 A120 ASpark plug type NGK
DIFR6C11—IFR6B-K
* : Optional equipment Specifications
9-11 9

OBKE12E1

Tyres and wheels
E01100902897Tyre
265/65R17 112H, 265/65R17 112S265/60R18 110HWheel Size
17x7 1/2J18x7 1/2J Offset
46 mmNOTE
l Contact your MITSUBISHI MOTORS Authorized Service Point for details on the combination used on your vehicle. Specifications
9-12
9

OBKE12E1

Fuel consumption
E01101100661
3-door models Model Combined Urban conditions Extra-urban conditions
CO
2 (g/km) Fuel consumption
(L/100 km) CO
2 (g/km) Fuel consumption
(L/100 km) CO
2 (g/km) Fuel consumption
(L/100 km) 3200 models M/T
*1
207 7.8251 9.5181 6.9 M/T
*2
221 8.4271 10.3 1937.3 A/T
*1
216 8.2263 10.0 1897.2 A/T
*2
239 9.0286 10.8 2128.0 A/T
*3
220 8.4262 10.0 1967.43800 models
32213.4 42017.6 26711.2
*1 : Vehicles except for Russia, Ukraine and Kazakhstan
*2 : Vehicles for Russia, Ukraine and Kazakhstan
*3 : Vehicles with only the front seat NOTE
l The values shown above apply to a vehicle on which optional equipment has not been fitted.
l The results given do not express or imply any guarantee of the fuel consumption of the particular vehicle.
The
vehicle itself
has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this vehicle may incor-
porate particular modifications. Furthermore, the driver’s style and road and traffic conditions, as well as the extent to which the vehicle has been driven and
the standard of maintenance, will all affect its fuel consumption. Specifications
