2011 MITSUBISHI PAJERO IV Owners Manual

1. Insert a straight blade (or minus) screwdriver
with a cloth over its tip into the notch of the
lens and pry gently to remove it. 2. Remove the bulb from the lamp holder.
3. To install
the

bulb, perform the removal
steps in reverse.
NOTE l When installing the lens, align the tab on the
lens with the hole on the vehicle side. Luggage compartment lamp
E01005300439
1. Insert a straight

blade (or minus) screwdriver
with a cloth over its tip into the notch of the
lens and pry gently to remove the lens. 2. Remove the bulb from the lamp holder.
3. To
install the

bulb, perform the removal
steps in reverse. NOTE
l When
installing the

lens, align the tabs on
the lens with the holes on the vehicle side. Door courtesy lamps
E01005400339
1. Insert a straight blade (or minus) screwdriver
with a

cloth over its tip into the edge of the
lens, pry gently to remove the lens.
Front Maintenance
8-30
8

OBKE12E1

Rear2. Remove the bulb from the lamp holder.
3. To install
the

bulb, perform the removal
steps in reverse.
NOTE l When installing the lens, align the 2 tabs on
the lens with the notches on the vehicle side. Glove box lamp
E01006100232
1. Pull out the bulb. 2. To
install the bulb, perform the removal
steps in reverse.
Vanity mirror lamps* E01006200262
1. Insert
a

straight blade (or minus) screwdriver
with a

cloth over its tip into the notch of the
lens and pry gently to remove it. 2. Remove the bulb from the lamp holder.
3. To install the

bulb, perform the removal
steps in reverse. Maintenance
8-31 8

OBKE12E1

OBKE12E1

Vehicle labeling
............................................................................ 9-02
Vehicle dimensions....................................................................... 9-04
Vehicle performance ..................................................................... 9-06
Vehicle weight .............................................................................. 9-07
Engine specifications .................................................................... 9-10
Electrical system ........................................................................... 9-11
Tyres and wheels
.......................................................................... 9-12
Fuel consumption ......................................................................... 9-13
Refill capacities ............................................................................ 9-15Specifications
9

OBKE12E1

Vehicle labeling
E011001028861. Vehicle identification number
The vehicle
identification
number is stamped on
the bulkhead as shown in the illustration.
2. Vehicle information code plate
The vehicle information code plate is clipped as
shown in the illustration.
The plate shows model code, engine model, trans-
mission model and body colour code, etc. Please use this number when ordering replacement
parts. 1- Model code
2- Engine model code
3-
Transmission model code
4-

Body colour code
5- Interior code
6- Option code
7- Exterior code Vehicle identification number plate
(RHD vehicles only)
The vehicle identification

number is stamped on
the plate riveted to the left front corner of the instru-
ment panel pad. It is visible from outside of the ve-
hicle through the windscreen. Engine number
The engine
number

is stamped on the engine cylin-
der block as shown in the illustrations.
3000 models Specifications
9-02
9

OBKE12E1

3200 models
3800 modelsSpecifications
9-03 9

OBKE12E1

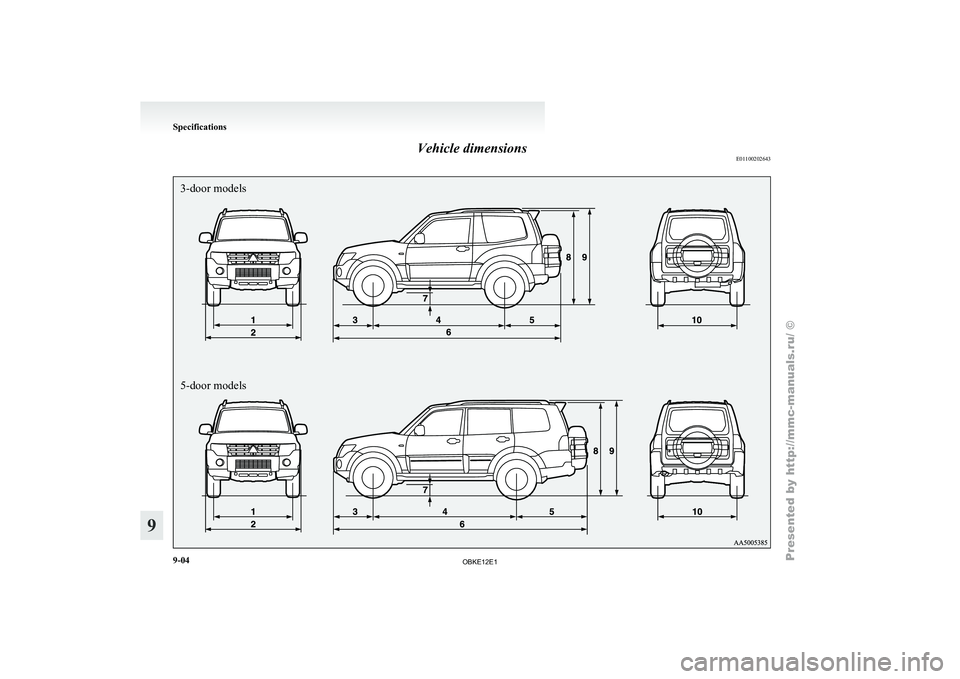

Vehicle dimensions
E011002026433-door models
5-door modelsSpecifications
9-04
9

OBKE12E1

Item 3-door models 5-door models
1 Front track 3000 models
—1,560 mm 3200 models, 3800 models
1,560 mm1,570 mm2 Overall width Without side protector moulding
1,845 mm— With side protector moulding
1,875 mm3 Front overhang
765 mm4 Wheel base
2,545 mm2,780 mm5 Rear overhang
1,075 mm1,355 mm6 Overall length
4,385 mm4,900 mm7 Ground clearance (unladen) 3000 models
—235 mm 3200 models
210 mm, 225 mm*1 3800 models
235 mm8
Overall height Without roof rails 3000 models
—1,870 mm 3200 models
1,840 mm, 1,850 mm*1
,
1,860 mm *2 1,860 mm, 1,870 mm
*1
,
1,880 mm *2 3800 models
1,850 mm1,870 mm9 With roof rails 3000 models
—1,900 mm 3200 models
1,870 mm, 1,880 mm*1
,
1,890 mm *2 1,890 mm, 1,900 mm
*1
,
1,910 mm *2 3800 models
1,880 mm1,900 mm10 Rear track 3000 models
—1,560 mm 3200 models, 3800 models
1,560 mm1,570 mmMinimum turning radius Body
5.7 m6.1 m Wheel
5.3 m5.7 m
*1 : Vehicles for Russia, Ukraine and Kazakhstan
*2 : Vehicles with only the front seats Specifications
