Controls and display
N00533100093
1- Electronic compass
This display shows the compass direction of the vehicle.
2- Digital clock → P.3-90
3- Road surface freeze warning → P.3-92
4- Outside temperature → P.3-92
5- Audio
This display shows the audio condition.
Refer to “Audio” on page 3-96.
6- Display for function buttons
This display shows the options available for each function
button.
7- Function buttons
These buttons can select the options shown in the display.8- Maintenance reminder → P. 3 - 1 1 5
It is possible to set the dates when maintenance tasks (engine
oil replacement, oil filter replacement, etc.) were last per-
formed and the driving distances before the maintenance
tasks have to be performed again.
“Record maintenance” → P. 3 - 1 1 5
9- DISP button
This button can change the display.
“Change of display” → P.3-89
“Setting and customization” → P.3-108
BK0121600US.book 88 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-89
3
Change of display
N00533200052
Every time the “DISP” button is pressed lightly, the display can
be changed to the following:1- Main display
2- Electronic compass → P.3-93
3- Air conditioning → P. 3 - 9 5
4- Audio → P.3-96
5- Digital clock/Calendar → P.3-90
6- Digital clock → P.3-90
7- Trip computer → P.3-96
1
2
3
4
5
6
7
BK0121600US.book 89 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

3-90 Features and controls
3
Change of display brightness modeWhen the light switch is in the “ ” or “ ” position, press-
ing the “BRIGHT” function button causes the brightness to
change to that seen when the headlight switch is “OFF”.
To return the brightness to the original level, press the
“BRIGHT” function button again.NOTE
When the light switch is “OFF”, the “BRIGHT” function
button is not displayed.
Digital clock/Calendar
N00522200049
The digital clock (A) is shown with all displays.
The calendar (B) is shown only with the calendar and digital
clock display.NOTE
Disconnecting the battery cable causes the time and date
memory to be erased. If it has been disconnected, readjust
the date and time by following the procedure.
BK0121600US.book 90 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-91
3
Adjusting the timeNOTE
Every time the “DISP” button is pressed lightly, the moni-
tor will return to the previous display.
1. Press the “HOUR” function button to adjust the hour set-
ting. Press the “MIN” function button to adjust the minute
setting.2. Press the “HOUR+/MIN+” or “HOUR-/MIN-” function
button to change to the desired number. Pressing
“HOUR+/MIN+” or “HOUR-/MIN-” function button for
more than 2 seconds will fast forward to the desired
change. To change AM to PM, keep pressing to advance
the time.
When the hour has been adjusted, press the “SET” func-
tion button. The display will return to its previous display.
NOTE
Seconds are not displayed, but the count begins from 0
seconds when the “SET” function button is pressed.Adjusting the calendarRefer to “Date setting” on page 3-130.
CAUTION
!
It is dangerous to adjust the time while driving the
vehicle. Adjust the time when the vehicle is safely
parked.
Display for adjustment of minute setting
BK0121600US.book 91 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

3-92 Features and controls
3

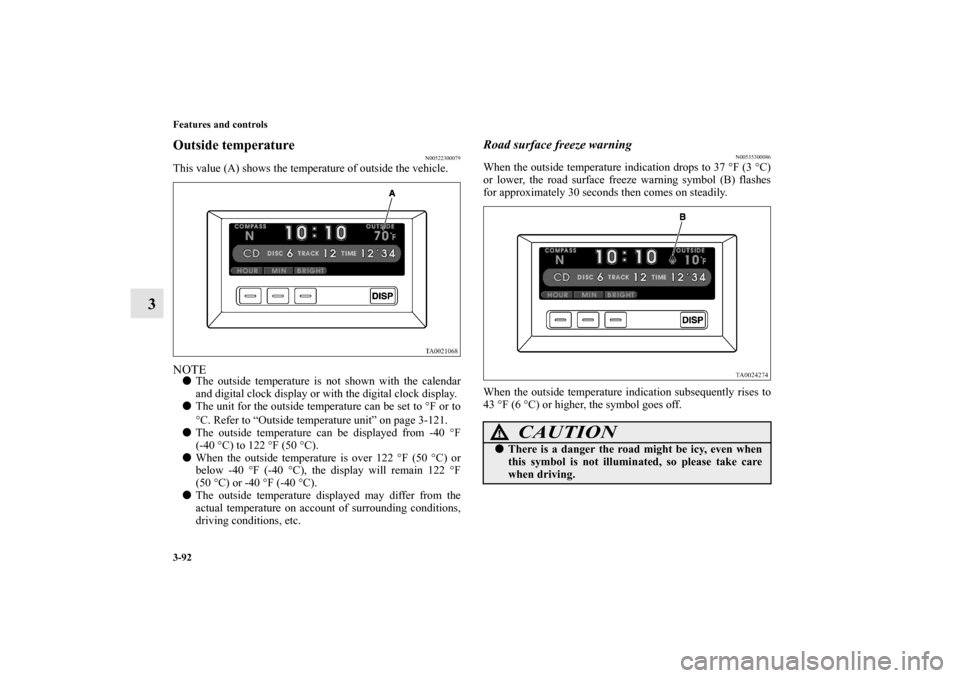

Outside temperature
N00522300079
This value (A) shows the temperature of outside the vehicle.NOTE
The outside temperature is not shown with the calendar
and digital clock display or with the digital clock display.

The unit for the outside temperature can be set to °F or to
°C. Refer to “Outside temperature unit” on page 3-121.

The outside temperature can be displayed from -40 °F
(-40°C) to 122 °F (50 °C).

When the outside temperature is over 122 °F (50 °C) or
below -40 °F (-40 °C), the display will remain 122 °F
(50°C) or -40 °F (-40 °C).

The outside temperature displayed may differ from the
actual temperature on account of surrounding conditions,
driving conditions, etc.
Road surface freeze warning
N00535300086
When the outside temperature indication drops to 37 °F (3 °C)
or lower, the road surface freeze warning symbol (B) flashes
for approximately 30 seconds then comes on steadily.
When the outside temperature indication subsequently rises to
43 °F (6 °C) or higher, the symbol goes off.
CAUTION
!
There is a danger the road might be icy, even when
this symbol is not illuminated, so please take care
when driving.
BK0121600US.book 92 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-93
3
NOTE
If the condition for illumination of the road surface freeze
warning symbol is satisfied while the monitor is set to not
give a display, the symbol just flashes for approximately
30 seconds then goes off.Electronic compass
N00522400113

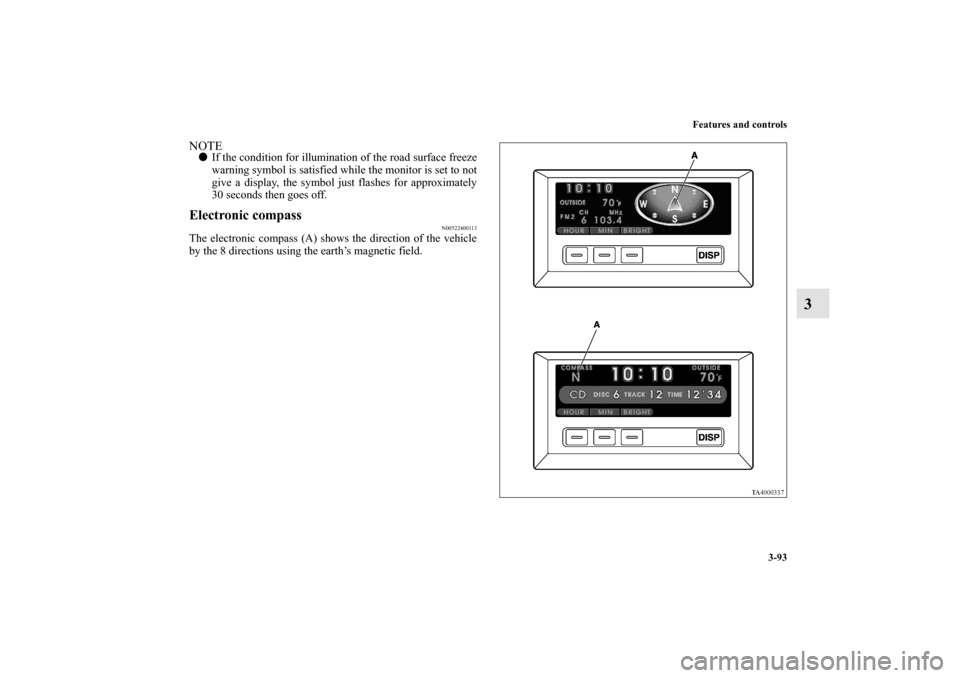

The electronic compass (A) shows the direction of the vehicle
by the 8 directions using the earth’s magnetic field.
BK0121600US.book 93 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

3-94 Features and controls
3

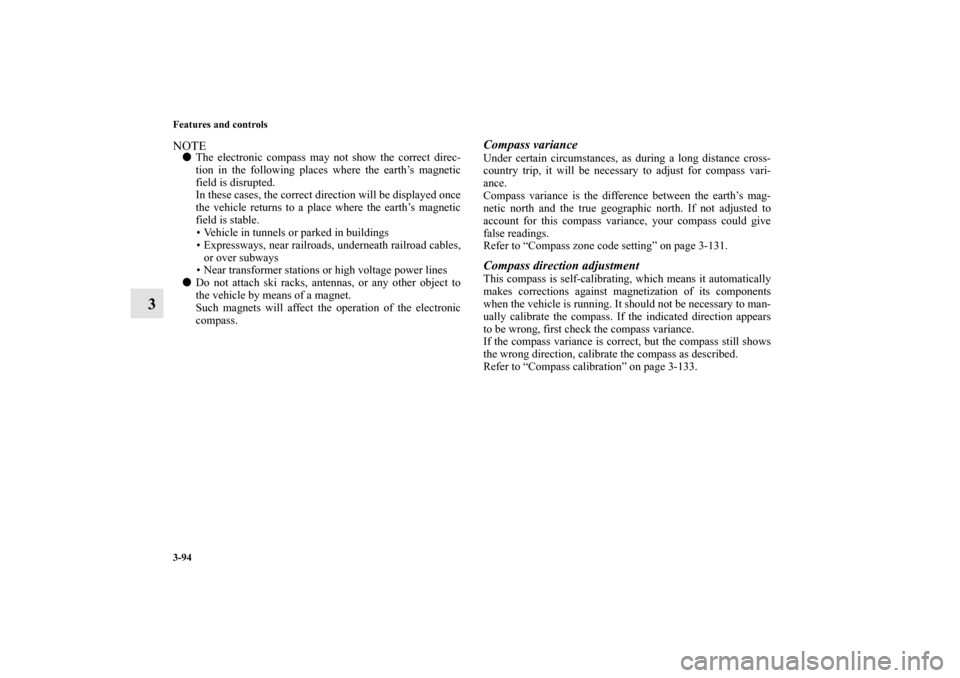

NOTE
The electronic compass may not show the correct direc-
tion in the following places where the earth’s magnetic
field is disrupted.
In these cases, the correct direction will be displayed once
the vehicle returns to a place where the earth’s magnetic
field is stable.
• Vehicle in tunnels or parked in buildings
• Expressways, near railroads, underneath railroad cables,
or over subways
• Near transformer stations or high voltage power lines

Do not attach ski racks, antennas, or any other object to
the vehicle by means of a magnet.
Such magnets will affect the operation of the electronic
compass.
Compass varianceUnder certain circumstances, as during a long distance cross-
country trip, it will be necessary to adjust for compass vari-
ance.
Compass variance is the difference between the earth’s mag-
netic north and the true geographic north. If not adjusted to
account for this compass variance, your compass could give
false readings.
Refer to “Compass zone code setting” on page 3-131.Compass direction adjustmentThis compass is self-calibrating, which means it automatically
makes corrections against magnetization of its components
when the vehicle is running. It should not be necessary to man-
ually calibrate the compass. If the indicated direction appears
to be wrong, first check the compass variance.
If the compass variance is correct, but the compass still shows
the wrong direction, calibrate the compass as described.
Refer to “Compass calibration” on page 3-133.
BK0121600US.book 94 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-95
3
Air conditioning (For vehicles with automatic air
conditioning)
N00533300082
This display shows the current status of the air conditioning.
For instruction on how to use the air conditioning, refer to
“Automatic air conditioning” on page 5-14.NOTE
If an air conditioning system adjustment is made when an
indication other than that for the air conditioning is
shown, the display gives the air conditioning indication
momentarily then returns to its previous display.1- Front defroster indicator
This illuminates when the vent is switched to (defroster).
2- Blower speed indicator
This display shows the level of air flow by the number of bar
lines.
3- Mode selection indicator
This indicates which mode has been selected.
4- AUTO mode indicator
This illuminates when the air conditioning is working in the
automatic mode (when both the blower switch and the mode
selection dial are switched to “AUTO”).
5- Rear window defogger indicator
This illuminates when the rear window defogger is switched
on. Refer to “Electric rear window defogger switch” on page
3-163.
6- Air selection indicator
This display indicates whether the air conditioning is taking
in air from outside or recirculating air from inside the pas-
senger compartment.
7- Preset temperature display
This display shows the preset temperature.
8- Air conditioning indicator
This illuminates when the air conditioning is operating.
