2011 MITSUBISHI ENDEAVOR Owners Manual

BK0121600US.book 6 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

9
Specifications
Vehicle labeling . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 2
Vehicle dimensions . . . . . . . . . . . . . . . . . . . . . . . .9- 4
Vehicle weights . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 5
Engine specifications . . . . . . . . . . . . . . . . . . . . . . .9- 6
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 7
Tires and wheels. . . . . . . . . . . . . . . . . . . . . . . . . . .9- 7
Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 8
BK0121600US.book 1 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

9-2 Specifications
9Vehicle labeling
N01147400540
Keep a record of the vehicle identification number as such
information will assist the police if your vehicle is stolen.1- Vehicle emission control information labelThe vehicle emission control information label is affixed on the
underside of the engine hood.2- Vehicle identification number plateThe vehicle identification number is stamped on the plate riv-
eted to the left front corner of the dashboard. It is visible from
outside of the vehicle through the windshield.3- Air conditioning labelThe air conditioning label is affixed on the inside panel of the
engine hood.
Engine serial numberThe engine serial number is stamped on the cylinder block as
shown in the illustration. *- Front of the vehicle
BK0121600US.book 2 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Specifications
9-3
9

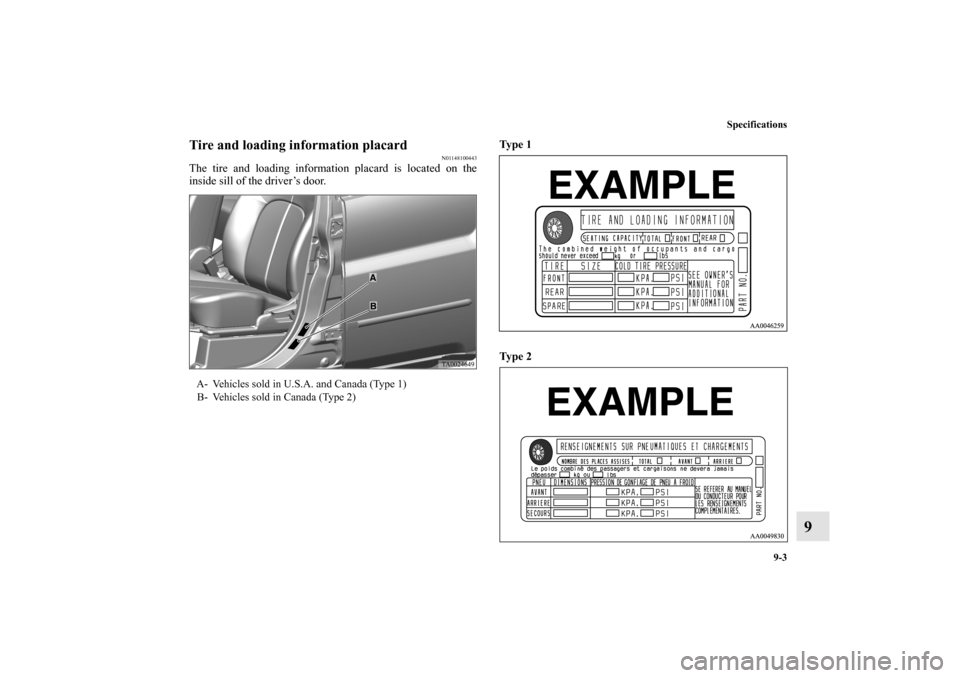

Tire and loading information placard
N01148100443
The tire and loading information placard is located on the
inside sill of the driver’s door. Ty p e 1

Ty p e 2
A- Vehicles sold in U.S.A. and Canada (Type 1)
B- Vehicles sold in Canada (Type 2)
BK0121600US.book 3 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

9-4 Specifications
9
Certification label
N01148200138
The certification label is located on the inside sill of the
driver’s door.
Vehicle dimensions
N01147500437
*1: Vehicles with 17 inch tires
*2: Vehicles with 18 inch tiresOverall length 190.8 in (4,846 mm) Overall width 73.6 in (1,870 mm)*
1
74.2 in (1,885 mm)*
2
Overall height
Without cross bars69.6 in (1,769 mm)*
1,
69.8 in (1,774 mm)*2
With cross bars 70.4 in (1,789 mm)
Wheel base 108.3 in (2,750 mm)
BK0121600US.book 4 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Specifications
9-5

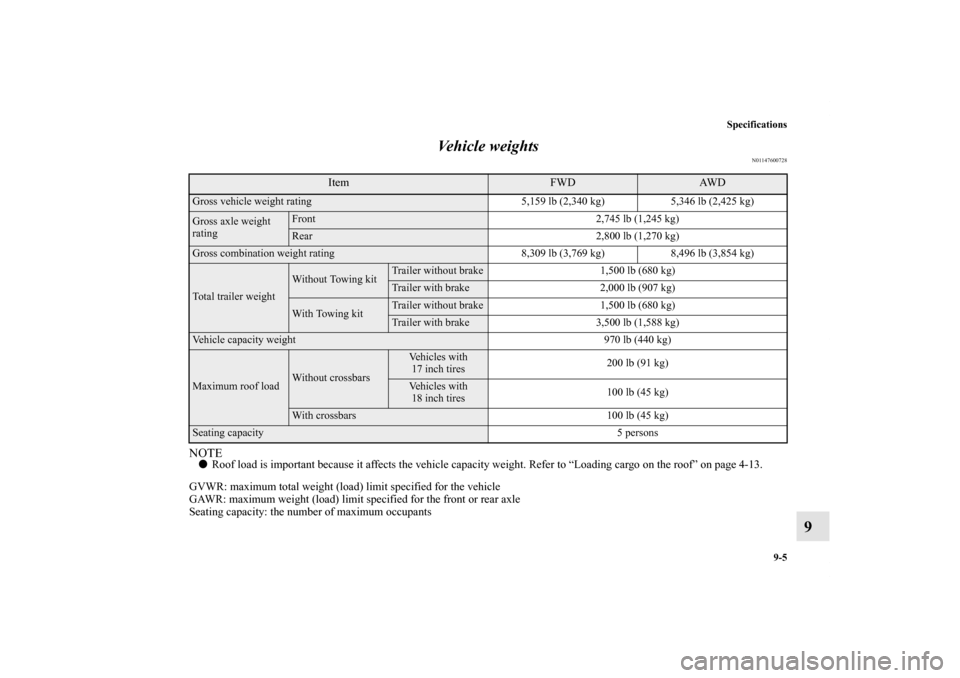

9 Vehicle weights
N01147600728
NOTE
Roof load is important because it affects the vehicle capacity weight. Refer to “Loading cargo on the roof” on page 4-13.
GVWR: maximum total weight (load) limit specified for the vehicle
GAWR: maximum weight (load) limit specified for the front or rear axle
Seating capacity: the number of maximum occupants
Item
FWD
AW D
Gross vehicle weight rating 5,159 lb (2,340 kg) 5,346 lb (2,425 kg)Gross axle weight
rating
Front 2,745 lb (1,245 kg)Rear 2,800 lb (1,270 kg)
Gross combination weight rating 8,309 lb (3,769 kg) 8,496 lb (3,854 kg)Total trailer weight
Without Towing kit
Trailer without brake 1,500 lb (680 kg)Trailer with brake 2,000 lb (907 kg)
With Towing kit
Trailer without brake 1,500 lb (680 kg)Trailer with brake 3,500 lb (1,588 kg)
Vehicle capacity weight 970 lb (440 kg)Maximum roof load
Without crossbars
Vehicles with
17 inch tires200 lb (91 kg)Vehicles with
18 inch tires100 lb (45 kg)
With crossbars 100 lb (45 kg)
Seating capacity5 persons
BK0121600US.book 5 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

9-6 Specifications
9Engine specifications
N01147700253
Engine model 6G75Engine displacement 233.6 CID (3,828 cm³)No. of cylinders and cylinder arrangement 6-V60°Bore 3.74 in (95.0 mm)Stroke 3.54 in (90.0 mm)Compression ratio 10.0Thermostat valve opening temperature 190.4 °F (88.0 °C)Spark plugs
NGK FR6EIDENSO K20PSR-B8
Spark plug gap .028 to .031 in (0.7 to 0.8 mm)Firing order 1-2-3-4-5-6SC00000400-9.fm 6 ページ ２０１０年４月１４日　水曜日　午前１０時４４分

Specifications
9-7
9 Battery
N01147800153
Battery is a 12 volt type.NOTE
There are various size of the batteries in the BCI Group
No.24.
When you replace the battery, confirm the size of the
replacement battery will not interfere with other compo-
nents in the engine compartment.
Tires and wheels
N01147900574
PCD: Pitch Circle Diameter (installation holes)NOTE
Contact an authorized Mitsubishi Motors dealer for details
on the combination used on your vehicle.

These tires satisfy vehicle loading conditions described in
this owner’s manual.
BCI Group No.24
TireP235/65R17 103S
P235/65R17 103TP255/55R18 104TWheel
Size 17 x 7JJ 18 x 8JJPCD 4.5 in (114.3 mm)Offset 1.81 in (46 mm) 1.38 in (35 mm)
